Quick Start Guide

1
iWAY™600CQuick Start Guide
The iWAY™600Cwas designed to be easy to use. The buttons along the
right side of the unit's screen open various menus, including turning
the unit on and off. However, the unit's touch screen will be used to
enter most commands.
The iWAY™600Ccan display aerial images.
1. SPEAK/VOLUME – Push this button to have the unit repeat the
current navigation instruction. Press and hold this key to adjust the
volume.
2. MAP/MUSIC – Press this key to switch between map and music
mode.

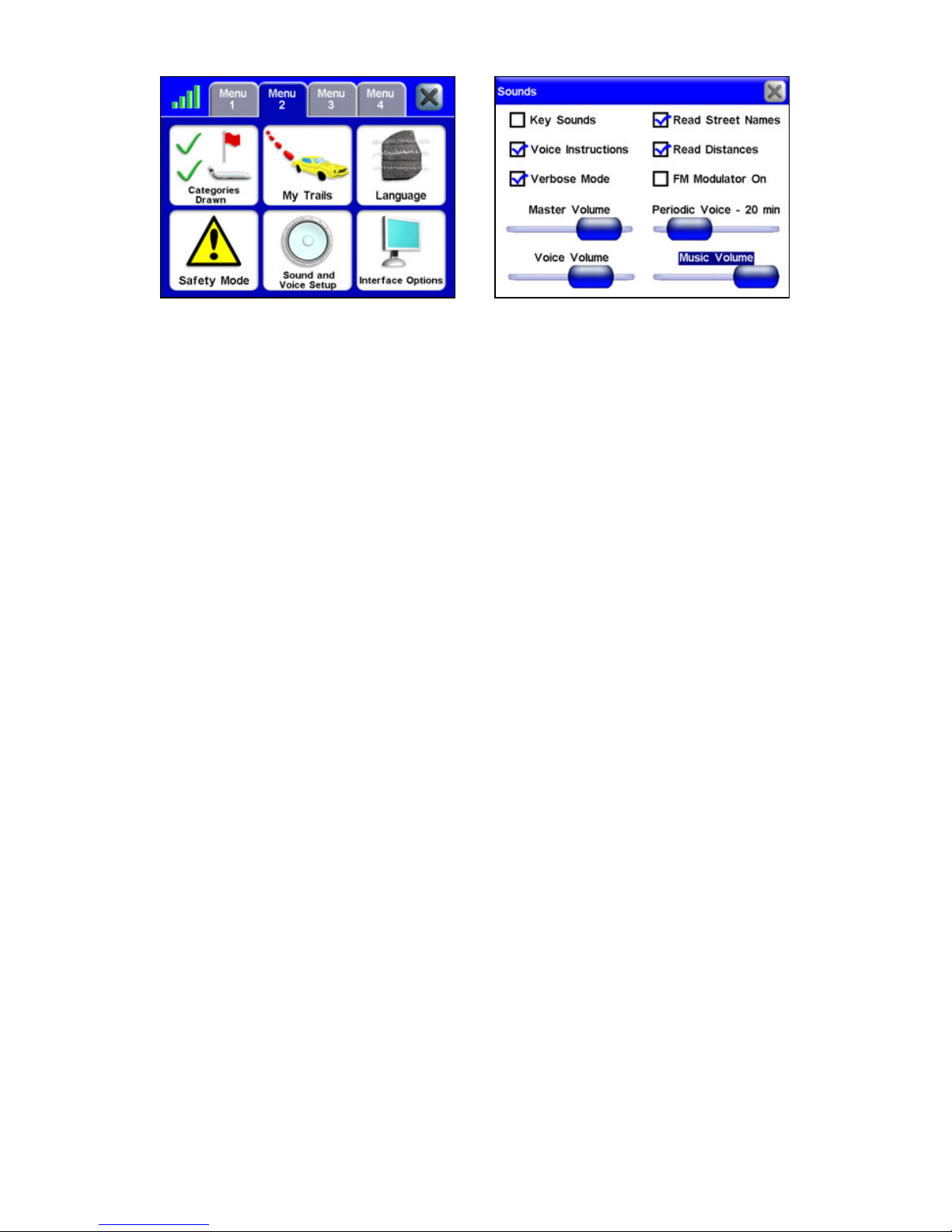

3. MENU – Press this key to access the Main Menu. From the Main
Menu you can select a command or adjust the unit's different features.
4. FIND – The Find key is used to search for different destinations.
Use this button to access the unit's three Find menus. Use this key to
access the address book to search for contacts you have created.
5. POWER/LIGHT – The Power key turns the unit on and off. It also
controls the backlight. Press POWER to turn the unit on. To activate the
backlight press POWER again.
The unit has three preset backlight levels. Repeatedly pressing POWER
will cycle through the backlight settings. To turn the unit off, press and
hold the POWER key for 3 seconds.
1
2
3
4
5

2
External connections on the back of the iWAY™600C.
Map and Music Mode
The unit has two main modes of operation: Map Mode and Music Mode.
To switch between these two modes, press the MAP/MUSIC button located
on the right side of the unit.
In Map Mode you can drag the map across the screen to focus on a spe-
cific area or point to a nearby restaurant to get detailed information
and navigate to it. Since the touch screen responds to pressure, you will
have to actually push against the screen to scroll the map.

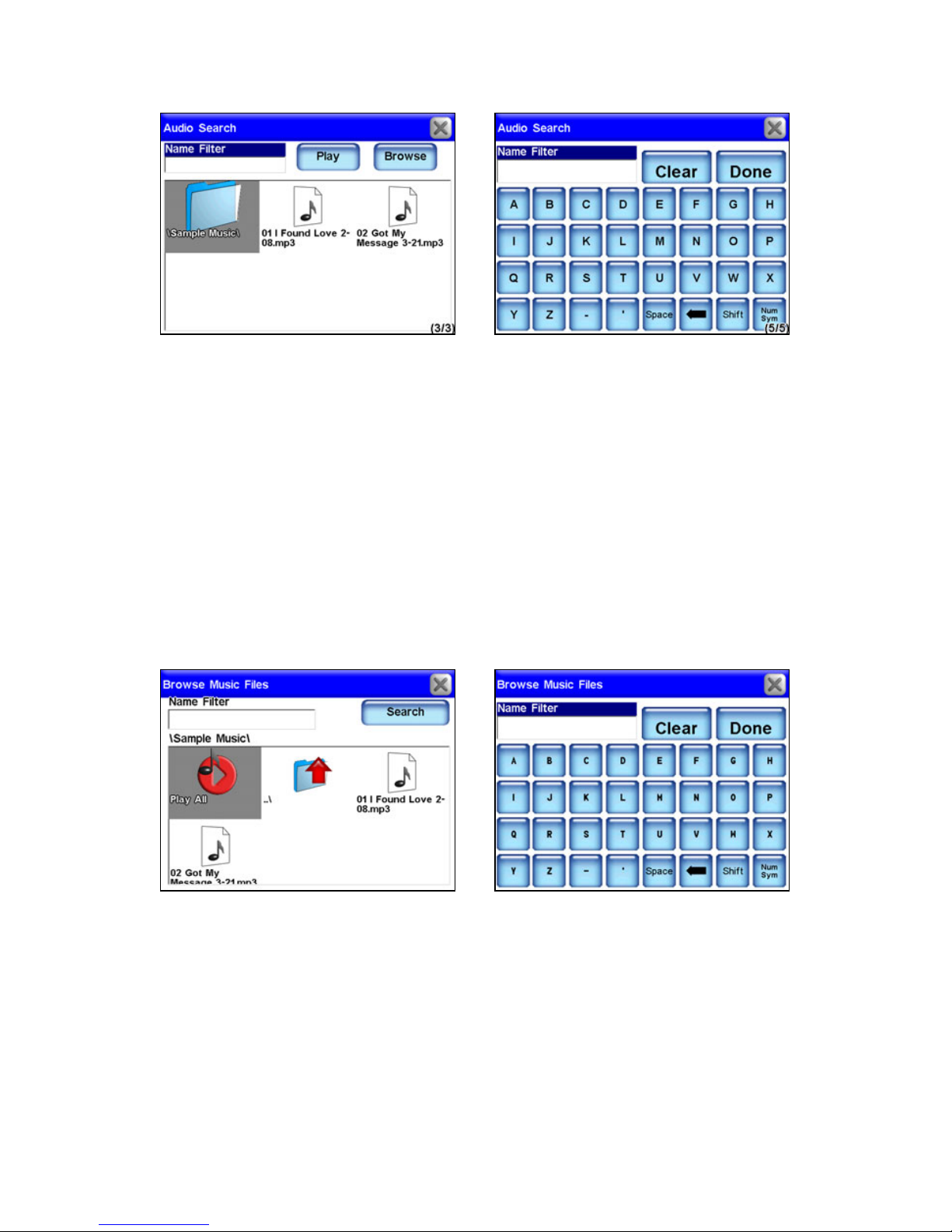

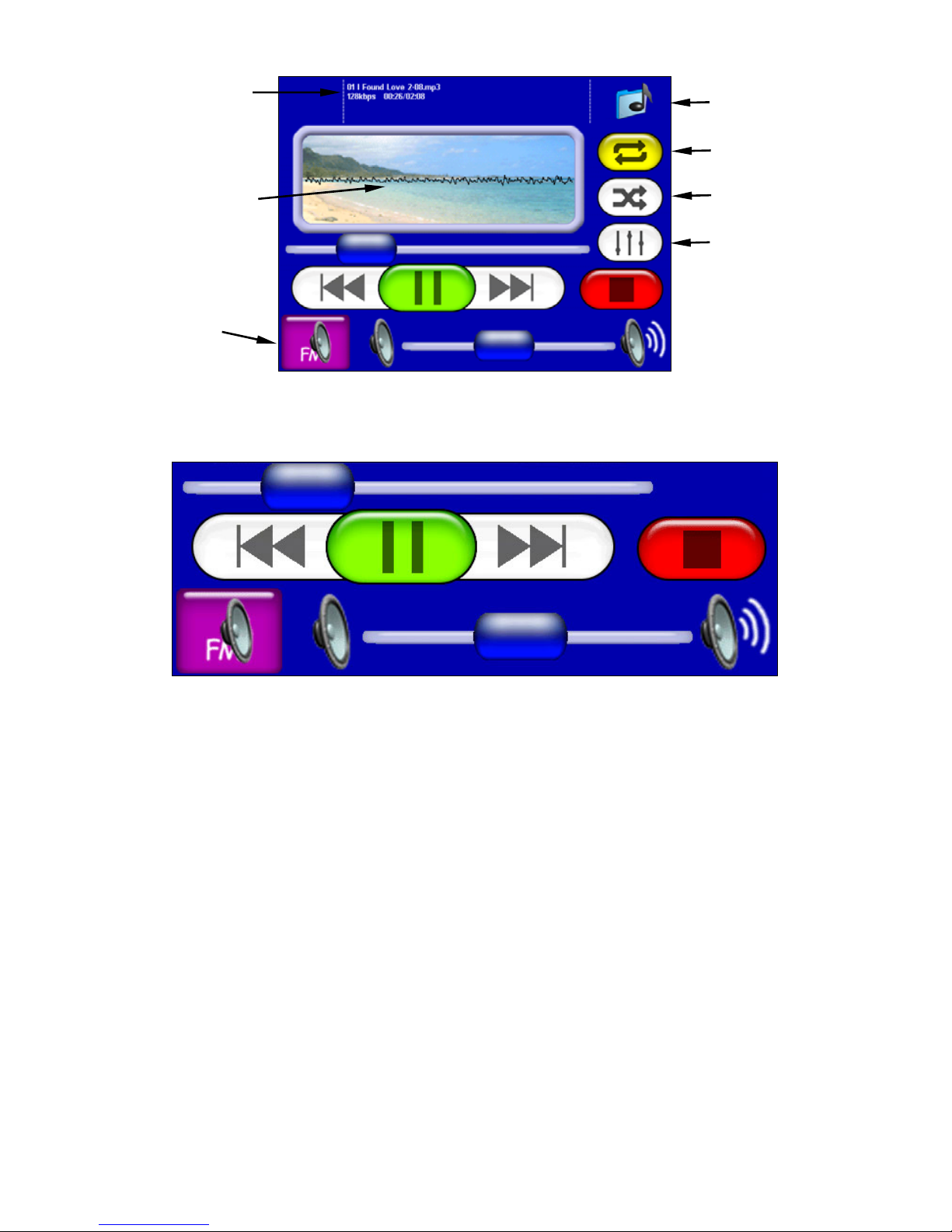

In Music Mode touch the play control buttons to start and stop music or
skip among songs. To use Music Mode you will need to copy music files
to the unit. The iWAY package includes a USB-PC cable so the unit can
be connected to a home computer. Use care when connecting or discon-
necting the USB-PC cable from your home computer. The unit can play
both MP3 and Ogg Vorbis music files.
Caution:
Use a microfiber towel to clean the unit's touch screen. Other
cleaning materials could damage the screen – damage that is
not covered by this product's warranty.
Mounting Instructions
The iWAY package includes a flexible, quick release arm mount. The
flexible arm mount is used to secure the unit to glass or other smooth
surfaces.
Power
socket
for
power
cord
USB cable socket
External
antenna
socket

3
The flexible arm mount allows you to make non-mar installations with-
out drilling, screws or permanent adhesives. Since the mount is port-
able, it's easy to transfer the GPS unit to another vehicle.
WARNING:
When mounting a GPS unit in an automobile you must
avoid any installation that obscures important instru-
ments and controls or restricts the driver's view through
the vehicle's windows. Avoid placing the GPS where it
could be propelled by an activated airbag. Some states
restrict mounting any electronic device in any location
on an automobile dash or windshield.
Be sure to check your local laws before using these
mounts. Be sure to check the suction mount for ade-
quate adhesion each time you use the unit and reinstall
it if necessary. This is a portable mounting device and
the normal heating and cooling cycle of a car's interior
will eventually loosen the seal. A loose suction cup could
allow the unit to fall or come loose during vehicle opera-
tions.
Installing the flexible suction cup mount
The suction cup base and arm can be adjusted to a position that best
suits your vehicle. The mounting surface should be free of dirt and oil.
While you can attach the flexible suction cup mount to the windshield
before attaching the unit to the suction cup mount, it may be easier if
the suction cup mount is connected to the unit first. You can then at-
tach the entire assembly to the car's windshield.
Unit resting on dash with flexible suction cup mount.
Locking
leve
r
Suction
release
tab
Suction
cup
base
GPS unit
resting on
dash

4
To attach the flexible suction cup mount to the back of the GPS unit
align the mount with the back of the unit. Place the base of the flexible
suction cup mount against the back of the unit by matching the male
and female connector ends together.
Then snap the mount into place by sliding the flexible suction cup
mount up. Pull down on the flexible suction cup mount to disengage it
from the back of the unit.
The mounting surface should be free of dirt and oil. Press the suction
cup against the mounting surface and, while maintaining pressure,
push the locking lever down until the arm is secure.
NOTE:
Some areas restrict mounting any electronic device to a dash or
windshield. Be sure to check your local laws before using any elec-
tronic mounting device.

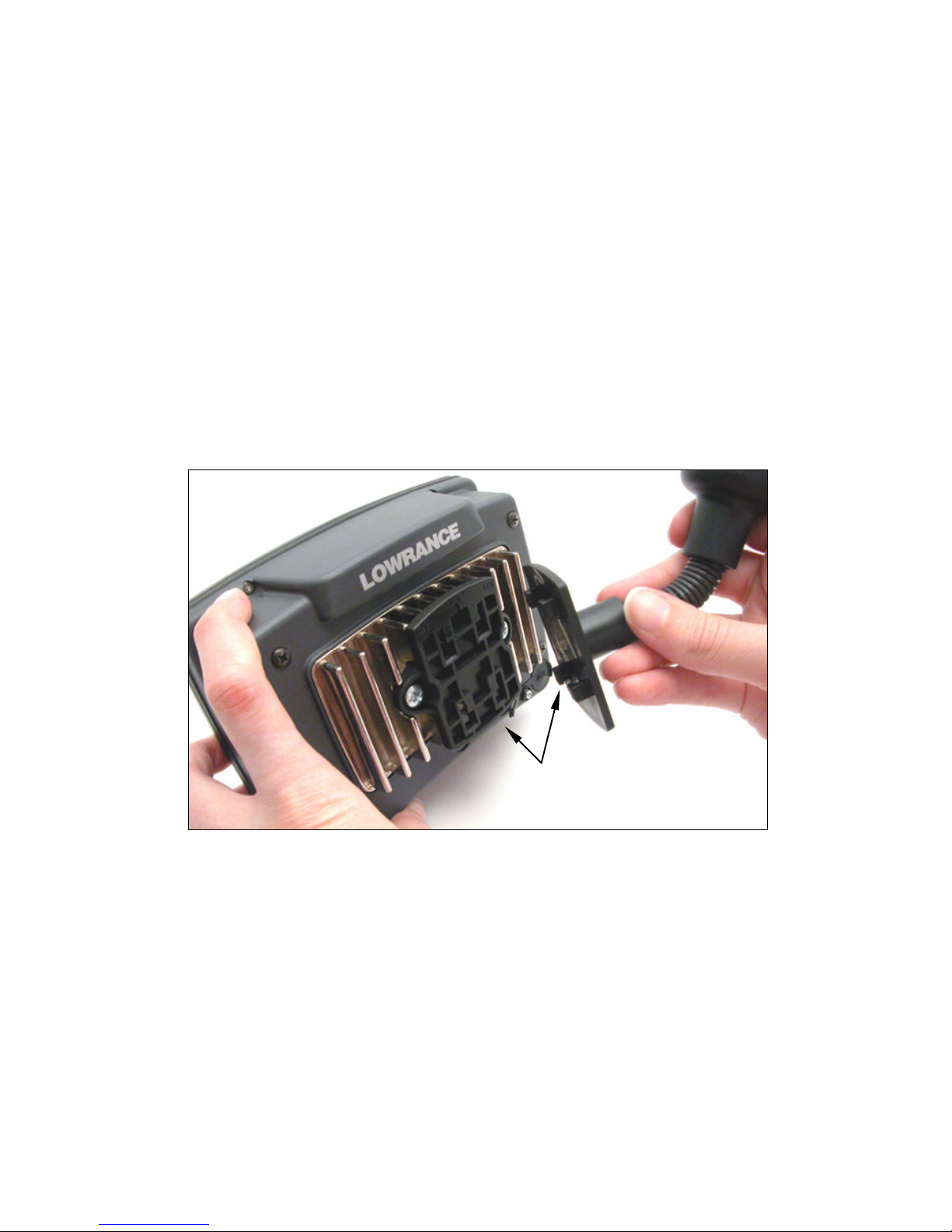

Attaching the unit to mounting arm.
If the suction cup has problems staying secured to the mounting sur-
face, clean the mounting surface and the suction cup with alcohol then
reinstall. Moistening the suction cup may help it stick in some cases.
To remove the suction cup base, disengage the locking lever and pull on
the suction release tab to break the vacuum seal.
Adhesive Mounting Plate
In some automobiles a typical windshield mount may be difficult or un-
desirable. The flat self-adhesive mounting plate allows you to mount
the unit somewhere else, such as on the dashboard or center console.
Align the suction cup mount with the
back of the unit and snap it into place
by sliding the mounting arm up.

5
Top view of adhesive mounting plate, at left. Bottom view (right)
shows adhesive pad with paper backing.
The adhesive plate is important in these cases because the suction cup
base will not hold to textured materials covering most dashboards and
center consoles. The plate's smooth, flat surface provides a secure at-
tachment for the mount's suction cup, while the plate's adhesive pad
holds the entire assembly in place.
WARNING:
If you use the adhesive mounting plate it may be ex-
tremely difficult to remove. If you remove the plate it
could leave remnants of the adhesive pad or you could
damage the surface it was attached to.
Determine Plate Location
Once attached, the plate's adhesive pad is difficult or impossible to re-
move. It's important to select the proper location before removing the
adhesive backing. To select a mounting location for the adhesive pad,
connect the GPS unit and mounting arm together. Then attach the
mounting arm's suction cup to the adhesive plate. Hold the entire as-
sembly at the desired location to check how it fits. Make sure the flex
arm can be positioned for easy use.
Attach the mounting arm's suction cup (left) to the adhesive plate. The
flexible suction cup mount (right) locked to the adhesive plate.

6
Next, power the unit up and make sure the unit can lock on to satel-
lites through the automobile's window. If the unit can not lock on, try
another mounting location. When you have found a suitable mounting
location, make sure the mounting surface is free of dirt and oil. Release
the plate from the suction cup by flipping the locking lever and pulling
the suction release tab. Peel off the adhesive pad's paper backing. Posi-
tion the plate over the spot and press down firmly, maintaining pres-
sure for 20 seconds to ensure the adhesive bonds securely. You can now
attach the suction cup mount and GPS to the plate.
Caution:
Do not leave this unit unattended on an automobile dashboard.
When your car is parked and the GPS is not in use, protect it
from theft and heat by storing it in an unobtrusive location
away from direct sunlight. In warm seasons the temperature on
a car's unventilated or non air-conditioned dash can become hot
enough to prevent the GPS unit from operating.
Long Term Storage
When the GPS is not in use for an extended period of time we recom-
mend bringing it indoors and storing it at room temperature or in some
location with a temperature range of 60º to 90º F.
GPS unit centered on dashboard. This photo was taken at passenger
eye level. Notice how the unit was placed so that it does not obstruct
the view of the road ahead through the windshield.
Map Mode Operation
The unit’s map screen is the main display mode. It shows your location
and surroundings. A black arrow icon represents your position on-
screen. The arrow always points in the direction you are traveling.

7
While the unit is tracking your position, the black arrow icon remains
in the center of the map screen. The map screen scrolls and the map
changes. If you pass under a highway you will see the highway on the
map screen approach the arrow icon then scroll behind even as the
highway overpass dwindles in your rear-view mirror.

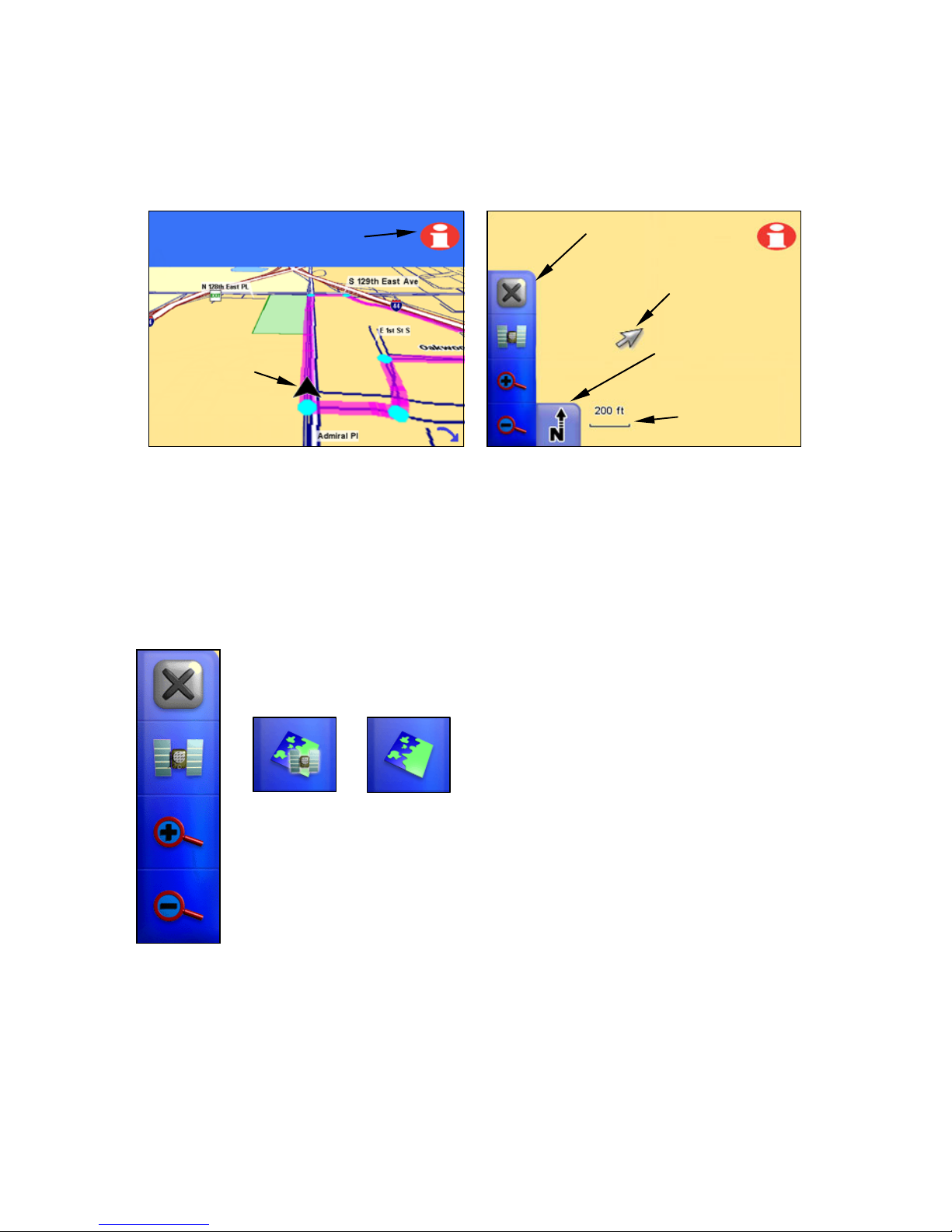

A black arrow icon (left) indicates your position on the map screen.
The map screen with map toolbar buttons is shown at right. Press the
Map Orientation button to select between three different map views.
Map Display Toolbar
The Map Display Toolbar is used to control the map screen. To bring up
the Map Display Toolbar touch the map screen and the cursor and toolbar
will appear. The Map Display Toolbar buttons are:
Clear Cursor clears the toolbar from the screen and centers the map
on your current position.
Map View toggles between three different map screen views. You can
view the regular map screen, aerial view with overlay data or aerial
view without overlay data. The aerial view screens are for selected ar-
eas only.
X clears the cursor and map display toolbar from map screen.
The Map View button toggles between
three different map screen views.
Zoom In.
Zoom Out.
Black
arrow
icon
Map Orienta-
tion button
Range scale
(Auto Zoom)
Curso
r
Map display
toolbar

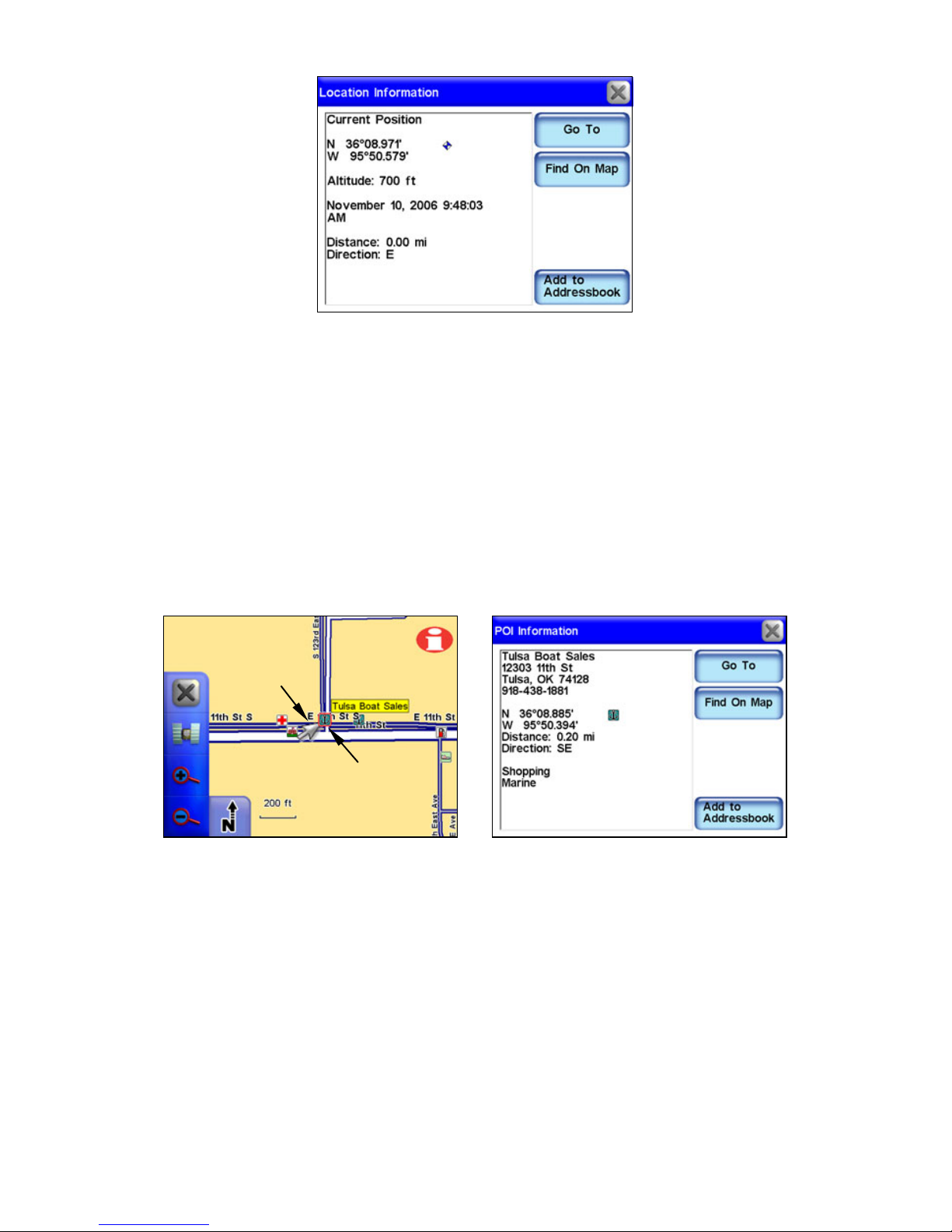

Location Information
button

8
Zoom In and Zoom Out increases or decreases the map view. Control
the zoom to get the most detail possible while still showing all of the
necessary area. You can use this feature in combination with the Move
Map function to focus on an area other than your current location.
The Map Orientation button can be found in the bottom left corner of
the map screen. Touch this button to select between three different
map views:
Overlay Data boxes, like the ones in the bottom right corner of the
next figure, provide textual information about the route you are follow-
ing. Use the overlay boxes to display useful information as you navi-
gate a route.
Map screen with overlay data boxes shown.
Map instructions can be displayed using the overlay data boxes. Use
OVERLAY DATA SETUP from Menu 1 in the Main Menu to select which infor-
mation to display on-screen. Overlay data appears in semi-transparent
boxes on the map screen.

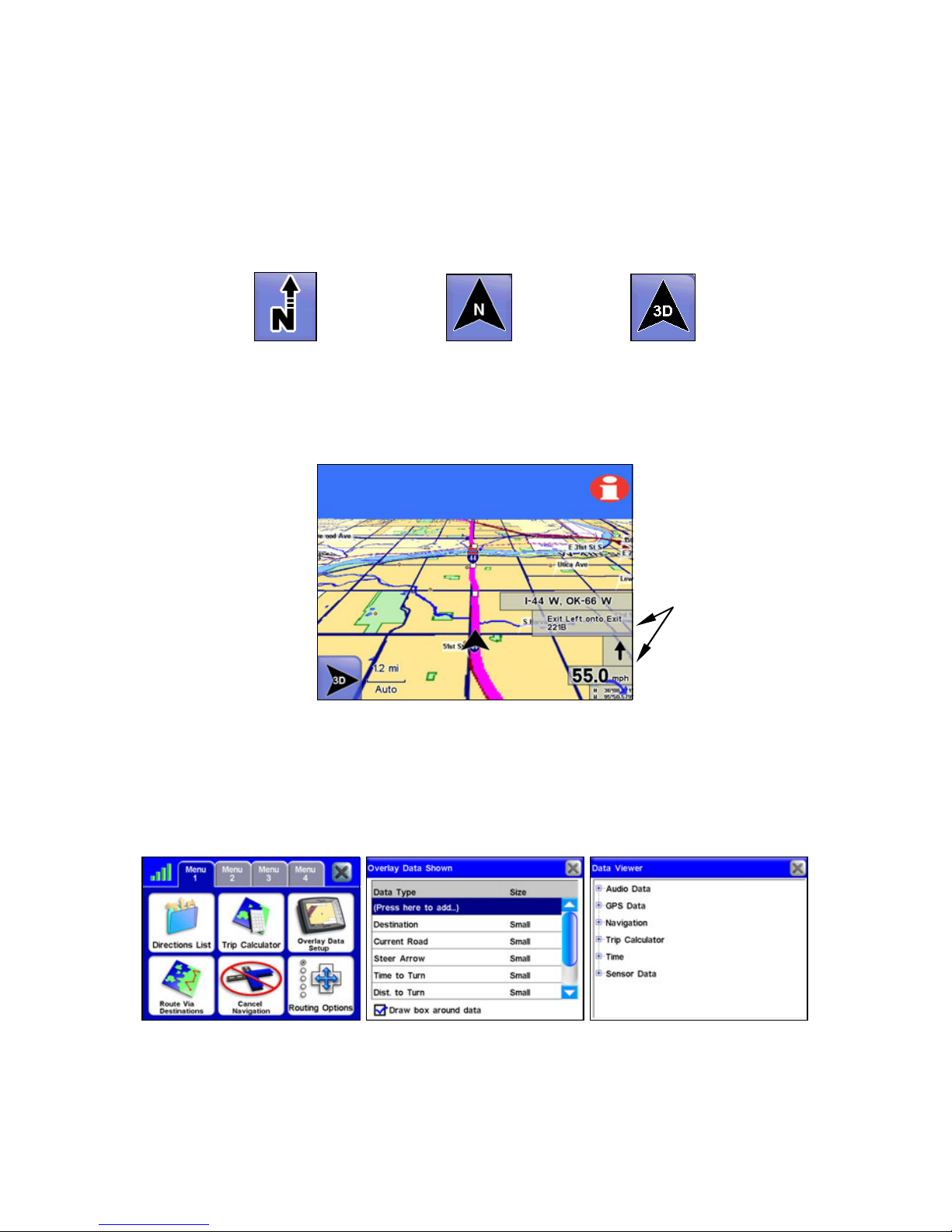

The Overlay Data Setup feature (far left) can be found in Menu1 in the
Main Menu. If you select (Press here to add …) in the Overlay Data
Shown screen (center) the Data Viewer screen will appear. The Data
Viewer screen is shown at right.
Map ove
r
lay
data boxes.
North Up Track Up 3D View

9
In the Data Viewer screen you can select the overlay data you want
the unit to display on-screen.
Overlay data can be used to show information such as the distance to
your next turn, the direction and angle of a turn, your speed, estimated
time to destination, text directions and the current road you are travel-
ing on.
The Data Viewer screen is arranged in an expanding tree format. Press
the + sign to view the sub-categories listed under each main category.
When you select Audio Data (left figure above) its subcategories will
appear.
Press in the box to the left of each category to activate it. When a fea-
ture is activated (center figure above) a check mark will appear in the
box next to it. The size of overlay data boxes can be changed using the
slider in the Data Information screen (right figure above).
Each Data Viewer category will have its own Data Information screen.
Bring up the Data Information screen by highlighting and pressing on
the category in the Overlay Data Shown screen.
Location Information button
The Location Information button, shown at left, is located in
the top right corner of the map screen. Pressing this button
will bring up the Location Information or POI Information
screen, depending on whether the cursor is on-screen.
Create Contacts
You can use the Location Information button to save a contact at your
current position and add it to the Address Book. Press the button to
bring up the Location Information screen for your current position, now
select ADD TO ADDRESSBOOK to save your position as a contact.
