LTE inadria LC300 User manual

LC300 LTE CPE
Quick user guide v1.0

Page 2
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
The device must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF
exposure guidelines, place the product at least 20cm from nearby persons.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85
GHz bands. These radar stations can cause interference with and/or damage this device. No
configuration controls are provided for this wireless equipment allowing any change in the
frequency of operations outside the FCC grant of authorization for US operation according to
Part 15.407 of the FCC rules

Page 3
1. Overview
The LC300 CPE is a highly advanced LTE outdoor multi-service product solution specifically
designed to meet integrated data, voice and Wi-Fi access needs for residential, business and
enterprise users. The product consists of an outdoor data CPE unit (ODU) and an indoor
multiservice gateway unit (HGW) that supports advanced networking, VoIP gateway and WLAN
AP functionalities. It enables wide service coverage and provides high data throughput and
networking features to customers who needs easy broadband access, low cost VoIP service and
Wi-Fi connectivity.
Operator Device Specification
Model
Description & User Interface
IDU
1 RJ45 10/100/1000M ETH (PoE),2 RJ45 10/100/1000M ETH,1
RJ11/FXS Line
SYS, NET, SIG(Tri color)，2.4G Wi-Fi, 5G Wi-Fi, LAN1-2, LINE
48V/0.5A DC
Dimensions: 135 mm (L) × 105 mm (W) × 30mm (D)
Weight: < 300g
ODU
1 RJ45 10/100/1000M LAN Port
PWR, NET, SIM, Poe, ACT, RF(5LEDs)
48V/0.5A PoE supply, ODU Power <15 Watts
Dimensions: 164 mm (L) × 56 mm (W) × 280 mm (D)
Weight: <1.5 Kg
Radio Interface Specification
Frequency Bands
2/4/5/7 /38 Remark:B42/43 will be added in the future
Radio Access
3GPP E-UTRA Release 9
Operation Mode
TDD/FDD, 2Tx DL MIMO
Output Power
B2 21 2.5dBm / B4 21 2.5dBm / B5 23 2dBm
B7 22 2.8dBm / B38 22 2.8dBm
Antenna
B2 3dBi, B4 4dBi, B5 0dBi, B7 7dBi, B38 7dBi
Throughput
Category 12
SIM Support
SIM card slot (2FF)
Wi-Fi Interface
Radio Access
802.11a/b/g/n/ac (2.4GHz 300 Mbps, 5GHz 867Mbps)
Output Power
802.11b/802.11g/802.11n 2.4G WiFi are 14 2dBm
802.11a/802.11n/802.11ac 5G WiFi are 13 3dBm
Antenna
2.4G 2dBi, 5G 3dBi
Security
64/128-bit WEP, WPA/WPA2

Page 4
2. Getting Started
Packing list and CPE Unit
Upon receiving the product, please unpack the product package carefully. Each product is
shipped with the following items:

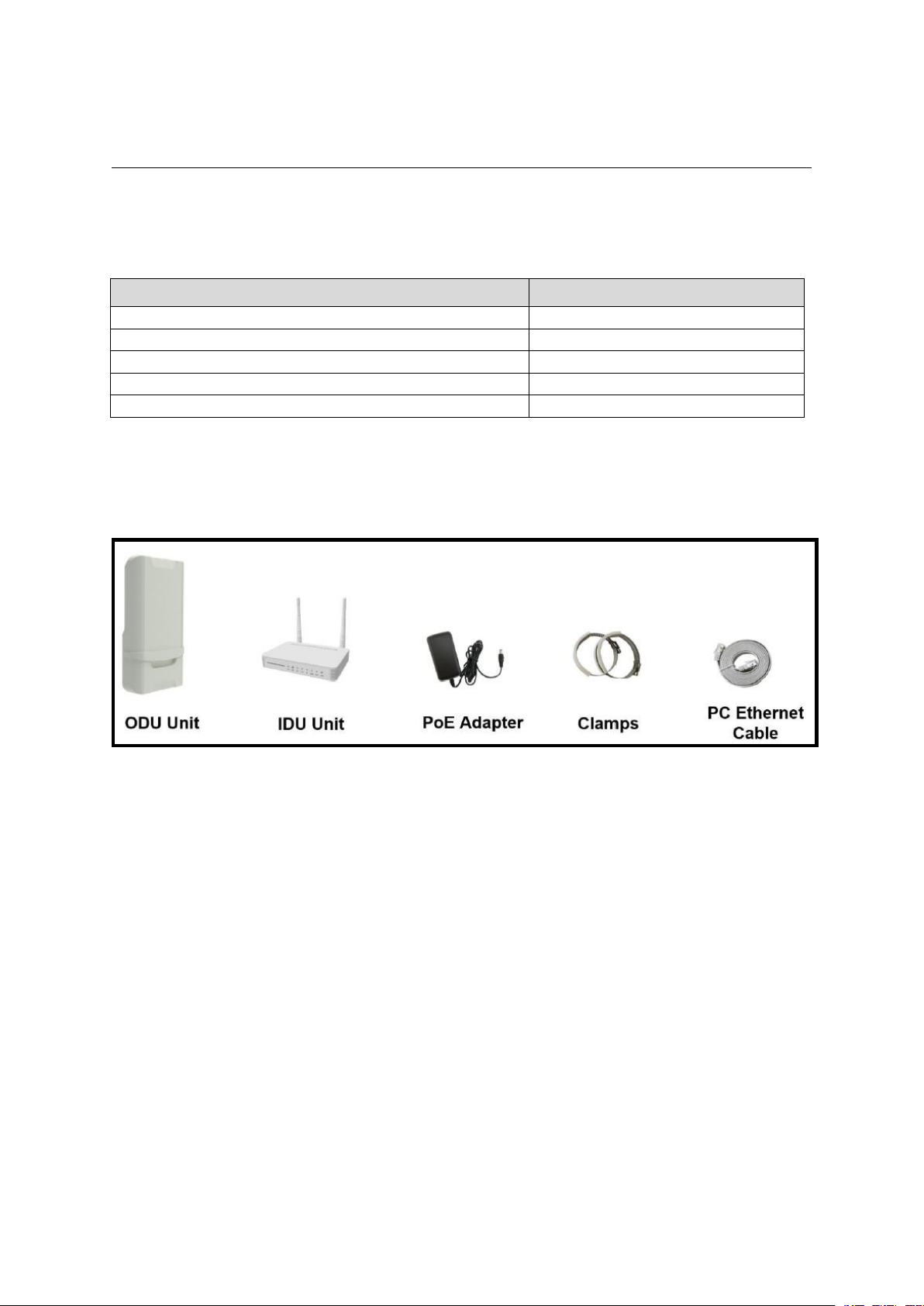

Table 2-1 Packing List
CPE Products
Quantity
ODU unit
1
IDU unit
1
Clamp
2
48V DC Power adapter
1
Ethernet Cable
1
If you find any of the items is missing, please contact our local distributor immediately.
CPE Unit：
Unpacking the Equipment Table 2-1 lists all the standard parts that are supplied in your LTE CPE
Unit Installation Package. Please take the time to unpack the package and check its contents
against this list.
Installing and power on
For outdoor CPE product, it is suggested that the CPE device be installed in a shaded area to
avoid direct sun light exposure and prolong the device life.
To power on the device, the CPE must use a 48V DC power supply adapter. The power adapters
can operate in 90-250V AC range and therefore can be used in different country. An Ethernet
cable is required to connect the WAN port of IDU with the POE(LAN) port of ODU. By the way,
the ODU don’t support the hot-plugging. Once the device is powered up, the user should wait for
about 2 minutes before the device becomes operational. For CPE with the SYS LED indicator, a
solid light indicates the system has completed the startup procedure.
To connect PC, LAN switch or other type of IP device to the CPE product, the user should use
standard CAT6 Ethernet cable and connect to the appropriate LAN port. Once connected, the
CPE(IDU) LAN LED indicator should be on.
To use the phone service, operator can simply plug the phone line to the CPE RJ11 port in the
back. If the line is not registered or configured, a fast-busy tone will be provided and the
corresponding LINE LED light will be off.

Page 5
Insert SIM Card
Installing Outdoor Unit (ODU) – Clamp

Page 6
3. LED Display
Type
LED
Function
Description
IDU
SYS
Power indicator
Green color – Device is powered on.
NET
WAN port status
Blinking green – The data is in transmission.
SIG
RF signal indicator
Red: RSRP < -118dBm
Green: -118dBm <= RSRP < -105dBm
Blue: -105dBm <= RSRP
2.4G & 5G
Wi-Fi indicator
Light is on –2.4G & 5G Wi-Fi is on.
LAN1&LAN2
LAN port status
Solid green – LAN port is up.
Blinking green – LAN data activity in progress.
Line
POTS line status
OFF – Line is not registered or provisioned.
Green Color – The line is ready and registered
Green Blinking – Voice Call in progress
Type
LED
Function
Description
ODU
PWR
Power indicator
Solid green – Device is power on.
NET
WAN port status
OFF – NO wireless network access.
Solid Green – WAN data transmission in progress
SIM
SIM card indicator
Light is on – SIM card state is ready.
Blinking Green – SIM card is error.
PoE
LAN port status
Solid Green – LAN port is up.
ACT
LAN port status
Blinking Green – LAN data transmission.
RF
(5LEDs)
RF Signal Strength
5 level signal strengths indication by 5 green LEDs.
1st Green LED: -115dBm < RSRP
2nd Green LED: -115dBm <= RSRP < -105dBm
3rd Green LED: -105dBm <= RSRP < -95dBm
4th Green LED: -95dBm <= RSRP < -85dBm
5th Green LED: -85 <= RSRP
4. Managing CPE Device
The LC300 offers rich management features which facilitate the task of service provider. It
supports local management access, Telnet, WEB, and centralized remote OTA configuration,
upgrades management and device monitoring via standard TR-069 ACS systems. The following
describes the basic procedures for configuring the device for LTE operation.

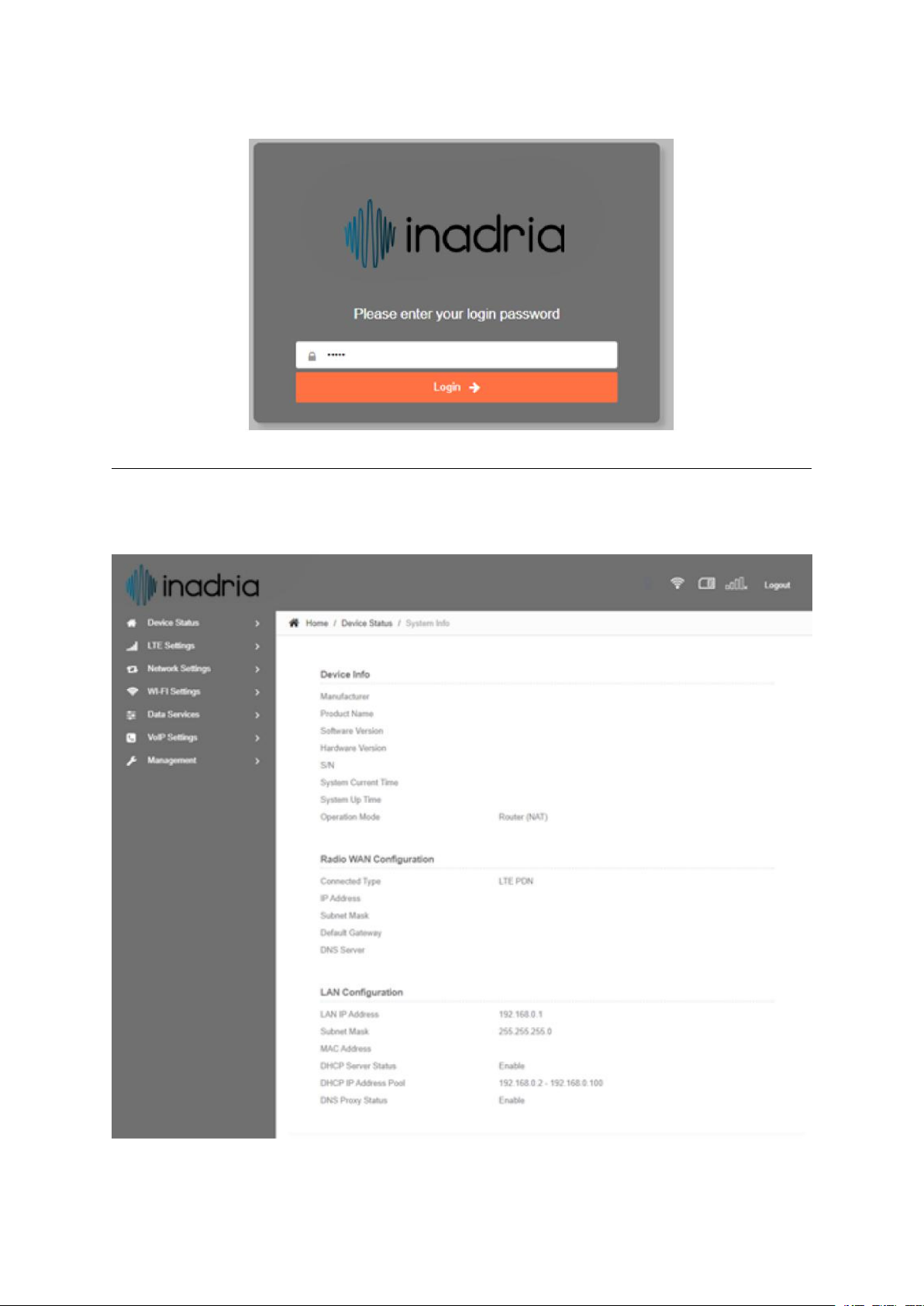

WEB Login
It is a preferred to setup the CPE using a Web browser from a local PC connected to device LAN
port. The operator should ensure that the connected PC has acquired IP address via DHCP from
the device. After IP connectivity is established between the PC and CPE device, the operator
may launch a Web browser and specify http://172.16.1.1 in the address bar. A window will pop up
requesting password. Input the user login password and then click the “Log in” button. After
successful log on, the default home page of the WEB GUI interface will appear. Note the default
password is “admin”.

Page 7
5. System Information
System Status
The menu shows the general system info of the CPE device. It includes system, general, WAN,
LAN, Wi-Fi information.
、

Page 8
6. FAQ and Troubleshooting
Problem
Suggested Solution
My PC cannot connect to the
CPE.
Re-plug the PC Ethernet cable and check if the PC LAN connection is up
or showing activity.
Check if the CPE Power is on. If it is not, check the power cord and make
sure it is connected properly. Also verify that the AC power supply is
available.
If the PC LAN shows no activity and POE adapter LED is off but the
power cord and ETH cable are connected properly and there is AC
supply, then it is likely the POE adapter is damaged. Please contact
distributor to obtain replacement part.
My PC cannot acquire IP
from the CPE.
First check if the Network card is up and working properly. Then check
the PC Network card configuration and make sure the DHCP is enabled.
To release and renew the correct IP address, please unplug the Ethernet
cable from PC and wait for about 5 seconds, then connect it again.
If the problem persists, please contact the operator or distributor for
further diagnose.
My CPE networking is not
working properly.
You may want to check if the LTE connection is up and running properly.
You can do this by login the WEB GUI and check the Interface Info page.
You may want to perform a factory reset and see if the problem is being
corrected. You can do this by log into the WEB GUI using “admin”
password and perform restore the unit to default factory setting.
If the problem cannot be corrected by factory reset, please contact the
operator or distributor for further diagnose.
I forget the login password
and like to reset the unit to
factory default.
User can hold the IDU RESET button between WAN port and DC port for
10 seconds with power on to clear and reset the unit to factory default
setting.
After the unit is reset to factory default, you can login using the default
password.
