Ltl Acorn Ltl 5210 User manual

LTL ACORN ®
Ltl-5210 Series
1080P HD Video Product
Ultra Low Standby Current Infrared Digital Camera
Less Than 0.2S Trigger Time in Actual Application
USER’S MANUAL

TABLE OF CONTENTS
CENERAL INFORMATION .......................................................................... 1
1.1 Features.......................................................................................... 1
1.2 Application ...................................................................................... 3
1.3 Illustration ....................................................................................... 3
Getting Started ........................................................................................... 6
2.1 Insert SIM Card (Only for Model Ltl-5210MG) .................................. 6
2.2 Load Batteries................................................................................. 6
2.3 Insert SD Card ................................................................................ 7
2.4 Set up Camera on PC ..................................................................... 7
2.5 Set up MMS Function on PC ......................................................... 10
2.6 Set up SMTP Function on PC........................................................ 13
2.7 SMS Remote Control & Table of Command Code.......................... 16
2.9 Camera Working with MMS ........................................................... 20
2.10 Enter Test Mode ............................................................................ 21
2.11 Enter Live Mode............................................................................ 21
2.12 Advantages of Prep Sensors ......................................................... 22
2.13 Brightness adjustment of night picture ........................................... 23
2.14 Connect to PC............................................................................... 24
Advanced Settings ................................................................................... 25
3.1 Parameter Settings........................................................................ 25
3.2 File Format.................................................................................... 29
Ltl-5210 Series Products.......................................................................... 30
4.1 Ltl-5210 series model: ................................................................... 30
IMPORTANT INFORMATION..................................................................... 31
5.1 Power Supply................................................................................ 31
5.2 SD Card........................................................................................ 31
5.3 Auto Adjustment on Video Length.................................................. 31
5.4 850nm and 940nm IR LED ............................................................ 32
5.5 Mount on Tripod ............................................................................ 32
5.6 FAQs on MMS Function ................................................................ 32
5.7 Battery Level Indication ................................................................. 34
FIRMWARE UPGRADES........................................................................... 35
LIMITED WARRANTY ............................................................................... 36
Appendix I: TECHNICAL SPECIFICATION ............................................... 37
Appendix II: PACKAGE CONTENTS ........................................................ 40
Appendix III: Install Battery Box .............................................................. 41
ATTENTION : ' *' marked content, the contents related to MMS module such as MMS,
SMTP parameters and SMS remote control is for Ltl-5210MG model only.
Ver：Ltl-5210-EN-003

1
CENERAL INFORMATION
This manual applies to model Ltl-5210A, Ltl-5210MC, Ltl-5210MG.
The series of cameras use low-power dual PIR sensor wireless module
which belong to our company's latest research and development. Working in
the camera, low-power dual PIR sensor has the characteristics of high
accuracy and sensitivity, which avoid the camera mistaken or missed, as
well as low standby current. Camera standby current has reduced to
60~180uA, far lower than the line's other brands of hunting cameras standby
current 400 ~ 2000uA, which greatly extends the camera standby time.
Bundled with the MMS-module（Multimedia messaging service）
battery box（part#LTL-MM1）,standard scouting camera（pard#Ltl-5210MC）
can be upgraded to work as a remote cellular camera . The basic principle of
our infrared camera, with its Passive Infrared(PIR) sensor, detects the
infrared signal from animal or human body, triggers to take pictures/videos
automatically, and sends MMS to mobile or email to users E-mail address.
The well-developed SMS remote control function for users realizes to
change camera parameters, control camera shooting and send back
pictures by a simple message when stay at home, which makes it easier to
use with more flexibility.
Please read the USER’S MANUAL in details before starting for better
understanding and operation.
1.1 Features
5M/12M/1.3Mega pixel high-quality resolution.
Text your camera to change its parameters, made possible by the
new SMS RCP (remote control program). Also, instruct your
camera to send pictures it has taken to you using SMS order
CODE 60 (see the list of order codes in Section 2.7 SMS Remote
Control & Table of Command Code).
1920 x 1080 / 1280 x 720 / 640x480 / 320x240 MJPEG format
real HD video with audio record.
Ltl-5210 series Infrared night vision LEDs 850nm flash range as
far as 75 feet / 25 m, Low-grow 940nm 39 feet / 13 m.
“Cam + Video” mode enables camera to take both picture and
video every time it triggers.
Ultra-long standby time of 1 year with 8 AA alkaline batteries.

2
Low power double PIR(Passive Infrared) induction technology,
detect the animal in advance with wide angle in 2 stages, ultra
fast trigger to take photos, camera standby time current is about
60~180uA which makes us stand on the top in the industry.
Perform in the most extreme temperatures from -45°C to 70°C
Compact size (5 ½ x 3 ½ x 3 inches). Well designed to deploy
covertly.
Programmable to work as Time-Lapse camera taking
pictures/videos in long range day and night.
When Timer setting is turned on, programmable to only work in
specified period every day. This feature can be used together
with Time Lapse feature to meet your timetable.
Built-in 2.4 inch TFT color screen to review images and videos at
the back of the camera.
Tight waterproof housing: IP54
Patent technology of Low Power Dual PIR Pyroelectric Infrared
Sensor, the camera detects animals in advance from wide scope
in two stages, then quickly trigger to shoot, standby current is
about 60~180uA, makes it to be the pioneer in the industry.
Fast trigger time(0.8 seconds). The actual trigger time is less than
0.2 seconds when animals pass by the camera from two sides of
the camera..
ID number is set freely, file prefix can be the same as the ID,
make it easy to classify the pictures from multi-places, will not be
mixed up with other camera photos.
Lockable and password protected.
Abundant photo watermark information, shooting date, time,
temperature and moon phase could be shown on the picture
stamp.
Photo can be sent via MMS and email at resolution 640*480.
Setup is a snap. Just run the user-friendly software on the
enclosed CD on the computer, or do it directly on the built-in TFT
screen.
SD card can be set in “Cycling Save” mode, which automatically
deletes the earliest photos or videos and makes room for new
ones.
Advanced Remote Cellular Technology transmits images to your
cell phone and/or email account constantly at lower battery
consumption and shorter transmission time, compared to similar
products on the market.

3
Get SMS Text alert when battery power level goes low.
The local mobile signal can be checked in field.
Operates globally via 2G GSM/GPRS network. Supports four
bands: 850 / 900 / 1800 / 1900MHz.
1.2 Application
Trail camera for hunting
Animal or event observation
Motion-triggered security camera, for home, office and
community
All other indoor/outdoor surveillance where intrusion evidence
and live alerts are needed
1.3 Illustration
Figure 1.1 shows the front view of the camera (Part # Ltl-5210M)
Figure 1.2 shows the bottom view of the camera (Part #
Ltl-5210M)
Figure 1.3 shows the back view of the camera (Part # Ltl-5210M)

4
Figure 1.1: Front View of Ltl-5210M
Figure 1.2: Bottom View of Ltl-5210M
The camera provides the following connections for external devices: USB
2.0 port, SD card slot, TV out jack, and external DC power in jack. The
3-way Power/Mode Switch is used to select the main operation modes: OFF,
ON and TEST.
To power up the camera, install four NEW high-performance alkaline or
lithium AA batteries in the camera. High energy and low temperature
resistant AA disposable lithium battery and low self-consuming AA NI-MH
IR LED Light
Lens
Mic
Light Sensor
Motion Indicator
Low Power Prep
PIR Pyroelectric
Infrared Sensor
Low Power Main
PIR Pyroelectric
Infrared Sensor
Lock Hole
Battery door
USB Port
SD card slot
Power/Mode switch
TV out jack
External DC
Power in jack

5
rechargeable battery are recommended to use. To achieve longer in-field life,
always install 8 AA batteries.
Figure 1.3: Back View of Ltl-5210M
CAUTION: If you are not using the camera for an extended period of
time, it is highly recommended that you remove the batteries from the
camera to avoid possible acid leak that may damage the camera and
void the warranty.
LCD display
Keypad
Hand Screw
Hand Screw
Additional
Battery Box
Lock Buckle
Antenna

6
Getting Started
2.1 Insert SIM Card (Only for Model Ltl-5210MG)
Please buy the SIM card from the local mobile operator, make sure they can
provide the MMS of GSM 2G network and data service. Ask them for data
information of MMS configuration.
Figure 2.1 Wireless module battery box
Open standby battery compartment, you can see the SIM card slot, insert
SIM card as the sign aside to finish SIM card insertion.
Pay attention to the right direction to insert SIM card when insertion.
2.2 Load Batteries
Open the bottom cover by pulling down the lock hole.
Push to open the front battery door and load 4 AA batteries. Open
the battery door of standby battery compartment and load 4 AA
batteries (make sure the polarity matches the sign on the cover).
Push to close the battery door.
Make sure the 8 new and full AA alkaline batteries are loaded.
SIM card slot

7
As a choice, the external DC power supply (optional) of 6V~12V with output
current higher than 2A can be used in camera. The camera will choose the
external DC power supply as priority when the external power supply and
battery are connected at the same time. Our Ltl-SUN external solar
panel(optional for purchase)is recommended, the camera may work for
more than 1 years in the wild without changing batteries.
MMS camera will send “Low Battery” alarm text to user’s mobile
automatically when the power is too low (only for camera models with MMS
module). Meanwhile, the battery level will be shown as Code B1/B2/B3 on
the received MMS pictures. B3 stands for high level and B1 indicates the
level is low and you may need to change the batteries soon.
2.3 Insert SD Card
The camera does not come with internal memory. It will not work without a
SD (Secure Digital) memory card or SDHC (High Capacity) card. Before
inserting the SD card, please make sure the write-protect switch is in “OFF”
side (NOT in the “LOCK” position). The supported memory capacity is up to
32GB. If you use a SD card which capacity is larger than 32GB, please
make sure that you test it in advance.
Figure 2-2
Attention: Please switch to OFF mode before loading or removing
batteries/ SD card.

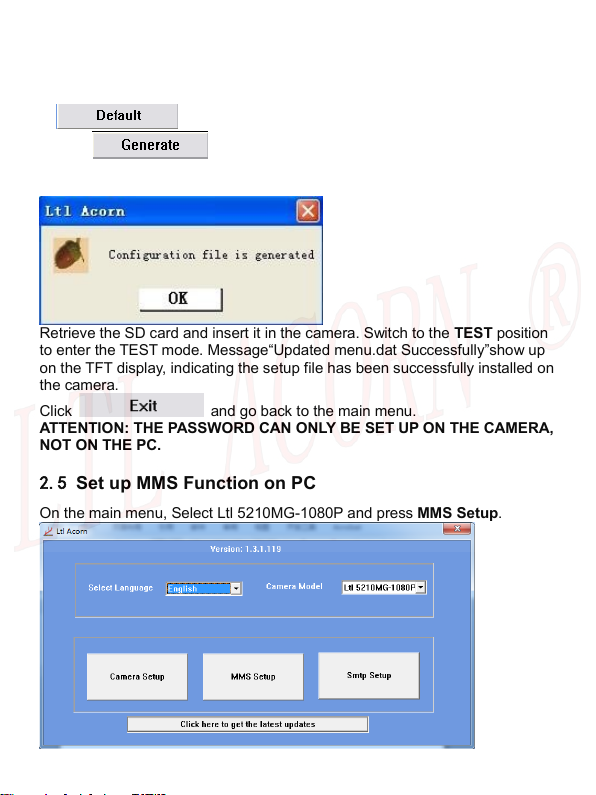

2.4 Set up Camera on PC
After formatting the SD card on the camera pop the SD card out and insert it
into your computer. (If your computer cannot read SD cards on its own, you

8
would need to purchase a SD card reader) Of course, you can also directly
connect the camera with your PC using a USB cable.
Find the enclosed compact CD from the packaging box and put it on the CD
tray. (If your PC does not have a disc drive then you would need an external
disc drive.) Run the Setup.exe file.
You can also access the same setup file by visiting the LTL ACORN national
distributor’s website to download and following the link
http://www.ltlacorn.cn/about/downloaden.html
(download→classification→software→PC Setup→Setup.exe)
Setup.exe icon:
The following window prompt would show up once you double-click the
Setup.exe file:
Select your language and model. Click on Camera Setup, and you will see
the following menu:

9
Set up the camera based on your own need. Please reference Section 3.1
Parameter Settings in Advanced Settings to find detailed explanations for
each setting.
Click on to retrieve the computer time. Click on
to find and choose the drive where the SD card is placed,
usually denoted by a letter after E (F drive or G drive). For example, if the SD

10
card is inserted into the F drive, then you should click on “F:\”. DO NOT
choose any folder under F:\.
If you like, you can use the manufacturer default settings by clicking
on .
Click on . A message window will pop out as below. Click
OK. A file named menu.dat will be created and saved in the root directory of
the SD card.
Retrieve the SD card and insert it in the camera. Switch to the TEST position
to enter the TEST mode. Message“Updated menu.dat Successfully”show up
on the TFT display, indicating the setup file has been successfully installed on
the camera.
Click and go back to the main menu.
ATTENTION: THE PASSWORD CAN ONLY BE SET UP ON THE CAMERA,
NOT ON THE PC.
2.5 Set up MMS Function on PC
On the main menu, Select Ltl 5210MG-1080P and press MMS Setup.

11
Display below:
An important first step is to determine the format of the files that the camera
will send you. On the right of the first row where it says MMS Status, choose

12
among three options: “VGA”, “SMS”, and “OFF”.
VGA: the camera will send 640X480 pictures to your phone or
e-mail account
SMS: the camera will send only texts to you
OFF: the camera will not send anything
Then you need to choose how you like to set up the MMS Mode
--Auto or Manual. Choose Auto
(recommended), then select the country and
the Mobile Phone Network Operator (MPNO). With Auto setup, the URL, APN,
Gateway, and Port sections will be in gray. You would only need to input the
phone number and/or email address you’d like to receive MMS pictures.
You can enter up to three different phone numbers and/or email accounts.
NOTE: At least one valid phone number needs to be put in. Otherwise the
camera would not be able to send data. The phone number cannot start with 0.
If used locally, the country code needs not be included; if absolutely necessary,
please replace the initial zero(s) with “+”. For example：“001” would become
“+1”.
If you choose Manual to manually input all the parameters, you need to
contact your Mobile Phone Network Operator (MPNO) to have them provide
you all the required information such as URL, APN, Gateway, and Port.
NOTE: The MMS parameters of the major MPNO’s in each country have been
pre-stored in the setup program. You’re recommended to choose Auto to let
the system to set up the MMS. However, because each local MPNO has their
own settings for their MMS service, and those settings can change over time,
you may need to acquire the settings from your MPNO if the Auto-selected
settings fail to work. If you find out those settings have changed according to
the information provided by your MPNO, or you have settings from your
MPNO that is not on our Operators list, please notify us so we can update our
program.

13
Click on to find and choose the drive where the SD card is
placed. For example, the SD card is inserted on Drive F:\. Then you select
only F:\. DO NOT choose any folder under F:\.
Click on . A message window pops out as below. Click OK.
A file named setup.dat has been created and saved in the root directory of the
SD card.
Click on and back to main menu. Retrieve the SD card
and insert it in the camera. Switch to the TEST position to enter the TEST
mode. Message“Updated setup.dat Successfully” show up on the TFT display,
indicating the setup file has been successfully installed on the camera.
2.6 Set up SMTP Function on PC
On the main menu, Select Ltl 5210MG-1080P and press SMTP Setup.
Display below:

14
For the camera to send pictures, SMTP status must be set to “VGA”.
“SMS” indicates sending texts and “OFF” means nothing will be sent.
In Auto mode, first select country and operator. In Manual mode, you fill in
APN / Account /
Password. This parameter you can find from your mobile operator.
Fill in your E-mail server / port / sender E-mail / Password /Recipients
E-mail

15
and SMS Phone NO.
Under SMS remote control, the value ranges from “0”to “off” and denotes the
frequency the camera wakes up to either receive or execute the commands.
“0” indicates that the camera will wake up and search for commands
automatically every 10 minutes, and send feedback once it receives them.
“1~24” indicates search intervals of 1~24 hours. “off”, on the other hand,
means SMS remote control is turned off. This design with the waking
intervals helps conserve battery.
Select value based on your own need. To learn more about SMS remote
control please refer to 2.7 SMS Remote Control & Table of Command
Code, you can set it up by MMS or SMTP Setup)
Click on to find and choose the drive where the SD card is
under. (For example, F:/)
Click on . A message window pops out as below. Click OK.
A file named smtp.dat will be created and saved in the root directory of the SD
card.

16
Retrieve the SD card and insert it in the camera. Switch to the TEST position
to enter the TEST mode. Message“Updated smtp.dat Successfully” show up
on the TFT display, indicating the setup file has been successfully installed on
the camera.
2.7 SMS Remote Control & Table of Command Code
In order to communicate with your camera via text message/SMS, you need to
format your texts in a certain way, essentially speaking the same language as
the camera.
All the SMS commands should start with “LTL(ltl)” and end with
“AA(aa)”.
Between “ltl” and “aa”, insert the specific instructions you want the
camera to follow. You can choose to give one instruction at a time, but it
saves time to combine them together.
A specific instruction is made up with four parts in the following
sequence: a two-digit order code, an asterisk (*), a code value (a
number or a combination of numbers and letters), and lastly a
pound/hash sign (#). See the “Example” column for illustrations.
Both capitalized and non-capitalized letters can be used in a command.
Do NOT leave any spaces between any of the letters and symbols.
Do NOT put a comma or a period at the end of the text. Again, a
command starts with “ltl” and ends with “aa”. Do NOT include any
quotation marks in a command; they are used here just for explanation
purposes.
The maximum for text messages is 60 bytes. If you want to send
multiple commands, please do so in separate texts.
An example of a command would be LTL01*0#02*2#06*S30#07*10A3Z#60*1#AA
Which asks the camera to 1) be in camera mode and take only pictures, 2)
set image size to 1.3MP, 3) take pictures with an interval of 30 seconds, 4)
turn on serial number and set it to “0A3Z”, and 5) immediately take a picture
and send it to you.
For SMS remote control setting, different value comes with
different extra power consumption:“0” the highest and “off” zero.
If your phone number is put in properly during setup, once the
camera receives the command, it will send you a text message
saying “Message format OK”. If the code 60 function is turned on,
the camera will also send a picture that it takes after executing
the command along with the text message.

17
Note: When using order code 12 and13 to set additional phone numbers or email
addresses, make sure to fill in code 12 first before 13. The number or e-mail added
by using code 13 will not be accepted if the code 12 slot is empty.
Command
Code
Code Value
Example
Meaning
01
Mode：camera（0），video
（1）， camera+ video（2）
01*1#
Set to video mode
02
Image size：12MP（0），
5MP（1）， 1.3MP（2）
02*1#
5MP
03
Video size：
1080P(0), 720P (1),
VGA(2) ,QVGA(2)
03*1#
720P
04
Number of Pictures per
Trigger：one photo（0），
two photos（1）， three
photos（2）
04*2#
3 photos
05
Video length：1-60 for
the number of seconds
05*59#
59 seconds
06
Interval：beginning with
S（s）represents Second,
with M（m）represents
minute 1-60 indicates
different value
06*s30#
Interval:30s
07
Serial Number：off（0），
on（1）， take camera
setting for reference，
numbers and letters
07*1AbCD#
Serial number: ABCD
08
PIR sensitivity level：Low
（0）， normal（1）， High
（2）, off (3)
08*1#
normal
09
Time Stamp：off（0）， on
（1）
09*0#
off
10
Side PIR：off（0）， on（1）
10*1#
on
11
MMS status：off（0），
VGA（1）， SMS（2）
11*2#
SMS

18
12
Phone No 2 or Email：
Maximum 48 symbols
12*1988888
8888#
Phone number
19888888888
13
Phone No 3 or Email：
Maximum 48 symbols
13*info@ltla
corn.cn#
Email
[e-mail]
14
Additional Email：
Maximum 48 symbols
14*info@ltla
corn.cn#
Email
[e-mail]
15
Maximum number of
photos sent by camera
per day. 0 means no limit
15*0#
Camera sends as
many pictures as it
takes.
16
Time lapse：off（0）， on
（1）, Time indicated by
numbers. Example：1h
30m 0s becomes 01 30
00.
16*1013000
#
The camera takes a
picture every one and
a half hours whether
triggered or not
17
Timer : off（0）， on（1）.
Time indicated by 2
digits, Example：13h
30m becomes 13 30.
17*1133015
30#
Camera functions only
between 1:30pm
~3:30pm when
triggered.
18
Timer 2: off（0）， on
（1）.Time indicated by 2
digits, Example：13h
30m becomes 13 30.
18*1133015
30#
Camera functions only
between 1:30pm
~3:30pm when
triggered.
19
SMS command
receiving time. 0: every
10 minutes; 1-24:every 1
to 24 hours; 25: off
19*2#
Camera wakes up
every two hours and
search for text
message commands.
60
Whether or not the
camera takes a picture
and sends it back to you
once text commands are
received: off（0）， on（1）
This code works under
CAMERA and VIDEO
and CAMERA + VIDEO
Mode.
60*1#
Camera takes a
picture and sends it
back upon command.
Note: Order 12 and13 are ineffective in SMTP mode
