INSTRUCTION MANUAL

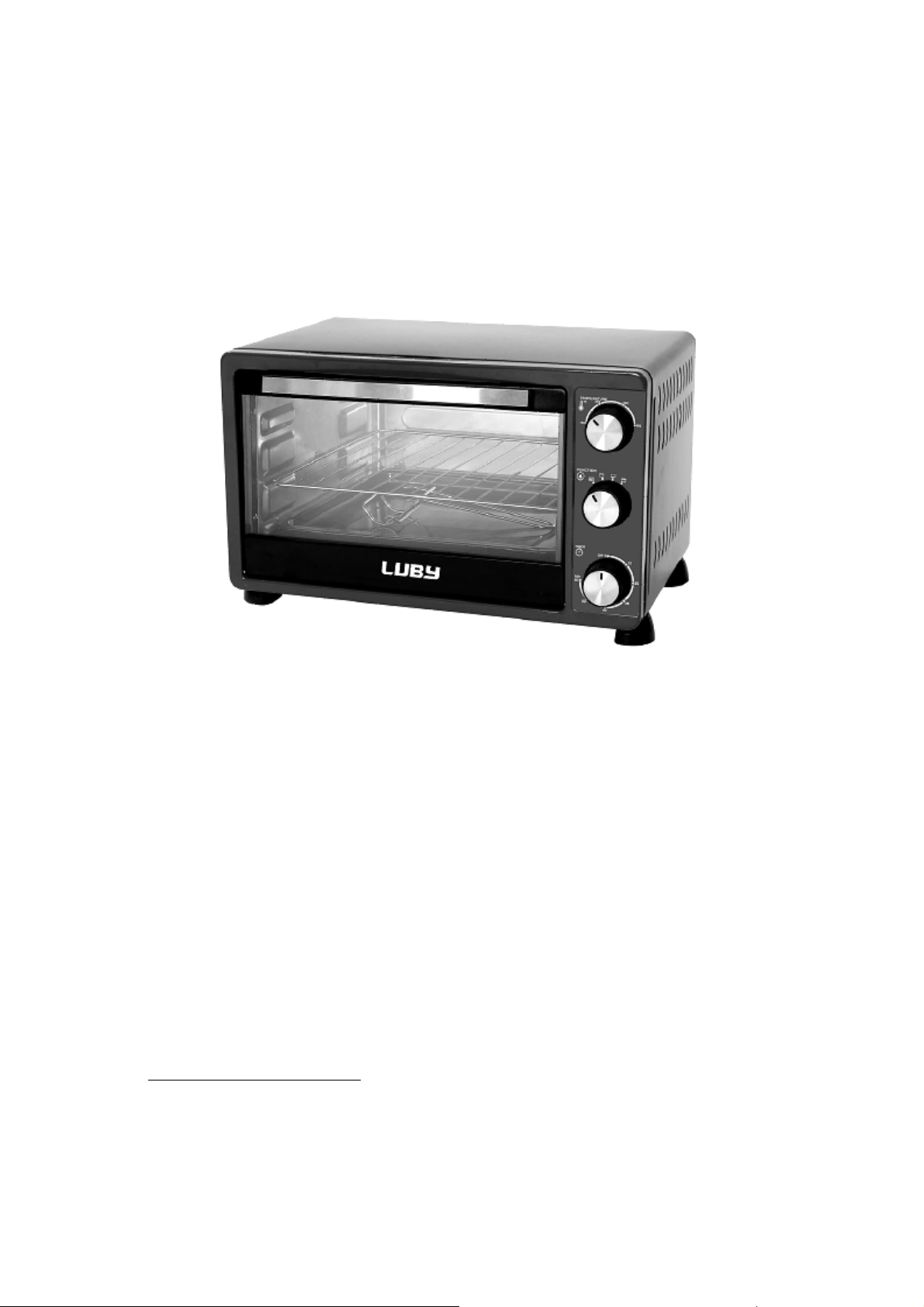

ELECTRIC TOASTER OVEN
MODEL: GH23CL
CAPACITY: 23 LITRES
120V/60Hz, 1500W
Read all the sections of this booklet and follow all the instructions carefully.
SAVE THESE INSTRUCTION-
For Household Use Only
If you have any questions to our products, please contact us by E-mail:
[email protected]. Our customer services are always ready to offer you a
satisfying solution.
Service website：http://www.luby-hainter.com
Product verification code:

IMPORTANT SAFETY INSTRUCTIONS
When using your Electric Oven, basic safety precautions should always be
observed, including the following:
1. Do not touch hot surfaces.Always use
handles or knobs.
2. Close supervision is necessary when any
appliance is used by or near children.
3. To protect against electric shock, do not
immerse cord, plug or any parts of the
oven in water or any other liquids.
4. Do not let cord hang over edge of table or
counter, or touch hot surfaces.
5. Do not operate an appliance with a
damaged cord or plug or after the
appliance malfunctions or has been
damage in any manner.
6. The use of accessory attachments not
recommended by the appliance
manufacturer may cause hazard or injury.
7. Do not place on or near a hot gas or
electric burner.
8. When operating the oven, keep at least
four inches of free space on all sides of the
oven to allow for adequate air circulation.
9. Unplug from outlet when not in use and
before cleaning. Allow to cool before
putting on or taking off parts and before
cleaning.
10.To disconnect, turn the time control to OFF,
then remove the plug. Always hold the
plug, and never pull the cord.
11.Extreme caution must be used when
moving a drip pan containing hot oil or
other hot liquids.
12.Do not cover any part of the oven with
metal foil. This may cause the oven to
overheat.
13.Use extreme caution when removing the
tray, racks or disposing of hot grease or
other hot liquids.
14.Do not clean the inside of the oven with
metal scouring pads. Pieces can break off
the pad and touch electrical parts, creating
a risk of electric shock.
15.Oversized foods or metal utensils must not
be inserted in a toaster oven as they may
create a fire or an electric shock.
16.A fire may occur if the oven is covered or
touching flammable material, including the
curtains, draperies, walls, and the like,
when in operation. Do not store any item
on top of the appliance when in operation.
17.Extreme cautions should be exercised
when using cooking or baking containers
constructed of anything other than metal or
ovenproof glass.
18.Be sure that nothing touches the top or
bottom elements of the oven.
19.Do not place any of the following
materials in the oven: cardboard, plastic,
paper or anything similar.
20.Do not store any materials other than the
manufacturer’s recommended accessories
in this oven when not in use.
21.Always wear protective, insulated oven
gloves when inserting or removing items
from the hot oven.
22.This appliance has a tempered, safety glass
door. The glass is stronger than ordinary
glass and more resistant to breakage.
Tempered glass can still break around the
edges. Avoid scratching the door surface or
nicking the edges.
23.This appliance is OFF when the Timer
Control button is in the “OFF” position.
24.Do not use outdoors.
25.Do not use this appliance for other than its
intended use.
1

21
Getting To Know Your Electric Oven
MAIN COMPONENT：
1. Temperature Control Knob 2. Indicator Light
3. Function Control Knob 4. Timer Control Knob
5. Oven Foot 6. Door Glass
7. Crumb Tray 8. Bottom Door Frame
9. Wire Rack 10. Top Door Frame
11. Oven Handle 12. Bake Tray
13. Tray Handle

Technical Specifications
120V/ 60Hz.Voltage:
1500WattsPower:
Before using your Electric oven
▲Before using your electric oven for the first time, be sure to:
1. Read all of the instruction included in this manual.
2. Make sure that the oven is unplugged and the Timer control is in the “OFF” position.
3. Wash all the accessories in hot, soapy water or in the dishwasher.
4. Thoroughly dry all accessories and re-assemble in the oven. Plug the oven into outlet and you are
ready to use your new toaster oven.
5. After re–assembling your oven, we recommend that you run it at the highest temperature (450℉)
on the function for approximately 15 minutes to eliminate any packing residue that may
remain after shipping. This will also remove all traces of odor initially present.
Please Note: Initial start-up operation may result in minimal smell and smoke (about
15 minutes). This is normal and harmless. It is due to burning of the
protective substance applied to the heating elements in the factory.
Using your electric oven
You can use the Luby oven for broil, bake and toast.
Please familiarize yourself with the following oven functions and accessories prior to first use:
●Temperature Control: Choose the desired temperature from 150℉to 450℉for baking, broiling
or toasting.
●Function Control: There’re four stages switch heating selector: Off/ Upper heating/
Bottom heating / Upper heating + Bottom heating
●Timer Control: To choose your cooking time, and there is a bell rings at the end of the
programmed time. Also control the Convection and Lamp turn-on and turn-off
at the same time.
●Power “ON” neon light: It’s illuminated whenever the oven is turned on.
●Bake Tray: For use in broiling and roasting meat, poultry, fish and various other foods.
●Tray Handle: Allows you to pick up the wire rack, and bake tray when they are hot.
●Crumb tray: Use to catch the drippings, bread crumbs, etc.
3
●Wire Rack: Use for bake cake, meat and various other foods.

4
CONVECTION and Lamp
Convection Fan and Lamp are operating when the timer is turn-on and stopping when the timer
is turn-off.
CAUTION: Always use extreme care when removing bake tray, wire
rack or any hot container from a hot oven. Always use the
rack handle, or an oven mitt when removing hot items
from the oven.
Care & Cleaning
Warning: Be sure to unplug the oven and allow it to cool before cleaning.
Any spattering that occurs while cooking and comes into contact with the cavity surface is
oxidized while the oven is in operation. If desired, wipe the walls with a damp sponge, cloth or nylon
scouring pad and mild detergent. DO NOT USE STEEL WOOL SCOURING PADS, ABRASIVE
CLEANERS OR SCRAPE THE WALLS WITH A METAL UTENSIL, AS ALL OF THESE
METHODS MAY DAMAGE CAVITY SURFACE AND CAUSE RUST.
All accessories should be washed in hot soapy water or can be cleaned in a dishwasher. The
door can be wiped with a damp sponge and wiped dry with a paper or cloth towel. Clean the outside
with a damp sponge. DO NOT USE AN ABRASIVE CLEANER AS IT MAY DAMAGE THE
EXTERIOR FINISH AND CAUSE TO BE RUST.
DO NOT USE AN ABRASIVE CLEANER OR STEEL WOOL SCOURING PAD ON
THE DRIP PAN AS IT MAY DAMAGE THE PORCELAIN ENAMELFINISH.
LET ALL PARTS AND SURFACES TO BE DRY THOROUGHLY BEFORE PLUGGING
OVEN IN AND USING.
Due to continuous product improvement, specifications subject to change without prior notice.

5
WARNING!
The appliance is not intended for use by persons (including children) with reduced physical sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance.
1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if
this only for short while.
2. This appliance is not intended to be operated by means of an external timer or separate
remote-control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or
similarly qualified persons in order to avoid a hazard.
4. Do not immerse this product in liquid.
***This appliance shall not be used by children. Please must keep the appliance away and its
cord out of reach of children. ***
Caution: Hot surfaces!
The surfaces of oven are getting hot when the appliance is operating.
