Luma Surveillance Turret 710 Series User manual

710 Series Dome
510 Series Dome
310 Series Dome
HD Analog Surveillance Camera
Quick-Start
Guide

2
Luma 310/510/710 Dome Camera
Box Contents
•Camera with mount
•Extra desiccant pack
•Self-adhesive mounting template
•3 x mounting bracket screws
•4 x wall anchors with screws
•3mm hex wrench
•CC tester cable
•BNC connector (710 series only)
Other Required Equipment
Aside from the contents of this box, you will need
•Phillips screwdriver
•Power source: 12V DC
•CC-TV tester (recommended)

3
Luma 310/510/710 Dome Camera
Inspection
Ensure that the device is in good condition and all the assembly parts are included.
We recommend installing with RG-59 or RG-6 cabling with two-wire power (either regular
or siamese). This provides better performance over distance than using traditional category
cable with baluns. For more details, see the product page at SnapAV.com.
}Make sure that all equipment is powered off during installation.
}Ensure the wall is strong enough to withstand three times the weight of the camera
and the mount.
}If the mounting surface is cement, use the included expansion screws to install the
camera. If mounting to a wood surface, use self-tapping wood screws (not included)
to secure the camera.
}If the product does not function properly, please contact technical support. Do not
disassemble the camera for repair or maintenance.
WARNING: This product can expose you to chemicals including cadmium, which
is known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov.

4
Luma 310/510/710 Dome Camera
Overview
Before installing, familiarize yourself with the parts of your camera.
Dome
Black Shroud
Lens
Video Test Port
(310 series has no local test power)
OSD Joystick
Base
Power Cable
Video BNC Cable
Resolution Toggle
(310 / 510 only)
Light Sensor
IR Emitters

5
Luma 310/510/710 Dome Camera
Prepare for Installation
1. Drill a cable hole and pilot holes for your screws, using the supplied template.
2. Loosen the hex screws on the dome to remove the dome and the black shroud. Do
not throw away the foam around the camera lens! It protects the camera from glare
from its infrared lights.
3. If you are installing this camera in an older system that does not support
HD-TVI, flip the camera’s resolution toggle, below right, to the CVBS position.

6
Luma 310/510/710 Dome Camera

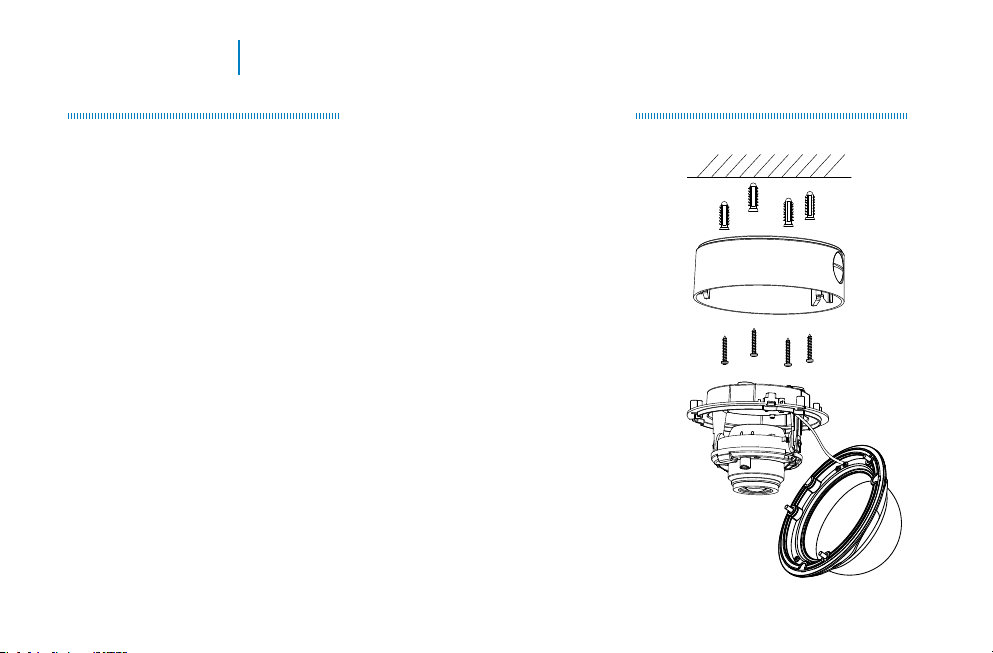

Install the Camera
1. Attach the base of the camera to the ceiling and secure
it with screws.
2. Route the cables through the cable hole. Note that the
base provides extra space between the camera and the
ceiling for wire management.
3. Connect the power and video cables.
4. Align the camera body with the base, and tighten the set
screws to secure the camera.
5. Optional: If you want to use the camera’s on-screen
display through your DVR or the web interface, go into
the DVR’s menu and set the camera protocol to UTC
(Coaxitron). To do so from the DVR’s local interface, go to
Settings > Camera > PTZ, then click the PTZ Settings
button. From the web interface, go to Configure the
Recorder > Camera Settings > PTZ Settings.

7
Luma 310/510/710 Dome Camera
Adjust the Camera
1. Adjust the camera aim. This camera has a 3-axis
gimbal for perfect pan and tilt control. Ensure
that the infrared sensor in the middle of the IR
array is not blocked by the camera housing.
2. If you want to adjust the camera settings using
a CC tester, do that now (test power is not
available on the 300 series). Otherwise, use the
DVR’s controls to adjust the camera settings
later; continue installation with the next step.
3. Replace the black liner on the camera (optional).
Replace the dome and tighten the screws to
secure it
0-355°
0-75°
0-360°

8
Luma 310/510/710 Dome Camera
Support
Need Help? Contact Tech Support!
If you need further clarification, please email [e-mail]. For more information,
instructional videos, support documentation, or ideas, visit our website and view your
item’s product page.
5-Year Limited Warranty
This Luma Surveillance™ product has a 5-Year Limited Warranty. This warranty includes
parts and labor repairs on all components found to be defective in material or workmanship
under normal conditions of use. This warranty shall not apply to products that have been
abused, modified or disassembled. Products to be repaired under this warranty must be
returned to a designated service center with an assigned return authorization (RA) number.
Contact technical support for an RA number.
