lumen8 Kudos 200 User manual

Innovation, Quality, Performance
Kudos 200
Order code: ELUM035
User Manual
www.prolight.co.uk

1A
CONTENTS
1. Safety instructions....................................................................................... 2
2. Technical specifications............................................................................... 5
3. How to set the unit ...................................................................................... 6
3.1 Control panel ......................................................................................... 6
3.2 Main functions ....................................................................................... 7
3.3 Home position adjustment................................................................... 14
4. How to control the unit .............................................................................. 14
4.1 Master/slave built-in preprogrammed functions................................... 14
4.2 Channel mode setting.......................................................................... 15
4.3 Address setting.................................................................................... 15
4.4 DMX 512 configurations ...................................................................... 16
5. DMX 512 connections............................................................................... 22
6. Troubleshooting ........................................................................................ 23
7. Fixture cleaning......................................................................................... 24

25A
Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN
62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
2A
1. Safety Instructions
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this equipment should:
- Be competent
- Follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is
necessary for the user to follow the safety instructions and warning notes written in this
manual.
Please note that damages caused by user modifications to this equipment are not
subject to warranty.

3A
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorised modification to the equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the system’s life.
• Only use the equipment indoors.
`• Do not expose to flammable sources, liquids or gases.
• Cleaning must be done at regular intervals.
• Before cleaning, wait until the unit has cooled.
• Use a vacuum or dry compressed air and a soft brush to remove the dust collected on
the external vents and accessible internal components.
• Clean the external surfaces with a mild solution of non-ammonia glass cleaner or
isopropyl alcohol and wipe with a soft, lint free cotton cloth or lens cleaning tissue.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable.
• Make sure that the available voltage is between 100V/240V.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and the
power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualified engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature fluctuation (e.g. after transportation),
do not switch it on immediately. The arising condensation might damage the equipment.
Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualified
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may
suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks, LED failure etc.
Do not endanger your own safety and the safety of others! Incorrect installation or use can cause
serious damage to people and property.
24A
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding areas can cause
greater accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

23A
6. Troubleshooting
The following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Check the power LED is lit.
B. Not responding to DMX controller
1. The DMX LED should be lit. If not, check the DMX connectors and cables to see if it is
linked properly.
2. If the DMX LED is on and there is no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the connectors and cables.
4. Try another DMX controller or cables.
5. Check if the DMX cables run near or run alongside high voltage cables that may cause
interference to the DMX circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/slave mode signal.
2. The wrong DMX address is set on the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit is not set into DMX mode.
2. Check the microphone to see if it is working by tapping it.
4A
Installation:
The unit should be mounted via omega bracket (see below). Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of
the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of
the unit when installing the fixture.
The equipment must be installed by the professionals. It must be fixed in a place where is
out of the reach of people.

5A
2. Technical Specifications
• Extremely small, fast and powerful LED moving beam.
• DMX Channels: 1/9/12/14/16 or 28 selectable
• Pan/Tilt: 630°/200°, speed adjustable
• Dimmer with 0-100%
• Electronic strobe with pulse and random effects
• High efficiency, low power consumption
Power supply: AC 100V~240V, 50/60Hz
Power consumption: 180W
LED: 12 x 10W Cree LEDs
Beam Angle: 10 degrees
Dimensions: 325 x 223 x 396mm
Weight: 8.5kg
22A
5. DMX 512 Connections
Unit 4 (slave) Unit 3 (slave) Unit 2 (slave) Unit 1
(master)
1. At last unit, the DMX cable has to be terminated with a terminator (CABL90 3-pin or
CABL89 5-pin). Alternatively solder a 120 ohm 1/4W resistor between pin 2 (DMX-)
and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX output of the last unit.
2. Connect the units together in a `daisy chain` fashion by plugging from output to the
input of the next unit. The cable can not be branched or split to a `Y` cable. DMX 512 is
a very high-speed signal. Inadequate or damaged cables, badly soldered joints or
corroded connectors can easily distort the signal.
3. The DMX output and input connectors are “pass-through” to maintain the DMX circuit,
when one of the units power is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 001-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.

21A
6A
3. How To Set The Unit
3.1 Control panel
Front View Rear View
Display:
Show the various menus and the selected functions
LED:
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound Activation
Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
1, Fuse(T 6.3A): Protect the unit from damage of the over-current.
2, Mains input: Connect to power supply.
3, Mains output: Connect to supply power to the next unit.
4, DMX input: For DMX512 link, use 3/5-pin XLR cable to link the unit together.
5, DMX output: For DMX512 link, use 3/5-pin XLR cable to link the unit together.

7A
3.2 Main Functions
To select any of the functions, press the MENU button up or down until the required one is
showing on the display. Select the function by pressing the ENTER button and the display
will blink. Use the DOWN and UP buttons to change the mode. Once the required mode
has been selected, press the ENTER button to setup, to go back to the functions without
any changes press the MENU button again. Hold and press the MENU button for one
second or wait for one minute to exit the menu mode.
20A
28 channels mode:

19A

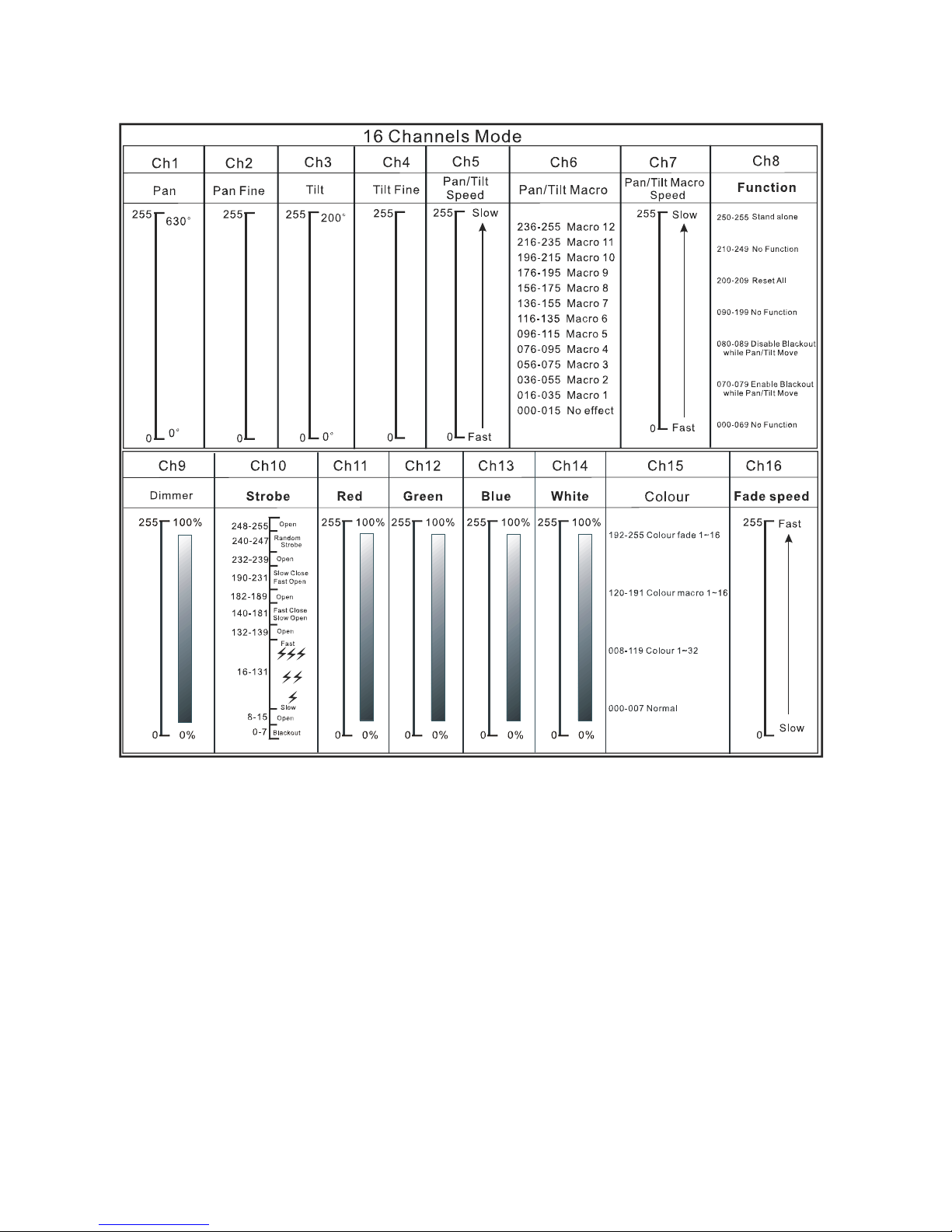

16 channels mode:
8A

9A
DMX address:
To select the DMX Address, press the ENTER button to show DMX ADDRESS on the
display. Use the UP and DOWN buttons to adjust the address from 001 to 512. Once the
address has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
DMX channel mode:
To select the Channel Mode, press the ENTER button to show DMX CHANNEL MODE on
the display. Use the DOWN and UP buttons to select the 1, 9, 12, 14, 16 or 28 channel
modes. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Show mode:
To select the Show Mode, press the ENTER button to show, SHOW MODE, on the display.
Use the DOWN and UP buttons to select the Show 1,Show 2,Show 3 or Show 4 Mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Dimmer curve:
To select the Dimmer Curve, press the ENTER button to show DIMMER CURVE on the
display. Use the DOWN and UP buttons to select Mode1,Mode 2,Mode 3 or Mode 4.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
18A
14 channels mode:

17A
12 channels mode:
10A

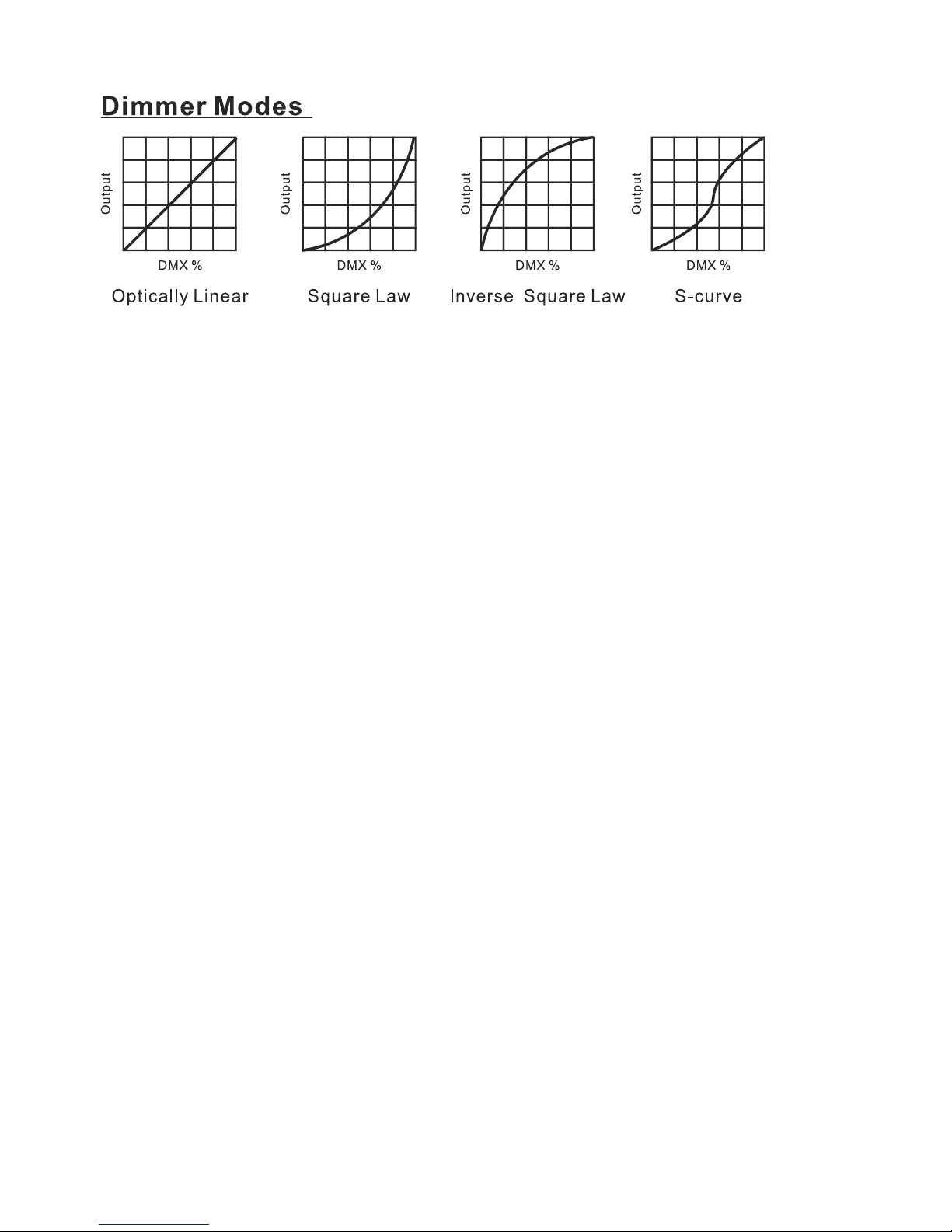

Mode 1 (Optically Linear): The increase in light intensity appears to be linear as DMX
value is increased.
Mode 2 (Square Law): Light intensity control is finer at low levels and coarser at high
levels.
Mode 3 (Inverse Square Law): Light intensity control is coarser at low levels and finer at
high levels.
Mode 4 (S-cure): Light intensity control is finer at low levels and high levels and coarser at
medium levels.
Slave Mode:
To select the Slave Mode, press the ENTER button to show SLAVE MODE on the display.
Use the DOWN and UP buttons to select the Slave 1 (normal) or Slave 2 (2 light show)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Black Out:
To select the Slave Mode, press the ENTER button to show BLACKOUT on the display.
Use the DOWN and UP buttons to select the Yes (yes blackout) or No (no blackout) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.

11A
Sound State:
To select the Sound State, press the ENTER button to show SOUND STATE on the
display. Use the DOWN and UP buttons to select the On (sound on) or Off (sound off)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Sound Sense:
To select the Sound Sense, press the ENTER button to show SOUND SENSE on the
display. Use the DOWN and UP buttons to change the sound sensitivity from 0…100.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Pan Inverse:
To select the Pan Inverse, press the ENTER button to show PAN INVERSE on the display.
Use the DOWN and UP buttons to select the Yes (pan inversion) or No (normal) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Tilt Inverse:
To select the Pan Inverse, press the ENTER button to show TILT INVERSE on the display.
Use the DOWN and UP buttons to select Yes (tilt inversion) or No (normal) mode. Once
the mode has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Back Light:
To select the Back Light, press the ENTER button to show BACK LIGHT on the display.
Use the DOWN and UP buttons to select the On (LED on) or Off (LED off) mode. Once the
mode has been selected, press the ENTER button to setup, to go back to the functions
16A

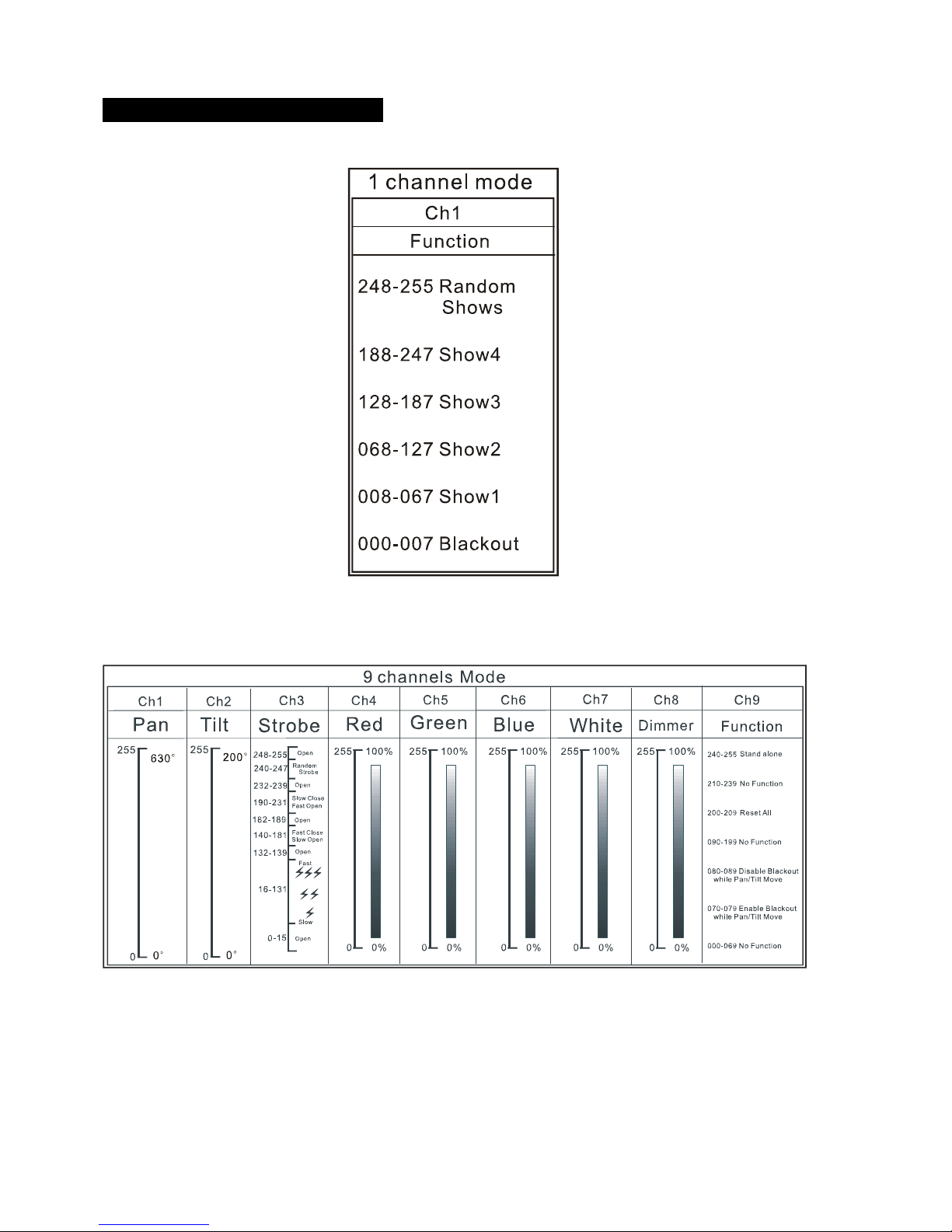

4.4 DMX 512 Configurations
1 channel mode:
9 channel mode:

15A
2-light show
In the Slave 1 option all of the slave units will always follow the master units movements.
When using the Slave 2 option the slave units will inverse the movements from the master
unit creating a two way light show.
4.2 Channel Mode Setting
To select the CHANNEL MODE setting, press the MENU button to show CHANNEL MODE
on the display, now press the ENTER button and use the UP and DOWN buttons to select
1chan,9chan,12chan,14chan,16chan or 28chan mode, once selected, press the
ENTER button to setup. Press MENU button to go back to the last menu or let the unit idle
for 7 seconds to exit menu mode.
4.3 Address Setting
To set the DMX address, press the MENU button to show DMX ADDRESS on the display.
Press the ENTER button and the display will blink. Use the DOWN and UP buttons to
change the DMX address. Once the address has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button again.
Hold and press the MENU button for one second or wait for one minute to exit the menu
mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units;
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
1 channel 1 2 3 4
9 channel 1 10 19 28
12 channel 1 13 25 37
14 channel 1 15 29 43
16 channel 1 17 33 49
28 channel 1 29 57 85
12A
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Function Delay:
To select the Function Delay, press the ENTER button to show FUNCTION DELAY on the
display. Use the DOWN and UP buttons to select No Delay or 1S/2S/3S Delay (Wait for
1/2/3 seconds before these Functions of 9/16/28CH are activated/deactivated). Once the
mode has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
White Balance:
To select the White Balance, press the ENTER button to show WHITE BALANCE on the
display. Use the DOWN and UP buttons to select the Red, Green or Blue. Once the mode
has been selected, press the ENTER button to setup, use the DOWN and UP buttons to
change the value (125~255). Once the mode has been selected, press the ENTER button
to setup, go back to the functions without any changes press the MENU button again. Hold
and press the MENU button for one second or wait for one minute to exit the menu mode.
Manual Test:
To select the Manual Test, press the ENTER button to show MANUAL TEST on the
display. Use the DOWN and UP buttons to select the Pan/ Tilt/Red1/Green1/Blue1/
White1/…Red4/Green4/Blue4/ White4/ Dimmer or Strobe. Once the mode has been
selected, press the ENTER button to setup, use the DOWN and UP button to change the
value (0~255). Once the mode has been selected, press the ENTER button to setup, go
back to the functions without any changes press the MENU button again. Hold and press
the MENU button for one second or wait for one minute to exit the menu mode.
Auto Test:
To Select Auto Test, press the ENTER button to show AUTO TEST on the display and the
unit will run a self-test. To go back to the functions press the MENU button again. Hold and
press the MENU button for one second or wait for one minute to exit the menu mode.

13A
Temp.
To Select the Temp., press the ENTER button to show TEMP on the display and the
display will show the temperature of the unit. To go back to the functions press the MENU
button again. Hold and press the MENU button for one second or wait for one minute to exit
the
menu mode.
Fixture Time
To Select the Fixture Time, press the ENTER button to show FIXTURE TIME on the
display and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button again. Hold and press the MENU button for one second
or wait for one minute to exit the menu mode.
Firmware Version
To Select the Firmware Version, press the ENTER button to show FIRMWARE VERSION
on the display and the display will show the version of software of the unit. To go back to
the functions press the MENU button again. Hold and press the MENU button for one
second or wait for one minute to exit the menu mode.
PRO Defaults
To Select the Defaults, press the ENTER button to show PRO DEFAULTS on the display
Use the DOWN and UP buttons to select Yes (run built-in program to set the fixture to PRO
Defaults settings) or No. Press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Reset
To Select the reset mode, press the ENTER button to show RESET on the display. Press
the ENTER button and all channels of the unit will return to their standard position.
14A
3.3 Home Position Adjustment
In the main functions, press and hold the Enter button for at least 3 seconds into offset
mode, use the DOWN and UP buttons up to choose Pan Offset or Tilt Offset, press the
ENTER button and the display will blink. Use the DOWN and UP buttons to adjust the
home position of the Pan or Tilt. Once the position has been selected, press the ENTER
button to setup, to go back to the functions without any changes press the MENU button
again. Hold and press the MENU button for one second or wait for one minute to exit the
menu mode.
4. How to Control the Unit
You can operate the unit in two ways:
1. Master/slave built-in programme functions
2. Universal DMX controller
There is no need to turn off the unit when you change the DMX address, as the new DMX
address setting will be effective straight away. Every time you turn the unit on, it will show
“KUDOS 200” on the display, and move all the motors to their ‘home’ position. The unit will
now be ready to receive a DMX signal or run the built in programmes.
4.1 Master/Slave Built-in Preprogrammed Functions
By linking the units together in master/slave, the first unit (the master) will control the other
units (the slaves) to give an automatic, sound activated, synchronized light show.
To set the unit as a master, press the ENTER button to show SHOW MODE on the display.
Now use the DOWN and UP buttons up to select show 1,show 2,show 3 or show 4 and
the master LED will be constantly lit and the sound LED will flash to the music. To set the
unit as a slave, press the ENTER button to show SLAVE MODE on the display. Now use
the DOWN and UP buttons up to select Slave 1 (normal) or Slave 2 (2 light show) mode,
and the SLAVE LED will be constantly lit.

13A
Temp.
To Select the Temp., press the ENTER button to show TEMP on the display and the
display will show the temperature of the unit. To go back to the functions press the MENU
button again. Hold and press the MENU button for one second or wait for one minute to exit
the
menu mode.
Fixture Time
To Select the Fixture Time, press the ENTER button to show FIXTURE TIME on the
display and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button again. Hold and press the MENU button for one second
or wait for one minute to exit the menu mode.
Firmware Version
To Select the Firmware Version, press the ENTER button to show FIRMWARE VERSION
on the display and the display will show the version of software of the unit. To go back to
the functions press the MENU button again. Hold and press the MENU button for one
second or wait for one minute to exit the menu mode.
PRO Defaults
To Select the Defaults, press the ENTER button to show PRO DEFAULTS on the display
Use the DOWN and UP buttons to select Yes (run built-in program to set the fixture to PRO
Defaults settings) or No. Press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Reset
To Select the reset mode, press the ENTER button to show RESET on the display. Press
the ENTER button and all channels of the unit will return to their standard position.
14A
3.3 Home Position Adjustment
In the main functions, press and hold the Enter button for at least 3 seconds into offset
mode, use the DOWN and UP buttons up to choose Pan Offset or Tilt Offset, press the
ENTER button and the display will blink. Use the DOWN and UP buttons to adjust the
home position of the Pan or Tilt. Once the position has been selected, press the ENTER
button to setup, to go back to the functions without any changes press the MENU button
again. Hold and press the MENU button for one second or wait for one minute to exit the
menu mode.
4. How to Control the Unit
You can operate the unit in two ways:
1. Master/slave built-in programme functions
2. Universal DMX controller
There is no need to turn off the unit when you change the DMX address, as the new DMX
address setting will be effective straight away. Every time you turn the unit on, it will show
“KUDOS 200” on the display, and move all the motors to their ‘home’ position. The unit will
now be ready to receive a DMX signal or run the built in programmes.
4.1 Master/Slave Built-in Preprogrammed Functions
By linking the units together in master/slave, the first unit (the master) will control the other
units (the slaves) to give an automatic, sound activated, synchronized light show.
To set the unit as a master, press the ENTER button to show SHOW MODE on the display.
Now use the DOWN and UP buttons up to select show 1,show 2,show 3 or show 4 and
the master LED will be constantly lit and the sound LED will flash to the music. To set the
unit as a slave, press the ENTER button to show SLAVE MODE on the display. Now use
the DOWN and UP buttons up to select Slave 1 (normal) or Slave 2 (2 light show) mode,
and the SLAVE LED will be constantly lit.

15A
2-light show
In the Slave 1 option all of the slave units will always follow the master units movements.
When using the Slave 2 option the slave units will inverse the movements from the master
unit creating a two way light show.
4.2 Channel Mode Setting
To select the CHANNEL MODE setting, press the MENU button to show CHANNEL MODE
on the display, now press the ENTER button and use the UP and DOWN buttons to select
1chan,9chan,12chan,14chan,16chan or 28chan mode, once selected, press the
ENTER button to setup. Press MENU button to go back to the last menu or let the unit idle
for 7 seconds to exit menu mode.
4.3 Address Setting
To set the DMX address, press the MENU button to show DMX ADDRESS on the display.
Press the ENTER button and the display will blink. Use the DOWN and UP buttons to
change the DMX address. Once the address has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button again.
Hold and press the MENU button for one second or wait for one minute to exit the menu
mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units;
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
1 channel 1 2 3 4
9 channel 1 10 19 28
12 channel 1 13 25 37
14 channel 1 15 29 43
16 channel 1 17 33 49
28 channel 1 29 57 85
12A
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Function Delay:
To select the Function Delay, press the ENTER button to show FUNCTION DELAY on the
display. Use the DOWN and UP buttons to select No Delay or 1S/2S/3S Delay (Wait for
1/2/3 seconds before these Functions of 9/16/28CH are activated/deactivated). Once the
mode has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
White Balance:
To select the White Balance, press the ENTER button to show WHITE BALANCE on the
display. Use the DOWN and UP buttons to select the Red, Green or Blue. Once the mode
has been selected, press the ENTER button to setup, use the DOWN and UP buttons to
change the value (125~255). Once the mode has been selected, press the ENTER button
to setup, go back to the functions without any changes press the MENU button again. Hold
and press the MENU button for one second or wait for one minute to exit the menu mode.
Manual Test:
To select the Manual Test, press the ENTER button to show MANUAL TEST on the
display. Use the DOWN and UP buttons to select the Pan/ Tilt/Red1/Green1/Blue1/
White1/…Red4/Green4/Blue4/ White4/ Dimmer or Strobe. Once the mode has been
selected, press the ENTER button to setup, use the DOWN and UP button to change the
value (0~255). Once the mode has been selected, press the ENTER button to setup, go
back to the functions without any changes press the MENU button again. Hold and press
the MENU button for one second or wait for one minute to exit the menu mode.
Auto Test:
To Select Auto Test, press the ENTER button to show AUTO TEST on the display and the
unit will run a self-test. To go back to the functions press the MENU button again. Hold and
press the MENU button for one second or wait for one minute to exit the menu mode.

11A
Sound State:
To select the Sound State, press the ENTER button to show SOUND STATE on the
display. Use the DOWN and UP buttons to select the On (sound on) or Off (sound off)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Sound Sense:
To select the Sound Sense, press the ENTER button to show SOUND SENSE on the
display. Use the DOWN and UP buttons to change the sound sensitivity from 0…100.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Pan Inverse:
To select the Pan Inverse, press the ENTER button to show PAN INVERSE on the display.
Use the DOWN and UP buttons to select the Yes (pan inversion) or No (normal) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Tilt Inverse:
To select the Pan Inverse, press the ENTER button to show TILT INVERSE on the display.
Use the DOWN and UP buttons to select Yes (tilt inversion) or No (normal) mode. Once
the mode has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
Back Light:
To select the Back Light, press the ENTER button to show BACK LIGHT on the display.
Use the DOWN and UP buttons to select the On (LED on) or Off (LED off) mode. Once the
mode has been selected, press the ENTER button to setup, to go back to the functions
16A
4.4 DMX 512 Configurations
1 channel mode:
9 channel mode:

17A
12 channels mode:
10A
Mode 1 (Optically Linear): The increase in light intensity appears to be linear as DMX
value is increased.
Mode 2 (Square Law): Light intensity control is finer at low levels and coarser at high
levels.
Mode 3 (Inverse Square Law): Light intensity control is coarser at low levels and finer at
high levels.
Mode 4 (S-cure): Light intensity control is finer at low levels and high levels and coarser at
medium levels.
Slave Mode:
To select the Slave Mode, press the ENTER button to show SLAVE MODE on the display.
Use the DOWN and UP buttons to select the Slave 1 (normal) or Slave 2 (2 light show)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Black Out:
To select the Slave Mode, press the ENTER button to show BLACKOUT on the display.
Use the DOWN and UP buttons to select the Yes (yes blackout) or No (no blackout) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.

9A
DMX address:
To select the DMX Address, press the ENTER button to show DMX ADDRESS on the
display. Use the UP and DOWN buttons to adjust the address from 001 to 512. Once the
address has been selected, press the ENTER button to setup, to go back to the functions
without any changes press the MENU button again. Hold and press the MENU button for
one second or wait for one minute to exit the menu mode.
DMX channel mode:
To select the Channel Mode, press the ENTER button to show DMX CHANNEL MODE on
the display. Use the DOWN and UP buttons to select the 1, 9, 12, 14, 16 or 28 channel
modes. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any changes press the MENU button again. Hold and press the
MENU button for one second or wait for one minute to exit the menu mode.
Show mode:
To select the Show Mode, press the ENTER button to show, SHOW MODE, on the display.
Use the DOWN and UP buttons to select the Show 1,Show 2,Show 3 or Show 4 Mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
Dimmer curve:
To select the Dimmer Curve, press the ENTER button to show DIMMER CURVE on the
display. Use the DOWN and UP buttons to select Mode1,Mode 2,Mode 3 or Mode 4.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any changes press the MENU button again. Hold and press the MENU
button for one second or wait for one minute to exit the menu mode.
18A
14 channels mode:

19A
16 channels mode:
8A
