Lumina LUTW-16EQ User manual

After sales support TEL: [phone]
IMPORTANT SAFEGUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual. To reduce the risk of fire, electric shock or injury when using the refrigerator, fol-
low basic precautions,
including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
•It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
•Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure the power cord of the unit is
disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
•Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended
in this manual. All other servicing should be referred to a qualified technician.
•Use two or more people to move and install refrigerator. Failure to do so can result in back or other
injury.
•To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C).
This unit must be installed in an area protected from the elements, such as wind, rain, water spray or
drips.
•The refrigerator should not be located next to ovens, grills or other sources of high heat.
•The refrigerator must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (220~240 V AC only, 50 Hz), properly grounded
in accordance with the National Electrical Code and local codes and ordinances is required.
•Do not kink or pinch the power supply cord of refrigerator.
•The fuse (or circuit breaker) size should be 15 amps.
•It is important for the refrigerator to be level in order to work properly. You may need to make several
adjustments to level it.
•Check for leaks after connection.
•Never allow children to operate, play with or crawl inside the refrigerator.
•Although the unit has been tested at the factory, due to transit and storage, clean the unit before use.
•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or
discolour the interior.
•This appliance is intended for household use only.
•This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.

After sales support TEL: [phone]

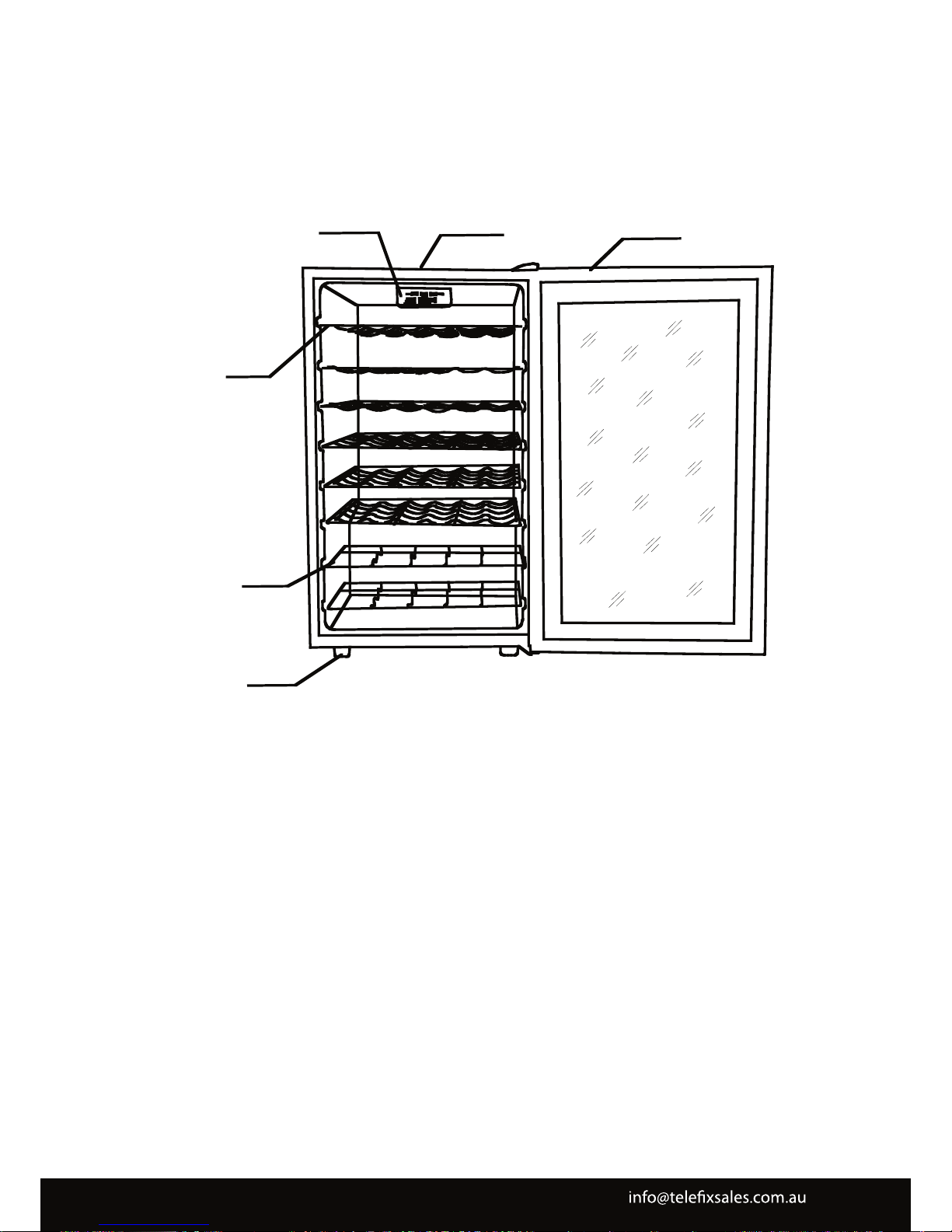

PARTS & FEATURES
1. Countertop
2. Digital Display
3. Glass Door
4. Chrome Shelves (6)
5. Chrome Rack (2)
6. Adjustable Leg
1
2
4
5
6
3

After sales support TEL: [phone]
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury when using your Wine/Beverage Cooler, follow these
basic precautions:
•Read all instructions before using the Wine/Beverage Cooler.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
•Before you throw away your old Wine/Beverage Cooler: take off the door. Leave the shelves in
place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the Wine/Beverage Cooler.
•Never clean Wine/Beverage Cooler parts with flammable fluids. The fumes can create a fire hazard
or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Wine/Beverage Cooler
•Remove the exterior and interior packing.
•Check to be sure you have all of the following parts:
•6 Chrome Shelves
•2 Chrome Racks
•Instruction Manual
•Before connecting the Wine/Beverage Cooler to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Wine/Beverage Cooler
•This appliance is designed to be free standing only, and should not be recessed or built-in (fully
recessed).
•Place your Wine/Beverage Cooler on a floor that is strong enough to support it when it is fully
loaded. To level your Wine/Beverage Cooler, adjust the adjustable leg at the bottom of the unit.
•Allow 125mm of space between the back and sides of the unit, which allows the proper air
circulation to cool the compressor.
•Locate the Wine/Beverage Cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
•Avoid locating the unit in moist areas.
•Plug the Wine/Beverage Cooler into an exclusive, properly installed-grounded wall outlet.
Do not under any circumstances cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed toward a certified electrician.
•After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing items in the compartment.
WARNING To reduce the risk of fire, electrical shock, or
injury when using your Wine/Beverage Cooler,
follow these basic precautions:
•Read all instructions before using the Wine/Beverage Cooler.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
•Before you throw away your old Wine/Beverage Cooler: take off the door. Leave the
shelves in place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the Wine/Beverage Cooler.
•Never clean Wine/Beverage Cooler parts with flammable fluids. The fumes can create a
fire hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a hazard.
-Save these instructions-

After sales support TEL: [phone]
Electrical Connection
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimise the possibility of electrical
shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This unit requires a standard 220~240V Volt AC ~/50Hz electrical outlet with three-prong ground. Have the
wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When
a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with
a properly grounded 3-prong wall outlet.
The cord should be secured behind the unit and not left exposed or dangling to prevent accidental injury.
The unit should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevents overloading
house wiring circuits that could cause a fire hazard. Never unplug the unit by pulling the power cord. Al-
ways grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power
cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion dam-
age along its length or at either end. When moving the unit, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use
an extension cord with this unit. However, if you must use an extension cord it is absolutely necessary that
it be a 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the
electrical rating of the cord be 220~240V volts and at least 10 amps.
Reversing the Door Swing of Your Wine/Beverage Cooler
This Wine/Beverage Cooler has the capability of the door opening from either the left or right side. The unit
is delivered to you with the door opening from the left side. Should you desire to reverse the opening direc-
tion, please follow the instructions below.
W a r ni ng 
Improper use of the grounded plug can result in the risk of electrical shock.
If the power cord is damaged, have it replaced by an authorized technician.

After sales support TEL: [phone] info@telexsales.com.au
1. Remove the upper hinge cover (1).
2. Remove the three screws (2) that hold the upper door hinge (3).
3. Lift the door and place it on a padded surface to prevent scratching.
4. Remove the three screws (6) that hold the lower door hinge (5).
5. Remove the hold cover (7) and transfer it to the same location on the opposite side.
6. Insert the lower door hinge in the right side,
x the lower right hinge by tightening all the screws.
7. Remove the pin cap (9) from the right side of the upper
frame of the door, and then transfer it to the same location
on the opposite side.
8. Put the door on the lower door hinge (5), keep the door level, and then
x the upper hinge (3) to the body (8) by the screws.
9. Install the upper hinge cover (1) on the upper hinge.
FIGURE 1 FIGURE 2

After sales support TEL: [phone] info@telexsales.com.au
OPERATING YOUR WINE/BEVERAGE COOLER
➢ Setting the Temperature Control
You can adjust the temperature by pressing the SET button. Each press increase 1ºC (1 ºF), periodically. The
temperature range is 7 ºC~18 ºC (45 º F ~65 º F). The default temperature is 7 ºC (45 º F)
Champagne: SPARKLING 7 ºC - 9 ºC 45ºF-47ºF yellow LED
White wine: WHITE WINES 10 ºC - 15 ºC 48ºF-57ºF green LED
Red wine: RED WINES 16 ºC - 18 ºC 58ºF-65ºF red LED
NOTE: WHEN COOLING BOTH WINE AND BEER SIMULTANEOUSLY IT IS RECOMMENDED
THAT YOU PLACE WINE BOTTLES ON THE TOP SHELF AND BEER ON THE BOTTOM SHELF.
How to Choose the Celsius or Fahrenheit Degree?
You can select temperature display setting from Fahrenheit to Celsius degrees by pushing the button marked
°C/ ºF and then Celsius degrees indicator will be ON or select temperature display setting from Celsius to
Fahrenheit degrees by pushing the button marked °C/ ºF again and Fahrenheit degrees indicator will be ON.
Interior LED Light
You can turn the interior light on or off by pushing the button marked ON/OFF ”
The light will be turned off automatically after it remains ON for 10 minutes. You have to push the button
marked with the “ON/OFF” symbol again and the light will turn back on.
LAMP

After sales support TEL: [phone]
CARE AND MAINTENANCE
Cleaning Your Wine/Beverage Cooler
•Unplug the Wine/Beverage Cooler, and remove all items including shelves and racks.
•Wash the inside surfaces with a warm water and baking soda solution. The solution should be about
2 tablespoons of baking soda to a 250mL of water.
•Wash the shelves and racks with a mild detergent solution.
•Rinse well and wipe dry with a clean soft cloth.The outside ofthe Wine/Beverage Cooler should be
cleaned with mild detergent and warm water.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical
parts.
Power Failure
•Most power failures are corrected within a few hours and should not affect the temperature of your
Wine/Beverage Coolerifyou minimize the numberoftimes the dooris opened. If the poweris going
to be off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
•Short vacations: Leave the Wine/Beverage Cooler operating during vacations of less than three
weeks.
•Long vacations: If the appliance will not be used for several months, remove all itemsand unplug the
power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly: blocking it open if necessary.
Moving Your Wine/Beverage Cooler
•Remove all items.
•Securely tape down all loose items (shelves and racks) inside your Wine/Beverage Cooler.
•Turn the adjustable foot up to the base to avoid damage.
•Tape the door shut.
•Be sure the Wine/Beverage Cooler stays secure in the upright position during transportation. Also
protect outside of Wine/Beverage Cooler with a blanket, or similar material.
Energy Saving Tips
•The Wine/Beverage Cooler should be located in the coolest area of the room, away from heat pro
ducing appliances, and out of the direct sunlight.

After sales support TEL: [phone]
PROBLEMS WITH YOUR WINE/BEVERAGE COOLER?
You can solve many common Wine/Beverage Cooler problems easily, saving you the cost of a possible ser-
vice call. Try the suggestions below to see if you can solve the problem before calling the service agent.
ESUACELBISSOPMELBORP
Wine/Beverage Cooler does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
Wine/Beverage Cooler is not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is openedtoo often.
The door is not closed completely.
The door gasket does not seal properly.
The Wine/Beverage Cooler does not have the
correct clearances.
Turns on and off frequently. The room temperature is hotter than normal.
The door is openedtoo often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The Wine/Beverage Cooler does not have the
correct clearances.
Vibrations. Check the Wine/Beverage Cooler is level.
The Wine/Beverage Cooler seems to make too
much noise. The rattling noise may come from the flow of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine/Beverage Cooler.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine/Beverage Cooler is not level.
The door will not close properly. The Wine/Beverage Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

After sales support TEL: [phone]

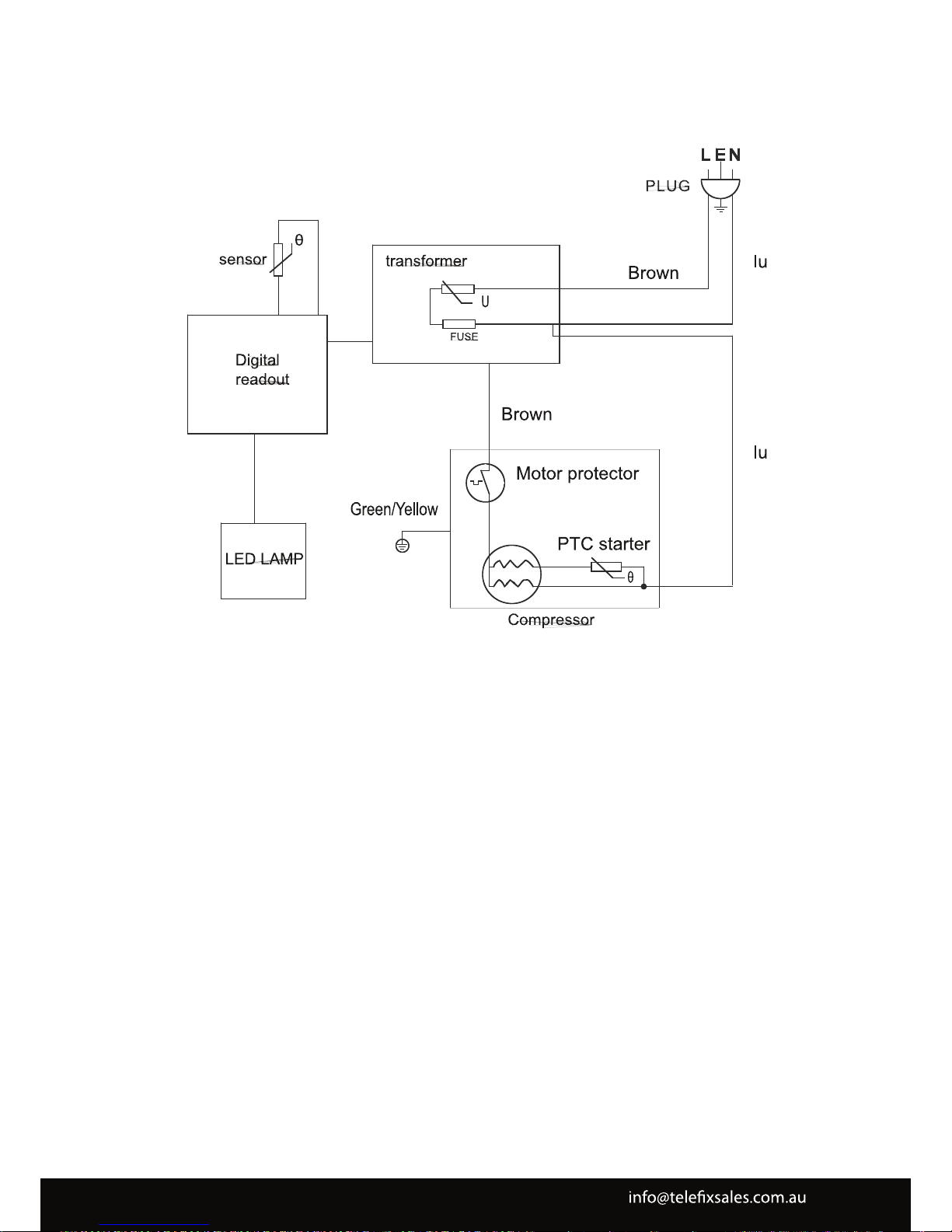

WIRING DIAGRAM

Wine Cooler-40 bottle
LUTW-16EQ
T
C-P
126 Litres
I
220-240V,50Hz
130W
R134a 45g
840×550×495mm
1.1W
0.9A
Model:
Climate Class
Foaming Components
Net Volume
Protection Class
Voltage
Input Power
Lamp Power
Current
Refrigerant
Dimensions(H×D×W)
Serial No.
Made in China
11/07
12

HELPLINE 1300 366 144

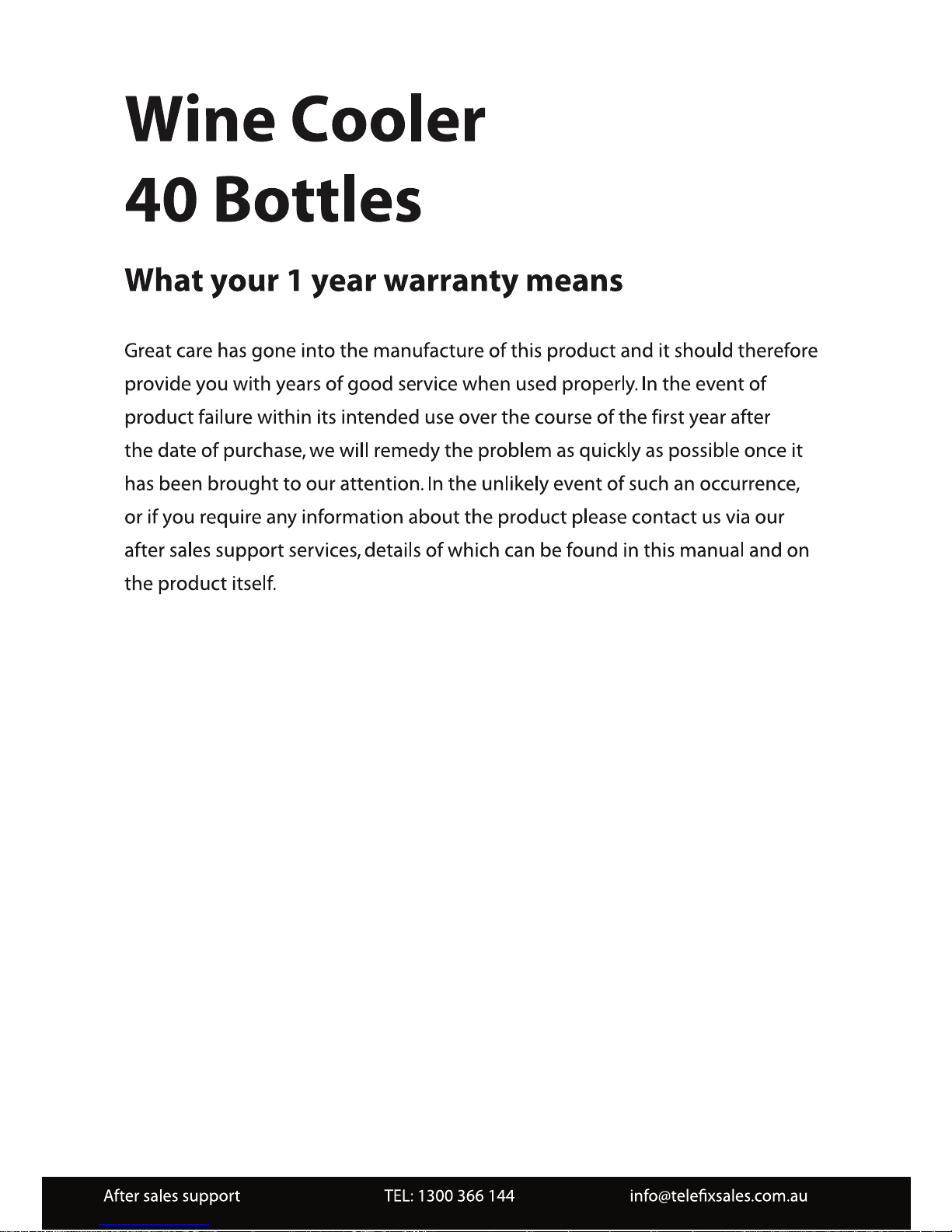

Warranty Details
Product Name WINE COOLER-40 BOTTLE
Brand Name LUMINA
Product Number 2339 Model Number LUTW-16EQ
Serial Number
Name
Address
Email Daytime Tel No
Date of purchase
We recommend that you attach your product receipt, showing the date of purchase, to this
Warranty Card and keep for your reference.
In the event of a product fault, please call the After Sales Support telephone number. Please
ensure that you have the product details (as shown on this card) at hand so that we are able to
respond as quickly and efficiently as possible.
AFTER SALES SUPPORT
1300 366 144
[email protected]om.au
