Luminic SIPL-10 User manual

Luminic-IPL
User Manual
For your safety and correct usage of our device
We strongly recommend reading through this user manual.
SIPL-10

Table of ConTenTs
oImporTanT safeTy InformaTIon
o The name of eaCh parT
ohow To use lumInIC sIpl-10?
ooperaTIon for haIr removal
ooperaTIng for skIn Care
ouser TIps
oTroubleshooTIng
oreplaCIng lamp
ofaQ
oproduCT speCIfICaTIon
owarranTy ----- 32
oTreaTmenT reCord sheeT ----- 33
----- 4
-----10
-----12
-----13
-----23
----- 27
-----28
-----29
----- 30
----- 31

We appreciate for the purchasing Luminic SIPL-10. For the safe
treatment and caring, you should be well-acquainted with this user
manual. Particularly, please follow RESTRICTION before the treatment.
Danger
The following instructions contain important safety information,
which may lead to death or critical injury if not followed.
Warning
Injury may occur when the following instructions are not
followed.
Restriction
Refrain from administering if the person or the ara to be treated is
affected by one of the following conditions.
3

Danger
The following instructions contain important
safety information, which may lead to death
or critical injury if not followed.
Be sure to keep the metal pins of the
power plug free from dust or moisture.
When cleaning, use a cloth-cleaner
ImporTanT safeTy InformaTIon
Using multiple products on a single
outlet is not recommended.
Keep the unit and the power plug
away from heaters or stoves.
DO NOT pull the power plug by force
or with wet hands.
4

Neither bending the power cord nor
placing heavy objects on the power
plug is recommended.
The unit is not designed for cleaning
with water. Always clean with a dry cloth-
cleaner before storing the unit.
•DO NOT operate the product in elevated or wet places.
•Ensure that the unit is turned off when connecting or
disconnecting the power plug.
•DO NOT leave the unit connected to the power when not
in use over a long period of time
•Disconnect from the power supply when cleaning the unit.
5
Major safety instructions
Please do not dissemble the product discretionally.
If customer dissemble product discretionally, free repair is not
available.
Please do not fill up the air vent of fan during usage of main
body or hand piece.
In case that ventilation does not work, it could cause the
trouble on main body.
Please do use the provided cord only by our company in case
that power plug and cord are broken.

Warning
Injury may occur when the following instructions
are not followed.
DO NOT use mucous membrane area such as
lips,anus, or vagina, and this will cause a serious
skin trouble.
Product use should be limited on
severe corium pigment, darkening,
moles, age, spots, or birthmarks, which
should be taped over before the
treatment
DO NOT touch the lamp with bare
hands. If there is any thouch, you can
get burned.
6

Always keep the hand piece in contact
with the skin when the beam is on.
DO NOT beam direct on to unshielded
eyes. DO NOT use the unit to eyes or
eyelids
The unit is not to be used by children
or persons with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they have been given instruction.
DO NOT use this unit for your face or
neck for your safety
7

Restriction
Refrain from administering if the person or
the area to be treated is affected by
one of the following conditions.
A person whose activity was outdoors
under strong sunlight, or who has
received tanning treatment within the
last 4 weeks.
A person whose skin color is black, or
dark brown (page 18)
Pregnant women or the breast during
the breast-feeding period.
8

Acne treatment medication (such as
Accutane), whitening treatment, Retin
A ointment, or cosmetics with retinol
composition within the last 7 days.
Skin area with tatoos or permanent makeup.
Skin area with severe pigment discoloring, or with thick or
dense hair.
Skin affected by diabetes or other skin diseases.
have used steroid products over an extended
period of time, causing the skin to become thin. Yes
are photosensitivity or sun allergy patients
(porphyria, polymorphous light eruption, transient
urticaria, erythematous).
Yes
are administered with a heart pacer, insulin pump,
or any other medical device Yes
have had radio-active treatment or chemical
therapy within the last 3 months Yes
have had skin cancer or has a higher chance of
contracting skin cancer Yes
have used medication or lotion with characteristics
of higher photo-sensitive reactions within the last
one month Yes
9
DO NOT USE TO THIS DEVICE IF YOU...
DO NOT USE TO THIS AREA...

The name of eaCh parT
①
②
③
④
⑤
⑥
① Power SW : Power on/off
② Power Level : select the power level. ( from level 1 to level 5 )
③ Reset : this switch is located at the bottom
To activate reset function, press and hold more than 3 seconds
④ Power Level: 1(min), 2, 3, 4, 5(max)
⑤ Charge: When this is red, Charging: When green, ready to flash
⑥ Lamp: When this is green, lamp is OK, when this is red,
the lamp should be replaced with new one. After replacement
the reset should be done. Make sure to get after service in case green
LED blinks indicating fan's stoppage. Be sure not to use SIP-10 in case
red LED blinks indicating the inside temperature of main body raised
up, then, stop using for the time being. If possible, it is
not recommendable not to use SIP-10 for the long time.
⑦ Mode Switch : Hair Removal (downward), Skin Care (upward)
⑦
10

① Flash button
② Touch sensor : for safety, checking the touch state between
the skin and the aperture of lamp module.
①
②
Hand piece
Accessory
11
① User Manual
② Power Cord
③ Lamp (Hair Removal , Skin Care)
④ Cooling Pack (Option)
①②
③④

② Read ‘RESTRICTION’
③ Skin Test
Any reaction?
④ Shaving
(For Hair Removal Only)
⑤ Cleaning
Keep clean & dried
⑥ Select Skin type
(Adjust Level)
⑦ Treatment
STOP
① START
Yes
No
Yes
12
how To use lumInIC sIpl-10?

haIr growTh
Hair normally grows in three phases
Anagen phase (growing phase)
The concentration of melanin is highest when the hair grows
most actively from the root. Melanin is the key factor to
make the pigmentation of the hair, such that the darker
the hair is, the more melanin there is in its root. Hence,
controlling the melanin level is the key to this method of
improving hair-growth efficacy. The most effective time for
the IPL treatment is in the anagen phase of hair growth.
Catagen phase (degradation phase)
In decline period, hair growth stops, the pore and root
shrink, and the old hair is then fallen out.
Telogen phase (resting phase)
Once the old hair is fallen out, a new hair will be slowly
grown in the same root. The old root remains empty until
the biological cycle restarts and a new hair grows in the
place of the old one.
13
operaTIon for haIr removal

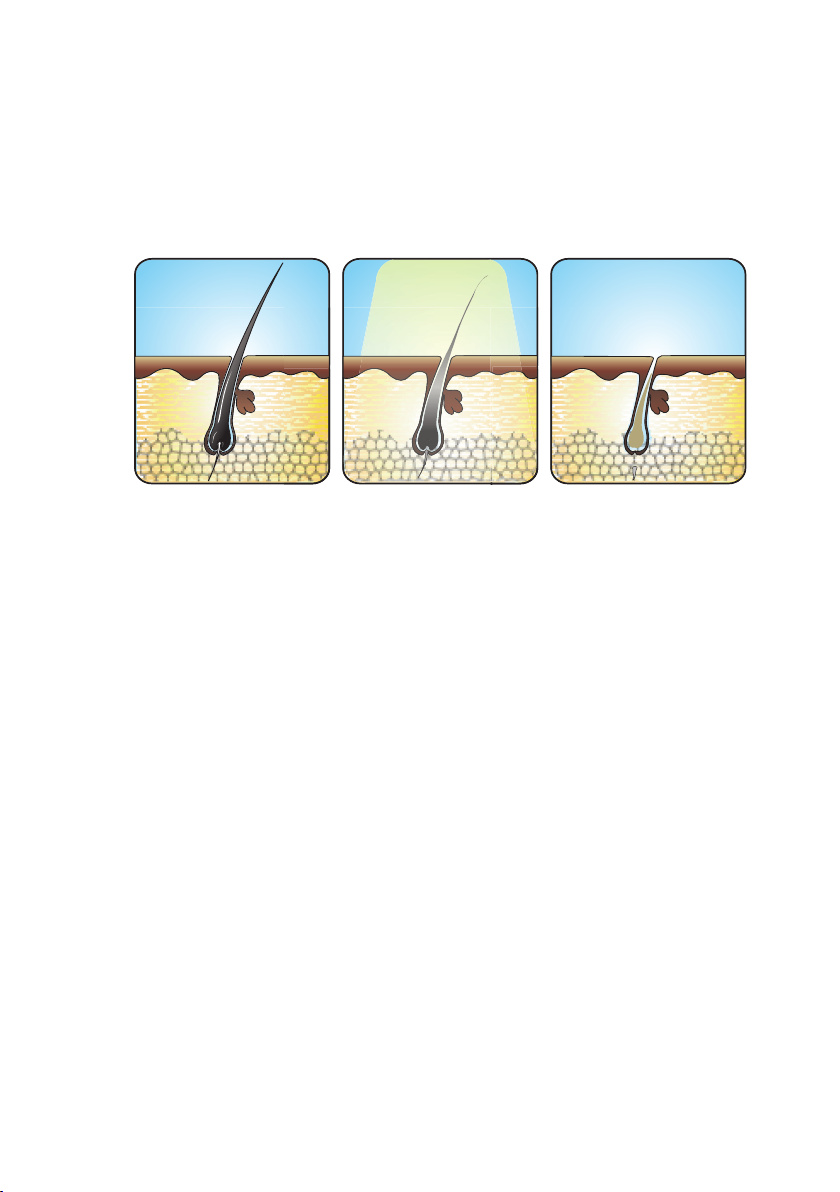

operaTIon prInCIple
• Luminic SIPL-10 removes hair by intense pulsed light
which heats up the hair shaft and it’s root.
• Through light transformation, the darker hair receives
more heat.
• This process stops the hair growth early, in the
anagen phase.
• Hairs are usually in different states of the hair growth’
s cycles.
• Hence, more than 4 treatments are required to give
you long-lasting hair-removal successfully.
14

※ Before the treatment, read ‘RESTRICTIONS’ cautiously for your safety.
▶ Be sure that your skin is in
a normal before starting the
treatment.

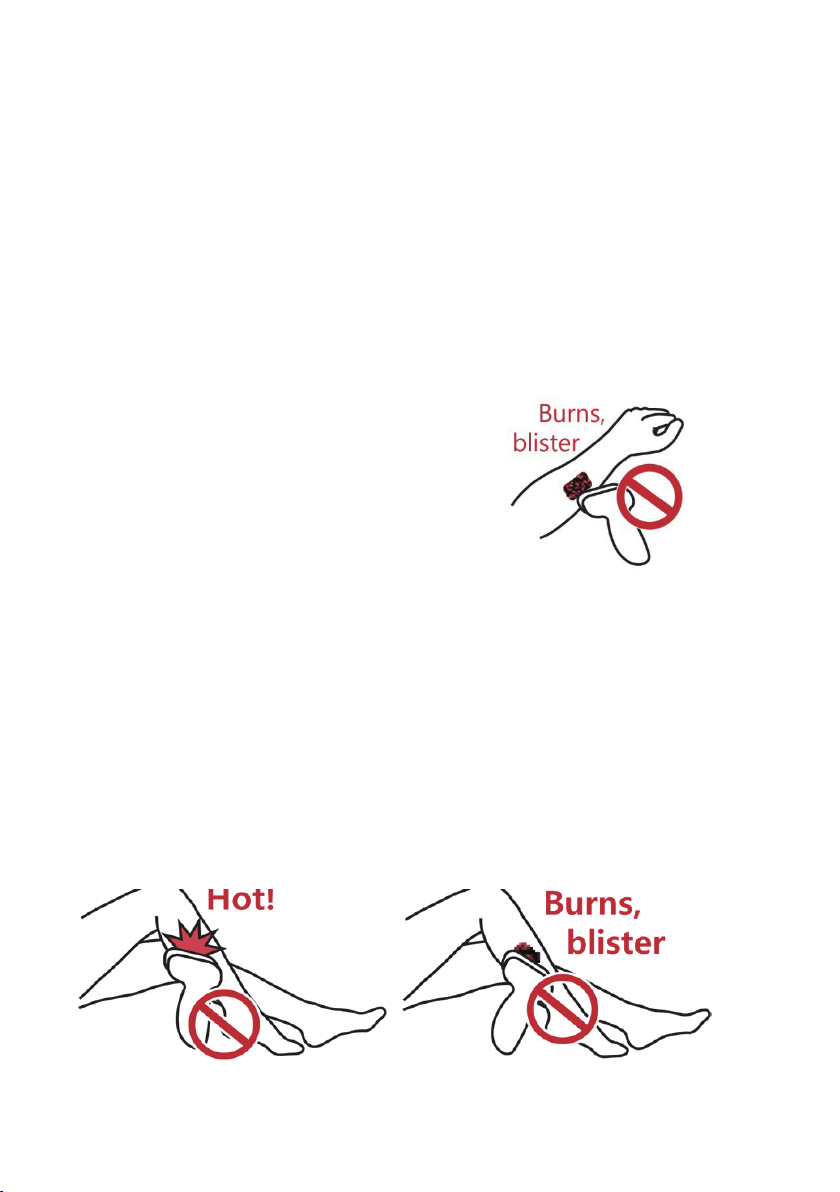

1) Skin Test
▶ For the first-time use (or after
increasing levels), test the skin
reaction by emitting on the arms
or back of the hands if there is any
trace of vesicles, blisters, burns, or
any other reactive symptoms on
any other area not exposed to the
beam.
▶ If you see any of the listed symptoms in 30
minutes, DO NOT start the treatment.
15
1. pre-operaTIon

▶ If serious stinging occurs in the exposed area, STOP the
treatment immediately.
▶ You skin shows slight redness, prickles, tingles, or
feels warm. This reaction is harmless and you can start the
treatment if this disappears quickly.
2) Scheduling
▶ A typical full hair growth cycle may take 18~24 months.
During this time multiple Luminic SIPL-10 treatment may be
required in order to achieve long term hair removal
• Treat the entire place where you want to remove the hair
in one time.
• Apply an ice pack every time in the place where you want to
repeat the treatment. It is highly recommended to apply an
ice pack in the place where the skin is sensitive and hair is
strong such as under the arms part especially.
• Apply an ice pack on the place where you treated as long
as hot temperature is just cool down, approximately 3 to
8 seconds.
• Try 2nd treatment as partial in the place where the hair is
remained only after 3days from the 1st entire treatment.
• Perform the entire treatment and partial treatment as a
couple and repeat the couple treatment in every two weeks.
16

▶ Shave with razors to ensure the light
energy is channeled to the hair root.
▶ DO NOT remove the hairs by means
of wax, epilator, tweezers, or depilation
cream. Have your hairs cut by 1mm or so.
This helps you check the treatment effect
easily. After flashing, you can see if the
hair is burned out or not.
4) Cleaning
▶ Clean the treatment skin area and make sure it is dried and
free from grease or oil.
17
1st Treatment D-day Entire treatment
2nd Treatment D + 3day Partial treatment
3rd Treatment D + 14day Entire treatment
4th Treatment D + 17day Partial treatment
5th Treatment D + 28day Entire treatment
6th Treatment D + 31day Partial treatment
7th Treatment D + 42day Entire treatment
8th Treatment D + 45day Partal treatment
• Repeat the entire treatment and partial treatment as long
as all the hairs are removed in every 2 weeks. It will take
approximately 7 to 8 weeks in total.
3) Shaving

5) Checking if the MODE is positioned to ‘HR’ mode.
▶ Insert HR lamp module into the Hand Piece.
▶ Check if the LED lamp on the level is ‘RED’ color.
▶ Set the bottom switch to the ‘HR’ mode.

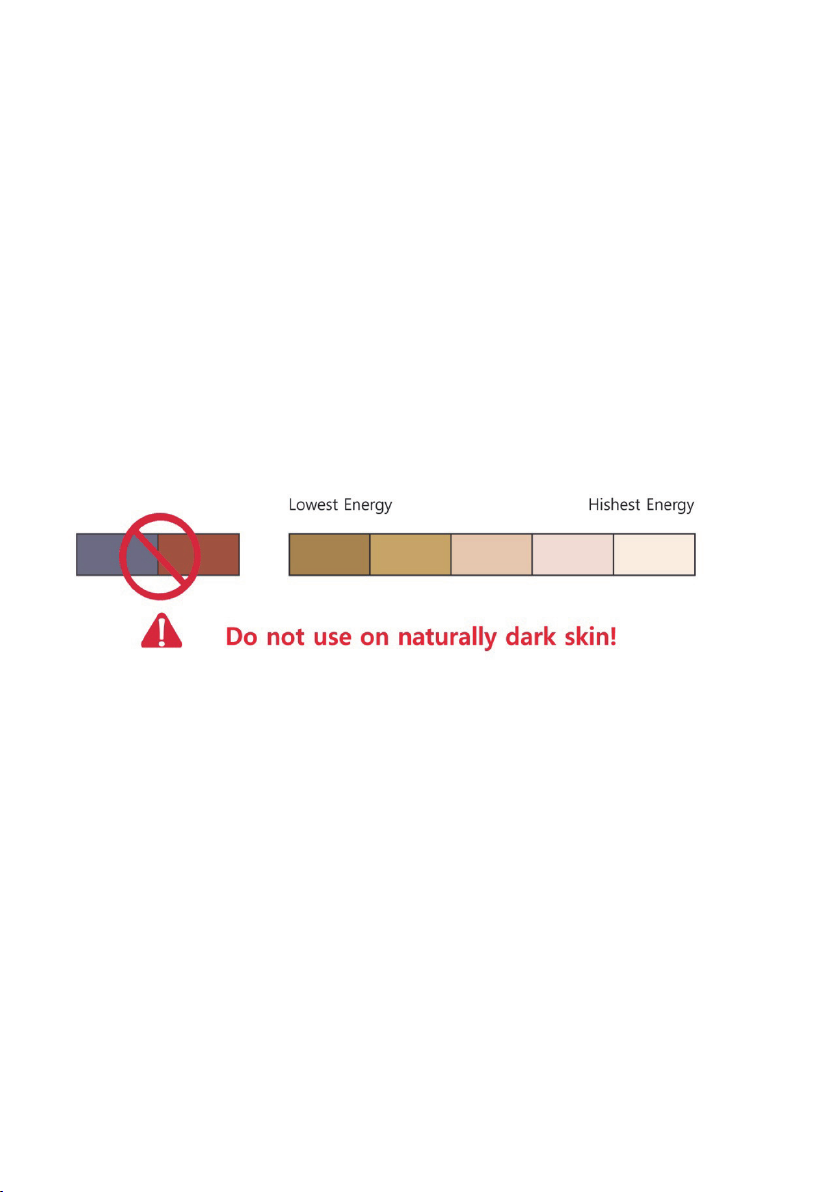

▶ Proceeding the treatments on dark brown, black skin, or on
the tanned skin may result in adverse effects like burns blisters,
coloring/discoloring on the skin, the inflation of follicles, etc., and
not recommended to be treated.
18

6) Setting the Energy Level
▶ You can get more comfort and effective treatment from
proper energy level.
▶ By pressing STEP button, increase or decrease the energy
level.
▶ For the users’ safety, the energy level is back to ‘Level 1’
automatically when it is OFF and ON again.
▶ Higher step delivers you high efficiency, but may bring
you more risk simultaneously. So, setting the right STEP is
very important before the treatment.
19
※ In case of initial usage of SIPL-10, please start with STEP 1 for
safer treatment

CheCkIng The lamp
▶ Before connecting the power to the unit,
check the lamp position of the hand piece.
▶ Check if the lamp module color is ‘SILVER’.
TurnIng on The power
▶ Plug in the power and turn on the unit.
CheCk The led Color and seTTIng The level
▶ Check if the LED color is RED. If it is
GREEN, then adjust the bottom switch to
opposite side.
CoolIng
▶ Cool down the skin site with cooling pack
before the treatment. Cooling eases your pain.
(Option)
20
2. Operation
