Lux Products KONO User manual

Installaon Manual
Smart
THERMOSTAT

Thanks for inving KONOTM into your home. The setup process is easy.
All you need to do is follow these simple steps and you’ll be on your
way to saving energy and making your home even more comfortable.
LUX Products oers installaon and product videos
Please visit LuxProducts.com/videos or visit our YouTube channel
LUX Products Corporaon. To contact LUX Technical Support please call
856.234.8803.
Para ver estas instrucciones en español, por favor visite
LuxProducts.com/KONOmanualsSP
[Drill]

LuxProducts.com | 3
Tools Needed
Table of Contents
1. Start Here ......................................................................................2-6
2. Installing with a C-Wire................................................................7-10
3. Installing without a C-Wire ........................................................11-14
4. Connecng to the Network .......................................................15-19
5. Appendix....................................................................................20-23
KONO Smart
Drill Oponal: Wire Stripper SmartphonePhillips Screwdriver
1. START HERE
LUX Power BridgeTM
Wiring Labels

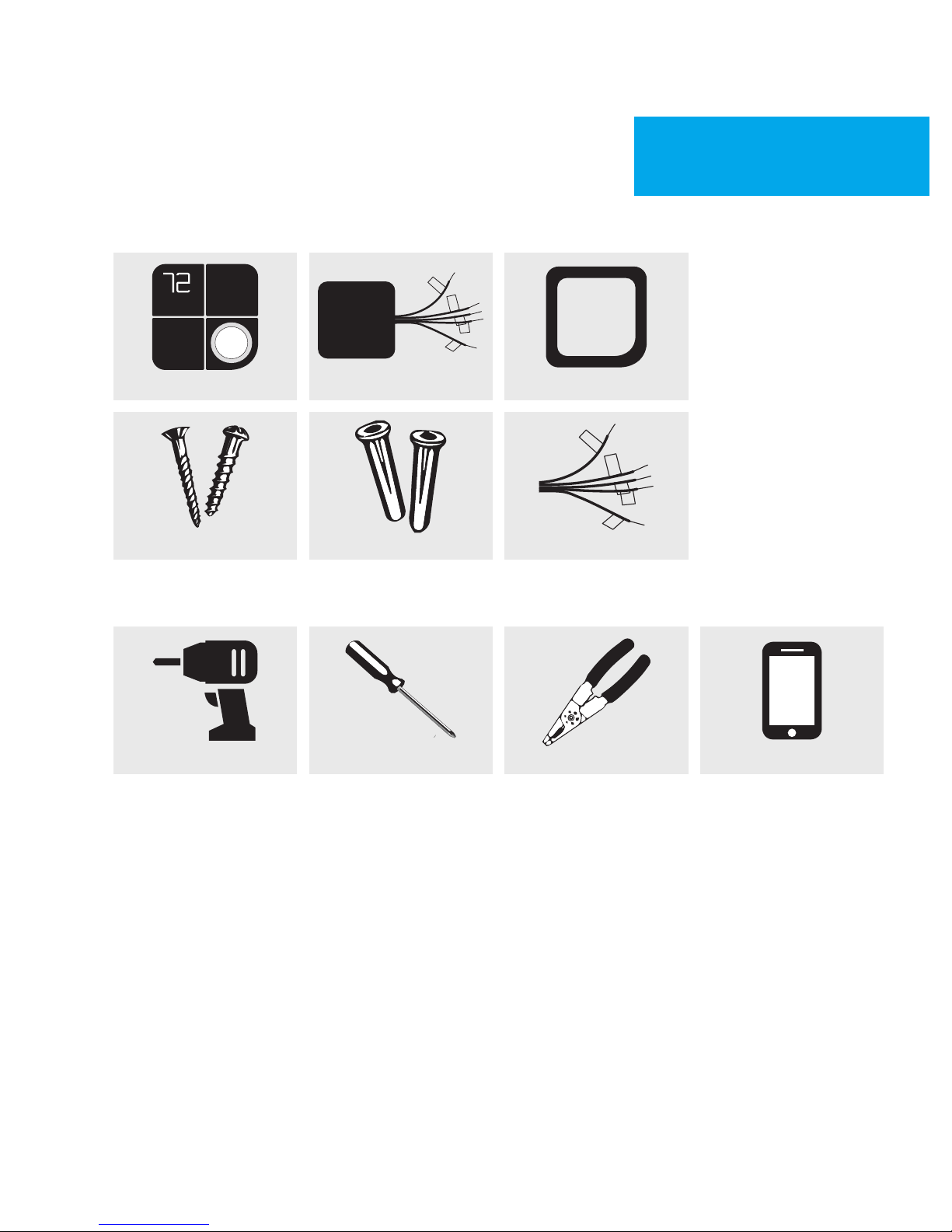

What’s in the box?
Screws Wall Anchors
Trim Plate

4 | 856.234.8803
Behind KONO’s Décor-snapTM cover you will see a small, removable
“quick guide” to installaon and an icon-key label. The icons represent
the display icons of your KONO Smart. You will also nd important
informaon for HomeKitTM and WiFi setup.
This manual is a comprehensive guide to installaon and wiring.
Press the knob when the thermostat is idle to
view the menu. Rotate the knob to select an
opon and press again to conrm.
System Mode Installaon
Sengs
Fan Mode Network
Connecon
Run Schedule System
Preparing
For more informaon about
installaon sengs, please visit
LuxProducts.com/KONOmanual

LuxProducts.com | 5
Step 1.1: Download the LUX Products App to your mobile device and
create an account.
Step 1.2: Now set your phone aside and turn o the power
at the circuit breaker to both your heang and cooling
systems before performing any wiring.
Step 1.3: Conrm that your heang and cooling system is powered
down by changing the temperature on your thermostat.
Hint: Your system should not make any noise and you should not feel
any air exing your vents.
Step 1.4: Remove the front of your old thermostat
from its base. If you see thick black wires, wire
nuts, or any labels that say 120-240VAC or High
Voltage, your system is not compable with KONO
Smart. Please call LUX Technical Support at
856.234.8803 before proceeding with your
installaon. If you do not see any high voltage labels
or wires, you can connue with your installaon.
1. START HERE
HIGH
VOLTAGE

6 | 856.234.8803
Step 1.5: Use the included wire labels to mark which wire is connected
to each terminal in your old thermostat. Take a picture of your current
wiring layout – it may be helpful to reference this picture later.
Step 1.6: Conrm if you have a C-Wire. If you do, please turn to the
next page. If you do not, please skip ahead to page 11.

LuxProducts.com | 7
INSTALLATION WITH
C-WIRE2.
Installing with a C-wire
Before starng
Turn o the power at the circuit breaker to
both your heang and cooling systems before
performing any wiring. You will not need the
included LUX Power Bridge.
STOP

8 | 856.234.8803
Installaon with C-wire
Step 2.1: Idenfy your system conguraon (see wiring diagrams in
appendix). Potenal conguraons include:
• Convenonal 1H/1C (Y, G, W, R, C)
• Convenonal 2H/1C (Y, G, W, W2, R, C)
• Heat Pump Single-Stage (Y, G, R, O/B, C)
• Heat Pump with auxiliary heat or dual fuel (Y, G, R, O/B, W, C)
If you have only one R wire, please use the RH terminal. If you have a
dierent conguraon other than what is listed above, please call LUX
Technical Support for help with your installaon.
Step 2.2: Remove each wire from its terminal – make sure that they
don’t fall down back into the wall.
Step 2.3: Remove the mounng screws from the base of the old
thermostat. Remove the base from the wall.
Step 2.4: If you would like to use the trim plate or wall anchors,
you can install them now.

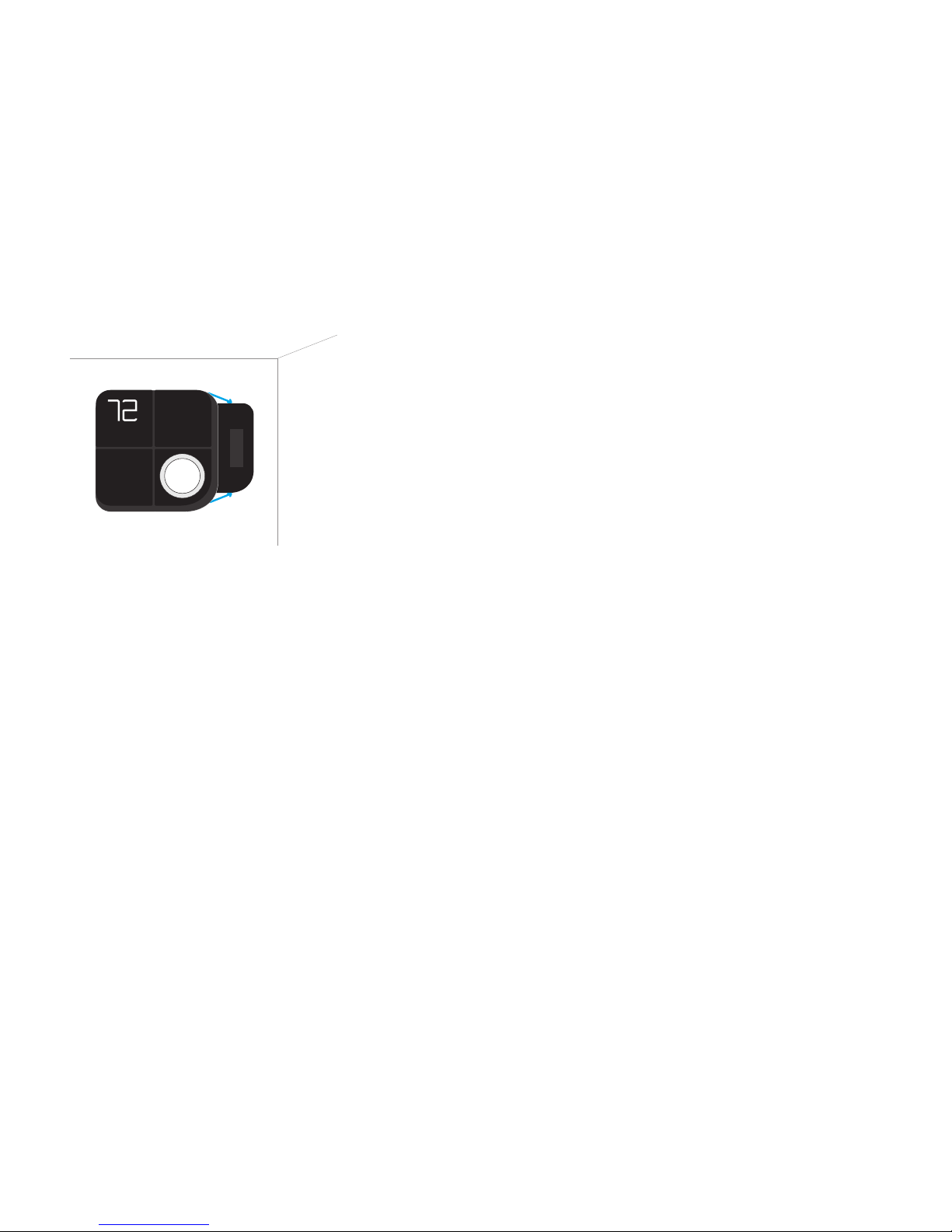

Step 2.5: Separate KONO Smart from its
base. Pull the wires from your wall through
the center hole of the KONO Smart base.
Secure the base to the wall using the
included mounng hardware.

LuxProducts.com | 9

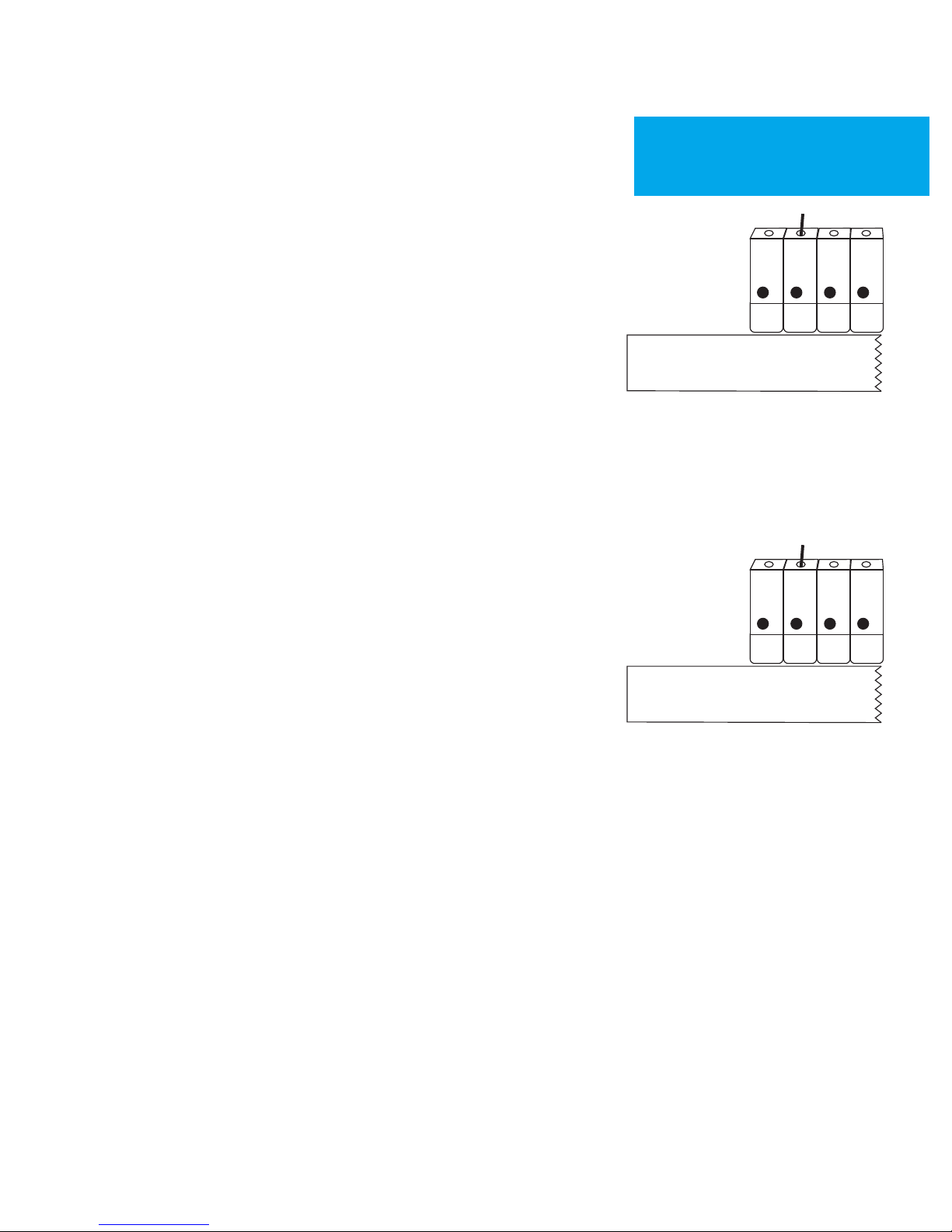

Opon 1 - Convenonal (furnace) Systems:
Step 2.6f: Following the terminal labels
marked “Convenonal” on the thermostat
base, press the lever and insert each
labeled wire into the top hole of the
corresponding terminal.
Step 2.7f: If you have both an RC and RH wire present, then remove the
red cap next to the reset buon. You can now skip ahead to step 2.8.
Opon 2 - Heat Pump Systems:
Step 2.6hp: Following the terminal labels
marked “Heat Pump” on the thermostat base
and referencing your wiring photo, press the
lever and insert each labeled wire into the top
hole of the corresponding terminal.
If your old thermostat did not have a W1 wire but did have a W2 wire,
please insert the W2 wire into the W1 terminal.
Step 2.7hp: If you have both an O wire and a B wire
(i.e. in a Trane system), please install the B wire to the “C” terminal.
For more detailed direcons, please see the wiring diagrams in the
appendix or call LUX Technical Support.
INSTALLATION WITH
C-WIRE2.
CONVENTIONAL C W1 W2
HEAT PUMP C W1 OB
POWER BRIDGE 1 4 2
CONVENTIONAL C W1 W2
HEAT PUMP C W1 OB
POWER BRIDGE 1 4 2

10 | 856.234.8803
Installaon with C-wire
Step 2.8: Securely fasten KONO Smart onto its base. Once it has clicked
into place, return power to your heang and cooling system.
Step 2.9: Aer your thermostat powers up, you are ready to congure
KONO Smart for your heang and cooling system and connect to a
wireless network.
Please skip ahead to the “Connecng to the Network” secon of this
manual on page 15.

LuxProducts.com | 11
Installing without a C-Wire
Using the Included LUX Power Bridge
For installaon without C-wire,
you will need to access your furnace.
Before starng
Turn o the power at the circuit breaker to
both your heang and cooling systems before
performing any wiring.
STOP
INSTALLATION WITHOUT
C-WIRE3.
1. Install and wire
your KONO
2. Install LUX Power Bridge
at your furnace

12 | 856.234.8803
Installaon without C-wire
Hint: helpful videos showing how to wire a thermostat with the LUX
Power Bridge are available at LuxProducts.com/videos
Step 3.1: Starng at your thermostat, conrm that you have one of the
system conguraons listed below:
• Convenonal 1H/1C (Y, G, W, R)
• Convenonal 2H/1C (Y, G, W1, W2, R)
If you have a dierent conguraon other than what is listed above,
please call LUX Technical Support for help with your installaon.
Step 3.2: Remove each wire from its terminal – make sure that they do
not fall down back into the wall.
Step 3.3: Remove the mounng screws from the base of the old
thermostat. Remove the base from the wall.
Step 3.4: If you would like to use the trim plate or wall anchors, you can
install them now.

LuxProducts.com | 13
Step 3.5: Separate KONO Smart from its base.
Pull the wires from your wall through the center
hole of the KONO Smart base. Secure the base to
the wall using the included mounng hardware.
Step 3.6: Following the terminal labels marked
“Power Bridge” on the thermostat base,
press the lever and insert each labeled wire
into the top hole of the corresponding
terminal. Connect as follows:
• Y Wire  Terminal 1
• W Wire  Terminal 2
• R Wire  Terminal 3
• G Wire  Terminal 4
Step 3.7: Securely fasten KONO Smart
onto its base.
Step 3.8: Go to your furnace – remove the door
or panel and locate your control board or transformer. In most cases,
there should be four wires running from the furnace to your thermostat
– Y, G, W, and R. If you have addional wires, leave them as is.
INSTALLATION WITHOUT
C-WIRE3.
CONVENTIONAL C W1 W2
HEAT PUMP C W1 OB
POWER BRIDGE 1 4 2

14 | 856.234.8803

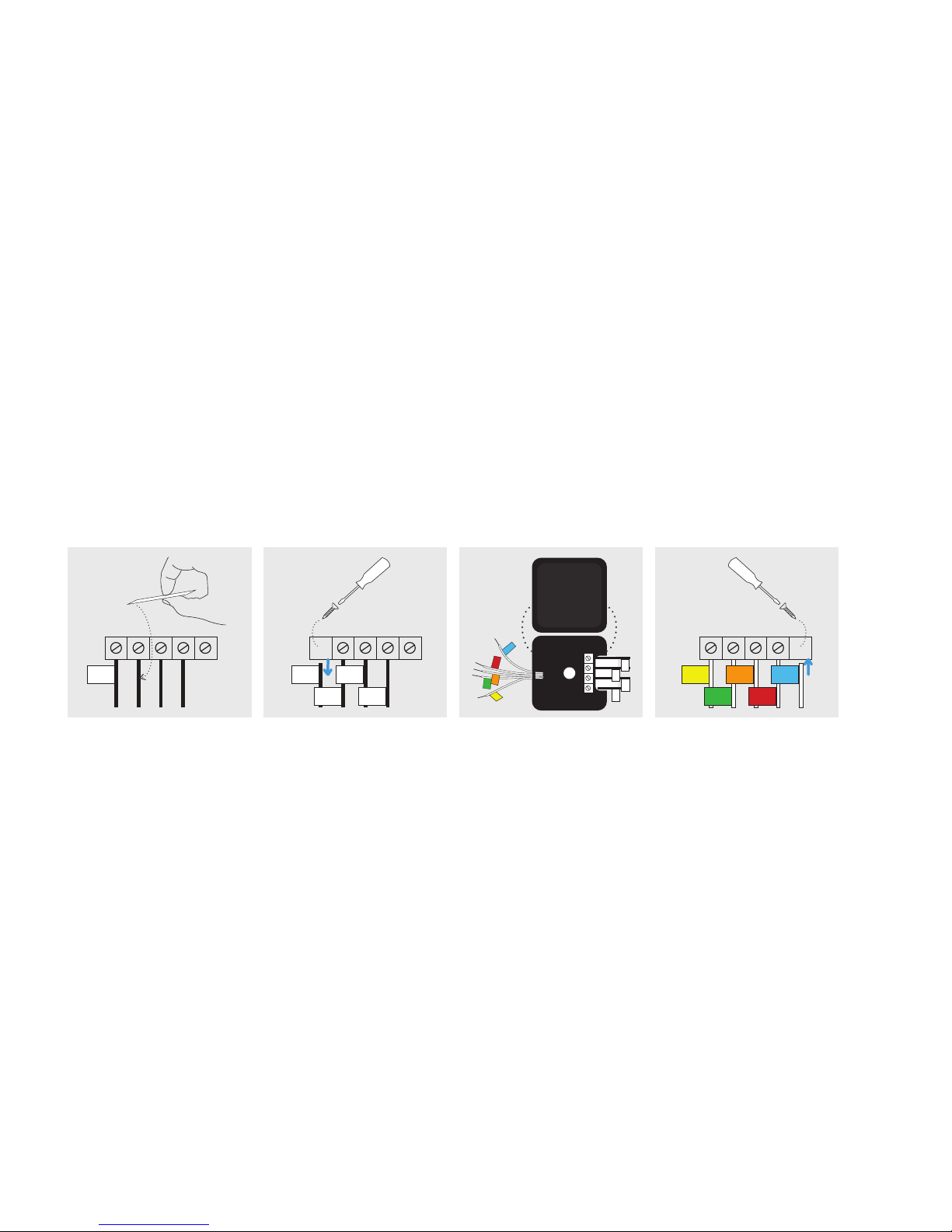

Step 3.9: i) Matching the leers, label the wires connected to your
furnace with the included white Power Bridge wire
labels. Take a picture of the wiring at your control board.
ii) Disconnect these wires from the control board.
iii) Open the Power Bridge and insert each of your old wires
into the corresponding numbered terminals in the Power
Bridge.
iv) Finally, insert the Power Bridge wires (with the colored
labels) into the corresponding terminals on your furnace
control board.
Step 3.10: Secure the LUX Power Bridge to your furnace. If you had to
remove a panel or door to access your control panel, replace it now.
Step 3.11: Return power to your heang and cooling system. If your
system, including your thermostat, does not power up please call LUX
Technical Support.
Aer KONO Smart powers up, you are ready to congure it for your
heang and cooling system and connect to a wireless network.
i) ii) iii) iv)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
1(Y)
4(G)
1(Y)
4(G)
2(W)
3(R)
C
3(R)
2(W)
Y G W R C
1(Y)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
Y G W R C
1(Y)
4(G)
2(W)
3(R)
C
4(G)
Furnace Furnace Furnace

LuxProducts.com | 15
Connecng to the Network
Step 4.1: Aer your thermostat powers up, it will guide you through the
inial system conguraon. Use the knob to change opons and press
the knob to conrm your selecon.
First you will need to set your system type
(F) for Furnace or Boiler (HP) for Heat Pump
then then
Set the fan type to Gas
(most common), Electric
(for systems without gas or oil),
or Boiler (no fan)
Set the valve type to O or B –
look at the photo of your wiring
to see which you have
Note: For advanced sengs please visit LuxProducts.com/KONOmanual
or call LUX Technical Support.
Step 4.2: Aer conrming your system
sengs, KONO Smart will ask if you
would like to connect to the network.
Select “ON” to begin connecon or
“OFF” to connect later. If you wish to
connect, please make sure that you have downloaded the LUX Products
App to your smartphone and created an account.
Hint: If you are having trouble, please see our instruconal video at
LuxProducts.com/videos
CONNECTING TO THE
NETWORK4.

16 | 856.234.8803
Press the knob when the thermostat is idle to
view the menu. Rotate the knob to select an
System Mode
Fan Mode Network
Run Schedule System
Preparing
LuxProducts.com/KONOmanual
COOL
ON HomeKit
Code
Android
WiFi Code

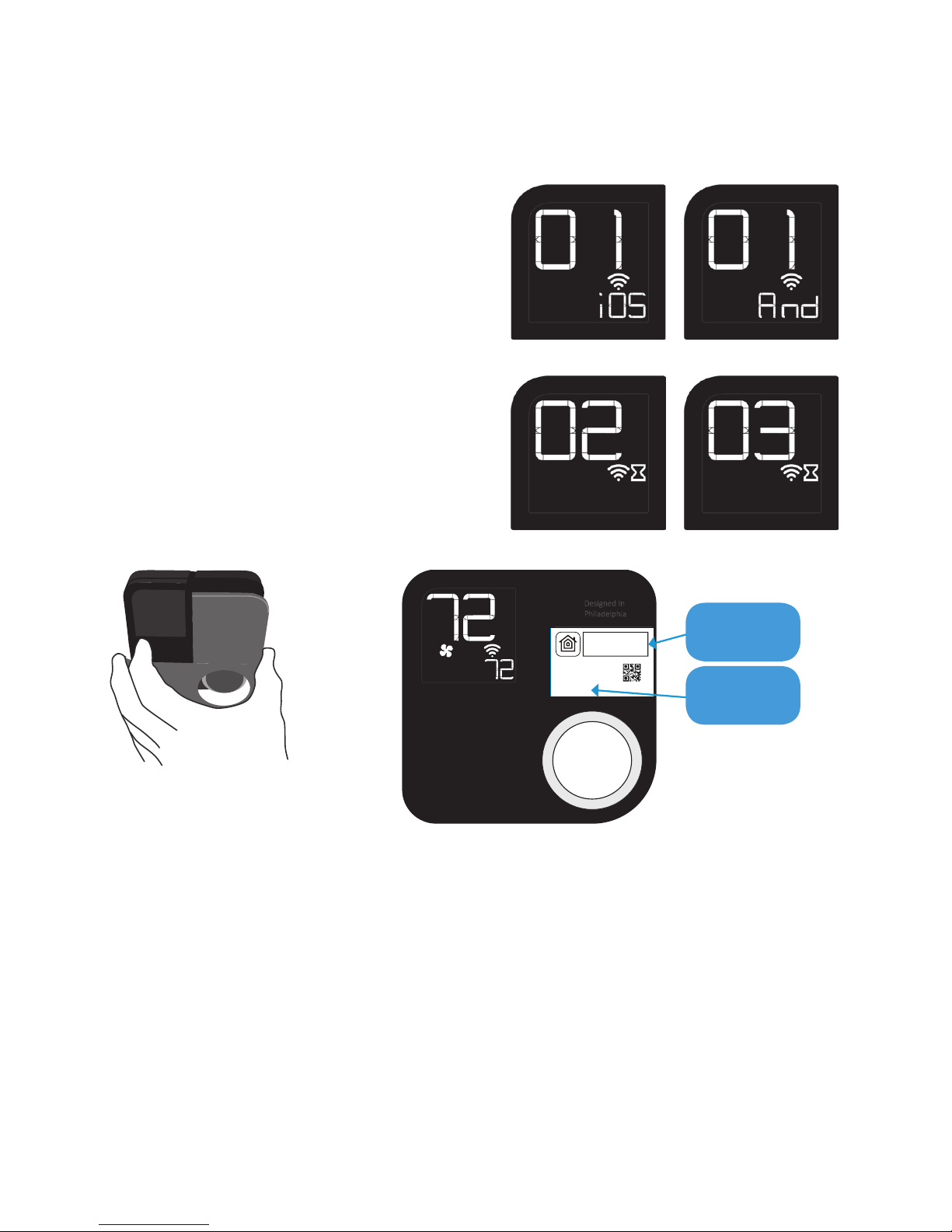

Step 4.3: Aer selecng “ON”, KONO
Smart will display “01”. You will then
need to select “iOS” if you are using an
Apple® device or “And” if you are using
an Android® device.
Step 4.4: Aer selecng “iOS” or “And”,
your thermostat will display a large
“02”, then “03”. Remove your Décor-
snapTM cover.
2 / 2
SCALE 1:1
FILE: KONO3_ART03A_HOMEKIT_LABEL
P/N: N/A
MODEL: KONO3
PAGE:
DRAW BY: Dickson Lo / 26 May 2017
APPROVED BY: Joyce Lee / 26 May 2017
TITLE: HOMEKIT LABEL
DIMENSIONS IN MM. GENERAL TOLERANCES: LINEAR: +/- 0.2
100.0 mm
2D QR-CODE format rules:
1. Format: DDMMYYXXXXXX.
2. 1th to 6th digits are the date code, where YY is year, MM is month and DD is day.
e.g. 9th Mar. 2015, YY=15(year), MM=03(month), DD=09(day)
3. 7th to 12th digits are the serial number in numeric characters. The serial number should be reset to 000001 for every
different date code. e.g. XXXXXX=000001
4. KONO3 and DDMMYYV should be put underneath the 2D QR-CODE, where YY is year, MM is month, DD is day and V is the
version of the product which refers to ID_CODE2 in SAP BOM.
e.g. 9th Mar. 2015, version of product is A; i.e. DDMMYYV=090315A;
(The QR-CODE Information (Both QR code & Text including “KONO3” & “DDMMYYV”)
MUST same as the QR-CODE Label on the PCB)
Font and font size is Arial 5pt.
123-45-678
WIFI Name:
KONO3
260517A
Example: (For Reference only)
WIFI Password:
LUX KONO-1a-24
12345678
KONO3
DDMMYYV
Example
QR-CODE INFORMATION

LuxProducts.com | 17
iOS® (iPhone® or iPad®)
Open your LUX App, tap the + icon to add a new accessory, then select
the accessory ID that starts with LUX KONO to start the connecon
process.
Follow the instrucons in the App.
If you need to cancel the joining process at any me, simply press and
hold the knob for 5 seconds.
Locate your accessory’s HomeKit Code under the Décor-snap cover.
When prompted, use your iPhone or iPad’s camera to scan the code.
Aer the App scans the code, your App and thermostat will handle the
remaining steps in the connecon process.
CONNECTING TO THE
NETWORK4.
When you see the thermostat’s idle screen, it
means you are connected. You can now replace the
Décor-snap cover.
To control this HomeKit-enabled accessory, iOS 10.3 or later is
recommended.
COOL
ON

18 | 856.234.8803
ANDROID®

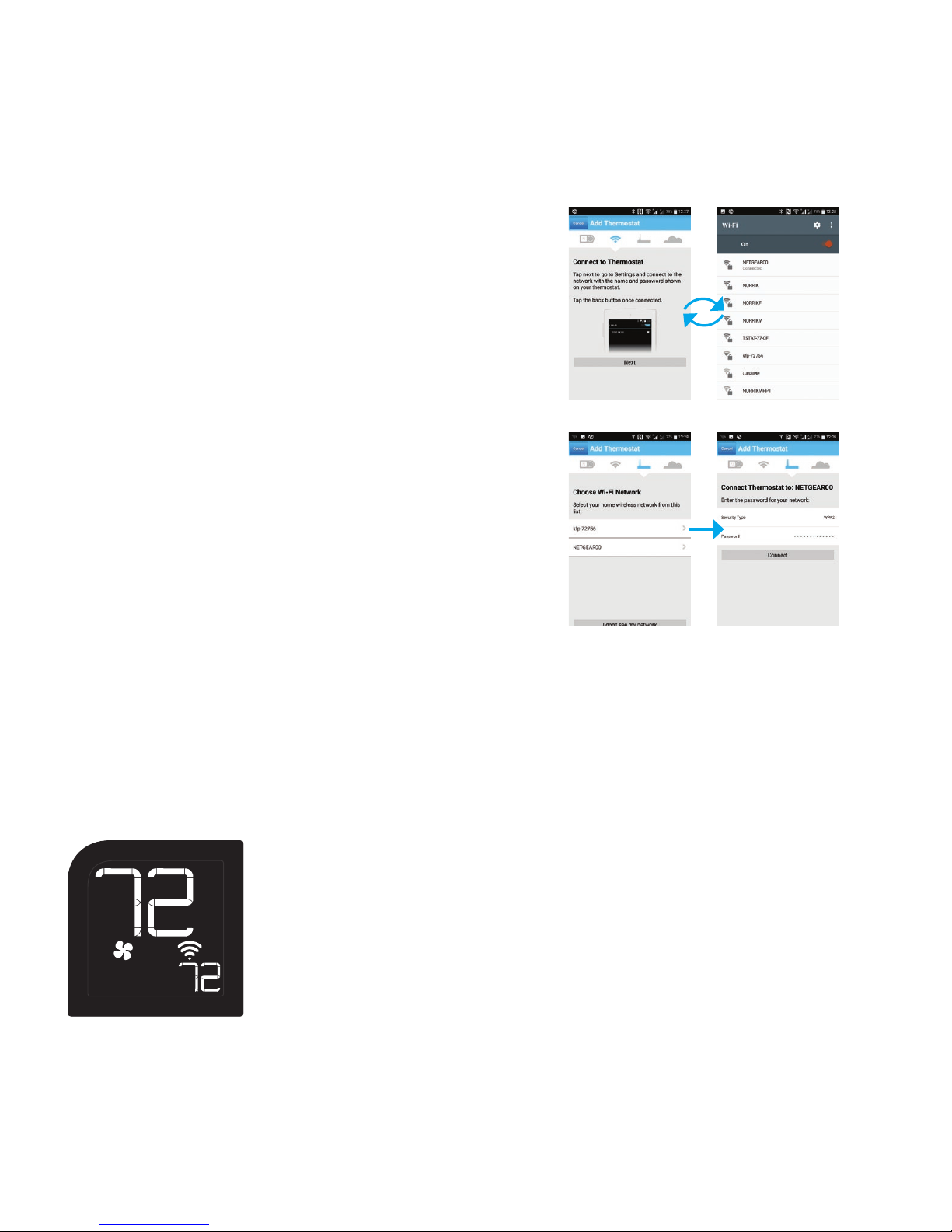

Open your LUX App, tap the + icon to
add a new thermostat. When prompted
by the LUX App, please use your phone’s
WiFi sengs to join your LUX KONO’s WiFi
network. The network name and password
can be found under the Décor-snap cover.
Aer connecng your thermostat to the
network, please return to the App and
select your home WiFi network from the
list and enter your password.
Please make sure your phone reconnects to your home WiFi network
and then return to the LUX App. From this point your thermostat and
App will handle the remaining steps in the connecon process.
When you see the thermostat’s home screen, it
means you are connected. You can now replace the
Décor-snap cover.
COOL
ON

LuxProducts.com | 19
Congratulaons!
Installaon is complete and your KONO is ready to go. Now let’s save
some energy and make your home more comfortable.
Personalize your KONO Smart.
It’s more than a thermostat, it’s décor! Match KONO to your style by
simply changing the Décor-snap cover. Check out our wide variety of
designer colors and nishes at LUXProducts.com/shopcovers.
Hibiscus
Red Sea Green Deep Blue Wood Grain
Midnight
Black
CONNECTING TO THE
NETWORK4.

20 | 856.234.8803

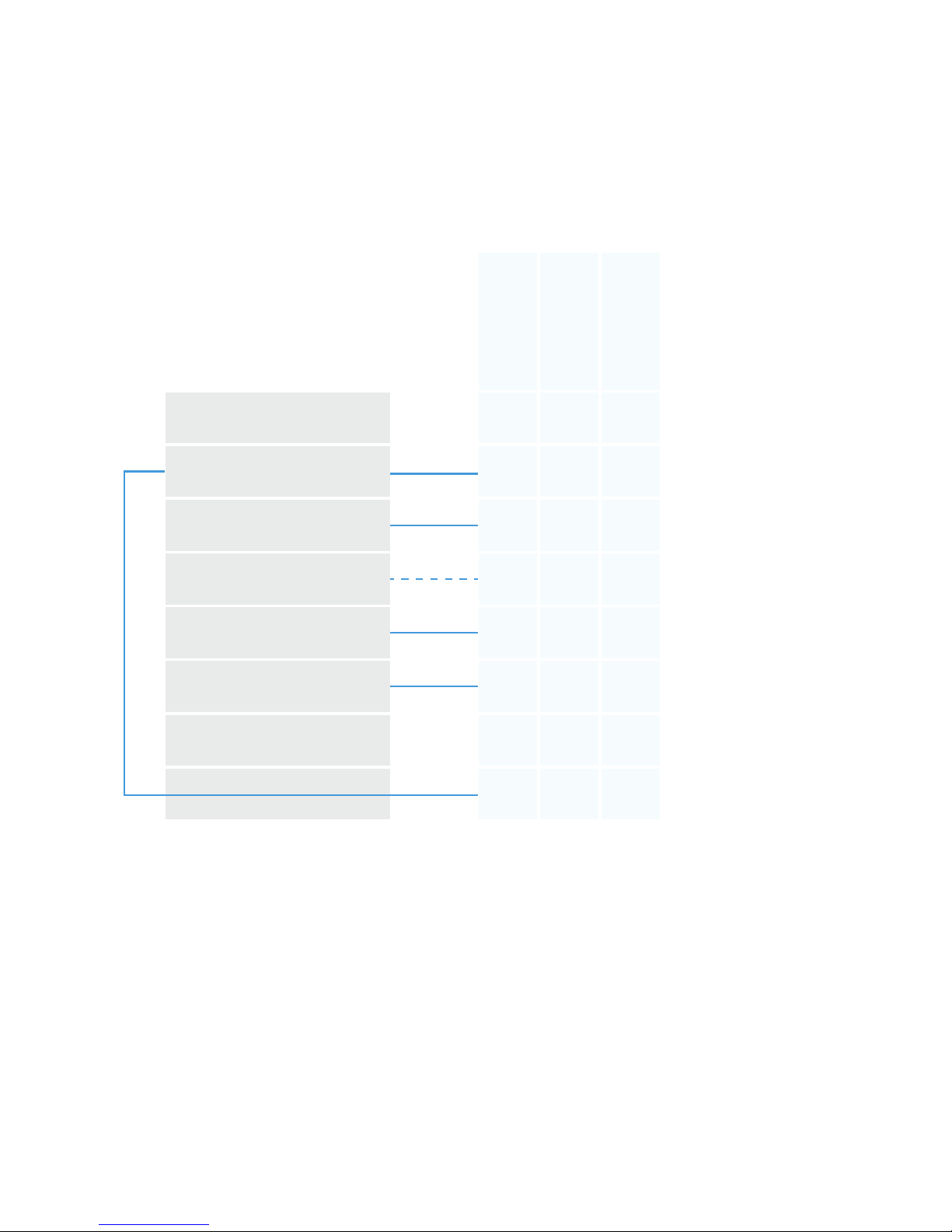

Convenonal System With C-Wire Wiring Diagram
Transformer
Convenonal
Heat Pump
Power Bridge
HEAT (STAGE 1)
HEAT (STAGE 2)
FAN
COOL
C
W1
W2
G
Y1
RC
RH
C
W1
O/B
G
Y1
RC
RH
4
1
2
3
Furnace
Thermostat
Notes:
• The W2 terminal is used for 2 stage heang systems only
• If you have both an RH and RC wire, please remove the red cap from the back of
the thermostat
