LY PB-480MZ User manual

MODEL:
PUBLIC ADDRESS MIXER AMPLIFIER
AMPLIFIER
Warning:Before attempting to connect,operate or adjust this Amplier,
please read these instructions completely and carefully and save this Manual
PB-480MZ / PB-650MZ

Table of Contents
Introductions ----------------------------------------- 2
Features -----------------------------------------------3
Controls------------------------------------------------ 4
Setups --------------------------------------------------5
Operations-------------------------------------------- 9
Madia module -------------------------------------11
Table of Contents
Block Diagram --------------------------------------12
Specifications --------------------------------------13
Wiring Guide ------------------------------------------5
Connections ------------------------------------------7
Http://www.lyintlcorp.com/

Welcome
Congratulation and thank you for the purchasing PB -480MZ or PB -650MZ, a multi-function
commercial amplier.These ampliers are designed to provide a big impact in sound reproduction
and to produce the best and highest quality audio at an affordable price. We wish you great
enjoyment and satisfaction when using your amplier, whether you are an installation, or
reinforcement engineer.
Although it is neither complicated to install nor difcult to operate your amplier, a few minutes
of your time is required to read this manual for a properly wired installation and becoming familiar
with its features and how to use them. Please take a great care may be needed when moving your
set and are required if it ever becomes necessary to return your set for service. Never place the
unit near radiator, in front of heating vents, to direct sun light, in excessive humid or dusty location
to avoid damages and to guaranty a long reliable use..
Unpacking and Installation
Connect your unit with the system components according to the description on the following pages.
Introductions
Introductions
Http://www.lyintlcorp.com/

* Three microphone and two line inputs with XLR,1/4” TRS jacks and RCA jacks.
* 480Watts(PB -480MZ) and 650Watts(PB -650MZ) rated power output.
The PB -480MZ or PB -650MZ mixer ampliers are comprehensive, all-in-one mixer-amplier
solutions for commercial and industrial applications. These low-cost units provide all necessary
features in a simple building-block format.
* Acceptable wide range(up to 44dB) input level.
* Telephone paging input by Euro block terminal,with LEVEL &DUCKING DEPTH Controls.
* Three layer priority muting.
* USB MP3 Player,SD Card,FM Tuner.
* Advanced protection system includes current limiting, over current and thermal protection.
* Desktop and 19-inches rack mountable type.
* Two bands tone controls.
* Low distortion and low noise level.
* Compact size and lightweight.
* Ideal commercial and industrial use.
Features
Features
* Remote microphone (EM-4) input with Rj45 terminal.
* M.O.H(Music On Hold) output.
* Phantom power for MIC input.
Http://www.lyintlcorp.com/

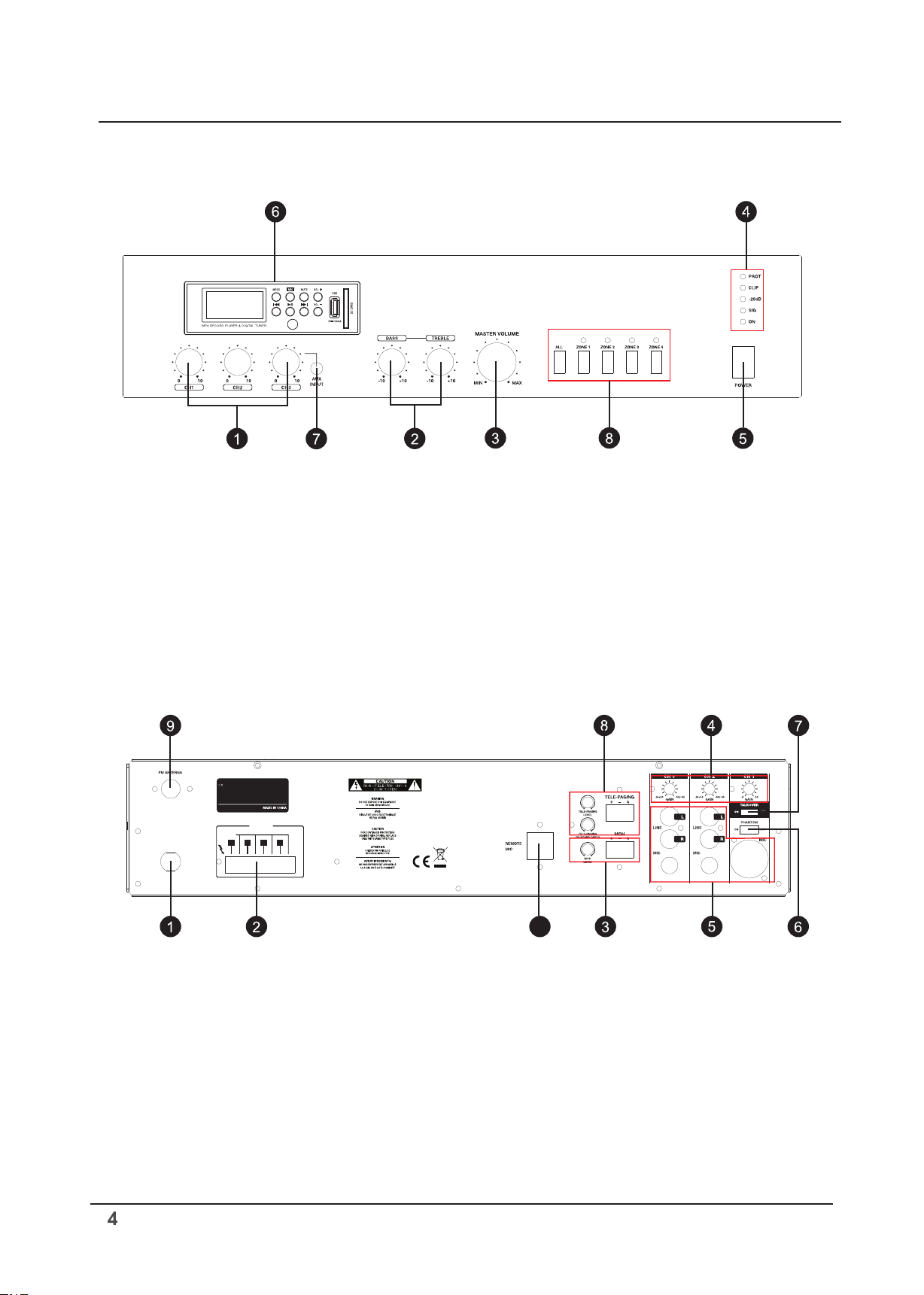

FRONT PANEL
Controls
Controls
1.Input channel volumes.
[ Figure 1.1 Front panel diagram ]
2.Two bands tone controls ( 100Hz/10KHz ).
3.Master volume control.
4.Indicators ( Protection/Output level/Power ).
5.Power switch.
6.MP3 Player,SD Card,FM Tuner.
7.AUX INPUT
Rear Panel
[ Figure 1.2 Rear panel diagram ]
1.Power cable.
2.Speaker outputs connector.
3.MOH(Music On Hold) Terminal with LEVEL Control.
4.Gain controls for variable input level.
6.PHANTOM ON / OFF Switch
7.TALK OVER Switch.
8.TELE-PAGING Input with LEVEL,DUCKING DEPTH Control.
9.FM ANTENNA
5.Signal input connectors.
COM
1 2 3 4
OU TPU T
Hi -Z
10
8.Output zone selectors
10.Remote microphone station(EM-4) input connector.
Http://www.lyintlcorp.com/

Setups
Installation
CAUTION : Before you begin, make sure your mixer-amplier is disconnected from the power
source, with the power switch in the “OFF” position and all level controls turned completely
down (counterclockwise). You may stack mixer-ampliers without using a cabinet or you may
place a single mixer-amplier on a surface with 12-inches (about 30cm) of air space around
the unit for convection cooling.
We recommends using pre-built or professionally wired balanced line. 22 to 24 gauge cables.
Figure 2.1 shows connector pin assignments for wiring. The RCA input connections can also
be used for unbalanced inputs.
Setups
Wiring guide
Choose input wire and connectors
[ Figure 2.1 Input wire and connectors ]
BALANCED UNBALANCED
Unbalances 1/4” Connector Balances TRS 1/4” Connector
XLR Balanced Wiring Guide
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug
SOURCE TO DESTINATION
straln rellef clamp
sleeve
tip
sleeve
ground/shleld
tip
signal
straln rellef clamp
sleeve
tip
rlng
sleeve
ground/shleld
tip
hot
rlng
cold
Http://www.lyintlcorp.com/

Choose output wire and connectors
For the amplier output connectors, We recommends using pre-built or professionally wired,
high-quality, and heavy gauge speaker wires. You may use EURO blocks for your output con-
nectors. To prevent the possibility of short-circuits, wrap or otherwise insulate exposed loud-
speaker cable connectors.
Using the guidelines below, select the appropriate size wire based on the distance from ampli-
er to speaker. The wire sizes apply to the 4-ohm tap.
NOTE : Custom wiring should only be performed by qualied personnel. Class 2 wiring is re-
quired.
CAUTION : Never use shielded cable for output power wiring.
Setups
Http://www.lyintlcorp.com/

COM
OUTPUT
Hi-Z
21Ω / 100V
16Ω / 100V
PB-480MZ
Connections
INPUT : Connect microphones or balanced line-level sources to mixer-amplier balanced inputs.
Set Gain volume accordingly. Connect unbalanced line-level signals to RCA input connectors.
Connections
Choose input wire and connectors
OUTPUT : Maintain proper polarity on output connectors.
For each output channel, connect the output EURO block terminals to the loudspeaker loads.
Use terminals marked COM and to for constant-voltage speaker loads. 1 4
Oconnect the COM terminal to speaker negative(-) lead; connect one of the other terminals to
speaker positive(+) lead.
The impedance and output voltage are same as following Table 2.1
[ Table 2.1 Output voltage and impedance ]
PB-480MZ
NOTE : Impedances indicated in the table 2.1 represent the total speaker system impedances.
Speaker connection is shown in Figure 2.2
[ Figure 2.2 How to connect speakers ]
Http://www.lyintlcorp.com/

Mixer-amplier can accept variable and wide range input signal with trim pot.
Adjusts the trim pot in a range of 44dB to accept variable external equipments.
Figure 3.2 shows detail input sensitivities.
Mixer-amplier has two layer priority mute function. When higher level source is acti-
vated, other input signals are muted automatically except same priority level source.
Priority Control
Signal input gain control
Operations
Telephone paging
Connect mixer-amplier TELE-PAGING connector to telephone interface unit/PBX like
telephone pager.
You can announce by telephone after dial up to telephone interface unit/PBX.
Operations

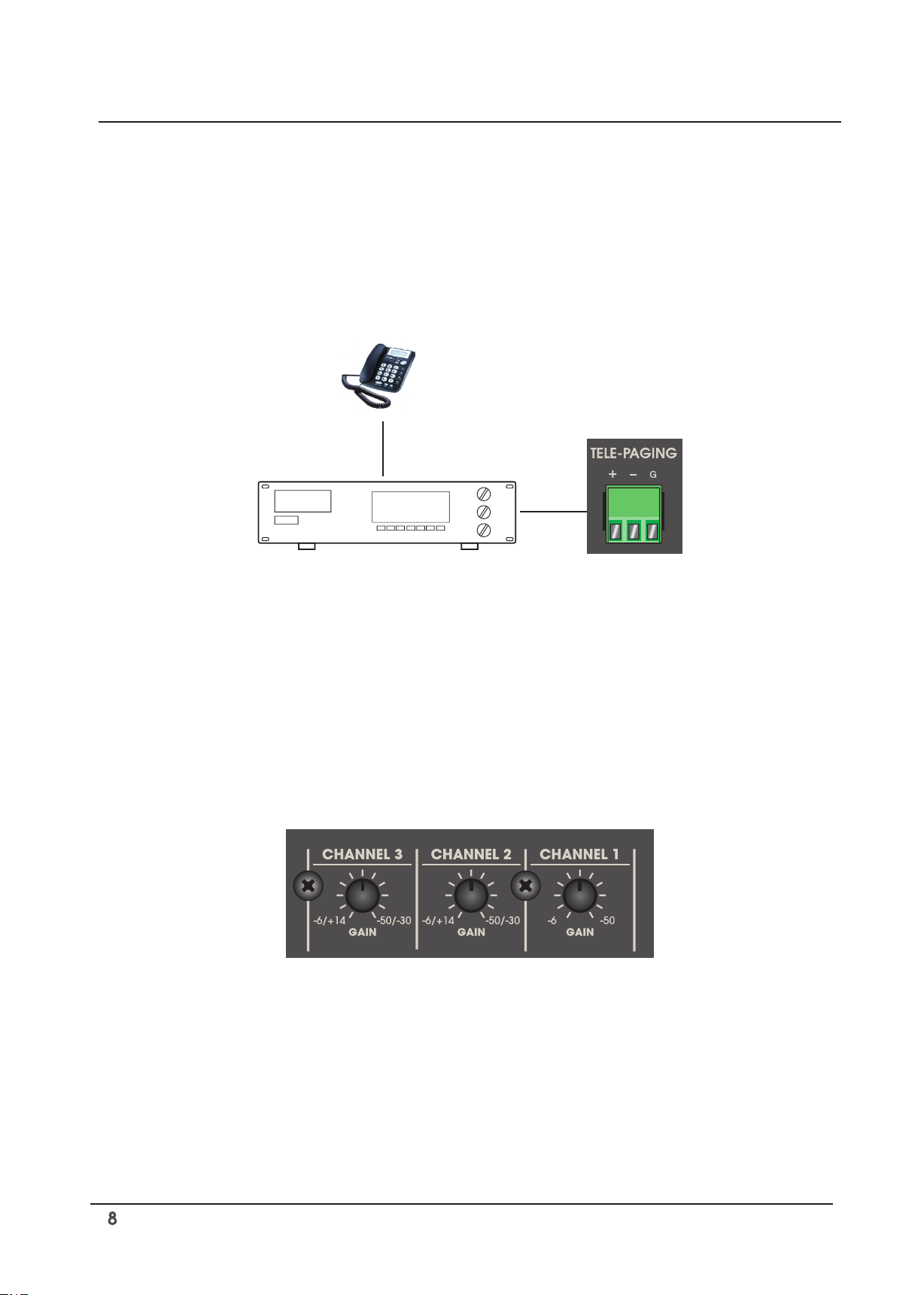

[ Figure 3.1 Telephone paging connecon ]
[ Telephone pager/PBX ]
[ Figure 3.2 Acceptable input sensitivity per each channels ]
CH2,CH3,AUX >CH1 > Remote MIC Telephone Paging.
Http://www.lyintlcorp.com/

Music On Hold
Connect mixer-amplier MUSIC ON HOLD connector to music-on-hold input on telephone
interface/PBX like telephone pager. Set MUSIC ON HOLD volume to proper level.
PB -480MZ or PB -650MZ supply two way of MUSIC ON HOLD function.
When MUSIC ON HOLD slide switch is “INT” position, MUSIC ON HOLD output is routed from
option CDP or MP3 module internally.
When the slide switch is “EXT” position, MUSIC ON HOLD output is routed from LINE IN chan-
nel ( only channel 3 ) connected external music source.
[ Figure 3.3 Music on hold ]
Operations
Http://www.lyintlcorp.com/

Remote Microphone Control
PB -480MZ or PB -650MZ can be connected a remote paging microphone station (EM-4).
The remote microphone station(EM-4) can select 4 individual zone and play pre-announce
chime.
It should be connected by UTP CAT5 cable.
[ Figure 3.4 Remote Microphone Station connections ]
CAUTION : This port is not network terminal. Do not connect to network device.
Operations
Http://www.lyintlcorp.com/

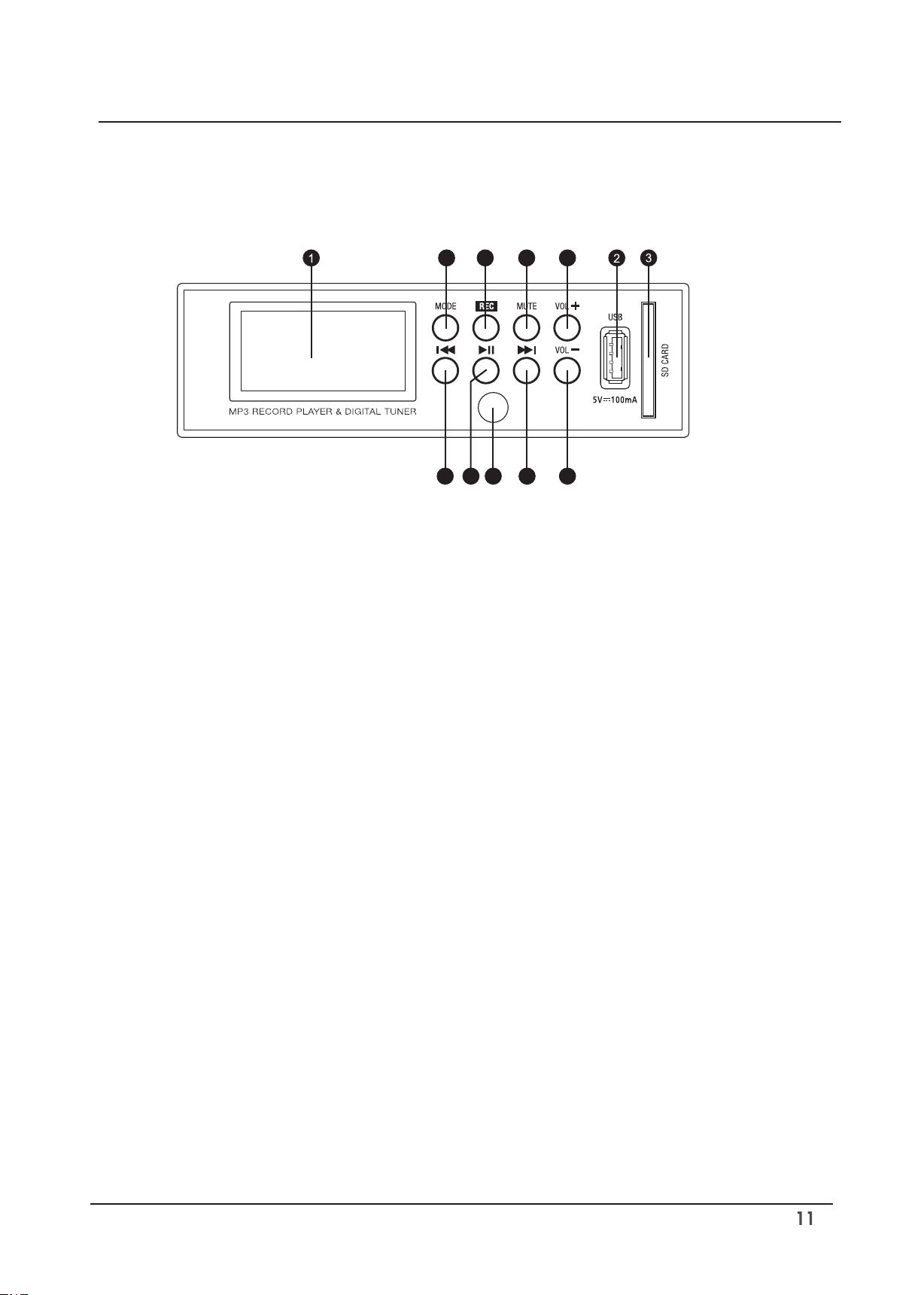

Media module
Media module
1. Display
2. USB Connector
3. SD Card Slot
4. MODE
Short press to select FM/USB/SD card/Blue Tooth(option).
Press and hold to turn on and off of device power.
5.REC
Short press to record current output audio to USB or SD card.
6.MUTE
Short press to muting and releasing output audio.
7.VOL +/VOL-.
Short press to step up or down output volume.
Press and hold to fast up or down output volume.
8.PREVIOUS/NEXT
Short press to select previous or next FM frequency for tuner, to select previous
or next track for USB,SD card.
Press and hold to search previous or next FM frequency automatically for tuner,
fast forward or rewind in current track for USB,SD card.
9.PLAY/PAUSE
Short press to move stored FM frequency for tuner,to toggle play and pause
current track for USB,SD card.
Press and hold to search and store audible FM frequency automatically for
tuner,stop to play the current track for USB,SD card.
10.IR COMMUNICATION
11
56 7
8 9 10
4
78
Http://www.lyintlcorp.com/

Block diagram
Block diagram
Http://www.lyintlcorp.com/

Necessary modications are carried out without notice
Specifications
Specifications
PB-480MZ
100V 21Ω 16Ω
Performance
Input Sensitivity for full output at maximum gain
Balanced Microphone Channels
Unbalanced AUX Channels
Tele-Paging
Frequency Response
at 1watt from speaker out tap, 80Hz ~18kHz
Tone Controls
Signal to Noise Ratio at rated power output
Crosstalk at all control maximum
Rated Output Power at THD 0.5%
Total Harmonic Distortion(THD) at 1kHz rated power
Power Band Width at 1kHz from speaker out tap
DC Output Offset
Operating Temperature/Humidity at non-condensing
Output Voltage and Impedance
Construction
Cooling Convection Cooled
Dimensions (Width/Height/Depth)
Net Weight
100Hz,10kHz
80Hz~18kHz with less than 0.5% THD
Less than ±3mV
0°~40°C at 95% humidity
Less than 0.5%
480 Watts 650 Watts
-50dB ± 3dB
-30dB ± 3dB
-21dB ± 3dB
+1.5/-3dB
±10dB±3dB
Less than 90dB
-70dB at 1kHz
PB-480MZ
5.5Κg
420 mm X 88 mm X 320 mm
