Lynx Side Burner Accessory Technical manual

care & use/installation
MaKe tHe Most oF Your
siDe Burner accessorY

2
WARNING
READ THIS MANUAL CAREFULLY and completely before using your grill accessory to reduce the
risk of:
1) Fire
2) Burn hazard, personal injury or property damage
3) Ruined steaks or other unpleasant cooking experiences
4) Unapproved installation or servicing
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment,
alteration, service or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
DANGER
IF YOU SMELL GAS:
1) Shut off all gas supply lines to the grill
accessory.
2) Extinguish any open ames.
3) Carefully open lid. Remember, it may be
extremely hot!
4) If odor continues, keep everyone away
from the grill accessory and immediately
call your gas supplier or your re depart-
ment.
WARNING
►DO NOT store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
►An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
S’IL Y A UNE ODEUR DE GAZ:
1) Coupez l’admission de gaz de l’appariel.
2) Éteindre toute amme nue.
3) Ouvrir le couvercle.
4) Si l’odeur persiste, éloignez-vous de
l’appareil et appelez immédiatement
le fournisseur de gaz ou le service
d’incendie.
AVERTISSMENT
►Ne pas entreposer ni utiliser de l’essence
ni d’autres vapeurs ou liquides inam-
mables dans le voisinage de l’appareil, ni
de tout autre appareil.
►Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation,
ne doit pas être entreposée dans le
voisinage de cet appareil ou de tout autre
appareil.
WARNING! CALIFORNIA PROPOSITION 65
►The burning of gas cooking fuel generates some by-products which are on the list of sub-
stances which are known by the State of California to cause cancer or reproductive harm.
►California law requires businesses to warn customers of potential exposure to such substanc-
es. To minimize exposure to the substances, always operate this unit according to the use
and care instructions found in this manual. Be certain to provide adequate ventilation when
cooking.
►California Proposition 65 lists “Silica, crystalline” which is used in one of the components of
the IR burner, as an agent known to the state of California to cause cancer.
will change squares to triangles

3

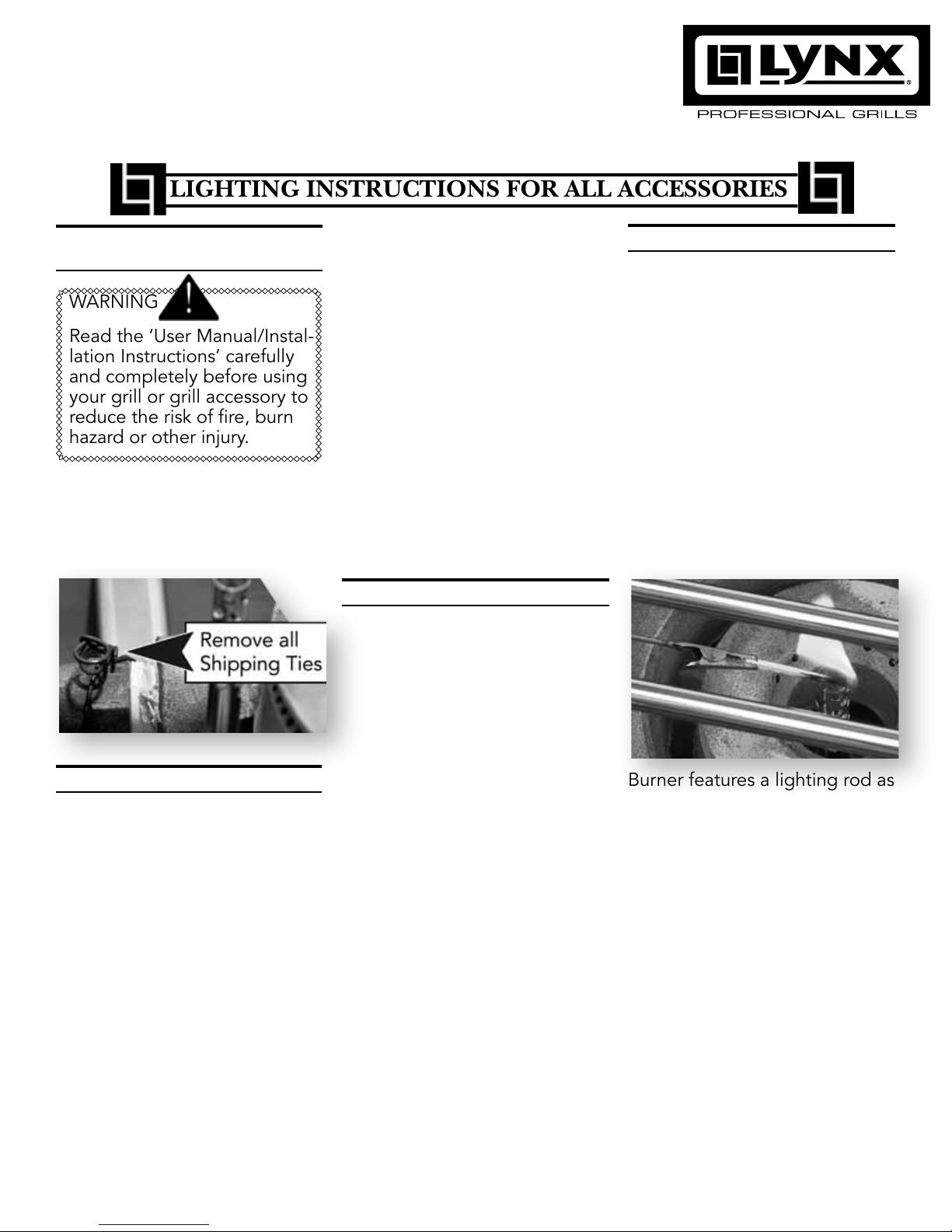

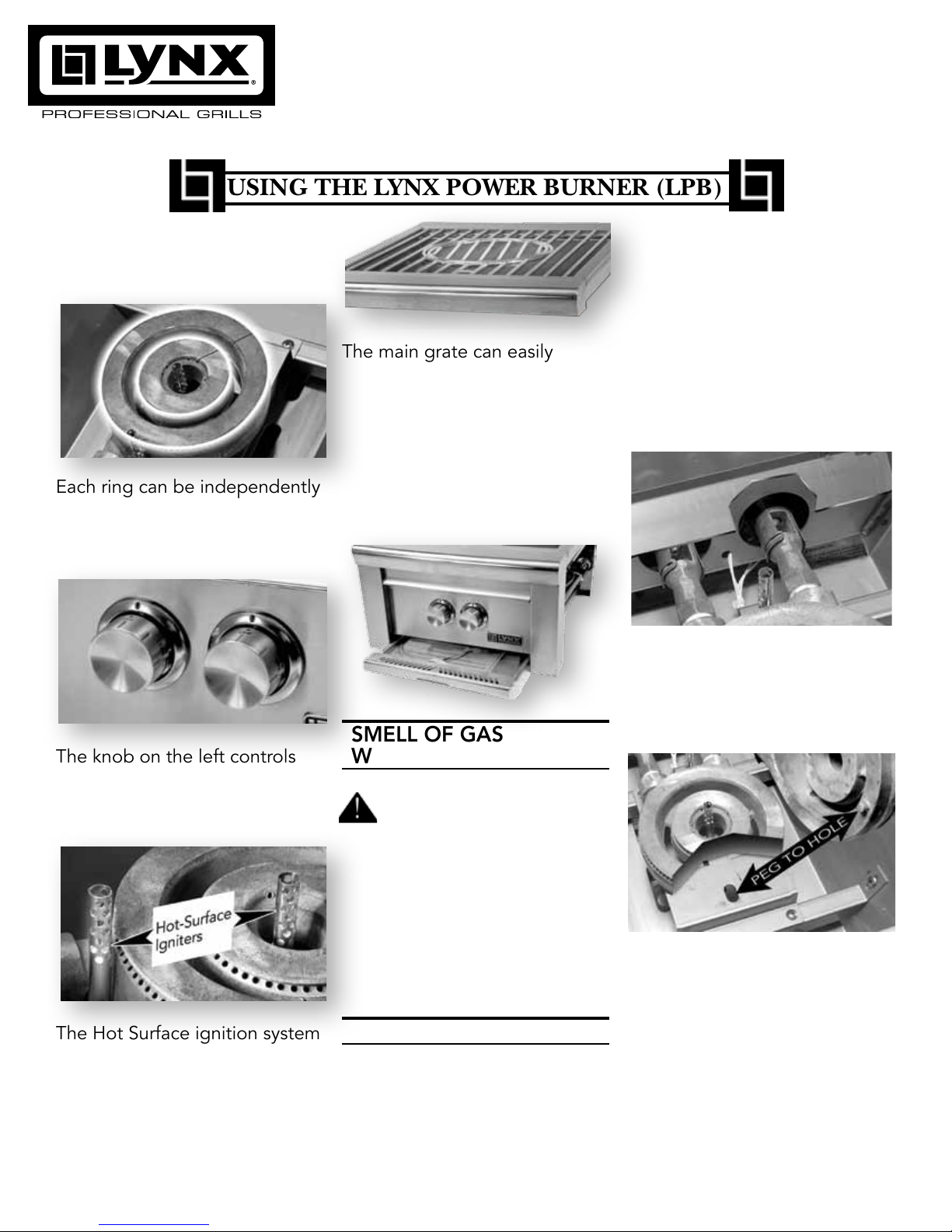

how to light Your grill accessorY
1) Before each use, complete the checklist below.
2) Make sure all burner control knobs are in the “OFF” position.
3) Push and hold the control knob for 2-5 seconds, allowing the igniter to heat up
4) Turn the knob to the “LITE” position
5) After ignition set the knob to the desired setting
►Do you smell gas? If yes, shut off everything and call the gas company or a qualied
plumber to check for leaks, if Not please continue
►Are you prepared to stay with the side burner during the entire cooking process?
If not, gather what you need before starting the lighting process. If yes, please
continue.
►Is your cooking area free and clear of any combustibles, besides your food, that
might ignite? If no, clear the area before starting the lighting process, If yes, please
continue
►Do all control knobs turn freely? If not, call for service; if yes, please continue.
►If you are using a portable propane cylinder, is it connected and leak tested? If not,
check the connection before continuing. If yes please continue.
►Do you know where your side burner’s main gas supply shut-off valve is located? If
not, locate it before continuing. If yes, please continue.
►Are all burners properly seated in the side burner? If not, seat the burners properly
before continuing. If yes please continue.
►Is the wind blowing just lightly and not blowing on the side burner? If not, wait until
the wind subsides or turn your free-standing grill so the wind goes into the front of
the grill. If yes, please continue with the lighting process.
checklist before each use (for Your safetY)
33487 03/2011
will change squares to triangles

4
This product complies with ANSI standard Z21.58/CSA 1.6 latest edition and has been tested and
approved by Intertek.

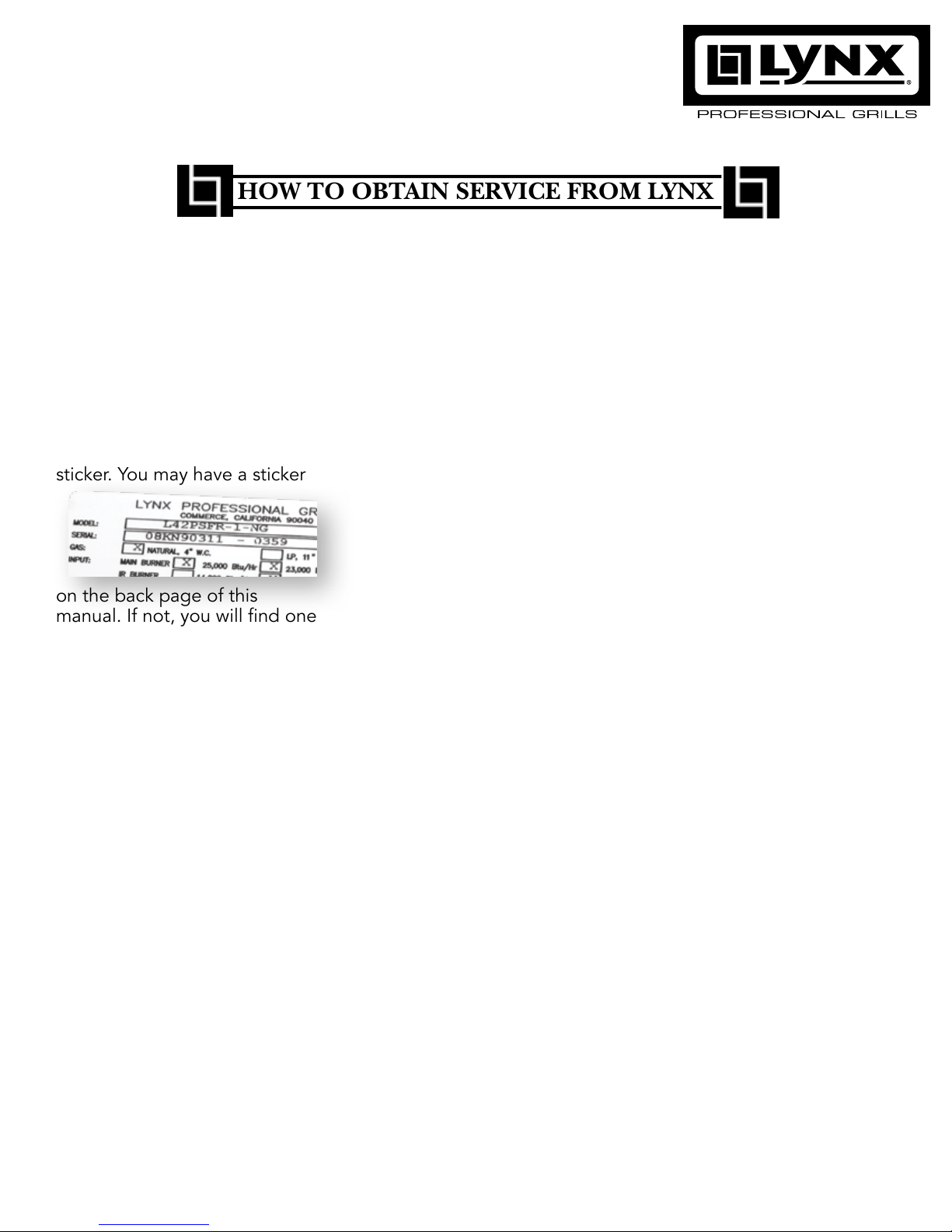

To obtain replacement parts or service contact:
Lynx Professional Grills
5895 Rickenbacker
Commerce, CA 90040
888-289-5969
WARNING
►Never use dented, rusty or damaged propane cylinders. NEVER store additional or empty
propane cylinders in the cabinet or in the vicinity of this or any other appliance. Do not store
propane cylinders indoors or on their sides.
►Children should NEVER BE LEFT ALONE or unattended in an area where an accessory is
located. Place your accessory well away from areas where children play. Do not store items
that may interest children in or around the area of your accessory, in your accessory cart, or in
the masonry enclosure.
►NEVER move the accessory when hot. When in use, portions of the accessory are hot enough
to cause severe burns.
►Always maintain the required clearances from combustibles as detailed. Accessories are
designed for outdoor use only. NEVER use in a garage, building, shed, breezeway, or other
enclosed area. Do not use this equipment under any overhead combustible construction.
►Grill accessories are not designed or certied for and are not to be installed in or on recre-
ational vehicles, portable trailers, boats or any other moving installation.
►ALWAYS have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease re
with water or other liquids.
►STORING YOUR ACCESSORY: Store your accessory in a well-ventilated area. If stored
indoors, detach and leave LP cylinder outdoors in a well-ventilated area away from heat and
away from where children may tamper with it.
►Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Elec-
trical cords should be placed away from walkways to avoid tripping hazard.
►Do not repair or replace any part of the accessory unless specically recommended in this
manual. Other service should be performed by a qualied technician.
►If the accessory is installed by a professional installer or technician, be sure that he/she shows
you where your gas supply shut-off is located. All gas lines must have a shut-off that is readily
and easily accessible. If you smell gas, check for gas leaks immediately. Check only with a
soap and water solution. (See INDEX: “Leak Testing” for further details.) Never check for gas leaks
with an open ame.
►Inspect the LP gas supply hose prior to each use of the accessory. If there is evidence of
excessive abrasion or wear, or the hose is cut, it must be replaced before using the accessory.
►Never remove the grounding prong from the plug or use this product with an ungrounded,
2-prong adapter.
►THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.

5
You’ve just joined the world of Lynx cooks … a
discriminating collection of amateur and pro-
fessional chefs that take outdoor cooking to a
new level.
Lynx manufactures many accessory cooking
appliances to compliment your Lynx grill and
your desire for truly superior cooking results.
Your appliance has been designed and built
with meticulous attention to detail and it offers
some unique and powerful features. You can
achieve maximum performance and enjoyment of these
features only by carefully reading this manual ... before
your rst cook-out.
This manual includes important safety tips and great
hints for better grilling. You should keep it handy for easy
reference.
Also, at Lynx, we enjoy hearing from our customers. We
like to hear about your successes but also about any
difculties you are having. Please feel free to contact us
with any questions or problems, or just to share a new
recipe. Please include the model number of your
appliance in your correspondence.
With the proper use and care this product will provide
years of trouble-free service.
Should your Lynx appliance change
ownership, please make sure that the new
owner receives this manual.
Thanks again for your purchase. Enjoy!
a Message to our custoMers…

6
STATE OF MASSACHUSETTS:
1) Massachusetts requires all gas be installed using a plumber or gas tter carrying the appro-
priate Massachusetts license.
2) All permanently-installed natural gas or propane installations require a “T” handle type
manual gas valve be installed in the gas supply line to this appliance.
3) This does not apply to portable propane installations using a 20 pound cylinder.
WARNING
1) The outdoor cooking gas appliance and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of that system at test pres-
sures in excess of 0.5 psi (3.5 kPa).
2) The outdoor cooking gas appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure testing of the gas supply pip-
ing system at test pressures equal to or less than 1/2 psi (3.5 kPa).
WARNING - ELECTRICAL GROUNDING
►Product installation must meet local electric codes or, in the absence of local codes, the latest
edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code
CGA 1.6b2005.
►Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas ap-
pliance.
►This accessory is equipped with a three prong (grounding) electric plug for your protection
against shock hazard and must be plugged directly into a properly grounded three prong
outlet. NEVER cut or remove the grounding prong from this plug.
►Use only extension cords with a 3 prong grounding plug, rated for the power of the equip-
ment, and approved for outdoor use with a “W-A” marking.
►To protect against electric shock, do not immerse any part of the power cord, an extension
cord or any plugs in water or other liquid.
►Unplug the product from the outlet when not in use and before cleaning. Allow it to cool
before putting on or taking off parts.
►Do not let the cord hang over the edge of a table or touch hot surfaces.
►Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the
appliance malfunctions or has been damaged in any manner. Contact the manufacturer for
repair.

7
PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS
BEFORE YOU USE YOUR GRILL ACCESSORY.
1) NEVER LEAVE THE GRILL ACCESSORY UNATTENDED WHILE COOKING.
2) Ensure all tie-down wires have been removed from the burners.
3) Always use caution when operating the grill accessory in a windy area. (See INDEX: “Grilling in
Windy Conditions” for further details.)
4) Avoid wearing loose-tting garments or long sleeves while grilling. They could ignite.
5) Never touch the grill accessory racks or immediate surrounding metal surfaces with your bare
hands while grilling.
6) Use an insulated glove or mitt when opening and operating the grill accessory.
7) The grill accessory covers must be fully removed or opened while lighting the grill accessory.
Releasing fuel into a closed grill accessory before lighting will not make it light sooner or more
efciently. It will only risk explosion and personal injury or death. Never lean over hot grill ac-
cessory surface or look directly into the grill accessory when attempting to light.
8) Do not heat unopened food containers as pressure build-up will cause the container to ex-
plode.
9) Do not use aluminum foil to line grill accessory racks or drip pans. This will alter the airow or
trap excessive heat in the control area and can melt knobs and ignition modules. Such damage
is specically excluded from your warranty.
10) Never use charcoal or any other solid fuel in the grill accessory.
11) Cooking excessively fatty meats and oils will cause are ups. Internal res or damage caused by
them or by the grill accessory being left unattended while cooking are not covered under the
terms and conditions of our warranty.
12) Never grill without a drip pan in place if your accessory utilizes a built-in drip pan. Always en-
sure the drip pan is pushed all the way to the back of the grill accessory. When not correctly in
place, hot grease can leak downward and produce a re or explosion.
13) Grease is extremely ammable. Let hot grease cool down before attempting to handle or dis-
pose of it. The drip tray should be cleaned of grease on a regular basis.
14) Do not use the grill accessory unless a leak check has been performed on all gas connections.
(See INDEX: “Leak Testing” for further details.)
15) Never operate the grill accessory while under the inuence of alcohol or drugs.
16) Do not lean on side shelves and never place a load weighing more than 25 pounds on a side
shelf.
17) If any burner does not light or goes out during operation, turn off all gas control knobs and wait
ve (5) minutes before attempting to re-light.
iMportant safetY precautions

8
table of contents
a Message to our custoMers… ......................................................................5
iMportant safetY precautions .....................................................................7
using Your lYnX accessorY ..............................................................................9
Accessories Covered in this Manual...............................................................................9
Using The LYNX Power Burner (LPB) ...........................................................................10
Smell of Gas While Cooking .....................................................................................10
Yellow Flames ............................................................................................................10
Lighting Instructions for All Accessories......................................................................11
Safety Practices and Precautions ...............................................................................11
At Each New Season .................................................................................................11
Purging the Gas Lines ...............................................................................................11
Match Lighting ..........................................................................................................11
Low Heat Flame Adjustment .....................................................................................12
How To Obtain Service From Lynx ...............................................................................13
installing Your lYnX accessorY ...............................................................14
before You start....................................................................................................15
If Shipment Arrives Damaged .....................................................................................15
Important Notes ............................................................................................................15
Where’s the Wind?.....................................................................................................15
How Long is Your Run? ..............................................................................................15
Are You “On-the-Level”? ..........................................................................................15
Built-in Installations ...................................................................................................16
Clearance to Combustible Materials .........................................................................16
gas & electric connections..........................................................................17

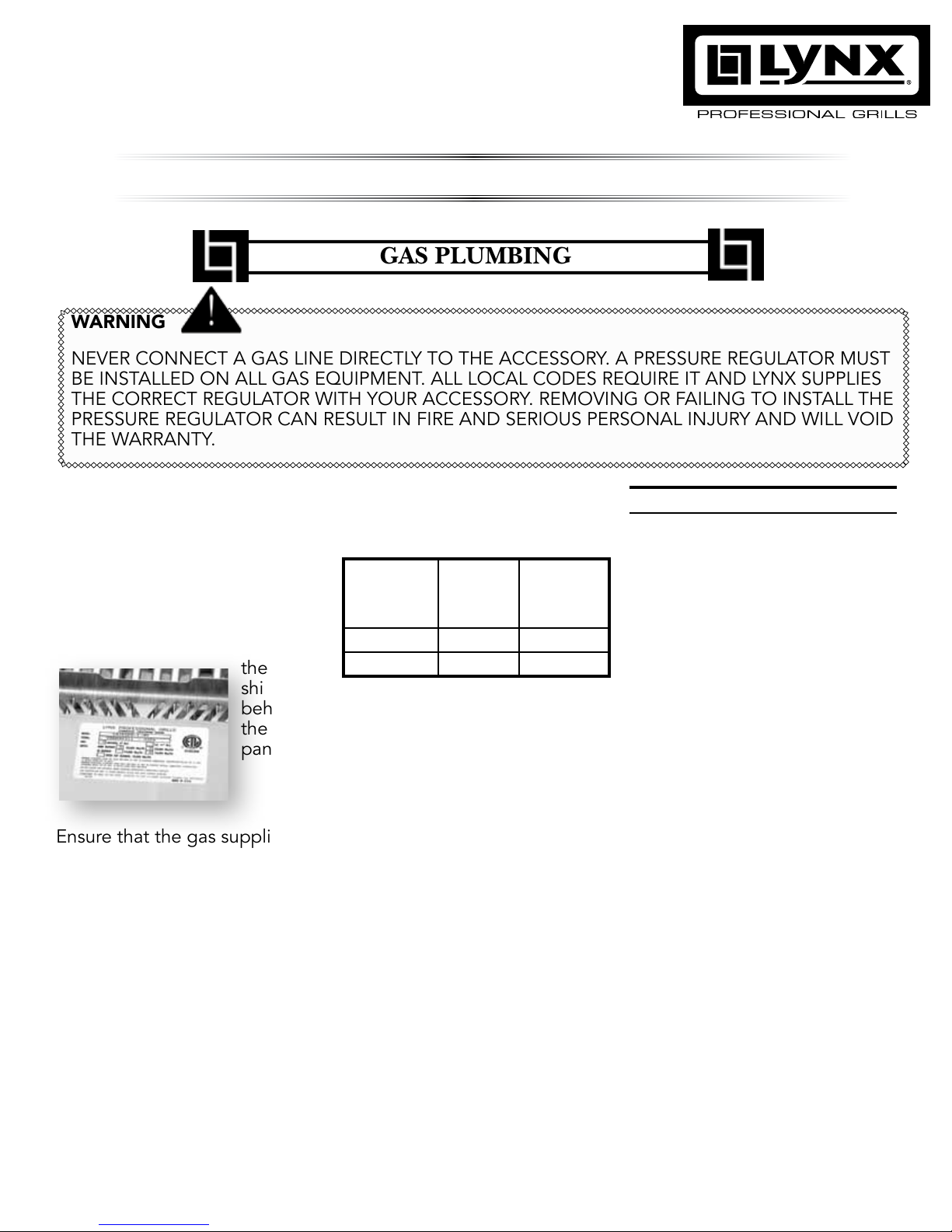

gas Plumbing ................................................................................................................17
Natural Gas ...............................................................................................................17
LP Gas .......................................................................................................................18
Converting for Fuel Type ...........................................................................................18

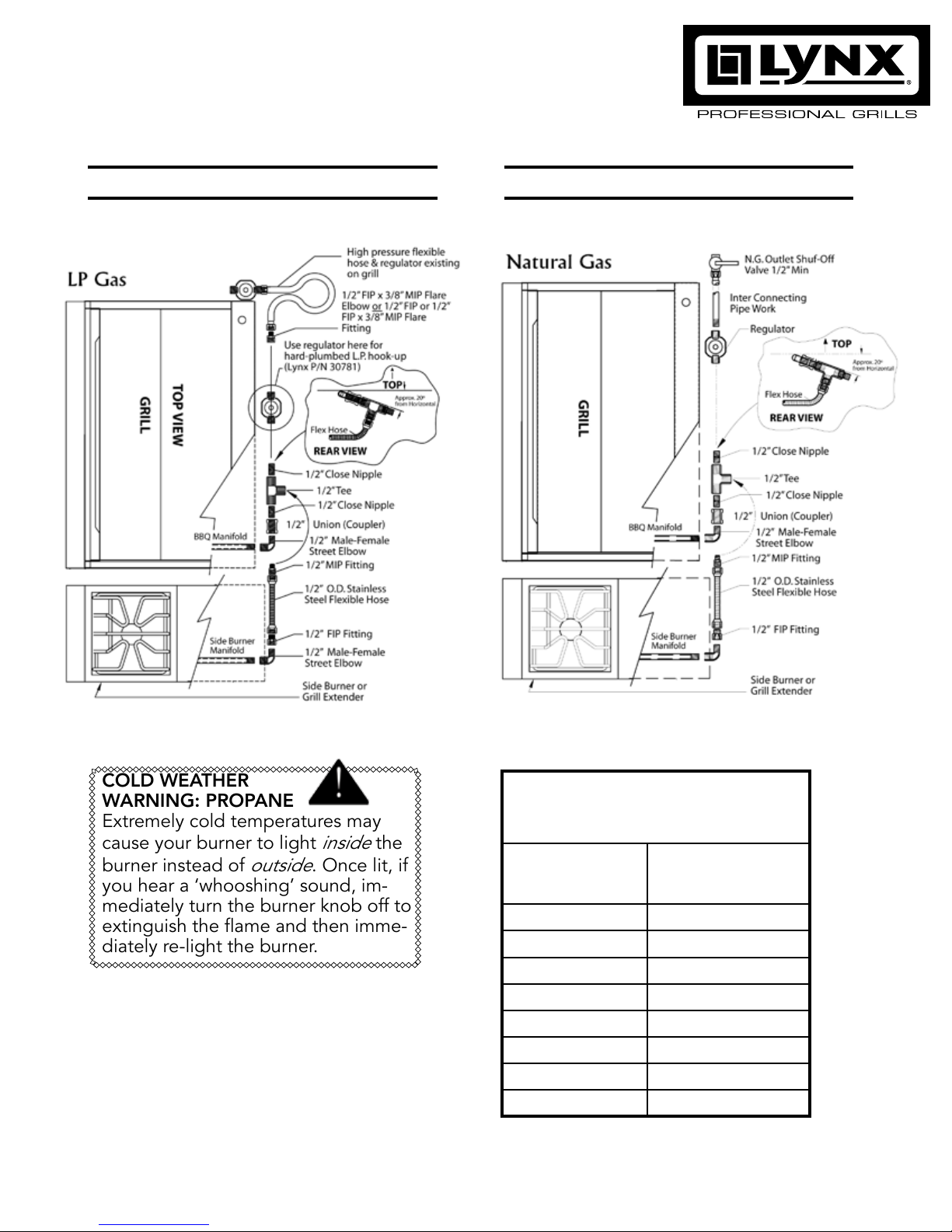

LP Connections .........................................................................................................18
Propane Hook Up ..........................................................................................................19
Natural Gas Hook Up ....................................................................................................19
Maximum Runs for all appliances on supply line ......................................................19
Electrical Connections ...................................................................................................20
Optional Electrical Kits ..............................................................................................20
Connecting the Wiring ..............................................................................................20
Testing the Installation ..................................................................................................21
Leak Testing ..............................................................................................................21
Fixing a Gas Leak ......................................................................................................21
Schematics .....................................................................................................................22
Cut-out Dimensions for Built-in Grills & Accessories ..................................................23
lYnX liMited warrantY.......................................................................................24
lYnX residential plus warrantY.................................................................25
Side Burner Exploded Parts View ...............................................................................26
Index ..............................................................................................................................27
will update page #s

9
The Lynx Power
Burner (LPB) is a
dual-ring com-
mercial style
burner with a
range of 3,000
to 47,000 BTU’s.
This manual covers several Lynx accessory appliances and optional
accessories for those appliances.
Except where noted, the assembly, installation and use of these Lynx
accessories is identical.
using Your accessorY
The LSBPC-1
Prep Center
Features two
15,000 BTU
burners and
an integral
bamboo
cutting board
for food prep.

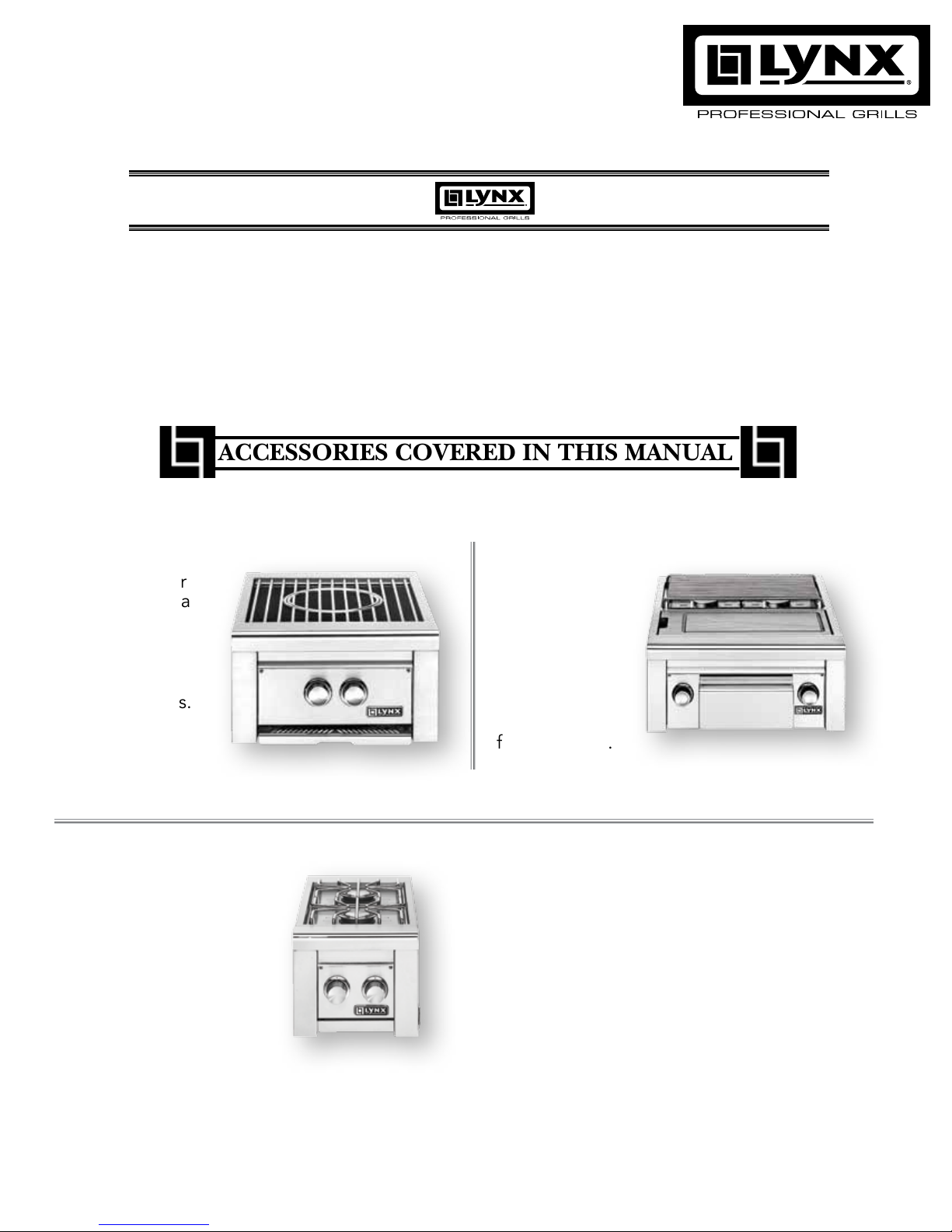

Accessories covered in this MAnuAl
The LCB1-2 & LCB2-2, LSB1-2 & LSB2-2 (Lynx
Side Burner 1 & 2) features either one or two
15,000 BTU burners for cooking smaller food
items. The LCB1-2 & LCB2-2 can be mounted
directly to most Lynx grills. For the 27” and
36” Lynx grills with smaller depths, a LCB-BKT
adapter is available. The LSB1-2 and LSB2-2
are designed for installation in a non-combus-
tible, built-in enclosure.
will update page #s

10
The Lynx Power Burner incorpo-
rates a cast brass, dual-ring,
burner.
Each ring can be independently
operated for maximum heat
control. Used together they can
generate up to 47,000 BTU’s.
The knob on the left controls
the outer burner ring and the
knob on the right controls the
inner burner ring.
The Hot Surface ignition system
provides reliable ignition.
The main grate can easily
handle oversized stock pots and
removing the center grate ac-
commodates a commercial style
round-bottom wok base. (12
inch minimum)
The Lynx Power Burner also
features a fully extendable
stainless steel drip pan.
SMELL OF GAS
WHILE COOKING
IF YOU SMELL GAS WHILE
THE GRILL ACCESSORY
IS OPERATING, IMMEDIATELY
TURN OFF ALL BURNERS AND
SHUT OFF THE MAIN FUEL
SUPPLY.
• PERFORM A LEAK TEST
(See INDEX: “Leak Testing” for
further details.)
• CHECK FOR BLOCKAGES
YELLOW FLAMES
A yellow ame on the main
burners indicates a lack of air.
But, if the air around the grill
is dusty or if heavy grease is
present, some orange tips on
the burner ame are normal.
►ADJUST THE AIR SHUTTER
ONLY DO THIS WHEN THE
ACCESSORY HAS COOLED
DOWN COMPLETELY!
1. Remove the cooking
grates.
2. Reach under the drip
guard and rotate the air
shutters to adjust.
3. Ensure that the burner is
seated correctly on the
frame, with the brass peg
seated inside the
positioning hole.
4. Re-light and check the
ame.
Using The LYnX Power BUrner (LPB)
will change square to triangle

11
SAFETY PRACTICES
AND PRECAUTIONS:
WARNING
Read the ‘User Manual/Instal-
lation Instructions’ carefully
and completely before using
your grill or grill accessory to
reduce the risk of re, burn
hazard or other injury.
Ensure that burner ties and all
packing materials are removed
before lighting any new
accessory.
AT EACH NEW SEASON
At the start of each new grilling
season you should remove the
cooking grates and check the
burners, venturis, orices and
valves for obstructions.
Spiders and insects often nest
in these areas of the accessory
and can disrupt air ow, causing
damage to the accessory and
personal injury.
Also, check all hoses and
ttings for damage, abrasion,
wear and tear and repair, if
necessary, before turning the
gas on.
Replacement pressure regula-
tors and hose assemblies, must
be the type specied by Lynx.
The pressure regulator and
hose assembly supplied with
the unit must be used.
If the unit is LP, screw the
regulator into the tank and leak
check the hose and regulator
connections with a soap and
water solution before operating
the burner. Turn all knobs to
OFF then SLOWLY turn on the
gas supply valve.
Do not use any grill accessory if
you smell gas.
PURGING THE GAS LINES
You should purge the gas line
of air before attempting to light
the grill accessory.
1. Make sure all grill controls
are in the “OFF” position.
2. Slowly turn on the main
gas supply.
3. Push in the control knob
for the burner furthest
from the fuel source. Using
the burner furthest from
the fuel source will com-
pletely purge the lines. It
will take several seconds
for the burner to light.
4. Hold the knob ON for
about 20 seconds to allow
the air in the system to
purge and the burner to
light
5. Wait at least 5 minutes
after shutting off the
control before attempting
to light the burners.
MATCH LIGHTING
If a burner fails to light after
several attempts, it can
be match lit. If you’ve just
attempted to light the burner
with the igniter, allow 5 minutes
for any accumulated gas to
dissipate before match lighting.
Make sure all knobs are in the
OFF position. Keep your face
as far away from the burner as
possible.
Using the manual lighting rod,
pass a lit match over the ports
of the burner. The LYNX Power
Burner features a lighting rod as
shown above.
Push and turn the control
knob of the burner to ‘Lite”. If
the burner does not light in 4
seconds, turn the knob off and
wait 5 minutes before attempt-
ing again.
Lighting instructions for ALL Accessories
will change square to triangle

12
LOW HEAT FLAME
ADJUSTMENT
The burners on your Lynx
accessory feature an adjustable
low setting.
Fluctuations in gas pressure,
gas conversion and even in the
quality of the gas itself may
affect burner performance at
the “LOW” setting. It could be
either too high or too low.
To adjust the burner
for low setting:
►Make sure the grill
accessory is cool.
►Remove the grates so that
you can see the ame while
adjusting the burner.
►Light the burner and set
it to “LOW”. (all the way
counter- clockwise).
►Pull off the control knob.
►While holding the valve
shaft with pliers, insert a
thin at-blade screwdriver
into the shaft and, while
watching the ame, adjust
it to a minimum stable
setting.

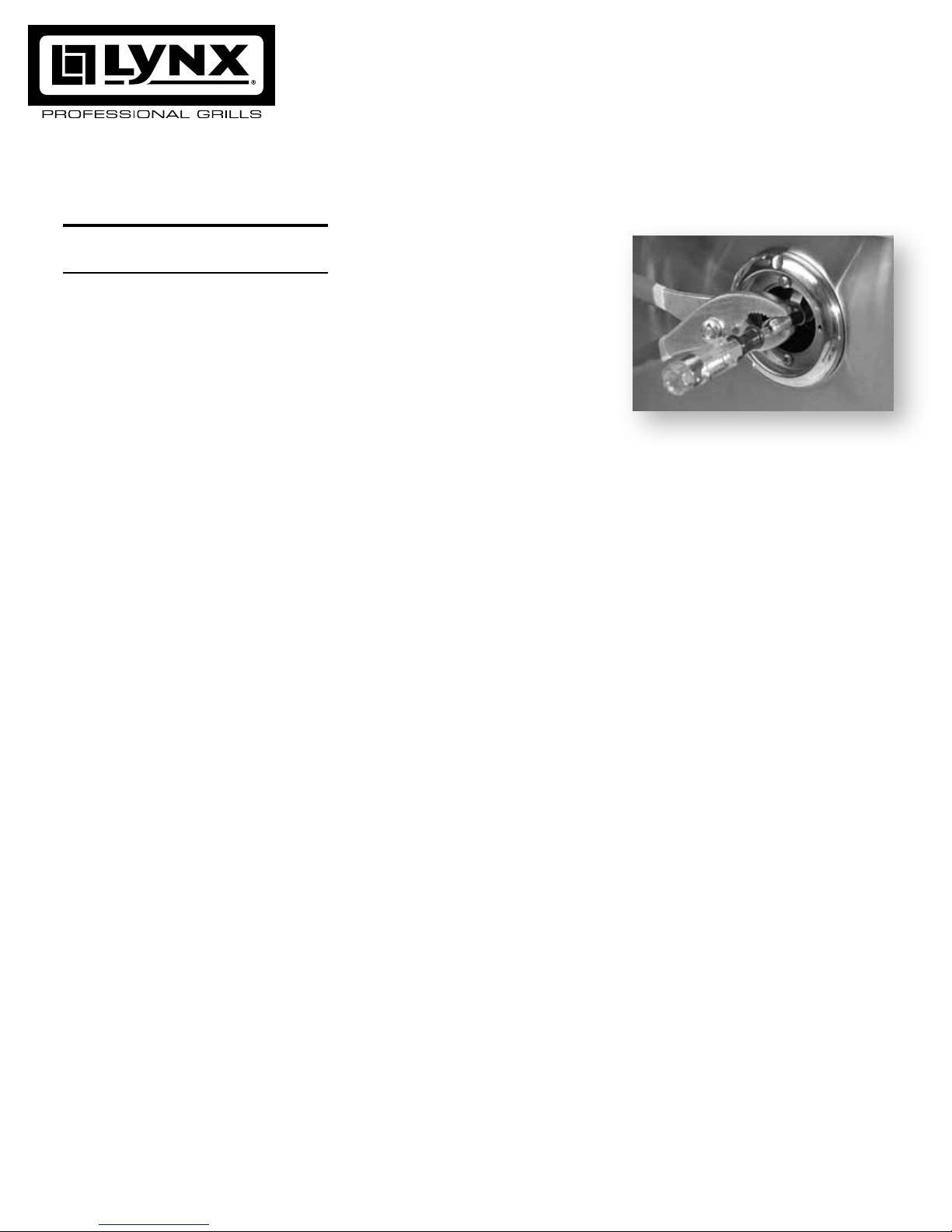

Use a small screwdriver for low
setting burner adjustment.

13
Before calling for service,
please make sure you have the
following information:
Model number
Date of purchase
Proof of purchase by the
original owner
Serial number
The serial number can be
located on the rating plate
sticker. You may have a sticker
on the back page of this
manual. If not, you will nd one
located either on the underside
of the drip tray (if you have
one), on the heat shield behind
the front panel, or on the inside
left panel wall.
For warranty service, contact
the Lynx Customer Service
Department for an authorized
service agent near you at:
• (888) Buy-Lynx
• (888-289-5969)
• www.LynxGrills.com
Your satisfaction is of the
utmost importance to us. If a
problem cannot be resolved to
your satisfaction, please write,
fax or email us:
Lynx Professional Grills
5895 Rickenbacker
Commerce, CA 90040
Service: (888) Buy-Lynx
(888-289-5969)
Tel: [phone]
Fax: [phone]
www.lynxgrills.com
Contact Lynx for replacement
parts. Parts are shipped F.O.B.
Commerce, CA.
How To obTain Service From Lynx

14
installing Your accessorY
installing Your lYnX accessorY ................................................................14
before You start....................................................................................................15
If Shipment Arrives Damaged .....................................................................................15
Important Notes ............................................................................................................15
Where’s the Wind?.....................................................................................................15
How Long is Your Run? ..............................................................................................15
Are You “On-the-Level”?...........................................................................................15
Built-in Installations ...................................................................................................16
Clearance to Combustible Materials .........................................................................16
gas & electric connections..........................................................................17
gas Plumbing.................................................................................................................17
Natural Gas................................................................................................................17
LP Gas........................................................................................................................18
Converting for Fuel Type ...........................................................................................18
LP Connections .........................................................................................................18
Propane Hook Up ..........................................................................................................19
Natural Gas Hook Up ....................................................................................................19
Maximum Runs for all appliances on supply line.......................................................19
Electrical Connections ...................................................................................................20
Optional Electrical Kits ..............................................................................................20
Connecting the Wiring ..............................................................................................20
Testing the Installation ..................................................................................................21
Leak Testing ..............................................................................................................21
Fixing a Gas Leak ......................................................................................................21
Schematics .....................................................................................................................22
Cut-Out Dimensions for Built-in Grills & Accessories .................................................23
lYnX liMited warrantY.......................................................................................24
lYnX residential plus warrantY.................................................................25
Side Burner Exploded Parts View ...............................................................................26
Index ..............................................................................................................................27
table of contents
will update page #s

15
HOW LONG
IS YOUR RUN?
Keep all gas supply lines as
short as possible because
gas lines lose pressure over
distance and with each elbow
and tee that is added. This drop
in pressure affects accessory
performance. (See INDEX: “Gas
Supply Line Runs” for further details.)
if shipMent arrives daMaged
VISIBLE LOSS OR DAMAGE:
Be certain any visible damage to the carton is noted on freight bill or express receipt and signed by
the person making delivery.
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of extent of damage.
CONCEALED LOSS OR DAMAGE:
If damage is unnoticed until the accessory is unpacked, notify the transportation company or carrier
immediately and le a “concealed damage” claim with them. This should be done within (15) days
of the date delivery is made to you. Be sure to hold on to the container for inspection. We cannot
assume responsibility for damage or loss incurred in transit. (See INDEX: “Obtaining Service from Lynx” for
further details.)
WARNING
►Never install this product into a combustible enclosure. Doing so could result in re, property
damage and personal injury.
►Never locate the accessory under a roof or overhang, in a building, garage, shed or other
such enclosed area.
►Always maintain the required clearances from combustibles as detailed. Accessories are
designed for outdoor use only. NEVER use in a garage, building, shed, breezeway, or other
enclosed area. Do not use this equipment under any overhead combustible construction.
►Installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and propane Installation
Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, in Canada.
WHERE’S THE WIND?
When selecting a suitable
location, consider important
factors such as exposure to the
wind and foot-trafc patterns.
If you have a freestanding
grill, position it so the prevail-
ing wind blows into the front
control panel (at your back
when grilling), supporting the
proper front-to-rear airow.
Built-in accessories located
in areas with prevailing winds
should be protected by a wind
barrier.
ARE YOU “ON-THE-LEVEL”?
Proper leveling during instal-
lation is critical. An accessory
that is out of level will cause
erratic burner combustion and
inefcient, uneven heating. A
carpenter’s spirit level should be
used to level the accessory both
front-to-back and side-to-side.
If the oor is uneven or has
a decided slope, re-leveling
may be required each time you
move a freestanding unit.
before You start
iMportant notes

16
BUILT-IN INSTALLATIONS:
Lynx built-in accessories are
intended for installation in a
built-in enclosure constructed
of non-combustible materials.
The accessory drops into the
opening shown in the cutout
detail drawing and hangs from
its counter-top trim. A deck is
not required to support it from
the bottom.
Pay special attention to the
provisions shown for gas line
hook-up. (See INDEX: “Cut-out
Dimensions for Built-in Grills &
Accessories”)
Installation provisions may be
made for the Power Burner
installation. The Power Burner
cooking height may be reduced
to better accommodate large
cooking pots. Clearances to
combustible material must be
maintained as outlined below.
No combustible material shall
be used in the construction of
a counter top using a recessed
application.
The enclosure should have
ventilation holes to prevent gas
build-up in the event of a leak.
The deck ledges and counter
should be at and level. (Refer
to ANSI Z21.58 Standard for
Outdoor Cooking Gas Appli-
ances, Section 1.7 Enclosures
For Self Contained LP-Gas
Supply Systems or local codes
for additional information.)
The grill accessory may be
powered from either a 120 volt,
60 hertz, 15 amp GFI certied
outlet installed by a qualied
electrician OR it may be
powered directly
from your Lynx
Grill transformer power supply.
When a Lynx grill is not
available or if the grill is
not located close enough
to the grill a Lynx LASK
(Lynx Accessory Switch Kit)
is available as an optional
purchase.
CLEARANCE TO COM-
BUSTIBLE MATERIALS:
Minimum clearance from
the sides and back of the
accessory to adjacent combus-
tible construction below the
top of unit are 12” from the
sides and back.
Dégagement minimal entre
les parois latérales et l’arrière
de l’appariel et la construc-
tion combustible au-dessous
du panneau supérieur de
l’appareil (30 cm à partir des
parois latérales et 30 cm à
partir de l’arrière).
Minimum clearance from sides
and back of unit to adjacent
combustible construction
extending above the unit is
18” from the sides and back.
Dégagement horizontal
minimal entre les parois
latérales et l’arrière de
l’appariel et la construction
verticale combustible au-
dessus de l’appareil (45.7 cm
à partir des parois latérales et
45.7 cm à partir de l’arrière).
Do not use this appliance
under overhead combustible
surfaces.
Ne pas utiliser cet appareil
sous une surface combustible.

17
gas & electric connections
warning
Never coNNect a gas liNe directly to the accessory. a pressure regulator must
be iNstalled oN all gas equipmeNt. all local codes require it aNd lyNx supplies
the correct regulator with your accessory. removiNg or failiNg to iNstall the
pressure regulator caN result iN fire aNd serious persoNal iNjury aNd will void
the warraNty.
The accessory is factory set to
use either propane (LP) or
natural gas (NAT). It is critical
that the gas you use matches
that which the accessory was
set up for. You can verify that by
checking the rating plate.
The rating plate is located on
the heat
shield
behind
the front
panel.
Ensure that the gas supplied
meets with the minimum
pressure requirements.
Do not operate the accessory on
any gas other than that for which
the accessory has been set.
Fuel WC Max
Inlet
WC Min
Under Full
Load
Nat Gas 7 in 4 in
LP 14 in 10 in
Water Column Requirements
Both the regulator and the
manifold orices have been
tuned for the type of gas
specied on the rating plate.
Converting to a different type
of gas requires a conversion
kit which is included with your
side burner accessory and
must be installed by a qualied
technician.
All installation and all instal-
lation parts must conform to
local codes with the National
Electrical Code, ANSI/NFPA
70-1990 and the National
Fuel Gas Code, ANSI Z223.1/
NFPA 54 in the U.S. and CGA-
B149.1/.2 in Canada.
Canadian installations must
conform to CGA-B149.1/.2
natural gas/propane installation
code. (Canada)
NATURAL GAS
Lynx recommends that only
qualied professionals perform
the required plumbing on this
product.
The gas supply line must be
sized to accommodate the total
BTU requirements of all the
gas-red equipment that will be
connected to that line.
In no case should pipe less
than 3/4” inside diameter or 1”
outside diameter be used.
►Calculate the total BTU
output of all equipment
and refer to “INDEX: Gas
Supply Line Runs” for
allowable run distances.
Failure to meet these
minimum requirements may
reduce performance of the
accessory and any other
appliances running on that
supply line.
►Always keep supply line
runs as short as possible.
(See INDEX: “Gas Supply line
runs”)
►A gas shut-off valve must
be installed in an easily
accessible location by a
qualied plumber.
Gas PlumbinG

18
►Keep any threading
compound off of the rst
two pipe threads to avoid
having any small pieces of
compound break loose and
clog a burner valve or
orice. Do not put sealant
on any male end of are
ttings..
►
►
►

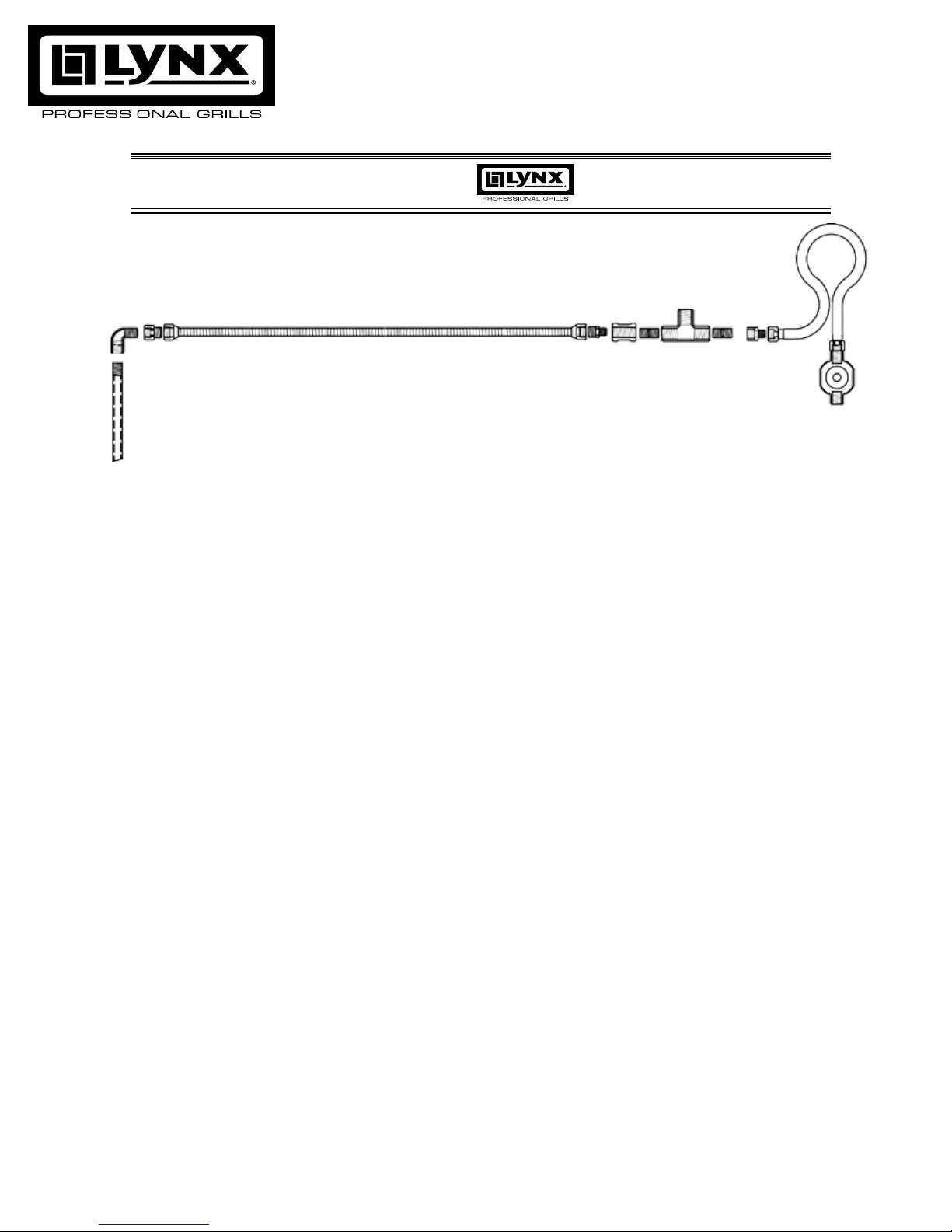

For built-in installations, it is
recommended that any exible
pipe used be kept as short as
possible. (See INDEX: “Gas Connec-
tions” for typical permanent hook up.)
LP GAS
Accessories set up for LP gas
come equipped with an LP
hose/ regulator assembly for
connection to a standard 20 lb.
LP cylinder. (Type 1).
All ttings necessary to attach
the assembly to the accessory
are included.
Keep
last two
threads
clean
LP cylinder with type 1 valve
connection
Permanently plumbed LP con-
nections, such as those in line
with a bulk cylinder, require
a 4/11 regulator. (Lynx P/N
30781)
CONVERTING
FOR FUEL TYPE
After changing all of the orices
in the conversion kit you must
make sure the correct regulator
is used. If you are using a 4/11
Convertible regulator, ensure
that it is set for the correct fuel.
The correct fuel type will be
abbreviated at the end of the
plunger. Remove the cap and
check the plunger. If, needed,
pull the plunger from the cap,
ip it over and re-attach it to
the cap. Then re-insert the cap
into the regulator and tighten it
using a 7/8 inch wrench.
Never connect an unregulated
gas line to the grill.
When exchanging your cylinder
for a rell, exchange only for
a Type 1 20lb cylinder with an
over-ll protection device.
Never use a cylinder with a
damaged valve.
A dented or rusty LP cylinder
may be hazardous and should
be avoided. If in doubt, have it
checked by your LP supplier.
Always check for leaks after
every LP cylinder change. (See
INDEX: “Leak Testing” for further
details.)
Always shut off the LP-gas
supply at the cylinder when the
accessory is not in use.
Cylinders must be stored
outdoors in a well-ventilat-
ed area out of the reach of
children. If your accessory is
stored indoors, the LP cylinder
must be stored outside.
LP CONNECTIONS
Make sure the LP cylinder valve
is fully closed. It is possible for
the valve to be open without
releasing gas but, as soon
as you start connecting the
regulator, gas will leak from the
connection.
Insert the regulator inlet into
the cylinder valve and turn the
black coupler clockwise until
the coupler is hand tight. Do
not over-tighten this connec-
tion.
To disconnect the coupler, rst
make sure the main cylinder
valve is turned off. Grasp
the coupler and turn counter
clockwise. Always leak-test the
connection after relling or
exchanging LP cylinders. (See
INDEX: “Leak Testing” for further
details.)

19
propane hook up natural gas hook up
MAXIMUM RUNS FOR ALL
APPLIANCES ON SUPPLY
LINE
Run Length
3/4” Pipe
(in feet)
Max BTU for all
Appliances on
line
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135.000
70 123,000
80 115,000
COLD WEATHER
WARNING: PROPANE
Extremely cold temperatures may
cause your burner to light
inside the
burner instead of
outside . Once lit, if
you hear a ‘whooshing’ sound, im-
mediately turn the burner knob off to
extinguish the ame and then imme-
diately re-light the burner.
19
propAne hook up nAturAl gAs hook up
MAXIMUM RUNS FOR ALL
APPLIANCES ON SUPPLY LINE
Run Length
3/4” Pipe
(in feet)
Max BTU for all
Appliances on
line
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135.000
70 123,000
80 115,000

20
Installation requires an outdoor
120VAC 15A GFI (Ground Fault
Interrupter) electrical outlet
adjacent to the accessory.
The GFI outlet features an
internal breaker that reduces
shock hazard. This type of
outlet should be installed by
a qualied electrician either
inside the island enclosure
for built-in units, or near the
location where a free-standing
unit will be used.
For built-in accessories, the
supplied 12V transformer is
connected to the accessory
during installation.
If the electrical system fails to
operate, a connection may have
come loose in shipping or the
GFI may have tripped, requiring
a reset. See the Troubleshoot-
ing section for more details.
CONNECTING THE WIRING
The accessory electrical
harnesses are designed to
provide power for both ignition
and lighting. While ignition is
controlled at the accessory,
lighting is controlled at the grill.
You can control lighting at the
accessory by installing the Lynx
Accessory Light Switch (LASK).
Disconnect the 4-pin connector
on the grill and connect those
plugs to the mating plugs on
your accessory. (See Index “Electri-
cal Connections)
Important note: If using
multiple Lynx accessories
with the Control Illumina-
tion/Blue LED’S, a connector
for this purpose is built into
the accessory wiring. This will
allow you to use the light switch
on your Lynx grill to actuate
the power on more than one
accessory.
ElEctrical connEctions
OPTIONAL ELECTRICAL KITS
In addition to the accessory burner kits, Lynx also manufactures 3 specialized electrical kits that you
may purchase for your accessory, depending upon how it will be installed. Each electrical kit ships
with an instructional sheet for assembly. Assembly instructions and schematics/drawings can also be
found on our website at WWW.LYNXGRILLS.COM.
►LASK: Lynx Accessory
Switch Kit
►LAK Lynx Electrical
Adapter Kit
►LPEK Lynx Power
Extension Kit
This switch and transformer kit allows independent control of
a Lynx accessory burner without connection to a grill. The kit
contains a transformer and mounting bracket as well as a switch
assembly with a mounting plate. The kit also contains a wiring
harness to adapt an L series accessory to an M series switch and
transformer.
M series Lynx grills and accessories feature a new wiring harness
design that simplies accessory installation. The LAK Lynx Electrical
Adapter Kit is needed only when installing a grill and accessory that
are not manufactured under the same series (M or L series & prior).
This one kit connects both an M series Lynx Grill to an earlier Lynx
accessory as well as an earlier Lynx Grill to an M series accessory.
Each kit contains two wire harnesses. Only one harness will be
used depending on the units being installed
The Lynx Power Extension Kit provides 12 feet of additional wire
between your Lynx Grill and accessory burner.
