Introduction
Thank you for purchasing the Pulsar II small diaphragm condenser microphone from M-Audio.
Studio artists around the world rely on M-Audio microphones to capture acoustic performances
with clarity and accurate tonal balance. The Pulsar II improves upon that reputation with a new
FET circuit, improved diaphragm damping, and a redesigned front grill and back plate. This
results in a very smooth midrange response and adds more “air” to the top end (above 15kHz),
allowing the Pulsar II to exhibit a frequency response curve surprisingly similar to that of some
of the world’s greatest small diaphragm microphones.
Please take a few moments to familiarize yourself with your new microphone by reading this
guide.
Features
< Top-address cardioid instrument microphone
< 3/4” diameter 6-micron evaporated-gold diaphragm
< Solid brass body
< 20Hz-20kHz frequency response
< Class A FET electronics
< Switchable -10dB pad
< Switchable high-pass filter, 12dB per octave at 80Hz
< 3-pin XLR
< Includes soft cloth bag, windscreen , and hard mount
What’s in the box?
If your box does not include the following items, please contact your dealer immediately:
< (1) M-Audio Pulsar II
microphone
< (1) wood case
< (1) hard mount
< (1) soft cloth bag
< (1) windscreen
Using the Pulsar II
The M-Audio Pulsar II microphone outputs a balanced low-impedance signal. It is designed
to be connected to the mic-level inputs of a mixer channel or a dedicated high-quality preamp
such as M-Audio’s DMP3, Octane, or Tampa. These are all very “neutral” sounding preamps
that can amplify your microphone signal, while retaining its full dynamic range and clarity.
As with all condenser microphones, your Pulsar II requires power in order to operate. You
will need to connect the Pulsar II via an XLR microphone cable to a preamp or mixer channel
input that supplies +48V phantom power. (Phantom power shares the same XLR cable as the
audio from the microphone.) In order to avoid pops and surges that can damage components
like speakers and microphones, always perform the following steps (in the order listed) when
connecting the mic and/or cable:
1. Turn the volume/gain on your preamp and/or mixer all the way down.
2. Make sure that phantom power is turned off.
3. Connect the microphone via a high-quality XLR cable.
4. Turn on phantom power.
5. Slowly turn up the gain on your preamp and/or mixer.
Before disconnecting the mic and/or cable, repeat steps 1 and 2 (in the order listed).

Pulsar II • Care and Usage
2
Applications
The Pulsar II’s clean electronics combine with an evaporated gold diaphragm to produce
a smooth tone that makes it a great instrument-recording microphone. Use it on string
instruments, wind instruments, as an overhead drum mic, or as a room ambience recording
mic. When you’re ready to add more pro-quality microphones to your mic locker, consider the
award-winning M-Audio Luna and the multi-pattern recording features of the M-Audio Solaris
microphone and the Sputnik tube microphone.
Cardioid Pattern
Cardioid is the most commonly used polar pattern engineered into microphones. This design
causes the rear of the microphone to reject incoming sound, allowing the engineer to isolate
the signal source from other performance elements or background noise by just pointing the
mic at the sound source.
Microphone Care
Here are a few tips for care of your Pulsar II microphone:
< Never subject the Pulsar II to physical shock.
< Always use a stand and always use the included hard mount when securing to a stand.
< Avoid harmful moisture condensation on the diaphragm when moving the microphone
between outdoor and indoor environments by allowing the microphone to acclimate to
room temperature before connection.
< Always use top-quality cables in order to avoid electrical problems that may damage the
microphone’s electronics.
< Avoid subjecting the Pulsar II to any kind of moisture. In vocal applications, use the
enclosed windscreen to protect the diaphragm from breath condensation and saliva
build-up.
< Never disassemble the Pulsar II microphone. There are no user-serviceable parts inside.
< Avoid temperature extremes above 95°F and below 50°F.
< Always wipe the Pulsar II exterior down with a soft dry cloth and return it to its case after
each use to prevent damage from dust.
< In the event that your Pulsar II needs more extensive cleaning, lightly dampen a soft cloth
with water or mild household soap and clean the metal exterior, wiping it completely dry
when finished. Never spray a cleaning agent on the microphone itself, as the moisture
can damage the unit.

English
Pulsar II • Care and Usage 3
Specifications
< Type: small diaphragm condenser
< Polar Pattern: cardioid
< Frequency Response: 20Hz – 20kHz
< Sensitivity: 13.8 mV/Pa (-37dBV ref. 1V/Pa)
< Max. SPL (<0.5% threshold level): 134dB; 144dB SPL with -10dB pad
< Equivalent Noise Level: 15dB A-weighted
< Output Impedance: 300 - 600Ω
< Suggested Mic Pre Input Impedance: 1 – 2.5 kΩ
< Preamp Topology: Class A FET, transformerless
< Power Requirement: 30 VDC – 50 VDC phantom power
< Connector: 3-pin male XLR
< Dimensions: 22mm (0.87”) diameter, 132mm (5.20”) long
< Weight: 115 g (4.0 oz)

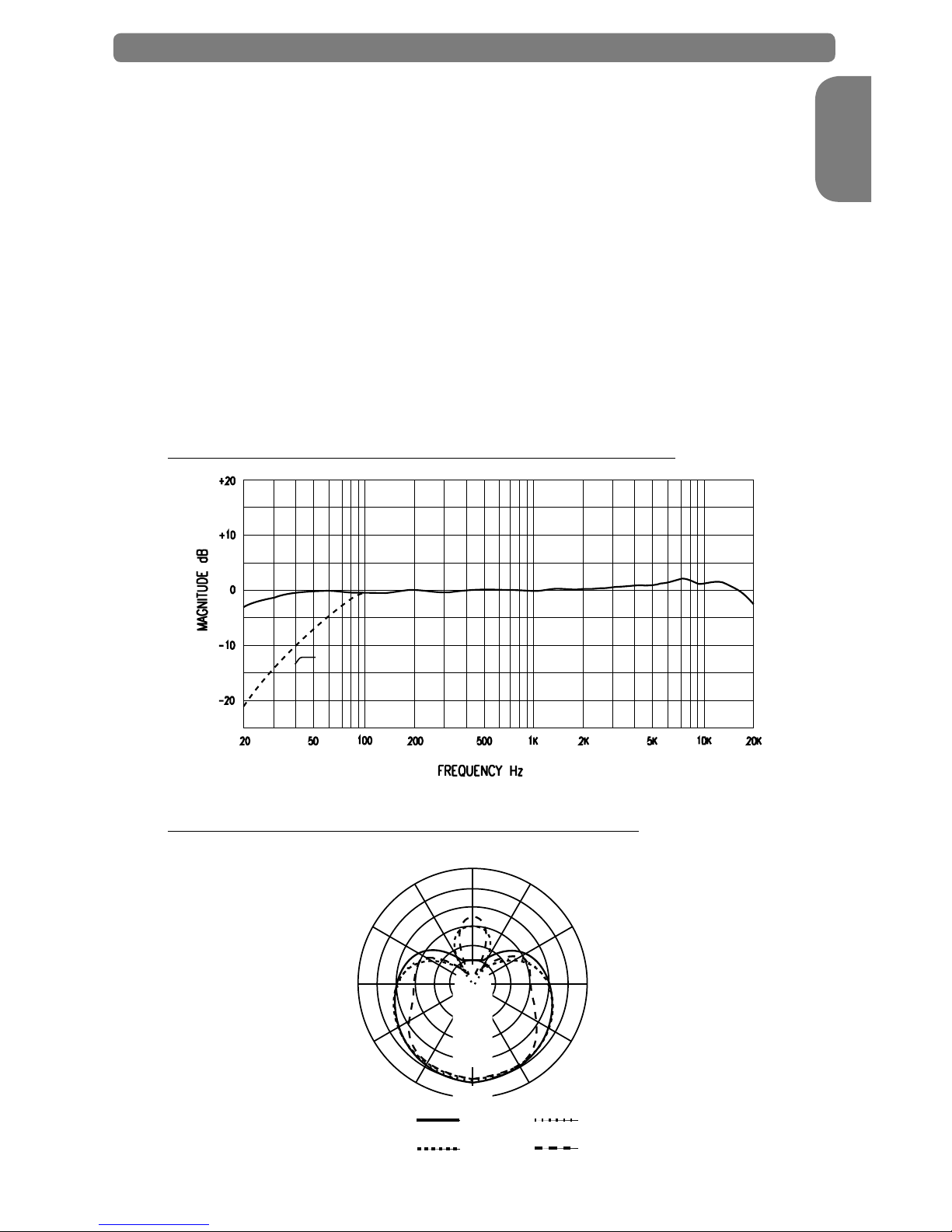

Frequency response representation for the M-Audio Pulsar II microphone:
PULSAR II CARDIOD 04/06/2007
80Hz
-20 dB
-15 dB
-10 dB
-5 dB
+5 dB
180°
30° 30°
60°60°
90° 90°
120°120°
150° 150°
250Hz 1000Hz
5000Hz 10000Hz
Polar response representation for the M-Audio Pulsar II microphone:
PULSAR II CARDIOD 04/06/2007
80Hz
-20 dB
-15 dB
-10 dB
-5 dB
+5 dB
180°
30° 30°
60°60°
90° 90°
120°120°
150° 150°
250Hz 1000Hz
5000Hz 10000Hz

Pulsar II • Care and Usage
4
Warranty Terms and Registration
Warranty Terms
M-Audio warrants products to be free from defects in materials and workmanship, under normal
use and provided that the product is owned by the original, registered user. Visit www.m-audio.
com/warranty for terms and limitations applying to your specific product.
Warranty Registration
Immediately registering your new M-Audio product entitles you to full warranty coverage and
helps M-Audio develop and manufacture the finest quality products available. Register online
at www.m-audio.com/register to receive FREE product updates and for the chance to win
M-Audio giveaways.
© 2008 Avid Technology, Inc. All rights reserved. Product features, specifications, system
requirements and availability are subject to change without notice. Avid, M-Audio and Pulsar
II are either trademarks or registered trademarks of Avid Technology, Inc. All other trademarks
contained herein are the property of their respective owners.
