M-system 54UL User manual

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 1 / 32
OPERATING MANUAL
CONTENTS
BEFORE USE ............................................................................................................... 2
POINTS OF CAUTION...................................................................................................... 2
LIGHTNING SURGE PROTECTION ....................................................................................... 2
COMPONENT IDENTIFICATION .......................................................................................... 3
EXTERNAL DIMENSIONS unit: mm (inch)............................................................................. 4
TERMINAL CONNECTIONS ............................................................................................... 5
WIRING INSTRUCTIONS.................................................................................................. 7
COMMUNICATION CABLE CONNECTION ............................................................................... 7
CONFIGURATION VIA INFRARED COMMUNICATION ................................................................. 7
LONWORKS COMMUNICATION ............................................................................................. 8
FUNCTIONAL BLOCKS .................................................................................................... 9
OPERATION FLOWCHART .............................................................................................. 17
SETTING EXAMPLES .................................................................................................... 28
OPERATION EXAMPLES ................................................................................................ 31
ERROR MESSAGES...................................................................................................... 32
MULTI POWER MONITOR
(4 digital displays, LONWORKS)MODEL 54UL

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 2 / 32

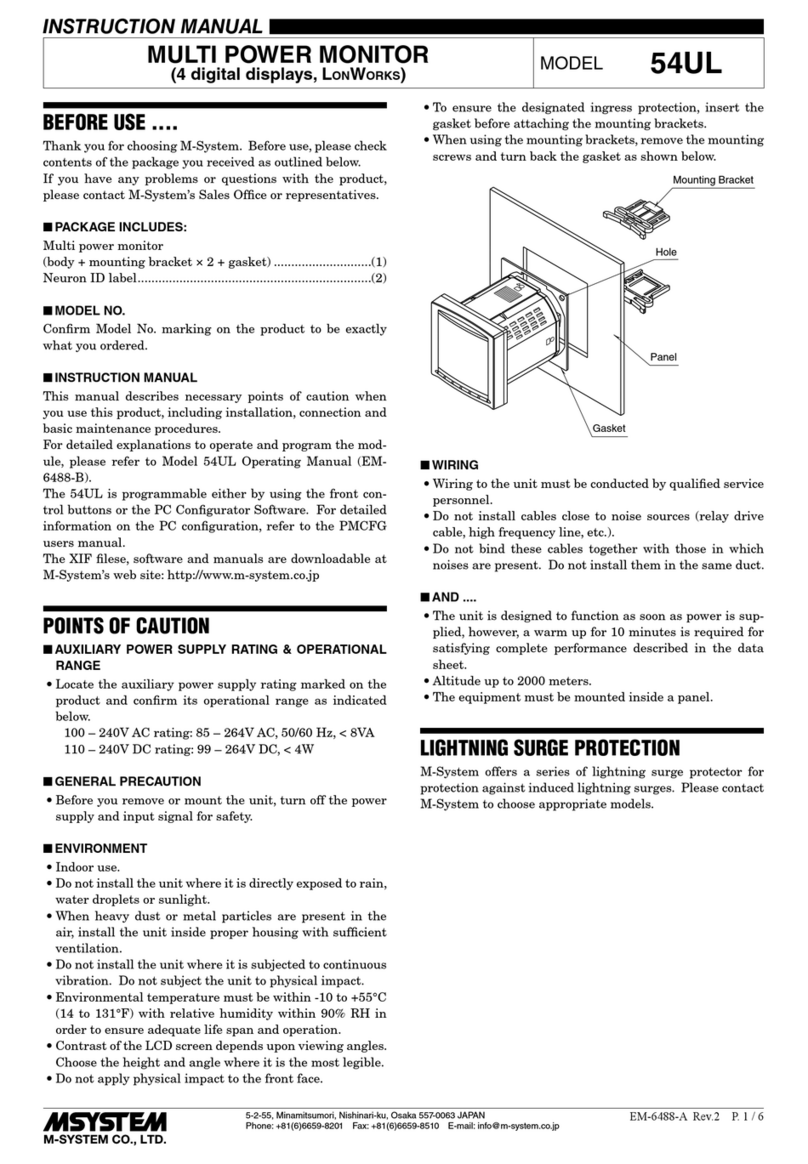

BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Multi power monitor
(body + mounting bracket × 2 + gasket) ............................(1)
Neuron ID label ..................................................................(2)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■OPERATING MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection, ba-
sic maintenance procedures, and detailed operations.
The 54UL is programmable either by using the front control
buttons or the PC Configurator Software. For detailed in-
formation on the PC configuration, refer to the PMCFG us-
ers manual. The XIF files and the PMCFG PC Configurator
Software are downloadable at M-System’s web site.
http://www.m-system.co.jp
Availability of certain functions explained in this manual
depends upon hardware options and firmware versions.
Those limited ones are identified with the following mark-
ings.
MARKING LIMITATION
DO Discrete input option
DI Discrete input option
3P4W 3-phase / 4-wire system option
3.00 Ver.3.00 or later versions
POINTS OF CAUTION
■AUXILIARY POWER SUPPLY RATING & OPERATIONAL
RANGE
• Locate the auxiliary power supply rating marked on the
product and confirm its operational range as indicated
below.
100 – 240V AC rating: 85 – 264V AC, 50/60 Hz, < 8VA
110 – 240V DC rating: 99 – 264V DC, < 4W
■GENERAL PRECAUTION
• Before you remove or mount the unit, turn off the power
supply and input signal for safety.
■ENVIRONMENT
• Indoor use.
• Do not install the unit where it is directly exposed to rain,
water droplets or sunlight.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 90% RH in
order to ensure adequate life span and operation.
• Contrast of the LCD screen depends upon viewing angles.
Choose the height and angle where it is the most legible.
• Do not apply physical impact to the front face.
• To ensure the designated ingress protection, insert the
gasket before attaching the mounting brackets.
• When using the mounting brackets, remove the mounting
screws and turn back the gasket as shown below.
Mounting Bracket
Panel
Gasket
Hole
■WIRING
• Wiring to the unit must be conducted by qualified service
personnel.
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
• Altitude up to 2000 meters.
• The equipment must be mounted inside a panel.
LIGHTNING SURGE PROTECTION
M-System offers a series of lightning surge protector for
protection against induced lightning surges. Please contact
M-System to choose appropriate models.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 3 / 32
COMPONENT IDENTIFICATION
IU PQS PF THDMAX E PRG ESC
2
2
FRONT VIEW REAR VIEW
• Configuration Code 1
Discrete I/O
Terminals
Infrared Interface
Voltage Input
Terminals
Current Input
Terminals
LONWORKS
Terminals
Control Buttons
Data Displays
• Configuration Code 2
Discrete I/O
Terminals
Current Input
Terminals
LONWORKS
Terminals
Voltage Input
Terminals
SERVICE
Service Lamp/
Infrared Interface
Auxiliary Power
Supply Terminals
Auxiliary Power
Supply Terminals
■
CONTROL BUTTON OPERATIONS
∑
IU
PQS
MAX
E PRG ESC
PF THD
∑
∑
IU
+
+
PQS
PF THD
Hold down
IU Hold down
Hold down
Hold down
Hold down
Hold down
Hold down
NORMAL MODE
Indicates ∑ values
Indicates Voltage or Current
Indicates Power
Indicates Power Factor or THD
Indicates totalized values
(max., min., average/demand)
Switches Energy readings
Switches to My Default mode
Switches to Setting mode
Indicates nth Harmonic distortion
Switches Energy reading units
Switches to Infrared Communication mode
Indicates the shortcut menu
LONWORKS Service Pin
SETTING MODE
Go Left
Go Right
Go Down
Go Up
Selects menu; Enables setting changes
Cancels setting changes
----
----
----
----
----
----
----
BUTTON OPERATION FUNCTIONS
PF THD
E PRG ESC
E PRG ESC

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 4 / 32
EXTERNAL DIMENSIONS unit: mm (inch)
■CONFIGURATION CODE: 2
■CONFIGURATION CODE: 1
110 (4.33)
110 (4.33)
91.5 (3.60)
91.5 (3.60)
100 (3.94)25 (.98)
MOUNTING BRACKET 2-M5 SCREW
2
110 (4.33)
110 (4.33)
91.5 (3.60)
91.5 (3.60)
115 (4.53)25 (.98)
MOUNTING BRACKET 2-M5 SCREW
2
92
92
+ 0.8 (3.65)
0 (3.63)
+
0.8 (3.65)
0 (3.63)
Panel thickness : 2 to 15 (.08 to .59)
45 (1.77) 45 (1.77)
45 (1.77)45 (1.77)
■ PANEL CUTOUT unit: mm (inch)
• USING MOUNTING SCREWS
Remove the mounting brackets.
• USING MOUNTING BRACKETS
Remove the mounting screws.
Panel thickness : 2 to 10 (.08 to .39)
101 ±1 dia.
2–6 (.24) dia.
(3.94 – 4.01 dia.)

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 5 / 32
TERMINAL CONNECTIONS
■CONFIGURATION CODE: 1
1S 1L 3S 3LP1 P2 P3
2
U( + )
V( ) NC
NC DO/PO
+
DI + NC FG NET1 NET1
DO/PO DI NC FG NET2 NET2
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
uv vu
UV VU
kl
KL
kl
KL
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
kl
KL
kl
KL
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
P1 P2 P3 1S 1L
1
source load
2
3
uv vu
UV VU
kl
KL
P1 P2 P3 1S 1L
1
source load
2
3
kl
KL
P1 P2 P3 1S 1L
1
source load
2
3
P1 P2 1S 1L
1
source load
2
kl
KL
uv
UV
P1 P2 1S 1L
1
source load
2
kl
KL
P1 P2 1S 1L
1
source load
2
System /
Application
Single-phase /
2-wire
Three-phase /
3-wire,
balanced load
Single-phase /
3-wire
Three-phase /
3-wire,
unbalanced load
(2CT)
Te rminal
System /
Application
Te rminal
Not
e: For low voltage circuit, grounding is not required.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 6 / 32
2S 2L 3S 3LNC 1S 1L
P3 NP1 P2
2
■
CONFIGURATION CODE: 2
U(+) NC
DO/PO
–
DI+NCFG NET1 NET1
V( ) NC DI NC FG NET2 NET2
DO/PO
+
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
uv vu
UV VU
kl
KL
kl
KL
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
kl
KL
kl
KL
P1 P2 P3 1S 1L 3S 3L
1
source load
N / 2
2 / 3
P1 P2 P3 1S 1L
1
source load
2
3
uv vu
UV VU
kl
KL
P1 P2 P3 1S 1L
1
source load
2
3
kl
KL
P1 P2 P3 1S 1L
1
source load
2
3
P1 P2 1S 1L
1
source load
2
kl
KL
uv
UV
P1 P2 1S 1L
1
source load
2
kl
KL
P1 P2 1S 1L
1
source load
2
System /
Application
Single-phase /
2-wire
Three-phase /
3-wire,
balanced load
Single-phase /
3-wire
Three-phase /
3-wire,
unbalanced load
(2CT)
Te rminal
1S 1L 3S 3L
1
source load
2
3
kl
P1
uv
UV
P2
uv
UV
P3
uv
UV
N
KL kl
KL
P1 P2 P3 1S 1L 3S 3LN
1
source load
2
3
kl
KL kl
KL
2S 2L
kl
KL
P1 P2 P3 1S 1L 3S 3LN 2S 2L
1
source load
2
3
N
N
N
2S 2L
kl
KL
1S 1L 3S 3L
1
source load
2
3
kl
P1
vu
UV
P2
uv
UV
P3
KL kl
KL
P1 P2 P3 1S 1L 3S 3L
1
source load
2
3
kl
KL kl
KL
2S 2L
kl
KL
P1 P2 P3 1S 1L 3S 3L2S 2L
1
source load
2
3
2S 2L
kl
KL
P1 N 1S 1L
1
source load
2
kl
KL
uv
UV
P1 N 1S 1L
1
source load
2
3
N
kl
KL
P1 N 1S 1L
1
source load
2
3
3
N
N
System /
Application
Three-phase /
4-wire,
balanced load
Three-phase /
3-wire,
unbalanced load
(3CT)
Three-phase /
4-wire,
unbalanced load
Te rminal
Note: For low voltage circuit, grounding is not required.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 7 / 32
DO/PO–
DO/PO+
+
-
+
-
DI+
DI–
DI+
DI–
U(+)
V(–)
DO/PO+
DO/PO–
DO/PO2+
DO/PO2–
DO/PO1+
DO/PO1–
DISCRETE
INPUT
DISCRETE
OUTPUT
DISCRETE
OUTPUT 1
DISCRETE
OUTPUT 2
LONWORKS
NET1
NET1
LONWORKS
NET2
NET2
LONWORKS
NET1
NET1
LONWORKS
NET2
NET2
FG
FG
U(+)
V(–)
FG
FG
■EXTERNAL INTERFACE CODE: 1 ■EXTERNAL INTERFACE CODE: 2
AUXILIARY POWER AUXILIARY POWER
• Discrete Input Connection E.g. • Discrete Output Connection E.g.
WIRING INSTRUCTIONS
■M3 Screw (discrete input, discrete output, LONWORKS,
auxiliary power)
Torque: 0.6 N∙m
■M4 Screw (voltage input, current input)
Torque: 1.4 N∙m
COMMUNICATION CABLE CONNECTION
HOST PC
LONWORKS
54UL
LONWORKS
54UL
LONWORKS
Terminator
CONFIGURATION VIA INFRARED COMMUNICATION
Multi Power Monitor
(model: 54UL)
max. 1 meter
Infrared Communication Adaptor
(model: COP-IRU)
Note 1: Hold down IU button to enter to Infrared Communication mode (IR-READY on the display).
Hold down IU button to exit Infrared Communication mode.
During Infrared Communication mode, data update via LONWORKS or reset and other control functions
by Input Network Variables are not available.
Note 2: COP-IRU communicates with one 54UL.
DO NOT set more than one 54UL to Infrared Communication mode simultaneously.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 8 / 32
LONWORKS COMMUNICATION
■DEVICE INTERFACE FILE (external interface)
A dedicated Device File ‘54UL_xxx.XIF (xxx = Version)’ is required to set up the 54UL using an integration tool such as Lon
Maker.
On-line download is available for Device Image files at http://www.m-system.co.jp.
■TRANSMISSION SPECIFICATIONS
Transmission Mode LonTalk
Interface TP/FT-10
Neuron chip: FT3150
Transceiver: FT-X1 (equivalent to FTT-10A)
Transfer Rate 78 kbps
Program ID 9 000DF 1535 0A 04 00
SPID Model Number
Media Channel – TP/FT-10
Usage Class – General
Device Class – Multi-Phase Power Monitor
Manufacturer ID – M-System Co., Ltd.
Standard Format
Address Table 15
Alias Table 13
Domain Table 2
■FUNCTIONAL BLOCKS
The following five Functional Blocks are available. One Object for each block is available.
OBJECT ID FUNCTIONAL BLOCK
0 NodeObject
1 InstObject
2 EnergyObject
3 DemandObject
4 StatisticsObject
■SUPPORTED NETWORK VARIABLE TYPES
Supported Network Variable Types and their effective range, resolution are as follows:
TYPE VARIABLE EFFECTIVE RANGE RESOLUTION
SNVT_amp_f Current 0.000 – 20 000.000 A 0.001 A
SNVT_vol_f Voltage 0.00 – 400 000.00 V 0.01 V
SNVT_power_f Power -2 000 000 000 – [phone] (W or var) 1 (W or var)
SNVT_freq_f AC frequency 0.00 or 45.00 – 65.00 Hz 0.01 Hz
SNVT_pwr_fact_f Power factor -1.0000 to +1.0000 cos ϕ0.0001 cos ϕ
SNVT_elec_kwh_l Energy 0.0 – 99 999 999.9 (kWh or kvarh)
Version 3.22 or earlier: Reset to 0 when exceeding the
max. value, count is continued. Counter pulse output is
stopped.
Version 3.23 or later: Reset to 0 when exceeding the
max. value, count is continued. Counter pulse output is
continued.
0.1 (kWh or kvarh)
SNVT_lev_percent Harmonic distortion 0.0 – 163.8 % 0.1 (%)
■SERVICE PIN & RESET
Refer to “SHORTCUT MENU” in “OPERATION FLOWCHART” section of this manual for Service Pin and Reset operations.
Service Pin operation is possible also by pressing/holding
PF THD
button.
■WINK
When WINK command is received, the front display backlight blinks for 5 seconds.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 9 / 32
FUNCTIONAL BLOCKS
■NodeObject FUNCTIONAL BLOCK
NodeObject (Object ID: 0)
nv 0 nviRequest
SNVT_obj_request
nv 1 nvoStatus
SNVT_obj_status
nv 2 nvoFileDirectory
SNVT_address
SCPTlocation Location
NodeObject :
Configuration Properties
Network Variables
• NodeObject Network Variable
NETWORK VARIABLE TYPE EXPLANATIONS
nviRequest SNVT_obj_request A request is provided through Object ID (object_id) and Request (object_re-
quest) and its result is output through nvoStatus.
Usable object_id and object_request are as follows:
object_id 0 : All objects
1 : InstObject
2 : EnergyObject
3 : DemandObject
4 : StatisticsObject
Other : Invalid_id
object_request RQ_NORMAL
Used to return the 54UL to normal status.
Disabled objects are enabled.
RQ_ENABLE
Used to enable disabled objects.
RQ_DISABLE
Used to disable a specified object.
Disabled objects stop sending or resetting network
variables.
RQ_REPORT_MASK
Used to set 1 at supported status values and output
to nvoStatus.
RQ_UPDATE_STATUS
Used to obtain a specified object status.
If all objects are specified, OR result of individual
status values is set at nvoStatus.
RQ_CLEAR_STATUS
Used to clear error counter and others.
The following Requests are NOT supported.
RQ_SELF_TEST
RQ_OVERRIDE
RQ_RMV_OVERRIDE
RQ_UPDATE_ALARM
RQ_CLEAR_ALARM
RQ_CLEAR_RESET
RQ_RESET

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 10 / 32
NETWORK VARIABLE TYPE EXPLANATIONS
nvoStatus SNVT_obj_status The result of a request entered at nviRequest is output with Object ID and
status value.
FIELD EXPLANATIONS
object_id Object ID
Bits following object_id show OR result of individu-
al objects when 0 is set.
invalid_id Invalid Object ID
invalid_request Invalid Request
disabled Object is disabled. Disabled objects stop sending or
resetting network variables.
out_of_limits The relevant bit of InstObject reads 1 when volt-
age, current or AC frequency is out of the respective
rated range. 0 is read otherwise.
open_circuit Not supported (always 0)
out_of_service 1 is read during infrared communication mode,
when updating network variables, writing to/reset-
ting input variables and other functions stop. 0 is
read otherwise.
mechanical_fault Not supported (always 0)
feedback_failure Not supported (always 0)
over_range Not supported (always 0)
under_range Not supported (always 0)
electrical_fault Not supported (always 0)
unable_to_measure 1 is read when network variables are not updated
due to certain function failure of the 54UL.
comm_failure Not supported (always 0)
fail_self_test Not supported (always 0)
self_test_in_progress Not supported (always 0)
locked_out Shows the 54UL is online but unable to operate
normally. 1 is read at the bit when either out_of_
service bit or unable_to_measure bit turns to 1.
manual_control Not supported (always 0)
in_alarm Not supported (always 0)
in_override Not supported (always 0)
report_mask Shows the response is for RQ_REPORT_MASK re-
quest. With the bit read 1, all other bits supported
by the 54UL read 1 and unsupported ones read 0.
programming_mode Not supported (always 0)
programming_fail Not supported (always 0)
alarm_notify_disabled Not supported (always 0)
reserved1 Reserved (always 0)
reserved2 Reserved (always 0)
nvoFileDirectory SNVT_address Used by integration tools.
• NodeObject Conguration Property
CONFIGURATION
PROPERTY
TYPE
{Range}
{Default}
EXPLANATIONS
SCPTlocation SNVT_str_asc
{ascii 31 characters}
{ “” }
Subsystem information required for use with network recovery tools.
Max. 31 ASCII characters including terminating null character.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 11 / 32
■InstObject FUNCTIONAL BLOCK
InstObject (Object ID : 1)
Network Variables
nv 3 nvoAmp1
SNVT_amp_f
nv 4 nvoAmp2
SNVT_amp_f
nv 5 nvoAmp3
SNVT_amp_f
nv 6 nvoAmpN
SNVT_amp_f
nv 7 nvoVol1
SNVT_vol_f
nv 8 nvoVol2
SNVT_vol_f
nv 9 nvoVol3
SNVT_vol_f
nv 11 nvoVar
SNVT_power_f
nv 12 nvoCosT
SNVT_pwr_fact_f
nv 13 nvoHz
SNVT_freq_f
nv 14 nvoThdAmp1
SNVT_lev_percent
nv 15 nvoThdAmp3
SNVT_lev_percent
nv 16 nvoThdVol12
SNVT_lev_percent
nv 17 nvoThdVol31
SNVT_lev_percent
nv 10 nvoWat
SNVT_power_f
SCPTmaxSendTime
SCPTpwrUpDelay
SCPTdirection
Sending interval
Power ON delay time
Operation mode seting
InstObject :
Configuration Properties
• InstObject Network Variable
NETWORK VARIABLE TYPE EXPLANATIONS
nvoAmp1 SNVT_amp_f Current, Line 1
nvoAmp2 SNVT_amp_f Current, Line 2
nvoAmp3 SNVT_amp_f Current, Line 3
nvoAmpN SNVT_amp_f Neutral current
Valid only with single-phase/3-wire (3.00), 3-phase/4-wire unbalanced or
3-phase/3-wire unbalanced (3CT) system. Always 0 with other systems.
nvoVol1 SNVT_vol_f Voltage 1 *1
nvoVol2 SNVT_vol_f Voltage 2 *1
nvoVol3 SNVT_vol_f Voltage 3 *1
nvoWat SNVT_power_f Active power
nvoVar SNVT_power_f Reactive power
nvoCosT SNVT_pwr_fact_f Power factor
nvoHz SNVT_freq_f AC frequency
nvoThdAmp1 SNVT_lev_percent Current total harmonic distortion, Line 1
nvoThdAmp3 SNVT_lev_percent Current total harmonic distortion, Line 3
nvoThdVol12 SNVT_lev_percent Delta voltage total harmonic distortion, 1 – 2
nvoThdVol31 SNVT_lev_percent Delta voltage total harmonic distortion, 3 – 1
*1. Assignments depend upon system configuration.
Single-phase/2wire Voltage 1: Phase 1 Voltage 2: 0 Voltage 3: 0
Single-phase/3-wire Voltage 1: Phase 1 Voltage 2: Delta 3 – 1 Voltage 3: Phase 3
Three-phase/3-wire Voltage 1: Delta 1 – 2 Voltage 2: Delta 2 – 3 Voltage 3: Delta 3 – 1
Three-phase/4-wire Voltage 1: Phase 1 Voltage 2: Phase 2 Voltage 3: Phase 3

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 12 / 32
• InstObject Conguration Property
CONFIGURATION
PROPERTY
TYPE
{Range}
{Default}
EXPLANATIONS
SCPTmaxSendTime SNVT_time_sec
{0.0-6553.4}
{3.0}
Sending time intervals of output network variables.
The 54UL does not send out network variables when 6553.4 (sec.) is set.
Used for polling.
SCPTpwrUpDelay SNVT_time_sec
{0.0-6553.4}
{0.0}
Delay time to start sending network variables after the power is turned on.
SCPTdirection SNVT_state
{0 or 1}
{0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0}
Bit 0 (first bit) determines the network variable’s sending pattern by each
sending cycle. See the figure below.
0 = All bound variables are sent.
1 = Bound variables are sent one by one.
Power ON
• SCPTdirection bit 0 = 0
• SCPTdirection bit 0 = 1
SCPTpwrUpDelay time
Send
all nv
SCPTmaxSendTime time
Send
all nv
SCPTmaxSendTime time
Send
all nv
SCPTmaxSendTime time
Send
all nv
Power ON
SCPTpwrUpDelay time
Send
1st nv
SCPTmaxSendTime time
Send
2nd nv
Send
last nv
SCPTmaxSendTime time
Send
1st nv

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 13 / 32
■EnergyObject FUNCTIONAL BLOCK
EnergyObject (Object ID : 2)
Network Variables
nv 18 nviResetEnergy
SNVT_swtich nv 19 nvoWhIn
SNVT_elec_kwh_l
nv 20 nvoWhOut
SNVT_elec_kwh_l
nv 21 nvoVarhInLag
SNVT_elek_kwh_l
nv 22 nvoVarhInLead
SNVT_elec_kwh_l
nv 23 nvoVarhOutLag
SNVT_elec_kwh_l
nv 24 nvoVarhOutLead
SNVT_elec_kwh_l
SCPTmaxSendTime
SCPTpwrUpDelay
SCPTdirection
Sending interval
Power ON delay time
Operation mode seting
EnergyObject :
Configuration Properties
• EnergyObject Network Variable
NETWORK VARIABLE TYPE EXPLANATIONS
nviResetEnergy SNVT_switch Energy value is reset (clear to 0) when {*.* 1} is entered.
(*.* = numeric other than 0.0)
Be aware that the value is reset every time {*.* 1} is entered even continu-
ously.
nvoWhIn SNVT_elec_kwh_l Active energy, incoming
nvoWhOut SNVT_elec_kwh_l Active energy, outgoing
nvoVarInLag SNVT_elec_kwh_l Active energy, incoming/LAG
nvoVarInLead SNVT_elec_kwh_l Active energy, incoming/LEAD
nvoVarOutLag SNVT_elec_kwh_l Active energy, outgoing/LAG
nvoVarOutLead SNVT_elec_kwh_l Active energy, outgoing/LEAD
• EnergyObject Conguration Property
CONFIGURATION
PROPERTY TYPE EXPLANATIONS
SCPTmaxSendTime SNVT_time_sec Common with SCPTmaxSendTime for InstObject.
SCPTpwrUpDelay SNVT_time_sec Common with SCPTpwrUpDelay for InstObject.
SCPTdirection SNVT_state Common with SCPTdirection for InstObject.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 14 / 32
■DemandObject FUNCTIONAL BLOCK
DemandObject (Object ID : 3)
Network Variables
nv 25 nviUpdateDemand
SNVT_swtich
nv 26 nviResetDemand
SNVT_swtich
nv 27 nvoDemAmp1
SNVT_amp_f
nv 28 nvoDemAmp2
SNVT_amp_f
nv 29 nvoDemAmp3
SNVT_amp_f
nv 30 nvoDemWat
SNVT_power_f
nv 31 nvoDemVar
SNVT_power_f
SCPTmaxSendTime
SCPTpwrUpDelay
SCPTdirection
Sending interval
Power ON delay time
Operation mode seting
DemandObject :
Configuration Properties
• DemandObject Network Variable
NETWORK VARIABLE TYPE EXPLANATIONS
nviUpdateDemand SNVT_switch Average (demand) interval time is reset (clear to 0) when {*.* 1} is entered.
Average value for the relevant variable during the interval time period is
calculated and updated. (*.* = numeric other than 0.0)
Average values are updated regardless of nviUpdateDemand status by auto-
matic updating setting.
Forcibly updated regardless of nviUpdateDemand status or automatic updat-
ing setting if there is no update for 100 minutes.
Be aware that the value is reset every time {*.* 1} is entered even continu-
ously.
nviResetDemand SNVT_switch Average values are reset (clear to 0) when {*.* 1} is entered.
(*.* = numeric other than 0.0)
Be aware that the value is reset every time {*.* 1} is entered even continu-
ously.
nvoDemAmp1 SNVT_amp_f Current AVG, Line 1
nvoDemAmp2 SNVT_amp_f Current AVG, Line 2
nvoDemAmp3 SNVT_amp_f Current AVG, Line 3
nvoDemWat SNVT_power_f Active power AVG
nvoDemVar SNVT_power_f Reactive power AVG
• DemandObject Conguration Property
CONFIGURATION
PROPERTY TYPE EXPLANATIONS
SCPTmaxSendTime SNVT_time_sec Common with SCPTmaxSendTime for InstObject.
SCPTpwrUpDelay SNVT_time_sec Common with SCPTpwrUpDelay for InstObject.
SCPTdirection SNVT_state Common with SCPTdirection for InstObject.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 15 / 32
■StatisticsObject FUNCTIONAL BLOCK
StatisticsObject (Object ID : 4)
Network Variables
nv 33 nvoMaxAmp1
SNVT_amp_f
nv 34 nvoMaxAmp2
SNVT_amp_f
nv 35 nvoMaxAmp3
SNVT_amp_f
nv 36 nvoMaxAmpN
SNVT_amp_f
nv 37 nvoMaxVol1
SNVT_vol_f
nv 38 nvoMaxVol2
SNVT_vol_f
nv 39 nvoMaxVol3
SNVT_vol_f
nv 42 nvoMinVol3
SNVT_vol_f
nv 43 nvoMaxThdAmp
SNVT_lev_percent
nv 44 nvoMaxThdVol
SNVT_lev_percent
nv 45 nvoMaxDemAmp1
SNVT_amp_f
nv 46 nvoMaxDemAmp2
SNVT_amp_f
nv 47 nvoMaxDemAmp3
SNVT_amp_f
nv 48 nvoMaxDemWat
SNVT_power_f
nv 40 nvoMinVol1
SNVT_vol_f
nv 49 nvoMaxDemVar
SNVT_power_f
nv 41 nvoMinVol2
SNVT_vol_f
SCPTmaxSendTime
SCPTpwrUpDelay
SCPTdirection
Sending interval
Power ON delay time
Operation mode seting
StatisticsObject :
Configuration Properties
nv 32 nviResetStat
SNVT_swtich
• StatisticsObject Network Variable
NETWORK VARIABLE TYPE EXPLANATIONS
nviResetStat SNVT_switch Max/Min values are reset (set with present value) when {*.* 1} is entered.
(*.* = numeric other than 0.0)
Be aware that the value is reset every time {*.* 1} is entered even continu-
ously.
nvoMaxAmp1 SNVT_amp_f Current MAX, Line 1
nvoMaxAmp2 SNVT_amp_f Current MAX, Line 2
nvoMaxAmp3 SNVT_amp_f Current MAX, Line 3
nvoMaxAmpN SNVT_amp_f Neutral current MAX
nvoMaxVol1 SNVT_vol_f Voltage MAX 1 *1
nvoMaxVol2 SNVT_vol_f Voltage MAX 2 *1
nvoMaxVol3 SNVT_vol_f Voltage MAX 3 *1
nvoMinVol1 SNVT_vol_f Voltage MIN 1 *1
nvoMinVol2 SNVT_vol_f Voltage MIN 2 *1
nvoMinVol3 SNVT_vol_f Voltage MIN 3 *1

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 16 / 32
NETWORK VARIABLE TYPE EXPLANATIONS
nvoMaxThdAmp SNVT_lev_percent Current total harmonic distortion MAX *2
nvoMaxThdVol SNVT_lev_percent Voltage total harmonic distortion MAX *2
nvoMaxDemAmp1 SNVT_amp_f Current MAX AVG, Line 1
nvoMaxDemAmp2 SNVT_amp_f Current MAX AVG, Line 2
nvoMaxDemAmp3 SNVT_amp_f Current MAX AVG, Line 3
nvoMaxDemWat SNVT_power_f Active power MAX AVG
nvoMaxDemVar SNVT_power_f Reactive power MAX AVG
*1. Assignments depend upon system configuration.
Single-phase/2wire Voltage 1: Phase 1 Voltage 2: 0 Voltage 3: 0
Single-phase/3-wire Voltage 1: Phase 1 Voltage 2: Delta 3 – 1 Voltage 3: Phase 3
Three-phase/3-wire Voltage 1: Delta 1 – 2 Voltage 2: Delta 2 – 3 Voltage 3: Delta 3 – 1
Three-phase/4-wire Voltage 1: Phase 1 Voltage 2: Phase 2 Voltage 3: Phase 3
*2. Maximum value among the following is assigned depending upon system configuration.
Single-phase/2wire Voltage: Phase 1 Current: Line 1
Single-phase/3-wire Voltage: Phase 1 or 3 Current: Line 1 or 3
Three-phase/3-wire balanced (1CT) Voltage: Delta 1 – 2, 2 –3 or 3 – 1 Current: Line 1
Three-phase/3-wire unbalanced (2CT) Voltage: Delta 1 – 2, 2 –3 or 3 – 1 Current: Line 1 or 3
Three-phase/3-wire unbalanced (3CT) Voltage: Delta 1 – 2, 2 –3 or 3 – 1 Current: Line 1, 2 or 3
Three-phase/4-wire balanced (1CT) Voltage 1: Phase 1 Current: Line 1
Three-phase/4-wire unbalanced (3CT) Voltage 1: Phase 1, 2, or 3 Current: Line 1, 2 or 3
• StatisticsObject Conguration Property
CONFIGURATION
PROPERTY TYPE EXPLANATIONS
SCPTmaxSendTime SNVT_time_sec Common with SCPTmaxSendTime for InstObject.
SCPTpwrUpDelay SNVT_time_sec Common with SCPTpwrUpDelay for InstObject.
SCPTdirection SNVT_state Common with SCPTdirection for InstObject.

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 17 / 32
OPERATION FLOWCHART
∑
VIEW NO.
(3)
0
Current
Activer power
Power factor
∑1
A
W
PF
■ DISPLAY
(1)
(2)
(4)
(5)
(6)
(7)
(3) UNIT
(2) MEASURANDS
(1) SYMBOL
(4) LINE 1
(5) LINE 2
(6) LINE 3
(7) LINE 4
■ CONTROL BUTTON OPERATIONS
∑
IU
PQS
MAX
E PRG ESC
PF THD
∑
∑
IU
+
+
PQS
PF THD
Hold down
IU Hold down
Hold down
Hold down
Hold down
Hold down
Hold down
NORMAL MODE
Indicates ∑ values
Indicates Voltage or Current
Indicates Power
Indicates Power Factor or THD
Indicates totalized values
(max., min., average/demand)
Switches Energy readings
Switches to My Default mode
Switches to Setting mode
Indicates nth Harmonic distortion
Switches Energy reading units
Switches to Infrared Communication mode
Indicates the shortcut menu
LONWORKS Service Pin
SETTING MODE
Go Left
Go Right
Go Down
Go Up
Selects menu; Enables setting changes
Cancels setting changes
----
----
----
----
----
----
----
BUTTON OPERATION FUNCTIONS
PF THD
E PRG ESC
E PRG ESC

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 18 / 32
RS
ST
RT
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
R
S
T
RS
ST
RT
RS
ST
RT
∑
0
Current
Active power
Power factor
High tariff
A
W
cos ϕ
kWh
256 512 768
16 272 528 784
32 288
304
544 800
48 816
320 832
∑1 IPPF
∑2 IQ
THDI
∑3 U
U
S THDI
∑4 THDU
UT THDU
∑
Current
Active power
Voltage
High tariff
A
W
V
kWh
Phase 1 Power factor
Phase 2 Power factor
Phase 3 Power factor
Selected energy reading*
cos ϕ
cos ϕ
cos ϕ
∑
Current
Reactive power
Voltage
High tariff
A
var
V
kWh
∑
Current
Apparent power
Frequency
High tariff
A
VA
Hz
kWh
N
---
Neutral current
---
Selected energy reading*
A
1-2 Delta voltage
2-3 Delta voltage
3-1 Delta voltage
Selected energy reading*
V
V
V
1-N Phase voltage
2-N Phase voltage
3-N Phase voltage
Selected energy reading*
V
V
V
1-2 Phase angle
2-3 Phase angle
3-1 Phase angle
Selected energy reading*
Phase 1 Active power
Phase 2 Active power
Phase 3 Active power
Selected energy reading*
W
W
W
Phase 1 Reactive power
Phase 2 Reactive power
Phase 3 Reactive power
Selected energy reading*
var
var
var
Phase 1 Apparent power
Phase 2 Apparent power
Phase 3 Apparent power
Selected energy reading*
VA
VA
VA
Line 1 Current THD
Line 2 Current THD
Line 3 Current THD
Selected energy reading*
%
%
%
N
---
Neutral current THD
---
Selected energy reading*
3P4W 3.00
%
1-2 Delta voltage THD
2-3 Delta voltage THD
3-1 Delta voltage THD
Selected energy reading*
%
%
%
1-N Phase voltage THD
2-N Phase voltage THD
3-N Phase voltage THD
Selected energy reading*
%
%
%
■ HOW TO SWITCH THE DISPLAY VIEWS
Pressing one of buttons switches the view to the one of top among those assigned to
the respective button. Pressing the same button continuously switches it to more selections in turn.
∑1 thr. ∑6 views in the above figure shows the factory setting. These combinations can be changed.
button switches the presently displayed view to its extension views if any.
Pressing the same button continuously switches it to more selections in turn.
Basic and extension views are all listed in the table in the following page.
[Example] Pressing button on the view No. 768 (power factor) switches it to extension views as below.
*Selected with button.
IU PQS PF THD
∑
IU PQS PF THD
∑
Line 1 Current
Line 2 Current
Line 3 Current
Selected energy reading*
A
A
A
MAX
MAX
768 769 770PF
Phase 1 Power factor
Phase 2 Power factor
Phase 3 Power factor
Selected energy reading*
cos ϕ
cos ϕ
cos ϕ
P-MAX
Phase 1 Power factor MAX
Phase 2 Power factor MAX
Phase 3 Power factor MAX
cos ϕ
cos ϕ
cos ϕ
P-MIN
Phase 1 Power factor MIN
Phase 2 Power factor MIN
Phase 3 Power factor MIN
cos ϕ
cos ϕ
cos ϕ
MAX
E PRG ESC
3P4W 3.00
∑5
∑6
∑
Active power
Line 1 Current
Line 2 Current
Line 3 Current
∑
Active power
1-2 Delta Voltage
2-3 Delta Voltage
3-1 Delta Voltage
64
80
W
V
V
V
W
A
A
A

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 19 / 32
■BASIC AND EXTENSION VIEW PARAMETERS
∑ view
PRMTR BASIC PARAMETER.
EXTENSION
MAX MIN AVE AVE
HIST1
AVE
HIST2
AVE
HIST3
AVE
HIST4
MAX
AVE
MAX
AVE
(out)
0 Not assigned
1 Current ✓✓✓✓✓✓✓✓
2 Voltage ✓✓✓
3 Active power ✓✓✓✓✓✓✓✓✓
4 Reactive power ✓✓✓✓✓✓✓✓✓
5 Apparent power ✓✓✓✓✓✓✓✓
6 Power factor ✓ ✓
7 Frequency ✓ ✓
8 Current, Line 1 ✓✓✓✓✓✓✓✓
9 Current, Line 2 ✓✓✓✓✓✓✓✓
10 Current, Line 3 ✓✓✓✓✓✓✓✓
11 Neutral current 3P4W 3.00 ✓✓✓✓✓✓✓✓
12 Delta voltage, 1 – 2 ✓ ✓
13 Delta voltage, 2 – 3 ✓ ✓
14 Delta voltage, 3 – 1 ✓ ✓
15 Phase voltage, Phase 1 ✓ ✓
16 Phase voltage, Phase 2 ✓ ✓
17 Phase voltage, Phase 3 ✓ ✓
18 Active power, Phase 1 ✓ ✓
19 Active power, Phase 2 ✓ ✓
20 Active power, Phase 3 ✓ ✓
21 Reactive power, Phase 1 ✓ ✓
22 Reactive power, Phase 2 ✓ ✓
23 Reactive power, Phase 3 ✓ ✓
24 Apparent power, Phase 1 ✓ ✓
25 Apparent power, Phase 2 ✓ ✓
26 Apparent power, Phase 3 ✓ ✓
27 Power factor, Phase 1 ✓ ✓
28 Power factor, Phase 2 ✓ ✓
29 Power factor, Phase 3 ✓ ✓
30 THD, Current, Line 1 ✓
31 THD, Current, Line 2 ✓
32 THD, Current, Line 3 ✓
33 THD, Neutral current 3P4W 3.00 ✓
34 THD, Delta voltage, 1 – 2 ✓
35 THD, Delta voltage, 2 – 3 ✓
36 THD, Delta voltage, 3 – 1 ✓
37 THD, Phase voltage, Phase 1 ✓
38 THD, Phase voltage, Phase 2 ✓
39 THD, Phase voltage, Phase 3 ✓
40 Phase angle between phase voltages, 1 – 2
41 Phase angle between phase voltages, 2 – 3
42 Phase angle between phase voltages, 3 – 1
100 Active energy, high tariff, incoming
101 Reactive energy, high tariff, LAG
102 Apparent energy, high tariff
103 Active energy, high tariff, outgoing
104 Reactive energy, high tariff, LEAD
105 Reactive energy, high tariff, incoming/LAG
106 Reactive energy, high tariff, incoming/LEAD
107 Reactive energy, high tariff, outgoing/LAG
108 Reactive energy, high tariff, outgoing/LEAD
109 Energy count time, high tariff
110 Active energy, low tariff, incoming
111 Reactive energy, low tariff, LAG
112 Apparent energy, low tariff
113 Active energy, low tariff, outgoing
114 Reactive energy, low tariff, LEAD

54UL
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-6488-B Rev.3 P. 20 / 32
∑ view
PRMTR BASIC PARAMETER.
EXTENSION
MAX MIN AVE AVE
HIST1
AVE
HIST2
AVE
HIST3
AVE
HIST4
MAX
AVE
MAX
AVE
(out)
115 Reactive energy, low tariff, incoming/LAG
116 Reactive energy, low tariff, incoming/LEAD
117 Reactive energy, low tariff, outgoing/LAG
118 Reactive energy, low tariff, outgoing/LEAD
119 Energy count time, low tariff
210 Reactive energy, high tariff, incoming
211 Reactive energy, high tariff, outgoing
212 Active energy, high tariff, incoming - outgoing
213 Reactive energy, high tariff, incoming + outgoing
310 Reactive energy, low tariff, incoming
311 Reactive energy, low tariff, outgoing
312 Active energy, low tariff, incoming - outgoing
313 Reactive energy, low tariff, incoming + outgoing
