M-TI RAPIDDOC SMARTBACK User manual

RAPIDDOC™ SMARTBACK USER GUIDE
1
MTI P/N 063-00215 rev A ©2018 MTI All Rights Reservedwww.armoractive.com | T: 801.653.3807
1 2
43
RAPIDDOC™ SMARTBACK
Lift the existing battery cover by pulling the notch on the
lower left corner and completely remove it.
Place the RapidDoc SmartBack into the battery opening.
Make sure that the arrow on the inside of the SmartBack
points to the Tablet Camera.
Very carefully secure the SmartBack to the tablet,
applying light force to the Hex Key to tighten the 4
corner screws.
Adjust hand strap to desired tightness.
If you have access to a torque screw-driver, Aava recommends
setting the driver to 1.23 inch-pounds of torque, or 14
newton centimeters.
NOTES BEFORE INSTALLING: Do not overtighten screws. Using excessive force when tightening screws can damage the threads on
devices and damage product.
SmartBack
without
Accessory Dock
185-00224
Hex Key
Hex Screws
SmartBack
with
Accessory Dock
185-00513

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
1
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
Overview
185-00528 Through-Hole Mounting Accessory (Sold separately)
Materials in Box
Mounting
Plate
185-00282
Power Supply
Alcohol Wipes (10)
Mounting Screws (4)
Screws (5)
Threaded
Pipe
Adhesive
Pad
Nut
Security Screws (2)
003-0056-00
Red Handle Tool
Authorization Card
If lost or
stolen, contact
customer
service for
replacement.
185-00605
Access Card (5)
RapidDoc Kiosk
C.A. Cover
(Minimal Cables)
C.A. Cover
(No Cables)
Cable Access
(C.A.)

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
2
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
REPLACING THE LID
REMOVING THE LID
1
1
2
2
Lift up the front of the lid (above the ArmorActive logo).
Tuck the RFID cable into the void in the base and
place the lid on the kiosk base.
Slide the lid back, using care when removing the lid as
not to damage the RFID cable.
Slide the lid into place and press down on the lid.
CABLE ACCESS COVER INSTALLATION
1 2
With the lid off of the kiosk base, place the Cable
Access Cover into the opening from the inside.
Press until it clicks into place.
Cut-away side view

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
3
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
BASEPLATE MOUNTING
1
1
3
2
2
4
VHB MOUNTING
Using the mounting screws, place the mounting plate in
the desired location. See Page 7 for a Mounting Plate
drill template.
Lock the kiosk into place by rotating it counter
clockwise on the plate.
Place the kiosk by lining up the opening on the bottom of
the kiosk with the teeth on the mounting plate.
Secure the kiosk to the mounting plate using the two
security screws and the Red Handle Tool.
Clean the surface you are mounting on with the Alcohol
wipes included in the box. Peel the fi lm on the VHB on
the bottom of the kiosk.
Place in desired location and fi rmly press down for full
adhesive contact. Allow 24 hours for full VHB adhesion.

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
4
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
1
3
5
2
4
6
THROUGH-HOLE MOUNTING
3”
Secure the kiosk to the mounting plate using the two
security screws and the Red Handle Tool.
Place the kiosk by lining up the opening on the bottom of
the kiosk with the teeth on the mounting plate. Lock the
kiosk into place by rotating it counter clockwise on the
plate.
NOTE: The Through-Hole Mounting Accessory is sold
separately. Peel the film on the included adhesive pad
and adhere it to the underside of the mounting plate.
Place the assembly into a pre-drilled hole 3” wide.
Attach the threaded pipe to the mounting plate with the
5 included screws.
Secure into place by twisting the nut over the threaded
pipe.

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
5
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
1 2
1 2
CABLE ROUTING
1.
1.
2.
2.
1. Through Hole Cable Routing
2. Table Top Cable Routing
3. Six USB Ports (Pro version only)
4. Ethernet (Pro version only)
5. Power
3.
5.
4.
REMOVING THE ENCLOSURE (OR TABLET) MANUALLY
REMOVING THE ENCLOSURE (OR TABLET) VIA RFID
Insert the Red Handle Tool into the security screw hole
at the side of the RapidDoc base-disk under the tablet.
Turn the Red Handle Tool clockwise until resistance is
felt (about halfway) and hold. NOTE: Do not grab the
tablet until after you twist the Red Handle Tool.
While holding the Red Handle Tool, remove the tablet
using one hand on the bottom left or right hand corner.
Place the RFID Access Card until the base clicks. NOTE:
Do not grab the tablet until after you hear the click.
Remove the tablet using one hand on the bottom left or
right hand corner.

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
6
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844

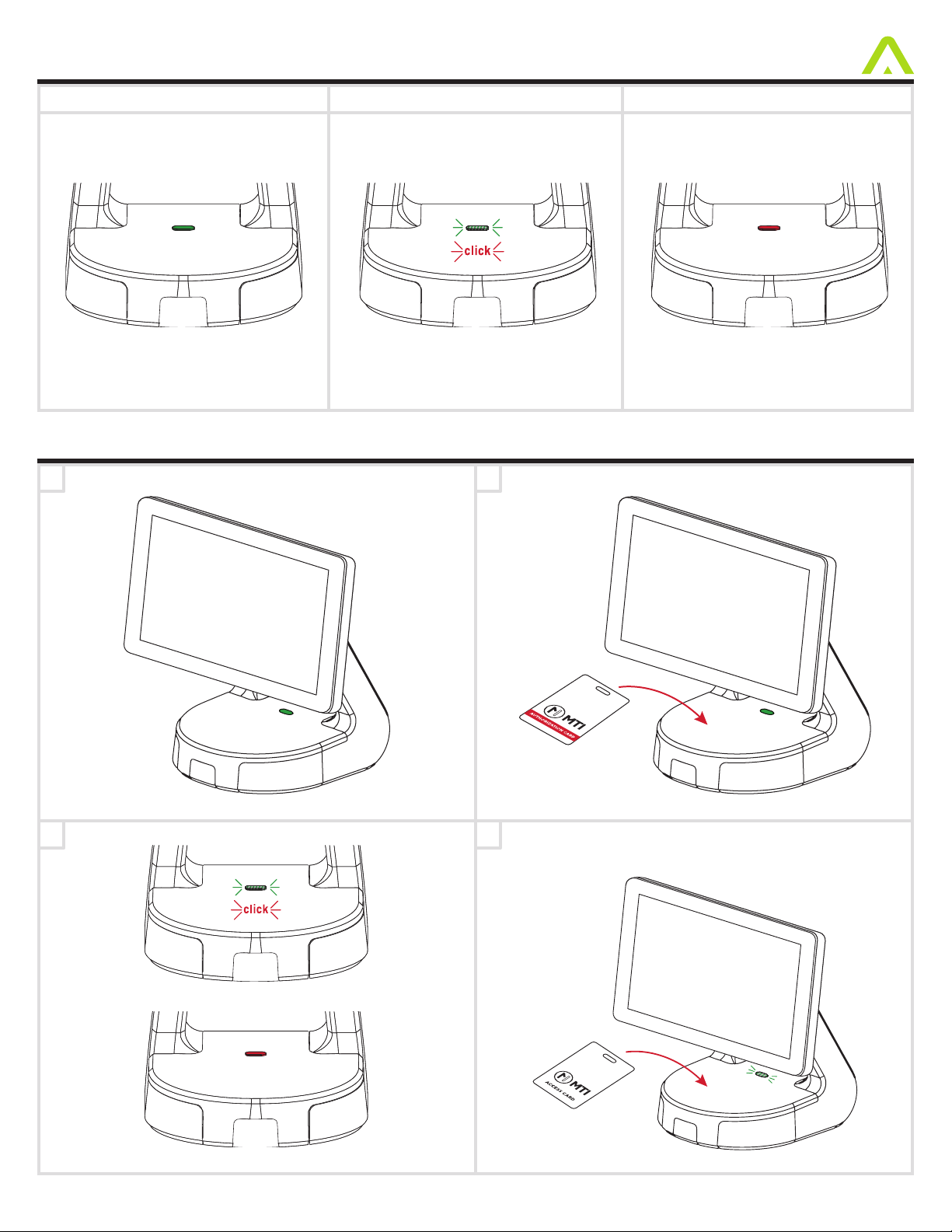

Access Card Registration
Tablet RemovedTablet Docked Tablet Ready For Removal
LED Indicators
1
3
2
4
If the case is removed:
If the case is docked:
Dock the tablet and wait for the light to turn green. Place the authorization card on the base of the kiosk.
If no Access Card is detected, the Base will return to
normal condition waiting for registered Access Card to
unlock the Base.

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
7
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
1
3
5
2
4
6
The base can register a maximum of 20 Access cards.
Example:
NOTE: The above grid is a conceptual visual representation of
the Electronic Register.
Example:
Example:
If a card is lost or stolen:
Then re-register the remaining cards plus the new one
ordered through Customer Service. Example:
If a 21st card is registered, the first registered card will
be deregistered.
Example:
Example:
Take any of the remaining access cards and register it 20
consecutive times:
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS006
ACCESS005
ACCESS004
ACCESS002
ACCESS001
ACCESS006
ACCESS005
ACCESS004
ACCESS003
ACCESS002
ACCESS001
ACCESS001
ACCESS001
ACCESS001
ACCESS001
IF AUTHORIZATION CARD IS LOST OR STOLEN,
CONTACT CUSTOMER SERVICE FOR REPLACEMENT.
Access Card Registration

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
8
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
Federal Communication Commission interference statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures: -Reorient or relocate the receiving
antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into
an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an
experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference and
2. this device must accept any interference received, including interference that may cause undesired
operation
RF Exposure Warning
The equipment complies with RF exposure limits set forth for an uncontrolled environment. The
antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
FCC Statement

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE
9
MTI P/N 063-00180 rev B ©2018 MTI All Rights Reservedwww.armoractive.com.com | T:800.426.6844
Print this document at 100% (or ‘Actual Size’) to assist in placing the RapidDoc Mounting Plate.
3.9376 in
3.9376 in
Drill Hole
FRONT
MOUNTING PLATE TEMPLATE
3” hole for Optional
Through-Hole
Mounting Accessory
