These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started…
02
34
03-18
35-37
38-43
44-52
53
54
55
56-57
58
19-20
21-33
Getting started...
Technical and legal information
Your product
Before you start
In more detail...
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
Technical specications
Declaration of conformity
Technical and legal
information
Safety warnings
IMPORTANT
READ CAREFULLY BEFORE USE.
KEEP FOR FUTURE REFERENCE.
General Power Tool Safety Warnings
WARNING! Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for
future reference.
The term “power tool” in the warnings
refers to your mains-operated (corded)
power tool or battery-operated (cordless)
power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
EN

EN EN
4 5
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid
a hazard.
Personal safety
1. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
Technical and legal
information
Technical and legal
information

EN EN
6 7
Getting started...
Getting started...
MPS750S-2 MPS750S-2 Technical and legal
information
Technical and legal
information
jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
2. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
3. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
Service
1. Have your power tools serviced by a qualied
repair person using only identical replacement
parts. This will ensure that safety of the power tool is
maintained.
Pruner safety warnings
1. Interrupt your work when you feel tired or
exhausted. Make regular breaks to regenerate.
A moment of inattention while operating the product
may result in serious personal injury.
2. Keep all parts of the body away from the saw
chain. Do not remove cut material or hold
material to be cut when saw chain is moving.
Make sure the switch is off when clearing jammed
material. A moment of inattention while operating the

EN EN
8 9
Getting started...
Getting started...
MPS750S-2 MPS750S-2
product may result in serious personal injury.
3. Hold the product by insulated gripping
surfaces only, because the saw chain may
contact hidden wiring or its own cord. Saw
chains contacting a “live” wire may make exposed
metal parts of the product “live” and could give the
operator an electric shock.
4. Keep cable away from cutting area. During
operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.
5. Keep all parts of the body away from the saw
chain when the product is operating. Before you
start the product, make sure the saw chain is
not contacting anything. A moment of inattention
while operating products may cause entanglement
of your clothing or body with the saw chain.
6. Always hold the product with both hands on the
handle and soft grip. Holding the product with only
one hand or on parts not intended for that increases
the risk of personal injury and should never be
done.
7. Wear safety glasses and hearing protection.
Further protective equipment for head, hands,
legs and feet is recommended. Adequate
protective clothing will reduce personal injury by
ying debris or accidental contact with the saw
chain.
8. Do not operate a product in a tree. Operation of
a product while up in a tree may result in personal
injury.
Technical and legal
information
Technical and legal
information
9. Always keep proper footing and operate the
product only when standing on xed, secure and
level surface. Slippery or unstable surfaces such as
ladders may cause a loss of balance or control of the
product.
10. When cutting a limb that is under tension be alert
for spring back. When the tension in the wood bres
is released the spring loaded limb may strike the
operator and/or throw the product out of control.
11. Use extreme caution when cutting brush and
saplings. The slender material may catch the saw
chain and be whipped toward you or pull you off
balance.
12. Carry the product by the soft grip with the
product switched off and away from your body.
When transporting or storing the product always
t the guide bar cover. Proper handling of the
product will reduce the likelihood of accidental contact
with the moving saw chain.
13. Follow instructions for lubricating, chain
tensioning and changing accessories. Improperly
tensioned or lubricated chain may either break or
increase the chance for kickback.
14. Keep handles dry, clean, and free from oil and
grease. Greasy, oily handles are slippery causing
loss of control.
15. Cut wood only. Do not use product for purposes
not intended. For example: do not use product
for cutting plastic, masonry or non-wood building
materials. Use of the product for operations different

EN EN
10 11
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Pinching the saw chain along the top of the guide
bar may push the guide bar rapidly back towards the
operator.
Either of these reactions may cause you to lose control
of the saw which could result in serious personal injury.
Do not rely exclusively upon the safety devices built into
your saw. As a product user, you should take several
steps to keep your cutting jobs free from accident or
injury.
Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions and can be avoided
by taking proper precautions as given below:
1. Maintain a rm grip, with thumbs and ngers
encircling the product handles, with both hands
on the saw and position your body and arm to
allow you to resist kickback forces. Kickback
forces can be controlled by the operator, if proper
precautions are taken. Do not let go of the product.
2. Do not overreach. This helps prevent unintended
tip contact and enables better control of the product
in unexpected situations.
3. Only use replacement bars and chains specied
by the manufacturer. Incorrect replacement bars
and chains may cause chain breakage and/or
kickback.
4. Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to
increased kickback.
than intended could result in a hazardous situation.
16. Pay attention to national and local regulations.
National and local regulations may restrict the use
of this product.
17.Only use replacement guide bars and saw chains
specied by the manufacturer or equivalent
replacements. Using non-approved cutting
attachments can result in personal injuries and
damage to property.
18.Before using the product and after any impact or
dropping, check for signs of wear or damage and
repair as necessary.
19.Never remove or modify any guard or safety
component. Ensure that guards and other safety
components necessary for machine operation are
in position, in good working condition and properly
maintained to avoid injuries.
20. Training of all operation is necessary for rst-time
and inexperienced operator.
21. Remove branches in section.
22. Use the harness provided.
Causes and operator prevention of kickback
Kickback may occur when the nose or tip of the guide
bar touches an object, or when the wood closes in and
pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden
reverse reaction, kicking the guide bar up and back
towards the operator.
Technical and legal
information
Technical and legal
information

EN EN
12 13
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and low-
noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimize the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and
well maintained.
3. Use correct application tools for the product and
ensure they in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high
vibration tool use across a longer period of time.
The European Physical Agents (Vibration) Directive
has been brought in to help reduce hand arm vibration
syndrome injuries to users of product’s with vibration
emission. The directive requires manufacturers and
suppliers to provide indicative vibration test results to
enable users to make informed decisions as to the
period of time a product can be used safely on a daily
basis and the choice of tool. Further advice can be
found at www.hse.gov.uk
Technical and legal
information
Technical and legal
information
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2. Switch off and disconnect from the power supply
if there are malfunctions. Have the product checked
by a qualied professional and repaired, if necessary,
before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and
design of this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
accessories or the sudden impact of hidden objects
during use.
3. Danger of injury and property damage caused by
ying objects.

EN EN
14 15
Getting started...
Getting started...
MPS750S-2 MPS750S-2
4. Prolonged use of this product expose the operator
to vibrations and may produce ‘whitenger’
disease. In order to reduce the risk, please wear
gloves and keep your hands warm. If any of the
‘whitenger’ symptoms appear, seek medical
advice immediately. ‘Whitenger’ symptoms
include: numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes in skin
colour or condition. These symptoms normally
appear in the ngers, hands or wrists. The risk
increases at low temperatures.
WARNING! This product produces an
electromagnetic eld during operation!
This eld may under some circumstances
interfere with active or passive medical
implants! To reduce the risk of serious or
fatal injury, we recommend persons with
medical implants to consult their doctor
and the medical implant manufacturer
before operating this product!
Symbols
On the product, the rating label and within these
instructions you will nd among others the following
symbols and abbreviations. Familiarise yourself with
them to reduce hazards like personal injuries and
damage to property.
V~ Volt, (alternating voltage)
W Watt
Hz Hertz
l Litre
cm³ Cubic centimetre
min-1 Per minute
mm Millimetre
kg Kilogram
m/s² Metres per second squared
dB(A) Decibel (A-rated)
mm.yyyy Manufacturing date code: year of
manufacturing (yyyy) and month of
manufacturing (mm).
Caution / Warning.
Read the instruction manual.
Wear hearing protection!
Wear eye protection!
Wear respiratory protection!
Technical and legal
information
Technical and legal
information

EN EN
16 17
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Wear protective gloves!
Wear slip-resistant, sturdy footwear!
Wear safety helmet!
Wear face protection!
Wear tight-tted protective clothes.
Warning! Danger from overhead electric-power
lines! Keep at least 10 m distance.
Switch the product off and disconnect it from
the power supply before assembly, cleaning,
adjustments, maintenance, storage and
transportation.
Remove plug from the mains immediately if the
power cord/extension cord is damaged or cut.
Objects thrown by the product could hit the user
or other bystanders. Always ensure that other
people and pets remain at a safe distance from the
product when it is in operation. In general, children
must not come near the area where the product is.
Minimum distance 15m.
Kickback! Tip contact may cause the guide bar
to move suddenly upward and backwards what
may cause serious injury to user.
Contact of the guide bar tip with any object
should be avoided.
Always use the product with two hands. Do not
use one handed when operating the product.
Do not use in rain or wet conditions.
Guaranteed sound power level value in dB
Chain oil ll
Correct direction of cutting-teeth
Cutting of ngers or hand.
Danger of falling objects.
This product is of protection class II. That means
it is equipped with enhanced or double insulation.
10m
Technical and legal
information
Technical and legal
information
104

EN EN
18 19
Getting started...
Getting started...
MPS750S-2 MPS750S-2 Your productTechnical and legal
information
Your product
The product complies with the applicable
European directives and an evaluation method
of conformity for these directives was done.
This marking indicates that this product should
not be disposed with other household wastes.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources.
MPS750S-2 (M_Brand Name; PS_Pole Saw)

EN EN
20 21
Getting started...
Getting started...
MPS750S-2 MPS750S-2
1. Rear handle
2. Lock-off button
3. Loop
4. Loop retainer
5. Cable strain relief
6. Hole
7. Power cord with plug
8. On/off switch
9. Gripping surface
10. Hex key 4mm
11. Angle adjusting button
12. Side cover
13. Guide bar
14. Saw chain
15. Sprocket wheel
16. Oil level window
17. Oil tank cap
18. Park stand
19. Locking wheel
20. Tension wheel
21. Air vents
22. Pole extension
23. Locking knob
24. Pole
25. Oiling port
26. Mounting bolt
27. Anti-slip serration
28. Drive sprocket
29. Harness
a. Clip
b. Buckle
30. Guide bar cover
Before you startYour product
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any
damage. If you nd that parts are missing or show damage do not
use the product but contact your dealer. Using an incomplete or
damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
You will need
(items not supplied)
- Lubrication oil
- Sharpening set
- Suitable personal protective
equipment
(items supplied)
- Hex key 4mm x 1

EN EN
22 23
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Assembly
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly
assembled or assembled with damaged parts!
Follow the assembly instructions step-by-step and
use the pictures provided as a visual guide to easily
assemble the product!
Do not connect the product to power supply before it is
completely assembled!
Always wear gloves during assembly!
Motor unit assembly
1. Place the product (the rear part) and motor unit on a at stable
surface with the side cover (12) facing upwards.
2. Turn the pre-assembled screw anticlockwise by using the hex key
(10), and remove it together with the nut, keep them on hand. (Fig. 1
)
Fig. 1
3. Loosen the locking knob (23) by turning it anticlockwise, pull the pole
extension (22) out. Caution as pole may retract quickly. Afterwards
tighten the locking knob (23) by turning it clockwise. (Fig. 2)
Fig. 2
4. Align the pole extension (22) to the motor unit and insert it all the way
to the stop. Secure the connection with the screw and nut. (Fig. 3)
Fig. 3
5. Tighten 4 pre-assembled screws on the motor unit by using the
provided hex key (10). (Fig. 4)
Fig. 4
Before you startBefore you start

EN EN
24 25
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Saw chain and guide bar
1. Use only a guide bar (13) and saw chain (14) according to the
technical data of the pole saw.
2. Place the product on a suitable at surface with the side cover (12)
facing upwards.

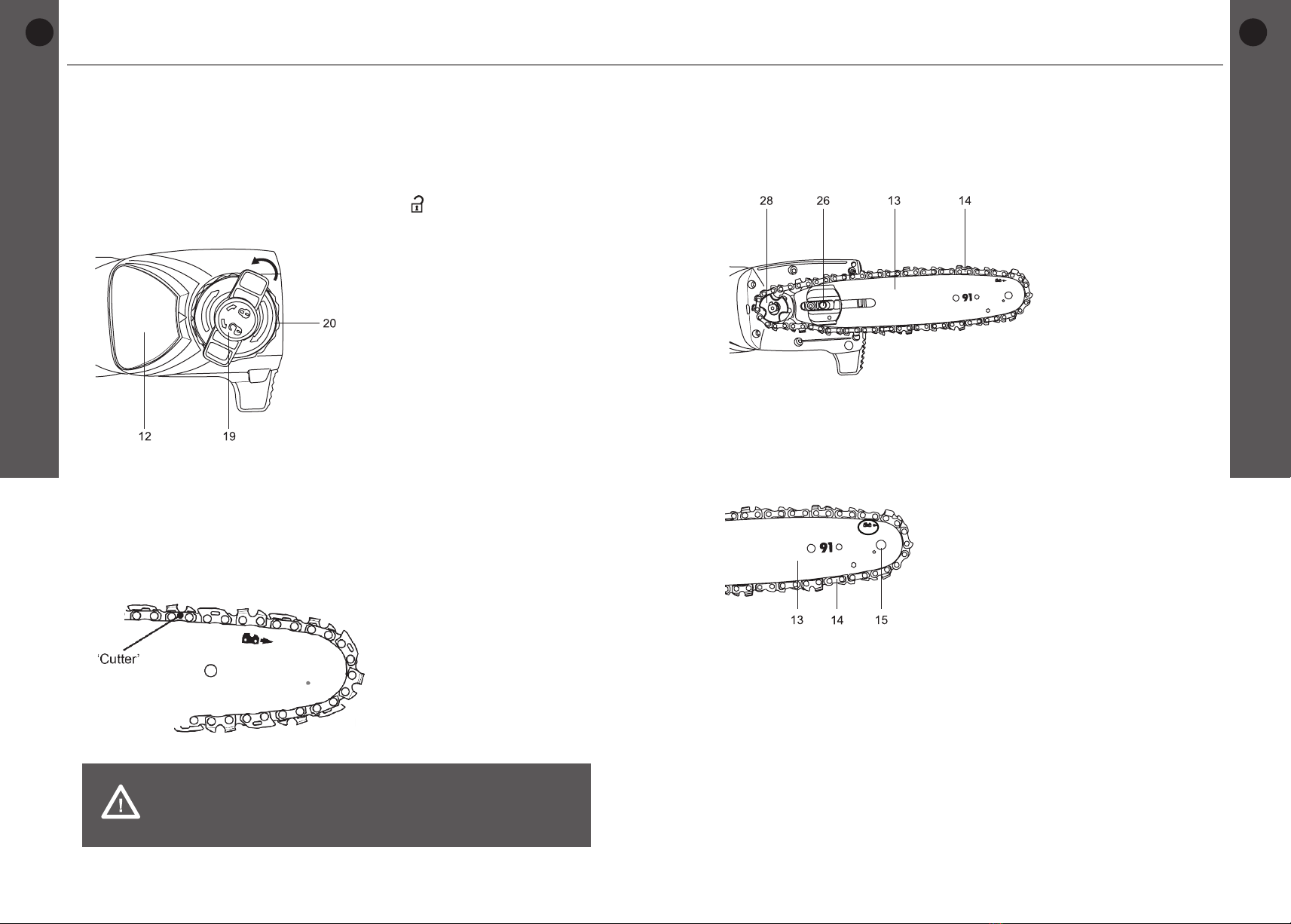

3. Unscrew the locking wheel (19) in direction and then remove it
together with the side cove (12). (Fig.5)
Fig. 5
4. Spread the saw chain (14) out with the cutting edges of the chain
pointing in the direction of rotation.
Slide the saw chain (14) into the groove around the guide bar (13).
Ensure saw chain (14) is installed in correct direction of rotation.
(Fig.6)
Fig. 6
WARNING! The direction of the saw chain ‘cutters’ must
be same as indicated by the symbol and arrow on the
guide bar!
Before you startBefore you start
5. Align saw chain (14) and the guide bar (13) assembly with the drive
sprocket (28) and the mounting bolt (26). Lay the saw chain (14)
around the drive sprocket (28) and then lower the guide bar (13) to
install it to the mounting bolt (26). (Fig.7)
Fig. 7
6. The saw chain movement is as indicated by the arrow (Fig.8). Make
sure the saw chain (14) is properly placed over the sprocket wheel
(15) of the guide bar (13). (Fig.8)
Fig. 8

EN EN
26 27
Getting started...
Getting started...
MPS750S-2 MPS750S-2
7. Please make sure the tension wheel (20) is in the position as shown
in Fig.9, or else rotate it anticlockwise to make the mark on the side
cover (12) be aligned with the mark on the tension wheel (20). ( Fig.9)
Fig. 9 Fig. 10
8. Ret the cover (12) , t the rear of cover then front, ensure pin
is located in position. Slightly tighten the locking wheel (19) (Fig.
10). Do not tighten the locking wheel (19) completely, saw chain
tensioning is required rst.
NOTE: The saw chain (14) has not yet been tensioned.
Tension the chain as described under “Saw chain
tensioning”. After operating the product for approx. 1
hour, adjust the chain tension again.
Saw chain tensioning
Always check the saw chain tension before use, after the rst cuts and
regularly during use, approx. every ve cuts. Upon initial operation, new
chains can lengthen considerably. This is normal during the break-in
period and the interval between future adjustments will lengthen quickly.
WARNING! Disconnect the product from the power
supply before adjusting saw chain tension!
The cutting edges of the saw chain are sharp! Always
wear protective gloves when handling chain!
Always maintain proper chain tension! A loose chain
increases the risk of kickback! A loose chain may jump
out of the guide bar groove! This may injure the operator
and damage the chain! A loose chain will cause rapid
wear to the chain, guide bar and sprocket!
Tensioning the chain too tightly will overload the motor
and cause damage, and insufcient tension can cause
chain derailing, whereas a correctly tightened chain
provides the best cutting characteristics and prolonged
working life! The chain life mainly depends upon
sufcient lubrication and correct tensioning!
NOTE: The chain tension can not be adjusted with the
tension wheel (19) tightened - it must be loosened rst.
1. Place the product on a suitable at surface with the side cover (12)
facing upwards.
2. Check the chain tension using one hand to lift the saw chain (14)
against the weight of the product. The correct chain tension is
achieved when the saw chain can be lifted by approximately 2 - 4 mm
from the guide bar (13) in the centre (Fig.11, 12).
Fig. 11 Fig. 12
Before you startBefore you start

EN EN
28 29
Getting started...
Getting started...
MPS750S-2 MPS750S-2
3. Adjust the tension if you nd that the chain saw (14) is too loose or
tight.
4. Loosen the locking wheel (19), then rotate the tension wheel
(20) anticlockwise or clockwise until the chain “tie straps” are
just touching the bottom edge of the guide bar (12), hold it in the
position.
5. Pull the saw chain (14) along the top of the guide bar (13) by gloved
hand from one end to the other, several times. The saw chain (14)
should feel tight but still move freely.
6. After the adjustment, re-tighten the locking wheel (19).
Chain lubrication
WARNING! The product is not lled with chain oil. It is
essential to ll the product with chain oil before using it!
Never operate the product without chain oil as this will
result in extensive damage to the product!
Operating the saw chain dry or with too little chain oil
will decrease cutting efciency, shorten the product life
span and cause rapid wear to the saw chain and guide
bar from overheating!
Insufcient chain oil is evident by smoke or bar
discoloration! Adequate lubrication of the saw chain
during cutting operations is essential to minimise
friction with the guide bar!
1. Place the product on a stable, level surface with the oil tank cap (17)
facing upward. We recommend laying a non-ammable sheet under
the product.
2. Unscrew and remove the oil tank cap (17) (Fig. 13).
Fig. 13
3. Fill suitable lubricant into the tank using an oil funnel tted with a lter to
avoid debris entering the tank. Do not overll and leave approximately 5
mm of space between the top of the oil and the inside edge of the tank
to allow for expansion (Fig. 14).
NOTE: In summer use SAE #30; in winter, or if the trees
have excessive sap, use SAE #10.
Fig. 14
NOTE: Towards the end of the season, it is advisable to put
only as much lubricant in the tank as you need for each
cut, so that it is completely used up before you store the
product.
4. Check the oil level window (16) prior to start-up and regularly during
operation. Rell oil when the oil level is close to the bottom of the oil
level window (16) (Fig. 13).
5. Wipe up spilled lubricant with a soft cloth and ret the oil tank cap (17).
Before you startBefore you start Before you startBefore you start

EN EN
30 31
Getting started...
Getting started...
MPS750S-2 MPS750S-2
NOTE: Always dispose of lubricant, used oil and objects
contaminated with them in accordance with local
regulations.
Checking
NOTE: Perform the following test before operating your
product.
This product is equipped with an automatic oiling
system. The oiling system automatically delivers the
proper amount of oil to the bar and chain.
Checking the lubrication requires starting the product.
Before checking, the product must be fully assembled
and all instructions must have been read.
1. Make sure the guide bar (13) and the saw chain (14) are in place
when you check the oil delivery.
2. Start the product; keep it running at no load and check if the chain oil
is delivered as shown in the gure (Fig.15,16).
Fig. 15 Fig. 16

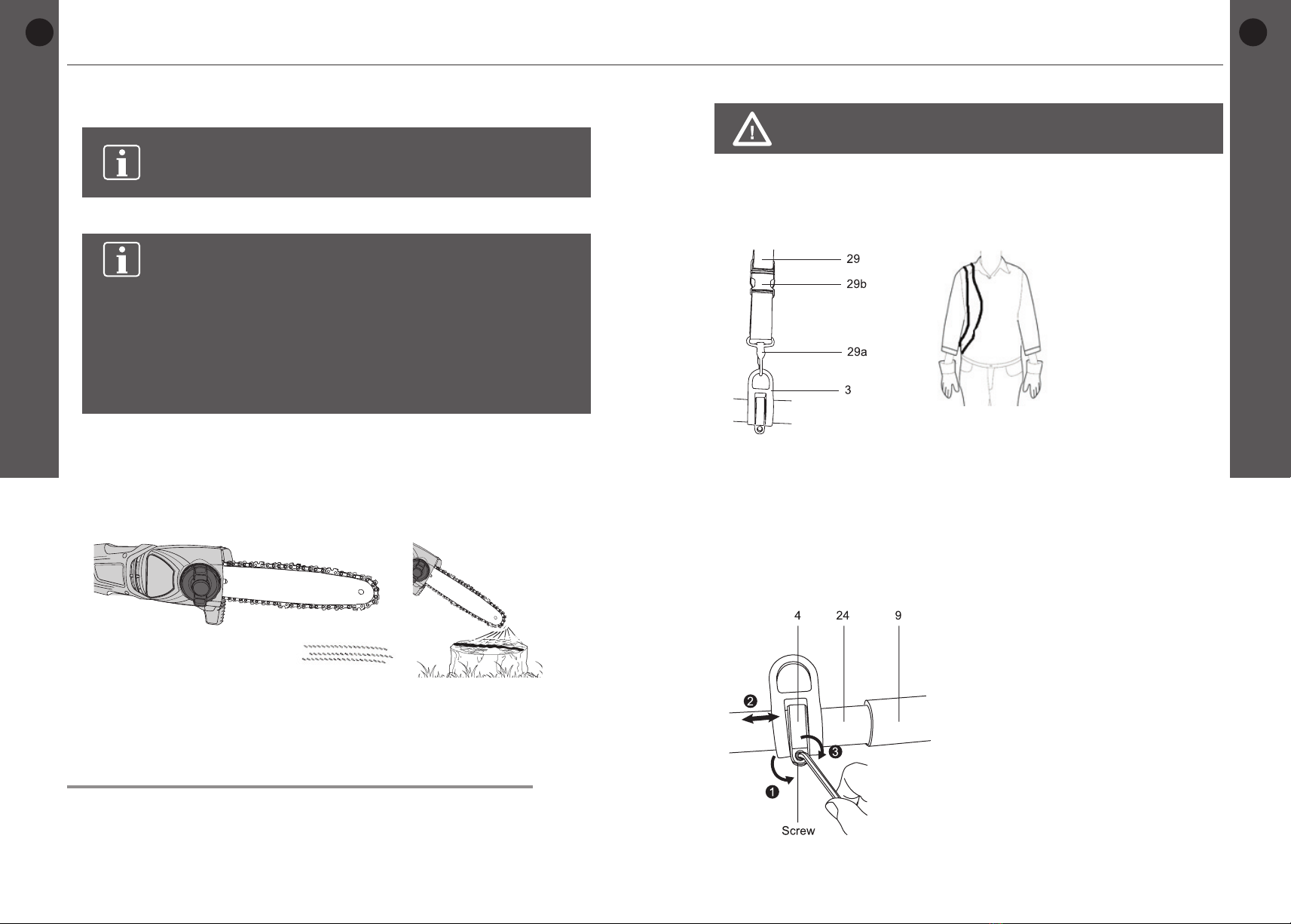

Harness
The harness (29) helps the operator carry this product.
WARNING! Always attach the product to the harness. Do
not carry it only with your hands!
1. Attach the clip (29a) of the harness (29) to the loop (3) on the pole
(24) (Fig. 17).
2. Place the harness (29) so that it runs over your right shoulder. The
securing clip must be located at the right hip (Fig.18).
Fig. 17 Fig. 18
3. Open the clip (29a) to remove the harness from the loop (3).
4. Open the buckle (29b) to quickly release the harness (29).
5. If required, set the loop retainer (4) on a proper position for comfort
and easy control. Loosen the screw and move the loop retainer (4)
back and forward along the pole (24). It’s better to locate the loop
retainer (4) within the range about 30cm from the gripping surface (9).
After adjustment, re-tighten the screw. (Fig.19)
Fig. 19
Before you startBefore you start

EN EN
32 33
Getting started...
Getting started...
MPS750S-2 MPS750S-2
Connection to the power supply (for UK
only)
WARNING! Always use a residual current supply (RCD)
protected supply. If an extension cord is used, make sure
the extension cord is specically designed for outdoor
use and not lighter than H05VV-F or H05RN-F, 2x1.0mm²
and max 75m.
1. Make sure the on/off switch (8) is in its off position.
2. Connect the power plug to a suitable power source.
3. Now your product is ready for use.
Connection to the power supply (not for
UK)
For safety reasons the product is equipped with a short power cord (7).
Do not connect the product directly to the power supply using this power
cord. A proper extension cord is required for operation. Observe the
technical requirements for this product when purchasing an extension
cord.
WARNING! For your safety, it is required that the plug
attached to this product is always connected to an
extension cord! The extension cord must be suitable
for outdoor use with sockets protected against water
splashing! Ensure the extension cord is of the proper
size and type for your product (≥ 1.0mm2)!
The extension cord must always be used with the cable
strain relief! Do not use the product without an extension
cord connected! Always use a residual current supply
(RCD) protected supply!
1. Make sure the on/off switch (8) is in its off position.
2. Double the extension cord back about a foot from the end, lead the
loop through the hole (6) and hook the loop over the cable strain relief
(5), gently tug on the cord to ensure that it is rmly secured. (Fig. 20,
21).
Fig. 20 Fig. 21
3. Connect the power cord (7) to the socket of the extension cord. (Fig.
22)
Fig. 22
4. Make sure not to press the on/off switch (8).
5. Connect the plug of the extension cord to a suitable power source.
WARNING! Check the voltage! The voltage must comply
with the information on the rating label!
6. Your product is now ready to be used.
Before you startBefore you start

MPS750S-2 MPS750S-2
In more detail...
In more detail...
EN EN
35-37
38-43
44-52
53
54
55
56-57
58
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
Technical specications
Declaration of conformity
In more detail...
34 35
34 35
Product functions
Intended use
This pole saw MPS750S-2 is designated with a rated input of 750
Watts. The product is intended for cutting limbs with a thickness of
max. 180 mm. It must not be used for cutting other materials, such as
plastic, stone, metal or wood that contains foreign objects.
The product may only be used with the guide bar/saw chain
combination stated in these instructions. It is not permitted to use other
types or sizes.
This product should not be used outside of domestic areas.
This product is intended for private domestic use only, not for any
commercial trade use. It must not be used for any purposes other than
those described.
Adjusting pole length
1. Loosen the locking knob (23) by turning in a counter-clockwise
direction and adjust the pole extension (22) to the required length.
(Fig. 23)
2. Tighten the locking knob (23) by turning in a clockwise direction.
(Fig. 23)
Fig. 23

36 37
MPS750S-2 MPS750S-2
In more detail...
In more detail...
EN EN
Switching on/off
1. Ensure the saw chain (14) does not come into contact with
anything before starting the product.
2. Grip the product with both hands, your left hand holding the
gripping surface (9) and your right hand holding the rear handle
(1). Do not start the product while handling it with one hand.
3. Push the lock-off button (2) forward with your right thumb, then
fully depress the on/off switch (8) with your index ngers and hold
it in this position.(Fig. 24)
Fig. 24
4. Release the on/off switch (8) to switch the product off.
WARNING! The product will continue to work for some
time even after the motor has been switched off! Wait
until it comes to a complete stop before you put the
product down!
Adjusting cutting head
1. Place the product on a stable, level surface with the angle
adjusting button (11) facing upward. We recommend laying a non-
ammable sheet under the product.
Product functionsProduct functions
2. Press the angle adjusting button (11), meanwhile rotate the
working head anticlockwise to the required working angle. Please
note to align the mark with the scale around the angle adjusting
button (11); and please make sure you hear a “click” when do this
adjustment or the angle adjusting button (11) bounces back, or
else the working head is not locked well. (Fig. 25,26)
Fig. 25 Fig. 26
Saw chain stop test
NOTE: Perform the following test before operating
your product.
1. Hold the gripping surface (9) with the left hand, the rear handle (1)
with your right hand.
2. Ensure the saw chain (14) does not come into contact anything
when switching on.
3. Release the on/off switch (8) to switch the product off, the saw
chain must come to a stop.
WARNING! If the saw chain shows any signs of moving
stop the motor immediately! Wait for all moving parts
to stop! Contact a qualied specialist to have a check!

38 39
MPS750S-2 MPS750S-2
In more detail...
In more detail...
EN EN
General operation
1. Check the product, its power cord and plug as well as accessories for
damage before each use. Do not use the product if it is damaged or
shows wear.
2. Double check that accessories or application tools and the guide bar/
saw chain are properly xed.
3. Check the chain oil level, rell if necessary.
4. Always hold the product on its handle(s)/gripping surface(s). Keep
the handle(s)/gripping surface(s) dry and clean to ensure safe
support.
5. Ensure that the air vents are always unobstructed and clear. Clean
them if necessary with a soft brush. Blocked air vents may lead to
overheating and damage the product.
6. Switch the product off immediately if you are disturbed while working
by other people entering the working area. Always let the product
come to complete stop before putting it down.
7. Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.
8. Before switching the product on, check whether it has been
assembled correctly and all the moving parts are running smoothly!
9. While working, ensure that the product does not strike hard objects,
as this can cause damage.
WARNING! In some countries regulations dene at
what time of the day and on what special days products
are allowed to be used and what restrictions apply!
Ask your community for detailed information and
observe the regulations in order to preserve a peaceful
neighbourhood and avoid committing administrative
offences!
Operating hours
Only operate the product at reasonable hours - not early in the morning,
late at night or on weekends/public holidays when people might be
disturbed. Inform yourself about local restrictions.
Pruning
Kickback
WARNING! Beware of kickback! Kickback can lead to
dangerous loss of control of the product and result
in serious or fatal injury to the operator or anyone
standing close by! Always be alert because rotational
kickback and pinch kickback are major product
operational dangers and the leading cause of most
accidents!
1. Kickback is the sudden backward/upward motion of the product,
occurring when the chain (at the tip of the chain bar) comes in
contact with a log or wood, or when the chain becomes jammed.
2. When kickback occurs the product reacts unpredictably and can
cause severe injuries to the operator or bystanders.
3. With a basic understanding of ‘kickback’, the element of surprise
can be reduced or eliminated. Sudden surprise contributes to the
majority of accidents.
4. You should read all the safety warnings and user instructions
carefully before attempting to operate this product.
To avoid kickback:
• Never work with a loose, widely stretched or heavily worn chain.
• Always use a low kickback chain.
• Ensure correct chain tension.
• Ensure the chain is sharpened correctly.
• Never work with the tip of the guide bar.
• Saw with the guide bar at a at angle.
• Always hold the product rmly with both hands.
OperationOperation
