Magellan 5430T-LM User manual

Magellan
®
RoadMate
®
5430T-LM, 5465T-LMB
User Manual

2
Chapter
Fundamentals

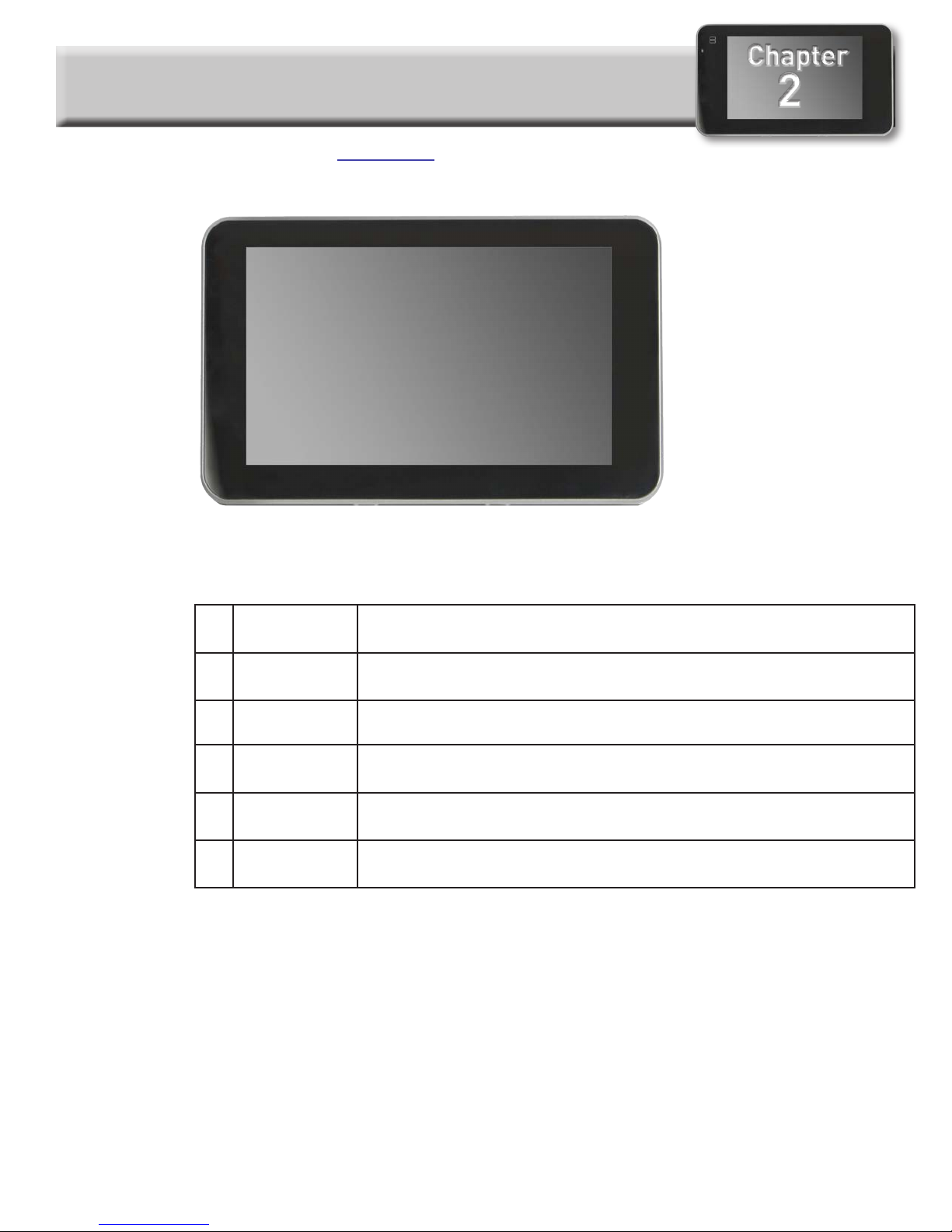

Magellan RoadMate GPS Receiver
AHome
Button
Press the Home button to return to the Map screen from any
where in the Magellan RoadMate receiver.
BPower
Button
Press and hold to turn the device on or to completely shutdown.
Press momentarily to turn the device off (in suspend mode).
CReset Use to reset the device. Clears any active route..
DmicroSD
Card Slot
(optional) Additional maps may be made available that are stored
on a microSD card.
EHeadphone
Out
Connect external headphones.
FUSB
Connector
Connect to a power source or to a personal computer.
A
B
C
E
D
F

Map Screen
The Map screen will be the screen most commonly used for driving and navigating to a destination.
The following will familiarize you with the icons and details of this screen.

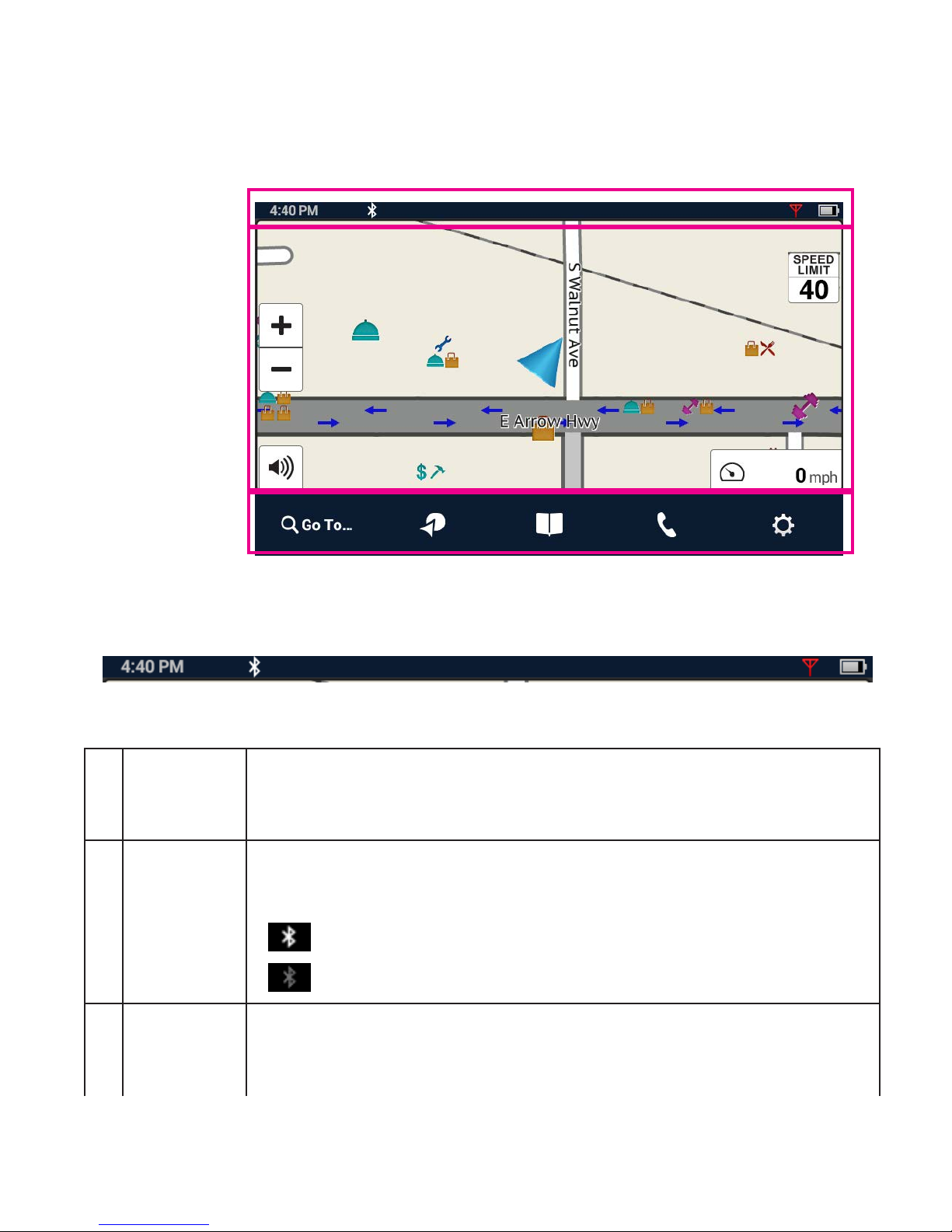

Elements of the Map Screen
Map Screen Header Bar
ATime of Day Time is transmitted from the GPS satellites using an atomic clock as
reference. The Magellan RoadMate factors in the time zone for your
location as well as daylight savings time conditions to compute the local
time displayed. There are no settings for the time displayed.
BBluetooth
Status
(5465 only)
Displays the current pairing status of the Bluetooth connection. When
paired to a phone, the Magellan RoadMate receiver can be used as a
remote interface for your phone.
Bluetooth is paired to a phone.
Bluetooth is not paired to a phone.
CTraffic Signal
Status
To receive traffic signals you must be in an area where traffic signals are
being transmitted and you must be using a Magellan-approved vehicle
power adapter. When the Magellan RoadMate receiver is turned on, it may
take a minute or more before any traffic information is displayed.
Header
Bar
Map Area
Footer
Bar
A B C D

Traffic information is being received.
No traffic information is being received.
DBattery
Status
The battery status icon indicates the current battery charging condition.
The internal battery is fully charged.
The battery is connected to an external power source
and is charging.
Map Screen Map Area
AZoom Level Tap the “+” (zoom in) or “-” (zoom out) to change the map scale.
Alternately, you can use the two finger ‘pinch or spread’ technique
commonly found in smartphones.
BVolume Tap the Volume button to reveal a slider bar for volume control. Set
the slider all the way to the bottom to mute the sound.
Speaker On. Volume set by slider bar.
Speaker Muted.
C
D
E
A
F
B

CCurrent
Location
Indicator
Displays the current location of the Magellan RoadMate receiver in
relation to the displayed map.
Tap on the Current Location Indicator to get information on your
current location.
When the indicator is Blue, GPS signals are being
received and the current location has been computed.
When the indicator is Red, GPS signals are not being
received and the current location cannot be computed.
DPOI Icons The Magellan RoadMate receiver uses various POI icons to
graphically display POIs for your surrounding area. Some of those
are pointed out in the graphic.
The POI graphic indicates the POI category.
To select which POI Icons are displayed, go to
‘Settings > Navigation & Maps > Points of Interest Visibility’.
ESpeed Limits While traveling on major roads the speed limit for the road you are
on is displayed. When you have exceeded the posted speed limit,
the speed limit icon will have a red warning halo.
The Speed Limit Warning Threshold for highways and other roads
can be set in ‘Settings > Navigation & Maps’.
Current posted speed limit.
Exceeding the posted speed limit by the threshold set in
Settings > Navigation & Maps.
FData Field Contains information about your speed, elevation, or certain other
items. See “Types of Data Available” on page 6.
Alert Icons There are two standard alerts that can be displayed on the screen
when they are present in your area, Red Light Cameras and Fixed
Speed Cameras.
Location of a red light camera.
Location of a fixed speed camera.

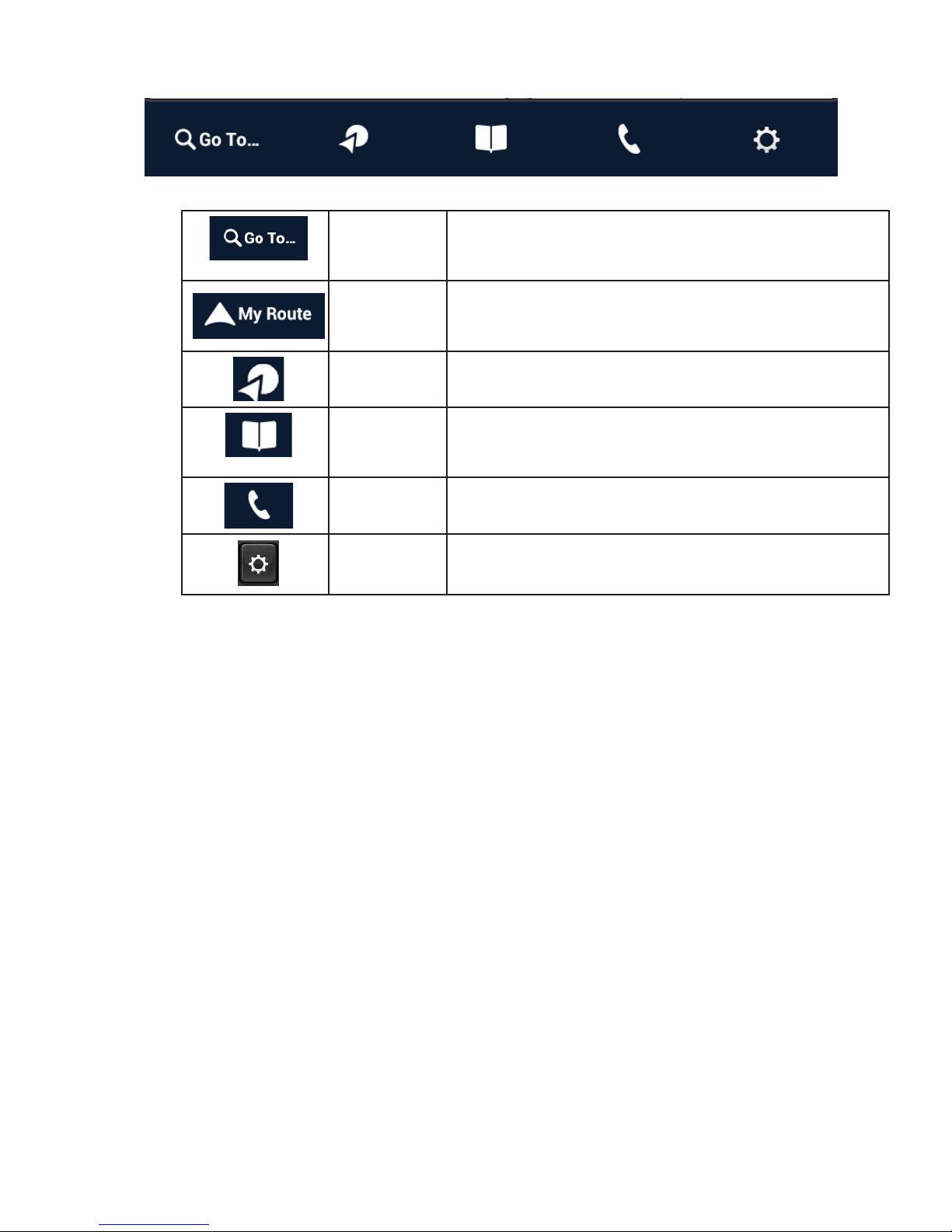

Map Screen Footer Bar
Go To... Tap to use the keyboard and search a POI
or address. Searched items can be used as a
destination or saved to the address book.
My Route While routing, it is displayed in place of GoTo. Tap
to view information about the route and for tools
to delete, pause, or revise the route.
OneTouch™Access the OneTouch menu providing easy access
to saved destinations.
Address
Book
Tap to access your address book. It contains saved
addresses, contacts, trips, and recent destinations.
You can use any or those as a destination.
Phone
(Bluetooth)
Tap to bring up phone functions and access to
Bluetooth settings. (5465 only)
Settings Tap to access setting options for the Magellan
RoadMate receiver.
Starting Up
Power On, Suspend, Power Off
Turning the Magellan RoadMate Receiver On
1. Press and hold the Power button for 2-3 seconds. The Magellan logo may not appear
until a few seconds after you release the button.
Turning the Magellan RoadMate Receiver Off (Suspend Mode)
If you suspend operation, the route and all information is held so you can quickly resume use.
1. Remove power or press and release the Power button.
A confirmation with countdown timer will appear.
Tap Cancel to continue operation, otherwise the unit will suspend operation.
2. To resume, press and release the power button.
Turning the Magellan RoadMate Receiver Off (Shutdown)
1. Press and hold the Power button for 2-3 seconds and release when the Shutting
Down message is displayed.
The receiver will power off. This clears any inputs in progress, but does not cancel an
active route.

Adjustments
Adjusting the Volume
1. Tap the Volume icon.
2. Move the Volume slider to the desired level.
Muting the Volume
1. Tap the Volume icon.
2. Move the Volume slider to the bottom of the scale.
Changing the Data Field
The data field is shown on the Map screen.
1. Tap on the data field.
2. Select the desired data type from the list displayed.
Types of Data Available
Not Routing Heading
Speed
Elevation
Routing Estimated Time of Arrival
Amount of Time Remaining to
Arrive at Destination
Total Distance Remaining
Heading
Speed
Elevation
Changing Zoom Levels
Button Method
1. Tap to zoom in or to zoom out of the map display.
Pinch / Spread Method
1. Use two fingers to “Pinch” the map area to zoom out.
2. Use two fingers to “Spread” the map area to zoom in.
On Muted

Changing the Map Style

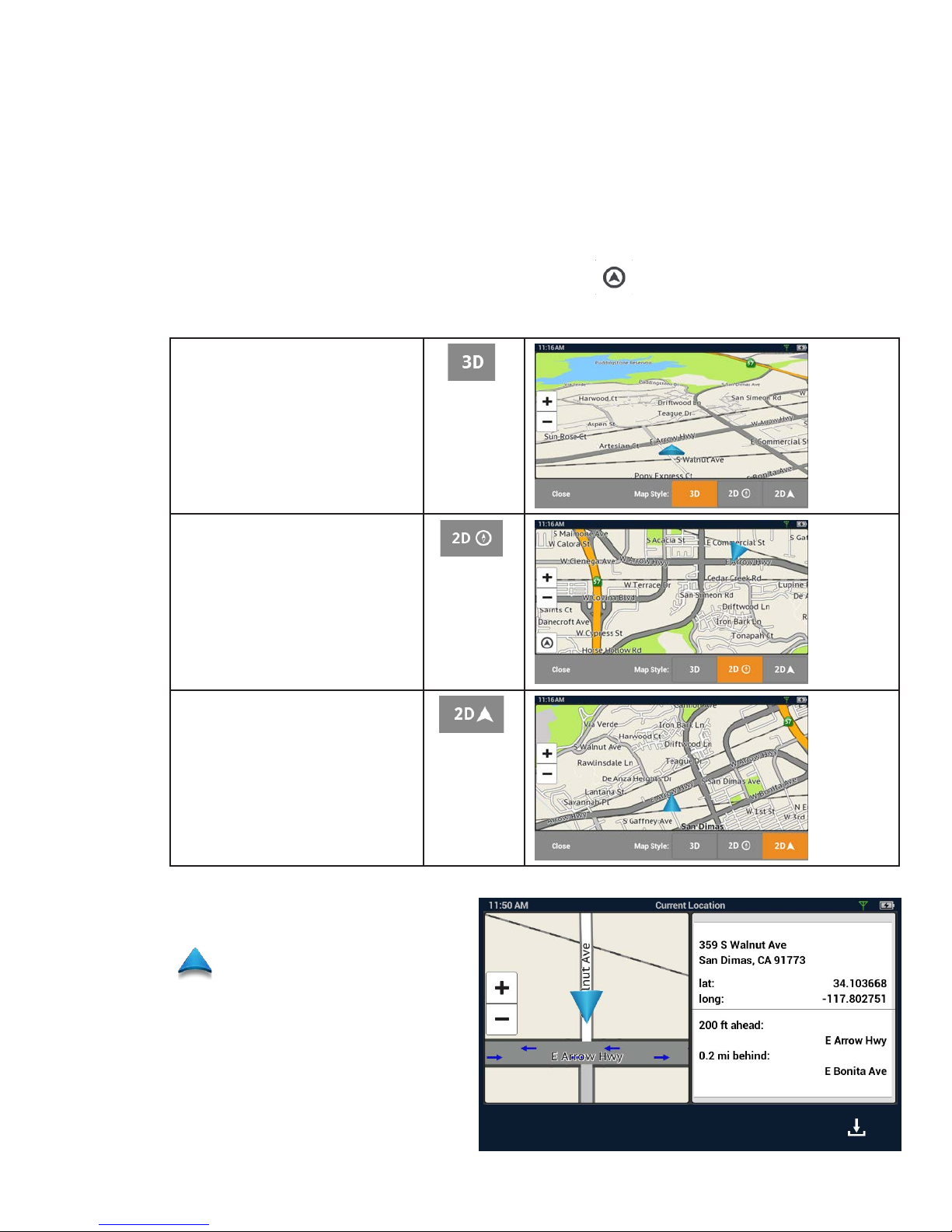

The map can be changed to be viewed in 3-dimensional, 2-dimensional - North up or
2-dimensional - heading up style.
1. Swipe the screen over the map area, and the map options footer will appear.
This also appears when you use two fingers to zoom .
2. Select the desired style from the footer bar. (The active style is shown in Orange.)
3. The map updates according to the selected style. You can pan and zoom if you like.
4. To re-center the map on your current location, tap
5. Tap Close or press the Home button to return to the usual map footer.
3-Dimensional
2-Dimensional - North Up
(Icon to re-center map
displayed in lower-left)
2-Dimensional - Heading Up
Viewing Current Location Details
1. Tap on the current location icon
.
2. The Current Location screen is
displayed.

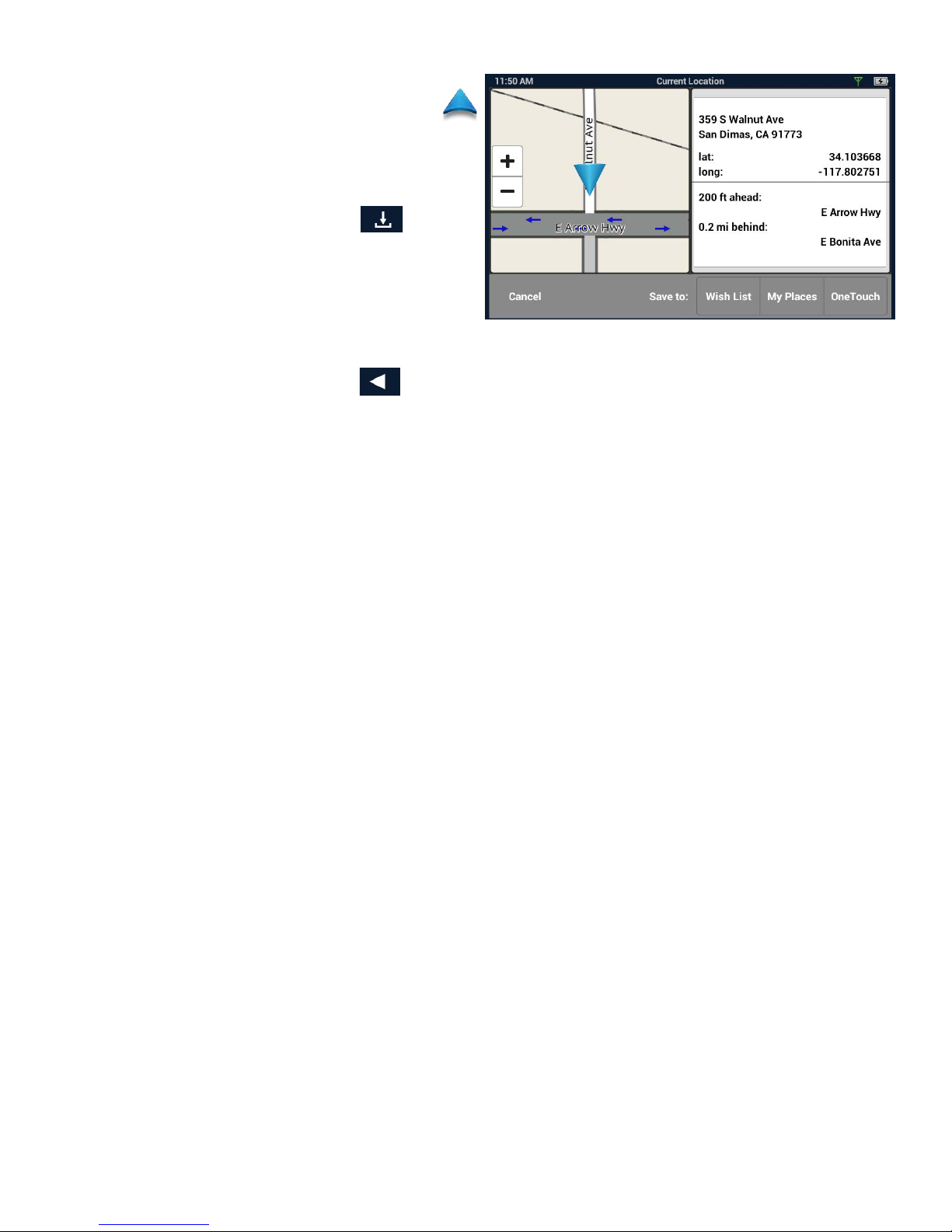

Saving Current Location
1. Tap on the current location icon
.
2. The Current Location screen is
displayed.
3. Tap on the Save icon ( ).
4. Select where to save the location
(Wish List, My Places or OneTouch).
5. Use the keyboard to enter a name
for the location.
6. Tap Save.
7. Press the back arrow ( ) or the Home button to return to the Map screen.

3
Chapter
Keyboard
Keyboard Basics

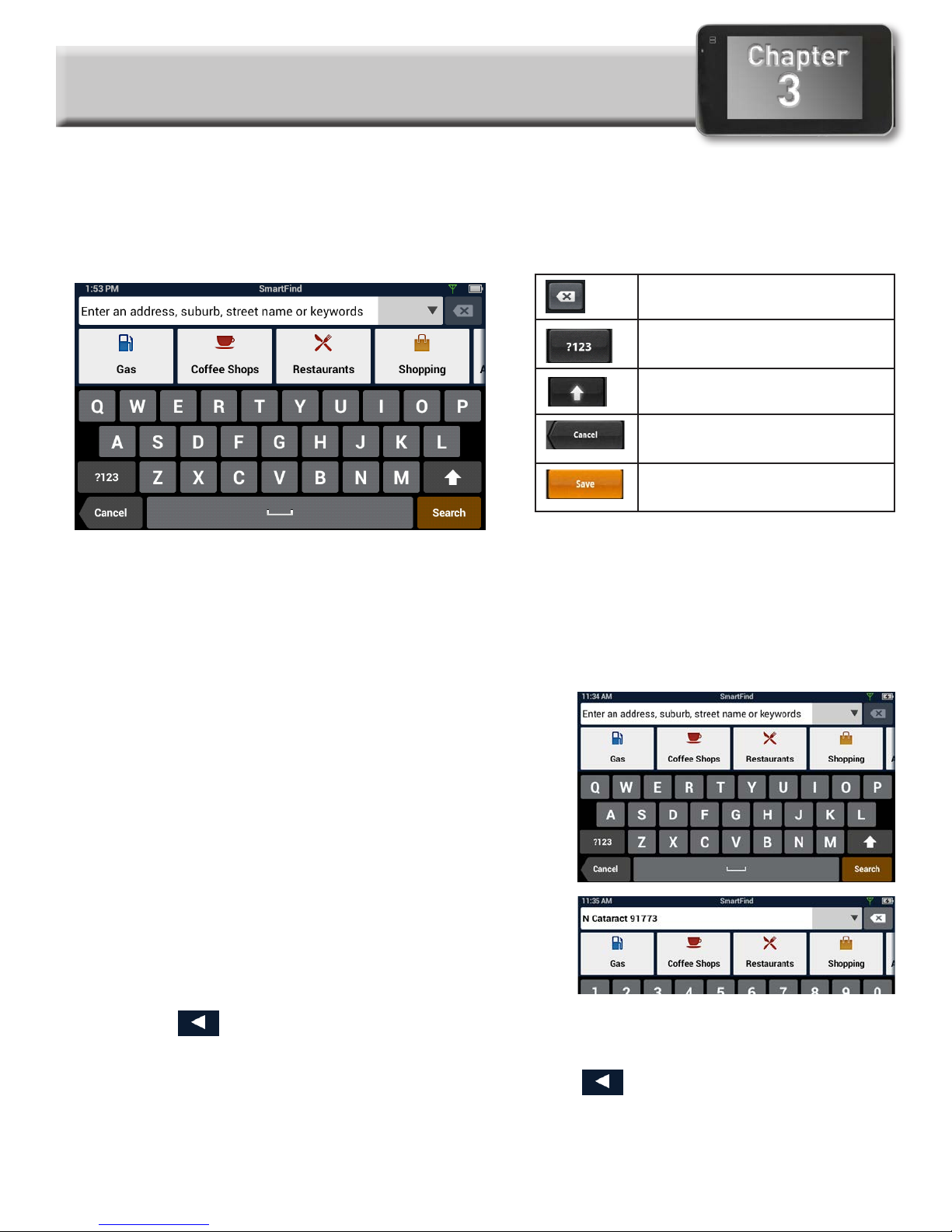

The keyboard is similar to the keyboard on a smartphone, and is designed to be easy to use.
Since there are some differences from a typical smartphone, and for those who have not used a
smartphone keyboard, the basics of the Magellan RoadMate keyboard will be explained here.
Backspace
Numeric and symbol
characters
Shift (uppercase characters
Cancel - return to the
previous page
Enter key (May be labeled
Search, Done, or Save)
The key in the lower right is used for Search, Done, Save, and Enter. Its label changes according to
the operation in progress, and will dim when it is not available to be used.
Using the Keyboard to Enter an Address
The search entry box is ready for input even when it displays its prompt. (See below.)
The RM 5430/5465 does not require seperate entry of
street and city. Instead, you can enter enough of the
address so that the search results will include the location
you want.
You can search by any combination of address, city, and
zip code.
1. Enter all or part of the address, then tap
Search.

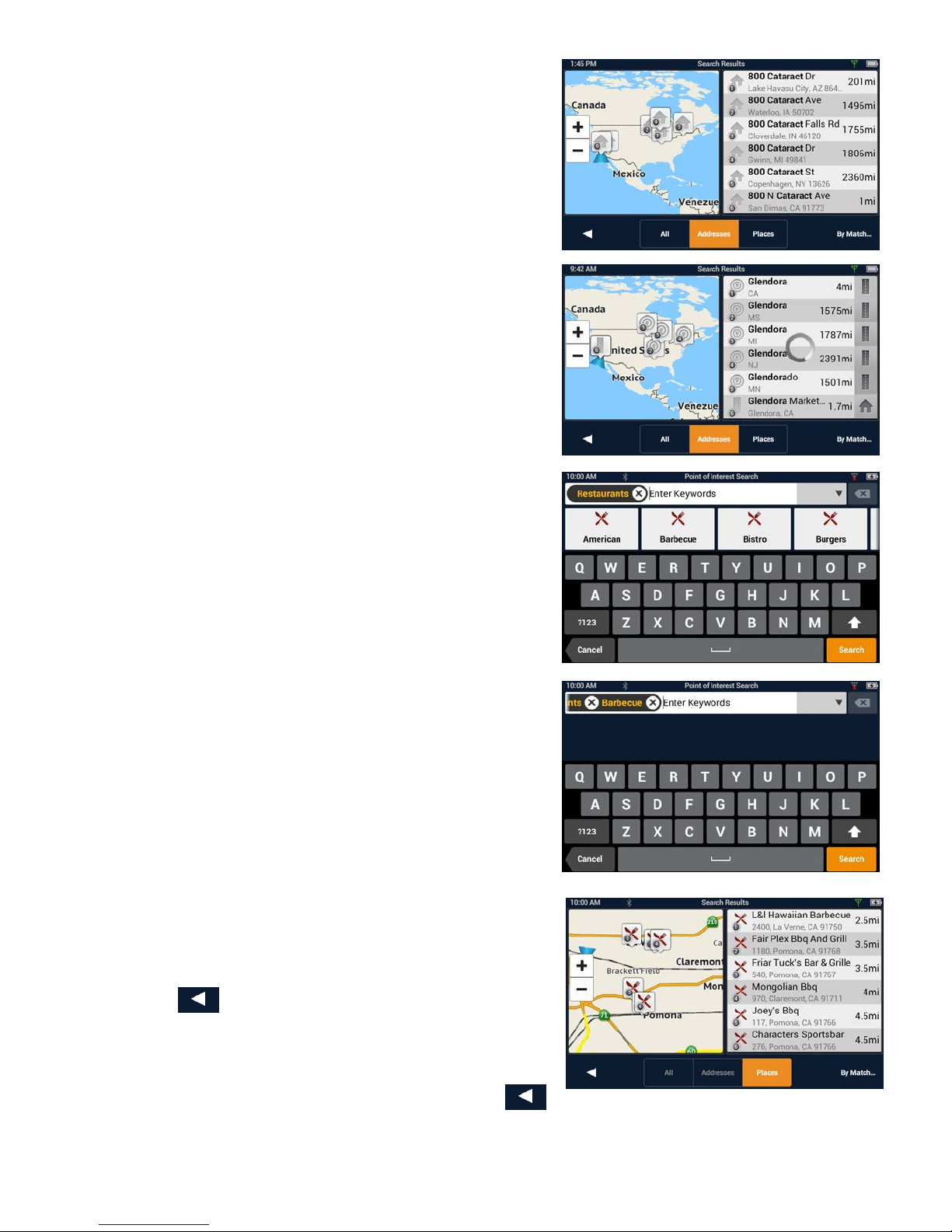

2. The search results are displayed. When you see
the location you are looking for, tap it.
3. On the Search Results page, use the buttons in
the footer bar to select Addresses, Places, or All.
4. If you don’t see the location you want, tap
to return to the search.
5. When you select an item, its address details are displayed.
6. Tap GO or Add to use the selected item, or Back ( ) to return to the results list.
When searching to create an item for the Address Book, the screen will show Add instead of
Go.

About street names:
If you can’t find a street, try including the direction,
as N, S, etc.
For example, “Cataract” will find a lot of other places
before it finds “N. Cataract”.
About City Names:
• City name is part of the address. You shouldn’t
enter it seperately, unless that’s all you want.
If you search on a city name, you will get a list of
cities with that name, likely in multiple states.
• If the city you want is listed, tap it for directions
to the City Center.
Searching for POIs
The SmartFind screen lets you search for POIs near
your location, at another location, or relative to an
active route.
The buttons above the keyboard provide easy access
to POIs in many categories. You can scroll the list
sideways with your finger to see all the categories.
You can also search for a POI by name.
Tapping on one of the category buttons will add
that category to the search input. You can select a
sub-category (if available) and add it.
With a category selected, you can search, or add
information to limit the search.
1. Tap Search to display results on the Search
Results page. A list is shown with location
icons on a map.
2. On the Search Results page, you can select
Addresses, Places, or All using the buttons
in the footer bar.
3. When you see the place or location you are
looking for, tap it.
4. If you don’t see the location you want, tap
to return to the search page.
5. When you select an item, its address details
are displayed and its location is shown on
the map.
If you want to look at another item, tap
to return to the results list.

Searching near a location
If you just tap Search, the search is centered on
your current location.
If you want to search near some other location,
tap the down arrow, and select Places near...
This shows the address entry keyboard. You can
enter a city or zip code to center the search.
Tap Done to return to the POI search screen.
For more information
See “Routing” on page 23.
See also: “Set GPS Position” on page 41.

4
Chapter
Content
Magellan RoadMate Content
There are various types of content available on the Magellan RoadMate.
Preloaded POIs
(Points of Interest)
There are approximately 7 million POIs preloaded into the
Magellan RoadMate. Any of these POIs can be selected as a
route’s destination using the “Go To...” button.
User-Entered
Contacts, Places, and
trips
The Magellan RoadMate can store user-entered addresses
(contacts or places) into the built-in address book. These
addresses can be used in the creation of routes.
Traffic Traffic alerts are updated whenever the Magellan RoadMate
is being powered using the Magellan vehicle power adapter
cable. When routing, a traffic alert may provide access to
detouring around the traffic incident.
PhantomALERT There are two types of phantomALERTs, basic and premium.
Syncing Content
As described above, most of the content available on the Magellan RoadMate is pre-loaded.
Magellan’s SmartECO website provides a way to back up your address book entries and find and
install maps and other updates.
How to Connect
1. Sign In with your Magellan Account.
2. With your Magellan RoadMate properly connected, it will appear as an icon in the
upper left of the screen.
3. Click on the device icon to view device and content status.
4. Click on the Sync Data button.
5. The button will change to “Starting sync...” and then a progress bar will be displayed
when sync begins.
Adding Content
While logged into smartgpseco you can add locations, routes, and other content. When you
connect your compatible RoadMate receiver, content will be synchronized between the website
and the receiver. Note: The 5430 and 5465 are compatible with smartgpseco, but not all
Magellan RoadMate receivers are compatible.
Adding Content at the Device
Your content includes all of the items you save into your Address Book. This includes your saved
places, contacts, and routes.
• For adding and editing items in the Address Book, see “My Places” on page 15

Adding Content Through SmartGPS Eco
1. Launch your browser on your PC.
2. Access SmartGPS Eco.
3. Sign In with your Magellan Account.
4. Add places, contacts and trips using the Create New button in Magellan Content
Manager.
5. The next time your Magellan RoadMate performs a sync, the changes made in
Magellan Content Manager will be updated on your Magellan RoadMate.
PhantomALERTS
PhantomALERTS provide warnings of enforcement and safety locations. Alerts for traffic cameras
and speed cameras are standard. Premium alerts include speed traps, highway alerts and more.
Premium PhantomALERTS are available for purchase on Magellan’s web store.
You can select how the PhantomALERTS will be presented. You can turn the visiblity of the alert
on the map on or off as well as turning the audible alert on or off.
Customizing the Alerts
1. From the Map screen press .
2. Tap Navigation & Maps.
3. Tap PhantomALERT.
4. Tap on the alert to be modified.
5. Turn the visibilty of the alert on or off.
Turn the audible alert on or off.
Points of Interest Visibility
This option provides a way to select which POI categories are displayed on the map.
Setting POI Visibility on Map
1. From the Map screen press .
2. Tap Navigation & Maps.
3. Tap Points of Interest Visibility.
4. Tap each item to select/deselect it.
If an item shows a checkmark, that type of POI will be displayed on the map screen.
5. If you want all or most all POIs displayed, you can tap Check All.

5
Chapter
My Places
My Places
My Places can be best described as the place where all of the saved destinations and routes are
stored. There are four separate sections to My Places, each one with its own distinct purpose.
Address Book The Address Book stores contacts, places and trips that you
have saved. These can be used as destinations in a route or
accessed using Bluetooth to place a call.
Wish List The Wish List are those places you found interesting and
thought that you might want to go to at some point.
Recent Anytime you create a route, the destination is saved into your
Recent places list. Handy for when you want to create a route
to some place you recently went to.
OneTouch OneTouch is a customizable menu to hold destinations that
you regularly use.
Address Book
The Address Book can hold places, contacts and trips. These are all user-entered and can easily be
accessed at any time to create a route.
Places Each place stores an address and has a name. Once stored,
the name can be edited but the address can’t.
Places is designed to hold locations that you commonly go
to or need to reference while driving. This could be anything
from your local Starbucks to a historical landmark. Think of
places as your own personalized POIs (points of interest).
Contacts Each contact has a name and stores places and numbers.
Contacts can be people, businesses, or any other thing that
needs to have more than one piece of information attached,
Each contact can have one or more addresses and can also
have one or more phone numbers. These might be home
address, home number, work address, work number, etc.
Trips Trips contain one or several places as a route.
You can create a trip (route) one in advance or save a route
while it is active. When you save a route, it includes the end
point and any intermediate points.

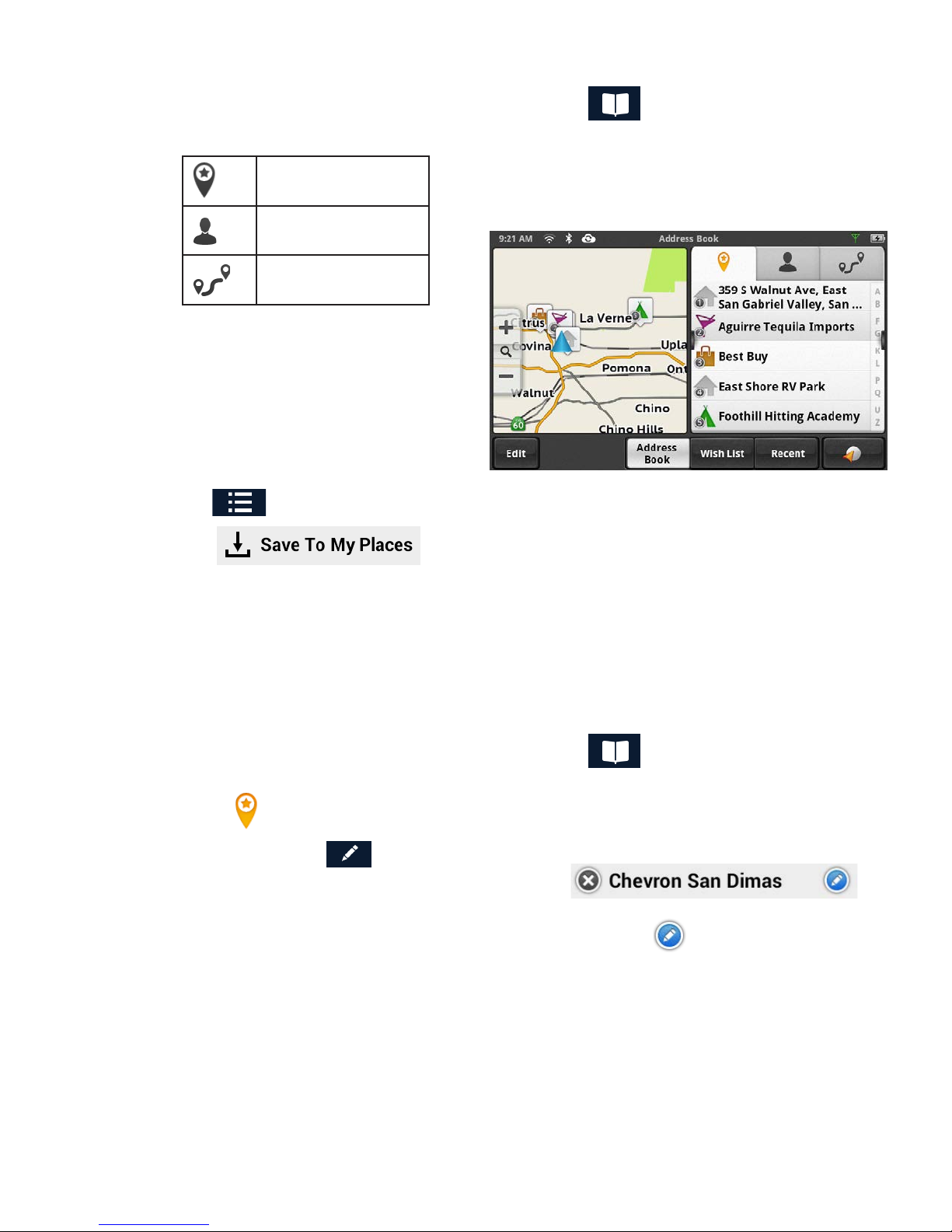

Accessing the Address Book
1. From the Map screen, tap the Address Book icon ( ).
Three tabs are available, as below:
Places tab
Contacts Tab
Trips Tab
Adding a Place to the Address Book
1. From the Map screen, tap GoTo...
2. You can select a POI or search an
address, as appropriate.
3. Select the the POI or address (see
Using the Keyboard ) to add.
4. Tap .
5. Tap .
6. Enter a name for the place or accept the default name displayed.
7. Tap Save.
8. Tap Done to finish editing.
Editing a Place Name in the Address Book
Only the descriptive name for a place can be edited.
1. From the Map screen, tap the Address Book icon ( ).
2. Make sure that you are in the Places tab of the Address Book. The Place icon will be
yellow .
3. Tap the Edit icon ( ). The place names then displays the item edit and item delete
icons: .
4. Tap on the item edit icon to the right of the place name. ( )
5. Use the keyboard to modify the name of the place.
6. When done, tap Save.
7. Tap Done to finish editing.

Deleting a Place from the Address Book
1. From the Map screen, tap the Address Book icon ( ).
2. Make sure that you are in the Places tab of the Address Book. The Place icon will be
yellow .
3. Tap the Edit icon ( ).
4. Tap the item delete icon for the place to be deleted.
5. Confirm the deletion.
6. Tap Done to finish editing.
Adding a Contact to the Address Book
1. From the Map screen, tap the Address Book icon ( ).
2. Tap the Contacts tab icon .
3. Tap the Edit icon ( ).
4. Tap the “item add” icon .
5. Enter the address (see Using the
Keyboard ) to be added.
6. When the address has been entered,
tap Add.
7. Enter a contact name, or edit/accept the
suggested name.
8. Tap Save.
9. Tap Done to finish editing.
Editing a Contact Name
The descriptive name for a contact can be edited here: To edit contact details, see the
instructions following these.
1. From the Map screen, tap the Address Book icon ( ).
2. Tap the Contacts tab icon .
3. Tap the Edit icon ( ).
4. Tap on the appropriate Edit icon.
5. Use the keyboard to modify the name of the contact.
6. When done, tap Save.
7. Tap Done to finish editing.

Editing Contact information
You can add, rename, or delete any phone number or place belonging to a contact.
In addition, you can edit any phone number for a contact. To do any of these operations, you
start by selecting the contact:
Selecting a contact to edit it
1. From the Map screen, tap the Address Book icon ( ).
2. Tap the Contacts tab icon .
3. Select the contact to edit by tapping it.
4. The contact details will be listed - Tap the Edit icon ( ).
Editing the name of a contact place:
1. Once you tap the Edit icon ( ), the Item Delete and Item Edit icons are displayed
on each contact place or number.
2. Tap the Item Edit icon on the detail to edit.
3. The keyboard is displayed so you can edit the display name.
4. Tap Save to return to the Contact Edit page.
5. Tap Done when finished editing.
Editing a contact number:
1. Once you tap the Edit icon ( ), the Item Delete and Item Edit icons are displayed
on each contact place or number.
2. Tap the Item Edit icon on the number to edit.
3. The numeric keyboard is displayed so you can edit the number.
4. Tap Done and the keyboard is displayed so you can edit the display name.
5. Tap Save to save changes and return to the Contact Edit page.
6. Tap Done when finished editing.
Adding a contact phone number:
1. Once you tap the Edit icon ( ), the Item Delete and Item Edit icons are displayed
on each contact place or number.
2. At the bottom header, the buttons + Address and + Phone are displayed.
3. Tap the + Phone button.
4. The numeric keyboard is displayed so you can input the number.
5. Tap Done and the keyboard is displayed so you can input the display name.
6. Tap Save to save changes and return to the Contact Edit page.
7. Tap Done when finished editing.

Adding a contact place:
1. Once you tap the Edit icon ( ), the Item Delete and Item Edit icons are displayed
on each contact place or number.
2. At the bottom header, the buttons + Address and + Phone are displayed.
3. Tap the + Address button.
4. The full keyboard with POIs is displayed.
5. Locate the place to add. The full address/POI search is avaialble.
6. Tap Done and the keyboard is displayed so you can edit the display name.
7. Tap Save to save changes and return to
the Contact Edit page.
8. Tap Done when finished editing.
Deleting a Contact in the Address Book
This is to delete the entire contact. If you
just want to remove or change details of the
contact, see the instructions previous.
1. From the Map screen, tap the Address
Book icon ( ).
2. Tap the Contacts tab icon .
3. Tap the Edit icon ( ).
4. Tap the delete icon for the contact to be deleted.
5. Confirm the deletion.
6. Tap Done to finish editing.
Adding a Trip to the Address Book
1. From the Map screen, tap the Address Book icon ( ).
2. Tap the Trip tab icon .
3. Tap the Edit icon ( ).
4. Tap the button to add a new trip.
5. Create a trip (see Routes ) to be added.
6. When the trip has been entered, tap Save.
7. Enter a name for the trip.
8. Tap Save.
9. Tap Done to finish editing.

Editing the Trip’s Name in the Address Book
Only the descriptive name for a contact can be
edited.
1. From the Map screen, tap the Address
Book icon ( ).
2. Tap the Trip tab icon .
3. Tap the Edit icon ( ).
4. Tap on the appropriate Item Edit icon.
5. Use the keyboard to modify the name of the trip.
6. When done, tap Save.
7. Tap Done to finish editing.
Deleting a Trip in the Address Book
1. From the Map screen, tap the Address Book icon ( ).
2. Tap the Trip tab icon .
3. Tap the Edit icon ( ).
4. Tap the delete icon for the trip to be deleted.
5. Confirm the deletion.
Wish List
Accessing the Wish List
1. From the Map screen, tap the Address Book icon ( ).
2. Tap Wish List.
Deleting a Location from the Wish List
1. From the Map screen, tap the Address Book icon ( ).
2. Tap Wish List.
3. Tap the delete icon .for the location to be deleted or tap Clear All to delete all the
locations in the Wish List.
4. Tap Done to finish editing.
