en 3
Magellan®ToughCase™
Instruction Booklet
Rugged and
Waterproof to IPX-7
standards.
Internal Battery
charges your
iPhone® or iPod
touch®.
Built-in GPS receiver
enhances the GPS
reception for your
iPhone and enables
the iPod touch to
use applications that
require GPS signals.
Made for:
iPhone 3GS, iPhone 3G, iPod touch (3rd
generation), and iPod touch (2nd
generation)
Specifications:
Waterproof: IPX-7
GPS: SiRFStar III
Antenna: Multidirectional Patch
Battery: Integrated, non-replaceable
Connectivity: Mini-USB
Headphone

4 en

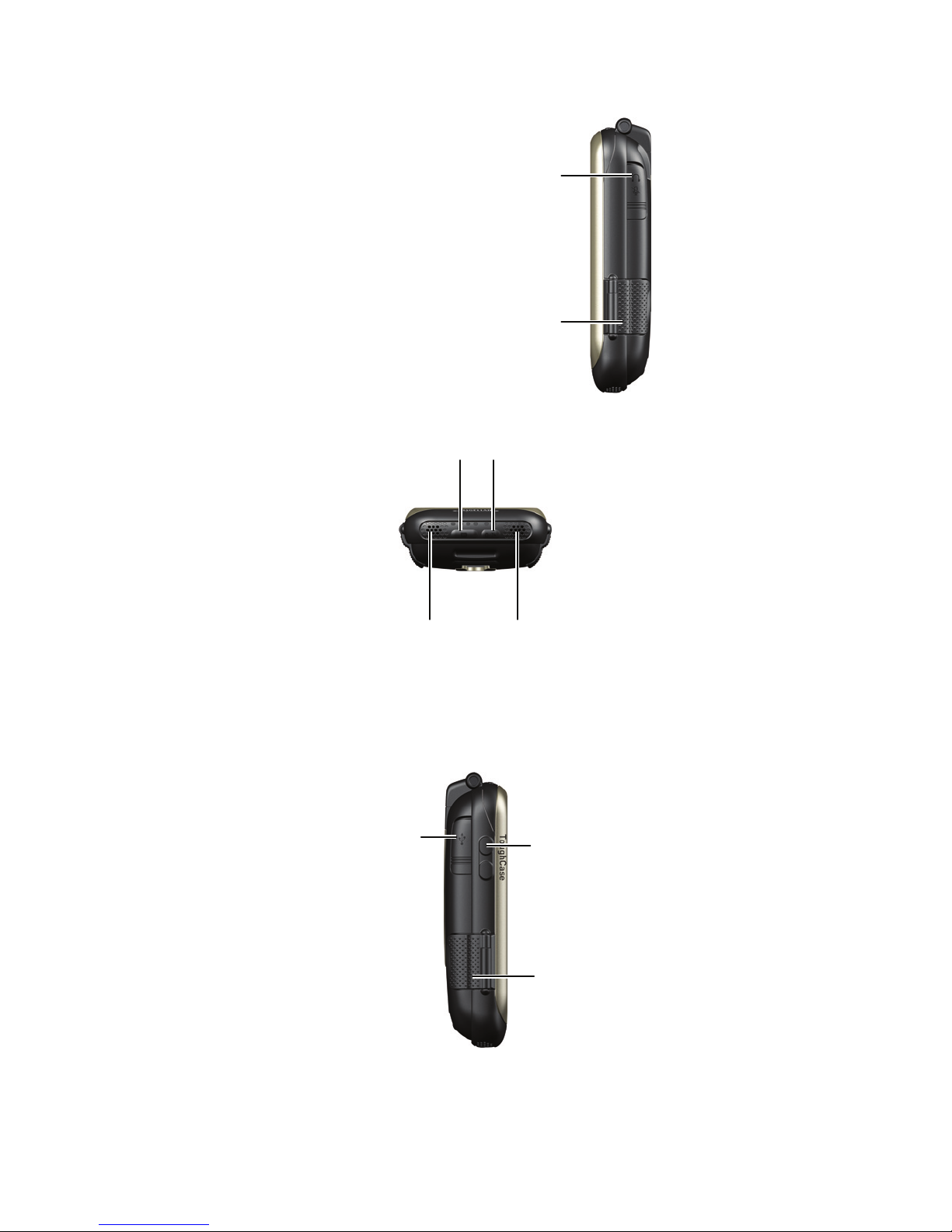

The speaker and microphone openings
provide access to the speaker and
microphone of the installed iPhone.
Headphones
Lift the flap to reveal the 3.5mm
headphone connector. Note:
headphones with an inline
microphone, the microphone will not
work.
Locking Flap
Lift the locking flap on both sides to
open the ToughCase GPS receiver.
ModeBattery Level
MicrophoneSpeaker
USB Connector
Lift the flap to
reveal the USB
connector used to
charge the
ToughCase GPS
receiver or sync
your iPhone or iPod
touch with iTunes.
Volume Control
Locking Flap
Lift the locking flap
on both sides to
open the
ToughCase GPS
receiver.

en 5
Installing Your iPhone or iPod touch
Caution: Avoid touching the o-ring that is
installed in the lid of the ToughCase GPS
receiver. Tampering can shorten the life of
the o-ring which will impact the water tight
seal.
Lift the locking flaps on both sides of the
ToughCase GPS receiver and pivot the lid
upwards. The Master Power switch (upper left
side) is accessible when the lid is open. Switch
it to ON.
Connect your iPhone to the dock connector.
If using an iPod touch, you need to place your
iPod touch into the Sleeve (supplied) and
then connect the assembly to the dock
connector.
Close the lid and hold the lid shut while
snapping the locking flaps until you hear a
‘click.’
Note for iPod touch Users: Before using your
iPod touch in the ToughCase GPS receiver
you should turn off Auto-Brightness. On your
iPod touch select Settings > Brightness and
turn off the Auto-Brightness feature.
Turning the ToughCase GPS Receiver
Off
The ToughCase GPS receiver can be turned
off to prevent unnecessary battery drain
while being stored or during travel.
Release the Locking Flaps and open the
ToughCase GPS receiver. Remove your
iPhone or iPod touch from the ToughCase
GPS receiver. This reveals the Master Power
switch. Slide it to OFF to keep battery charge.

6 en
Setting the ToughCase Power Mode
The ToughCase GPS receiver has four power
modes available; OFF/ON (described above),
idle, battery only, or battery+GPS.
Pressing the Mode button (on the bottom of
the ToughCase GPS receiver) causes the LEDs
to display the current mode the ToughCase
GPS receiver is in. To change the mode you
need to press the Mode switch again before
the LEDs go out. (When powering on, all
lights flash momentarily.)
Mode - LED Indicators
Battery Only
Battery and GPS
Powering Down
Charging the ToughCase GPS
Receiver
To charge the ToughCase GPS receiver,
simply connect the USB cable from the
ToughCase to your IBM-compatible or
Macintosh computer. Alternatively, you can
charge the ToughCase with an AC adapter
(like the one supplied with your iPhone).
ToughCase Battery Life
When your iPhone or iPod touch is installed
in the ToughCase GPS receiver and the power
mode is set to Battery only or Battery+GPS,
the battery in the ToughCase GPS receiver
will charge your iPhone or iPod touch.
The ToughCase GPS receiver charges when it
is connected to a PC with the USB cable
(supplied) or a USB power adapter.

en 7
The ToughCase GPS receiver and your iPhone
or your iPod touch are both charged when
Master Power switch is on, a USB cable or
USB power adapter is connected and the
power mode is set to Battery Only or
Battery+GPS.
ToughCase Battery Status. The four
LEDs at the bottom of the ToughCase GPS
receiver display the battery charge when the
battery button (below the LEDs) is pressed.

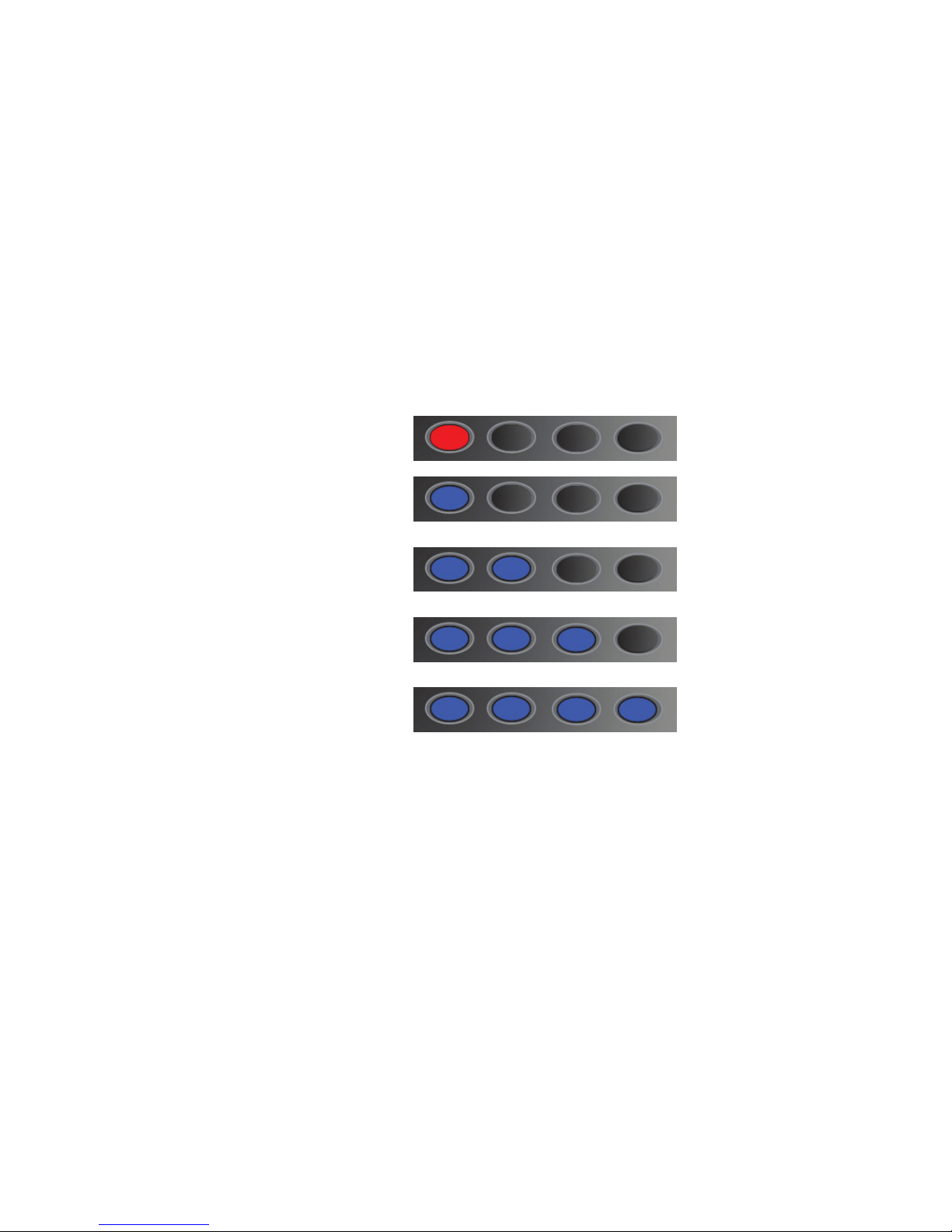

Battery Charge - LED Indicators
<10%
Charge
10 - 24%
Charge
25 - 49%
Charge
50 - 74%
Charge
75 - 100%
Charge
Using the ToughCase with Your
iPhone
The ToughCase GPS receiver has an earphone
opening just above the display lens and a
microphone opening at the bottom. To use
your iPhone as a cell phone while it is
installed in the ToughCase GPS receiver, just
hold the top of the ToughCase GPS receiver
to your ear and speak normally.

8 en
Some headsets and headphones have an
inline microphone. These can be used with
the ToughCase GPS receiver to listen to the
output of your iPhone or iPod touch but
cannot be used as the microphone. You have
to use the microphone opening at the bottom
of the ToughCase GPS receiver.
Turning your iPhone or iPod touch On
The power buttons for your iPhone or iPod
touch are located at the top of the
ToughCase GPS receiver in their normal
orientation. To power your iPhone, click the
button on the right or click the button on the
left to power your iPod touch.
Camera Use
You can use your iPhone to take photos while
installed in the ToughCase GPS receiver.
There is a clear lens on the back of the
ToughCase GPS receiver that enables your
iPhone camera to function as normal.
Maintenance
Use a soft, damp cloth to clean the exterior
and display lens of the ToughCase GPS
receiver.
Check the seal on the lid of the ToughCase
GPS receiver before closing to make sure no
foreign objects are caught in the seal that
could interfere with the waterproof integrity
of the ToughCase GPS receiver. Check the
o-ring that seals the lid to the body of the
ToughCase GPS receiver at regular intervals.
If it is damaged go to ‘Support’ at
www.magellangps.com.

en 9
Safety
The ToughCase GPS receiver protects your
iPhone or iPod touch from water as it is
sealed to IPX-7 standards. The temperature
inside the ToughCase GPS receiver can go up
to levels that can cause your iPhone or iPod
touch to turn off when it is left in direct
sunlight for long periods of time. You should
avoid leaving the ToughCase GPS receiver in
environments that could raise the internal
temperature to unsafe levels such as on the
dash or seat of your car in direct sunlight.
“Made for iPod,” and “Made for iPhone,”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance
with safety and regulatory standards.
Declaration of Conformity
For regulatory identification purposes, ToughCase is
assigned a model number of N280.
Hereby, Magellan declares that this N280 is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Visit Magellan website (www.magellangps.com) for
the full text of the declaration for your device.
This product must not be disposed of as normal
household waste, in accordance with the EU directive
for waste electrical and electronic equipment
(WEEE – 2002/96/EC). Instead, it should be disposed
of by returning it to the point of sale, or to a
municipal recycling collection point.
