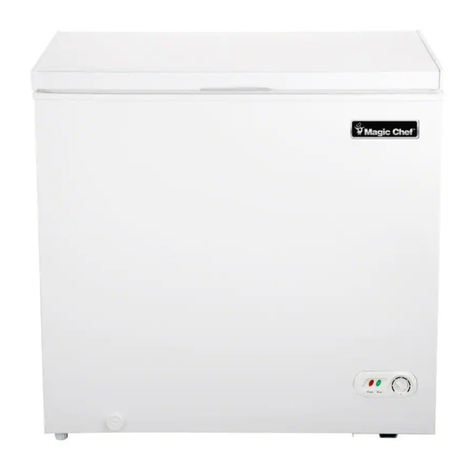

Magic Chef HMCF5W2 User manual

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING
YOUR CHEST FREEZER AND KEEP IT FOR FUTURE REFERENCE.
Model HMCF5W2
5.2 Cu. Ft.
Chest Freezer
User's Manual

Product Registration
Thank you for purchasing a Magic Chef product. The first step to protect your new product is to complete the product registration on our
website: www.mcappliance.com/register. The benefits of registering your product include the following:
1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.
Once again, thank you for purchasing a Magic Chef product.

IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury
follow these basic precautions when using your
refrigerator.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING----Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING----Do not damage the refrigerant tubing to increase the risk of a leak when
handle, move and use of refrigerator.
WARNING----Do not use electrical appliances inside the food storage compartments of
the appliances, unless they are of the type recommended by the manufacturer.
WARNING----DANGER: Never allow children to play with, operate, or crawl inside the
refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.
The appliance has to be unplugged before carrying out user maintenance on the appli-
ance.
This appliance can be used by children age 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children should not play with the appliance. Cleaning
and maintenance should not be made by children without supervision.
If the component part is damaged, it must be replaced by the manufacturer, its service
agent or similar qualified persons in order to avoid a hazard.
Please abandon the refrigerator according to local regulations as the unit contains flam
mable blowing gas and refrigerant.
Follow local regulations regarding disposal of the appliance due to flammable refrigerant
and blowing gas. All refrigeration products contain refrigerants, which under the guidelines
of federal law must be removed before disposal. It is the consumer's responsibility to
comply with federal and local regulations when disposing of this product.
This appliance is intended to be used in household and similar environments; such as:
• sta kitchen areas in shops, o ces and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity
of refrigerator.
CAUTION: Do not use an extension cord with this appliance. If the power cord is too short,
have a qualified electrician install an outlet near the appliance. Use of an extension can
negatively a ect the unit”s performance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED
SERVICE PERSONNELTO CARRY OUT SERVICES OR REPAIRS
INVOLVING THE REMOVALOF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.

1
TABLE OF CONTENTS
NAMES OF THE PARTS……………………………………………………… 2
SPECIFICATIONS……………………………………………………………… 3
IMPORTANT SAFETY INSTRUCTIONS…………………………………… 4
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR FREEZER…………………………………. 4
INSTALLING YOUR FREEZER ……………………………………… 4 - 5
ELECTRICAL CONNECTION………………………………………… 5
OPERATING YOUR FREEZER
TEMPERATURE CONTROL………………………………………….. 6
DEFROSTING YOUR FREEZER………………………………….….. 6 - 7
THE FREEZER COMPARTMENT…………………………….……… 7
CARE AND MAINTENANCE
CLEANING YOUR FREEZER………………………………………… 8
VACATION TIME………………………………………………………. 8
MOVING YOUR FREEZER…………………………………………… 8
ENERGY SAVING TIPS………………………………………………. 8
TROUBLESHOOTING GUIDE………………………………………………. 9 - 10
CHEST FREEZER WARRANTY……………………………………………… 11

2
NAMES OF THE PARTS
. HMCF5W2ONLEDOM
WARNING : Never touch the interior of the Freezer Chamber or frozen foods in the
compartment with wet hands as this could result in frost bite.
1. Temperature Control Adjustment
2. Vinyl Coated Wire Basket
3. Exterior Drain Plug
4. Power on Indicator (red)
5. Compressor on Indicator (green)
1
3
2
45

3
SPECIFICATIONS - MODEL # HMCF5W2
Product Description
Magic Chef Chest Freezer
Model No.
Capacity
5.2 Cu. Ft.
Unit Dimensions
( inches)
Width Height Depth
29.3
HMCF5W2
”32.6” 22.0”
Net Weight (lbs) 69.4 (lbs)

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electrical shock,
or injury when using your freezer, follow
these basic precautions:
Read all instructions before using the freezer.
DANGER or WARNING: Risk of child entrapment.
To avoid the possibility of child entrapment, please take the following precautions:
Remove the freezer top and DO NOT remove the internal basket.
Before you throw away your old freezer: Take off the top. Leave the basket in
place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the freezer.
Refrigerants: All refrigeration products contain refrigerants, which under the
guidelines of federal law must be removed before disposal of product. It is the
consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
Never clean freezer parts with flammable fluids. The fumes can create a fire hazard
or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other freezer. The fumes can create a fire hazard or an explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Freezer
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
1 Storage Basket
1 Instruction Manual
Before connecting the freezer to the power source, let it stand upright for approximately 4 hours.
This will reduce the possibility of a malfunction in the cooling system from improper handling
during transportation.
Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 8)
Installing Your Freezer
This appliance is designed to be free standing only and should not be recessed or built-in.
Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
Allow 5 inches of space between the back and sides of the freezer, which allows the proper air
ventilation. Adjust the feet to keep the freezer level.
Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the
performance of this appliance. This unit is not designed for use in a garage or any other
outside installation.
Avoid locating the freezer in moist areas.

5
Plug the freezer into dedicated, properly installed-grounded wall outlet. Do not, under any
circumstances, cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center. This unit is not designed to be installed in an RV or used with an
inverter.
After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool for 2~3
hours before placing food in the freezer compartment.
Electrical Connection
This freezer should be properly grounded for your safety. The power cord for this freezer is equipped
with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility
of electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
This freezer requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with three-prong ground.
This freezer is not designed to be used with an inverter.
The cord should be secured behind the freezer and not left exposed or dangling to prevent accidental
injury.
Never unplug the freezer by pulling the power cord. Always grip the plug firmly and pull straight out
from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively affect the performance of the unit.
The “Power” light ( RED ) indicates that the freezer is properly connected to an electrical source.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By
Trained Service Personnel. Do Not Puncture Refrigerant Tubing
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must
be Followed
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or
Local Regulations. Flammable Refrigerant Used
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used

6
OPERATING YOUR FREEZER
Temperature Control
NOTE:
If the unit is unplugged or loses power, you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the freezer will not start.
Large amounts of food will lower the cooling efficiency of the appliance.
If you choose to change the thermostat setting, adjust thermostat control by one
numerical increment at a time. Allow several hours for temperature to stabilize between
adjustments.
Defrosting Your Freezer
When? For the most efficient operation and minimum energy consumption, defrost the freezer
when the frost on the freezer walls is excessive or to inch thick (approximately every 3
months).
Choose a time when the stock of frozen food is low.
CAUTION
Do not use boiling water because it may damage the plastic parts. In addition, never
use a sharp or metallic instrument to remove frost as it may damage the cooling coils
and will void the warranty.
Remove the frozen food from the freezer and place it in a cooler to protect the food.
During defrosting, the ice melts into the cabinet.
Place a shallow pan outside drain outlet. The defrost water will drain out.
Check the pan occasionally so the water does not overflow.

7
HELPFUL HINT:
Defrosting usually takes a few hours. Leaving the door open will help speed the
process. Also, pouring warm water (not boiling) on the ice/frost will help speed
melting.
WARNING
Scraping ice from the freezer compartment can damage the unit.
The Freezer Compartment
This compartment is designed for the long-term storage of frozen food. Storage time period is up
to three months.
The storage life of frozen foods varies and the recommended storage time should not be
exceeded. The instructions regarding the care of frozen foods should be followed when
defrosting the freezer.
Pre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturers’ instructions.
Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
on the packet, carefully follow these instructions regarding storage times.
The freezer lid is susceptible to breaking due to excessive ice build up. Be sure to defrost when
the ice reaches to inch thick.
A storage basket is provided for the organization of odd-shaped items. To reach other packages
in the freezer just slide the basket to one side or lift it out.
C
Plug the unit in and wait for the “Power” light to be lit (red light on).
lean the interior of the freezer.
Replace the plug on the inside floor.
Adjust the temperature control knob to “7”.
Allow the cabinet to cool for one hour.
Return food to the freezer.
Adjust the temperature control knob to set the freezer to preferred temperature.

8
CARE AND MAINTENANCE
Cleaning Your Freezer
Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
Unplug the freezer; remove the food and storage basket.
Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution.
The solution should be about 2tablespoons of baking soda to a quart of water.
Wash the storage basket with a mild detergent solution.
Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
The outside of the freezer should be cleaned with mild detergent and warm water.
Dry the inner parts of the cabinet and exterior with a soft cloth.
It is recommended that the unit be cleaned each time it is defrosted to help keep the unit odor free
and running efficiently.
Vacation Time
Short vacations: Leave the freezer operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all food and unplug
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary or have the door removed.
Moving Your Freezer
Unplug the freezer.
Remove all the food.
Securely tape down all loose items inside yourfreezer.
Tape the doors shut.
Be sure the freezer stays in the upright position during transportation.
Energy Saving Tips
The freezer should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer
forces the compressor to run longer. Foodsthat freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This
cuts down on frost build-up inside the freezer.
Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling.Liners
interfere with cold air circulation, making the freezer less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.

9
TROUBLESHOOTING GUIDE
You can solve many common freezer problems easily, saving you the cost of a possible service call.
Try the suggestions below to see if you can solve the problem before calling for service.
PROBLEM
POSSIBLE CAUSE
Freezer does not operate.
Not plugged in.
The circuit breaker tripped or a blown fuse.
Compressor turns on and off frequently.
The room temperature is hotter than normal.
A large amount of food has been added to the
freezer.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The freezer does not have the correct
clearances.
The freezer has recently been disconnected for a
period of time. 4 hours are required for the
freezer to cool down completely.
Temperature inside the freezer is too warm.
Temperature control is set too warm. Turn the
control to a cooler setting and allow several hours
for the temperature to stabilize.
Door is kept open too long or is opened too
frequently. Warm air enters the freezer every
time the door is opened. Open the door less
often.
The door is not closed completely.
The door gasket does not seal properly.
A large amount of warm or hot food might have
been stored recently. Wait until the freezer has
had a chance to reach its selected temperature.
The freezer has recently been disconnected for a
period of time. 4 hours are required for the
freezer to cool down completely.
Temperature inside the freezer is too cold.
Temperature control is set too cold. Turn the
control to a warmer setting and allow several
hours for the temperature to stabilize.
Temperature of external freezer surface is warm.
The exterior freezer walls can be as much as
30F warmer than room temperature. This is
normal while the compressor works to transfer
heat from inside the freezer cabinet.
Popping or cracking sound when compressor
comes on.
Metal parts undergo expansion and contraction,
as in hot water pipes. This is normal. Sound will
level off or disappear as freezer continues to run.
Bubbling or gurgling sound, like water boiling.
Refrigerant (used to cool freezer) is circulating
throughout the system. This is normal.
Vibrations.
Check to assure that the freezer is on a level
surface.
Floor is uneven or weak. Freezer rocks on the
floor when it is moved slightly. Be sure floor can
adequately support freezer. Level the freezer by
putting wood or metal shims under part of the
freezer.
The freezer is touching the wall. Re-level the
freezer and move it from the wall.

10
See “Installation Instructions”.
Moisture forms on inside freezer walls.
Weather is hot and humid, which increases
internal rate of frost build-up. This is normal.
Door is slightly open.
Door is kept open too long, or is opened too
frequently. Open the door less often.
The door is not sealed properly.
Moisture forms on outside of freezer.
Door is slightly open, causing cold air from inside
the freezer to meet warm moist air from outside.
The door will not close properly.
The freezer is not on a level surface.
The gasket is dirty.
The storage basket is out of position.

Limited Warranty
MC Appliance Corporation warrants each new Chest Freezer to be free from defects in material and workmanship, and agrees to remedy any such defect or to
furnish a new part(s), at the company’s option, for any part(s) of the unit that have failed during the warranty period. Parts and labor expenses are covered on
this unit for a period of one year from the date of purchase. A copy of the dated sales receipt or invoice is required to receive warranty service by an authorized
service agent.
In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of five years.
The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year
warranty has expired. In the event the unit requires replacement or refund under the terms of this warranty, the consumer is responsible for all transportation
expenses to return the unit to our factory prior to receiving a replacement unit or refund. A copy of the dated sales receipt/invoice is required to receive warranty
service.
This warranty covers appliances in use within the continental United States, Alaska, Hawaii, and Puerto Rico. This warranty does not cover the following:
•Damages due to shipping damage or improper installation.
•Damages due to misuse or abuse.
•Content losses due to failure of the unit.
•Inside components such as door panels, door shelves, racks, light bulbs, etc.
•Punctures to the evaporator system due to improper defrosting of the unit.
•Repairs performed by unauthorized service agents.
•Service calls that do not involve defects in material and workmanship such as instructions on proper use of the product and door reversal or improper
installation.
•Replacement or resetting of house fuses or circuit breakers.
•Failure of this product if used for other purposes than its intended purpose.
•Disposal costs for failed unit not returned to our factory.
•Any delivery/installation costs incurred as the result of a unit that fails to perform as specified.
•Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician
is not available.
•The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation
instructions.
•Refunds for non repairable products are limited to the price paid for the unit per the sales receipt.
Limitations of Remedies and Exclusions:
Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including
merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not
liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of
this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.
Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
Model Parts & Labor Compressor (Parts Only) Type of Service
One Year Five Years Carry-In
For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service or order parts.
11
HMCF5W2

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved.
Magic Chef®logo is a registered trademark of CNA International, Inc.
www.mcappliance.com Printed in China
