MAGICO M6 User manual

UNPACKING INSTRUCTIONS
1. THE FOLLOWING TOOLS ARE REQUIRED: A PRY BAR, 3/8” DRIVE RATCHET OR
DRIVE ADAPTER AND CORDLESS DRILL, 9/16” OR 14MM SOCKET, 3/4” OR 19MM
SOCKET, 3/8” HEX WRENCH, AND 3 PEOPLE.
2. USING A FLAT HEAD SCREWDRIVER OR PRY BAR, REMOVE THE 4 CLAMPS
FROM THE FRONT OF THE CRATE, REMOVE THE CRATE DOOR, REMOVE
FOAM FROM CRATE DOOR AND SET DOOR ASIDE IN A SAFE LOCATION.
3. USING A 3/8” DRIVE RATCHET OR
CORDLESS DRILL WITH A 9/16” OR 14MM
SOCKET BIT REMOVE THE 6 BOLTS
FROM AROUND THE BOTTOM OF THE
CRATE.

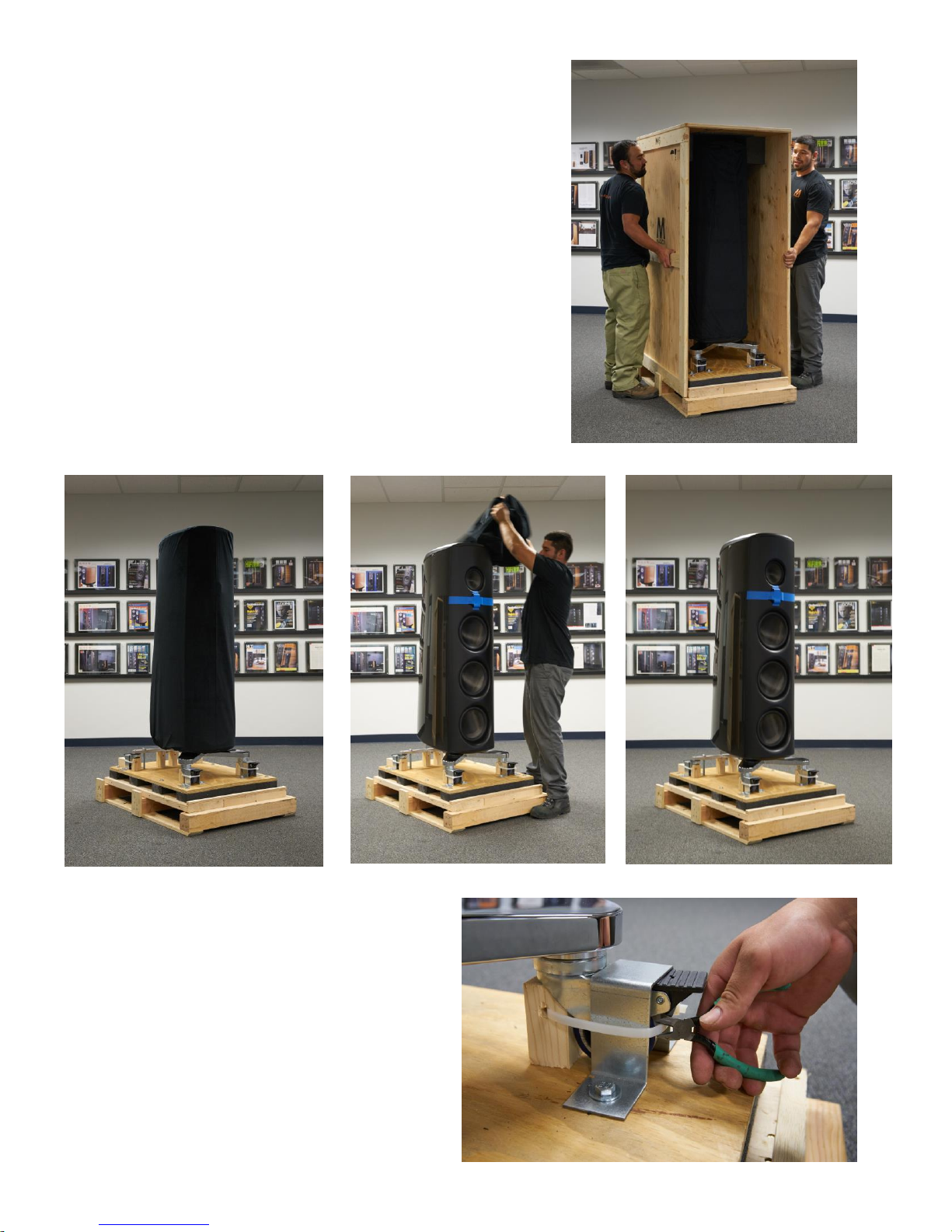

4. WITH TWO PEOPLE, LIFT AND REMOVE THE
CRATE BOX TOP AND REMOVE FOAM
FROM DOOR RAMP.
5. REMOVE THE VELVET COVER.
6. REMOVE THE ZIP TIES
SECURING THE CHOCK
BLOCKS TO THE CASTER
WHEELS. USE WIRE CUTTERS,
SCISSORS, OR A BLADE TO
CAREFULLY REMOVE THESE
TIES.

7. REMOVE THE ZIP TIES
SECURING THE CHOCK
BLOCKS TO THE SHIPPING
BAR. USE WIRE CUTTERS,
SCISSORS, OR A BLADE TO
CAREFULLY REMOVE THESE
TIES.
8. NOTICE THE FRONT DOOR
HAS A FLANGE, THIS FLANGE
FITS INTO A CHANNEL IN THE
FRONT OF THE CRATE BASE
TO FORM A RAMP.

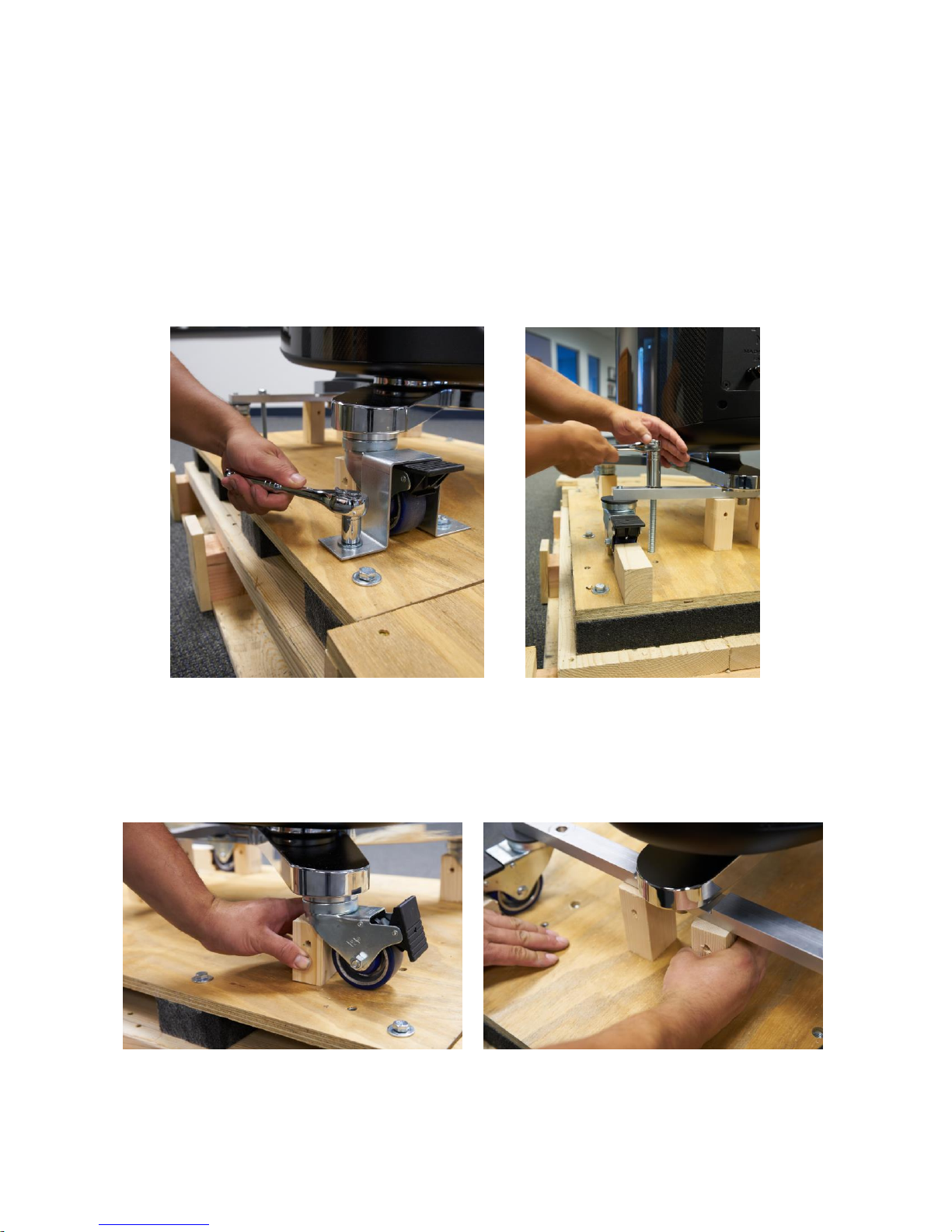

9. USE A RATCHET AND A 9/16 OR 14MM SOCKET TO REMOVE THE “U” CLAMPS
FROM THE CASTER WHEELS.
10. USE A RATCHET AND ¾” OR 19MM SOCKET TO REMOVE THE LONG FASTENERS
THAT FASTEN THE SHIPPING BAR TO THE CRATE. REMOVE THESE FASTENERS
CAREFULLY, PUT A HAND BETWEEN THE RATCHET AND THE M6 TO PROTECT
THE CABINET.
11. REMOVE CHOCK BLOCKS FROM BEHIND THE CASTER WHEELS AND FROM
UNDERNEATH SHIPPING BAR.

12. WITH TWO PEOPLE, ONE PERSON ON
EITHER SIDE OF THE M6, CAREFULLY
MOVE THE M6 3” FORWARD AND ENGAGE
ALL 4 CASTER WHEEL BRAKES. GENTLY
PUSH ON THE SIDE OF THE M6 TO ALLOW
FOR ONE PERSON TO POSITION THE
CASTER WHEELS SO THEIR BRAKES ARE
FACING THE REAR SIDE OF THE CRATE.
13. ONCE ALL (4) CASTER WHEELS ARE FACING
THE REAR, DISENGAGE THE BRAKES ON
THE CASTER WHEELS AND WITH TWO
PEOPLE (ONE ON EITHER SIDE OF THE
M6) CAREFULLY GUIDE IT DOWN THE
RAMP.

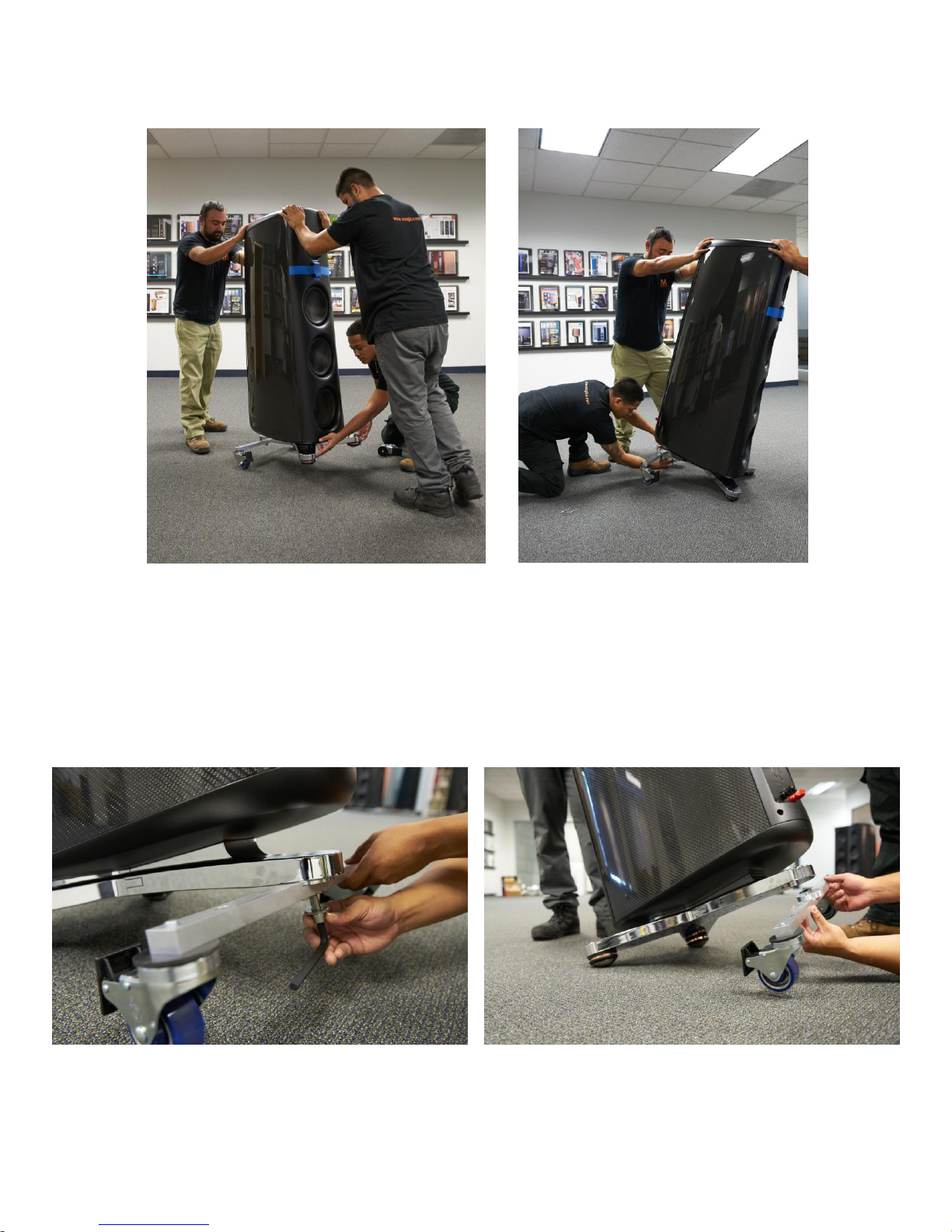

14. POSITION THE M6 IN IT’S DESIRED LOCATION.
ONCE IN POSITION, ENGAGE THE BRAKES ON
THE (2) REAR CASTER WHEELS. USING THE
HELP OF 2 OR MORE PEOPLE, TILT SPEAKER
BACKWARD, UNINSTALL FRONT CASTER
WHEELS AND INSTALL M-PODS BY
CAREFULLY THREADING THEM INTO
POSITION.

15. TILT SPEAKER FORWARD, UNTHREAD AND REMOVE THE SHIPPING BARS FROM
THE BOTTOM OF THE M6. YOU WILL NEED A 3/8” HEX BIT TO REMOVE THE
LARGE FASTENER ON THE SHIPPING BAR.

16. INSTALL THE REAR M-POD BY CAREFULLY THREADING IT IN TO
POSITION.
17. AFTER THE REAR MPOD HAS BEEN INSTALLED, CAREFULLY LOWER
THE CABINET SO THAT ALL (3) MPODS ARE RESTING EVENLY ON THE
GROUND.
18. REMOVE THE ANCHOR PIN FROM THE M-PODS. THIS PIN MUST BE REPLACED
BEFORE ANY ATTEMPTS TO ADJUST POSITIONING OF THE SPEAKER.

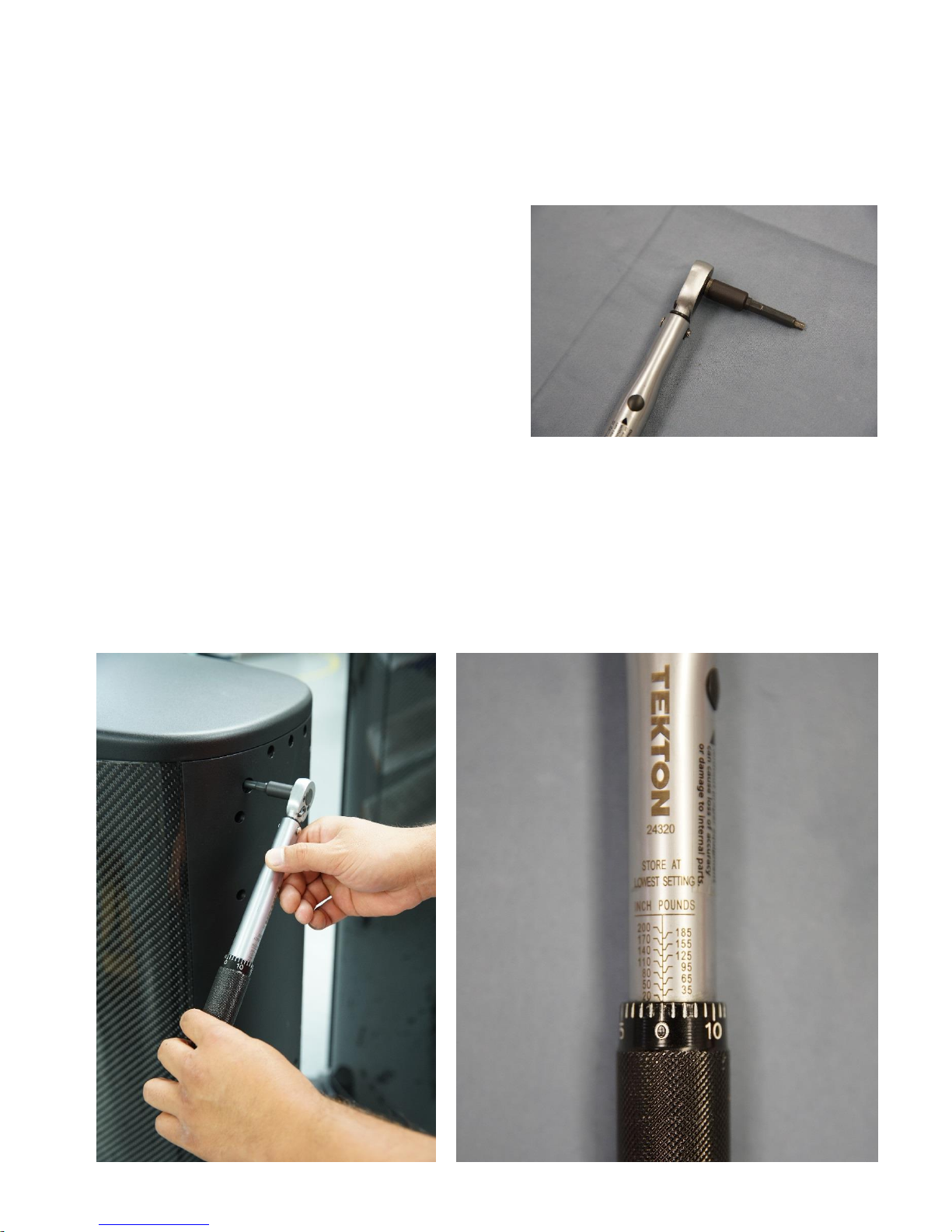

1. A TORQUE WRENCH IS INCLUDED IN
EACH ACCESSORY KIT TO CHECK
TORQUE ON EACH OF THE 10 FLAT
FASTENERS ON THE BACK OF THE M6.
2. SET THE TORQUE WRENCH FOR 115 INCH
POUNDS.
•LOOSEN THE LOCK AT THE
BOTTOM OF THE TORQUE
WRENCH.
•TURN THE HANDLE SO THE “5”
LINES UP WITH THE “110” ON THE
INCH-POUND SCALE.
•TIGHTEN THE LOCK AT THE
BOTTOM OF THE TORQUE
WRENCH.
TIGHTENING THE M6 TENSION RODS

3. ATTACH THE BIT AND DRIVE TO THE
TORQUE WRENCH DRIVE SHAFT.
4. CHECK THE TORQUE OF EACH OF THE 10
FLAT FASTENERS ON THE BACK OF THE
M6. THE WRENCH WILL CLICK TO LET THE
USER KNOW THAT THE TORQUE SETTING
OF THE FASTENERS IS UP TO DATE. NOW
SET THE WRENCH TO ITS LOWEST
SETTING TO PRESERVE ITS ACCURACY
DURING STORAGE.
•LOOSEN THE LOCK AT THE
BOTTOM OF THE TORQUE
WRENCH.
•TURN THE HANDLE SO THE “0”
LINES UP WITH THE “20” MARK
ON THE INCH-POUND SCALE.
•TIGHTEN THE LOCK AT THE
BOTTOM OF THE TORQUE
WRENCH.

SPECIFICATIONS
DESCRIPTION: 3-WAY (5 DRIVER) Loudspeaker
DRIVER COMPLEMENT:

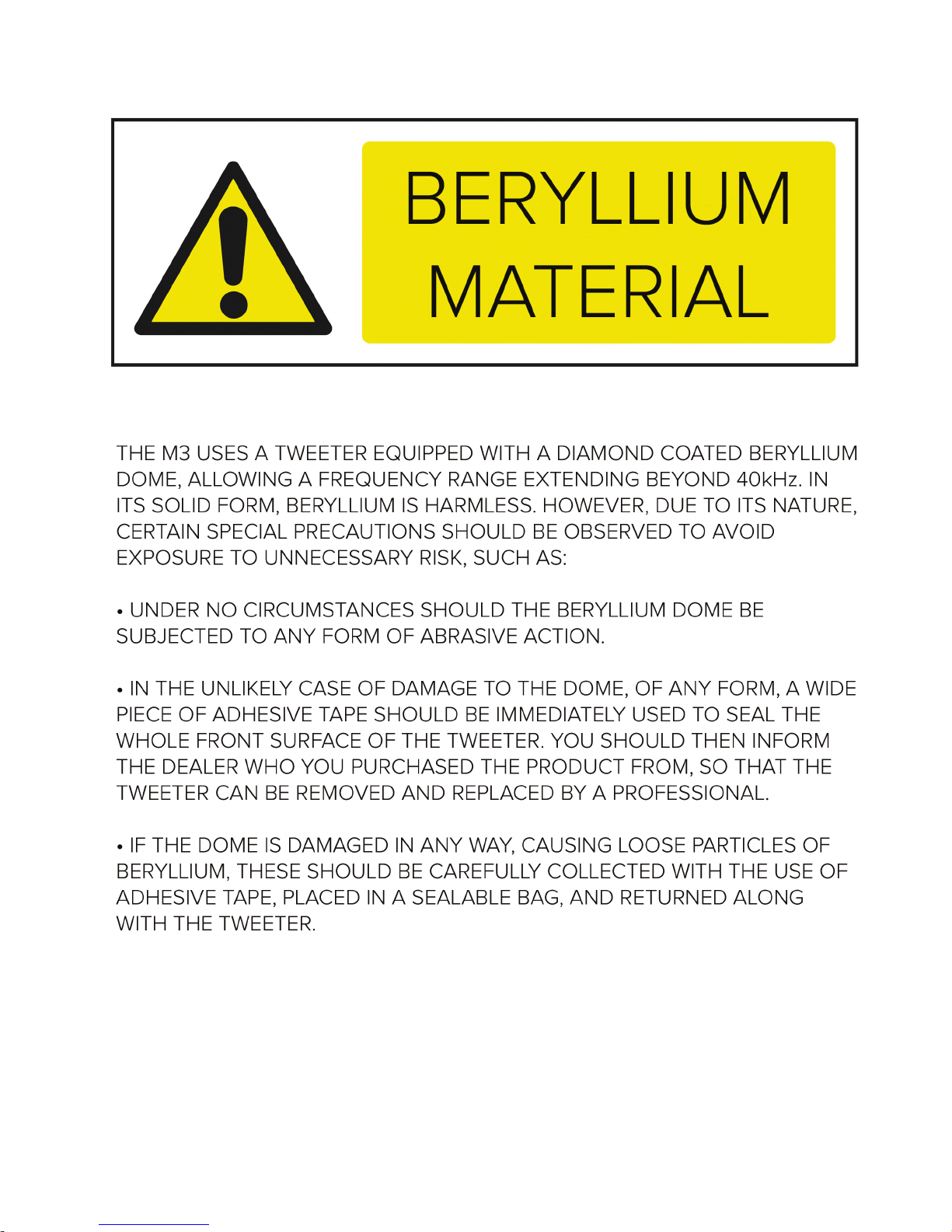

1” Diamond Coated Beryllium Dome Tweeter
6” Midrange XG Nanographene Cone
10.5” Bass Woofer XG Nanographene Cone (x3)
SENSITIVITY: 91dB
IMPEDANCE: 4 Ohms
FREQUENCY RESPONSE: 22 Hz – 50 kHz
MINIMUM RECOMMENDED POWER: 30 Watts
DIMENSIONS: 57”H x 26”D x 20”W (145cm x 66cm x 51cm)
WEIGHT: approx . 400 lbs. (181 kg.)
LIMITED WARRANTY
DEAR MAGICO PURCHASER,
THIS PRODUCT HAS BEEN DESIGNED AND MANUFACTURED TO THE HIGHEST
QUALITY STANDARDS. HOWEVER, IF SOMETHING DOES GO WRONG WITH THIS
PRODUCT, MAGICO, LLC AND ITS NATIONAL DISTRIBUTORS WARRANT THE
REPLACEMENT OF DEFECTIVE PARTS INCLUDING LABOR (EXCLUSIONS MAY APPLY) IN
ANY COUNTRY SERVED BY AN OFFICIAL MAGICO, LLC DISTRIBUTOR. THIS LIMITED
WARRANTY IS VALID FOR A PERIOD OF 5 YEARS FROM THE DATE OF PURCHASE.
TERMS AND CONDITIONS
1. THE WARRANTY IS LIMITED TO THE REPAIR OF THE EQUIPMENT. IN THE EVENT THAT
THIS LOUDSPEAKER REQUIRES SERVICE, THE CUSTOMER MUST FIRST OBTAIN A
RETURN AUTHORIZATION FROM MAGICO OR ITS AUTHORIZED DISTRIBUTOR. THE
CUSTOMER IS RESPONSIBLE FOR RETURNING THE LOUDSPEAKER TO MAGICO OR ITS
AUTHORIZED DISTRIBUTOR. IN THE EVENT THAT THE REPAIR IS DETERMINED TO BE
UNDER WARRANTY, MAGICO WILL RETURN THE LOUDSPEAKER TO THE CUSTOMER AT
NO CHARGE. EXCEPT AS INDICATED, NEITHER TRANSPORTATION, SHIPPING, NOR ANY
OTHER COSTS, NOR ANY RISK FOR REMOVAL, TRANSPORTATION AND INSTALLATION
OF PRODUCTS IS COVERED BY THIS WARRANTY.

2. WITH THE EXCEPTION EXPLAINED BELOW, THIS WARRANTY IS ONLY VALID FOR THE
ORIGINAL OWNER. IT IS NOT TRANSFERABLE. IT IS VALID ONLY WHEN PURCHASED
FROM AN AUTHORIZED MAGICO DEALER. A VALID RECEIPT SHOWING THE
PURCHASER’S NAME, DATE OF PURCHASE, AND DEALER INFORMATION MUST BE
SUBMITTED WITH ALL WARRANTY CLAIMS.
3. IN THE EVENT THAT THIS LOUDSPEAKER IS PURCHASED AS A USED OR TRADE-IN
LOUDSPEAKER FROM AN AUTHORIZED MAGICO DEALER OR DISTRIBUTOR, THE
SECOND OWNER SHALL RECEIVE THE BALANCE OF THE ORIGINAL WARRANTY BASED
UPON THE ORIGINAL DATE OF PURCHASE. VALID RECEIPTS SHOWING THE
PURCHASER’S NAME, DATE OF PURCHASE, AND DEALER INFORMATION FOR THE
CURRENT OWNER AND THE ORIGINAL PURCHASE MUST BE SUBMITTED WITH ALL
WARRANTY CLAIMS.
4. THIS WARRANTY WILL NOT BE APPLICABLE IN CASES OTHER THAN DEFECTS IN
MATERIALS AND/OR WORKMANSHIP AT THE TIME OF PURCHASE AND WILL NOT BE
APPLICABLE FOR DAMAGES CAUSED BY INCORRECT INSTALLATION, CONNECTION OR
PACKING, FOR DAMAGES CAUSED BY ANY USE OTHER THAN CORRECT USE
DESCRIBED IN THE USER MANUAL, NEGLIGENCE, MODIFICATIONS, OR USE OF PARTS
THAT ARE NOT MADE OR AUTHORIZED BY MAGICO, LLC, FOR DAMAGES CAUSED BY
FAULTY OR UNSUITABLE ANCILLARY EQUIPMENT, FOR DAMAGES CAUSED BY
ACCIDENTS, LIGHTNING, WATER, FIRE HEAT, EXTREME WEATHER CONDITION, WAR,
PUBLIC DISTURBANCES OR ANY OTHER CAUSE BEYOND THE REASONABLE CONTROL
OF MAGICO, LLC AND ITS APPOINTED DISTRIBUTORS, FOR PRODUCTS WHOSE SERIAL
NUMBER HAS BEEN ALTERED, DELETED, REMOVED OR MADE ILLEGIBLE, IF REPAIRS OR
MODIFICATIONS HAVE BEEN EXECUTED BY AN UNAUTHORIZED PERSON.
5. THIS GUARANTEE COMPLEMENTS ANY NATIONAL/REGIONAL LAW OBLIGATIONS OF
DEALERS OR NATIONAL DISTRIBUTORS AND DOES NOT AFFECT YOUR STATUTORY
RIGHTS AS A CUSTOMER.
6. UNAUTHORIZED DISMANTLING OF THIS PRODUCT WILL RENDER THIS WARRANTY
VOID.
7. MAGICO, LLC STRIVES TO MANUFACTURE THE VERY FINEST POSSIBLE EQUIPMENT,
AND THEREFORE RESERVES THE RIGHT TO MAKE CHANGES OR IMPROVEMENTS
WITHOUT NOTICE.
SERIAL NUMBERS
PLEASE TAKE THE TIME TO RECORD YOUR SPEAKERS’ SERIAL NUMBERS
BELOW.

SPEAKER PLACEMENT AND POSITIONING
THE MAGICO M6 LOUDSPEAKERS ARE PRECISION INSTRUMENTS FOR MUSIC
REPRODUCTION. AS SUCH, PROPER CARE AND ATTENTION TO DETAIL WHEN
SETTING UP THESE SPEAKERS WILL YIELD THE MAXIMUM PERFORMANCE,
REGARDLESS OF THE PARTICULAR ROOM. FOLLOWING THESE SET-UP GUIDELINES
WILL ENSURE THE SPEAKERS ARE PROPERLY POSITIONED TO DELIVER THE OPTIMUM
LISTENING EXPERIENCE. ALL THAT IS REQUIRED IS A TAPE MEASURE, A PEN, A
CALCULATOR, A BALL OF STRING, A COUPLE OF DEMO CDS, AND SOME PATIENCE.
PLACEMENT—M6s IN RELATION TO BACK AND SIDE WALLS
BEFORE YOU BEGIN: LOOK FOR OBVIOUS IMPEDIMENTS INCLUDING ANYTHING THAT
COULD IMPEDE OR DIMINISH THE SOUND—E.G., OTHER SPEAKERS, AMPLIFIERS,
EQUIPMENT RACKS, ANYTHING ON THE WALL THAT COULD CAUSE A REFLECTION, A
SEVERE MISMATCH IN QUALITY AMONG INDIVIDUAL COMPONENTS, AND
UNNECESSARY OR POORLY RUN SPEAKER/INTERCONNECT CABLES.
BASS—DISTANCE FROM REAR WALL
THE INITIAL PLACEMENT SHOULD BE APPROXIMATELY 20 INCHES (1/2 M) FROM THE
BACK OF THE LOUDSPEAKER TO THE BACK WALL. SINCE WE HAVE SHORT AUDITORY
MEMORY, THE SELECTED DEMO MUSIC CUT SHOULD BE BRIEF—30 SECONDS – 1
MINUTE MAX. IT SHOULD BE A WELL RECORDED JAZZ CUT WITH GOOD BASS GUITAR
OR PERCUSSION. WHAT WE ARE LISTENING FOR AT THIS TIME IS THE DEFINITION OF
THE BASS AND THE RIGHT SENSE OF PROPORTION.
NEXT, MOVE THE SPEAKER 6 – 8 INCHES (15 – 20 CM) FORWARD AND REPEAT THE
LISTENING PROCESS. REPEAT THIS PROCESS, MOVING THE LOUDSPEAKER FORWARD
IN 6 – 8 INCH (15-20 CM) INCREMENTS. WHEN YOU REACH THE POINT FROM WHICH
MOVING THE SPEAKER FORWARD SOUNDS WORSE THAN THE PREVIOUS LISTENING
POINT, MOVE THE LOUDSPEAKER BACK TO THIS POSITION AND MARK THIS
DISTANCE FROM THE REAR WALL.
MIDRANGE—PLACEMENT IN RELATION TO SIDE WALLS FOR LATERAL PLACEMENT
BEGIN BY DIVIDING THE ROOM WIDTH BY 14. INITIAL PLACEMENT OF THE
LOUDSPEAKERS WILL BE AT 3 AND 11. THE DISTANCE FROM THE LOUDSPEAKER TO
THE EARS HAS TO BE PRECISELY EQUAL. THIS MEASUREMENT IS CRITICAL. THE
MUSIC FOR THIS PROCESS SHOULD BE A FEMALE VOICE AND PIANO. WE ARE
LISTENING FOR THE IMAGE OF HER VOICE TO BE FOCUSED. THE RULE FOR THE TOE-
IN IS TO PICK A POINT APPROXIMATELY 1 – 2 FEET (.5M) BEHIND THE LISTENER’S
HEAD. TOE THE LOUDSPEAKERS IN TO INTERSECT AT THAT POINT.

IF THE SOUND IS TOO BRIGHT, TOE THE SPEAKERS OUT A LITTLE MORE. IF THE
SOUND IS TOO DULL, TOE THE SPEAKERS IN A LITTLE MORE. REPEAT THE ABOVE
PROCESS WITH THE LOUDSPEAKERS AT THE 4 AND 10 POSITION. THEN REPEAT,
ONCE AGAIN WITH THE SPEAKERS AT THE 5 AND 9 POSITION.
SUMMARY
ONCE THE INITIAL PROCESS HAS BEEN COMPLETED, RETURN TO THE BASS SET-UP
TO ENSURE THAT THE LOUDSPEAKERS ARE THE PROPER DISTANCE FROM THE
BACK WALL. WHEN THE PROCESS HAS BEEN COMPLETED, MARK THE SPEAKER
LOCATION WITH TAPE SO THAT THE SPEAKERS CAN BE RETURNED THERE FOR
FURTHER LISTENING.
POSITIONING—M6s IN RELATION TO THE LISTENER
•THE SPEAKERS AND THE LISTENER SHOULD FORM AN ISOSCELES TRIANGLE.
•THE LISTENER SHOULD BE EXACTLY EQUIDISTANT BETWEEN THE TWO
LOUDSPEAKERS. THE BEST WAY TO DETERMINE THIS IS WITH A PIECE OF STRING.
PICK A FIXED SPOT AT THE LISTENING POSITION. RUN THE STRING FROM THIS SPOT
TO THE FRONT OF THE TWEETER OF THE LEFT SPEAKER. REPEAT THE PROCESS FOR
THE RIGHT SPEAKER. IT IS CRITICALLY IMPORTANT TO KEEP THIS DISTANCE
PRECISELY THE SAME.
CONNECTIONS
CONNECTIONS SHOULD BE MADE WITH ALL ELECTRONIC EQUIPMENT (AMPLIFIERS,
PREAMPLIFIERS) TURNED OFF. THERE ARE TWO TERMINALS AT THE BACK OF THE
SPEAKER. THE TERMINALS ARE INSULATED TO ACCEPT A VARIETY OF CABLE
TERMINATIONS FOR MOST APPLICATIONS AND TO PREVENT ANY LIKELIHOOD OF
ELECTRICAL SHOCK, EVEN WHEN THE SPEAKERS ARE USED WITH THE HIGHEST
POWERED AMPLIFIERS. DO NOT USE TOOLS TO TIGHTEN THE BINDING POSTS.
BREAK-IN
A LOUDSPEAKER IS A MECHANICAL DEVICE AND AS SUCH REQUIRES AN EXTENDED
INITIAL PERIOD OF NORMAL USE DURING WHICH A NOTICEABLE IMPROVEMENT IN
SOUND QUALITY WILL OCCUR. DO NOT ATTEMPT TO ACCELERATE THE BREAK-IN
PROCESS BY PLAYING SINE WAVES, TONE SWEEPS, BREAK-IN CDS OF ANY SORT, OR
OTHER GENERATED SIGNALS.
CARE
FOR ALUMINUM PANELS USE A LINT-FREE SOFT CLOTH (PROVIDED IN ACCESSORY
KIT). FOR PAINTED SURFACES, USE A PRODUCT SUCH AS MEGUIAR’S PROFESSIONAL
FINALINSPECTION 34. DO NOT USE CLEANERS THAT CONTAIN AMMONIA, STRONG
SOLVENTS, OR ABRASIVE MATERIALS. USE OF THESE CLEANERS CAN DEGRADE,
SCRATCH, OR DESTROY THE FINISH.

DISCLAIMER
MAGICO, LLC CREATED THIS MANUAL AND THE CONTAINED INFORMATION
AVAILABLE ON AN "AS IS" BASIS. ALL WARRANTIES AND REPRESENTATIONS OF ANY
KIND WITH REGARD TO SAID INFORMATION IS DISCLAIMED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. UNDER
NO CIRCUMSTANCES WILL MAGICO, LLC, OR ANY OF ITS OFFICERS OR EMPLOYEES
BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY
DAMAGES EVEN IF APPRISED OF THE LIKELIHOOD OF SUCH DAMAGES OCCURRING.
MAGICO, LLC DOES NOT WARRANT THE INFORMATION AGAINST DEFICIENCIES OF
ANY KIND.
MAGICO, LLC
3170 CORPORATE PLACE
HAYWARD, CA 94545
USA
PHONE: [phone]
FAX: [phone]
EMAIL: [email protected]
BUSINESS HOURS: 8AM - 4PM PACIFIC TIME
© 2017 MAGICO, LLC
