MAGINON 40747 User manual

IP Security Camera
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 36 months (dependant on product) from the date of purchase. Defects that occur within
this warranty period, under normal use and care, will be repaired, replaced or refunded
at our discretion.The benefits conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and
Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
3
WARRANTY
YEAR
After Sales Support
Telephone: [phone]

1
Dear Customer,
Congratulations on purchasing this high quality MAGINON® product.
You have chosen a modern security camera with excellent technical features and
accessories which are all especially easy to use. Please read all instructions carefully and
attentively. Pay special attention to all safety instructions.
The device comes with a three year warranty. In the event of a fault in the camera
you will need the enclosed warranty card and your proof of purchase.
Keep these safely together with these user instructions
and be sure to pass the user instructions on to any new user or owner.
1. Contents of box
Unpack the camera carefully and check that all the following items are present and correct:
1. MAGINON® IP Security Camera IPC-1
2. AC adaptor
3. Mounting bracket (with assembly kit)
3. WiFi antenna
4. Network cable
5. Alarm transmitter
6. Software CD
7. Instruction Manual
8. Warranty documents
Note:
t $BVUJPO,FFQQMBTUJDCBHTBOEQMBTUJDöMNBXBZGSPNCBCJFTBOETNBMMDIJMESFOUP
avoid risk of suocation.

2
2. Table of contents
Introduction 1
1. Contents of box 1
2. Table of contents 2
3. Hazard, safety and general warnings 4
4. Preparations 7
4.1. Description of parts 7
4.2. Views of the camera 8
4.3. Installing the security camera 9
4.3.1. Fitting stand to camera 9
4.3.2. Fixing the security camera 9
4.3.3. Completing the camera installation 10
5. Installing the security camera 11
5.1. System requirements 11
5.2. Installing the hardware 11
5.3. Installing the software 12
User data on delivery of IP Security Camera
User name: admin
Password: no Password presetted
New Password: _______________________
Note:
t 1MFBTFNBLFTVSFUPBQQMZBQBTTXPSEUPUIFiadmin“VTFSBDDPVOUPOöSTUVTF
of the camera.

3
5.4. Setting up the security camera 13
5.5. Internet access 15
6. Settings 17
6.1. Equipment status 17
6.2. Camera name 18
6.3. Date and time 19
6.4. User accounts 20
6.5. Network settings 20
6.6. Wireless settings 23
6.7. UPNP settings 25
6.8. DDNS settings 26
6.9. Email settings 28
6.10. FTP settings 30
6.11. Alarm settings 32
6.12. Head settings 34
6.13. Resetting 35
6.14. Rebooting 35
7. Using the security camera 36
7.1. Accessing the camera 36
7.2. Controlling the camera 37
7.2.1. Moving the camera head 37
7.2.2. Storing positions 38
7.2.3. Camera image settings 39
7.3. Using the camera via mobile devices 40
8. Conformity 42
9. Disposal 43
10. Warranty and Service 43
11. Technical Specication 44
12. Glossary 45

4
3. Hazard, safety and general warnings
Improper use or treatment of the camera and accessories poses a risk to you and others, and
the camera may be damaged or destroyed. Therefore please read and observe strictly the
following hazard, safety and general warnings.
Intended use
This security camera is intended to be used for monitoring indoor areas only. You are
responsible for ensuring that the personal rights of third parties are not violated
through the use of the security camera.
The security camera is designed for private use and is not suitable for business or
commercial use.
Hazards for children and persons with limited ability to operate
electronic equipment
The camera, accessories and packaging are not toys for children to play with and
should therefore be kept away from children. There could be a risk of electrocution,
poisoning and suffocation.
The camera and accessories may not be used by children or persons with a limited
ability of operating equipment. The camera may not be used by persons (including
children) with limited physical, sensory or mental capacities or limited experience and/or
knowledge. The camera, the receiver and mains adapter may only be used by persons that
are physically or mentally able to operate the equipment safely, unless they are supervised
by a person responsible for their safety or have been instructed by this person as to how
to use the equipment. Children should be supervised to ensure that they are not playing
with the equipment.

5
Hazard of electrocution in case of wet and humid conditions
The camera and any supplied components may not be exposed to dripping or spray
water. Containers filled with liquid, such as vases or glasses may also not be placed on or
close to the camera Danger of fire and electrocution.
Do not use the camera and its components close to water and protect against moisture
and humidity. Danger of fire and electrocution.
Do not use the camera and its components in areas exposed to high humidity, steam,
smoke or dust. Danger of fire and electrocution.
Electrical hazard
Switch off camera or receiver if a foreign body or liquid has entered the camera or
receiver. Wait until completely dry, there is danger of fire and electrocution.
Switch off if camera or receiver has been dropped or if housing is damaged, there is
danger of fire and electrocution.
The camera and its components may not be dismantled, modified or repaired, there is
danger of fire and electrocution.
Use only the power supply provided or a power supply with the same specifications.
Connect the power supply only to a power source which complies with the information on
the equipment label.
Do not use power supply or output cable if damaged. Replace with same type of power
supply.
Check that all used mains sockets are always accessible so that the power supply can be
quickly interrupted when necessary. The device is disconnected from the mains by pulling
out the plug from the mains socket.
Ensure adequate ventilation and do not cover the power adapter in order to avoid
overheating.
The USB power supply may not be used during a thunder storm, there is danger of
electrocution.

6
Damage from heat – re hazard
Do not leave camera and receiver in places that are susceptible to considerable
increases in temperature (e.g. in a vehicle). The housing and internal parts may be
damaged, which in turn could cause a fire.
Do not wrap up camera and receiver or place on textiles. This could produce a build up
of heat in the camera that could cause deformation of the housing and may represent a
fire hazard.
Injuries and material damage
When setting up or mounting the security camera, be sure to leave at least a 10 cm gap to
all sides in order to ensure adequate ventilation. Take special care to ensure that no
ventilation openings are covered by newspapers, tablecloths or curtains.
Never place open sources of fire onto or beside the camera
Damage to the electronics, lens or accessory caused by external factors, such as impacts,
falls or others are not covered by the warranty and are thus chargeable.
Legal Notices
This IP security camera is exclusively intended for indoor surveillance use. It is your
responsibility to ensure that the use of the IP security camera does not violate the
personal rights of third parties.
The video surveillance of public indoor areas (e.g. underground garage) requires a permit
and the premises must be labeled accordingly. In case of uncertainty, please contact the
respective local authority.

7
4. Preparations
4.1. Description of parts
1. MAGINON IP Security Camera IPC-1
2. Mounting bracket
3. Network cable
4. AC adaptor
5. WiFi antenna
6. Connector for alarm device
7. Assembly kit (not shown)
8. Software CD (not shown)
9. Instruction manual (not shown)
10. Warranty documents (not shown)
1.
4.
3.
2.
5.
6.

8
4.2. Views of the camera
1.
5.
4.
3.
2.
6.
7.
1. Lens
2. Infrared LED
3. Sensor
4. WiFi antenna
5. Network socket (LAN)
6. Alarm socket (in/out)
7. Power supply socket (5V DC)
8. Reset button
8.
90°
270°

9
4.3. Installing the security camera
5IF*1TFDVSJUZDBNFSBDBOCFJOTUBMMFEJOBöYFEMPDBUJPOVTJOHUIFTUBOETVQQMJFE
4.3.1. Fitting stand to camera
Hold the backplate of the foot against the surface of the chosen installation location and use
a pencil to mark the surface with the location of the two drill holes.
To bore the corresponding holes you will need a 6 mm masonry drill for stone or concrete
surfaces or a 3 mm drill if mounting on wood. After drilling, insert the wall plugs (supplied)
in the holes so they site ush with the surface. Then screw on the foot using the screws
supplied in the assembly kit.
4.3.2. Fixing the security camera
Place the camera’s threaded tripod bolt onto the mounting plate of the foot and screw the
camera tight using the tripod bolt, then tilt the camera on the tripod bolt into the required
position.
Note:
t 5IFTFDVSJUZDBNFSBTIPVMEOPUCFJOTUBMMFEEJSFDUMZCFTJEFFMFDUSPOJDFRVJQNFOU
as this may result in interference. Should you experience picture interference, test
 UIFDBNFSBJOBEJòFSFOUMPDBUJPOöSTU
t $IPPTFBMPDBUJPOUPJOTUBMMUIFTFDVSJUZDBNFSBXIJDIEPFTOPUIBWFTVOMJHIUGBMMJOH
on the lens.
Note:
t 1MFBTFCFTVSFUPPQFSBUFUIFDBNFSBXJUIUIF8J'JBOUFOOBBUUBDIFEBUBMMUJNFT 
even if the WiFi connection is not being used, as the camera may otherwise become
damaged.

10

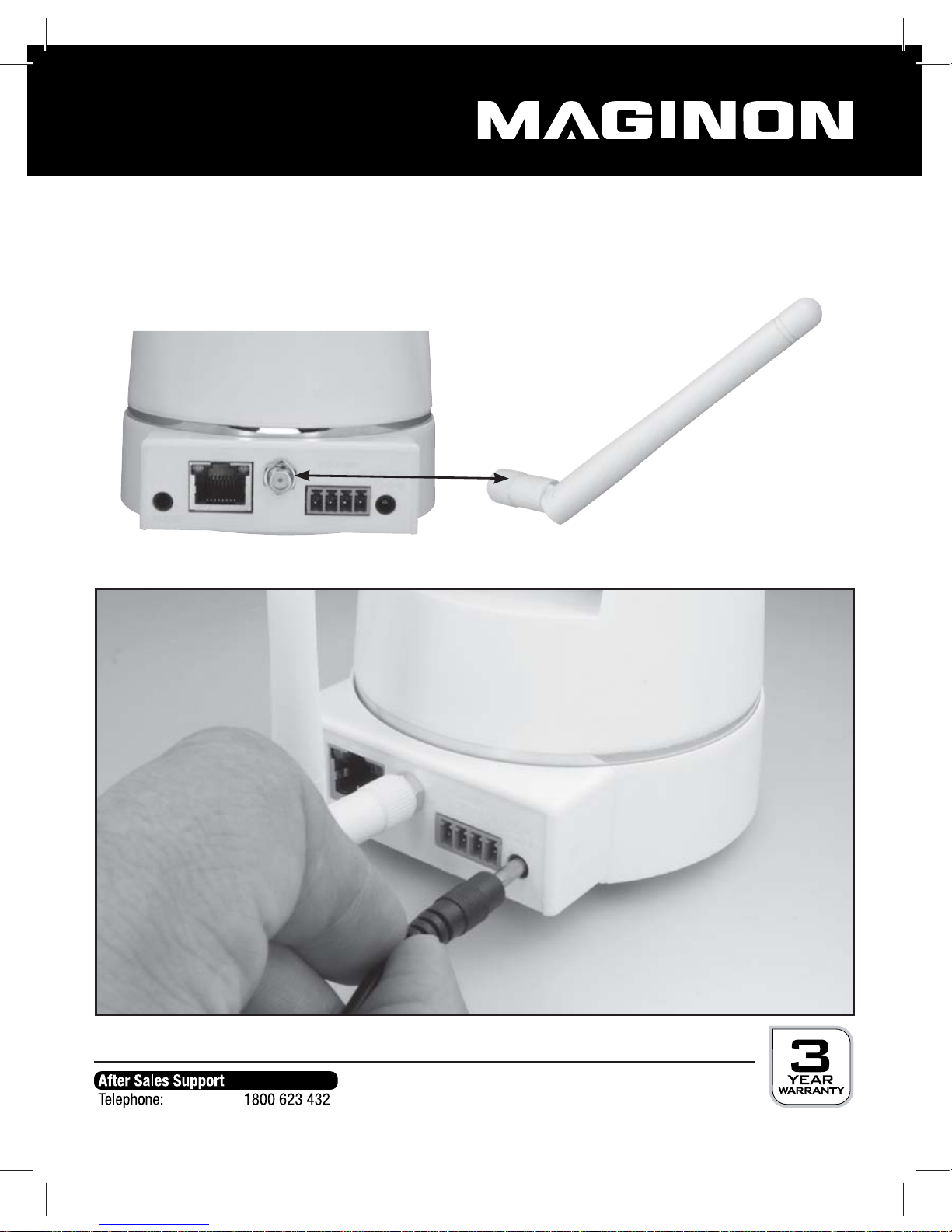

4.3.3. Completing the camera installation
Screw the antenna plug onto the antenna socket on the rear side of the camera. Connect
UIFDBNFSBUPUIFQPXFSTVQQMZBOEöOBMMZQMVHUIFQPXFSTVQQMZJOUPBOFMFDUSJDBMQPXFS
socket.

11
5. Installing the security camera
5.1. System requirements
Operating system: the software contained on the CD supplied is only suitable for Windows
systems. However, browser access may be used to set up and control the IP security camera
via Mac OS, Linux or other operating systems also.
Operating systems: Windows 2000 (SP 4), Windows XP (SP 2), Vista, 7
Processor: 2.0 GHz or higher
RAM memory: 512 MByte or higher
Network card: 10M or higher
Graphics card: 512 MByte or higher
Internetbrowser: Internet Explorer (from version 7), Firefox (from version 3),
Google Chrome, Safari, Opera (newest version)
Display resolution: 1024x768 or higher
5.2. Installing the hardware
The IP security camera is connected to an existing computer network via a router
(not supplied). A router is generally a device which connects your computer or local area
network to the Internet.
*OPSEFSUPVOEFSUBLFUIFCBTJDTFUUJOHTUPUIFTFDVSJUZDBNFSBJUNVTUöSTUCFDPOOFDUFE
directly to a router using the network cable supplied.

12
5.3. Installing the software
Insert the software CD supplied into your computer’s CD/DVD drive. The selection menu
shown below should then appear.
In the event that the menu does not launch automatically, go to the drive overview on your
computer and click on the CD/DVD drive icon. To launch, double click on the
CDMenu/CDMenu.exe program.
Click on “supra IPCam” to install the supra IPCam Cong program. Follow the on screen
instructions until the software has been fully installed.
8IFOJOTUBMMBUJPOJTDPNQMFUFZPVXJMMöOEUIFQSPHSBNVOEFSi"MMQSPHSBNTwMBCFMMFEsupra
IPCam Cong.
8JUIUIFPQUJPOi.BOVBMwJOUIFTUBSUNFOVPOUIFTPGUXBSF$%UIFVTFSHVJEFDBOCF
opened on the computer screen.
*GZPVEPOUIBWFBRVBMJöFEQSPHSBNUPTIPX1%'EPDVNFOUTPOZPVSDPNQVUFSZPVNBZ
BMTPJOTUBMMUIFQSPHSBNi"EPCF"DSPCBU3FBEFSw

13
5.4. Setting up the security camera
Make sure that the security camera is connected to both the router and the power source.
Then open the program supra IPCam Cong.
Within the program, go to “Start search” to display a list of available security cameras.
From the list, select the camera you want to set up or select.
Use the “Address” function to display the chosen camera’s network data.

14
The camera is installed automatically on the network providing the “Use DCHP” option is
activated and the router being used also supports DHCP (and this is activated). However you
DBOBMTPTQFDJGZUIFOFUXPSLEBUBNBOVBMMZJGTBZBVUPNBUJDDPOöHVSBUJPOEPFTOPUXPSL
If the port being used by the security camera has to be changed, specify the new port
number.
5PTQFDJGZUIFOFUXPSLEBUBNBOVBMMZöSTUEFBDUJWBUF“Use DHCP”. This activates the input
öFMETGPSTUBUJDDPOöHVSBUJPO
Under Static congurationFOUFSUIFTFDVSJUZDBNFSBTOFUXPSLEBUB:PVXJMMHFOFSBMMZöOE
this information via your computer’s or router’s network settings. Further information on
network setup can also be found in Section 6.5, “Network Settings”.
Click “Apply” to accept the amended settings. You will then be asked to enter the
BENJOJTUSBUPSTVTFSOBNFBOEQBTTXPSE"UTIJQNFOUUIFVTFSBDDPVOUJTTFUUPiBENJOwOP
password).
To access a camera from the IPCam Cong camera list in your browser, click the “Browser”
menu item. The camera’s log on page will then be displayed in your standard browser
window (see Chapter 7), and you can either call up the camera picture or specify further
settings for the camera.
Click “Manual” to open these user instructions on the screen.
5IFiVersionwNFOVJUFNTDBOCFVTFEUPBDDFTTJOGPSNBUJPOPOUIFTFMFDUFEDBNFSBBOEUIF
software.
Note:
t 5IFEFGBVMUQPSUTFUUJOHTIPVMEPOMZCFDIBOHFEJOFYDFQUJPOBMDJSDVNTUBODFT

15
5.5. Internet access
5PCFBCMFUPBDDFTTUIFTFDVSJUZDBNFSBPWFSUIF*OUFSOFUZPVXJMMöSTUOFFEUIFDBNFSBT
*OUFSOFUBEESFTTQVCMJD*1BEESFTT:PVIBWFGPVSEJòFSFOUXBZTPGöOEJOHPVUUIFSFMFWBOU
IP address.
If a separate Internet address (domain) has been registered for the camera (see Section 6.8.,
DDNS Settings), this can be used to access the camera.
You can have the public IP address sent to you by email. To do this, follow the instructions in
Section 6.9., Email Settings.
Use your browser to go to the page http://supracam.net/ip.aspx and the local network’s IP
address will then be displayed (to do this you must use a computer on the same network to
which the camera is connected).
The public IP address can generally only be used to access the security camera from outside
the local network. To access the camera directly from the internal network, use the camera’s
local network address.
Access the camera via your browser using the address found. Accessing correctly will cause
the log on window in the camera software to open. The camera is shipped with the user
BDDPVOUTFUUPiBENJOwOPQBTTXPSESFRVJSFE
Should an error occur while accessing via the Internet, this is probably due to your
DPNQVUFSTöSFXBMMQSFWFOUJOHDPNNVOJDBUJPOXJUIUIFTFDVSJUZDBNFSB*GUIJTJTUIFDBTF
you will have to change the router settings in such a way as to allow the camera to be
accessed over the Internet.
The following example shows which settings have to be made to a router in order to be
able to connect to the security camera over the Internet. As router settings menus can vary
widely, it is not possible here to oer a detailed description of how to solve the problem in
BMMDBTFToQMFBTFSFGFSUPZPVSSPVUFSTEPDVNFOUBUJPOBOEMPPLGPSIPXUPFOBCMFTQFDJöD
devices to communicate with the router.
Essentially, to do this the security camera has to be allocated a new input port within the
router via which access is permitted. This newly allocated input port is then forwarded to the
camera.

16

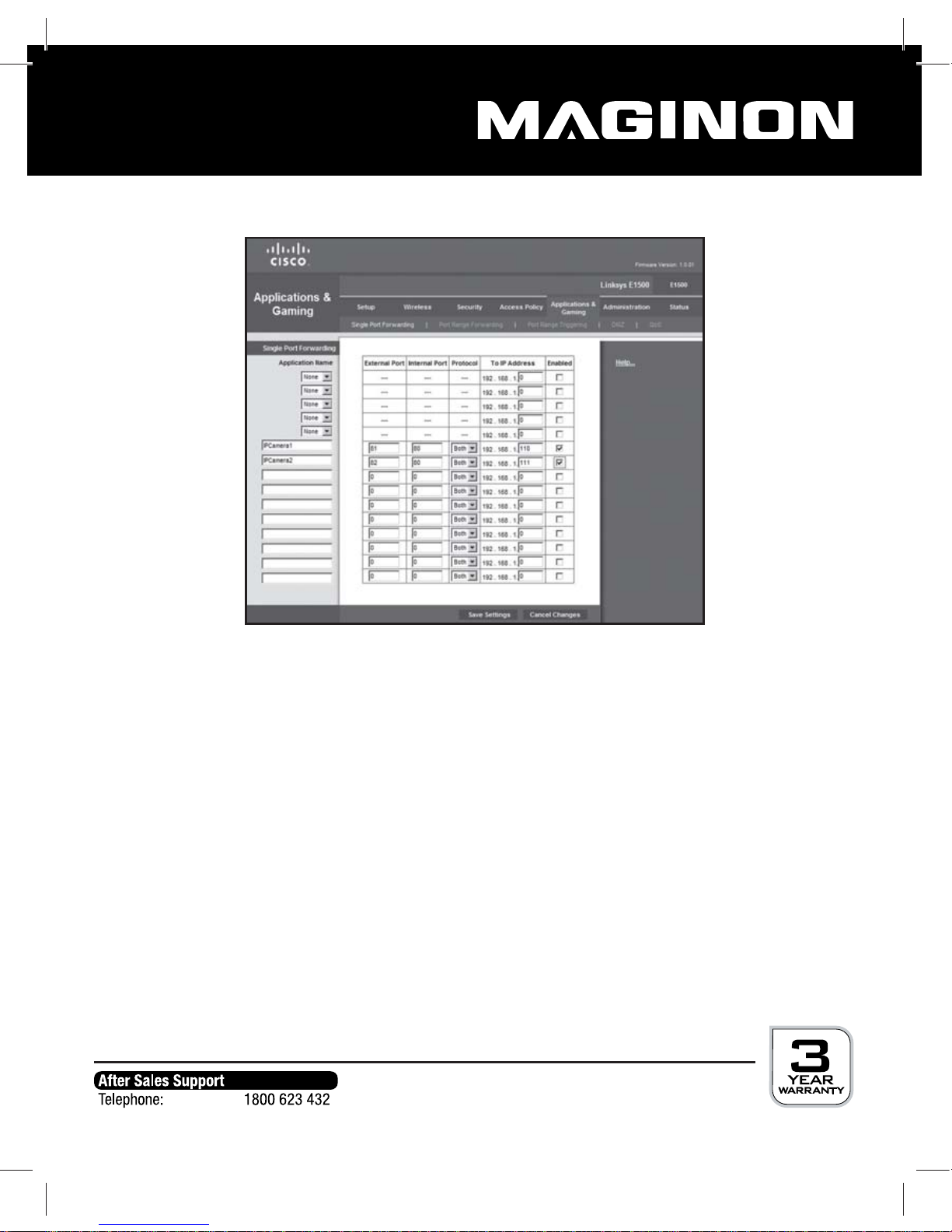

Start by opening your router’s port forwarding menu.
In the example shown, two security cameras are connected to the router, one called
IPCamera1 under local network address 192.168.1.110 and one called IPCamera2 under local
network address 192.168.1.111.
&YUFSOBMQPSUJTOPXTQFDJöFEBTUIFBDDFTTQPJOUGPSIPCamera1. TCP and UDP are both
permitted protocols, however the only one required is TCP. This camera is then accessed
from the Internet under the address http://xxx.xxx.xxx.xxx:81 (where xxx.xxx.xxx.xxx is the
Internet address of the router).
&YUFSOBMQPSUJTTQFDJöFEBTUIFBDDFTTQPJOUGPSIPCamera2. This allows the camera to be
accessed from the Internet using the address http://xxx.xxx.xxx.xxx:82.
Please note that this example assumes internal port 80 for both cameras. If the internal port
for a camera is changed, this needs to be taken into account here.
Do also take care to ensure that no external port is allocated twice over.

17
6. Settings
The following sections will give you an overview of all possible settings for your IP security
camera. Should problems arise, or settings need to be altered, during installation or use, you
XJMMöOEBEWJDFIFSFPOUIFSFMFWBOUPQUJPOTBWBJMBCMFUPZPV
Bring up the camera on your Internet browser (see Section 7.1.) and log on via a user
account with administrator’s permissions. The camera has been shipped with the user
BDDPVOUiBENJOwOPQBTTXPSESFRVJSFE
"GUFSMPHHJOHPOHPUPi4FUUJOHTwBOEDIPPTFUIFTFUUJOHTDBUFHPSZZPVSFRVJSF

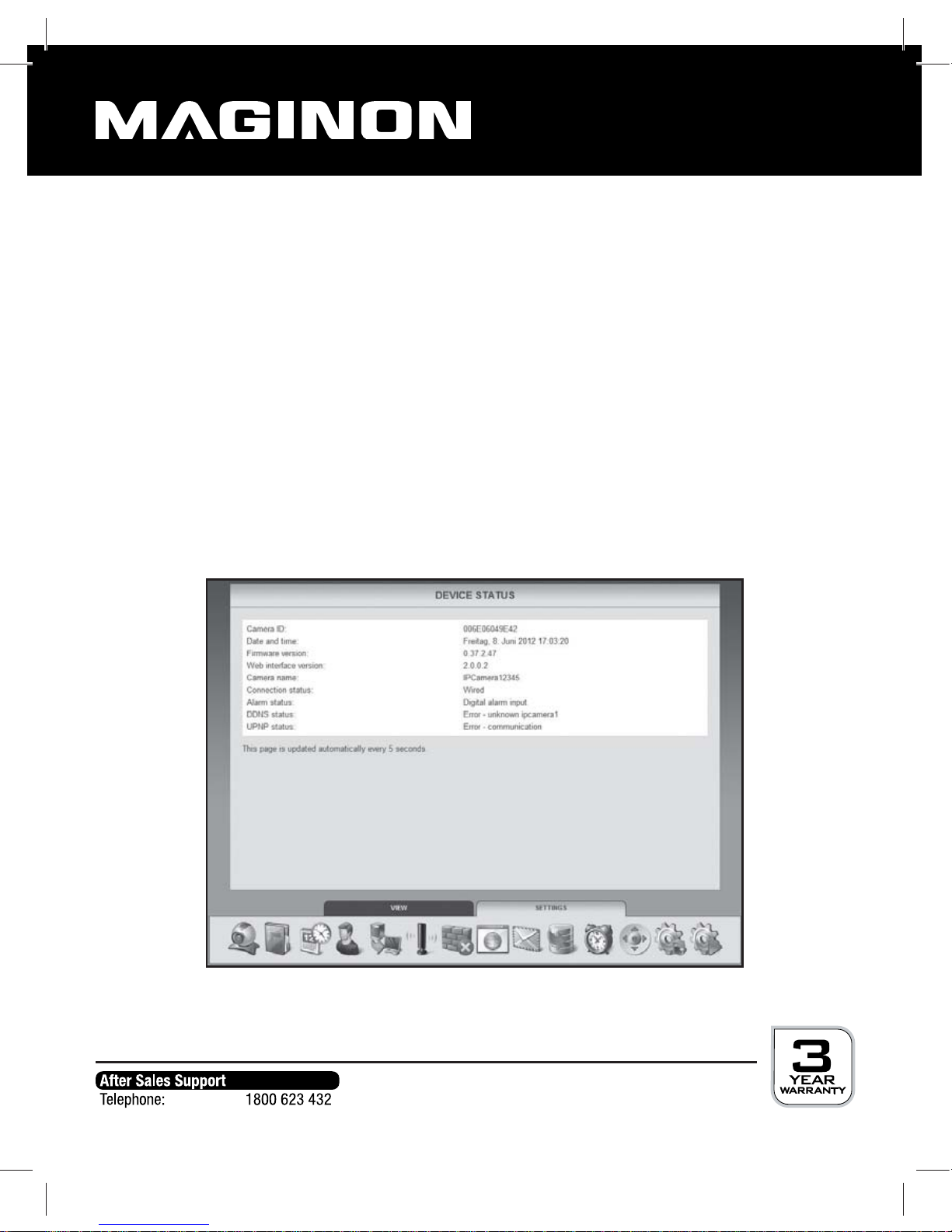

6.1. Equipment status
The equipment status gives you details of current data and settings that apply to the
camera.

18
6.2. Camera name
You can give the camera a name, for example in order to locate it more easily on the network
PSBTBVOJRVFJEFOUJöFSXIFSFNPSFUIBOPOFDBNFSBJTCFJOHVTFE
&OUFSUIFDBNFSBTDIPTFOOBNFJOUIFUFYUöFMEUIFODMJDL“Save”. The camera name may
consist of any characters and may be up to 20 characters long.
The new camera name is accepted without the need to reboot the camera.
