MAGMATIC Prisma Par 50 User manual

User Manual
Prisma Par 50

2
©2020 MAGMATIC EFFECTS all rights reserved. Information, specications, diagrams, images, and instructions
herein are subject to change without notice. MAGMATIC FF CTS logo and identifying product names and
numbers herein are trademarks of MAGMATIC FF CTS. Copyright protection claimed includes all forms and
matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or registered trademarks of their respective companies
and are hereby acknowledged. All non-MAGMATIC brands and product names are trademarks or registered
trademarks of their respective companies.
MAGMATIC EFFECTS and all aliated companies hereby disclaim any and all liabilities for property, equipment,
building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use
or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insucient
and negligent assembly, installation, rigging, and operation of this product.
MAGMATIC EFFECTS | 6122 S. astern Ave. |Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax |www.elationlighting.com |sales@magmaticeects.com
Elation Professional B.V.|Junostraat 2 |6468 W Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu |[email protected]
Elation Professional Mexico | AVSantaAna30|ParqueIndustrialLerma,Lerma,Mexico52000
[phone]
ISK G OUP 3 - ISK OF EXPOSU E TO ULT AVIOLET (UV)
ADIATION!
FIXTU E EMITS HIGH INTENSITY WAVELENGTH OF ULT AVIOLET
LIGHT
WEA P OPE EYE AND SKIN P OTECTION.
DO NOT OPE ATE FIXTU E WITH DAMAGED/MISSING EXTE NAL
COVE P OTECTIVE LENS.
DO NOT LOOK DI ECTLY INTO THE (UV) LIGHT AND/O VIEW (UV)
LIGHT DI ECTLY WITH OPTICAL INST UMENTS THAT MAY CONCENT ATE THE LIGHT/ ADIATION
OUTPUT.
AVOID P OLONGED PE IODS OF EXPOSU E.
AVOID WEA ING WHITE COLO CLOTHING AND/O USING (UV) PAINTS ON SKIN.
AVOID DI ECT EYE AND/O SKIN EXPOSU E AT DISTANCES SHO TE THAN 11 feet (3.3m).
INDIVIDUALS SUFFE ING F OM A ANGE OF EYE CONDITIONS, SUNLIGHT EXPOSU E DISO DE S,
O INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY ECEIVE DISCOMFO T IF EXPOSED
TO THE ULT AVIOLET (UV) LIGHT EMITTED F OM THIS FIXTU E.
D O C U M E N T V E S I O N
Due to additional product features and/or enhancements, an updated version
of this document may be available online. Please scan the Q Code with your
mobile device or visit www.elationlighting.com for the latest revision/update of
this manual, before installation and/or programming.
Date Document Version SoftwareVersion DMX Channel Modes Notes
06/15/2020 1.0 1.01 1 / 2 / 3 / 6 Initial Release

3
General Information 4
Limited Warranty (USA Only) 5
Safety Guidelines 7
Maintenance Guidelines 9
Fixture Overview 10
Installation Instructions 11

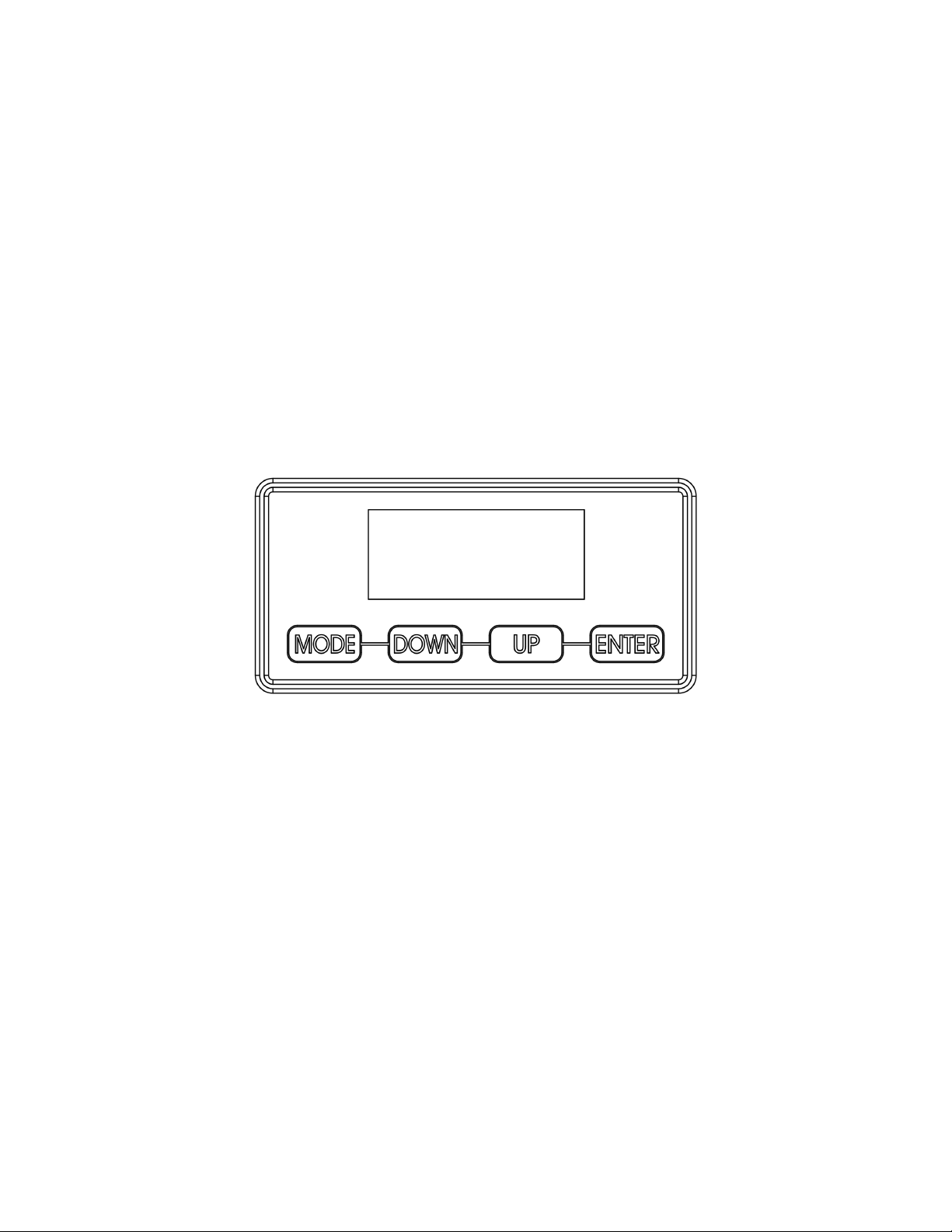

System Menu 13
DMX Traits: Channel Functions & Values 15
Dimmer Modes 18
Specications 19
Dimensions 20

4
G E N E A L I N F O M A T I O N
INT ODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting to
operate this device. These instructions contain important safety and use information.
This product is intended for use by professionally trained personnel only, and is not suitable for
private use.
Unpacking
very device has been thoroughly tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during shipping. If the carton is damaged,
carefully inspect the device for damage, and be sure all accessories necessary to install and operate the
device have arrived intact. In the event damage has been found or parts are missing, please contact our
customer support team for further instructions. Please do not return this device to your dealer without
rst contacting customer support. Please do not discard the shipping carton in the trash. Please recycle
whenever possible.
BOX CONTENTS
Mounting Bracket (x1)
Locking Power Cable (x1)
Customer SUPPO T
Contact MAGMATIC Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SE VICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [email protected]
ELATION SE VICE EU OPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
EPLACEMENT PA TS please visit parts.elationlighting.com
I M P O T A N T N O T I C E !
THE E A E NO USE SE VICEABLE PA TS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY EPAI S YOU SELF; DOING SO WILL VOID YOU
MANUFACTU E ’S WA ANTY. DAMAGES ESULTING F OM MODIFICATIONS TO
THIS FIXTU E AND/O THE DIS EGA D OF SAFETY INST UCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTU E ’S WA ANTY AND A E
NOT SUBJECT TO WA ANTY CLAIMS AND/O EPAI S.

5
L I M I T E D W A A N T Y ( U S A O N L Y )
A. Magmatic ects hereby warrants, to the original purchaser, Magmatic products to be free of
manufacturing defects in material and workmanship for a period of two years (730 days) from
the original date of purchase. This warranty excludes discharge lamps and all product
accessories. This warranty shall be valid only if the product is purchased within the United
States of America, including possessions and territories. It is the owner’s responsibility to
establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Magmatic ects factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement) are
within the terms of this warranty, Magmatic ects will pay return shipping charges only to a
designated point within the United States. If any product is sent, it must be shipped in its
original package and packaging material. No accessories should be shipped with the product.
If any accessories are shipped with the product, Magmatic ects shall have no liability what so
ever for loss and/or or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modied in any manner which Magmatic ects concludes, after inspection, aects
the reliability of the product; if the product has been repaired or serviced by anyone other than
the Magmatic ects factory unless prior written authorization was issued to purchaser by
Magmatic ects; if the product is damaged because not properly maintained as set forth in
the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specied above, Magmatic ects will replace
defective parts at its expense, and will absorb all expenses for warranty service and repair labor
by reason of defects in material or workmanship. The sole responsibility of Magmatic ects
under this warranty shall be limited to the repair of the product, or replacement thereof,
including parts, at the sole discretion of Magmatic ects. All products covered by this
warranty were manufactured after January 1, 1990, and bear identifying marks to that eect.
. Magmatic ects reserves the right to make changes in design and/or performance
improvements upon its products without any obligation to include these changes in any
products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory
supplied with the products described above. xcept to the extent prohibited by applicable law,
all implied warranties made by Magmatic ects in connection with this product, including
warranties of merchantability or tness, are limited in duration to the warranty periods set forth
above. And no warranties, whether expressed or implied, including warranties of
merchantability or tness, shall apply to this product after said periods have expired. The
consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly
provided above; and under no circumstances shall Magmatic ects be liable for any loss and/
or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this
product.
G. This warranty is the only written warranty applicable to Magmatic ects products and
supersedes all prior warranties and written descriptions of warranty terms and conditions
heretofore published.

6
W
A ANTY ETU NS (USA ONLY)
To obtain warranty service, a Return Material Authorization (RMA) number must rst be
obtained from MAGMATIC. It is the Customer’s responsibility to provide product proof of
purchase and serial number by acceptable evidence such as an invoice copy or an approved
MAGMATIC xtended Warranty Certicate (“ WC”) and any relevant maintenance records at
the time warranty service is sought. Failure to provide acceptable evidence of product proof of
purchase or WC and any relevant maintenance records may be cause for denial of warranty
service.
Products returned for warranty service must be sent without any accessories (i.e., power, data,
and safety cables, brackets, clamps, rigging hardware, frost lters, gel frames, barn doors, lenses,
hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable
packaging materials (double-box and foam) that provides ample product protection for ground
and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los
Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly
written on the outside of the return box, and a brief description of the problem and the RMA
number must be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of
the package will be refused and returned to the shipper at the Customer’s expense. Products
returned for warranty service, which are received damaged due to inadequate and/or improper
packaging and/or due to damage caused by the shipping carrier, may incur additional repair
charges before warranty service begins and/or may void this warranty. If any product accessories
(included and/or optional) are shipped with the product, MAGMATIC and/or the MAGMATIC
Authorized Service Center shall have no liability whatsoever for the loss and/or damage to any
such accessories, nor the safe return thereof. If the requested warranty repairs or service
(including parts replacement) are within the terms of this warranty, MAGMATIC will pay return
ground transportation shipping charges to a single designated point within the United States.

7
S A F E T Y G U I D E L I N E S
This xture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it
is important to follow all instructions and guidelines in this manual. lation Professional is not
responsible for injury and/or damages resulting from the misuse of this xture due to the
disregard of the information printed in this manual. Only qualied and/or certied personnel
should perform installation of this xture and only the original rigging parts included with this
xture should be used for installation. Any modications to the xture and/or the included
mounting hardware will void the original manufacturer’s warranty and increase the risk of
damage and/or personal injury.
P OTECTION CLASS 1 - FIXTU E MUST BE P OPE LY G OUNDED
There are no user serviceable parts inside this unit.
Do not attempt any repairs yourself; doing so will void your manufacture ’s
warranty. Damages resulting from modications to this xture and/or the
disregard of safety instructions and guidelines in this manual void the
manufacture ’s warranty and are not subject to any warranty claims and/or
repairs.
DO NOT PLUG FIXTU E INTO A DIMME PACK!
NEVE OPEN THIS FIXTU E WHILE IN USE!
UNPLUG POWE BEFO E SE VICING FIXTU E!
NEVE TOUCH FIXTU E DU ING OPE ATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATE IALS AWAY F OM FIXTU E!
NEVE LOOK DI ECTLY INTO THE LIGHT SOU CE!
ETINA INJU Y ISK - MAY INDUCE BLINDNESS!
SENSITIVE PE SONS MAY SUFFE AN EPILEPTIC SHOCK!
FIXTU E IS DUST TIGHT AND P OTECTED AGAINST LOW P ESSU E
WATE JETS IN ANY DI ECTION
IP65

8
S A F E T Y G U I D E L I N E S
DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the xture to cool down before serving.
DO NOT shake xture, and avoid brute force when installing and/or operating xture.
DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power
cord connectors are damaged and do not insert into the xture securely with ease. NEVE force
a power cord connector into the xture. If the power cord or any of its connectors are damaged,
replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between xture and other devices or a wall for proper cooling.

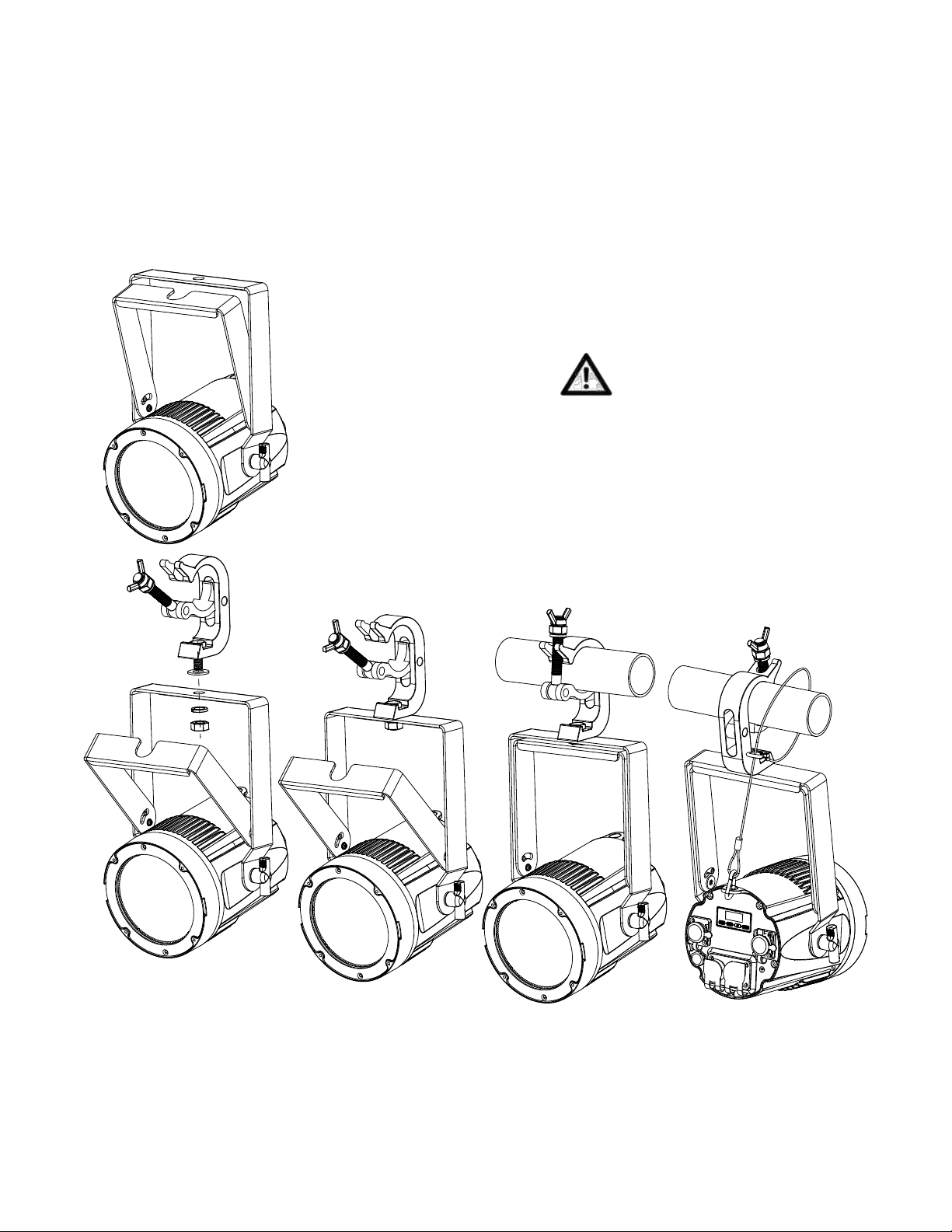

When installing xture in a suspended environment, always use mounting hardware that is no less
than M10 x 25 mm, and always install xture with an appropriately rated safety cable.
Always disconnect xture from main power source before performing any type of service and/or
cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by
tugging the wire portion of the cord.
During the initial operation of this xture, a light smoke or smell may emit from the interior of the
xture. This is a normal process and is caused by excess paint in the interior of the casing burning
o from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure xture will function properly for many years.
ONLY use the original packaging and materials to transport the xture for service.
ISK G OUP 3 - ISK OF EXPOSU E TO ULT AVIOLET
(UV) ADIATION!
FIXTU E EMITS HIGH INTENSITY WAVELENGTH OF
ULT AVIOLET LIGHT
WEA P OPE EYE AND SKIN P OTECTION.
DO NOT OPE ATE FIXTU E WITH DAMAGED/MISSING
EXTE NAL COVE P OTECTIVE LENS.
DO NOT LOOK DI ECTLY INTO THE (UV) LIGHT AND/O
VIEW (UV) LIGHT DI ECTLY WITH OPTICAL
INST UMENTS THAT MAY CONCENT ATE THE LIGHT/
ADIATION OUTPUT.
AVOID P OLONGED PE IODS OF EXPOSU E.
AVOID WEA ING WHITE COLO CLOTHING AND/O USING (UV) PAINTS ON SKIN.
AVOID DI ECT EYE AND/O SKIN EXPOSU E AT DISTANCES SHO TE THAN 11 feet (3.3m).
INDIVIDUALS SUFFE ING F OM A ANGE OF EYE CONDITIONS, SUNLIGHT EXPOSU E
DISO DE S, O INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY ECEIVE
DISCOMFO T IF EXPOSED TO THE ULT AVIOLET (UV) LIGHT EMITTED F OM THIS FIXTU E.

9
M A I N T E N A N C E G U I D E L I N E S
DISCONNECTPOWE BEFO EPE FO MING ANYMAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the xture
operates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt
on the xture’s optics. Clean the external lens surface periodically with a soft cloth to avoid dirt/
debris accumulation.
NEVE use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life.
There are no user serviceable parts inside this xture, please refer all other service issues to an
authorized MAGMATIC service technician. Should you need any spare parts, please order
genuine parts from your local MAGMATIC dealer.
Please refer to the following points during routine inspections:
- A detailed electrical check by an approved electrical engineer every three months, to make
sure the circuit contacts are in good condition in order to prevent overheating.
- Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during
normal operation, resulting in damage or injury as larger parts could fall.
- Check for any deformations on the housing, color lenses, rigging hardware, and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust or
liquids to enter into the xture. Damaged rigging points or unsecured rigging could cause the
xture to fall and seriously injure a person(s).
- lectric power supply cables must not show any damage, material fatigue, or sediments.
NEVE remove the ground prong from the power cable.

1 0
DMX I n
Til t Lock
Lens
DMX O ut
Controls:
Mode Button
Up Button
Down Button
nter Button
Dis play
Scr een
Pow er In Pow er Out
Saf ety Cable
Rig ging Point
Hin ged Stand
Mou nting Hole
1 0

11
I N S T A L L A T I O N I N S T U C T I O N S
FLAMMABLE MATE IAL WA NING
Keepxtureminimum5.0feet(1.5m)awayfromammablematerialsand/orpyrotechnics.
ELECT ICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWE LINKING OTHE MODEL FIXTU ES AS THE
POWE CONSUMPTION OF OTHE MODEL FIXTU ES MAY EXCEED THE MAX
POWE OUTPUT ON THIS FIXTU E. CHECK SILK SC EEN FO MAX AMPS.
DO NOT INSTALL THE FIXTU E IF YOU A E NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single xture or multiple interconnected xtures for custom matrix
designs to any metal truss/structure or placing the xture(s) on any surface, a professional
equipment installer MUST be consulted to determine if the metal truss/structure or surface is
properly certied to safely hold the combined weight of the xture(s), clamps, cables, and
accessories.
Ambient operating temperature range is from 14°F (-10°C) to 113°F (45°C).
Do not operate this xture when ambient temperature falls outside this range.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas
were unauthorized personnel might reach the xture by hand.
NEVE stand directly below the xture(s) when rigging, removing, or servicing.
Overhead xture installation must always be secured with a secondary safety attachment, such
as an appropriately rated safety cable (not included) that meets all local, national, and country
codes and regulations. Allow approximately 15 minutes for the xture to cool down before
servicing.

1 2
I N S T A L L A T I O N I N S T U C T I O N S
CLAMP INSTALLATION
This xture features an integrated mounting point for the attachment of a truss clamp, as well as
a safety cable rigging point, located on the underside of the xture (see the illustration below).
When mounting this xture to a truss, be sure to secure an appropriately rated clamp (not
included), and attach a separate SAFETY CABLE of the appropriate rating to the safety cable
rigging point.
IGGING
Overhead rigging requires extensive experience, including but not limited to: calculating
working load limits, understanding the installation material being used, and periodic safety
inspection of all installation material and the xture. If you lack these qualications, do not
attempt the installation yourself. Improper installation can result in bodily injury.
S A F E T Y C A B L E
ALWAYS ATTACH A SAFETY WHENEVE
INSTALLING THIS FIXTU E IN A SUSPENDED
ENVI ONMENT TO ENSU E THE FIXTU E WILL
NOT FALL IF THE CLAMP FAILS.

1 3
S Y S T E M M E N U
The xture includes an easy to navigate system menu. The control panel (see image below)
located on the xture provides access to the main system menu, where all necessary system
adjustments can be made. During normal operation, pressing MODE button once will access
the xture’s main menu. Once in the main menu you can navigate through the dierent
functions and access the sub-menus with the UP and DOWN buttons. Once you reach a
eld that requires adjusting, press the ENTE button to activate that eld and use the UP
and DOWN buttons to adjust the eld. Pressing the ENTE button once more will conrm
your setting. You may exit the main menu at any time without making any adjustments by
pressing the MODE button.
The display screen will automatically time out after 30 seconds of inactivity. To unlock the
display screen, simply press and hold the MODE until the display screen unlocks.

1 4
Magmatic Prisma Wash 100 System Menu
Default setting shown in bold
Supports Software Versions: 1.01X
Address Address XXX 001 – 510 30s screen times out.
Mode 1CH, 2CH, 3CH, 6 CH
Function
NO DMX Black / Hold
LCD. Set
Display (30s screen time
out) ON/OFF
Key Lock ON/ON1/
OFF
Flash ON/OFF
Inverse ON/OFF Flip screen 180°
Temp. C/F Celsius / Fahrenheit Temperature ℃/℉
DimMode
Standard, Stage, TV, Architect, Theatre,
Stage2, 0.0s, 0.1s, 0.2s, 0.3s, 0.4s, 0.5s,
0.6s, 0.7s, 0.8s, 0.9s, 1.0s, 1.5s, 2.0s, 3.0s,
4.0s, 5.0s, 6.0s, 7.0s, 8.0s, 9.0s, 10.0s
DimCurve Linear, Square, I-Square, S-Curve
Frequency
900HZ, 910HZ, 920HZ, 930HZ, 940HZ,
950HZ, 960HZ, 970HZ, 980HZ, 990HZ,
1000HZ, 1010HZ, 1020HZ, 1020HZ,
1030HZ, 1040HZ, 1050HZ, 1060HZ,
1070HZ, 1080HZ, 1090HZ, 1100HZ,
1110HZ, 1120HZ, 1130HZ, 1140HZ,
1150HZ, 1160HZ, 1170HZ, 1180HZ,
1190HZ, 1200HZ, 1210HZ, 1220HZ,
1230HZ, 1230HZ, 1240HZ, 1250HZ,
1260HZ, 1270HZ, 1280HZ, 1290HZ,
1300HZ, 1310HZ, 1320HZ, 1330HZ,
1340HZ, 1350HZ, 1360HZ, 1370HZ,
1380HZ, 1390HZ, 1400HZ, 1410HZ,
1420HZ, 1430HZ, 1440HZ, 1450HZ,
1460HZ, 1470HZ, 1480HZ, 1480HZ,
1490HZ, 1500HZ, 2500HZ, 4000HZ,
5000HZ, 6000HZ, 10KHZ, 15KHZ,
20KHZ, 25KHZ
Master Switch ON/OFF
Defaults Reset?/Cancel
Information
Time. Info
Current Current xture running time (H)
Total Fixture total running time (H)
Last Clear last xture running time (H)
Password Clear 0 (Password=50)
Clear 0 (Password=60)
Clear ON/OFF
Temp. Info L D Temp
Model. Info Prisma Par 50
Software V1.01
rror. Info None, XXX
Slave
Manual
Dimmer 000-255
UV 000-255
Strobe 000-255
Calibration -Password-(50)
S Y S T E M M E N U

1 5
MAGMATIC PRISMA WASH 100™
DMX Channel Values / Functions
Supports Software Versions: ≥ 1.0.1
Features subject to change without notice.
Mode/Channel Value Function
1CH 2CH 3CH 6CH
1 1
Strobe
000-031 L D OFF
032-063 L D ON
064-095 Strobe eect slow to fast
096-127 L D ON
128-159 Pulse-strobe eect slow to fast
160-191 L D ON
192-223 Random strobe eect slow to fast
224-255 L D ON
1 1 2 2 Dimmer
000-255 0 to 100%
2 3 3 Dimmer Fine
000-255 0 to 100%
4
Dim Mode
000-020 Standard
021-040 Stage
041-060 TV
061-080 Architectural
081-100 Theatre
101-120 Stage2
Dimmer Delay Time
121 0.0s
122 0.1s
123 0.2s
124 0.3s
125 0.4s
126 0.5s
127 0.6s
128 0.7s
129 0.8s
130 0.9s
131 1.0s
132 1.5s
133 2.0s
134 3.0s
135 4.0s
136 5.0s
137 6.0s
138 7.0s
139 8.0s
140 9.0s
141 10s
142-255 Default to the unit display setting
D M X T A I T S : C H A N N E L F U N C T I O N S & V A L U E S

1 6
Mode/Channel Value Function
1CH 2CH 3CH 6CH
5
Dim Curves
000-020 Linear
021-040 Square
041-060 Inv. Squa
061-080 S. Curve
081-255 No Function
LED efresh ates
000-010 No function (Default L D Refresh Rate 1200 Hz)
011-011 900 Hz L D Refresh Rate
012-012 910 Hz L D Refresh Rate
013-013 920 Hz L D Refresh Rate
014-014 930 Hz L D Refresh Rate
015-015 940 Hz L D Refresh Rate
016-016 950 Hz L D Refresh Rate
017-017 960 Hz L D Refresh Rate
018-018 970 Hz L D Refresh Rate
019-019 980 Hz L D Refresh Rate
020-020 990 Hz L D Refresh Rate
021-021 1000 Hz L D Refresh Rate
022-022 1010 Hz L D Refresh Rate
023-023 1020 Hz L D Refresh Rate
024-024 1030 Hz L D Refresh Rate
025-025 1040 Hz L D Refresh Rate
026-026 1050 Hz L D Refresh Rate
027-027 1060 Hz L D Refresh Rate
028-028 1070 Hz L D Refresh Rate
000-029 1080 Hz L D Refresh Rate
030-030 1090 Hz L D Refresh Rate
031-031 1100 Hz L D Refresh Rate
032-032 1110 Hz L D Refresh Rate
033-033 1120 Hz L D Refresh Rate
034-034 1130 Hz L D Refresh Rate
035-035 1140 Hz L D Refresh Rate
036-036 1150 Hz L D Refresh Rate
037-037 1160 Hz L D Refresh Rate
038-038 1170 Hz L D Refresh Rate
039-039 1180 Hz L D Refresh Rate
040-040 1190 Hz L D Refresh Rate
041-041 1210 Hz L D Refresh Rate
042-042 1220 Hz L D Refresh Rate
043-043 1230 Hz L D Refresh Rate
044-044 1240 Hz L D Refresh Rate
045-045 1250 Hz L D Refresh Rate
046-046 1260 Hz L D Refresh Rate
047-047 1270 Hz L D Refresh Rate
048-048 1280 Hz L D Refresh Rate
049-049 1290 Hz L D Refresh Rate
050-050 1300 Hz L D Refresh Rate
051-051 1310 Hz L D Refresh Rate
052-052 1320 Hz L D Refresh Rate

1 7
Mode/Channel Value Function
1CH 2CH 3CH 6CH
6
053-053 1330 Hz L D Refresh Rate
054-054 1340 Hz L D Refresh Rate
055-055 1350 Hz L D Refresh Rate
056-056 1360 Hz L D Refresh Rate
057-057 1370 Hz L D Refresh Rate
058-058 1380 Hz L D Refresh Rate
059-059 1390 Hz L D Refresh Rate
060-060 1400 Hz L D Refresh Rate
061-061 1410 Hz L D Refresh Rate
062-062 1420 Hz L D Refresh Rate
063-063 1430 Hz L D Refresh Rate
064-064 1440 Hz L D Refresh Rate
065-065 1450 Hz L D Refresh Rate
066-066 1460 Hz L D Refresh Rate
067-067 1470 Hz L D Refresh Rate
068-068 1480 Hz L D Refresh Rate
069-069 1490 Hz L D Refresh Rate
070-070 1500 Hz L D Refresh Rate
071-071 2500 Hz L D Refresh Rate
072-072 4000 Hz L D Refresh Rate
073-073 5000 Hz L D Refresh Rate
074-074 6000 Hz L D Refresh Rate
075-075 10K Hz L D Refresh Rate
076-076 15K Hz L D Refresh Rate
077-077 20K Hz L D Refresh Rate
078-078 25K Hz L D Refresh Rate
079-255 No Function

1 8
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec Rise Time Down Time
Dimming Curve
Ramp Effect
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2 0 1100 0 1660
0
255
0
255
D I M M E M O D E S
Select desired DIMM R MOD (Standard, Stage, TV, Architectural, Theatre, Stage2).

1 9
S P E C I F I C A T I O N S
SOU CE
(16) 2W High Power UV Diode L Ds
20,000 Hour Average L D Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
nvironmental Conditions, Power/Voltage, Usage Patterns (On-O Cycling), Control, and
Dimming.
PHOTOMET IC DATA
50 Degree Wide Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed lectronic Strobe
Variable Dimming Curve Modes
CONST UCTION
Rugged IP65 Rated Aluminum Housing
Dual Adjustable Mounting Yokes
CONT OL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
SIZE / WEIGHT
Width: 7.55 in. (192mm)
Diameter: 5.9 in. (150mm)
Vertical Height: 12.37 in. (314.3mm)
Weight: 7.05 lbs. (3.2kg)
ELECT ICAL
AC100-240V 50-60Hz
37W Max Power Consumption
THE MAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APP OVALS / ATINGS
C | c TLus | IP65
Specications and documentation subject to change without notice.

2 0
D I M E N S I O N S
O DE ING:
SKU#: PSP050
U#:
UPC#: 810008261156
OPTIONAL ACCESSO IES:
PRISMA WASH BLACK GLASS: PSG852
Ø5.9in. [Ø150mm]
12.36in. [314mm]
7.70in. [195.6mm]
1.38in. [35.0mm]
7.55in. [196mm]
8.43in. [214.2mm]
7.13in. [181.0mm]
