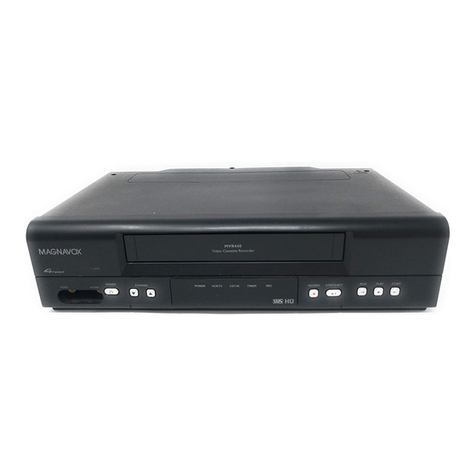

Magnavox MVR440MG/17 Operating manual

ANT
AUDIO
VIDEO
IN
OUT
OUT IN
OUT
L
R
IN
75
ANT/
CABLE
AUDIO
R
L
VIDEO
OUT IN
IN
OUT
OUT
IN
ANT
75
ANT/
CABLE
Quick-Use Guide
Quick-Use Guide
There are many ways to connect your newVCR to your TV and other equipment.This
Quick-Use Guide shows the easiest, most common connection between theVCR and a
TV. Other connections, including Cable Boxes, are described in the owner’s manual.
1. Press PLAY or STOP to select ENGLISH, FRANCAIS, or
ESPAÑOL.
2. Press F. FWD. AUTO SET UP will appear.
3. Press F. FWD again to set TV channels. AUTO SET UP will
flash and channels will count up as setup progresses.When channels
are set, theVCR will go to the lowest channel.
You are finished setting up theVCR.To play a tape or make a
recording, see the reverse side of this Quick-Use Guide.
Antenna or
Cable TV
signal
Coaxial cable
TV’s Antenna In,
RF In, or 75Ωjack
LANGUAGE SELECT
BENGLISH [ON]
FRANCAIS
ESPAÑOL
PUSH F. FWD
AUTO SET UP
PUSH F. FWD
1You may have your antenna or Cable TV signal connected to your TV
already. Disconnect the antenna/CableTV signal from your TV.
2Connect the antenna/CableTV signal to the VCR’s
ANT(enna) IN jack.
3Connect the supplied black coaxial cable to theVCR’s OUT
jack and to theTV’s Antenna In jack.
4Plug in the power cords of the TV and the VCR.
5Set theTV to channel 3. If you cannot use channel 3, change to chan-
nel 4. Change the VCR’s output channel to 4 also.To do so, press and hold
PLAY on theVCR for three seconds during tape play.
The VCR’s default output channel is 3.To reset it to channel 3 at any
time, unplug the VCR’s power cord for more than 30 seconds.
6Press POWER to turn on the VCR.When you first turn on
the newVCR, set channels and select a menu language. Yo u
will be using the remote. Install its batteries first.
All manuals and user guides at all-guides.com
all-guides.com

CH
321
654
987
0
POWER
STATUS
SLOWREC MEMORY
SPEED
SEARCH MODE STILL/PAUSE
VCR/TV EJECT
MENU
CLEAR
REW
PLAY
STOP F.FWD
3
7
8
5
4
6
Recording a Current TV Program
1Turn on the TV and set it to channel 3. (If
you need to use channel 4 instead, see the reverse
side of this Quick-Use Guide.)
2Insert a tape (with a record tab) in the VCR.
3If the VCR/TV light does not appear on
front of the VCR, press VCR/TV until it does.
4Press SPEED to select a recording speed.
5Press CH or the Number buttons to
select a channel to record at the VCR.
6Press REC to start recording.
7To pause recording, press STILL/PAUSE.
To resume recording, press REC or
STILL/PAUSE again.
8Press STOP to end recording.
CH
321
654
987
0
POWER
STATUS
SLOWREC MEMORY
SPEED
SEARCH MODE STILL/PAUSE
VCR/TV EJECT
MENU
CLEAR
REW
PLAY
STOP F.FWD
Playing a Videotape
1Turn on the TV and set it to channel 3. (If
you need to use channel 4 instead, see the reverse
side of this Quick-Use Guide.)
2Insert a tape in the VCR.TheVCR will turn on
automatically if the power was off.
3If play does not start, press PLAY.
4Press STOP to end playback.
5Press REW to rewind the tape.
6Press EJECT to remove the tape.
3
6
4
5
Quick-Use Guide
Quick-Use Guide, ,cont’ cont’d d
POWER VCR/TV CST.IN TIMER REC
VIDEO L AUDIO R POWER RECORD REW PLAY FWDSTOP/EJECTCHANNEL
MVR440MG/17, MVR450MG/17, MVR650MG/17
EL6574E001
0VMN04006 /HF3P0UD, HF3P1UD, HF4P0UD * * * * *
