Majestic fireplaces CR36L Mounting instructions

325
CR36R, CR36L
Cover
2/3/99 djt
For Models:
CR36R
CR36L
CR Series
Corner Woodburning Fireplace
DO NOT DISCARD THIS MANUAL: Retain for future use.
For use in U.S./Canada
Underwriter’s Laboratories
Report No. MH6018
20001316 3/06 Rev. 13
Homeowner’s Installation
and Operating Manual

2
CR Series Woodburning Fireplaces
20001316
Safety Information
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING FIREPLACE.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to
follow these instructions may result in a possible fire hazard and will void the warranty.
Description
The CR36R/L Series fireplaces are multi-sided solid
fuel, woodburning fireplaces. These are radiant models
only and include a preinstalled outside air kit.
Precautions
CFM Corporation fireplaces and component parts have
been highly tested and will operate safely when installed
in accordance with instructions provided in this manual.
Carefully read and understand all instructions before
beginning installation.
If you notice any damage to fireplace or component
parts, immediately report damage to your Majestic Fire-
places dealer.
Only use CFM Corporation components or the warranty
will be voided and a fire hazard may be created.
CFM Corporation warranty will be voided by and CFM
Corporation disclaims any responsibility for the following
actions:
• Installation of any damaged fireplace or chim-
ney component;
• Modification of fireplace, chimney assembly or
any component parts thereof; (except for chase
flashings as detailed in the Chimney Top installa-
tion instructions).
• Installation other than as instructed by CFM
Corporation; or
• Installation and/or use of any component part
not manufactured or approved by CFM Corpo-
ration in combination or assembly with a CFM
Corporation fireplace system, notwithstanding
any independent testing laboratory or other
third party approval of such component parts
or accessory.
Any such action may possibly cause a fire hazard.
Consult local building codes to ensure that you are in
compliance before installing the fireplace.
Fireplaces must be vented to the out-of-doors.
Do not obstruct or modify air inlets/outlets in any
manner.
Do not install combustible materials on any of the
black fireplace surround.
Burn only solid wood fuel or gas logs.
Do not install a solid fuel burning insert or other
products not specified for use with this fireplace.
Safety Information ......................................... 2
Specifications and Framing ........................... 3
Parts Identification ........................................ 4
Chimney Requirements ................................ 5
Planning Information ..................................... 6
Installation .................................................... 7

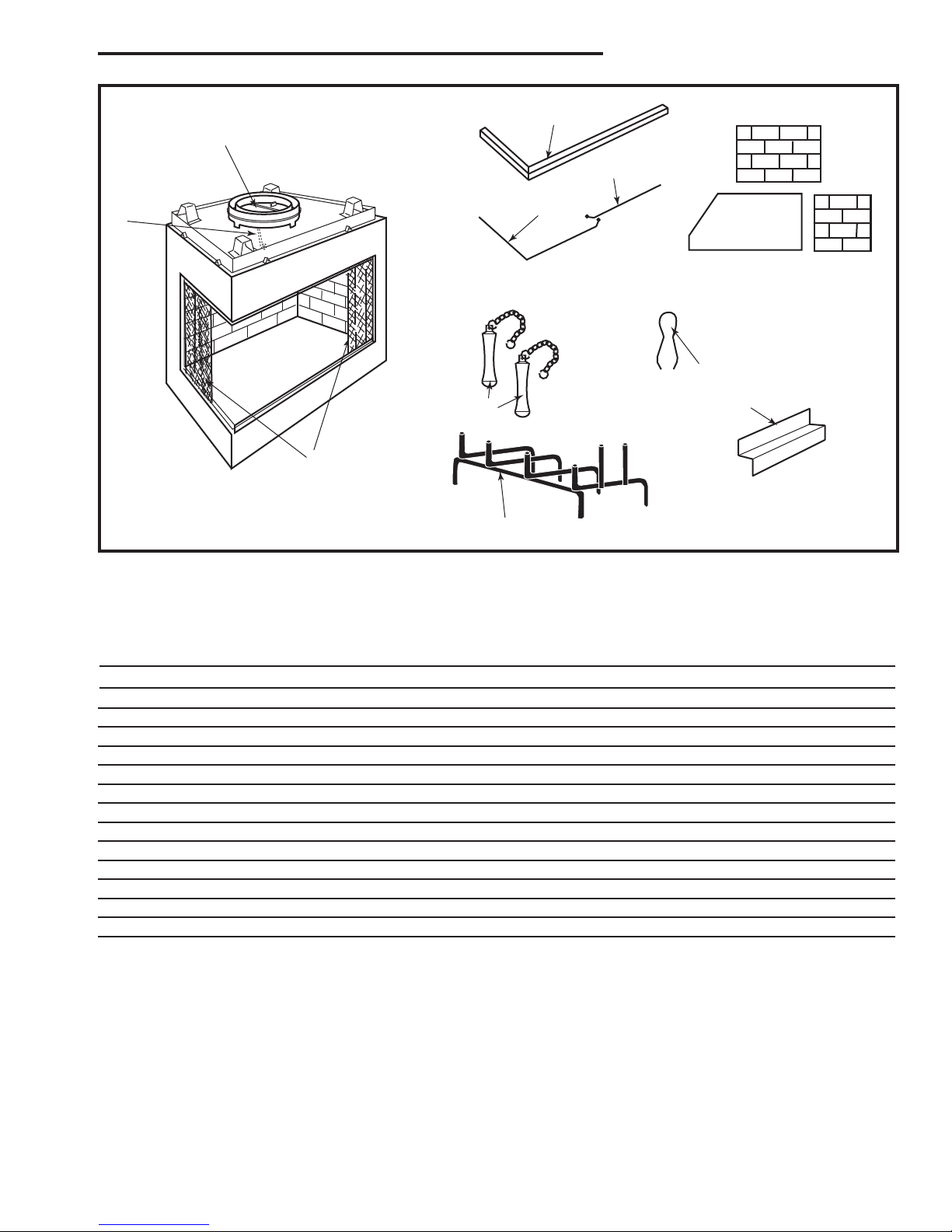

Replacement Parts ...................................... 17

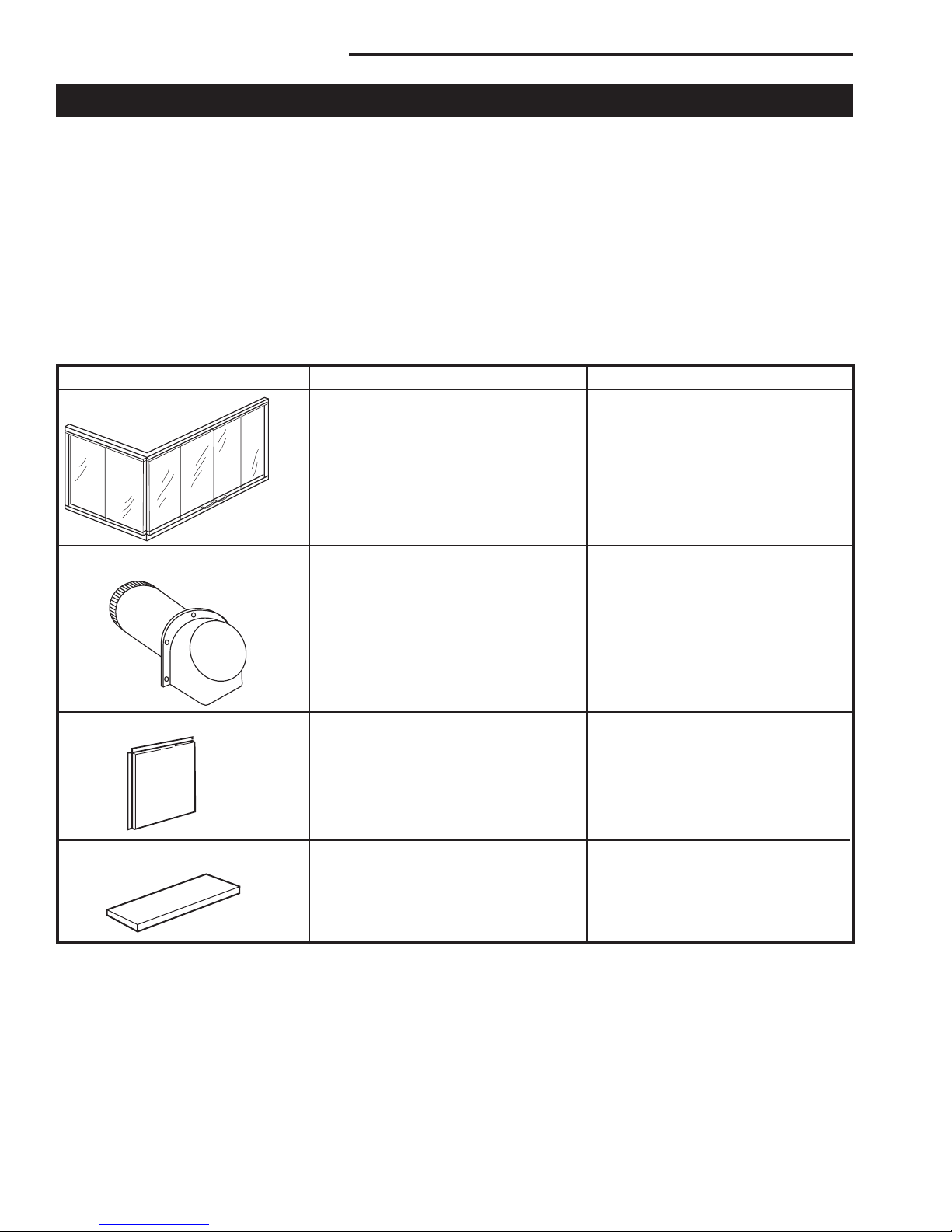

Accessories ................................................ 18
Table of Contents
CR36R / CR36L
Listed
UL / ULC-S610
Standard for Factory Built Fireplaces
Drafts
The fireplace should not be located in areas that create
drafts (ie: frequently opened doors and central heating
air inlets/outlets) that hamper the normal flow of air into
the fire.
Gas Logs
If you plan to install a gas log, the gas line should be
installed before framing the fireplace. The gas line must
be installed by a certified gas line installer.
Proposition 65 Warning: Fuels used in gas, wood-
burning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
WARNING: Check with your electronics manufac-
turer before installing a television or other electronic
device above this fireplace.
Units: FG10R7, FG10R8

3
CR Series Woodburning Fireplaces
20001316
325
CR Specs
3/3/99 djt
Rough
Opening
Depth
22³⁄₄"
(578mm)
22"
(559mm)
10"
(254mm)
³⁄₄" (19mm)
⁷⁄₁₆" (11mm)
29¹⁄₄" (743mm)
11" Dia.
(279mm)
1" Typ.
(25mm)
9⁷⁄₈"
(251mm)
6"
(159mm)
19⁹⁄₁₆"
(497mm)
21⁷⁄₁₆"
(545mm)
6³⁄₄"
(172mm)
36" (914mm)
40¹⁄₈" (1019mm)
41¹⁄₂"
(1054mm)
Gas Line
Access
9¹⁄₂"
(241mm)
8"
(203mm)
7"
(178mm)
14¹⁄₄"
(362mm)
4" Dia.
Outside
Air Collar
Rough
Opening
Height
CR36R/L Series Woodburning Fireplace

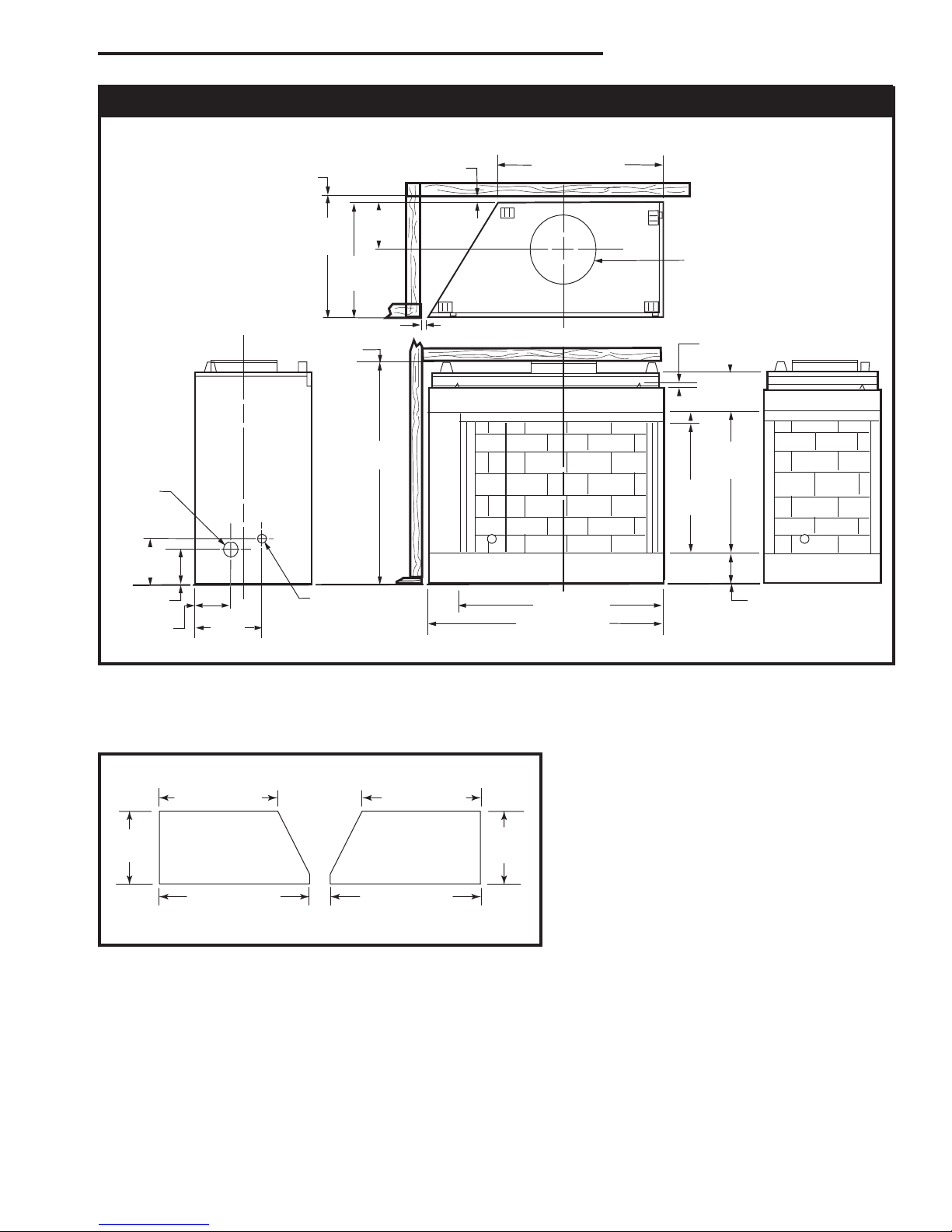

Fig. 1 CR36R/L Series specifications and framing.
(CR36R Shown)
25¹⁄₂" (648 mm) 25¹⁄₂" (648 mm)
32³⁄₈" (822 mm)
15⁵⁄₈"
(397 mm)
32³⁄₈" (822 mm)
15⁵⁄₈"
(397 mm)
CR36L CR36R
FP1538
CR Hearth size
10/04 djt
FP1538
Fig. 1a CR36R/L hearth dimensions.

4
CR Series Woodburning Fireplaces
20001316
FP704CR
CR chase install
4/26/99 djt
from FP704 STR

Termination Cap
Storm Collar
Pan Flashing
Draftstop
Finish Wall
Surround
Screen
Grate
Firebox
Outside Air Control
Outside Air
Cover Plate
Gas Access
See Figure 20 on page 15
for clearance information
Outer Dome
Ceiling Level
Firestop
Batt Insulation
(cut out around
firestop)

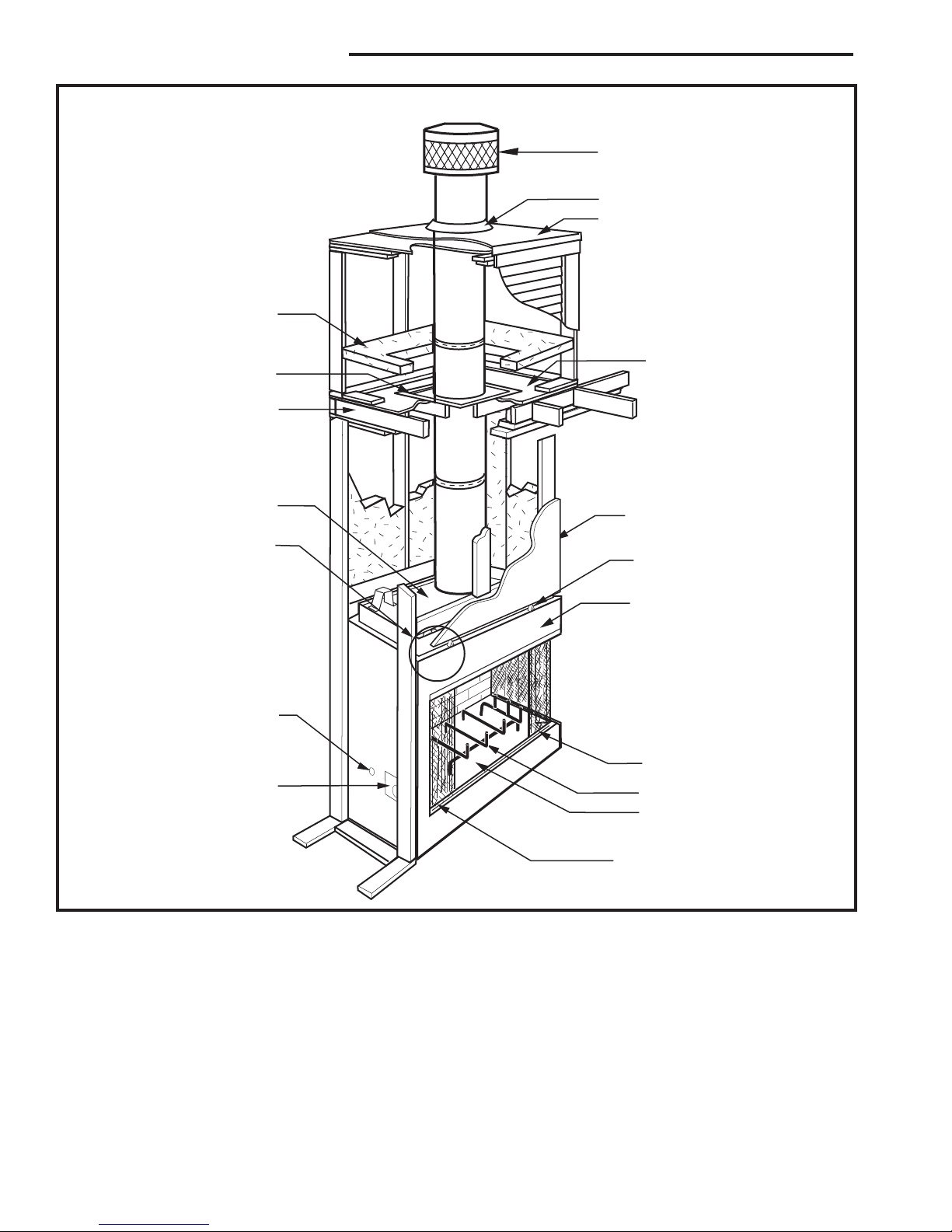

Fig. 2 Fireplace and chase parts identification.
FP704CR
Chase Installation
Insulation methods shown are optional
for cold climates, not a requirement for
unit operation.
Ledge Bracket

5
CR Series Woodburning Fireplaces
20001316
0 0 0 0 0 3” 11”
1 0 0 0 0 8¹⁄₄" 20"
0 1 0 0 0 11¹⁄₄" 25¹⁄₄"
2 0 0 0 0 13¹⁄₂" 29¹⁄₄"
1 1 0 0 0 16¹⁄₂" 34¹⁄₄"
0 0 1 0 0 20¹⁄₄" 40³⁄₄"
2 1 0 0 0 21³⁄₄" 43¹⁄₂"
0 0 0 1 0 26¹⁄₄" 51¹⁄₄"
0 1 1 0 0 28¹⁄₂" 55¹⁄₄"
1 0 0 1 0 31¹⁄₂" 60¹⁄₄”
0 1 0 1 0 34¹⁄₂" 65¹⁄₂"
0 0 2 0 0 37¹⁄₂" 70³⁄₄"
1 1 0 1 1 41¹⁄₂" 77³⁄₄"
0 0 1 1 1 45" 83³⁄₄"
0 1 2 0 1 47¹⁄₄" 87¹⁄₂"
0 0 0 2 1 51" 94"
0 1 1 1 1 53¹⁄₄" 98"
0 0 3 0 1 56¹⁄₄" 103¹⁄₄"
0 1 0 2 1 59¹⁄₄" 108¹⁄₂"
0 0 2 1 1 62¹⁄₄" 113¹⁄₂"
0 1 3 0 1 64¹⁄₂" 117¹⁄₂"
0 0 1 2 1 68¹⁄₄" 124"
0 1 2 1 1 70¹⁄₂" 128"
0 0 0 3 1 74¹⁄₄" 134¹⁄₂"
0 1 1 2 2 78" 140³⁄₄"
0 0 3 1 2 81" 146"
0 1 0 3 2 84" 151¹⁄₄"
0 0 2 2 2 87" 156¹⁄₂"
0 1 3 1 2 89¹⁄₄" 160¹⁄₄"
0 0 1 3 2 93" 166³⁄₄"
0 1 2 2 2 95¹⁄₄" 170³⁄₄"
0 0 0 4 2 99¹⁄₄" 177³⁄₄"
0 1 1 3 2 101¹⁄₄" 181³⁄₄"
0 0 3 2 2 104¹⁄₄" 186¹⁄₄"
0 1 0 4 2 107¹⁄₄" 191¹⁄₂"
0 0 2 3 2 110¹⁄₄" 196³⁄₄"
0 1 3 2 3 114" 203¹⁄₄"
0 0 1 4 3 117³⁄₄" 209³⁄₄"
0 1 2 3 3 120" 213¹⁄₂"
0 0 0 5 3 123³⁄₄" 220"
D
BG
H
B
C
E
6 FT.
G
H
A
FP269CR
CR Series
2/19/99 djt
30˚ Elbow Offsets
1’ 1¹⁄₂'3’ 4’ Offset Rise
Chimney Support
Illustration Key
The following safety rules apply to offset
installations. (The letters correspond with
letters above):
A. Height of the chimney measured from
the hearth to the chimney exit at top:
CR36L/R Series
Maximum: 90’0”
Minimum:
Without elbows 14’ 0”
With 2 elbows 15’ 0”
With 4 elbows 21’ 0”
B. Do not use more than four elbows per
chimney.
Attach the straps of the top elbows to a
structural framing member.
The first elbow of any pair does not have
straps.
C. The chimney cannot be more than 30°
from the vertical plane.
D. The maximum length of the angled run
of the total chimney system is 20 feet. (G
plus H cannot exceed 20 feet)
E. A chimney support (Model SKCS8) is
required every 6 feet of angled run of
chimney. Chimney supports are required
at 30 feet and 60 feet of chimney height
above the hearth also.
Determine the offset distance of your chim-
ney arrangement from the centerline of the
fireplace to the centerline of the chimney
where it is to pass through the first ceiling.
NOTE: This offset distance may not be your
full offset distance. See Examples 2 and 3.
Chimney Flue Exit
Chimney
Section
Elbow
Rise
Offset
Hearth Floor
Example 1 Example 2 Example 3
30°
Offset
Elbow
30°
Offset
Elbow
30°
Return
Elbow
30°
Return
Elbow
SKCS8
Support
NOTE: G + H Cannot Exceed 20’

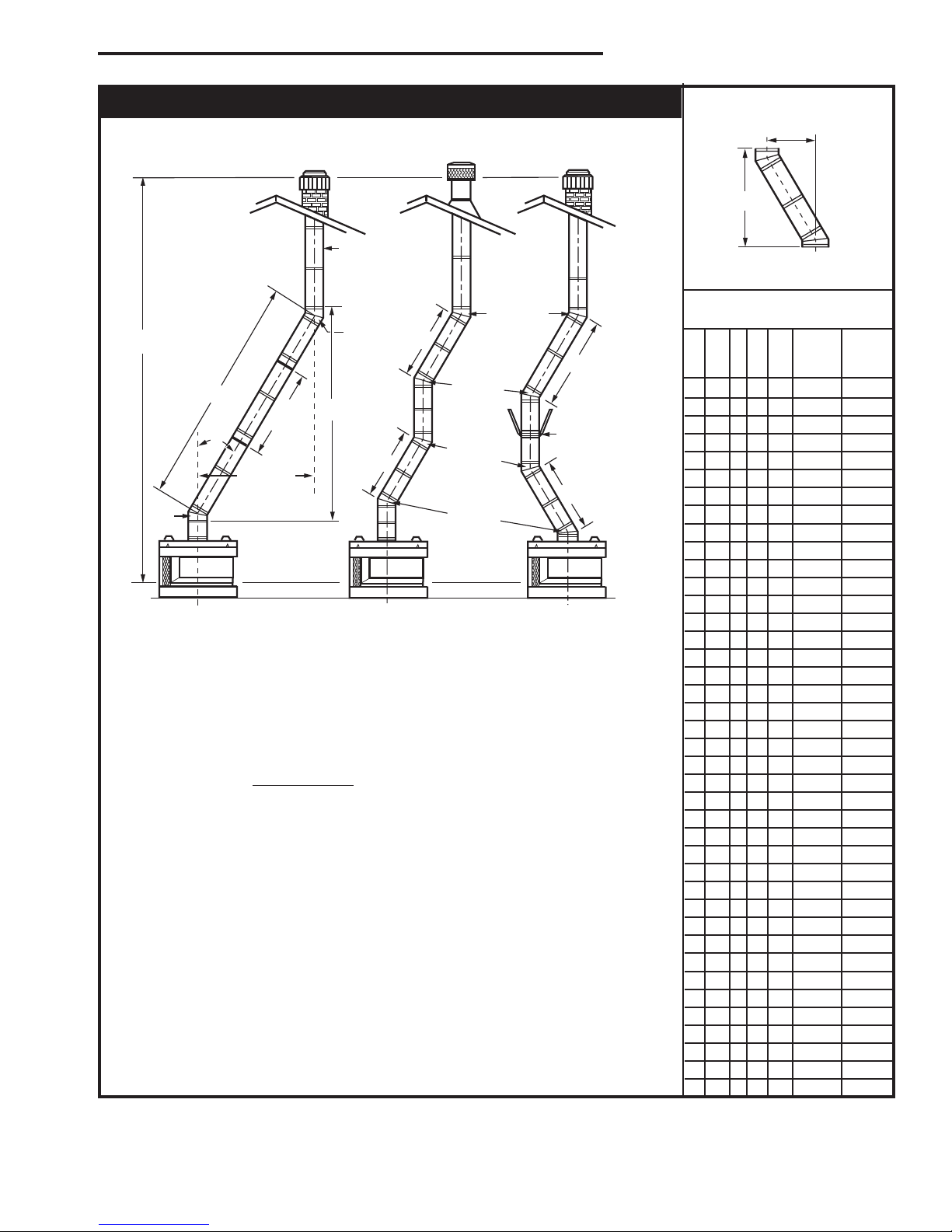

Fig. 3 Chimney system requirements.
FP269CR
Chimney Requirements - Offset Installations
IWF282
MBUF
5/26/96
OFFSET
RISE
FP282

6
CR Series Woodburning Fireplaces
20001316
Planning Information
Preplanning an installation is very important to ensure
safety and to save time and money. An installer must
predetermine where a fireplace will be set and how the
chimney system will be run.
Mounting the Fireplace
A fireplace may only be mounted on the following
surfaces:
1. A flat combustible surface.
2. A raised wooden platform.
3. A concrete block or other solid object placed be-
neath each of the four (4) corners of the fireplace.
The fireplace must be spaced 3/4 inch from a com-
bustible back wall and 7/16 inch from a combustible
side wall or support. (Fig. 17, Page 12)
Planning the Chimney Run
Determine how the chimney will be run, length of run
and chimney components required to complete the
job. (Fig. 3) Never install a chimney below minimum
heights.
The Ten Foot Rule
Major U.S. building codes specify a minimum chimney
height above the roof top. The “Ten Foot Rule” is a fire
safety rule and not a draft rule. To ensure proper draft,
it is recommended that you always meet or exceed the
“Ten Foot Rule,” especially when installing a termina-
tion on a high pitch roof. (Fig. 5)
The key points of the “Ten Foot Rule” are:
1. If the horizontal distance from the chimney to the
peak of the roof is 10’ (3m) or less, the top of the
chimney must be at least 2’ (610mm) above the
peak of the roof, but never less than 3’ (914mm)
in height above the highest point where it passes
through the roof.
2. If a horizontal distance from the chimney to the
peak of the roof is more than 10’ (3m), a chimney
height reference point is established on the surface
of the roof a distance of 10’ (3m) from the chimney
in a horizontal plane. The top of the chimney must
be at least 2’ (610mm) above the reference point,
but never less than 3’ (914mm) in height above the
highest point where it passes through the roof.
In planning a chimney system, it is important to know:
1. The height of a chimney is measured from the
hearth to the exit point on the termination.
2. A chimney cannot be offset more than 30° from a
vertical plane.
3. A chimney may run straight up or it may be neces-
sary to offset it to avoid obstructions.
4. The maximum length of an angled run (total chim-
ney system) is 20’ (6m).
5. No more than 2 offsets (4 total 30° elbows in U.S./or
2 total 45° elbows in Canada) per fireplace may be
used.
6. A guy wire stabilizer is required for chimneys ex-
tending more than 6’ (1.8m) above a roof line.

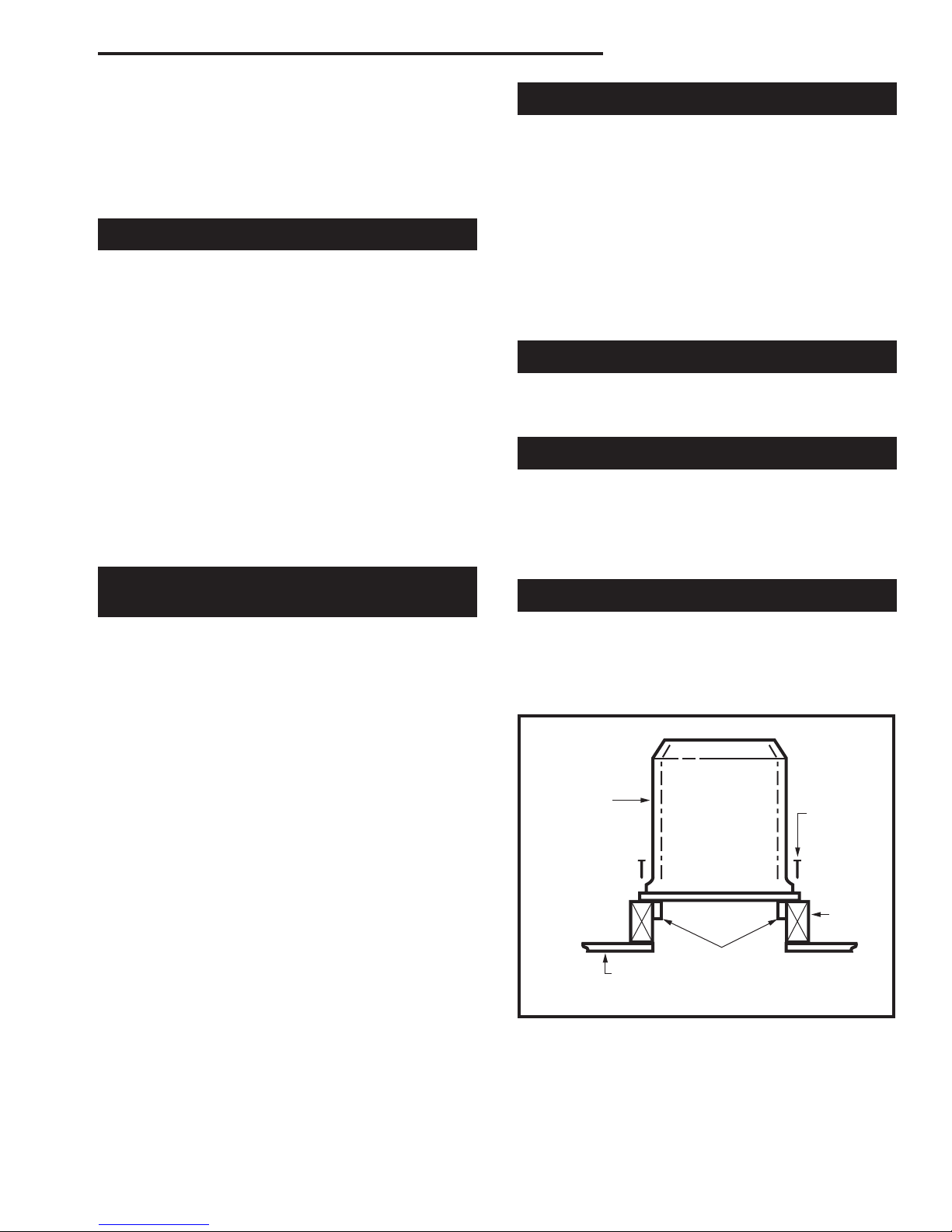

Chimney Supports
The chimney system is supported by the fireplace for
vertical chimney heights less than 20’ (6m) above the
hearth. Chimney supports are required if the vertical
height exceeds 20’ (6m). Locate chimney supports
at ceiling holes or other structural framing at 20’ (6m)
heights. Spacing between chimney supports must not
exceed 20’ (6m). Use Chimney Support Model SKCS8
for SK8 chimney, and Model 11CS for 11CF chimney.
(Note: the chimney support can not be mounted
directly to the fireplace.) Support provided by elbow
straps fulfills the support requirement only if they are
spaced as previously described. (A chimney support is
2¹⁄₂" (64mm) long when installed.)
Fig. 4 Installed lengths of chimney sections.
L1
L1
LTMODEL SK
2 WALL CHIMNEY
TOTAL
LENGTH
(LT)
INSTALLED
LENGTH
(L1)
SK81
SK818
SK83
SK84
"
"
"
"
"
"
"
"
FP288
MBUF-INSTALLED LENGTH
6/17/96
Fig. 5 Ten Foot Rule illustration.
2' Min.
2' Min.
3'
Min.
0 To 10'
3'
Min.
0 To 10'
AC246
4/1/96
Reference
Point
AC246

7
CR Series Woodburning Fireplaces
20001316
Angled chimney runs require a support every 6’ (1.8m)
in addition to the elbow straps. Chimney supports are
used for this function. (Fig. 6)
Chase Installation
A chase is a vertical box-like structure which encloses
the fireplace and/or chimney. Chases are typically built
on the outside of the house with fireplace opening cut
into the outer wall of a room. (Page 4, Fig. 2)
If you need help in determining fireplace location or
how the chimney system should be run, contact your
Majestic Fireplaces dealer for assistance.
IWF284
MBUF
5/25/96
FP284
Chimney
Support
Strap
SKCS8
Fig. 6 Chimney support installation.
Insulating Fireplace Enclosure For
Cold Climates
If you live in a cold climate, it is not required but
highly recommended that you insulate fire-
place enclosure to eliminate cold air penetration
as much as possible.
Insulate base of fireplace with a non-combus-
tible insulation rated for a minimum of 300°F.
Insulating is very important for outside wall
installations over a concrete slab. If fireplace
is installed on a platform, insulation should be
placed on top of the platform before fireplace is
set.(Fig. 7)
When a fireplace is installed in a chase or on an
outside wall, enclosure should be treated like
any outside wall in a home. Insulation should
be installed on the inside wall as well as the
outside wall(s). In a chase, it is also a good idea
to install a firestop at the first ceiling level above
the fireplace and enclose the chase with sheet-
ing material. Insulation may then be installed
above sheeting material to assure the space
around the fireplace is totally protected. (Fig. 2)
When installing the chimney, DO NOT caulk
between outer pipe and firestop. It is vital that
some air be allowed to flow through this very
thin gap.
CAUTION: WHEN INSTALLING A FIRE-
PLACE IN AN INSULATED ENCLOSURE, BE
SURE ALL REQUIRED AIR SPACES ARE
MAINTAINED. (Page 12, Fig. 17)
Installation

8
CR Series Woodburning Fireplaces
20001316
Framing
Framing can be constructed before or after the fire-
place is set in place, however, most installers build the
frame before setting the fireplace.
Frame fireplace with 2 x 4 lumber or heavier materi-
als. Refer to framing dimensions in Figures 1 or 2 for
basic fireplace specifications. Headers and support
studs must be turned on end as illustrated in Figure 2,
Page 4.
NOTE: Framing should be positioned to accommo-
date wall covering and fireplace facing material.
Chimney Set-up
Since you have already preplanned the chimney run,
you should know exactly how the installation is to
be accomplished — how much pipe is required, the
number of elbows, if any, and type of termination to be
used.
CAUTION: REPORT TO YOUR DEALER ANY
PARTS DAMAGED IN SHIPMENT, SPECIFICALLY
CHECK THE END CONNECTION OF CHIMNEY
SECTIONS AND ELBOWS.
Straight-Up Chimney Installation
To locate the centerline of the flue put the fireplace in
final position and place a plumb bob from the ceiling to
the center of the fireplace flue collar. Mark this spot on
the ceiling. Draw a line through that mark to either side
of the firebox and indicate dimension X to locate the
side wall framing. (Fig. 8) Be sure to observe clear-
FP555CR
Insulation
2/26/99 djt

Hard, Flat
Surface
Insulation
Platform
FP555CR
Fig. 7 Insulation between platform and fireplace.
ance requirements for side and parallel combustible
walls as noted in Figure 20, Page 15.
Offset Installation
In order to clear an obstruction, it may be necessary
to offset chimney from vertical. This is accomplished
by using CFM Corporation elbows. Use the 30° Offset
Elbow table on Page 5 to determine proper offset and
parts required.
Each offset requires two (2) elbows. The second elbow
is equipped with support straps. It is very important to
install the second elbow in each offset as close to the
ceiling or support as possible so the elbow straps can
be secured to framing members to help support the
weight of the chimney.
Determine offset distance of your chimney arrange-
ment from centerline of fireplace to centerline of chim-
ney where it is to pass through ceiling.
Locate center point of the chimney on ceiling as
though a straight up chimney arrangement is to be
used. Measure your offset dimension from the chim-
ney center point on the ceiling.
Fig. 8 Locate centerline of chimney with plumb line.
WF556CR
CR Series
LOCATE CENTER LINE
2/19/99 djt
Chimney Centerline
Actual Centerpoint
Plumb Line
10³⁄₈”
(264mm)
Plumb Bob
Imaginary Center-
point
FP556CR

9
CR Series Woodburning Fireplaces
20001316
Ceiling Chimney Hole/
Possible Obstructions
The size of the hole in the ceiling will vary with the
angle at which the chimney passes through ceiling.
Drive a nail up through ceiling at marked chimney
center point. Go to floor above and see where hole
will be cut. Check to see where existing ceiling joists
and other possible obstructions are located...i.e. wir-
ing, plumbing etc... If necessary, re-position chimney
and/or fireplace to avoid obstructions.
Cutting the Hole
Cover fireplace collar opening and cut proper sized
chimney hole in chimney. The SK8 pipe allows you to
run pipe through a typical 16” on center joist without
cutting joists.
Framing the Ceiling Hole
Frame the ceiling chimney hole as shown in Figure 10.
It is good practice to use framing lumber that is the
same size as the ceiling joists; this is a requirement at
attic level.
Positioning, Safety Strips,
Securing the Fireplace
Slide fireplace into position.
Lift the fireplace front slightly and slide the metal safety
strips under front bottom edge about 1¹⁄₂” (38mm),
allowing the remainder to extend in front of firebox.
Overlap strips at least 1/2” (13mm) to provide a posi-
tive joint. (Flat safety strips are packed with fireplace.)
(Fig. 11)
Safety strips are used to ensure that any combustible
materials in front of the fireplace are protected even
though a noncombustible hearth extension is required.
If fireplace is to be elevated above the floor, a “Z”
shaped metal safety strip must be fabricated and used
to protect combustible surfaces in front of the fireplace.
This “Z” shaped safety strip is not provided but must
be fabricated of metal with each horizontal leg at least
1¹⁄₂” (38mm) wide and equal in length to the metal
strips provided with the fireplace.
NOTE: Safety strips are not required over noncom-
bustible floors where all supports at the base of the
fireplace are noncombustible.
Outside Air Kit
An outside air kit damper is installed in all CR36L/R
Series Fireplaces. If desired, or if local codes mandate
the use of an air kit, then an AK-MST is required to
complete the installation (from air kit to the outdoors).
If the outside air kit is to be used, the AK-MST Air Ter-
mination Kit MUST be installed BEFORE the fireplace
is enclosed. Refer to the AK-MST instructions for field
installation. NOTE: Outside air control knob can be
found in screen bag.
The inside dimension of the frame must be the
same as the hole size selected from Figure 10 in order
to provide the required 1¹⁄₂” air space between the
outside diameter of the chimney and the edges of the
framed ceiling hole.
Fig. 9 Ceiling chimney hole sizes necessary for installing
firestop spacer.
Size of Angle of chimney at ceiling
Chimney Vertical 30°
8” Flue 14¹⁄₂ x 14¹⁄₂ 14¹⁄₂ x 25¹⁄₂
(368 x 368mm) (368 x 648mm)
Fig. 10 Typical frame for ceiling chimney hole
FP551a
CR36 Series
2/22/99 djt
14¹⁄₂"
(368mm)
14¹⁄₂"
(368mm)
Existing
Ceiling
Joists
Ceiling
New Framing
Members
Chimney Hole
FP551A
Fig. 11 Safety strip installation.
FPR557
CR36R,L
Safety strip installation
2/3/99 djt
Metal Safety
Strips
(1, 2 or 3 pieces)
¹⁄₂" (13mm)
Min. Overlap
1¹⁄₂"
(38mm)
"Z"
Safety
Strip
Fire-
place
Plat-
form Hearth Ext.
(not supplied)
1¹⁄₂"
(38mm)
FPR557

10
CR Series Woodburning Fireplaces
20001316
Installing the Chimney System
Start by attaching the first chimney section to the collar
on top of the fireplace.
Install the pipe as pictured in Figure 13. When you
get a good lock, you will hear the pipe clearly snap
together. Once sections are snap-locked in place, it is
extremely difficult to get them apart. Make sure the
pipe is firmly snapped and locked together as each
pipe section is mounted.
When installing elbows, only outer pipe will snap-
lock. Middle pipes simply slide into position. Be sure
to always attach straps on upper elbow to a structural
framing member. (Fig. 14)
Continue installing the pipe as required until pipe is
installed up through the ceiling. At this point, you must
install a firestop spacer. Refer to Figure 15 for appro-
priate spacer orientation.
Installing the Firestop Spacer
in the Ceiling Hole
A firestop spacer is used to keep pipe spaced properly
and required for safety.
Nail the firestop spacer
(at each corner) to the
framing members of the
ceiling hole. NOTE: A
firestop spacer is not
required at the roof.
Fig. 12 Fasten fireplace in position.
STR100
standoffs, corner
2/18/99 djt
Nail Top
Standoffs
STR100
Fig. 13 Install pipe, listening for the snap-lock to fasten.
FP558CR
CR Series
Snap lock fasteners
2/22/99 djt
Pipe Section
UP Pipe Rim
Pipe
Rim
Hem
Lance
FP558CR
ELBOW STRAP
ANGLED STRAP
Fig. 14 Attach straps to a structural framing member.
FP270/271
FP270/271
CR Series
2/19/99 djt
Support Structure
Elbow Strap
(must be tight)
Angle Firestop
Ceiling
Hole
Framing
Chimney Sup-
port Strap
(must be tight)
Attic Installation Ceiling Installation

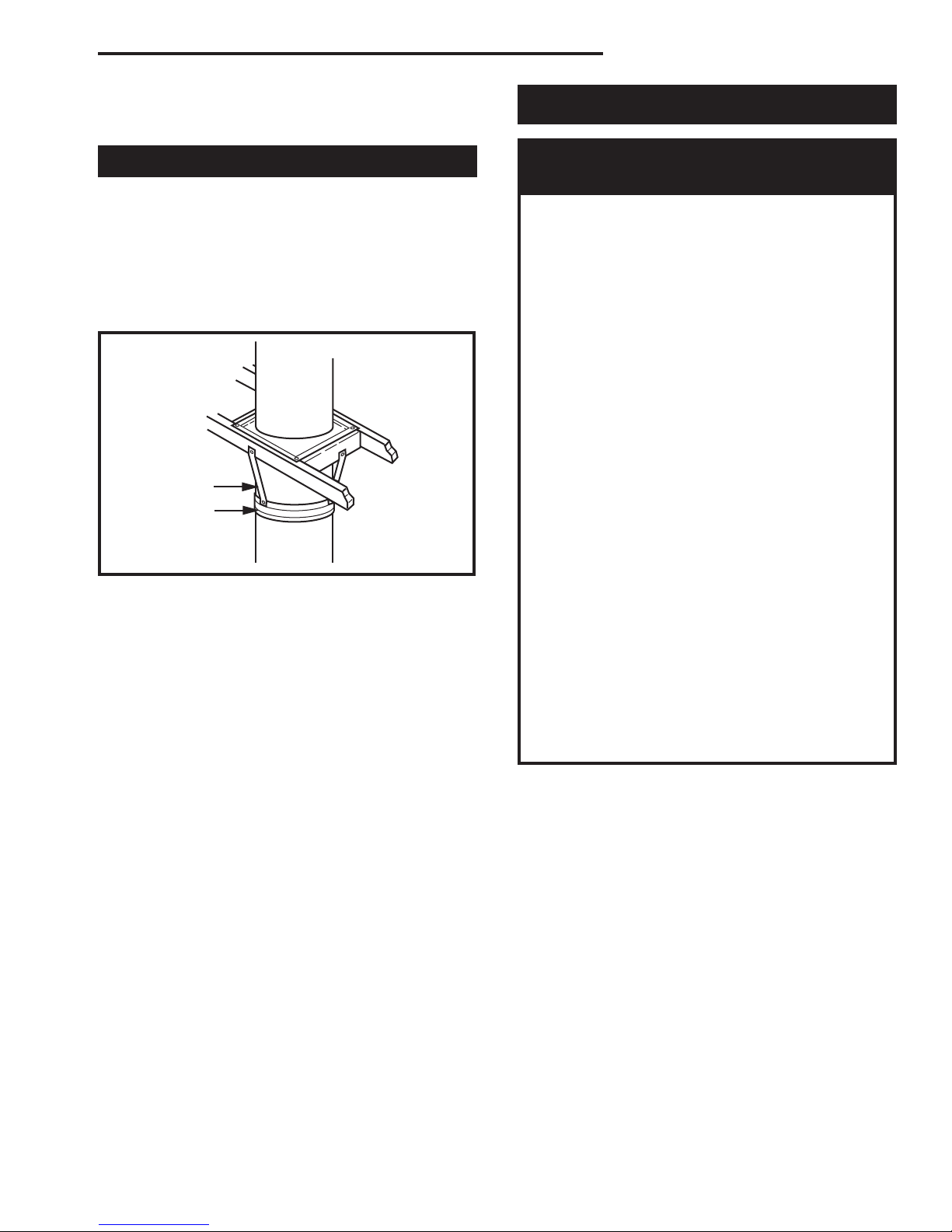

Fig. 15 Installing firestop spacer.
FP285
FP285
Firestop
4/27/99 djt


Nails (4)
Firestop Spacer
Joist
Joist
Firestop Spacer
Nails (4)

11
CR Series Woodburning Fireplaces
20001316
Hole sizes listed in Figure 10 for angled firestop spac-
ers provide minimum required air space to chimney
pipe for ceiling thickness up to 8” (203mm). When
combined thickness of ceiling material, ceiling joists
and flooring material exceeds 8” (203mm), adjust-
ments must be made in framing to assure that mini-
mum air spaces to chimney are maintained.
Proper Firestop Spacer Installation
Page 10, Figure 15 shows different installation pro-
cedures for both an area that is an attic and an area
that is not an attic.
If the area above the ceiling is not an attic, position
the firestop spacer with the flange on the ceiling side
and the angled portion extending up into the hole.
If the area above the ceiling is an attic, position the
firestop spacer with the flange on the top of the framed
hole and the angled portion extending down into the
hole.
Firestop spacers are not available for, nor are they
required on vertical walls.
DO NOT put any sealant around the area where the
outer pipe slides through the firestop spacer. If you
seal this area, it may cause a fire hazard.
Canadian Requirements for
Insulation Shield
In Canada, an attic insulation shield is required to
prevent attic insulation from contacting the chimney
section. Framing dimensions for the chimney hole
should measure 14¹⁄₂" x 14¹⁄₂" (368 x 368mm) (SK8).
An attic shield MUST be installed on top of attic joists
(above the floor level). (Fig. 16)
Install the attic insulation shield with the flanges on its
base extending down into the framing hole. Nail each
corner of attic insulation shield to the framing members
of the ceiling hole using 8d nails. Attic shields are not
required at the roof.
Continue Installing Pipe to Complete Run
Continue attaching pipe sections to complete system
to next level always being careful the pipe is firmly
snapped locked in place before proceeding to next
pipe section.
Chimney Supports
If chimney supports are required, they are installed the
same as elbows. Nail chimney support straps to ad-
jacent structural framing, as shown on Page 7, Figure
6. Bend straps as necessary and make sure they are
secure so they will support the weight of the chimney.
A chimney support is 2¹⁄₂" (64mm) long when installed.
Consider this dimension when determining how many
straight chimney sections are needed.
Note: Chimney supports are generally used in long
runs in a chase installation. A chimney support can-
not be mounted directly to the fireplace.
Additional Ceilings
If you encounter additional ceilings, repeat same steps
required for first ceiling installation. Refer to firestop
illustration on Page 10, Figure 15.
Penetrating the Roof
Run pipe to roofline. Since chimney system must be
vented to the out-of-doors, you must use an approved
termination.
If a chase is used, refer to the installation manual pro-
vided with the termination cap.
Locate Chimney Centerpoint On Roof
Use same procedure detailed in locating center point
of the flue system.
Drive a nail up through roof at the center point. This
will determine center point on outside of the roof.
FP263
Fig. 16 Attic shield installlation (Canadian requirement).
FP263
Install Attic Insul Shield
5/9/96
Attic
Insulation
Shield
Ceiling
Nails
(4 Required)
Attic Joist
Base
Flanges

12
CR Series Woodburning Fireplaces
20001316
Cut and Frame Roof Hole
Size of roof hole varies with the type of chimney
termination installed. Refer to installation instructions
provided with the chimney termination to find correct
size of roof hole.
There must be an air space (1¹⁄₂" (38mm) with SK8 )
between outermost portion of chimney sections and
any adjacent combustible surfaces. (Fig. 17) (Com-
bustible surfaces include burnable materials such as:
ceiling members, joists, flooring, combustible insula-
tion and roof structures.)
WARNING: Do not pack required air spaces with
insulation or other materials.
Mark an outline of the roof hole around the center of
the point nail. NOTE: Hole dimensions given in the
chimney top installation instructions are horizontal
dimensions; therefore, the hole size must be marked
on the roof accordingly.
Cover the opening of the installed chimney so debris
cannot get into the system.
Cut and frame the hole. It is good practice to use
framing lumber that is the same size as the rafters.
Install the frame securely because the chimney top
and flashing anchored to the frame must be able to
withstand heavy winds.
Install Remainder of Chimney Sections
Since you have already preplanned the height of your
termination according to the Ten Foot Rule, continue
to install pipe to the predetermined height.
Check the chimney top installation instructions for
details on how high above the roof top the chimney
sections (all pipes) should extend.
Installing Top Housing or Termination
Follow the installation instructions provided with the
CFM Corporation chimney termination you have se-
lected.
Installing Chimney In a Chase
Refer to Page 4, Figure 2 for an illustration of a typical
chase installation.
CAUTION: Treatment of firestop spacers and
construction of chase may vary with type of build-
ing. These instructions are not a substitute for local
building codes. You must check your local building
codes to determine specific requirements for your
city or state. NOTE: Other building materials may
be required in addition to CFM Corporation Firestop
Spacers.
Finishing
CAUTION: All joints between the finished wall and
the fireplace surround (top/sides) must be sealed with
noncombustible material to prevent cold air leakage
into the room. Only noncombustible material may be
applied to the facing of the fireplace surround. (Black
painted area) (Fig. 17)
Side View
FP559CR
Air Spaces
CR Series
3/3/99 djt
Firestop
⁷⁄₁₆” Air Space
to Sides
Wall
Shield
³⁄₄” Air
Space to
Back
0” Clearance
to Floor
Hearth Extension
Only Noncombus-
tible Material may be
Applied as Facing to
the Black Fireplace
Surround
Combustible Framing Material
MUST NOT Penetrate AIR SPACE
(Shaded Areas)
1¹⁄₂” Air Space
to Combustible
Materials
Standoff
⁷⁄₁₆” Air Space
to Sides
Front View
Air Space Clearances
Fig. 17 Minimum clearances to combustibles.
FP559CR

13
CR Series Woodburning Fireplaces
20001316
MA81
Fig. 19 Combustible mantel clearances.
MA81
rev. 8/5/97
1¹⁄₂"
Ref.
Combustible materials are
permitted within a shaded area
shown in Figure 20, titled
Minimum Wall Clearances.
*
* *
* 12” from top of fireplace opening
** 6” from top of fireplace opening.
(Noncombustible material must sepa-
rate the black face surround of the
fireplace and any combustible mantel
material)
Face Plate
FE101a
Framing surround
3/1/99 djt
12"
(305mm)
Min.
12"
(305mm)
Min.
6"
(159mm)
Min.
12"
(305mm)
Max.
12"
(305mm)
Max.
*
7/16"
1¹⁄₂"
1¹⁄₂"
Fig. 18 Fireplace surround flush with finished wall.
FE101a
Combustible
Mantel and
Trim
Mantel Clearance -
No Noncombustible Facing Material
Mantel Clearance -
with Noncombustible Facing Material
Finished Wall
Finished Wall
Combustible
Mantel and
Trim
Header
Ledge Bracket
Must be Sealed with Non-
combustible Material
Top View
Finished
Wall
Header
Ledge Bracket
Standoff
Standoff
Noncombustible
Material
Radiant
Surround
Face
Fireplace Opening
* Minimum width from top of
surround to bottom of screen
rail
Stud
Fireplace
Front
Radiant Surround
Face
Noncombustible Material
Noncombustible
Facing Material
Fireplace Opening

14
CR Series Woodburning Fireplaces
20001316
Finish Wall
Finish the wall with material of your choice. Do not
install a combustible mantel shelf less than 12”
(305mm) from the top of the fireplace opening. Do
not install a mantel face plate less than 6” (159mm)
from top of fireplace opening. (Fig. 18) If a combus-
tible material is used below a flat mantel shelf, consult
your local building codes for minimum clearance from
top of fireplace opening to bottom of mantel shelf.
When finishing the fireplace, a combustible facing ma-
terial (i.e. drywall or wood paneling) may be installed
at the fireplace surround top as shown in Figure 20.
This material may rest on the ledge brackets (brackets
on the front and side edges of the fireplace), but must
NOT be notched to fit around them. (Fig. 20)
All joints (top, bottom and sides), where the wall or
decorative facing material meets the fireplace sur-
round must be completely sealed with a noncombus-
tible material. (Fig. 17, 18, 20)
Only noncombustible material may be applied as fac-
ing to the black fireplace surround.
When finishing the fireplace, never obstruct or
modify the air inlet grille in any manner.
When finishing the fireplace, use the material of
your choice. If you decide to cover the fireplace
surround, noncombustible materials must be
used.
Side Wall Protection
All walls constructed closer than 16” (406mm) from the
fireplace opening must be protected with CFM Corpo-
ration Wall Shield Model SP40 or a built-up wall shield
described in Figure 17.
(ANY PERPENDICULAR SIDE WALL MUST NOT BE
CLOSER THAN 40” (1016mm) TO THE OPEN END
OF AN OPEN END FIREPLACE.)
The built-up wall shield design described in Figure 17
is an alternate method for adding protection to side
walls and can be used in place of the SP40 with the
same wall clearances specified for the SP40.
EXAMPLES OF INSULATION:
1. Manville - CERAFORM 126, K = .27, 1/2” thick
required.
2. CFM Corporation Building Products - EH2416, K =
.458, 1” thick required.

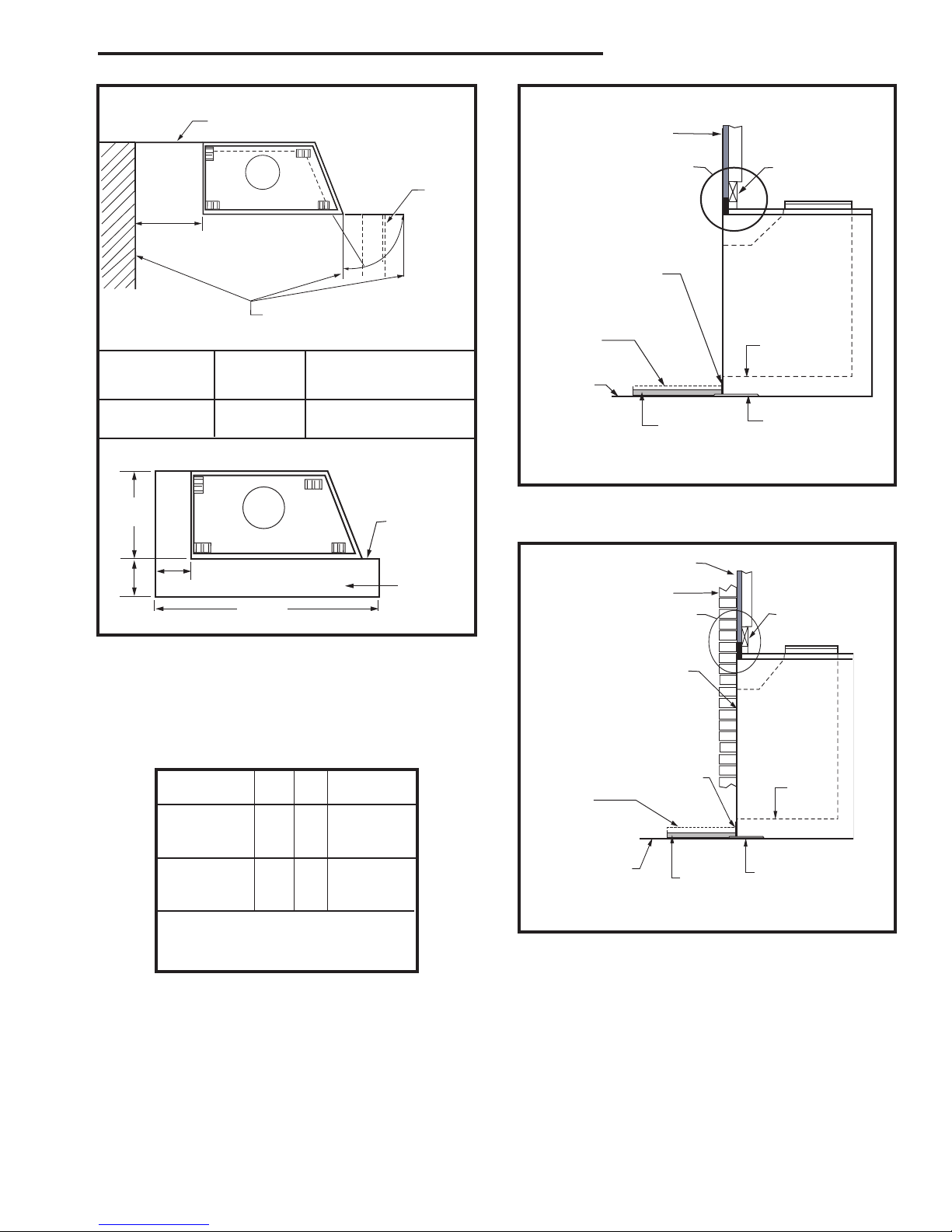

Hearth Installation
A hearth extension is required to protect a combustible
floor in front of the fireplace. Refer to Figure 20 for
minimum dimensions and mounting detail.
NOTE: Hearth Extension must not cover the air
inlet opening of a fireplace.
The hearth extension described in Figure 20 must be a
durable non-combustible material with a minimum (to-
tal) Rt value of 1.09; refer to Figure 21 for examples.
The overall height (above a combustible floor), depth
and width must be as indicated, with the extension
centered to the fireplace opening.
The top of the insulation material must be covered with
a noncombustible decorative covering or a piece of
.018” minimum sheet metal, to protect hearth exten-
sion material. (Fig. 23)
Secure the hearth extension to the floor to prevent
shifting, using trim molding or other similar means at
three (3) outer edges. Seal crack between the fire-
place hearth and hearth extension with a noncombus-
tible material. (Figs. 22,23)
WARNING: HEARTH EXTENSION MUST BE
INSTALLED IN ACCORDANCE WITH FIGURES 20
AND 21.
Alternate noncombustible materials may be used pro-
viding the (total) thermal resistance (Rt value) of the
alternate material employed is greater than or equal to
R = 1.09. Thermal resistance (R) or thermal conduc-
tivity (K), may be obtained from manufacturer of the
material. Factors are related by the formula K = 1/R.
T = given thickness
R = thermal resistance for a given thickness (T)
K = thermal conductivity
Noncombustible material with a lower R value may
be used, provided thickness of material is sufficiently
greater to maintain an equivalent (total) thermal resis-
tance (Rt).
Example of Determining Hearth Extension
Equivalents
To determine the thickness required for any new mate-
rial:
NEW K of new material (per inch) thickness
required = X of listed
thickness K of listed material (per inch) material
Example for Common Brick
T (new) = 5.0/0.458 x .5 in. = 5.46 in. (new required
thickness).

15
CR Series Woodburning Fireplaces
20001316
FE106
Min. Hearth Extension
6/22/99 djt
FE105
Min. wall covering distances
3/3/99 djt
Proposed Perpendicular
Side Walls
Model
CR36L
CR36R
Min. Dist.
with SP40
A
12”
Min. Dist. to
Non-protected Wall
B
16”
Minimum Hearth Extension Dimensions
FE105
Wall
Shield
Proposed Parallel Wall
40” Min.
16”
Minimum Wall Clearances
16” 16”
Trim Molding
to Secure
Hearth Exten-
sion
Hearth
Extension
Fig. 20 Protection of adjacent combustible side walls and
hearth extension dimensions.
22” Min.
64” Min.
FE106
FS107a
Sealing
4/27/99 djt
Wall Covering
Fig. 18
2x4 Header
- Do Not Notch
at Standoffs
Safety Strips
Must Overlap
¹⁄₂” Min.
Seal Crack
Between
Fireplace
and Hearth
Extension with
Noncombus-
tible Material
FS107a
Fig. 22 Hearth extension.
May Install Non-
combustible deco-
rative covering OR
.018” Min. Sheet
Metal
Combustible
Floor
Minimum
Insulation
Value “R”
Fireplace
Hearth
FS108
Sealing Sides
6/22/99 djt
Safety Strips
must be
Overlapped
¹⁄₂” Min.
Seal Crack
Between
Fireplace
and Hearth
Extension with
Noncombus-
tible Material
Minimum
Insulation
Value “R”
Wall Covering
Noncombustible
Decorative Facing
Fig. 18 2x4 Header
- DO NOT Notch at
Standoffs
Seal All Cracks Between
Fireplace Surround and
Wall Materials with Non-
combustible Material
May Install
Noncombustible
Decorative Cov-
ering OR .018”
Min. Sheet Metal
FS108
Fig. 23 Finish wall treatments and gap sealing.
Combustible
Floor
Fireplace
Hearth
Fig. 21 Hearth extension material factors.
COMMON MATERIALS AND FACTORS
MATERIAL K* RMINIMUM
THICKNESS
EH2416
Common Brick
0.458
5.0
1.09 0.50 in.**
0.10 5.46 in.**
(CFM Corporation)
R Value is for  inch.
* Units of K = BTU/SQ FT/HR/˚F/IN
** Thickness of Listed Material
FP533ADD
Addendum
6/1/99 djt
8/4/99 changed .2 to .1
one inch to 1/2 inch djt
FP533ADD

16
CR Series Woodburning Fireplaces
20001316
Installing Line for Gas Logs
Majestic Fireplaces CR36R/L Series fireplace is de-
signed to accept a 1/2” gas line for an approved gas
appliance. (CFM Corporation manufactures a wide
variety of gas logs for use in Majestic Fireplaces.)
Have the appliance installed by a qualified plumber in
accordance with all building codes. The gas connec-
tion enters the fireplace at the end opposite the open
end.
Locate the gas line hole in the outer casing of the
fireplace and remove the insulation from the gas line
tube. (Fig. 24)
From inside the fireplace, locate the knockout on
the firebrick. Using a flat bladed screwdriver or small
chisel and hammer, carefully tap around the knockout
until it loosens and falls out.
Now, install 1/2” certified gas pipe through the open-
ing. After the gas pipe installation is complete, use the
insulation that was removed from the gas line tube
to repack the space around the pipe. This should be
inserted from the outside of the fireplace and packed
tightly to totally seal between the pipe and the tube.
NOTE: The gas pipe should not come in contact
with any wood structures until it has reached a
point at least one (1) inch away from the fireplace
side.
NOTE: Local codes may require removal of flue
damper when installing any type of gas appliance in a
fireplace.
The gas pipe installation is intended for connection to
a decorative gas appliance only (1) incorporating an
automatic shutoff device and (2) complying with the
Standard for Decorative Gas Appliances for Installation
in Vented Fireplaces, ANSI Z21.60 or CSA draft re-
quirements for Gas-Fired Log Lighters for Woodburn-
ing Fireplaces (Draft No. 4, August 1993).
The decorative gas appliance should be installed
in accordance with the National Fuel Gas Code,
ANSI Z223.1-1988.
CAUTION: WHEN USING DECORATIVE GAS AP-
PLIANCE, THE FLUE DAMPER MUST BE SET IN
THE FULLY OPEN POSITION. IF YOU HAVE GLASS
DOORS ON THE FIREPLACE, THEY MUST ALSO
BE FULLY OPENED.
1/2"
FP560CR
Gas Line Knockout
CR Series
3/3/99 djt
1"
Min.
Ceramic
or Metal
Knockout
Hole in
Outer
Casing
Gas
Line
Tube
Hole in Outer
Casing
Ceramic
or Metal
Knockout
Supply Line
Repack Insulation
FP560CR
Fig. 24 Install iron pipe gas line through hole provided in
angled side of fireplace.
1”

17
CR Series Woodburning Fireplaces
20001316
325
Parts page
CR36L/R
3/17/99 djt
1
2
3
4
5a
6
10
9
8
7
a
b
c
5b
CR36R/L Woodburning Fireplace
Item/Model Number CR36L CR36R
1. Flue Damper Blade RP102 RP102
2. Actuator 20001587 20001587
3. Screen Assembly (three per fireplace) 7554338 7554338
4. Screen Rail Assembly 20000842 20001183
5a. Screen Rod Finished 90° 7554156 7554155
5b. Screen Rod Finished Straight 7554181 7554181
6. Screen Pulls (two per fireplace) 5584139 5584139
7a. Firebrick - Side 20000793 20000794
7b. Firebrick - Back 20000792 20000792
7c. Firebrick - Hearth 20000791 20000838
8. Cable Clips (four per fireplace) 7512135 7512135
9. Firebrick Retainers 3030172 3030172
10. Basket Grate 7579112 7579111
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.

18
CR Series Woodburning Fireplaces
20001316
Accessories
The following accessory parts can be obtained from Majestic Fireplaces Dealer. The fan kit, top terminations, out-
side air kit, glass doors and hearth patching kits are supplied with installation instructions packaged with the unit.
Should you need additional information beyond what your dealer can furnish, contact CFM Corporation, 2695 Mead-
owvale Blvd. Mississauga, Ontario, Canada L5N 8A3 Attention: Technical Services.
CAUTION: This fireplace and chimney assembly is a highly engineered system and, as such, must be oper-
ated only with CFM Corporation approved components that have been designed as parts of the system. If
you use an unapproved component or make any modifications, you may possibly cause a fire hazard and
will void the CFM Corporation warranty. In addition, such action may void the coverage provided by the
owner’s home insurance.
Accessory Description Model No.
P325a
Glass enclosure
3/4/99 djt
Designed to enclose the CR36L/R
Series fireplace opening with glass
doors, allowing the fire to remain
visible.
Provides outside air for fuel combus-
tion in the firebox. This accessory
must be installed before the fire-
place is installed.
Used to protect walls adjacent to the
fireplace.
1/2” x 24” x 16” insulation material
for hearth extensions.
36GCKBB
AK-MST
SP40
EH2416
P325b
outside air kit
AKMST
3/4/99 djt
Outside Air Kit
P325c
Wall shield
SP40
3/4/99 djt
Wall Shield
P325d
Hearth extension
EH2416
4/28/99 djt
Hearth Extension Material
P325a-d
Glass Enclosure
Kit

19
CR Series Woodburning Fireplaces
20001316

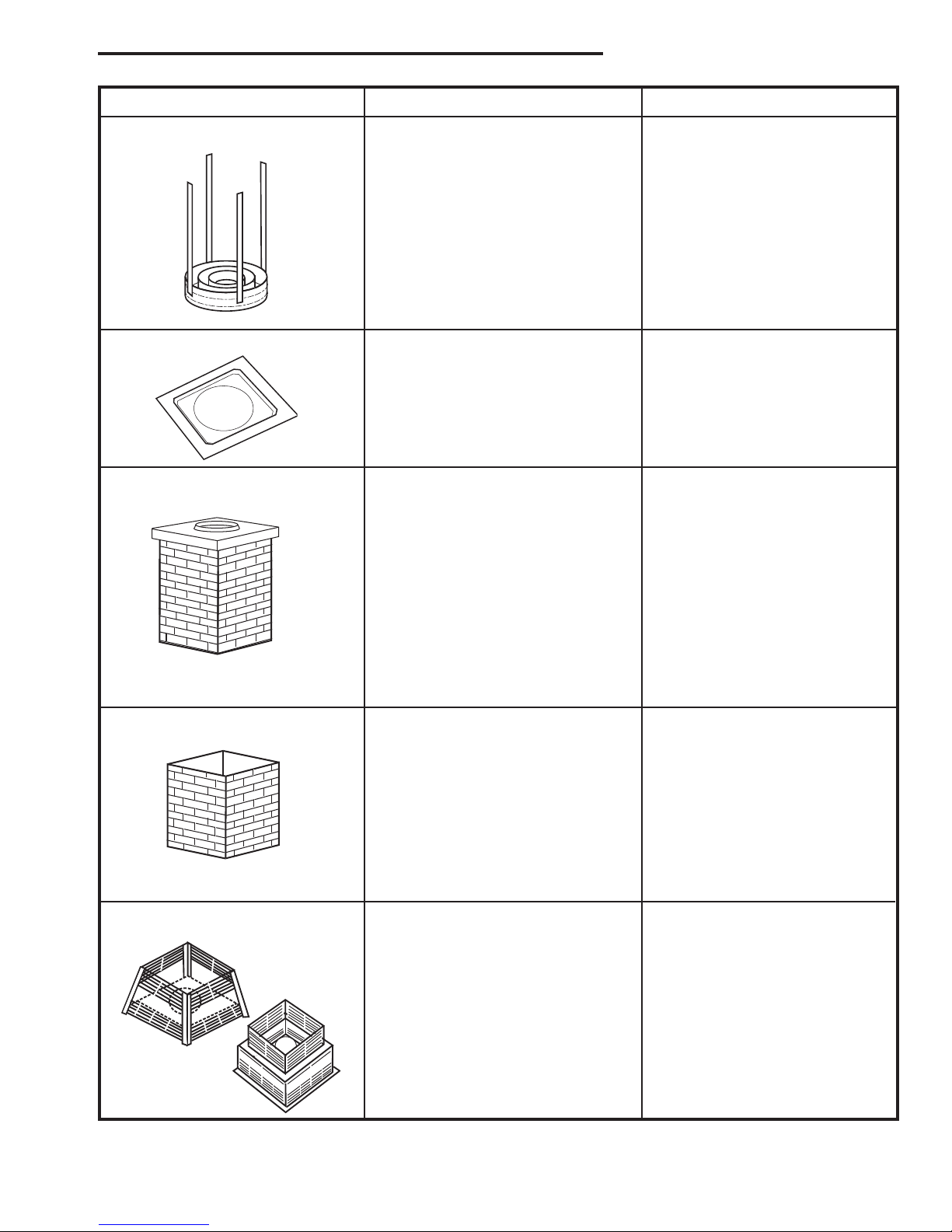

Accessory Description Model No.
P325g
firestop
SKFS2A
SKFS6A
3/4/99 djt
Firestop
Used to support the chimney at each
30 feet of vertical height above the
hearth and at every 6 feet of inclined
chimney run. Each support adds 2¹⁄₂
inches to chimney length.
Required at each floor level and attic
on multi-story installation.
Gives traditional chimney top look
using simulated brick in red, tan or
white color. Brick pattern is em-
bossed into galvanized steel unit.
Roof flashing is included. Appropri-
ate adapter is required.
See Sections 2 and 3.
Required to extend Traditional Top
Housings on steeply pitched roofs.
Used to terminate chimney at the
top of a chase. Flashing is not
included. Appropriate adapter is
required. See Sections 2 and 3.
SKCS8
(8” flue)
SKFS2A (8” straight flue)
SKFS6A (8” 30° inclined flue)
S20BR/BT/BW
202036
(single flue)
204436
(double flue)
SLTSK8
or
PLTSK8
Top Housings
Housing Extensions
P325j
Chase top housings
SLTSK8, PLTSK8
3/5/99 djt
Contemporary Chase Top
Terminations
PLTSK8
SLTSK8 P325f-j
P325f
Chimney Support
SKCS8
3/4/99 djt
Chimney Support
P325i
housings extensions
3/4/99 djt
P325h
top housings
4/28/99 djt

20
CR Series Woodburning Fireplaces
20001316
Accessory Description Model No.
P325l
Chimney section
SK8
3/6/99 djt
Required for contemporary round top
termination on the roof to prevent
rain entry.
Used to build “SK” chimney systems.
Used to develop 30° offset chimney
systems. (Elbows packed 2 per car-
ton - upper and lower elbow set)
For use with CFM Corporation Type
“SK8” Chimney Systems.
Used to terminate chimney on the
roof. Flashing not included.
For use with CFM Corporation Type
“SK8” Chimney Systems.
Used to terminate chimney at the
top of a chase. Adapter kit included.
Flashing not included.
8-6-12
(8” flue; 0 to 6/12 pitch)
8-12-12
(8” flue; 6/12 to 12/12/ pitch)
8” flue
SK81 (1’ long)
SK818 (1¹⁄₂’ long)
SK83 (3’ long)
SK84 (4’ long)
SK830-2
(8” 30° flue)
RLTSK8
RLTSK8L
P325m
Chimney elbows
SK8
3/5/99 djt
P325n
Chimney top 
RLTSK8
3/5/99 djt
P325p
Adapter kit
CF8CA
3/5/99 djt
Chimney Sections
(“SK8”)
Chimney Elbows
(“SK8”)
Contemporary
Round Top Ter-
mination
Extended Round Top
Chase Termination
P325k
Contemporary flashing
3/5/99 djt
Contemporary Flashing
