INTRODUCTION
Thank you for purchasing a MAKINEX product.
This manual provides information and procedures to safely operate and maintain the MS-100
Mixing Station. For your own safety and protection from injury, carefully read, understand, and
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an additional
copy, please contact MAKINEX. This machine is designed and built with user safety in mind;
however, it can present hazards if improperly operated and serviced. If there are any questions
regarding operating or servicing of this machine, please contact MAKINEX.
All rights, especially copying and distribution rights are reserved.
Copyright 2019 by MAKINEX.
No part of this publication may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without express written permission from MAKINEX.
Any type of reproduction or distribution not authorised by MAKINEX represents an infringement
of valid copyrights and will be prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our machines or their safety
standards.
DISCLAIMER
MAKINEX and its affiliates take no responsibility for any damage, injury or death resulting from
the incorrect or unsafe use of this product. Use of this product should be undertaken by
competent persons only. It is the operator’s responsibility to ensure that the following safety
procedures are followed. If you are unsure, do not operate this product.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
MAKINEX SUPPORT
Refer to contact details on pg. 12
MODEL NO.
MS-100
SERIAL NO.
DATE OF PURCHASE
PURCHASE LOCATION

MAKINEX MS-100 Operator’s Manual Rev0919 Page 2 of 15
ABOUT THIS MANUAL
This manual uses the following symbols to help differentiate between different kinds of
information. The safety symbol is used with a key word to alert you to potential hazards in
operating and owning power equipment. Follow all safety messages to avoid or reduce the risk
of serious injury or death.
KEY TERMS
READ
CAREFULLY
READ CAREFULLY –refers to important information that should be paid
careful attention.
CAUTION
CAUTION - indicates a situation that may cause injury or damage to the
machine if the user does not follow the instructions.
WARNING
WARNING –indicates a situation that may cause injury or death if the user
does not follow the instructions correctly.
DANGER
DANGER –indicates a situation that will cause injury or death if the user
does not follow the instructions as written.
PROHIBITED
PROHIBITED –identifies actions that should never be carried out by
anyone interacting with the equipment.
These safety warnings do not eliminate all possible hazards that could occur therefore it is
essential to use common sense and to strictly follow any instructions to prevent accidents.
SAFETY INFORMATION
Throughout this document there are several safety warnings. The user should read through this
complete document before using the MS-100.
READ
CAREFULLY
Ensure you read all information contained in this manual before using the
MS-100.
READ
CAREFULLY
Ensure you read the User Manual and safety instructions for the MS-100
and other components that are part of this unit.
See Appendix for more information.
DANGER
Always wear the recommended personal protective equipment (PPE).

MAKINEX MS-100 Operator’s Manual Rev0919 Page 3 of 15
PROHIBITED
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
SAFETY DECALS

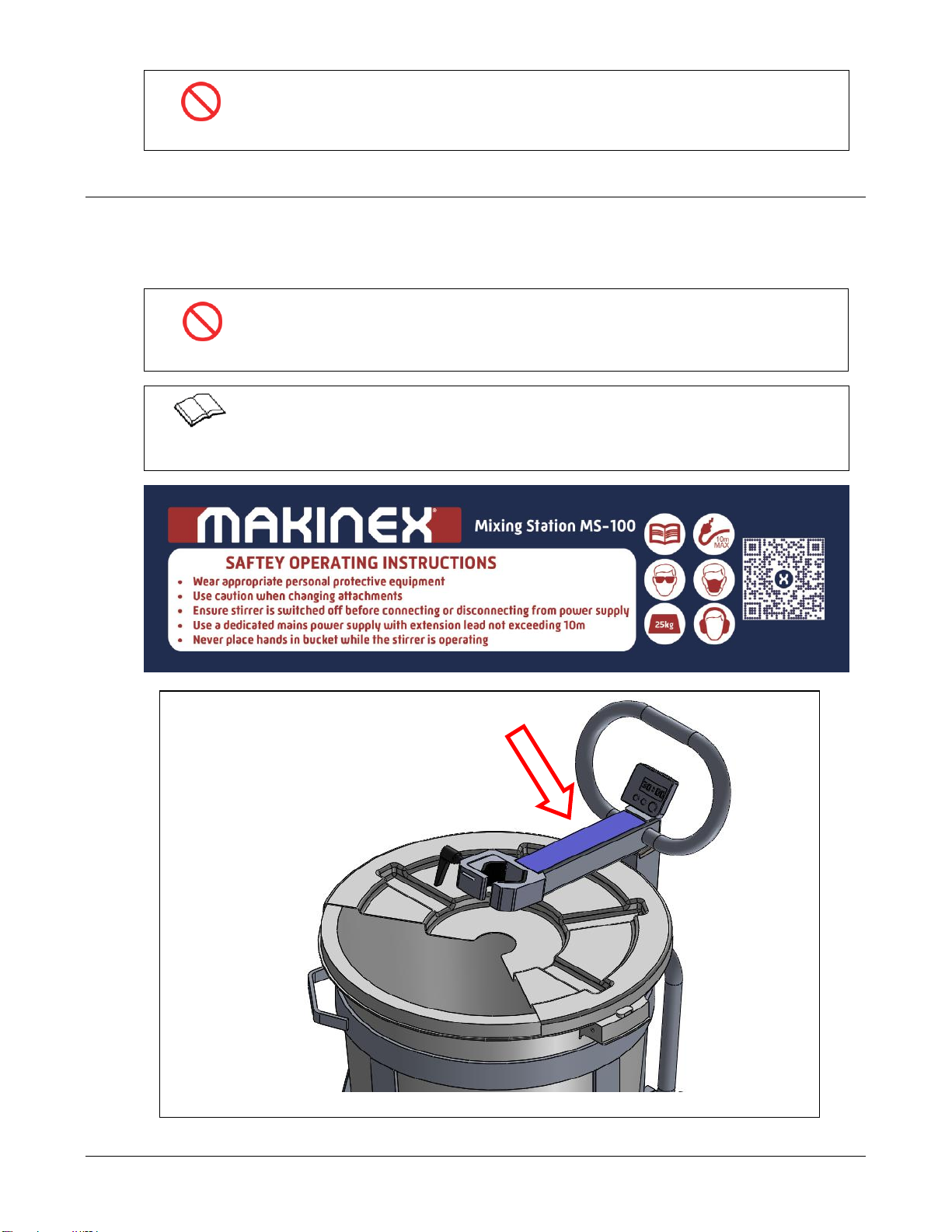

There is a safety and information panel provided on the Clamp Arm (see images below) of the
MS-100 to alert the user of potential safety risks/hazards. Please read and adhere to all
instructions on the Unit.
PROHIBITED
It is forbidden to remove any safety or instructional stickers or panels from
the MS-100.
READ
CAREFULLY
Read all safety and instructional stickers displayed on each component of
the MS-100.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 4 of 15
PRODUCT DESCRIPTION AND SPECIFICATION
MS-100is the ultimate mixing station for all self-levelling cement and compounds, producing a
perfect mix every time. Designed by contractors for contractors it provides efficient hands-free
mixing and fast precision pouring of materials saving time and effort on jobs.
A MS-100 mixing station can mix up to 80kg (176lbs) in 3 minutes, which can equate to 1 Tonne
per hour. MS-100 is ultra-lightweight for easy transportation and the ergonomic design with
easy-tilt operation provides control and speed for precision pouring.
The MS-100 will suit various Stirrers/Mixers (please contact your retailer for more information). A
Festool® Stirrer, Collomix® Hand Mixer and Makinex Electric Mixer are optional and are also
sold separately; both models feature variable speeds and are fully detachable from the MS-100.
MS-100 Features:
•Hands-free mixing
•Built-in timer
•4-wheel mobility
•Light and durable aluminium trolley - 18kg
•Large pivoting bucket
•Dust and splash reduction cover
•Top section is detachable to minimise size during transport
•Locking castor wheel
•Trolley can be used to transport product and tools on work sites
•Vacuum port supplied to allow attachment of a vacuum to eliminate dust
DIMENSIONS:
HEIGHT HANDLE ATTACHED (Operating)
1070mm -1300mm (42-51 inches)
HEIGHT HANDLE DETACHED (Transport)
780mm (31 inches)
OVERALL WIDTH
540mm (21 inches)
OVERALL LENGTH
626mm (25 inches)
LENGTH OF HANDLE ADJUSTMENT
250mm (10 inches)
WEIGHT:
WEIGHT (WITHOUT STIRRER/MIXER)
18kg (40lbs)
WEIGHT (WITH FESTOOL® STIRRER)
25kg (55lbs)
WEIGHT (WITH COLLOMIX® HAND MIXER)
24kg (53lbs)
WEIGHT (WITH MAKINEX ELECTRIC MIXER)
26kg (57lbs)

MAKINEX MS-100 Operator’s Manual Rev0919 Page 5 of 15
INSTRUCTIONS FOR USE
WARNING
NEVER operate the MS-100 without wearing the appropriate personal
protective equipment (PPE) including appropriate footwear.
Assess the surrounding area for hazards.
WARNING
ALWAYS seek appropriate First Aid if Injury, Poisoning or Irritation
occurs due to contact with Materials and Substances.
CAUTION
ALWAYS ensure that the work place is well ventilated.
STEP 1 –FITTING A STIRRER/ MIXER TO THE MS-100
WARNING
Ensure the Stirrer/Mixer is disconnected from mains power before
Attaching or Removing it to/from the MS-100 frame.
CAUTION
NEVER place hand under ‘Slider Clamp’or ‘Clamp Arm’ when
adjusting the height.
1. Refer to the Appendix for exploded assembly diagram.
2. Check that the ‘Castor Brake’has been engaged.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 6 of 15
3. Attach MS-100 ‘Clamp Arm’ into the ‘Slide Arm Collar’ of the MS-100 Frame; tighten ‘Collar
Latch’in place.
4. When fitting a mixer, make sure the ‘Slider Clamp’opened, fit it through the gap from the
front end and then position the collar part of the mixer between the ‘SL clamp and tighten.
NOTE: Always grab the mixer by the handles and make sure the mixer is securely
tightened, but do not over-tighten!
Adjustable Slider Clamp
Clamping
lever
Slide Arm
Collar
Clamp Arm
Collar
Latch

MAKINEX MS-100 Operator’s Manual Rev0919 Page 7 of 15
If fitting the Festool® Stirrer, ensure the Variable
Speed Dial is facing away from the MS-100
Handle.
If fitting the Collomix® Mixer and Makinex
Electric Mixer, ensure the Electrical Cord is
facing to back of the MS-100.
STEP 2 –USING THE MS-100
WARNING
NEVER place hands into the Bucket whilst Stirrer/Mixer is Mixing.
ALWAYS disconnect Stirrer/Mixer from mains power before placing
hands into the Bucket.
WARNING
ALWAYS ensure the Stirrer/Mixer is switched OFF before plugging it in.
ALWAYS wind-up the Power Cord before moving the MS-100.
ALWAYS be aware of the Power/Extension Cord position when working
around the MS-100™.
CAUTION
Maximum SAFE Load: 60-80kg (132-176lbs) of wet levelling compound.
DO NOT EXCEED 80kg (176lbs)
ALWAYS use correct lifting technique when loading materials.
1. Ensure Stirrer/Mixer is firmly secure in the ‘Slider
Clamp’.
2. Attach Lid to Bucket.
3. Make sure the ‘Locking Pin’is engaged (i.e. locked
to prevent the bucket from pivoting) at the base of
the Bucket and that the Castor Wheel Brake has
been applied.
4. Attach a vacuum hose through the ‘Vacuum Port’.
Locking Pin
Vacuum Port

MAKINEX MS-100 Operator’s Manual Rev0919 Page 8 of 15
5. Pour in correct amount of water for desired mix quality (refer to Levelling Compound
manufacturer’s recommendations).
6. Festool® Stirrer: Make sure Stirrer is
switched to High Gear ‘2’ and Variable
Speed Dial is set to ‘1’.
Collomix® Mixer and Makinex Electric
Mixer: Make sure Mixer is switched to low
speed.
7. Plug in Stirrer/Mixer to Mains Power.
8. Press Trigger to turn ‘ON’ Stirrer/Mixer and lock in Trigger.
9. Start adding Bags of Levelling Compound one at a time whilst using the section lid to
encapsulate the dust in the bucket.
10. Festool® Stirrer: After 2/3 of Levelling
Compound has been added to the mix
start to increase the Variable Speed Dial.
Collomix® Mixer and Makinex Electric
Mixer: Leave speed on low setting.
11. Festool® Stirrer: After final Bag of
Levelling Compound has been added
turn Speed Dial to Maximum Power.
Collomix® Mixer and Makinex Electric
Mixer: After final bag of Levelling Compound
has been added switch drill to high speed.
12. During mixing, wait for 30 seconds as the compound is being mixed; turn ‘OFF’
Stirrer/Mixer temporarily and scrape off any excess powder that has gathered around the
top of the bucket.
(For the Festool® Stirrer: Turn speed dial to ‘1’ before switching ‘OFF’ at the Trigger, then
disconnect from mains power.)
13. Switch Stirrer/Mixer back ‘ON’ and return to Maximum Power until Levelling Compound is
mixed to a lump-free consistency.
14. Festool® Stirrer: Once equal
consistency has been achieved turn
down Variable Speed Dial to ‘1’ and
switch ‘OFF’ Stirrer at the Trigger.
Collomix® Mixer and Makinex Electric
Mixer: Once equal consistency has been
achieved turn off the Mixer.
15. Unplug Stirrer/Mixer from Power Supply; wind-up the Power Cord on the MS-100 Handle.
NOTE: After the final bag of Levelling Compound has been added, the whole mixing
operation should take approximately 2 minutes.

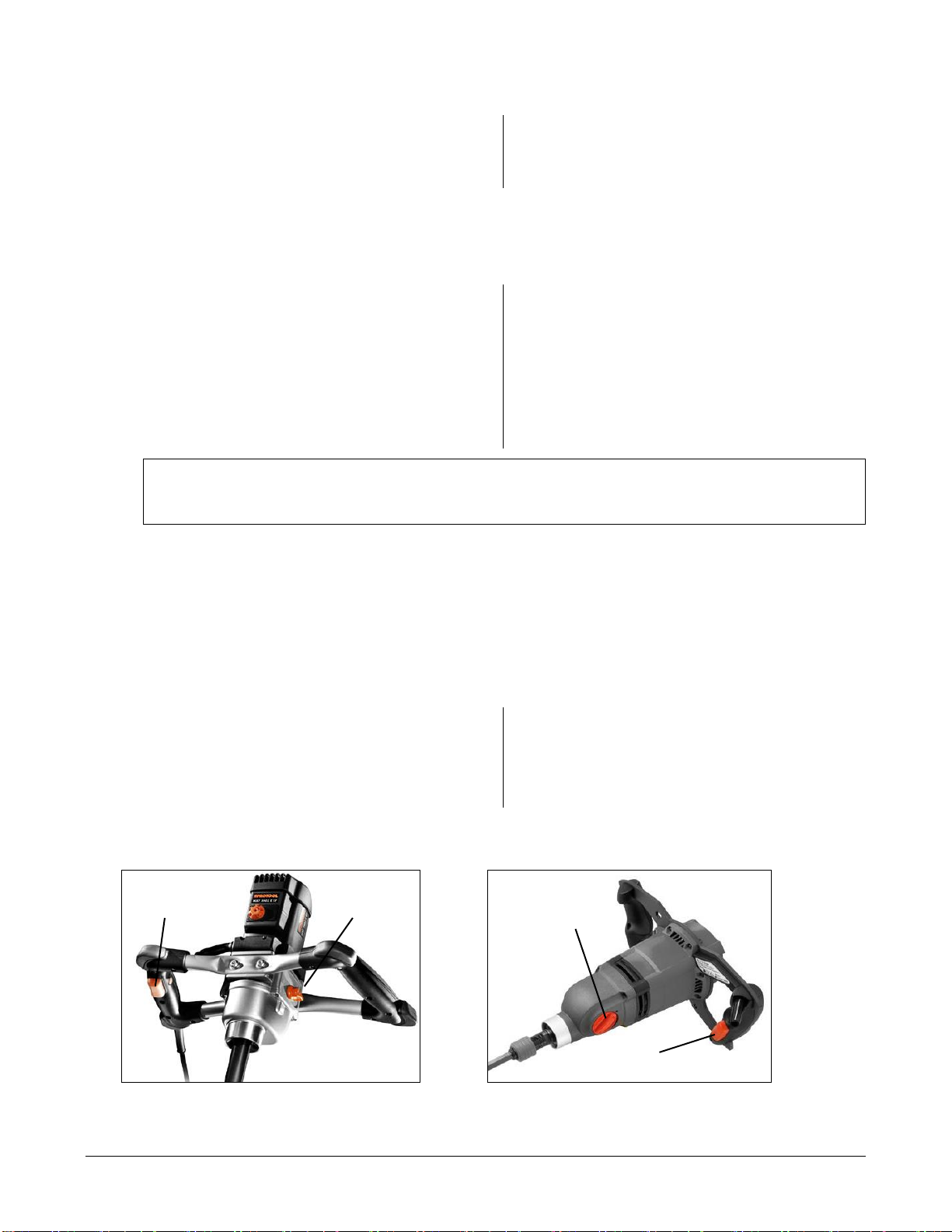

Trigger &
Trigger Lock
High / Low
Gear Selector
Trigger & Trigger Lock
High / Low
Gear Selector

MAKINEX MS-100 Operator’s Manual Rev0919 Page 9 of 15
STEP 3 –POURING AND PLACING LEVELLING COMPOUND
CAUTION
ALWAYS check that power cord is secured around the MS-100 handle
before pivoting the bucket.
CAUTION
NEVER place hand near the ‘Pivot Pin’ (Pivot Point) when rotating the
bucket.
CAUTION
NEVER move or operate the fully loaded MS-100 over an unstable surface.
CAUTION
ALWAYS protect open drains nearby from spillages of compound
1. Check the ‘Locking Pin’ is engaged (i.e. locked to prevent the bucket from pivoting) at the
base of the bucket.
2. Disengage castor wheel brake.
3. Wheel the MS-100 to the desired area (use caution when moving the loaded bucket).
4. Disengage (unlock) ‘Locking Pin’at the base of the bucket.
5. Using a controlled motion (use the ‘MS-100 handle and pouring Handle) pour mixed
Levelling Compound where required.
STEP 4 –CLEANING THE MS-100
CAUTION
ALWAYS use two people when loading and unloading the MS-100.
1. It is very important to clean the equipment after use. Use water or a high-pressure hose to
clean all Levelling Compound from the MS-100 Frame, Wheels, Bucket and Stirrer/Mixer
paddle after use.
2. Extra attention should be focused on cleaning the Wheels.
3. Wheels should be oiled / greased regularly.
4. For maintenance on Stirrer/Mixer please refer to the manufacturer’s manual.
NOTE: With two MS-100 Portable Mixing Stations, another mix could be completed
using the same Stirrer/Mixer while one is being poured.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 10 of 15
LIMITED WARRANTY
To take advantage of the MAKINEX limited warranty, you must have maintenance performed by
an authorised MAKINEX dealer or MAKINEX service technician. You are free to have your
MAKINEX product serviced by any suitably qualified persons and this will not affect your
statutory warranties, however, failure by the owner to have the recommended servicing carried
out by an authorised MAKINEX dealer/service technician means that you cannot take advantage
of the MAKINEX limited warranty.
MAKINEX warrants each new mixer to be free from defects in material and workmanship under
normal domestic and industrial use and service for the period specified below, conditional to the
limitations and exclusions printed on this page. This warranty applies only to new MAKINEX
mixer distributed by us and by our authorised MAKINEX dealers.
Under the limited warranty and at MAKINEX’s discretion, upon evaluation, inspection and testing
by a MAKINEX dealer or a MAKINEX service technician, MAKINEX will repair and replace of
defective part(s).
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
WARRANTY: (Ex-factory/ Reseller premise)
MAKINEX warrants to the original purchaser:
•MAKINEX provides a Limited One Year Warranty that applies to MS-100 Mixing Station only
(this excludes the Stirrer/mixer and any other attachments and consumables).
•All wheels must be thoroughly cleaned after each use, failure to do so will void warranty.
•Stirrer/Mixer (where purchased) is to be covered by original manufacturer. Please refer to their
respective manual for more information.
•Warranty only applies to the original purchaser and is not transferable.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 11 of 15
WARRANTY EXCLUSIONS
•Warranty does not cover wear and tear, breakage, misuse or theft.
•Warranty does not cover consumables (e.g. bucket and lid, wheels) and attachments
(Mixers/Stirrer)
•Warranty will not apply to parts and/or labour if the Mixing Station is deemed to be misused,
neglected, installed improperly or set up incorrectly.
•Cosmetic defects such as decals and coating.
•Failures due to acts of God and other force majeure events beyond the manufacturer’s control.
•Problems caused by parts that are not original MAKINEX parts.
•Expedited freight costs.
OWNER’S RESPONSIBILITY UNDER THIS LIMITED WARRANTY
Strict adherence to the maintenance checks and schedule with proof of scheduled maintenance
service required by an authorised agent or qualified mechanic. It is the consumer’s responsibility
to deliver the machine in question to our service premises or to the premises of our appointed
agent at the consumer’s expense for replacement or repair as applicable. Maintenance services
are not covered under warranty.
Claim Procedure:
•Contact MAKINEX by phone or email informing us of your machines problem or defect.
•Once the extent of the claim has been assessed, we retain the right to compensate the
consumer for such defect, or repair (parts & labour), or replace the machine under warranty.
•All warranties will be carried out by MAKINEX authorised staff or appointed agents at a premise
to be determined by the Manufacturer.
•It is the responsibility (and cost) of MAKINEX or our appointed agent to return the machine to be
repaired or replaced under warranty to the consumer- this is valid for domestic territories only
(e.g. machine purchased in USA will repaired/replaced under warranty and returned to the USA
consumer. Machine purchased in Australia will be repaired/replaced under warranty and
returned to the Australian consumer, machine purchased in Europe will be repaired/replaced
under warranty and returned to the consumer of that specific European nation etc.)
•Where the specific warranty component (e.g. Mixer/Stirrer) is under a Manufacturer’s warranty
other than MAKINEX (e.g. Collomix, Festool etc), the consumer can either contact MAKINEX or
the applicable Manufacturer for repairs where such warranty was registered with that
manufacturer at purchase.
•Warranty calls will only be carried out by our representatives and not via client’s choice of
repairer. We will not accept back charges for any work not carried out by our representatives or
accept any charges due to equipment being un-operational for any reason even during its
warranty period.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 12 of 15
CONTACT INFORMATION
For sales, service, warranty and parts for all MAKINEX products; please refer below.
SALES, SERVICE, SPARE PARTS & WARRANTY
AUSTRALIA
SALES
TEL [phone] or
[phone]
WEB www.makinex.com.au
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
USA
SALES
TEL [phone]
WEB www.makinex.com
SERVICE, SPARE PARTS & WARRANTY
EMAIL [email protected]
UK
WEB www.makinex.co.uk
EUROPE
TEL [phone] or
[phone]
EMAIL [email protected]
CHINA
TEL [phone]
EMAIL [email protected]
Or your nearest MAKINEX distributor
We have very knowledgeable, experienced staff to assist you with help and advice.

MAKINEX MS-100 Operator’s Manual Rev0919 Page 13 of 15
APPENDIX A –RISK ASSESSMENT

MAKINEX MS-100 Operator’s Manual Rev0919 Page 14 of 15

MAKINEX MS-100 Operator’s Manual Rev0919 Page 15 of 15
