MAKINEX DPW-4000-VS User manual

Rev 1221
OPERATOR’S MANUAL
DUAL PRESSURE WASHER
DPW-4000-VS

Table of Contents
INTRODUCTION ...............................................................................................................................................1
DISCLAIMER ........................................................................................................................................................2
ABOUT THIS MANUAL.........................................................................................................................................3
KEY TERMS..........................................................................................................................................................3
SAFETY INFORMATION ....................................................................................................................................4
EMERGENCY INFORMATION...............................................................................................................................8
SAFETY DECALS ...................................................................................................................................................8
PRODUCT DESCRIPTION AND SPECIFICATION ..................................................................................................9
OVERALL MACHINE DIMENSIONS.....................................................................................................................11

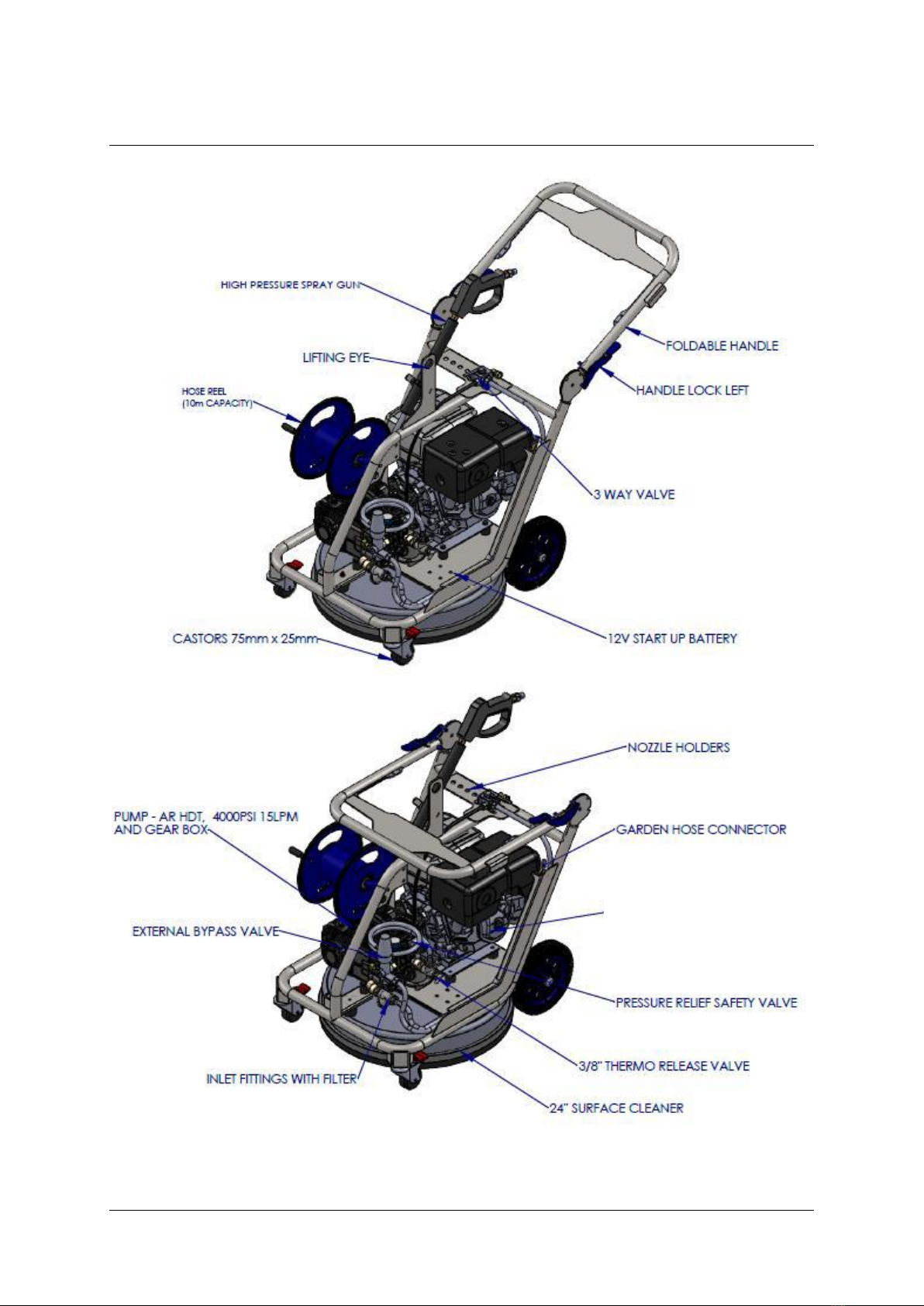

CONTROLS AND FEATURES...............................................................................................................................14
OPERATION ...................................................................................................................................................16
OIL LEVEL CHECK...........................................................................................................................................16
REFUELING....................................................................................................................................................17
OPERATING YOUR PRESSURE WASHER ............................................................................................................18
1. HOW TO PRE-START PRESSURE WASHER............................................................................................18
2. ATTACHING HIGH-PRESSURE HOSE TO SPRAY-GUN ...........................................................................18
3. CONNECT GARDEN HOSE TO WATER INLET CONNECTION.................................................................19
4. ADJUST VALVE POSTION TO SURFACE-CLEANER ................................................................................20
5. START THE ENGINE..............................................................................................................................20
6. CHECKING/ ADJUSTING PRESSURE......................................................................................................21
7. TWO TYPES OF OPERATION ................................................................................................................22
8. NOZZLE SELECTION .............................................................................................................................23
9. FOLDABLE HANDLES............................................................................................................................24
10. STOPPING THE PRESSURE WASHER ....................................................................................................25
MAINTENANCE ..............................................................................................................................................26
GENERAL RECOMMENDATIONS: ......................................................................................................................26
GENERAL MAINTENANCE .................................................................................................................................27
CLEAN DEBRIS...............................................................................................................................................27

CHECK AND CLEAN INLET FILTER ..................................................................................................................27
CHECK HIGH PRESSURE HOSE.......................................................................................................................27
CHECK SPRAY GUN........................................................................................................................................28
CHECK WAND................................................................................................................................................28
NOZZLE MAINTENANCE ................................................................................................................................28
PUMP MAINTENANCE ......................................................................................................................................29
CHANGING PUMP OIL...................................................................................................................................29
CHECKING THE OIL LEVEL .............................................................................................................................30
LENGTHY PUMP LAY-OFFS............................................................................................................................31
PUTTING THE PUMP BACK INTO SERVICE.....................................................................................................31
SURFACE-CLEANER MAINTENANCE..................................................................................................................32
ENGINE MAINTENANCE ....................................................................................................................................32
STORAGE...........................................................................................................................................................33
STORAGE WITH FUEL IN TANK......................................................................................................................33
RUST PREVENTION IN CYLINDERS................................................................................................................. 33
STORAGE OF PRESSURE WASHER.................................................................................................................34
DISCONNECT BATTERY..................................................................................................................................34
CHARGE THE BATTERY ..................................................................................................................................34
OTHER STORAGE TIPS ...................................................................................................................................35
TROUBLESHOOTING.......................................................................................................................................36
LIMITED WARRANTY......................................................................................................................................38
WARRANTY EXCLUSIONS ..................................................................................................................................39
NORMAL WEAR ............................................................................................................................................39
INSTALLATION, USE, AND MAINTENANCE....................................................................................................39
OTHER EXCLUSIONS......................................................................................................................................39
OWNER’S RESPONSIBILITY UNDER LIMITED WARRANTY: ................................................................................40
CONTACT INFORMATION...............................................................................................................................41
APPENDIX A- RISK ASSESSMENT .......................................................................................................................42

Page 1 of 44
INTRODUCTION
Thank you for purchasing a MAKINEX product.
This manual provides information and procedures to safely operate and maintain
the Dual Pressure Washer DPW-4000-VS. For your own safety and protection
from injury, carefully read, understand and observe the safety instructions
described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need
an additional copy, please contact MAKINEX. This machine is designed and built
with user safety in mind; however, it can present hazards if improperly operated
and serviced. Please follow the operating instructions carefully. If there are any
questions regarding operating or servicing of this machine, please contact
MAKINEX.
The information contained in this manual was based on machines in production at
the time of publication. MAKINEX reserves the right to change any portion of this
information without notice.
All rights, especially copying and distribution rights are reserved.
Copyright 2021 by MAKINEX.
No part of this publication may be reproduced in any form or by any means,
electronic or mechanical, including photocopying, without express written
permission from MAKINEX.
Any type of reproduction or distribution not authorised MAKINEX represents an
infringement of valid copyrights and will be persecuted. We expressly reserve the
right to make technical modifications, even without due notice, which aim at
improving our machines or their safety standards.

Page 2 of 44
DISCLAIMER
MAKINEX and its affiliates take no responsibility for any damage, injury or death
resulting from the incorrect or unsafe use of this product. Use of this product
should be undertaken by competent persons only. It is the operator’s responsibility
to ensure that the following safety procedures are followed. If you are unsure, do
not operate this product.
Record the model and serial numbers as well as date and place of purchase for
future reference. Have this information available when ordering parts and when
making technical or warranty inquiries
MAKINEX SUPPORT
Refer to contact details on pg. 41
MODEL NO.
DPW-4000-VS
SERIAL NO.
DATE OF PURCHASE
PURCHASE LOCATION

Page 3 of 44
ABOUT THIS MANUAL
This manual uses the following symbols to help differentiate between different
kinds of information. The safety symbol is used with a key word to alert you to
potential hazards in operating and owning power equipment. Follow all safety
messages to avoid or reduce the risk of serious injury or death.
KEY TERMS
READ
CAREFULLY
READ CAREFULLY –refers to important information that
should be paid careful attention.
CAUTION
CAUTION - indicates a potential hazardous situation which,
if not avoided, may result in minor or moderate injury
WARNING
WARNING –indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury
DANGER
DANGER –indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury
PROHIBITED
PROHIBITED –identifies actions that should never be
carried out by anyone interacting with the machine.
These safety warnings do not eliminate all possible hazards that could occur
therefore it is essential to use common sense and to strictly follow any
instructions to prevent accidents.

Page 4 of 44
SAFETY INFORMATION
WARNING
Read this manual thoroughly before operating your
pressure washer. Failure to follow instructions could
result in serious injury or death
WARNING
MAKINEX Dual Pressure Washer is designed for
professional operators only, instruct operators in care
and use of the machine before use!
Class A machine operators shall be trained and must
be competent but do not require RTO certification
under AS4233.1.
DANGER
RISK OF EXPLOSION OR FIRE
•Fuel and its vapours are extremely flammable and
explosive
•Fire or explosion can cause severe burns or death
•ALWAYS shut off engine and allow it to cool a least 2 minutes before adding
fuel to the tank
•ALWAYS use care in filling tank to avoid spilling fuel. Move pressure washer
away from fuelling area before starting engine.
•ALWAYS keep maximum fuel level below top of tank to allow for expansion.
•ALWAYS operate and use equipment in well ventilated areas free from
obstructions. Equip areas with fire extinguishers suitable for gasoline fires
•NEVER operate pressure washer in an area containing dry bush or weeds.
•ALWAYS keep pressure washer a minimum of 1.2m away from surfaces (such
as houses, automobiles, or live plants) that could be damaged from muffler
exhaust heat.
•ALWAYS store fuel in an AS2906 approved container, in a secure location
away from work area.
•NEVER spray flammable liquids.
•In the event of a fuel spill, ensure machine and entire area is cleaned of excess
before operation.

Page 5 of 44
DANGER
RISK OF BREATHING
•Running engine gives off Carbon Monoxide, an
odourless, colourless, poisonous gas.
•Breathing Carbon Monoxide can cause nausea,
fainting or death.
•Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning.
•ALWAYS operate pressure washer in a well-ventilated area. Avoid enclosed
areas such as garages, basements etc.
•ALWAYS keep exhaust gas from entering a confined area through windows,
doors, ventilation intakes, or other openings.
•ALWAYS follow manufacturer’s recommendations, use a respirator or mask
whenever there is a chance that vapours may be inhaled.
•If the operating area becomes enclosed, turn off engine and release system
pressure by pulling gun trigger. Immediately leave the affected area.
WARNING
RISK OF FALL HAZARD
•Use of pressure washer can create puddles and
slippery surfaces.
•Kick back from spray gun can cause you to fall.
•Keep operating area clear of all persons, pets and obstacles.
•DO NOT operate the product when fatigued or under the influence of alcohol
or drugs. Stay alert at all times.
•DO NOT operate the machine with missing, broken, or genuine parts.
•NEVER leave wand unattended while unit is running.
•Keep children away from pressure washer at all times.
•DO NOT overreach or stand on an unstable support.If you become unstable
during use, release the trigger and stop engine if necessary. Re-assess
operating area before commencing operation.
•The cleaning area should have adequate slopes and drainage to reduce the
possibility of a fall due to slippery surfaces. If the area becomes slippery or
unstable, turn off engine and release system pressure by pulling gun trigger.
Allow the area to drain and assess when suitable to operate again.

Page 6 of 44
•Be extremely careful if you must use the pressure washer from a ladder,
scaffolding, or any other off ground location.
•Firmly grasp spray gun with both hands when using high pressure spray to
avoid injury when spray gun kicks back.
WARNING
RISK OF ELECTRICAL SHOCK
•Risk of electrocution.
•Contact with power source can cause electric
shock or burn.
•Unplug any electrically operated product before attempting to clean it. Direct
spray away from electric outlets and switches.
•NEVER spray near power source.
WARNING
RISK OF FLUID INJECTION
•The high-pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation. Spray guns trap high pressure, even
when engine is stopped and water is disconnected,
which can cause injury.
•Should the spray penetrate the skin, SEEK MEDICAL
ATTENTION IMMEDIATELY!
•ALWAYS point spray gun in safe direction and squeeze trigger, to release
high pressure, every time you stop the engine.
•NEVER aim spray gun at people, animal, or plants.
•NEVER place hands in front of nozzle.
•Make sure hose and fittings are tightened and in good condition. Never hold
onto the hose or fitting during operation.
•DO NOT allow hose to contact muffler.
•NEVER attach or remove wand or hose fittings while system is pressurised.
•Use only hose and high-pressure accessories rated for pressure higher than
your pressure washer’s psi.
•To relieve system pressure, shut off engine, turn off water supply, and pull
gun trigger until water stops flowing.
•DO NOT allow children to operate pressure washer.

Page 7 of 44
•NEVER direct the spray jet at any surface that may contain asbestos material.
•DO NOT leave spray gun unattended while machine is running.
•NEVER use a spray gun which does not have a trigger lock or trigger guard in
place and in working order.
•ALWAYS be certain spray gun, nozzles and accessories are correctly
attached.
•ALWAYS wear personal protective clothing such as goggles, ear muffs,
gloves, and closed foot wear.
DANGER
RISK OF CHEMICAL BURN
•Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flammable
solvent with this product could result in serious
injury or death.
•Wear protective clothing to protect eyes and skin from contact with sprayed
material.
DANGER
RISK OF HOT SURFACES
•Contact with hot surfaces, such as engines
exhaust components, could result in serious burn.
•During operation, touch only the control surfaces of the pressure washer.
Keep children away from the pressure washer at all times. They may not be
able to recognise the hazards of this product.
DANGER
RISK OF MOVING PARTS
•Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
•DO NOT wear loose clothing, jewellery or anything that may be caught in the
starter or other rotating parts.
•Tie up long hair and remove jewellery.
DANGER
RISK OF EYE INJURY
•Spray can splash back or propel objects.
•ALWAYS wear safety goggles when using this equipment or in vicinity of
where equipment is in use.
•Before starting the pressure washer, be sure you are wearing adequate safety
goggles.
•NEVER substitute safety glasses for safety goggles.

Page 8 of 44
EMERGENCY INFORMATION
In the event of an emergency, stop the machine immediately.
1. This product is fitted with a ‘hold to activate’ mechanism which is the spray gun
trigger. Upon releasing grip, the high-pressure water flow will be automatically
stopped.
2. To disable the product, move the throttle control (black handle) to the OFF or
STOP position. See picture below. This will stop the engine.
3. Further to the above, the water flow can be diverted from the spray gun by
turning the 3-way valve to divert the water to the Surface-Cleaner.
Always ensure all safety information is observed before re-commending work.
3-WAY VALVE

Page 9 of 44
SAFETY DECALS
MODEL: DPW-4000-VS

Page 10 of 44
PRODUCT DESCRIPTION AND SPECIFICATION
The MAKINEX Dual Pressure Washer DPW-4000-VS is a versatile, 2 in 1 compact
4000 psi pressure cleaner. It is designed and engineered to simplify the process of
pressure washing. The pressure washer includes a combination of a rotary
cleaner, a spray gun, a control valve, ten metres of high-pressure hose, heavy
duty industrial- strength Italian- made pump, and the reliable Vanguard 400
engine, all mounted on a compact, easy to transport, durable galvanised steel
frame.
Applicable Australian standards:
- AS4233.1 High Pressure Water Jetting Part 1. Safe Operation and
Maintenance.
- AS4233.2 High Pressure Water Jetting Part 2. Construction and Performance.
OVERALL MACHINE SPECIFICATIONS
MODEL
DPW-4000-VS
OVERALL WEIGHT
111kg/244.7lbs
OVERALL WIDTH
620mm/24.4inch
HANDLE FOLDED HEIGHT
875mm/34.4inch
HANDLE EXTENDED HEIGHT
1015mm/40inch
HANDLE FOLDED LENGTH
810mm/31.9inch
HANDLE EXTENDED LENGTH
1360mm/53.5inch
HOSE LENGTH
10m/32.8ft
PRESSURE OUTPUT
4000psi/275bar
FLOW RATE
15L/min
(4 gal/min)
ENGINE
14HP Vanguard 400 pull start
GEAR BOX
2:1 Reduction
NOISE LEVEL @ HANDLE
92dBA
NOISE LEVEL @ 7m
88dBA
SURFACE-CLEANER
610mm (24inch)

Page 11 of 44
BALL VALVE
500bar/ 7200psi rated 3-way ball valve
TRIGGER GUN
358.5bar/ 5200psi rated
WAND LENGTH
900mm/35.4inch
OVERALL MACHINE DIMENSIONS
638mm
25.12in
1016mm
40in
1349mm
53.11in
884mm
34.8in
1055mm
41.54in
638mm
25.12in
870mm
34.25in

Page 12 of 44
PUMP SPECIFICATIONS
MAKINEX AUS
MODEL
DPW-4000-VS
(With AR XM15.30N, gear reduction)
PRESSURE OUTPUT MAX
4000 psi/275.8 bar
FLOW RATE MAX
15L/min (4 gal/min)
OIL TYPE
SAE30
RPM
1450
WEIGHT
15.5kg/34lb
GEARBOX SPECIFICATIONS (DPW-4000-VS)
REDUCTION
2:1
SHAFT SIZE
1inch SHAFT
OIL TYPE
SAE90W
ENGINE SPECIFICATIONS
ENGINE TYPE
Vanguard 400
Air-cooled 4-stroke OHV
BORE x STROKE
88 x 67mm/3.5 x 2.6inch
DISPLACEMENT
408cm³/24.9inch³
MAX POWER OUTPUT
14HP (10.4kW) @ 3600 rpm
PTO SHAFT ROTATION
Counter-clockwise (from PTO shaft side)
COMPRESSION RATIO
8.3:1
CARBURATOR
Butterfly Float Type
IGNITION SYSTEM
CDI Ignition
STARTING SYSTEM
Pull start
LUBRICATION SYSTEM
Splash
GOVERNOR SYSTEM
Mechanical

Page 13 of 44
AIR CLEANER
Integrated Cyclonic Air Cleaner
OIL CAPACITY
0.95L (1US qt)
FUEL TANK CAPACITY
5.74L (6.1 U.S. qts)
FUEL
87 octane/87 AKI (91 RON)or higher
DRY WEIGHT
35.5kg (78lbs)
RUN TIME (Full tank)
100min

Page 14 of 44
CONTROLS AND FEATURES
VANGUARD 400 ENGINE

Page 15 of 44
FEATURES
Adjustable valve for easy operation switch
Adjustable Pressure 1000-4000 psi
Built in Pressure Gauge
Durable Galvanised frame
Easy manoeuvrable Trolley with front swivel castors
Pull Start Motor (DPW-4000-VS)
Gear Box reduction (2:1) for prolonged pump life (Model DPW-4000-VS)
External Bypass Valve for seal heat protection
Thermal dump valve for over heat discharge
Multi cushion isolators for vibration reduction
10m high pressure hose attached
Spray gun included and mounted on frame
Built in 24’’ 4000 psi Surface-Cleaner
Compact design for easy storage and transport
Lifting point for transportation

Page 16 of 44
OPERATION
OIL LEVEL CHECK
CAUTION
Check the engine oil level with the engine stopped and in a
levelled position
1. Clean area around oil fill and remove oil cap.
2. Check the dipstick to ensure there is enough
oil.
3. If there is not enough oil, using oil funnel
(optional), slowly pour contents into oil fill
opening.
4. Replace oil fill cap and tighten.
NOTE: Refer to Vanguard 400 Manual for more in-depth instructions
NOTE: New machines will be pre-oiled from MAKINEX with:
Engine Oil –SAE 10W-30
NOTE: IMPROPER treatment of generator
can damage it and shorten its life. DO NOT
attempt to start the engine before it has been
properly serviced with the recommended oil.
This may result in an engine failure.

Page 17 of 44
REFUELING
WARNING
FAILURE TO USE FUEL AS RECOMMENDED IN THIS
MANUAL WILL VOID WARRANTY
•DO NOT use unapproved gasoline such as ethanol-based fuel.
•DO NOT mix oil with gasoline.
•DO NOT modify engine to run on alternate fuels.
WARNING
Fuel and fuel vapour are extremely flammable
and explosive. Fire or explosion from misuse
of fuel can cause severe burns and even death.
FIRE
HAZARD
WARNING
Always ensure that fuel tanks are filled outdoors.
1. Turn generator OFF and let it cool for at least two minutes before removing
fuel cap.
2. Loosen fuel cap slowly to release pressure.
3. Slowly add unleaded gasoline to fuel tank. DO NOT fill fuel above baffle to
allow for appropriate space fuel expansion.
4. Wait for spilled fuel to evaporate before starting the engine.
WARNING
Keep fuel away from sparks, open flames, pilot lights,
heat and other ignition sources.
DO NOT light a cigarette or smoke near open fuel tank
or container.
