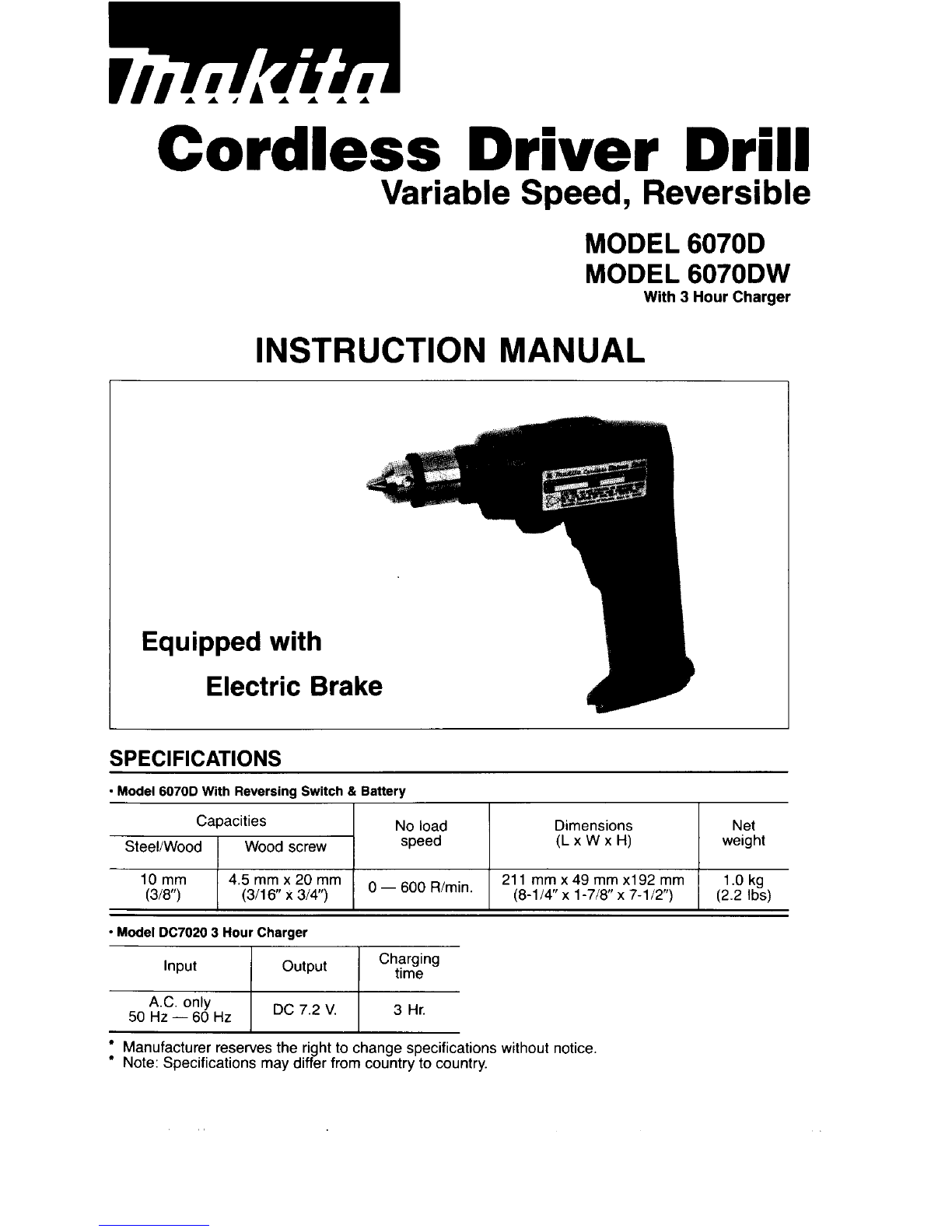

Makita 6070D User manual

Cordless Driver Drill
No load
speed
Variable Speed, Reversible
MODEL 6070D
MODEL 6070DW
With 3 Hour Charger
weight
I Net
Dimensions
(L x W x H)
INSTRUCTION MANUAL
SPECIFICATIONS
- Model6070D With Reversinq Switch & Battery
10 mm 4.5 mm x 20 mm 211 mmx49mmx192mm 1.0kg
(318") I (3116 x 314") I - 6oo I (8-114" x 1-718" x 7-112") I (2.2 Ibs)
I I I I
- Model DC7020 3 Hour Charger
I I
3 Hr.
A.C. only
50 Hi!-6OHz I DC 7.2v' I
Manufacturer reserves the right to change specificationswithout notice.
Note: Specificationsmay differ from country to country.

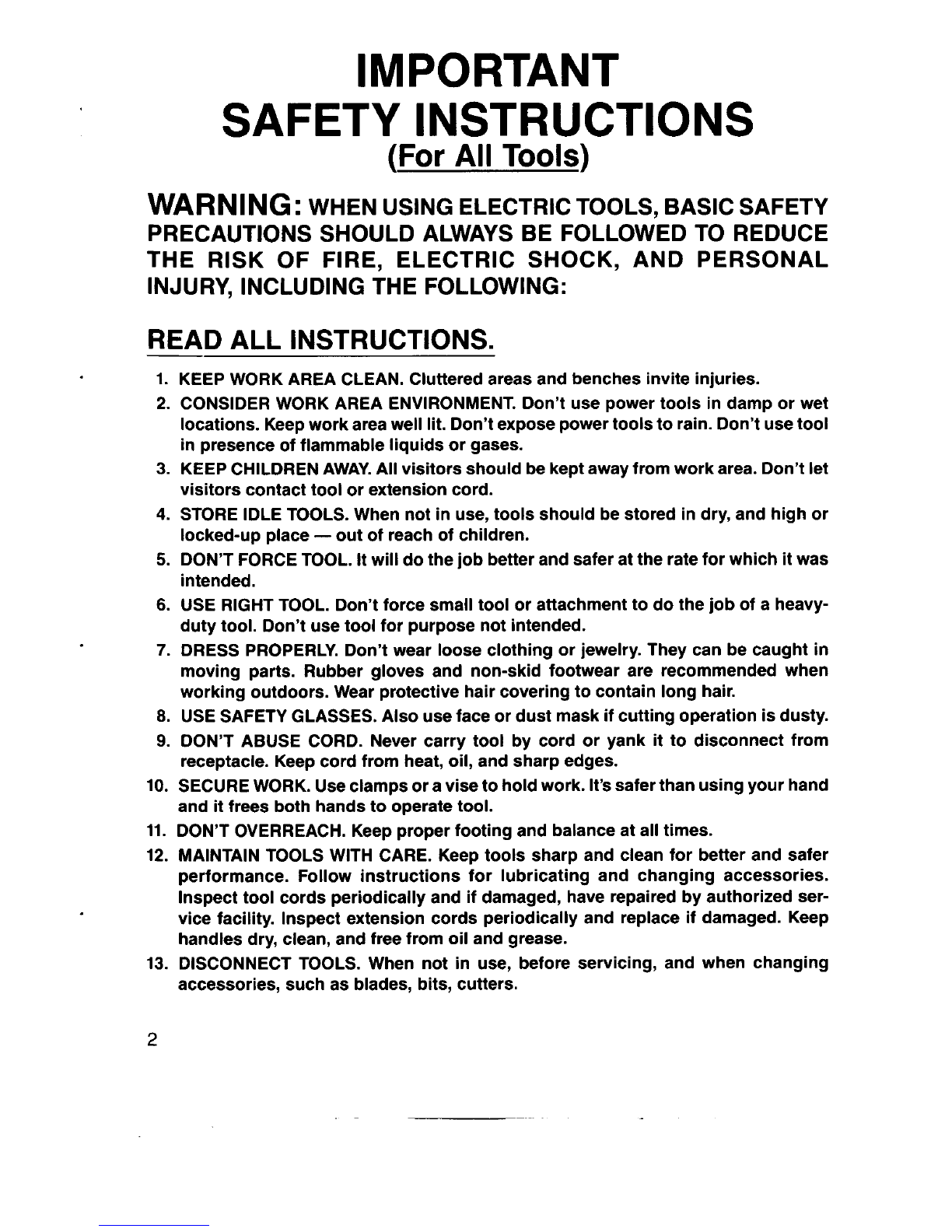

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDINGTHE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
2
KEEPWORK AREA CLEAN. Clutteredareas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don’t use power tools indamp or wet
locations. Keepwork areawell lit. Don’t expose power toolstorain. Don’t usetool
inpresenceof flammable liquidsor gases.
KEEPCHILDRENAWAY. Allvisitors should bekeptawayfromworkarea. Don’t let
visitors contact tool or extensioncord.
STORE IDLETOOLS. When not inuse, tools should be stored indry, and high or
locked-up place
- out of reach of children.
DON’T FORCETOOL. Itwilldothejob betterandsafer atthe ratefor which itwas
intended.
USE RIGHTTOOL. Don’t force smalltool or attachment to dothe job of a heavy-
duty tool. Don’t usetool for purposenot intended.
DRESS PROPERLY. Don’t wear looseclothing or jewelry. They can be caught
in
moving parts. Rubber gloves and non-skid footwear are recommended when
working outdoors. Wear protective hair coveringto contain long hair.
USESAFETY GLASSES. Also useface or dust mask ifcuttingoperation isdusty.
DON’T ABUSE CORD. Never carry tool by cord or yank
it to disconnect from
receptacle. Keep cordfrom heat, oil, and sharp edges.
SECUREWORK. Useclampsoravisetoholdwork. It’ssafer than
using your hand
and
it frees bothhandstooperate tool.
DON’T OVERREACH. Keep properfooting and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer
performance. Follow instructions for lubricating and changing accessories.
Inspect tool cords periodicallyand if damaged, have repaired byauthorized ser-
vice facility. Inspect extension cords periodically and replace if damaged. Keep
handlesdry, clean, andfree from oil and grease.
DISCONNECT TOOLS. When not in use, before servicing, and when changing
accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Formhabitof checking to see that
keys and adjusting wrenches are removedfromtool beforeturning iton.
15. AVOID UNINTENTIONAL STARTING. Don’t carry plugged-in tool with finger on
switch. Besure switch
is OFF when pluggingin.
16. OUTDOORUSE EXTENSIONCORDS. Whentoolisusedoutdoors, useonlyexten-
sion cords intended for useoutdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate tool
when youaretired.
18. CHECK DAMAGEDPARTS. Beforefurther useofthetool, aguardorother partthat
is damagedshouldbecarefully checked to determine that itwilloperate properly
andperformitsintendedfunction. Checkfor alignment of movingparts, bindingof
moving parts, breakage of parts, mounting, and any other conditions that may
affect its operation. A guard or other part that
is damaged should be properly
repaired or replaced by an authorized service center unless otherwise indicated
elsewhere
in this instructionmanual. Havedefective switches replaced by autho-
rizedservice center. Don’t usetool if switchdoes notturn itonand off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded sur-
faces. For example: pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, useonly identical replacement parts.
VOLTAGE WARNING: Beforeconnectingthetooltoapowersource(receptacle,outlet,
etc.) besurethe voltage supplied is thesameasthat specifiedonthe nameplateofthe
tool. A power source withvoltage greaterthan that specified for the toolcan result in
SERIOUSINJURYtothe user-as wellasdamagetothetool. Ifindoubt, DONOT PLUG
IN THE TOOL. Using a power source with voltage less than the nameplate rating is
harmful to the motor.
3

IMPORTANTSAFETY INSTRUCTIONS
I. SAVE THESE INSTRUCTIONS -This manual con-
tains important safety and operatinginstructions for battery charger.
2. Beforeusing batterycharger, read all instructions andcautionary markingson (1)
battery charger, (2) battery,and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA type rechargeable
batteries.Othertypes of batteriesmay burstcausingpersonalinjury anddamage.
4. Do not expose charger to rainor snow.
5. Useof an attachment not recommended or sold bythe battery charger manufac-
6. To reducerisk of damage to electric plug and cord, pull by plug ratherthan cord
7. Make sure cord is located so that it will not be stepped on, tripped over, or
8. Do not operate charger with damaged cord or plug - replacethem immediately.
9. Do notoperatecharger if it hasreceivedasharpblow, beendropped, or otherwise
damaged inany way; take
it toa qualifiedserviceman.
10. Do notdisassemblechargeror battery cartridge;take it to a qualifiedserviceman
when service or repair is required. Incorrect reassembly may result in a risk of
electric shock or fire.
11. To reduceriskof electricshock, unplugchargerfromoutlet beforeattemptingany
maintenance or cleaning. Turning
off controls will not reducethis risk.
turer may result ina risk of fire, electricshock, or injury to persons.
when disconnecting charger.
otherwise subjected to damage or stress.
4

ADDITIONAL SAFETY RULES
FOR CHARGER AND TOOL
1. The Charger andthe toolarespecificallydesignedtoworktogether. Do notattempt
tochargeanyothercordlesstoolwiththisCharger.
Do notattempttochargethetool
with any other charger.
2. Do not charge the tool when temperature is BELOW 10°C (50°F) or ABOVE 45°C
(113°F).
3. Do not usecharger indamp or wet locations.
4. Do not attempt to use a step-up transformer, an engine generator or DC power
5. Do notstorethetool inlocationswhere thetemperaturemay reachorexceed 50°C
6. Do not incineratethe tool even if it isseverely damagedor iscompletely worn out.
receptacle.
(122°F).
The tool can explodeina fire.
ADDITIONAL SAFETY RULES
1. Beawarethatthistool isalways inanoperatingcondition,becauseitdoesnothave
to be pluggedinto an electrical outlet.
2. Always be sure you havea firm footing.
Be sure noone isbelowwhen usingthetool inhigh locations.
3. Holdthe tool firmly.
4. Keep handsaway from rotatingparts.
5. When drilling intowalls, floors or wherever “live” electrical wires may beencoun-
tered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthetoolonlybytheplastichandleor plastictoolbodytopreventelectricshock
if you drill into a “live” wire.
6. Do not leavethetool running.Operate the tool only when hand-held.
7. Do nottouch the drillbitortheworkpieceimmediatelyafter operation, they may be
extremelyhot and could burnyour skin.
SAVE THESE INSTRUCTIONS.
5

Charging
Uncapthe chargingconnectorhole.
Connect the charging plugto the charging
connector, then pluginthe chargerto the
power receptacle.Chargingtakes
3 hours.
CAUTION:
0 The battery inyour new tool is not fully
charged. You will need
to charge it
before use.
0 Do not operatethe tool duringcharging.
0 Overchargingmorethan 2 days
considerablyshortensthe batteryservice
life. Always unplugthe chargerafter
completingthe charge. Then cap the
chargingconnector hole.
0 When you charge a new tool or a tool which has not been used for a long period, it may
not accept a full charge. This is a normalconditionand does not indicatea problem. You
can rechargethe tool fully after dischargingit almost completely a coupleof times.
Nominal Diameter (mm)
Bit No. Wood Screw
2.1 - 2.7(3132 - 1/8”)
No. 2 3.1 -4,5(1/8”-3/16)
Selecting correct Phillips bit
Use the chart to determine the best size
driverbitfor thesizeof screwthat you wishto
use.
Selecting slotted bit
Use a slotted bit that properly fits the screw
slot. Useof abitthat istoosmallwill damage
the screw and/or bit.
6

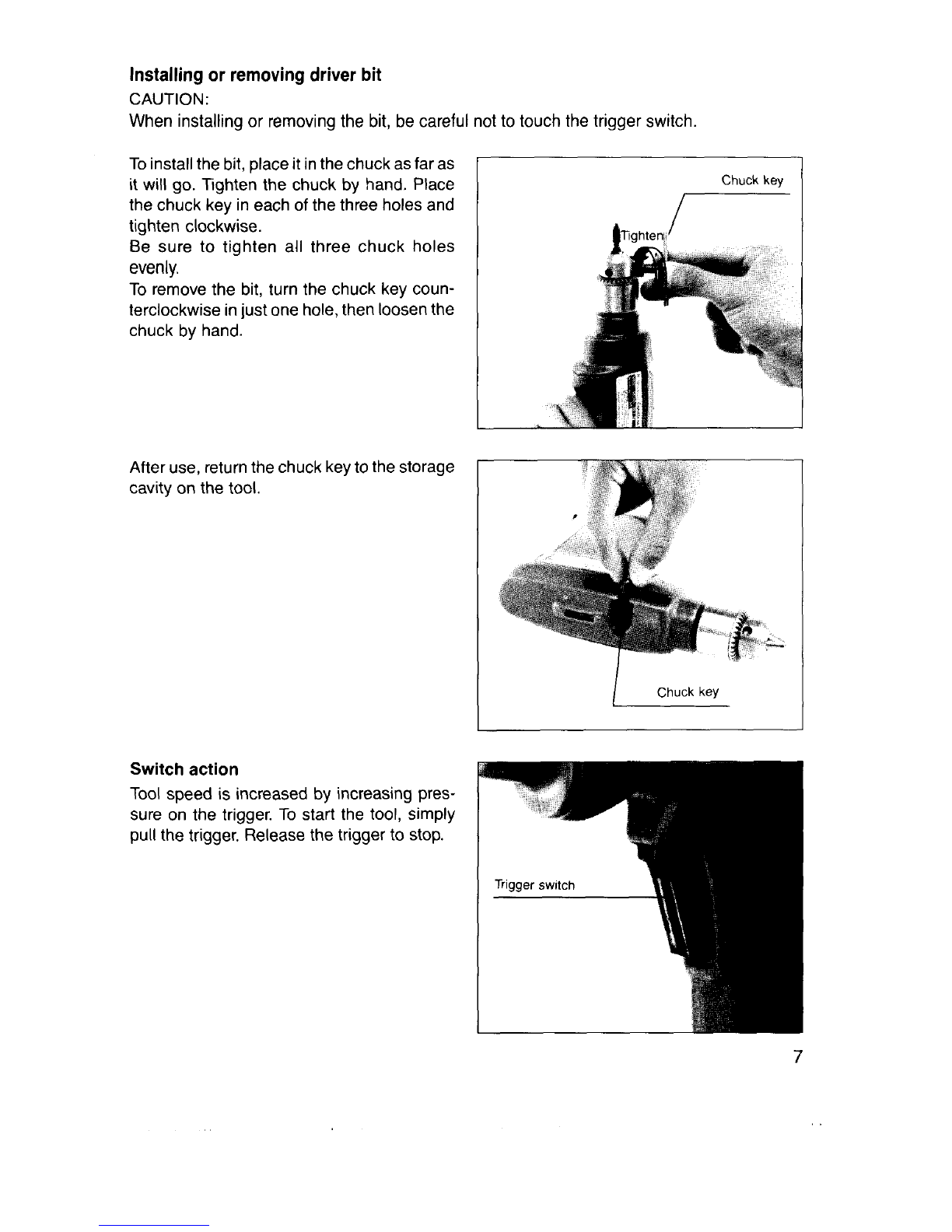

Installingor removingdriver bit
CAUTION :
When installingor removing the bit, be careful not to touch the trigger switch.
To installthe bit,placeitinthe chuck as far as
it
will go. Tighten the chuck by hand. Place
the chuck key in each of the three holes and
tighten clockwise.
Be sure to tighten all three chuck holes
evenly.
To remove the bit, turn the chuck key coun-
terclockwise injust one hole,then loosenthe
chuck by hand.
1 Chuck key
Switch action
Tool speed is increased by increasing pres-
sure on the trigger.
To start the tool, simply
pullthe trigger. Releasethe trigger to stop.
7

Reversingswitchaction
Thistoolhasareversingswitchtochangethe
direction
of rotation. Slide the reversing
switch
to the right for clockwise rotation or to
the left for counterclockwise.
Reversing switch
-
CAUTION:
0 Always checkthe direction of rotation beforeoperation.
0 Use the reversing switch only when the tool comes to a complete stop. Changing the
Overload protector
The overload protector automatically cuts out to break the circuit whenever heavy work is
prolonged. Wait
20-30 seconds beforeresumingoperation.
direction of rotation beforethe
tool stops may ruinthe tool.
Holdingtool
Holdthe tool as shown inthe figure.
When drillinga largediameter hole, holdthe
tool firmlywith both hands.
a

Bubblelevel
This tool isequippedwithabubbleleveltoaid
inholdingthe
tool horizontally.Simply center
the bubbleinthe sight window.
Screwdriving operation
Placethe point of the driver bit in the screw
headandapplypressure
to thetool.Startthe
tool slowly andthenincreasethespeedgrad-
ually. Release the trigger
just as the screw
bottomsout.Theelectricbrakewillthenstop
the tool immediately, preventing the screw
and/or bit from beingdamaged.
Bubble level
7
NOTE:
0 Makesure that the driver bit is insertedstraightinthe screw head, or the screw and/orbit
may be damaged.
When driving wood screws, predrill pilot
Nomlnal dlameter of Recommended size
of pilot hole (mm)
20-22
(5164 - 3/32)
holes to makedrivingeasierand to prevent
wood screw (")
splitting of the workpiece See the chart. I 3 1 (118)
2.2 - 2.5
I (3132 - 3132)
3.5
(9164)
2.5 - 2.8
I (3132 - 7/64)
3.8 (5132")
2
9 - 3.2
I (7164 - 118)
4.5 (11164")
9

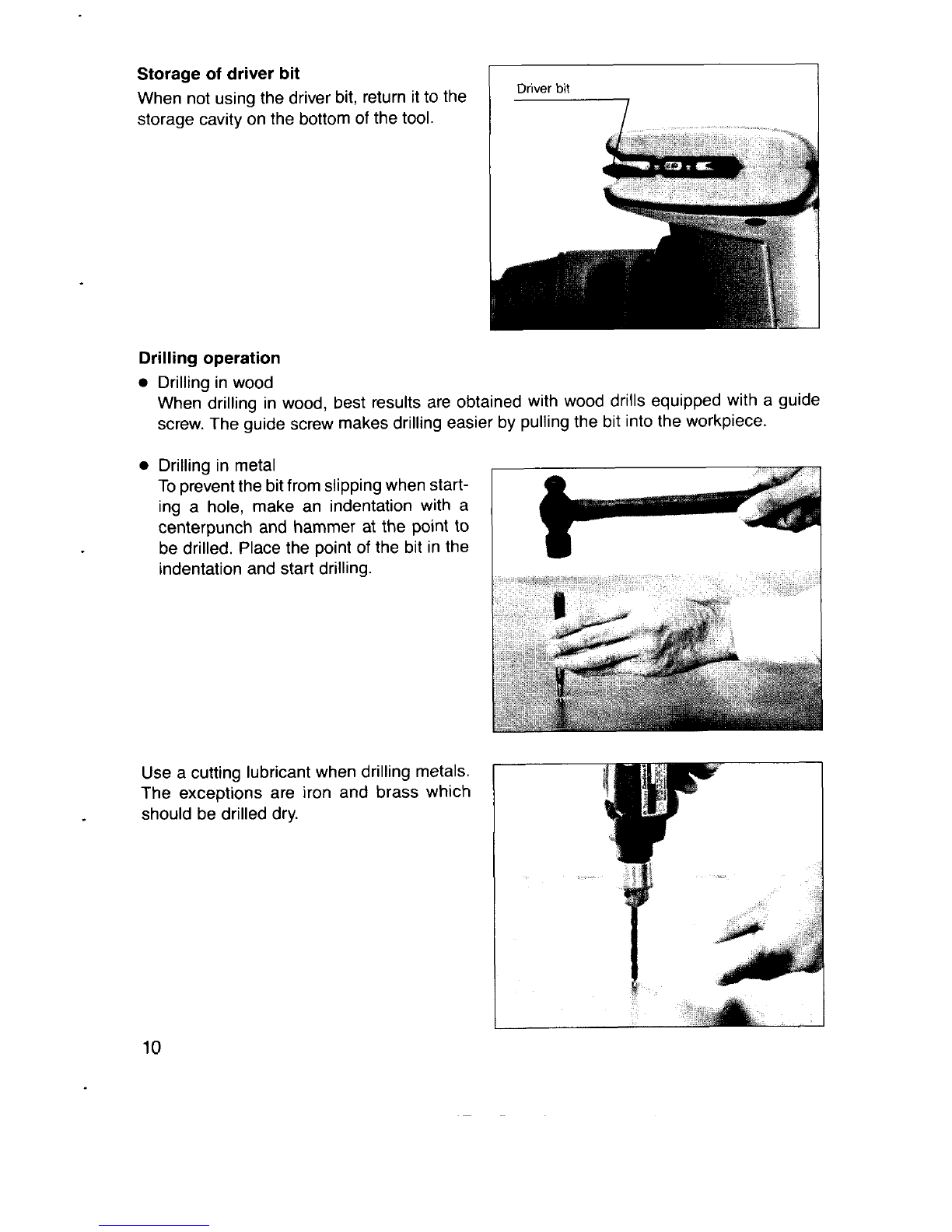

Storage of driver bit
When not usingthe driver bit, return it to the
storage cavity onthe bottom
of the tool.
Drilling operation
0 Drillinginwood
When drilling in wood, best results are obtained with wood drills equipped with a guide
screw. The guide screw makes drillingeasier by pullingthe bit into the workpiece.
0 Drillingin metal
To preventthe bitfromslippingwhen start-
ing a hole, make an indentation with a
centerpunch and hammer at the point to
be drilled. Placethe point
of the bit inthe
Usea cutting lubricant when drillingmetals.
The exceptions are iron and brass which
should be drilleddry.
10

CAUTION:
0 Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure
will only serve to damage the tip of your bit, decrease the tool performance and
shorten the service life of the tool.
0 There is atremendousforce exertedon the toolibit at thetime of hole breakthrough.Hold
the
tool firmly and exert care when the bit beginsto breakthroughthe workpiece.
0 Astuck bitcanberemovedsimplybysettingthereversingswitchtoreverserotationinorder
to back out. However,the tool may backout abruptly if you do not hold it firmly.
0 Always securesmall workpieces in a vice or similar hold-downdevice.
11

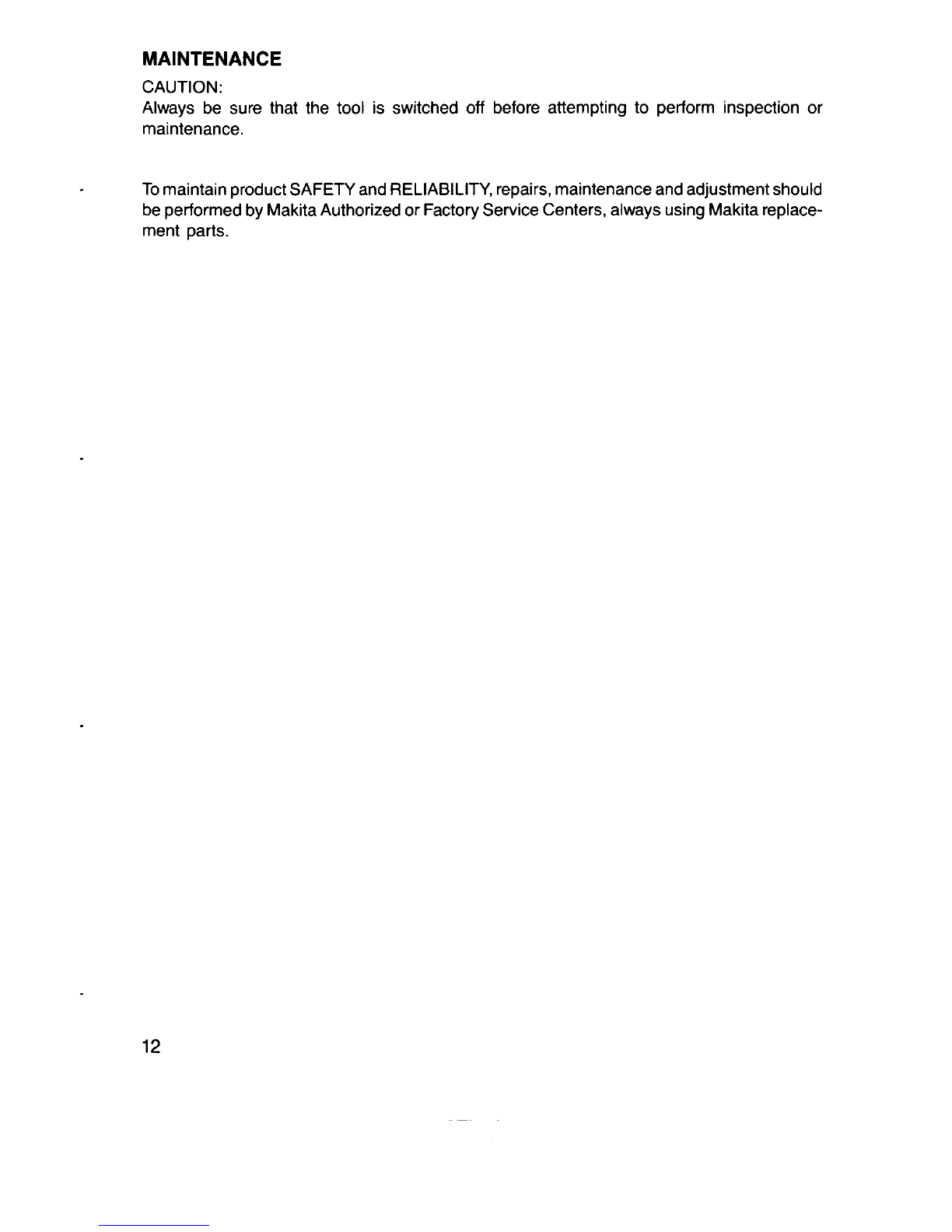

MAINTENANCE
CAUTION:
Always be sure that the tool is switched
off before attempting to perform inspection or
maintenance.
To maintainproductSAFETYandRELIABILITY,repairs,maintenanceandadjustmentshould
beperformedbyMakitaAuthorizedor FactoryServiceCenters,always usingMakitareplace-
ment parts.
12

ACCESSORIES
CAUTION
Theseaccessoriesor attachmentsare recommended for usewithyour Makita tool specifiedinthis manual The useof
any other accessoriesor attachmentsmight present a risk of injuryto persons The accessoriesor attachmentsshould
be usedonly in the proper and intendedmanner
Phillips bit 0 Bits
I I
0 Rubber pad assembly
8 - a= ,#
0 Wool bonnet
0 Wax buffer
Square drill bit
I
3 Hour charger DC7020 (A.C. only)
0 12-volt 3 Hour charger DC7022
Chuck key S10
13

14
A
10 mm (3/8)
CORDLESS DRIVER DRILL
Model 6070D
Note The switch and other part configuratlons
may differ
from country to country

MOL
ITEM
NO.
-
1
2
3
4
5
6
7
8
9
10
11
Note
1
370D
, DESCRIPTION ",'," & DESCRIPTION
NE -E
Drill Chuck S10
Pan Head
Screw M5xl8
Gear
Molor
Holder 6
Switch
Housing
R
Bubble Level
Tapping Screw
3x20
Cap
Plane BearlnQ 5
12
13
14
15
16
17
18
19
20
21
1 Intel
1 Resistance
1 Diode
1
1 Plane Bearing
3
1 Switch
1 Housing
L
1 Name Plate
1 Ballery
1 PlaneBearlnQ 3
Gear Couplete 13~ 58
ch and olher pan Specifications may diner from country to country
15

10 mm (3/8”)
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
EveryMakitatoolisthoroughlyinspectedandtestedbeforeleavingthefactory. Itiswarrantedtobefreeof
defectsfrom workmanshipandmaterialsfor the periodof ONE YEAR fromthe date of originalpurchase.
Shouldanytroubledevelopduringthisone-yearperiod,returntheCOMPLETEtool,freightprepaid,toone
of Makita’sFactory or AuthorizedService Centers. If inspectionshowsthe trouble iscausedby defective
workmanshipor material, Makitawill repair(or, at our option, replace)without charge.
This Warrantydoes not applywhere:
0 repairshave been madeor attempted by others
0 repairsare requiredbecauseof normal wear and tear
0 the tool has been abused, misusedor improperly maintained
0 alterationshave been madeto the tool
In noevent shall Makita be liablefor any Indirect, Incidentalor consequential damagesfrom the
sale or use of the product. Thisdisclaimer applies bothduring andafter the term of warranty.
Makita disclaims liability for any implied warranties, including implied warranties of
“merchantability” and “fitness for a specific purpose”, after the oneyear term of this warranty.
ThisWarrantygives
you specific legalrights,andyou may alsohaveotherrightswhich vary fromstateto
state. Some statesdo notallowtheexclusionor limitationof incidentalor consequentialdamages,
so the
above limitationor exclusion may not apply to
you. Some states do not allow limitationon how long an
impliedwarranty lasts,
so the above limitationmay not applyto you.
MakitaCorporation of America
Buford, GA
883493 B 066
PRINTED IN USA
1991 -8-C
