Makita 6OLODW User manual

Cordless Drills
-
Capacities No
load speed Net weight
Steel
I Wood Wood screw
10 mm 1318") 600
Rimin. 1.1 kg (2.4 Ibs)
4.5 mm x 20 mm
(311 6" x 314")
10 mm (318") MODEL 6010D
10 mm (318") MODEL 6OlODW
10 mm (318") MODEL 6OlODWK
With Fast Charger
With Fast Charger and Carrying Case
Overall length
227
mm 19")
INSTRUCTION MANUAL
Battery Cartridge 7000
Voltage
7.2 V
1
SPEC I FICAT IO N S
* Model DC7100 Fast Charger
Dimensions Net Charging
IL x W x HI weight time
50 Hz - 60 Hz 7.2 V 15-314" x 3-118" x 2-318") (1 5 lbs) ' Hr
Input output
A.C only D.C. 145 mm x 80 mm x 61 mm 0.7 kg

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should be stored in dry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothingor jewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair coveringtocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspect toolcords periodically and ifdamaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removedfromtool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging
in.
16. OUTDOOR USEEXTENSION CORDS. When toolis usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use commonsense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
movingparts, bindingof movingparts, breakage of parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRICSHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. Whenservicing, useonly identicalreplacement parts.
VOLTAGE WARNING: Beforeconnecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY to the user - as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet)
AWG Size of Cord
I. SAVE THESE INSTRUCTIONS - This manual
25 50
100 150
18 18 18 16
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery 7000.
Other types of batteries may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result ina risk of fire, electric shock, or injurytopersons.
6. To reduce risk of damage toelectric plug and cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins
on plug of extension cord are the same number, size, and shape
b. That extension cord is properly wired and ingood electrical condition; and
c. That wire size is at least as large as the one specified inthe table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Donot operate charger if it has receivedasharpblow, beendropped, or other-
wise damaged in any way; take
it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk
of electric shock or fire.
12. To reducerisk of electric shock, unplugcharger from outlet beforeattempt-
ing any maintenanceor cleaning. Turning off controls will not reducethis risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do notattempt touseastep-uptransformer, anenginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. Do not short the battery cartridge:
or ABOVE 4OoC (104OF).
receptacle.
cartridge
is not used.
(1)
Do not touch the terminals with any conductive material.
(2)Avoid storing battery cartridge ina container with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
as nails, coins, etc.
A batteryshort can cause a largecurrent flow, overheating, possible burns
and even a breakdown.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode in a fire.
ADDITIONAL SAFETY RULES
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe toolonly by the insulatedgrasping surfaces toprevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bit or the workpiece immediately after operation: they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Installing or removing battery cartridge
*Always switch off the tool before inser-
tion or removal of the battery cartridge.
*To remove the battery cartridge, pull out
the
set plate on the bottom of the tool
and grasp both sides of the cartridge
while withdrawing it from the barrel.
To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the set plate back into place.
Be sure to close the
set platefully before
usingthe tool.
0 Do not use force when insertingthe battery cartridge.
Ifthe cartridge does not slide ineasily, it is not beinginsertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger. In-
sert the cartridge fully into the port
so that
it rests on the charger portfloor.
The charging light will come on and charg-
ingwill begin. Ifthe charginglightdoes not
come
on, press the reset button. If the
charging light goes out within
10 seconds even after pressing the reset button a couple of
times, the battery cartridge is dead. (CAUTION : Wait for more than 5 seconds after the
charging light goes out to press the reset buttonagain.) Replace
it with a new one. When
the charging light goes out after about one hour, you may remove the fully charged
battery cartridge. After charging, unplugthe charger from the power source.
CAUTION:
Your new battery cartridge is notcharged. You will need to charge it before use.
If you try to charge a cartridge from a just-operatedtool, sometimes the charginglight
will not come on. If this occurs, let the cartridge cool off for a while. Then re-insert
it and try tocharge it once more.
0 When you charge a newbattery cartridge or a battery cartridge which has notbeen used
for a long period, it may not accept a full charge. This is a normal conditionand does
not indicate a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If you wish to charge two battery cartridges,allow 15 minutes betweenchargingson the
fast charger.
6

Bitinstallation & removal
CAUTION
:
Always set the Forward-Reverseswitch lever to NEUTRALwhen installing, removing or
adjusting bitsor accessories.
Chuck
When installing a drill bit, notice that
there are three holes in the chuck
at
which you must use the key for tighten-
ing. Insert the chuck key in any
of the 3
holes and turn to the left (counterclock-
wise) to release jaws of chuck. Insert the
bit and tighten with chuck key to the
right. Tighten evenly
at all three holes in
sequence.
1
Clip-on chuck key
Overload protector
The overload protector automatically
cuts in to break the circuit and the
button pops out, whenever heavy work
is
prolonged. Wait 20-30 seconds before
pressing the restart button (on housing
in back) to resume operation. Your finger
should not be on the trigger when you
press the restart button, however.
/
Overload protector
I"

Switch action
Move the reversing switch lever to the
position for clockwise rotation or
the
)J& position for counterclockwise.
To start the tool, simply pull the trigger.
Release the trigger to stop. When the re-
versing switch lever is in the neutral posi-
tion, the tool will not start even ifyou pull
the trigger
&
Reversing
-switch lever
'rigger switch
Drill
.Punch a small hole in the metal to pre-
vent the bit from skitterring when start-
ingtodrill
a hole.
.Use machine oil on the bit to facilitate
drilling.
8

*Pressing down too hard on the tool will not speed up the drilling. Infact, this undue
pressure will only serve to damage the tip
of your drill bit, decrease your drilling per-
formance and shorten the service
of the tool.
*There
is a tremendous force exerted on the tool/bit at the time of hole break through.
Grip the drill firmly and exert care when the bitbegins to break through the materials.
Item
Screw
Match your bitto your screw.
Nominal Diameter (mm)
Bit No. Wood Screw
*I 2.1 - 2.7 13/32" - lis")
1. Phillips bits
Phillips bit
No. 2 - 45 mm is standard
equipped. Select your screws and
right.
nominal diameter with the chart on the
No. 2 3.1 - 4.8 (118'' - 3/16")
2. Slotted bits
Unless you use a bit that fits properly the slot on the head of the screw, the slot will
be damaged and the screw will not fasten. If the bit fails to match the slot, use
a
grinder or some such tool totrim the bitto fit the slot.
NOTE : Rest the tool for 15 minutes when changing battery for continuous operation.
9

Grip
.The grip shown on the right is recom-
mended. However, grip the tool firmly
with both hands when drilling
a large-
diameter hole.
*The hole on the heel
of the tool is a con-
venient way to carry
it by a cord, hook
or other means.
10

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons. The
accessories or attachments should be used only in the proper and intended manner.
Bits 0 Fast charger 0 Charger 12V for car
Phillips
I Size Part NO. Model DC7100 Model DC7112
#2 I 784214-0A Part No. 113086-6 Part No. 113109-0
1 #?F 1 784011-0A
0 Battery cartridge 7000
0 Battery cover
Part No. 632002-4 Part No. 414938-7
Square drill bit 784606-0A
I I
0 Tool holster
has some bits storage space
Use holster to carry drill only after removing
bit. Also, keep the reversingswitch lever in
neutral position when carrying in the holster.
Part No. 823033-3A
Part No. 823033-3E (Genuine leather)
0 Battery holster
Holdswith extra battery
Part No. 823033-3C
0 Rubber pad assembly
Part No. 123001-2
8 r T, ,P
0 Foam polishing pad
Part No. 743023-2
0 Chuck key S10
Part No. 763419-1
0 Wool bonnet
Part No. 743401-6
0 Plastic carrying case
Part No. 824446-4
0 Keyless drill chuck
Part No. 763083-8
11

Mar~-l1-'87 US
10 mm (318")
CORDLESS DRILL
Model 6010D
Note: The switch and other part configurations
may differ from country to country.
12

MODEL 6010D Mar 11 87 EN
10
12
13
14
16
17
25
27
'Ff $:D DESCRIPTION ,",",, DESCRIPTION
1
1
1
1
7
1
1
1
11
21
31
41
51
61
71
81
91
Pan Head Screw M5x18
Drill Chuck S10
Gear
Plane Bearing 5
DC Motor 7 2 V
Plane Bearing 3
Gear 13-58
Switch
Plane Bearing 3
Housing Ser lWilh Item 271
Baffery 7000
Holder 6
Name Plate
Pan Head Screw M4x22 IWith Washer1
set Plate
Over Current Relay
Housing Set IWith Item 101
Note The switch and other part specifications may differ from country to country
13

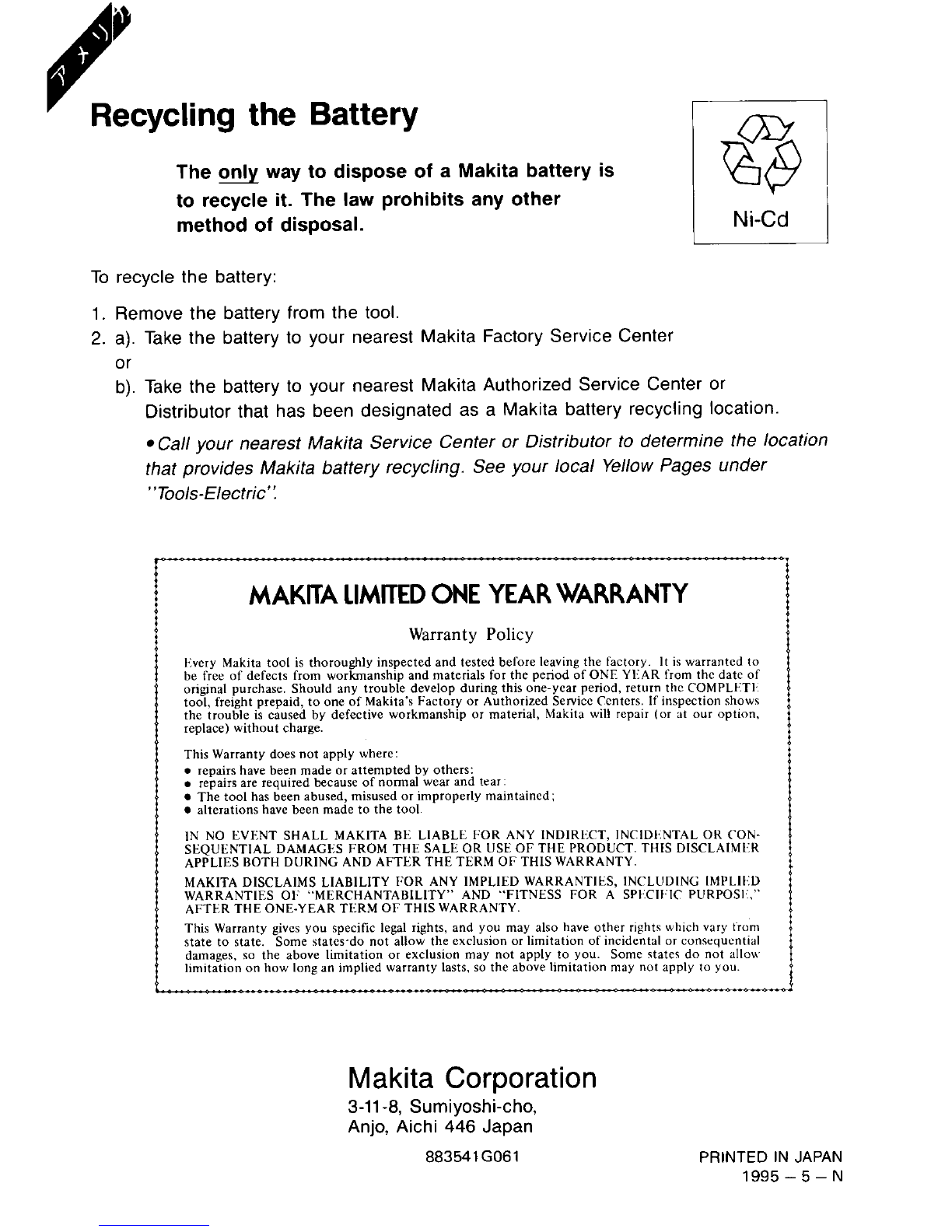

The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
1 Ni-Cd
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery
to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
’ ‘Tools-Electric’
MAKITALIMITEDONE YEAR WARRANTY
Warranty Policy
I<very Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free
of defects from workmanship and materials for the period of ONE YlAR from the date of
original purchase. Should any trouble develop during this one-year period, return thc COMPLETI.
tool, freight prepaid, to one
of Makita’s Factory or Authorized Service Centers. If inspection show\
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
e repairs have been made or attempted by others:
e repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool
IN NO EVbNT SHALL MAKITA Bt LIABLE FOR ANY INDIRICT, INCIDI NTAL OR CON
StQUtNTlAL DAMAGtS FROM THE SALE OR USE
OF THE PRODUCT THIS DISCLAIM1 K
APPLIES BOTH DURING AND AFTER THE TERM OF THISWARRANTY
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIkS, INCLUDING IMPLII
D
WARRANTIFS 01 “MERCHANTABILITY” AND “FITNLSS FOR A SPI CII IC PURPOSI ,”
AFT~R THE ONE-YEAR TI RM or THIS WARRANTY
This Warranty gives you specific legal rights, and you may also have other rights which vary troni
state to state. Some states.do not allow the exclusion or limitation
of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some ytates do not allou
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
k P __Q d
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
8835416061
PRINTED IN JAPAN
1995 - 5 - N
