Malatech Onyx 100 User manual

MANUFACTURER/IMPORTER:
MALATECH WATER, LTD.
1/E Vanyi way, Alsonemedi,
2351 Hungary
[phone]
[e-mail]
SOLAR LED GARDEN LIGHT WITH MOTION SENSOR
ONYX 100
USER MANUAL

LED power: 1.5 W ambient, 5 W at motion
Luminous ux: 150 lumen at ambient, 500 lumen at
motion
LED chip data: Epistar SMD, 76 pcs
Light color: Natural white 4000K
Solar Panel: 5.5 V/6 W Monocrystalline solar
Li-battery: 3.7 V/5.2 Ah ternary Lithium battery
Waterproof IP rating: IP65
Column material: Oxidized Aluminium
Total height: 1 000 mm
Net weight: 3 kg
Charging methods: 100% solar-powered
Charging Time: 6-10 hours (considering sucient
sunshine during charging)
Discharging Time: >24 hours (considering full battery load,
and depending on use)
Working mode: Automatic light control + motion sensor
Sensing method: Human body infrared induction
Sensing distance: > 5 m
Time delay: 30 seconds
Beam angle: 120 degrees
Working temperature: -25 - +65 Celsius
Expected battery lifetime: >1 000 cycles
Expected LED lifetime: >50 000 hours
Remote control: No
Motion sensor Yes
Warranty period: 1 year
Product box length: 1 090 mm
Product box width: 140 mm
Product box height: 220 mm
2

LED power: 1.5 W ambient, 5 W at motion
Luminous ux: 150 lumen at ambient, 500 lumen at
motion
LED chip data: Epistar SMD, 76 pcs
Light color: Natural white 4000K
Solar Panel: 5.5 V/6 W Monocrystalline solar
Li-battery: 3.7 V/5.2 Ah ternary Lithium battery
Waterproof IP rating: IP65
Column material: Oxidized Aluminium
Total height: 1 000 mm
Net weight: 3 kg
Charging methods: 100% solar-powered
Charging Time: 6-10 hours (considering sucient
sunshine during charging)
Discharging Time: >24 hours (considering full battery load,
and depending on use)
Working mode: Automatic light control + motion sensor
Sensing method: Human body infrared induction
Sensing distance: > 5 m
Time delay: 30 seconds
Beam angle: 120 degrees
Working temperature: -25 - +65 Celsius
Expected battery lifetime: >1 000 cycles
Expected LED lifetime: >50 000 hours
Remote control: No
Motion sensor Yes
Warranty period: 1 year
Product box length: 1 090 mm
Product box width: 140 mm
Product box height: 220 mm
3

LIGHT STRUCTURE, CONTENT OF THE BOX
ATTENTION! The life span of the battery depends on you as well! Please
use the light correctly as described in this manual by positioning it
in a sunny place where sucient sunlight is provided for charging
the battery every day. If you intend to turn o your light, and you do
not want to use it for a while, please make sure that the battery has
sucient charge, and it is not totally discharged. If you would like to
store the light instead of using it, please turn o the light with the ON/
OFF button. In case of a longer storage, please turn on the light once
every month, put it in a sunny place in the morning, and turn it o at
dusk. In this case the light can be stored again for another month. It
may decrease the life span of the battery if the light is stored for a longer
period with a totally discharged battery, moreover it can damage the
battery!
ATTENTION! The light sensor switches o the light even at night if it
receives high luminosity lighting from above! Do not place your light in
a position where other light sources can hinder its operation (e.g. do not
place the light below high luminosity street light)!
ATTENTION! Battery is built-in, non-replaceable!
Content of the box:
• Onyx 100 light body (1 pc)
• Solar panel (1 pc)
• Screws for xing the solar panel on the
top (4 pcs)
• Screws with hit-in dowels for xing the
stand (2 pcs)

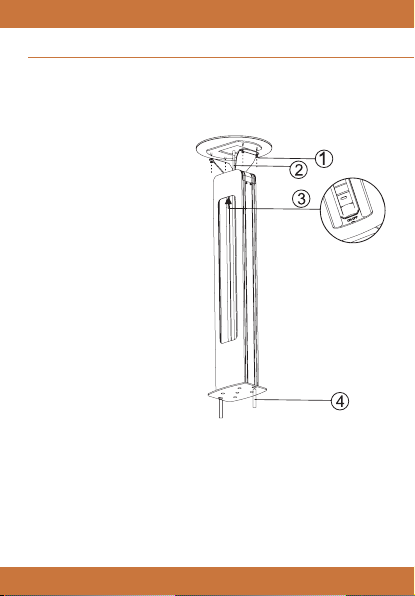

Light structure:
1 - Solar panel
2 - ON/OFF button
3 - LED tube pair
4 - Stand
4

INSTALLATION OF THE LIGHT, OPERATION INSTRUCTIONS
Please pay attention to place your light in a non-shaded place with
sucient sunshine provided for its operation.
Installation of the light:
1. &2. Please connect the solar
cable’s plug to the LED group’s
plug, then place the solar panel
correctly on the top of the light
body. Fix the solar panel with
the 4 small screws provided in
the box.
3. Turn on the light by pressing
the ON/OFF button once shortly.
The ON/OFF button is located at
the top of the light body hidden
behind the Aluminium shell.
4. Please x your light on a
hard surface following the
instructions below:
a) Please care that the
horizontal surface you are
about to x your light on
should be levelled correctly.
It is recommended to
position the light on its
nal place, then mark the 2
locations of the holes.
b) After marking the locations
of the holes, remove the light, and drill the holes.
c) Push the 2 screws together with the hit-in dowels on them inside the
holes with a hammer.
d) Remove the nuts and the washers from the screws.
e) Place the light on its nal position on the screws.
f) Place the washers then the nuts on the screws, drive the nuts by hand
until you can, then tighten them with a wrench.
5

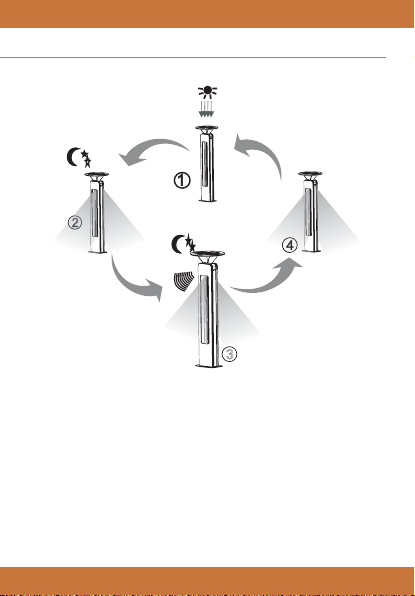

Operation of the light:
1. Charging by solar energy will start automatically during daytime.
2. The light sensor turns on your light at dusk, which will shine in dimmed
mode.
3. As motion is detected the light switches to full-power mode.
4. Once no movement is detected anymore, the light keeps full power for
30 seconds, then it switches back to dimmed mode. In early morning
the light sensor turns o the light.
To maximize the discharge time of your light, and preserve its good
aesthetical outlook, please follow the instructions given in “Cleaning
instructions” (please nd this chapter below). PLEASE PAY EXTRA
ATTENTION TO THE RIGHT CLEANING METHOD OF THE POLYCARBONATE
PARTS (LED TUBE COVER)!
2
3
4
INSTALLATION OF THE LIGHT, OPERATION INSTRUCTIONS
6

USER INSTRUCTIONS, INFORMATION
1. After receiving your light, please open the light ’s box gently with paying
attention not to cause harm to the light and its parts.
2. Before starting to use your light, please make sure that there are no
visible damages on the light and its parts.
3. If you observe breaking, crack, fracture on the light or on its parts,
please do not use the product, but contact us for replacement.
4. Please do not apply strong physical force on the product that can
damage the light or its parts. Non-ordinary use of the product results
the loss of product warranty.
5. Please keep the box, the packaging material, and the content out of the
reach of children, and pets. There are small objects among the parts
of the light, which children or pets can ingest, or can cause harm to
themselves with.
6. Please do not disassemble the light, do not bend the light, or apply
physical stress on the light. Please follow the user manual’s instructions
for installation, and operation.
7. Do not expose the light to higher heat than natural caused by weather
changes. Excessive heat may damage more constituents of the light.
8. Do not expose the light to continuous high- or low-pressure water ow,
even if you intend to clean your light. The IP65 protection does not mean
you can put the light in water, or you can wash the light with continuous
water stream. The next chapter declares the right method of cleaning.
9. Please always contact Malatech Water, Ltd, or a professional appointed
by our company if you intend to disassemble the light, remove any
of its parts, or service the light. Service attempts made by users are
prohibited, and result the loss of product warranty.
7

In case of poor daytime light conditions (continuously overcast, cloudy
weather throughout multiple days, low sunshine hours in wintertime)
the light recognizes low battery voltage, and switches o automatically
to prevent the battery from damage, and to maximize the life cycle of
the battery. Whenever the charge of the battery is sucient for safe
operation, the light turns on in the dark. The process is automatic,
interaction by the user is prohibited. Besides that, the light applies an
eco-mode when the battery level is low but sucient for operation. In
this case the light will shine at a dimmed mode.
AUTOMATIC BATTERY PROTECTION
For preserving the aesthetical outlook, and maintaining the maximum
functionality, and eciency of your light, cleaning is recommended from
time to time. Since the light is operated by solar energy, keeping the solar
panel clean & free of dust is key-essential to ensure its eciency, and
maximize discharging time. Please follow the instructions below when
cleaning your light:
1. Please always use a suitable, soft, and damp towel for cleaning the solar
panel
2. Apply the towel with higher water content for the rst time at each
cleaning procedure to remove the majority of dust preferably with one
movement.
3. After washing the towel in continuous water stream to remove the
accumulated dust, squeeze the water out of the towel, and remove the
remainder of dust with the towel gently from the surface of the solar
panel if necessary. Care to avoid scratching the surface of the solar
panel.
4. If you observe scaling, or other accumulated dirt on the surface of the
solar panel, please only use a chemical or natural enzymatic based
agent for cleaning which is recommended for solar panel cleaning by
its manufacturer.
5. Cleaning of the plastic and metal parts of the light body can be executed
easily, but attention is needed to avoid scratching of the surfaces.
6. Cleaning the dome which protects the LED group from external eects
also requires cautious approach for cleaning to avoid scratching. Please
apply chapter 1)-4) above for the dome as it is written in case of the
solar panel.
CLEANING INSTRUCTIONS
8

The WEEE (Waste Electrical and Electronic Equipment) sign
means that every electrical, and electronic wastes must be
collected, and treated separately. According to The Waste
Electrical and Electronic Equipment Directive (WEEE
Directive), the European Community Directive 2012/19/
EU on waste electrical and electronic equipment (WEEE)
which, together with the RoHS Directive 2011/65/EU lights,
and light bodies are electrical, and electronical wastes, and cannot be
disposed, and treated together with municipal waste. Since they require
special treatment, these wastes can only be handled to organizations, and
companies authorized to treat these kinds of wastes. Whenever your light
comes to the end of its life cycle, please cooperate with treating your waste
as written above, we can help you in that:
According to the local government act 197/2014 (VII.1) we pay waste
disposal and handling cost in case of each sold units, large light bodies
(any dimensions of the light exceeding 50 cm), and small light bodies (no
dimensions of the light exceeding 50 cm) included. We teamed up with an
intermediary organization ELECTRO-COORD Non-prot, Ltd. for fullling
our obligatory duties, and we also operate a collection point at our facility
where we can take over your wasted lights either those you purchased
from us, or functionally similar light waste that you originally purchased
from elsewhere.
Important information regarding the lights distributed by Malatech
Water, Ltd:
• The Aluminium, steel, plastic (Acrylic, Polycarbonate) parts of the lights
do not cause environmental or health risk either in perfect or damaged
condition of the light.
• The LEDs do not cause environmental or health risk either in perfect
or damaged condition, but according to the laws they are meant to be
electrical, and electronical wastes, which require special disposal, and
treatment.
• The built-in Li-ion batteries, and the photovoltaic panels are dangerous
wastes, which means that you must not dispose the wasted light into the
municipal waste container but you need to keep them separated from
municipal waste, and dispose it at an authorized location only.
• Since our lights are IP65 rated lights, the parts in many places are
waterproof adhesive-bonded, glued. Disassembling the light is
WASTE DISPOSAL
9

prohibited by users. Please let certied specialists do this job instead,
and handle your wasted light preferably in a perfect, non-damaged
condition.
• For more information on electric, and electronic waste disposal
locations, please visit www.electro-coord.hu, or www.malatechsolar.
com.
Despite all of our products are high-end premium quality, and they
go through multiple quality & aesthetical check procedures during
production, and one last check procedure is performed by us for quality,
functionality, aesthetics, package accessories content before packaging
for the customer, the lights are technical equipment made by humans,
which means some may go wrong at our customers during using them,
or may get hurt aesthetically because of a transportation failure when
delivering the order. In case you encounter any problems with your
purchased light, please follow the instructions below:
1. Our company usually accepts photos as proof of aesthetical damage
caused by courier transportation at order delivery. In case you
experience external damage on the product, please, if possible take
photos of the damage immediately, and send it to us to service@
malatechsolar.com as soon as possible. Please always highlight your
order no. in your e-mail, and send the scanned version of your invoice
as an image or pdf le for us being able to send you the replacement
in due course.
2. If you experience any operational troubles during the warranty period
of your light, please contact us by e-mail at service@malatechsolar.
com. Please always highlight your order no. in your e-mail, and send the
scanned version of your invoice as an image or pdf le. In most cases our
company accepts a detailed description with preferably a simple short
video as a proof made by for example your cell phone about the issue.
WARRANTY TERMS
Malatech Water, Ltd. provides all-inclusive, attractive, customer-oriented
warranty terms and services for its products during the warranty period
for all of our customers in the following countries (by alphabetical order):
Austria
Belgium
Bulgaria
Croatia
Cyprus
Czechia
Denmark
Estonia
Finland
France
Germany
Great Britain
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
Malta
Netherlands
Norway
Poland
Portugal
Romania
Slovakia
Slovenia
Spain
Sweden
Switzerland
10

If you can do the video, please attach in low resolution to your e-mail,
or upload it to a free le sharing platform, and send us the link. We
examine your case as soon as possible, and contact you with a solution.
We either can x your problem remotely, identify the wrong setup, and
help you address it, or we identify the failed component. In the latter
case, we send you a replacement for that part, if the component can be
replaced by the customer, and do not require service. If we determine
that the light has a technical issue to be addressed at the service,
according to our decision, there could be 2 ways to go:
• We either decide that the light cannot be repaired economically, and we
supply you a brand-new product, in this case you have no further action
needed to be done, we inform you about the details of the delivery. The
process takes 3-5 working days (+ transportation time 6-10 working
days) if the product is on stock. If the product is not on stock the process
takes longer period, but in this case, we are in continuous contact with
our customer, and provide information about the delivery status.
• Or we decide to call back the product for service, and x the problem.
For this scenario, we tried to make the process for our customers as
simple, and easy as possible: we have a contract with our courier (FedEx-
TNT) for returning the goods to us for service. In this case you just need
to pack the products in a box caring to ll the void spaces with the
necessary elements to prevent damage during transportation, close &
seal the box safely, and wait for the call of the courier driver. Although
not obligatory, we recommend you to keep the box of the product with
the original packaging material, it could make it easier for you if service
is needed. Please care to pack every content in the box, all accessories
you received with your light. Once you handled the box to the courier,
we take care about the rest for you: once the service of your product is
done, we send it back to you, or if the problem cannot be xed, we send
you a new product. All the above written are free of charge for you,
our company takes care about all the expenses during the warranty
period.
Basic warranty terms:
1. Warranty period / scope
With the warranty, our company guarantees that the product does not
have any material or workmanship defects at the time of the purchase.
The warranty period varies between 1-3 years from the date of
purchase depending on product. The warranty period for each product
WARRANTY TERMS
11

is dened in the specication sheet of the product. Our product
warranties are valid in the European Union, Great Britain, Switzerland,
and Norway
2. Required documents for warranty claims
Warranty is only valid for all of our products once the original invoice,
or the copy of the original invoice of the purchase is presented by our
customer. Our company accepts scanned image or pdf versions of the
invoice sent by e-mail.
3. Addressing a warranty claim
Warranty claims must be addressed within the warranty period.
The warranty starts on the date of the rst purchase according to
the original invoice. We reserve the right to refuse the warranty claim
if the proof of purchase is missing or incomplete.
4. Exclusions of warranty
Warranty claims are refused in the event of damage caused by:
• abusive or improper treatment,
• environmental inuences (heat, overvoltage, dust etc.),
• abusing the safety precautions applicable to the device,
• damage caused by improper use of the product neglecting the
operating instructions
• damage caused by external force (e.g. blow, push, fall),
• interventions that were not carried out by our service, or a service
authorized by our company
• unauthorized repair attempts,
• changes made to the item
• damage due to improper packaging that is not safe for transportation
(excluding the rst transportation of the product which is organized
by our company, please read instructions above for damages caused
by courier when completing the order)
Please always read the user manual carefully for each product you
purchase from us before using it, and follow the instructions.
5. Other information about service
6. Service, and repair works of solar lights out of the warranty period done
by our company or authorized service companies are not free of charge.
Please contact us at [e-mail], or call [phone]
for information, and quotation on repair work services after warranty
period.
12

Manufacturer/Importer:
Malatech Water, Ltd.
1/E Vanyi way, Alsonemedi, 2351 Hungary
Customer service:
[phone]
[email protected]
www.malatechsolar.com
Issue warranty claims:
ser[email protected]
CE Conrmation:
Malatech Water, Ltd. conrms that this light meets with the competent
EU directives, legislation, and harmonized acts.
13
