Malloca MW-944R User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
MODEL:MW-944R
INSTRUCTION MANUAL
BUILT-IN COMBINATION OVEN WITH MICROWAVE

CONTENTS
CONTENTS 2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 3
ADDENDUM 3
SPECIFICATIONS 3
IMPORTANT SAFETY INSTRUCTION 4-5
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION 6-8
IMPORTANT SAFETY INSTRUCTIONS 6-8
SETTINGUPYOUR OVEN 8-9
IMPORTANT INFORMATION ABOUT INSTALLING 9
PLACEMENT 10
OPERATION INSTRUCTION 1
TROUBLESHOOTING 25
3-24
2
INSTALLATIONDIMENSIONS 10
BUILDING IN 11
INSTALL THE GRILL PAN 12

(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
ADDENDUM
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Rated Input Power(Grill):
Rated Input Power(Convection):
900W
360mm
Approx.
MW-944R
X 454 X 568 mm
44L
16 0W
1700W
1650W
41.0 kg
220V~50Hz
Rated Input Power(MAX):
3200W
0
3
595

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning : Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning : It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
4. Keep the appliance and its cord out of
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heatinghas ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
vents on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children unless they are
older than 8 and supervised.
reach of children less than 8 years.
IMPORTANT SAFETY INSTRUCTIONS
4

READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.Children should be supervised to ensure that they do not play with the appliance.
25.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
26. Accessible parts may become hot during use. Young children should be kept away.
27.Steam cleaner is not to be used.
28 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
3. Surface of a storage cabinet can get hot.
29.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.

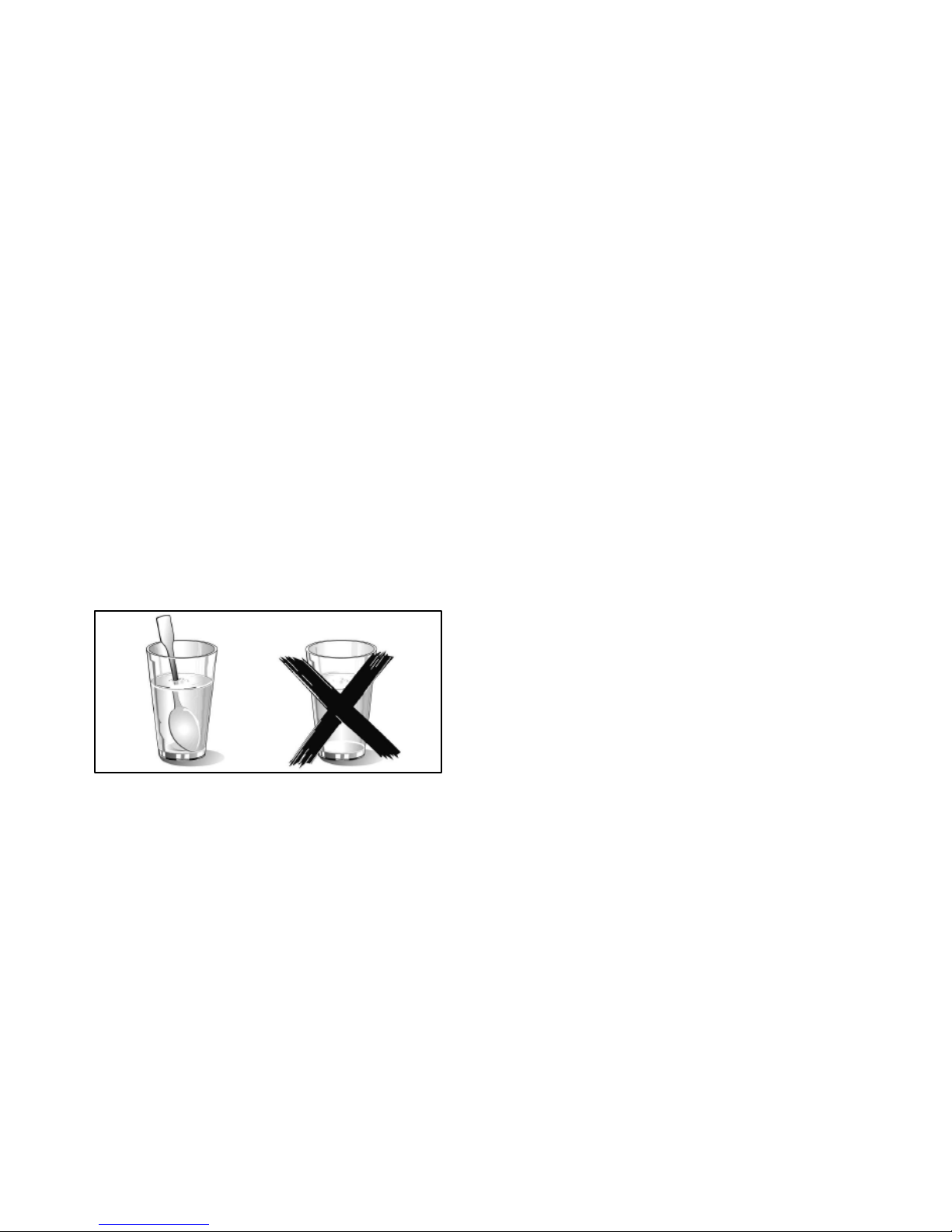

oIf you are heating liquid in the
microwave, then you must also place
a teaspoon in the container. This will
ensure that the liquid does not boil
suddenly after being removed from
the microwave cavity.
32.The microwave oven is intended for heating food and beverages. Drying of food or clothing
and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of
injury, ignition or fire.
33. The microwave oven is intended to be used in a cabinet.
34.The microwave oven must be operated with any cabinet door open.
5
1

DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
CLEANING
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
D)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
E)The extension cord must be a grounding-
type 3-wire cord.
F)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
To Reduce the Risk of Injury to Persons
Grounding Installation
6

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil T est:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
7

Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Names of Oven Parts and Accessories
SETTING UP YOUR OVEN
Remove the oven and all materials from the carton and oven cavity
Your oven comes with the following accessories:
Turntable ring assembly 1
Instruction Manual 1
Enamel Tray 1
1. Control panel
2. Grill element
3. Light
4. LeveU
5. Door glass
6. Hinge
7. Turntable shaft
1
2
3
4
5
6
7
8
8. Short Grill Rack
8
11
10
9. Grill Pan
9
1 ass Panl
10. Square Grill Rack
Square G1.

The accessible surface
may be hot during
operation.
•
•
•
•
•
Please observe the installation instructions provided and note that this appliance
should only be installed by a quali

In case a new socket is needed, installation and cable connection must only be done
by a qualied electrician. If the plug is no longer accessible following installation, a
pole disconnecting device must be present on the installation site with a contact gap
of at least 3 mm.
Adapters, multiway strips and extension cords must not be used. Overloading can
This appliance is NOT intended for use in a commercial environment.
The appliance is tted with a plug and must only be connected to a properly
installed earthed socket.
result in fire.
If the appliance is not fitted with a supply cord and a plug, the connection equipment
must have a contact separation in all poles that provide full disconnection, and the
appliance must be incorporated in the fixed wiring in accordance with the wiring rules.
•
tray should never be restricted.
c. All food and containers of food are always placed
breaks, contact your
nearest authorized service
center.
Turntable Installation
a. Never place the enamel tray upside down. The enamal
on the
enamel tray for cooking.
d. If enamel tray cracks or
b. always be used during cooking.
must
The
enamal tray
ed technician.
fi
Hub (underside)
G tray
Turntable shaft
IMPORTANT INFORMATION ABOUT INSTALLING
rill
9

appliance can cause serious personal injury or death.
•
cient ventilation around the microwave oven. At the rear•
and sides keep at least 10 cm free.
Do not cover the air vents.•
The adjustable feet should not be removed.•
•
Transmitting and receiving equipment such as radios and televisions can affect the•
operation of the PLFURZDYH oven.
• Danger! Do not disassemble this appliance. Touching internal components of this
Make sure that there is surfi
Place the microwave oven on a firm, flat surface.
Do not place the micURZDYH oven near a heat source.
Placement
Installation dimensions
10
min 100
Cupboard feetVentilation grid
min 100
50
460
250
10
8




Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not be closed by
addtional battens.
11
• Do not hold or carry the appliance by the door handle. The door handle cannot hold
the weight of the appliance and may beak off.
1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the PLFURZDYHRYHQ with the screws that were supplied.
Building in

2. Adjust the angel of the grill pan and the shaft.
3. Put the pan into the cavity and adjust slightly.
1. Be sure the angle of the shaft.
INSTALL THE GRILL PAN
５：１
12

OPERATION INSTRUCTION
Control Panel and Features
1) Function knob
2) Lock/Unlock button
3) +30 sec. button
4) Start/OK Button
5) Return/Pause/Stop button
1
234 5 6
6) Selection knob
ClockCombineHot up
Defrost Microwave Menu
12:00
13

This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified, "0:00" will blink, buzzer will ring once.
1.Clock Setting
2. Microwave Cooking
a) Turn knob to " CLOCK" ,then press " " to
activave the clock-setting function. The hour figures will flash.
b) Turn " " to adjust the hour figures, the input time should be within 0--23.
c) Press " ", the minute figures will flash.
d) Turn " " to adjust the minute figures, the input time should be within 0--59.
e) Press " " to finish clock setting. Then return to main interface,the clock ticking.
ClockCombineHot up
DefrostMenu
12:00
ClockCombineHot up
DefrostMenu
12:00
DefrostMenu
12:00
DefrostMenu
12:00
CLOCK
12:00
a) Turn knob to " MICROWAVE" ,then press " " to activave
the microwave function."1:00" is blinking in the display,the default power is 900W.
ClockCombineHot up
Defrost Microwave Menu
0:00
c) Press " " to confirm the microwave power,then
enter the Cook time settings interface, cooking time
flashes (default is 01:00), in which case the cooking
time display for the White .
.
At this point, the cooking time is grayed out.
b) Turn knob to select the microwave power (between 100W to 900W)
The max. cooking time depends on the power that
has been set. When the power
is 900W, the MAX.
time is 30 minutes and other powers are 90 minutes.
d) Turn knob to set the cooking time(0:05-90:00).
e) Press " " button to start cooking.
1500
:
100 450 700 900
w
300
MICROWAVE
1500
:
w
300
MICROWAVE
14

NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 second
1---5 min : 10 seconds
5---15 min : 30 seconds
15---60 min : 1 minute
60 min : 5 minutes
Microwave Power Chart
Microwave Power 80% 50% 30%
100%
Display 900W 700W 450W 300W 100W
20%
There are defrosting programs. You only have to choose the program
and set the weight ,and time are already set.
2
Program Category Item
If you hear a beep, the combi microwave
oven stops. Turn the food and pr ess2. 
button to continue theGHIURVWLQJSURJUDP
.
Meat, poultry and fish
3. Defrost
a) Turn knob to " DEFROST" ,then press " "to activave the defrost function.
"D01","D02"will display.
b) Turn knob to select the defrost mode.
c) Press " " to confirm,when defrost menu selected, turn knob to select weight.
d) Press " " button to start cooking.
D01 (defrost)
D02 (defrost) Bread, cake and fruit
DEFROST
0116
:
DEFROST
Bread. Cake. Fruit
DEFROST
Note:The oven will sounds 3 times, and this is normal. In order to have a better effect of
defrosting food, you should turn the food over, close the door, and then press " "
to continue cooking. If no operation,the oven will pause.
15

There are automatic cooking programs. You only have to choose the program
and set the weight. The power, the time and the temperature are already set.
The programmes with a * are preheated. During preheating, the cooking time pauses•
and the preheating symbol is on. After preheating, you wil hear an alarm and the
preheating symbol will blink.
The programmes with ** only use the microwave function.•
13
a) Turn knob to " MENU" ,then press " "to activave the Auto-cook function.
b) Turn knob to select auto menu.Potatoes,Roast potato,Chicken pieces,Cake,
Apple pie,Quiche,Drink/Soup,Plate meal,Sauce/Stew,Oven chips,Lasagne,
Vegetable,Pizza will displayed.
c) Press " " to confirm,when auto menu selected, turn knob to select weight.
d) Press " " button to start cooking.
** Vegetables Fresh vegetables
** Side dishes Potatoes - peeled/cooked
* Side dishes Potatoes - roasted
If you hear a beep, turn the food. The combi micr owave
oven starts the next fase automatically.
If you hear a beep, turn the food. The combi micr owave
oven starts the next fase automatically.
* Bakery Cake
* Bakery Apple pie
* Bakery Quiche
** Reheat Drink/soup
** Reheat Plated meal
** Reheat Sauce/stew/dish
* Convenience Frozen - pizza
* Convenience Oven chips
If you hear a beep, tur n the food. The combi micr owave
oven starts the next fase automatically.
* Convenience Frozen - lasagne
Chicken piecesPoultry/Fish
4.Auto Cook
16

1) Turn knob to " HOT UP " ,then press " "to activave the "HOT UP" function.
"GRILL","CONVECTION","GRILL FAN","BOTTOM CONV."will display.
2) Turn knob to select the cooking mode,then press " " button to confirm.
A.Grill Cooking
1) Turn knob to " HOT UP " ,then press " "to activave the "HOT UP" function.
"GRILL","CONVECTION","GRILL FAN","BOTTOM CONV."will display.
2) Turn knob to select the grill mode,then press " " button to confirm.
The default grill power is the third level.level3(the MAX), level2 or level1(the MIN).
Press " " to confirm the grill level,then enter the Cook time settings interface,
cooking time flashes (default is 10:00), in which case the cooking time display
for the White
HOT UP
1500
:
2 3
1
1
HOT UP
Grill
1500
:
1
HOT UP
Grill
1) Turn knob to " HOT UP " ,then press " "to activave the "HOT UP" function.
"GRILL","CONVECTION","GRILL FAN","BOTTOM CONV."will display.
2) Turn knob to select the convection mode,then press " " button to confirm.
B.Convection Cooking
The default temperature is 180 degrees.The temperature is from 50 to 230 degrees.
3) Turn to select the grill level,At this point, the cooking time is grayed out.
4)
5) Press " " button to start cooking.
,the max cooking time is 90 minutes.
HOT UP FUNCTION
17

3) Turn to select the temperature,At this point, the cooking time is grayed out.
Press " " to confirm the temperature,then enter the cook time setting interface,
cooking time flashes (default is 10:00), in which case the cooking time display
for the White
4)
5) Press " " button to cooking .
,the max cooking time is 5 hours.
confirm the time,then go to the preheat
setting selection interface
If you need to warm up, then rotate and keep the cursor in the "Preheat" position;
Do not need preheating, then put at "No Preheat." (default is "No Preheat") .when the
setting temperature is 50 degrees, without this step, press directly for cooking.
Note:
1500
:
HOT UP
Convection
Preheat No Preheat
1500
:
HOT UP
Convection
No Preheat
Preheat
6) Press " " button to start cooking.
a. Without preheating: The screen shows the remaining cooking time.
b. Preheating mode: Screen appears "While preheating, Please make sure Empty
inside" ,and then enter the preheat status display interface, progress bar shows
preheating process has reached the set temperature, the screen displays a prompt
statement “It is Starting now,please put the FOOD INSIDE”.
Then place the food in, press to begin cook. The display shows the remaining
time.

Note:
1) Turn knob to " HOT UP " ,then press " "to activave the "HOT UP" function.
"GRILL","CONVECTION","GRILL FAN","BOTTOM CONV."will display.
2) Turn knob to select the grill fan mode,then press " " button to confirm.
The default temperature is 180 degrees.The temperature is from 100 to 230 degrees.
C.Grill Fan Cooking
18

3) Turn to select the temperature,At this point, the cooking time is grayed out.
Press " " to confirm the temperature,then enter the cook time setting interface,
cooking time flashes (default is 10:00), in which case the cooking time display
for the White
4)
5) Press " " button to cooking .
,the max cooking time is 5 hours.
confirm the time,then go to the preheat
setting selection interface.
If you need to warm up, then rotate and keep the cursor in the "Preheat" position;
Do not need preheating, then put at "No Preheat." (default is "No Preheat") .when the
setting temperature is 50 degrees, without this step, press directly for cooking.
Note:
6) Press " " button to start cooking.
a. Without preheating:The screen shows the remaining cooking time.
b. Preheating mode: Screen appears "While preheating, Please make sure Empty
inside" ,and then enter the preheat status display interface, progress bar shows
preheating process has reached the set temperature, the screen displays a prompt
statement “It is Starting now,please put the FOOD INSIDE”.
Then place the food in, press to begin cook. The display shows the remaining
time.
Note:
1) Turn knob to " HOT UP " ,then press " "to activave the "HOT UP" function.
"GRILL","CONVECTION","GRILL FAN","BOTTOM CONV."will display.
2) Turn knob to select the buttom conv. mode,then press " " button to confirm.
The default temperature is 180 degrees.The temperature is from 100 to 230 degrees.
3) Turn to select the temperature,At this point, the cooking time is grayed out.
Press " " to confirm the temperature,then enter the cook time setting interface,
cooking time flashes (default is 10:00), in which case the cooking time display
for the White
4)
5) Press " " button to cooking .
,the max cooking time is 5 hours.
confirm the time,then go to the preheat
setting selection interface.
D.Bottomon Convection Cooking
19

If you need to warm up, then rotate and keep the cursor in the "Preheat" position;
Do not need preheating, then put at "No Preheat." (default is "No Preheat") .when the
setting temperature is 50 degrees, without this step, press directly for cooking.
Note:
6) Press " " button to start cooking.
a. Without preheating: The screen shows the remaining cooking time.
b. Preheating mode: Screen appears "While preheating, Please make sure Empty
inside" ,and then enter the preheat status display interface, progress bar shows
preheating process has reached the set temperature, the screen displays a prompt
statement “It is Starting now,please put the FOOD INSIDE”.
Then place the food in, press to begin cook. The display shows the remaining
time.
Note:
1) Turn knob to " COMBIN " ,then press " "to activave the "combin" function.
"MW GRILL","MW CONV.","MW GRILL FAN","MW BOTTOM CONV."will display.
2) Turn knob to select the cooking mode,then press " " button to confirm.
COMBINE
COMBIN FUNCTION
A.MW Grill Cooking
1) Turn knob to " COMBIN " ,then press " "to activave the "combin" function.
"MW GRILL","MW CONV.","MW GRILL FAN","MW BOTTOM CONV."will display.
2) Turn knob to select the MW Grill mode,then press " " button to confirm.
20
