Marantz BD7003 User manual

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
Service
Manual BLU-RAY DISC Player
BD7003 /U1B
TABLE OF CONTENTS
SECTION PAGE
TECHNICAL SPECIFICATIONS ........................................................................................... 1
SERVICE HINTS AND TOOLS ............................................................................................. 4
WARNING AND LASER SAFETY INSTRUCTION ............................................................... 5
LASER BEAM SAFETY PRECAUTIONS ............................................................................. 6
IMPORTANT SAFETY PRECAUTIONS................................................................................ 7
STANDARD NOTES FOR SERVICING................................................................................. 9
CABINET DISASSEMBLY INSTRUCTIONS....................................................................... 13
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER .......................................................... 16
TRAY LOCK MODE ............................................................................................................ 17
SERVICE MODE................................................................................................................. 18
FIRMWARE RENEWAL MODE .......................................................................................... 20
TROUBLESHOOTING ........................................................................................................ 22
WIRING DIAGRAM ............................................................................................................. 28
BLOCK DIAGRAMS............................................................................................................ 29
LEAD IDENTIFICATIONS ................................................................................................... 35
WAVEFORMS..................................................................................................................... 36
SCHEMATIC DIAGRAMS AND TEST POINTS .................................................................. 37
PARTS LOCATION.............................................................................................................. 81
EXPLODED VIEWS ............................................................................................................ 91
PARTS LIST ........................................................................................................................ 93
BD7003
Part no. 90M12DW855010
First Issue 2008.09
MZ
BD7003

MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
NOTE ON SAFETY :
Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol .
Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product
and controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verified before it is return to the user/customer.
Ref. UL Standard No. 60065.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
080702MZ
USA
MARANTZ AMERICA, INC
100 CORPORATE DRIVE
MAHWAH, NEW JERSEY 07430
USA
EUROPE / TRADING
D&M EUROPE B. V.
P. O. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2507844
FAX : +31 - 40 - 2507860
KOREA
D&M SALES AND MARKETING KOREA LTD.
CHUNG JIN B/D., #1001,
53-5, WONHYORO 3 GA, YONGSAN-GU,
SEOUL, 140-719, KOREA
PHONE : +82 - 2 - 323 - 2155
FAX : +82 - 2 - 323 - 2154
CANADA
D&M Canada Inc.
5-505 APPLE CREEK BLVD.
MARKHAM, ONTARIO L3R 5B1
CANADA
PHONE : 905 - 415 - 9292
FAX : 905 - 475 - 4159
JAPAN
D&M BUILDING, 2-1 NISSHIN-CHO,
KAWASAKI-KU, KAWASAKI-SHI,
KANAGAWA, 210-8569 JAPAN
D&M Holdings Inc.
CHINA
D&M SALES AND MARKETING SHANGHAI LTD.
ROOM.808 SHANGHAI AIRPORT CITY TERMINAL
NO.1600 NANJING (WEST) ROAD, SHANGHAI,
CHINA. 200040
TEL : 021 - 6248 - 5151
FAX : 021 - 6248 - 4434
安全上の注意：
がついている部品は、安全上重要な部品です。必ず指定されている部品番号のものを使用して下さい。

1
TECHNICAL SPECIFICATIONS
SIGNAL SYSTEM
NTSC color
APPLICABLE DISCS
(1) BD/DVD-video Discs
1-layer 12 cm single-sided discs, 2-layer 12 cm single-
sided discs, 2-layer 12 cm double-sided discs
(1 layer per side)
1-layer 8 cm single-sided discs, 2-layer 8 cm single-
sided discs, 2-layer 8 cm double-sided discs
(1 layer per side)
(2) BD-RE / BD-R (Recorded in BDMV format)
1-layer 12 cm single-sided discs, 2-layer 12 cm single-
sided discs
1-layer 8 cm single-sided discs, 2-layer 8 cm single-
sided discs
(3) DVD-R
1-layer 12 cm single-sided discs, 2-layer 12 cm single-
sided discs
1-layer 8 cm single-sided discs, 2-layer 8 cm single-
sided discs
(4) DVD-RW
1-layer 12 cm single-sided discs
1-layer 8 cm single-sided discs
(5) Compact discs (audio CD)
12 cm discs, 8 cm discs
(6) CD-RW/-R
12 cm discs, 8 cm discs
APPLICABLE MEMORY CARDS
(1) SD Memory Card
(2) SDHC Memory Card
(3) miniSD Card
(4) microSD Card
VIDEO OUTPUT
Y output level : 1 Vp-p (75 Ω)
Output connectors : Pin jack, 1 set
COMPONENT OUTPUT
Y output level : 1 Vp-p (75 Ω)
PB/CBoutput level : 0.7 Vp-p (75 Ω)
PR/CRoutput level : 0.7 Vp-p (75 Ω)
Output connectors : Pin jacks, 1 set
HDMI OUTPUT
Output jack : 19-pin HDMI terminal, 1 set
HDMI ver. 1.3a (Deep Color, Dolby Digital Plus, Dolby TrueHD,
DTS-HD)
ANALOG AUDIO OUTPUT
Output level : 2 Vrms (10 kΩ)
2 channel (L, R) output connector : Pin jacks,
AUDIO OUTPUT PROPERTIES
(1) Frequency response
1 BDs (linear PCM) : 20 Hz to 22 kHz (48 kHz sampling)
: 20 Hz to 44 kHz (96 kHz sampling)
: 20 Hz to 44 kHz (192 kHz sampling)
2 DVDs (linear PCM) : 20 Hz to 22 kHz (48 kHz sampling)
: 20 Hz to 44 kHz (96 kHz sampling)
3 CDs : 20 Hz to 20 kHz
(2) S/N ratio : 115 dB
(3) Total harmonic distortion : 1 kHz 0.004 %
(4) Dynamic range : 100 dB (BD/DVD) / 98dB (CD)
DIGITAL AUDIO OUTPUT
Coaxial digital output : Pin jack, 1 set
POWER SUPPLY
AC 120 V, 60 Hz
POWER CONSUMPTION
30 W (Standby : 0.8 W)
MAXIMUM EXTERNAL DIMENSIONS
W : 440 mm (17-3/8")
H : 81.5 mm (3-1/4")
D : 368.2 mm (14-1/2")
(including protruding parts)
MASS
4.2 kg (9.26 lb)
REMOTE CONTROL : RC001BD
Infrared pulse type
Supply : DC 3 V, 2 R6P/AA batteries
External dimensions:
W : 52 mm (2-1/16")
H : 227 mm (8-15/16")
D : 30 mm (1-3/16")
Mass : 171 g (0.4 lb) (batteries included)

2
3
Introduction Introduction
ENGLISH
ENGLISH
●Cautions on using mobile phones.
Using a mobile phone near this unit may result in noise. If so,
move the mobile phone away from this unit when it is in use.
●Before turning the power operation button on.
Check once again that all connections are correct and that there
are not problems with the connection cables. Always set the
power operation button to the standby position before
connecting and disconnecting connection cables.
●Sufficiently ventilate the place of installation.
If the unit is left in a room full of the smoke from cigarettes, etc., for
long periods of time, the surface of the optical pickup could get
dirty, in which case it will not be able to read the signals properly.
Moisture condensation may occur inside the unit when it is
moved from a cold place to a warm place, or after heating a cold
room or under conditions of high humidity. Do not use the unit at
least for 2 hours until its inside is dry.
• Do not handle the AC cord with wet hands.
• Do not pull on the AC cord when disconnecting it from AC wall
outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug the AC cord
immediately and take the unit to our authorized service center
for servicing.
Pay attention to the following before using this unit:
●Moving the unit.
To prevent short-circuits or damaged wires in the connection
cables, always unplug the power supply cord and disconnect the
connection cables between all other audio components when
moving the unit.
●Store the operating instructions in a safe place.
After reading the operating instructions, store them in a safe
place as they could come in handy in the future.
●Whenever <POWER ON / STANDBY> is in the STANDBY state,
the unit is still connected to AC line voltage.
Please be sure to unplug the cord when you leave home for, say,
a vacation.
●Note that the illustrations in these instructions may differ
from the actual unit for explanation purposes.
The serial number of this product may be found on the back of
the unit. No others have the same serial number as yours. You
should record the number and other vital information here and
retain this book as a permanent record of your purchase to aid
identification in case of theft.
Unauthorized copying, broadcasting, public performance and
lending of discs are prohibited.
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized
by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
Caution on Handling
Dew Warning
Avoid the Hazards of Electrical Shock and Fire
10 cm or more
Wall
Before Using
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
About Copyright
U.S. Patent No's, 6,836,549; 6,381,747; 7,050,698;
6,516,132; and 5,583,936.
Supplied Accessories
Please check to make sure the following items are included with
the main unit in the carton.
remote control (RC001BD) “AA” (R6P) batteries x2
AC cord user guide
RCA audio cable warranty card
RCA video cable
Trademark Information
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and DTS Digital
Surround are registered trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All
Rights Reserved.
E5H70UD_EN.book Page 3 Tuesday, September 2, 2008 10:49 AM
4
Introduction Introduction
ENGLISH
ENGLISH
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.
• Handle the discs so that fingerprints and dust do not adhere to
the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes cannot be played on this
product. Do not attempt to play back such discs, as they may
damage the unit.
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe
the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
This unit is compatible to play back the following discs.
To play back a BD or DVD, make sure that it meets the requirements
for region codes and color systems as described on page 5. You can
play back discs that have the following logos on the disc. Other disc
types are not guaranteed to play back.
Java and all other trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United
States and/or other countries.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
“Blu-ray Disc” and are trademarks.
is a trademark of DVD Format/Logo Licensing Corporation.
is a trademark of Eastman Kodak Company.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
About Discs
Disc Handling
Cleaning Discs
Playable Discs and Files
Playable discs Logos
Blu-ray Disc
- BD-video
- BD-RE (ver.3.0)
(Recorded in BDMV format)
- BD-R (ver.2.0)
(Recorded in BDMV format)
(Unclosed discs may not be played back.)
DVD-video
DVD-RW (Finalized discs only)
DVD-R
DVD-R DL (Finalized discs only)
CD-DA (audio CD)
CD-RW
CD-R
Kodak Picture CD
DTS - CD (5.1 Music Disc)
Playable files Logos Media
MP3 DVD-RW/-R
CD-RW/-R
SD Memory Card
(including SDHC)
miniSD Card
microSD Card
Windows Media™
Audio
JPEG
DivX®DVD-RW/-R
CD-RW/-R
—
—
—
Note
• Discs containing the DivX® files with the DivX®GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
• This unit cannot play back the disc contents protected by
Windows Media™ Digital Rights Management (DRM).
• “WMA” (Windows Media™ Audio) is an audio codec
developed by Microsoft® in the United States of America.
Readable cards Playable files / data
SD Memory Card (8MB - 2GB) MP3, Windows Media™ Audio,
JPEG, Picture-in-picture
commentary, subtitles or other
extras for BD-ROM Profile 1.1
SDHC Memory Card (4GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)
Note for SD Memory Cards
• Do not remove the SD Memory Card or turn off the unit while
the contents of the card is in playback. It may result in
malfunction or loss of the card’s data.
• Please keep the SD Memory Cards in their cases when you are
not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file
system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on
computer. If that is the case, please reformat the SD Memory
Cards on this unit and try again.
• This unit does not support mini SDHC and micro SDHC
Memory Card.
• For miniSD Card and microSD Card adapter is necessary.
• Portions of this product are protected under copyright law
and are provided under license by ARIS/SOLANA/4C.
miniSD Card
Adapter
miniSD Card
microSD Card
Adapter
microSD Card
E5H70UD_EN.book Page 4 Tuesday, September 2, 2008 10:49 AM
4
Introduction Introduction
ENGLISH
ENGLISH
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.
• Handle the discs so that fingerprints and dust do not adhere to
the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes cannot be played on this
product. Do not attempt to play back such discs, as they may
damage the unit.
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe
the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
This unit is compatible to play back the following discs.
To play back a BD or DVD, make sure that it meets the requirements
for region codes and color systems as described on page 5. You can
play back discs that have the following logos on the disc. Other disc
types are not guaranteed to play back.
Java and all other trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United
States and/or other countries.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
“Blu-ray Disc” and are trademarks.
is a trademark of DVD Format/Logo Licensing Corporation.
is a trademark of Eastman Kodak Company.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
About Discs
Disc Handling
Cleaning Discs
Playable Discs and Files
Playable discs Logos
Blu-ray Disc
- BD-video
- BD-RE (ver.3.0)
(Recorded in BDMV format)
- BD-R (ver.2.0)
(Recorded in BDMV format)
(Unclosed discs may not be played back.)
DVD-video
DVD-RW (Finalized discs only)
DVD-R
DVD-R DL (Finalized discs only)
CD-DA (audio CD)
CD-RW
CD-R
Kodak Picture CD
DTS - CD (5.1 Music Disc)
Playable files Logos Media
MP3 DVD-RW/-R
CD-RW/-R
SD Memory Card
(including SDHC)
miniSD Card
microSD Card
Windows Media™
Audio
JPEG
DivX®DVD-RW/-R
CD-RW/-R
—
—
—
Note
• Discs containing the DivX® files with the DivX®GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
• This unit cannot play back the disc contents protected by
Windows Media™ Digital Rights Management (DRM).
• “WMA” (Windows Media™ Audio) is an audio codec
developed by Microsoft® in the United States of America.
Readable cards Playable files / data
SD Memory Card (8MB - 2GB) MP3, Windows Media™ Audio,
JPEG, Picture-in-picture
commentary, subtitles or other
extras for BD-ROM Profile 1.1
SDHC Memory Card (4GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)
Note for SD Memory Cards
• Do not remove the SD Memory Card or turn off the unit while
the contents of the card is in playback. It may result in
malfunction or loss of the card’s data.
• Please keep the SD Memory Cards in their cases when you are
not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file
system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on
computer. If that is the case, please reformat the SD Memory
Cards on this unit and try again.
• This unit does not support mini SDHC and micro SDHC
Memory Card.
• For miniSD Card and microSD Card adapter is necessary.
• Portions of this product are protected under copyright law
and are provided under license by ARIS/SOLANA/4C.
miniSD Card
Adapter
miniSD Card
microSD Card
Adapter
microSD Card
E5H70UD_EN.book Page 4 Tuesday, September 2, 2008 10:49 AM
4
Introduction Introduction
ENGLISH
ENGLISH
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.
• Handle the discs so that fingerprints and dust do not adhere to
the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes cannot be played on this
product. Do not attempt to play back such discs, as they may
damage the unit.
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe
the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
This unit is compatible to play back the following discs.
To play back a BD or DVD, make sure that it meets the requirements
for region codes and color systems as described on page 5. You can
play back discs that have the following logos on the disc. Other disc
types are not guaranteed to play back.
Java and all other trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United
States and/or other countries.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
“Blu-ray Disc” and are trademarks.
is a trademark of DVD Format/Logo Licensing Corporation.
is a trademark of Eastman Kodak Company.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
About Discs
Disc Handling
Cleaning Discs
Playable Discs and Files
Playable discs Logos
Blu-ray Disc
- BD-video
- BD-RE (ver.3.0)
(Recorded in BDMV format)
- BD-R (ver.2.0)
(Recorded in BDMV format)
(Unclosed discs may not be played back.)
DVD-video
DVD-RW (Finalized discs only)
DVD-R
DVD-R DL (Finalized discs only)
CD-DA (audio CD)
CD-RW
CD-R
Kodak Picture CD
DTS - CD (5.1 Music Disc)
Playable files Logos Media
MP3 DVD-RW/-R
CD-RW/-R
SD Memory Card
(including SDHC)
miniSD Card
microSD Card
Windows Media™
Audio
JPEG
DivX®DVD-RW/-R
CD-RW/-R
—
—
—
Note
• Discs containing the DivX® files with the DivX®GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
• This unit cannot play back the disc contents protected by
Windows Media™ Digital Rights Management (DRM).
• “WMA” (Windows Media™ Audio) is an audio codec
developed by Microsoft® in the United States of America.
Readable cards Playable files / data
SD Memory Card (8MB - 2GB) MP3, Windows Media™ Audio,
JPEG, Picture-in-picture
commentary, subtitles or other
extras for BD-ROM Profile 1.1
SDHC Memory Card (4GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)
Note for SD Memory Cards
• Do not remove the SD Memory Card or turn off the unit while
the contents of the card is in playback. It may result in
malfunction or loss of the card’s data.
• Please keep the SD Memory Cards in their cases when you are
not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file
system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on
computer. If that is the case, please reformat the SD Memory
Cards on this unit and try again.
• This unit does not support mini SDHC and micro SDHC
Memory Card.
• For miniSD Card and microSD Card adapter is necessary.
• Portions of this product are protected under copyright law
and are provided under license by ARIS/SOLANA/4C.
miniSD Card
Adapter
miniSD Card
microSD Card
Adapter
microSD Card
E5H70UD_EN.book Page 4 Tuesday, September 2, 2008 10:49 AM

3
4
Introduction Introduction
ENGLISH
ENGLISH
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.
• Handle the discs so that fingerprints and dust do not adhere to
the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes cannot be played on this
product. Do not attempt to play back such discs, as they may
damage the unit.
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe
the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
This unit is compatible to play back the following discs.
To play back a BD or DVD, make sure that it meets the requirements
for region codes and color systems as described on page 5. You can
play back discs that have the following logos on the disc. Other disc
types are not guaranteed to play back.
Java and all other trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United
States and/or other countries.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
“Blu-ray Disc” and are trademarks.
is a trademark of DVD Format/Logo Licensing Corporation.
is a trademark of Eastman Kodak Company.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
About Discs
Disc Handling
Cleaning Discs
Playable Discs and Files
Playable discs Logos
Blu-ray Disc
- BD-video
- BD-RE (ver.3.0)
(Recorded in BDMV format)
- BD-R (ver.2.0)
(Recorded in BDMV format)
(Unclosed discs may not be played back.)
DVD-video
DVD-RW (Finalized discs only)
DVD-R
DVD-R DL (Finalized discs only)
CD-DA (audio CD)
CD-RW
CD-R
Kodak Picture CD
DTS - CD (5.1 Music Disc)
Playable files Logos Media
MP3 DVD-RW/-R
CD-RW/-R
SD Memory Card
(including SDHC)
miniSD Card
microSD Card
Windows Media™
Audio
JPEG
DivX®DVD-RW/-R
CD-RW/-R
—
—
—
Note
• Discs containing the DivX® files with the DivX®GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
• This unit cannot play back the disc contents protected by
Windows Media™ Digital Rights Management (DRM).
• “WMA” (Windows Media™ Audio) is an audio codec
developed by Microsoft® in the United States of America.
Readable cards Playable files / data
SD Memory Card (8MB - 2GB) MP3, Windows Media™ Audio,
JPEG, Picture-in-picture
commentary, subtitles or other
extras for BD-ROM Profile 1.1
SDHC Memory Card (4GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)
Note for SD Memory Cards
• Do not remove the SD Memory Card or turn off the unit while
the contents of the card is in playback. It may result in
malfunction or loss of the card’s data.
• Please keep the SD Memory Cards in their cases when you are
not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file
system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on
computer. If that is the case, please reformat the SD Memory
Cards on this unit and try again.
• This unit does not support mini SDHC and micro SDHC
Memory Card.
• For miniSD Card and microSD Card adapter is necessary.
• Portions of this product are protected under copyright law
and are provided under license by ARIS/SOLANA/4C.
miniSD Card
Adapter
miniSD Card
microSD Card
Adapter
microSD Card
E5H70UD_EN.book Page 4 Tuesday, September 2, 2008 10:49 AM
5
Introduction Introduction
ENGLISH
ENGLISH

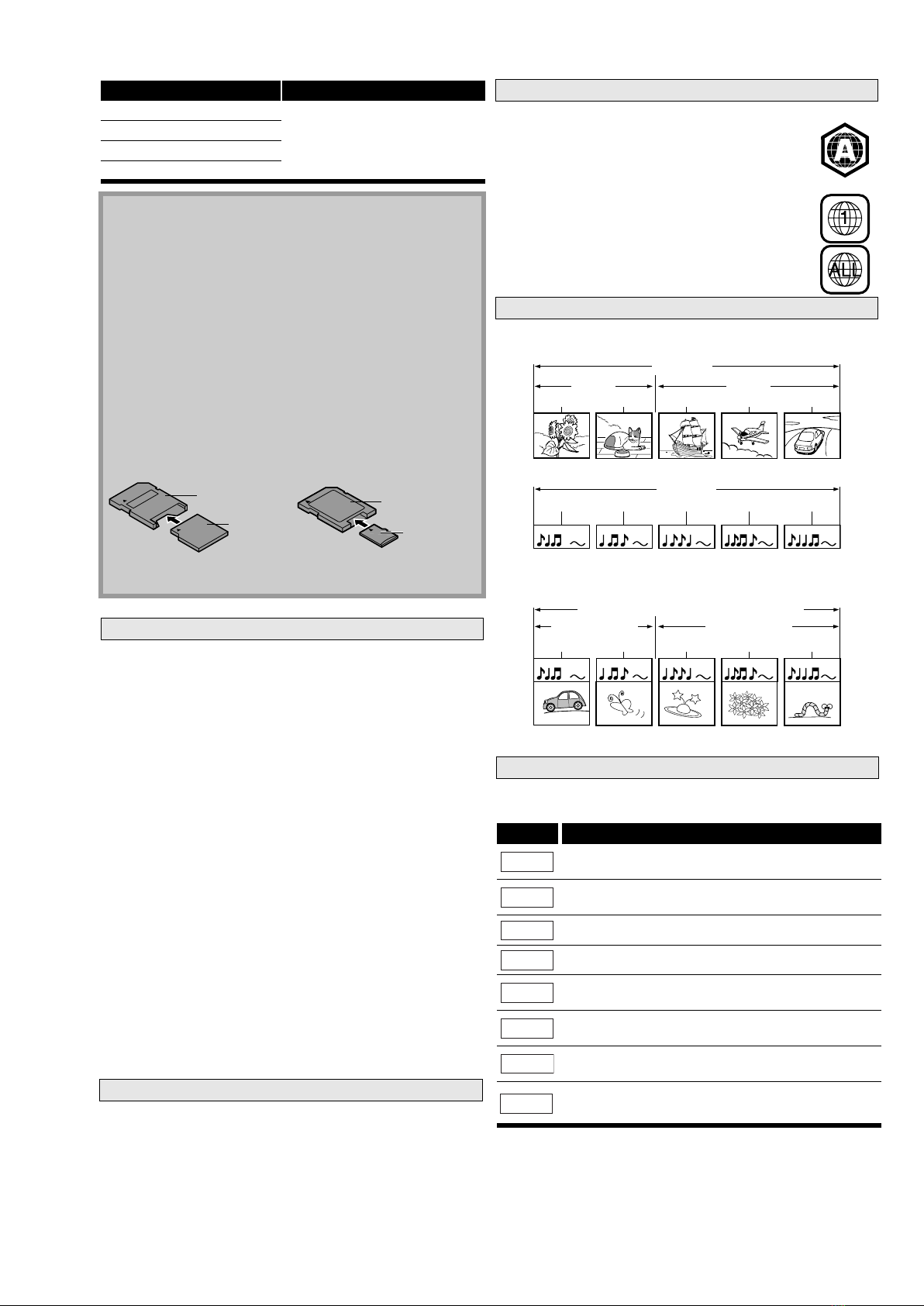

The following discs will not play back on this unit. BD and DVD are recorded in different color systems throughout
the world. The most common color system is NTSC (which is used
primarily in the United States and Canada).
This unit uses NTSC, so BD or DVD you play back must be recorded
in the NTSC system. You cannot play back BD or DVD recorded in
other color systems.
This unit has been designed to play back BD with
region A and DVD-video with region 1. You cannot
play back BD or DVD-video that are labeled for other
regions. Look for the symbols on the right on your BD
or DVD-video. If these region symbols do not appear
on your BD or DVD-video, you cannot play back the
disc in this unit. The letter or number inside the
globe refers to region of the world. A BD or
DVD-video labeled for a specific region can only play
back on the unit with the same region code.
The contents of BD / DVD are generally divided into titles. Titles
may be further subdivided into chapters.
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
If you do not find any of the symbols listed above under the
function heading, the operation is applicable to all media.
Unplayable Discs
• BD-RE Ver.1.0 (BD-disc with cartridge)
• BD-RE (Ver2.0) (Recorded in BDAV format)
• BD-R (Ver1.0) (Recorded in BDAV format)
• BD contains MP3/ Windows Media™ Audio/ JPEG/ DivX®files
• BD/DVD hybrid disc (e.g., Total Hi Def hybrid disc)
• BD-video that does not include "A" on its region code.
• DVD-video that does not include either "1" nor "ALL" on its
region code.
• DVD-ROM/RAM (For DVD-ROM discs, data files in DivX® 3.11, 4.x,
5.x and 6 can be played)
• DVD-RW/-R recorded in non-compatible recording format
• CD-ROM (Data files in DivX® 3.11, 4.x, 5.x and 6 can be played)
• CDV (Only the audio part can be played)
• CD-G (Only the audio signals can be output)
• CompactDisc-Interactive (CD-I)
• Video Single Disc (VSD)
• Video CD, Super Video CD
• Super audio CD (Only the sound on the CD layer can be heard. The
sound on the high-density super audio CD layer cannot be heard.)
• DVD-audio
• HD DVD
• Disc with recording area less than 55mm in diameter
• Unauthorized disc (Pirated disc)
• Unfinalized disc
Color Systems
Region Codes
Structure of Disc/SD Memory Card Contents
BD-video
DVD-video
MP3, WMA, JPEG, DivX®
group(folder)1 group(folder)2
audio CD
title 1 title 2
Audio CD
MP3, Windows Media™ Audio, JPEG, DivX®
folder (group) 1 folder (group) 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
track 1 track 2 track 3 track 4 track 5
file (track) 1 file (track) 2 file (track) 3 file (track) 4 file (track) 5
Data discs or SD Memory Cards containing MP3/Windows Media™
Audio/JPEG/DivX®is divided into folders, and the folders are
subdivided into files.
Audio CDs are divided into tracks.
BD/DVD
Symbols Used in this Operating Instructions
Symbol Description
Description refers to BD-video and BD-RE (ver. 3.0)/
BD-R (ver.2.0) recorded in BDMV format
Description refers to DVD-video and DVD-RW/-R
recorded in video mode
Description refers to DVD-RW/-R recorded in VR mode
Description refers to audio CD and DTS-CD
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with MP3 files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with Windows Media™ Audio files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with JPEG files
Description refers to DVD-RW/-R and CD-RW/-R with
DivX®files
BD-V
DVD-V
DVD-VR
CD
MP3
WMA
JPEG
DivX®
About the button names in this explanation
< > : Buttons on the main unit
[ ] : Buttons on the remote control
Button name only:
Buttons on the main unit and remote control
E5H70UD_EN.book Page 5 Tuesday, September 2, 2008 10:49 AM
5
Introduction Introduction
ENGLISH
ENGLISH
The following discs will not play back on this unit. BD and DVD are recorded in different color systems throughout
the world. The most common color system is NTSC (which is used
primarily in the United States and Canada).
This unit uses NTSC, so BD or DVD you play back must be recorded
in the NTSC system. You cannot play back BD or DVD recorded in
other color systems.
This unit has been designed to play back BD with
region A and DVD-video with region 1. You cannot
play back BD or DVD-video that are labeled for other
regions. Look for the symbols on the right on your BD
or DVD-video. If these region symbols do not appear
on your BD or DVD-video, you cannot play back the
disc in this unit. The letter or number inside the
globe refers to region of the world. A BD or
DVD-video labeled for a specific region can only play
back on the unit with the same region code.
The contents of BD / DVD are generally divided into titles. Titles
may be further subdivided into chapters.
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
If you do not find any of the symbols listed above under the
function heading, the operation is applicable to all media.
Unplayable Discs
• BD-RE Ver.1.0 (BD-disc with cartridge)
• BD-RE (Ver2.0) (Recorded in BDAV format)
• BD-R (Ver1.0) (Recorded in BDAV format)
• BD contains MP3/ Windows Media™ Audio/ JPEG/ DivX®files
• BD/DVD hybrid disc (e.g., Total Hi Def hybrid disc)
• BD-video that does not include "A" on its region code.
• DVD-video that does not include either "1" nor "ALL" on its
region code.
• DVD-ROM/RAM (For DVD-ROM discs, data files in DivX® 3.11, 4.x,
5.x and 6 can be played)
• DVD-RW/-R recorded in non-compatible recording format
• CD-ROM (Data files in DivX® 3.11, 4.x, 5.x and 6 can be played)
• CDV (Only the audio part can be played)
• CD-G (Only the audio signals can be output)
• CompactDisc-Interactive (CD-I)
• Video Single Disc (VSD)
• Video CD, Super Video CD
• Super audio CD (Only the sound on the CD layer can be heard. The
sound on the high-density super audio CD layer cannot be heard.)
• DVD-audio
• HD DVD
• Disc with recording area less than 55mm in diameter
• Unauthorized disc (Pirated disc)
• Unfinalized disc
Color Systems
Region Codes
Structure of Disc/SD Memory Card Contents
BD-video
DVD-video
MP3, WMA, JPEG, DivX®
group(folder)1 group(folder)2
audio CD
title 1 title 2
Audio CD
MP3, Windows Media™ Audio, JPEG, DivX®
folder (group) 1 folder (group) 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
track 1 track 2 track 3 track 4 track 5
file (track) 1 file (track) 2 file (track) 3 file (track) 4 file (track) 5
Data discs or SD Memory Cards containing MP3/Windows Media™
Audio/JPEG/DivX®is divided into folders, and the folders are
subdivided into files.
Audio CDs are divided into tracks.
BD/DVD
Symbols Used in this Operating Instructions
Symbol Description
Description refers to BD-video and BD-RE (ver. 3.0)/
BD-R (ver.2.0) recorded in BDMV format
Description refers to DVD-video and DVD-RW/-R
recorded in video mode
Description refers to DVD-RW/-R recorded in VR mode
Description refers to audio CD and DTS-CD
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with MP3 files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with Windows Media™ Audio files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with JPEG files
Description refers to DVD-RW/-R and CD-RW/-R with
DivX®files
BD-V
DVD-V
DVD-VR
CD
MP3
WMA
JPEG
DivX®
About the button names in this explanation
< > : Buttons on the main unit
[ ] : Buttons on the remote control
Button name only:
Buttons on the main unit and remote control
E5H70UD_EN.book Page 5 Tuesday, September 2, 2008 10:49 AM
5
Introduction Introduction
ENGLISH
ENGLISH
The following discs will not play back on this unit. BD and DVD are recorded in different color systems throughout
the world. The most common color system is NTSC (which is used
primarily in the United States and Canada).
This unit uses NTSC, so BD or DVD you play back must be recorded
in the NTSC system. You cannot play back BD or DVD recorded in
other color systems.
This unit has been designed to play back BD with
region A and DVD-video with region 1. You cannot
play back BD or DVD-video that are labeled for other
regions. Look for the symbols on the right on your BD
or DVD-video. If these region symbols do not appear
on your BD or DVD-video, you cannot play back the
disc in this unit. The letter or number inside the
globe refers to region of the world. A BD or
DVD-video labeled for a specific region can only play
back on the unit with the same region code.
The contents of BD / DVD are generally divided into titles. Titles
may be further subdivided into chapters.
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
If you do not find any of the symbols listed above under the
function heading, the operation is applicable to all media.
Unplayable Discs
• BD-RE Ver.1.0 (BD-disc with cartridge)
• BD-RE (Ver2.0) (Recorded in BDAV format)
• BD-R (Ver1.0) (Recorded in BDAV format)
• BD contains MP3/ Windows Media™ Audio/ JPEG/ DivX®files
• BD/DVD hybrid disc (e.g., Total Hi Def hybrid disc)
• BD-video that does not include "A" on its region code.
• DVD-video that does not include either "1" nor "ALL" on its
region code.
• DVD-ROM/RAM (For DVD-ROM discs, data files in DivX® 3.11, 4.x,
5.x and 6 can be played)
• DVD-RW/-R recorded in non-compatible recording format
• CD-ROM (Data files in DivX® 3.11, 4.x, 5.x and 6 can be played)
• CDV (Only the audio part can be played)
• CD-G (Only the audio signals can be output)
• CompactDisc-Interactive (CD-I)
• Video Single Disc (VSD)
• Video CD, Super Video CD
• Super audio CD (Only the sound on the CD layer can be heard. The
sound on the high-density super audio CD layer cannot be heard.)
• DVD-audio
• HD DVD
• Disc with recording area less than 55mm in diameter
• Unauthorized disc (Pirated disc)
• Unfinalized disc
Color Systems
Region Codes
Structure of Disc/SD Memory Card Contents
BD-video
DVD-video
MP3, WMA, JPEG, DivX®
group(folder)1 group(folder)2
audio CD
title 1 title 2
Audio CD
MP3, Windows Media™ Audio, JPEG, DivX®
folder (group) 1 folder (group) 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
track 1 track 2 track 3 track 4 track 5
file (track) 1 file (track) 2 file (track) 3 file (track) 4 file (track) 5
Data discs or SD Memory Cards containing MP3/Windows Media™
Audio/JPEG/DivX®is divided into folders, and the folders are
subdivided into files.
Audio CDs are divided into tracks.
BD/DVD
Symbols Used in this Operating Instructions
Symbol Description
Description refers to BD-video and BD-RE (ver. 3.0)/
BD-R (ver.2.0) recorded in BDMV format
Description refers to DVD-video and DVD-RW/-R
recorded in video mode
Description refers to DVD-RW/-R recorded in VR mode
Description refers to audio CD and DTS-CD
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with MP3 files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with Windows Media™ Audio files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with JPEG files
Description refers to DVD-RW/-R and CD-RW/-R with
DivX®files
BD-V
DVD-V
DVD-VR
CD
MP3
WMA
JPEG
DivX®
About the button names in this explanation
< > : Buttons on the main unit
[ ] : Buttons on the remote control
Button name only:
Buttons on the main unit and remote control
E5H70UD_EN.book Page 5 Tuesday, September 2, 2008 10:49 AM
5
Introduction Introduction
ENGLISH
ENGLISH
The following discs will not play back on this unit. BD and DVD are recorded in different color systems throughout
the world. The most common color system is NTSC (which is used
primarily in the United States and Canada).
This unit uses NTSC, so BD or DVD you play back must be recorded
in the NTSC system. You cannot play back BD or DVD recorded in
other color systems.
This unit has been designed to play back BD with
region A and DVD-video with region 1. You cannot
play back BD or DVD-video that are labeled for other
regions. Look for the symbols on the right on your BD
or DVD-video. If these region symbols do not appear
on your BD or DVD-video, you cannot play back the
disc in this unit. The letter or number inside the
globe refers to region of the world. A BD or
DVD-video labeled for a specific region can only play
back on the unit with the same region code.
The contents of BD / DVD are generally divided into titles. Titles
may be further subdivided into chapters.
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
If you do not find any of the symbols listed above under the
function heading, the operation is applicable to all media.
Unplayable Discs
• BD-RE Ver.1.0 (BD-disc with cartridge)
• BD-RE (Ver2.0) (Recorded in BDAV format)
• BD-R (Ver1.0) (Recorded in BDAV format)
• BD contains MP3/ Windows Media™ Audio/ JPEG/ DivX®files
• BD/DVD hybrid disc (e.g., Total Hi Def hybrid disc)
• BD-video that does not include "A" on its region code.
• DVD-video that does not include either "1" nor "ALL" on its
region code.
• DVD-ROM/RAM (For DVD-ROM discs, data files in DivX® 3.11, 4.x,
5.x and 6 can be played)
• DVD-RW/-R recorded in non-compatible recording format
• CD-ROM (Data files in DivX® 3.11, 4.x, 5.x and 6 can be played)
• CDV (Only the audio part can be played)
• CD-G (Only the audio signals can be output)
• CompactDisc-Interactive (CD-I)
• Video Single Disc (VSD)
• Video CD, Super Video CD
• Super audio CD (Only the sound on the CD layer can be heard. The
sound on the high-density super audio CD layer cannot be heard.)
• DVD-audio
• HD DVD
• Disc with recording area less than 55mm in diameter
• Unauthorized disc (Pirated disc)
• Unfinalized disc
Color Systems
Region Codes
Structure of Disc/SD Memory Card Contents
BD-video
DVD-video
MP3, WMA, JPEG, DivX®
group(folder)1 group(folder)2
audio CD
title 1 title 2
Audio CD
MP3, Windows Media™ Audio, JPEG, DivX®
folder (group) 1 folder (group) 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
track 1 track 2 track 3 track 4 track 5
file (track) 1 file (track) 2 file (track) 3 file (track) 4 file (track) 5
Data discs or SD Memory Cards containing MP3/Windows Media™
Audio/JPEG/DivX®is divided into folders, and the folders are
subdivided into files.
Audio CDs are divided into tracks.
BD/DVD
Symbols Used in this Operating Instructions
Symbol Description
Description refers to BD-video and BD-RE (ver. 3.0)/
BD-R (ver.2.0) recorded in BDMV format
Description refers to DVD-video and DVD-RW/-R
recorded in video mode
Description refers to DVD-RW/-R recorded in VR mode
Description refers to audio CD and DTS-CD
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with MP3 files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with Windows Media™ Audio files
Description refers to DVD-RW/-R, CD-RW/-R and
SD Memory Card with JPEG files
Description refers to DVD-RW/-R and CD-RW/-R with
DivX®files
BD-V
DVD-V
DVD-VR
CD
MP3
WMA
JPEG
DivX®
About the button names in this explanation
< > : Buttons on the main unit
[ ] : Buttons on the remote control
Button name only:
Buttons on the main unit and remote control
E5H70UD_EN.book Page 5 Tuesday, September 2, 2008 10:49 AM

4
DVD test disc (NTSC) ALMEDIO TDV-540
SERVICE TOOLS
Audio signals disc 4822 397 30184
Disc without errors (SBC444)+
Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245
Disc (65 min 1kHz) without no pause 4822 397 30155
Max. diameter disc (58.0 mm) 4822 397 60141
Torx screwdrivers
Set (straight) 4822 395 50145
Set (square) 4822 395 50132
13th order filter 4822 395 30204
DVD test disc (PAL) 4822 397 10131
SERVICE HINTS
SERVICE HINTS AND TOOLS

5
FATTENTION
Tous les IC et beaucoup d’autres semi-
conducteurs sont sensibles aux décharges
statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution
n’est prise a leur manipulation.
Lors de réparations, s’assurer de bien être
relié au même potentiel que la masse de
l’appareil et enfiler le bracelet serti d’une
résistance de sécurité.
Veiller a ce que les composants ainsi que les
outils que l’on utilise soient également a ce
potentiel.
DWARNUNG
Alle IC und viele andere Halbleiter sind
empfindlich gegen elektrostatische
Entladungen (ESD).
Unsorgfältige Behandlung bei der Reparatur
kann die Lebensdauer drastisch vermindern.
Sorgen sie dafür, das Sie im Reparaturfall
über ein Pulsarmband mit Widerstand mit
dem Massepotential des Gerätes verbunden
sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls
auf diesem Potential.
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor elektrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie
kan de levensduur drastisch doen
verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevita potrebbe essere fortemente
ridatta in caso di non osservazione della piu
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello
della massa dell’apparecchio tramite un
braccialetto a resistenza.
Assicurarsi che i componenti e anche gli
utensili con quali si lavora siano anche a
questo potenziale.
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce
life drastically.
When repairing, make sure that you are
connected with the same potential as the
mass of the set via a wrist wrap with
resistance.
Keep components and tools also at this
potential.
WARNING
Safety regulations require that the set be restored to its original condition
and that parts which are identical with those specified be used.
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
toestand wordt terug gebracht en dat onderdelen, identiek aan de
gespecifieerde worden toegepast.
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu beachten.
Der Originalzustand des Gerats darf nicht verandert werden.
Fur Reparaturen sind Original-Ersatzteile zu verwenden.
Le norme di sicurezza esigono che l’apparecchio venga rimesso nelle
condizioni originali e che siano utilizzati pezzi di ricambiago idetici a quelli
specificati.
Les normes de sécurité exigent que l’appareil soit remis a l’état d’origine et
que soient utilisées les pièces de rechange identiques à celles spécifiées.
“Pour votre sécurité, ces documents
doivent être utilisés par des
spécialistes agrées, seuls habilités à
réparer votre appareil en panne.”
GB NL
I
D
I
F
GB
NL
LASER SAFETY
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDS
Æ TTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL Å PNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATT AESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURE OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AVOID DIRECT EXPOSURE TO BEAM
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player
WARNING LOCATION: INSIDE ON LASER COVERSHIELD
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this
device, due to possible eye injury.
030804ecm
WARNING AND LASER SAFETY INSTRUCTION

6
1-2-1 B1.5NLSP
LASER BEAM SAFETY PRECAUTIONS
This BD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Inside Top of BD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER BEAM SAFETY PRECAUTIONS

7
1-3-1 B1N_ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a #on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
IMPORTANT SAFETY PRECAUTIONS

8
1-3-2 B1N_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2 mm (0.126 inches)
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15 µF CAP. & 1.5 kΩRES.
Connected in parallel i ≤0.5 mA Peak Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
Fig. 2

9
1-4-1 BDN_SN
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
STANDARD NOTES FOR SERVICING

10
1-4-2 BDN_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

11
1-4-3 BDN_SN
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “�” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

12
1-4-4 BDN_SN
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

13
1-5-1 E5H70DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the
following torque.
Reference Notes
1. CAUTION 1: Locking Tabs (L-1),(L-2) and (L-3)
are fragile. Be careful not to break them.
2. The FE Main CBA & BD Mechanism Assembly is
adjusted as a unit at factory. Therefore, do not
disassemble it. Replace the FE Main CBA & BD
Mechanism Assembly as a unit.
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] Top Cover D1 6(S-1) ---
[2] Tray Panel D2 *2(L-1) 1
[3] Front
Assembly D2 *5(L-2), *3(L-3), (S-2), *CN2001 1
[4] Front CBA D2 3(S-3), *CN3001 ---
[5] Power SW
CBA D2 (S-4), PCB Cover ---
[6]
FE Main
CBA & BD
Mechanism
Assembly
D3 4(S-5), *CN2601,
*CN6401 2
[7]
BE Main
CBA Unit
D3
(S-6), (S-7), *CN7001,
*CN7401, *CN7602,
Locking Card
Spacers, Mecha Earth
Plate
---
[8]
Power
Supply CBA
D4 4(S-8), (S-9), 2(S-10), *CN2600, Power PCB
Holder ---
[5] Power SW CBA
[3] Front Assembly
[2] Tray Panel
[1] Top Cover
[8] Power Supply CBA
[7] BE Main CBA Unit
[9] Rear Panel [10] Motor DC Fan
[13] Front Bracket R [14] BE PCB Holder
Assembly
[6] FE Main CBA &
BD Mechanism Assembly
[11] AV CBA
[4] Front CBA
[12] SD CBA
[9] Rear Panel D5 3(S-11), 3(S-12),
*CN2004 ---
[10] Motor DC
Fan D5 2(S-13) ---
[11] AV CBA D5 5(S-14), (S-15) ---
[12] SD CBA D5 2(S-16), (S-17),
SD Card Holder ---
[13] Front
Bracket R D5 (S-18) ---
[14] BE PCB Holder
Assembly D5 (S-19) ---
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
Torque
0.45 ± 0.05 N·m
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
CABINET DISASSEMBLY INSTRUCTIONS

14
1-5-2 E5H70DC
[1] Top Cover
(S-1)
(S-1)
(S-1)
Fig. D1
[4] Front CBA
[3] Front Assembly
[2] Tray
Panel
(S-3)
(S-4)
CN2001
(L-2)
(L-2)
(L-2)
(L-3)
CN3001
Wire
[5] Power SW
CBA
(S-2)
PCB Cover
(L-1)
Fig. D2
[7] BE Main CBA
Unit
[6] FE Main
CBA& BD
Mechanism
Assembly
CN7001
CN7401
CN2601
CN7602
CN6401
(S-6)
(S-7)
Locking Card
Spacers
(S-5) Mecha Earth Plate
Fig. D3
Fig. D4
[8] Power
Supply CBA
(S-9)
CN2600
Power PCB
Holder
(S-10)
(S-8)
(S-8)
(S-8)

15
1-5-3 E5H70DC
[11] AV CBA
[9] Rear Panel
[12] SD CBA
(S-18)
(S-16)
(S-17)
SD Card
Holder
(S-14)
(S-15)
CN2004
(S-14)
(S-14)
[10] Motor DC Fan
[14] BE PCB
Holder Assembly
[13] Front
Bracket R
(S-12)
(S-11)
(S-11)
(S-13)
(S-11)
(S-19)
Fig. D5
1-5-4 E5H70DC
3. How to Eject Manually
1. Remove the Top Cover.
2. Insert a screwdriver, etc. into the Hole A straightly so that the Portion A is pushed.
3. Pull the tray out manually and remove a disc.
Screwdriver,
hexagon wrench
Hole A
Portion A
3. How to Eject Manually

16
1-6-1 E5H70INT
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER
To put the program back at the factory-default,
initialize the BD player as the following procedure.
1. Turn the power on.
2. Remove the disc on the tray and close the tray.
3. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
4. Press [STOP] button on the remote control unit.
Fig. b appears on the screen and Fig. c appears
on the VFD.
5. To exit this mode, press [POWER OFF] button.
Fi
g
. a
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
Fig. b
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
EEPROM CLEAR : OK
Fig. c
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER

17
1-7-5 E5H30FW
TRAY LOCK MODE
Tray Lock Mode prevents the tray opening or closing to
prevent disc theft in demo mode.
Enter this mode using the following procedure.
1. Confirm that the TV Monitor is connected.
2. With playback stopped, press [SETUP], [TOP
MENU], [3], [AUDIO], [0] and [SETUP] buttons on
the remote control unit in that order. "Trade On" will
appear in the upper right corner on the screen, and
on VFD for 2 seconds.
3. To exit this mode, press [SETUP], [TOP MENU],
[3], [AUDIO], [0] and [SETUP] buttons on the
remote control unit in that order. "Trade Off" will
appear in the upper right corner on the screen, and
on VFD for 2 seconds.
Fi
g
.a VFD
Fi
g
.b VFD
TRAY LOCK MODE

18
1-7-4 E5H30FW
Entering Service Mode
In power on condition, no discs and tray close, it will be entered into service mode by the following operation using
the remote controller. However, it will not be entered when Media Select Item is SD Memory.
Service Mode by using remote controller
Press the following buttons on the remote controller in power on condition, no discs and tray close;
[2]->[5]->[8]->[0]->[CLEAR]
Release from Service Mode
Press the [POWER OFF] button to turn off power.
Screen saver/Auto Power Off in Service Mode
These functions are not performed in Service Mode.
After entering, Fig. k appears on the screen and Fig. l appears on the VFD.
Available button in service mode
Note: Press the number key to select items. Or, press the cursor button (up/down) to select items and press
[ENTER] button.
Button condition
ENTER Enter the next level
POWER Turn the power off (when the service mode is completed)
1~8 Enter the selected item (next level)
OTHER Not available
INDICATION DESCRIPTION REMARK
Model Name Model Name E5H***D, etc.
Region BD region - DVD region A-1, etc.
Release Ver. Release version D.jpp, etc.
ADSP 1/2 Ver. ADSP 1/2 version 0221/0210, etc.
PLD Ver. PLD Version 2, etc.
FPGA Ver. FPGA Version 04, etc.
I/P Scaler Ver. I/P Scaler version FFFFFFFF, etc.
Service Mode
1. Mecha Test
2. VFD/LED Test
3: Error Rate
4: LD Test
5: RS-232C
6: Channel Test
7: SD Card Test
8: Default Setting
Model Name: :E5H**UD Region :A-1
Release Ver. :*.***
ADSP1/2 Ver. :****/**** PLD Ver. :*
FPGA Ver. :** I/P Scaler Ver.:********
Fig. k Service Mode (Main menu)
* Firmware Version differs depending on the
models, and this indication is one example.
Fi
g
. l Service Mode
SERVICE MODE
Service Mode
1. Mecha Test
2. VFD/LED Test
3: Error Rate
4: LD Test
5: Channel Test
6: RS-232C
7: SD Card Test
8: Default Setting
Model Name: :E5E**UD Region :A-1
Release Ver. :*.***
ADSP1/2 Ver. :****/**** PLD Ver. :*
FPGA Ver. :** I/P Scaler Ver.:********
Fig. k Service Mode (Main menu)
* Firmware Version differs depending on the
models, and this indication is one example.
Button Condition
ENTER Enter the next level
POWER Turn the power off (when the service mode is completed)
1~8 Enter the selected item (next level)
OTHER Not available
Indication Description Remark
Model Name Model Name E5H***D, etc.
Region BD region - DVD region A-1, etc.
Release Ver. Release version D.jpp, etc.
ADSP 1/2 Ver. ADSP 1/2 version 0221/0210, etc.
PLD Ver. PLD Version 2, etc.
FPGA Ver. FPGA Version 04, etc.
I/P Scaler Ver. I/P Scaler version FFFFFFFF, etc.
