Marantz SW200 User manual

Service
Manual
Please use this service manual with referring to the user guide (D.F.U) without fail.
317W855010 AO
First Issue:2001.07
SW200/F1M, /K1M
Active Subwoofer
SW200
Printed in Japan
TABLE OF CONTENTS
1. TECHNICAL SPECIFICATIONS .............................................................................1
2. BLOCK DIAGRAM ..................................................................................................2
3. WIRING DIAGRAM.................................................................................................3
4. SCHEMATIC DIAGRAMAND PARTS LOCATION .................................................5
5. EXPLODED VIEW AND PARTS LIST................................................................... 11
6. ELECTRICAL PARTS LIST...................................................................................13
OFFON
POWER VOLUME LEVEL HIGH CUT
MAXMIN
POWER ON
150Hz 50Hz
/STANDBY
ACTIVE SUBWOOFER SW200
SW200

MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected toAC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
010620 A.O
USAUSA
MARANTZ AMERICA, INCMARANTZ AMERICA, INC.
1100 MAPLEWOOD DRIVE
ITASCA, IL. 60143
USA
PHONE : 630 - 741 - 0300
FAX : 630 - 741 - 0301
BRAZILBRAZIL
PHILIPS DA AMAZONIA IND. ELET. ITDAPHILIPS DA AMAZONIA IND. ELET. ITDA
CENTRO DE INFORMACOES AO
CEP 04698-970
SAO PAULO, SP, BRAZIL
PHONE : 0800 - 123123(Discagem Direta Gratuita)
FAX : [phone]
JAPANJAPAN Technical
MARANTZ JAPAN, INC.MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : [phone]
FAX : [phone]
EUROPE / TRADINGEUROPE / TRADING
MARANTZ EUROPE B.V.MARANTZ EUROPE B.V.
P.O.BOX 80002, BUILDING SFF2
5600 JB EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2732241
FAX : +31 - 40 - 2735578
TECHNICAL AUDIO GROUP PTY, LTDTECHNICAL AUDIO GROUP PTY, LTD
558 DARLING STREET,
BALMAIN, NSW 2041,
AUSTRALIA
PHONE : 61 - 2 - 9810 - 5300
FAX : 61 - 2 - 9810 - 5355
CANADACANADA
LENBROOK INDUSTRIES LIMITEDLENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936
AUSTRALIAAUSTRALIA
QualiFi Pty Ltd,QualiFi Pty Ltd,
24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALANDNEW ZEALAND
WILDASH AUDIO SYSTEMS NZWILDASH AUDIO SYSTEMS NZ
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554
THAILANDTHAILAND
MRZ STANDARD CO.,LTDMRZ STANDARD CO.,LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795
TAIWANTAIWAN
PAI- YUING CO., LTD.PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415
MALAYSIAMALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD.WO KEE HONG ELECTRONICS SDN. BHD.
SUITE 8.1, LEVEL 8, MENARA GENESIS,
NO. 33, JALAN SULTAN ISMAIL,
50250 KUALA LUMPUR, MALAYSIA
PHONE : +60 3 - 2457677
FAX : +60 3 - 2458180
AMERICASAMERICAS
SUPERSCOPE TECHNOLOGIES, INC.SUPERSCOPE TECHNOLOGIES, INC.
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103
AUSTRALIAAUSTRALIA
KOREAKOREA
MK ENTERPRISES LTD.MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154
SINGAPORESINGAPORE
WO KEE HONG DISTRIBUTION PTE LTDWO KEE HONG DISTRIBUTION PTE LTD
130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : [phone]
FAX : [phone]

1.TECHNICAL SPECIFICATIONS
1
AMPLIFIER
Output................................................................................................................................................................................... 70 W (EIAJ THD 10%)
Input Terminals ........................................................................................................................................................................................Line / SPK.
Output Terminals................................................................................................................................................................................................SPK.
S/N Ratio .......................................................................................................................................................................................................... 95 dB
SPEAKER
Type......................................................................................................................................................................................... 1-way Bass Ref type
Playback Frequency Response .............................................................................................................................................. 30 ~ 200 Hz (–10 dB)
Drive Unit................................................................................................................................. Magnetically shielded woofer with 200mm cone x 1
High Cut Filter ............................................................................................................................50 ~ 150 Hz Continuously variable (–24 dB / oct.)
POWER SUPPLY
Power Supply.................................................................................................................................................................. AC 100V, 50 / 60 Hz ( /F )
AC 110 - 115V/ 220 - 230V, 50 / 60 Hz ( /K )
Rated power consumption ................................................................................................................................................................................ 39 W
APPEARANCE
Maximum External Dimensions......................................................................................................235 x 340 x 318 mm (Width x Height x Depth)
Weight ..............................................................................................................................................................................................................8.4 kg
ACCESSORIES
Audio Cable (3m - RCA Pin plug)............................................................................................................................................................................ 1
Speaker Cable (4 m) ................................................................................................................................................................................................ 2
User's Manual ...................................................................................................................................................................................................... 1
* The SW200 drive unit has a magnetically shielded design, but it may cause color irregularities on television screens if place d close to the set.
In this case, increase the distance between the television and the SW200 unit accordingly.
* Specifications and appearance are subject to change without notice due to improvements.

2

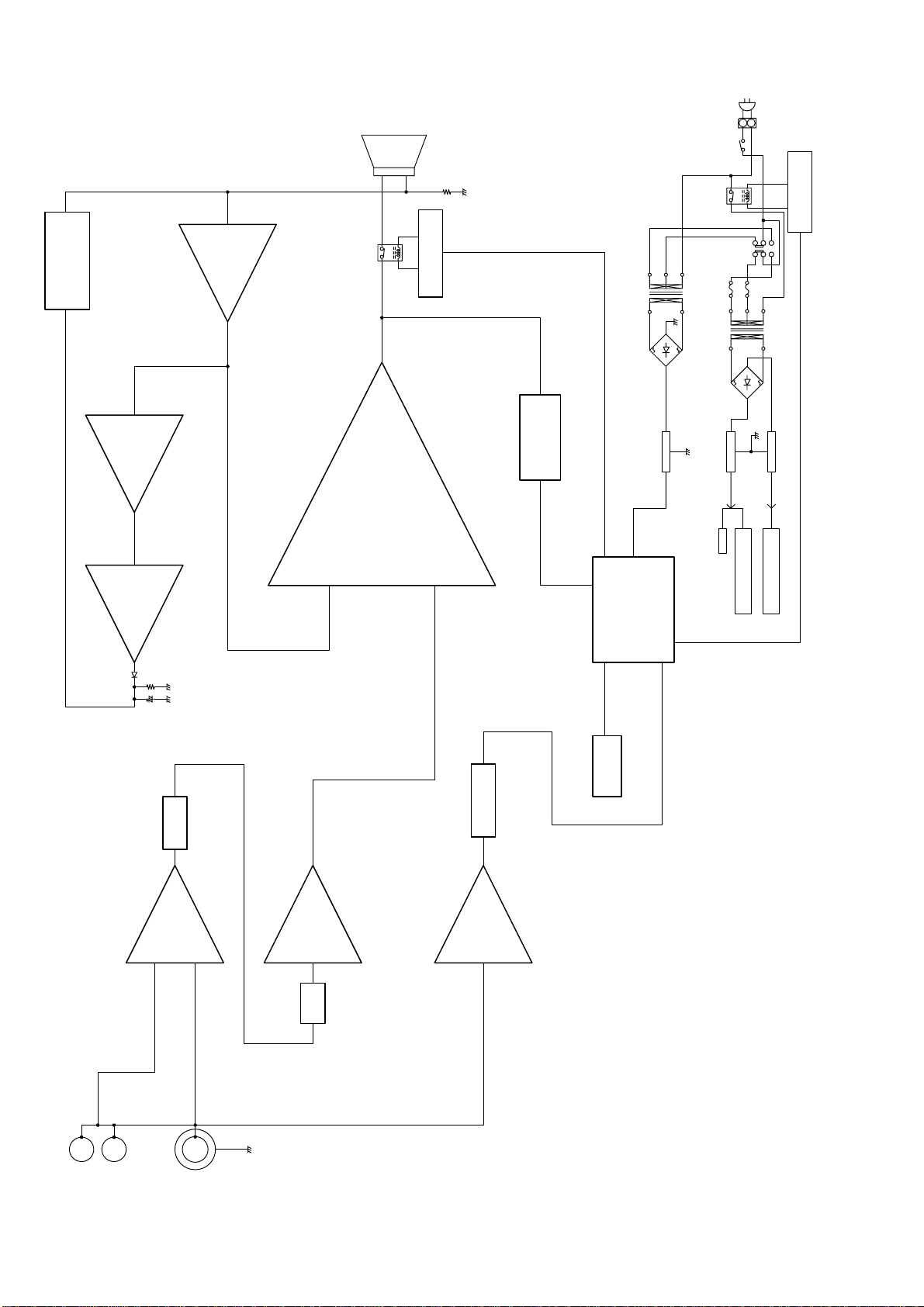

2. BLOCK DIAGRAM
+15V
-15V
+5V
1 2 3
4 5 6
0V
0V
1 2
Q501 C3198
POWER RELAY CONTROL
IC304 7815
IC305 7915
RY301
OP AMP. OP AMP.
IC101,201,306,307,308 IC101,201,306,307,308
IC303 78S05
MICOM
IC301
OUTPUT RELAY CONTROL
Q303 C3198
WOOFER UNIT
IC306
FET
Q304
IC307IC308
IC302
POWER AMP.
STK4036
LED(RED/GREEN)
LED201
Q301/302
DC PROTECTOR
JK102
IC101
MAIN VOLUME
VR201
IC201
VR202
LPF/HPF
HI-CUT VR
JK101
SPEAKER TERMINAL
RCA JACK
IC102
Q101
SIGNAL PROTECTOR
SW701
F501
R339
C320
D304
R318
RY301
RY501
D305
D501
F502
T501
T301 SW601
PN502

TO.SPK UNIT
MAINS CORD
MAIN TRANSFORMER
SECONDARY
PRIMARY
AC100V AC200V
CN101
JK101
JK102 SW101
PN302
PN101
PN201
PN301
IC302
PN503 PN504
T501
PN502
PN601
SW601
CN201
VR201 VR202
PN501-1 PN501-2 PN501-3
PN702
PN701-3 PN701-2 PN701-1
SW701
JACK PWB
MAIN PWB
VR PWB
POWER SWITCH PWB
F ONLY
F ONLY
K ONLY
K ONLY
VOLTAGE SELECTOR PCB
3. WIRING DIAGRAM
3 4

S
GD
8765
4321
`3
`2
`1
6
8
13
15
1
2
4
5
9
10
12
14
7
11
3
3
2
1
8
5
6
7
8
5
6
7
4
3
2
1
43
2
1
85
6
7
43
2
1
85
6
7
43
2
1
85
6
7
8
5
6
7
4
3
2
1
3
2
1
6 5 4
3 2 1
4
3
2
1
ERROR
RELAY-O
SIGNAL
P-SENS
RELAY-P
LED RD
LED GN
VddGP5GP4
GP2 GP1 GP0 Vss
GP3
3
1
2
3
1
2
3 1 2
3
1
2
3
2
1
OI
3
4
2
15
6
7
8
1 2
-
+
7 4 5 6 3 1 2
3 1 2 3 1 2
-
+-
+
7 4 5 6 3 1 2
0V
R
L
0V
4 5 6 3 1 2
4 5 6 3 1 2
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
3
2
1
OI
3 1 2
1
2
3 1 2 3 1 2 3 1 2 3 1 2
321
IO
-
+
SUB P/T GND AMP IC GND
F501
T2.0AL 250V
SB 2.0A 250VJAPAN
F502
T1.0AL 250V
OTHERS
OTHERS
MAIN TRANSFORMER
STAND BY TRANSFORMER
AC220V AC100V
TO POWER SWITCH
-15V
R341
C302
Q302
R305
IC301
PN503
C311
VR202
IC302
C315
R304
D301
PN504
PN601
R316
C301
PN302
IC303
C322
R301
R302
SW101
C321
R129
VR201
C312
Q301
C205
PN502
F502 C506
Q101
R128
C109
R127
D102
D101
R126
IC101
C106
R121
R120
R122
R308
OJ100
RY501
PN201
R205
C114
C206
C203 C204
R204
PN501-2
PN501-3
IC201
C333
OJ200
C202
C334
IC102 R203
OJ201
CN201
SW601
T301
Q303
R317
R117
R119
JK102
ZD501
R502
R501
C303
D502
R118
C502 T501
D305
R342 R340
C328
R315
F501
R303
CN101
PN101
C323
C329 C331
R306
C111
R309
R307
R130
C112
R350 R351
R201
R352
D306
C330
C307
C313
R314
C310
R312
D307
RY301
R503
C306
C308
R311
C314
R313
C309
R504
C503
D503
Q501
R505
R318
IC306
R319
R321
R320
C316
C304
C305
R310
C317
R322
IC306
R327
C318
R326
R328
Q304
R325
C319
R323
R324
IC307
IC307
IC308
IC308
R329
R330
R332
R331
R333
D302
R336
D303
R337 R334R335
R338
D304
R339
C320
R104
C105
R110
R108
R109
C107
R105
C326
C327
C504
R115
R106
IC102
R111R112
C102
R125
R101
D501
R124
R357
Q306
R103
Q308
LED201
R123
Q305
R202
Q307
IC201
R343
C110
R353
C335
VR202
R356
R354 C336
C113
IC304
R355
ZD301
C324 ZD302
PN501-1
R107
ZD303
C339
R116
C337
PN301
C338
R113
C340
PN702
C201
PN701-1PN701-2
SW701
R131
PN701-3
R132
C115
ZD304
C116C117C118
C601
IC305
C103
R102
R114
C104
C108
IC101
C101
C325
C505
JK101
P-SWITCH
P-CORD
6.2V 1W6.2V 1W
6.2V 1W6.2V 1W
18K(1/4W)
47/50
C3198
68k
PIC12C508A-04/P
102(C)
10KC
STK4036
0.1(M)
100K
1N4148
68(1/4)
220/16
KIA78S05P
100/16
10K
10K
100/16
100k(1/4W)
5KA
100P(C)
C3198
10/50
1.0A/250V 0.0047/250V
C3198
47K
100/10
1K
1N4148
1N4148
3.3K
4558
10/25
47K
470K
100K
1K
DG12D1(12VDC)
56K
0.047(C)
10/50
0.15(M) 0.15(M)
18K 4558
10/50
0.18(M)
0.01(M)
4558
3.3K
C3198
4.7(1W)
4.7K
47K
5.1V
4.7K
10K
100/16
1N4148
47K
10/50
PBS404GU
18K(1/4W) 18K(1/4W)
4700/50
10K
2.0A/250V
10K
0.47(M)
4700/50 0.047(M)
470
10/50
3.3K
470
47
47/16
1K(1/4W) 1K(1/4W)
100
68(1/4W)
1N4148
0.047(M)
100P(C)
1/50
100K
0.0039(M)
10K
1N4148
DG12D1(12VDC)
3.3k
100/50
10/50
100(1/4W)
10/50
100(1/4W)
100/50
2.2(1/4W)
1000/25
1N4148
C3198
10K
0.1(5W)
4558
9.1K
6.8k
6.8k
220P(C)
222(C)
0.01(M)
100
0.47(M)
100k
4558
9.1K
100P(C)
56k
10k
2SK315F
150K
0.1(M)
1M
100k
4558
4558
45584558
3.9k
6.8k
10k
1k
8.2K
1N4148
8.2K
1N4148
8.2K
8.2K
8.2K
22K
1N4148
220K
10/50
2.7M
0.01(M)
100K
3.9K
2.7M
47/16
100K
10/50
10/50
0.01(M)
3.3K
100K
4558
100K100K
220P(C)
56K
3.9K
KBPM06G
100
10
C3198
2.2K
C3198
SAM3270
470
A1266
3.3K
A1266
4558
18K(1/4W)
10/50
100K
47/16
10KC
470
100K
47/16
10/50
7815
470
1N4735
220/16 1N4735
2.2K
1N4735
0.1(C)
3.3K
0.1(C)
0.1(C)
12K
0.047(C)
0.68(M)
1K
1K
0.01(C)
1N4735
0.01(C)0.01(C)0.01(C)
0.0047/250V
7915
10/25
100K
12K
10/50
10/50
4558
220P(C)
220/16
0.01(M)
LOW LEVEL INPUT
HIGH
HIGH
HIGH
HIGH
LEVEL INPUT
LEVEL INPUT
LEVEL INPUT
LEVEL INPUT
(L)
(L)
(L)
(R)
(R)
(R)
K ONLY
EXTERNAL
EXTERNAL
EXTERNAL
EXTERNAL
SPEAKER OUTPUT
SPEAKER OUTPUT
SPEAKER OUTPUT
SPEAKER OUTPUT
RCA JACK
MAIN PCB PART
VR PCB PART
JACK PCB PART
AUTO STANDBY
POWER SWITCH PART
SIGNAL -15V
-15V
GND
GND
+15V
+15V
MAIN SIG.
LED RD LED GN
JW-6018B
REDGN
MAIN SIG.OUT
MAIN SIG.IN
+5V
OFF(1-2)
LOW(2-3)
HIGH(2-4)
OPTION LIST
2.OJ100,PN503,F501:ONLY AC100V
1.Resistor values are indicated in ohms
unless otherwise specified
unless otherwise specified
[k=1,000 M=1,000,000]
[p=micro-micro farades]
3. :These resistors are to be segregated from
printed wiring board or other accessible parts.
Safety precaution to be followed during servicing
1]Since those parts marking with critical parts
for safety.
2]Before returning the set to the customer make
appropriate leakage current or resistance
measurements to determine the exposed parts are
properly insulated from the supply circuit.
Use only the one described in the parts list.
CAUTION
NOTES
4.(M)is polyester film capacitor or
metallized polyester film capacitor.
2.Capacitor values are indicated in microfarades
VOLTAGE SELECTOR PART
1.OJ200,OJ201,PN504,F502:ONLY AC220V
4. SCHEMATIC DIAGRAM AND PARTS LOCATION
56
8
7
6
5
1
2
3
4
V
DD
GP5/OSC1/CLKIN
GP4/OSC2/CLKOUT
GP3/MCLR/V
PP
V SS
GP0
GP1
GP2/T0CKI
PIC12C5XX PIC12C5XXA PIC12CE5XXA
IC302 : STK4036
IC301 : PIC12C508A

78
VR PCB
(PARTS SIDE)
IC201
Q101
Q501
Q308 Q306
Q307
Q305
Q304
IC306
IC307
IC304
IC308
IC302
IC301
IC303
Q301~Q303
IC305
IC102
IC101
JACK PCB
MAIN PCB
POWER SWITCH PCB VOLTAGE SELECTOR PCB
K ONLY

910
VR PCB
JACK PCB
MAIN PCB
(SOLDER SIDE)
POWER SWITCH PCBVOLTAGE SELECTOR PCB
IC201
Q101
Q501 Q308 Q306
Q307
Q305
Q304
IC306
IC307
IC304
IC308
IC302
IC301
IC303
Q301~Q303
IC305
IC102
IC101
K ONLY

11 12
5. EXPLODED VIEW AND PARTS LIST
29
6
9
16
15 x3
28 30
14
2
26
4
12
1
20 x4
3
11
10
13
8
23
19 x2
22
25
17 x3
5
7
24
15 x3
27
K ONLY
K ONLY
F ONLY
31 x6
34
35
32
33
20 x12
15 x15
21
18 x4
POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI)
1 3720V-0008A FRONT PANEL 317W248010
2 4940V-0008A BUTTON POWER 317W270010
3 4940V-0009A KNOB VOLUME/HIGH CUT 317W154010
4 3300V-0001A SHIELD nsp
5 /F 3720V-0009A REAR PANEL nsp
5 /K 3720V-0009B REAR PANEL nsp
6 3550V-0002A COVER JACK PCB nsp
7 4930V-0007A HOLDER PCB nsp
8 4930V-0006A CORD BUSHING 317W259010
9 4850V-0001F CUSHION nsp
10 SGC-223-01 NET GRILL ASSY 317W401500
11 SPB-000-03 BADGE MARANTZ.AU(GOLD) 354H251230
12 SUE-551-04 DUCT nsp
13 SXB-200-59 WOOFER UNIT QK0205901R
14 HAB-232-05 BODY nsp
15 4000V-0001F SCREW nsp
16 4000V-0007A SCREW nsp
17 4000V-0001K SCREW nsp
18 4000V-0002A SCREW nsp
19 4000V-0001D SCREW(BIND HEAD) nsp
20 SFG-000-05 SCREW WOOD nsp
21 SRB-002-02 LABEL SERIAL NO. nsp
22 4920V-E007A HEATSINK MAIN nsp
23 /K 6410V-E1W0A POWER CORD *ZC000120R
23 /F 6410V-J0W0A POWER CORD *ZC000130R
24 /K 6170V-Z66WK POWER TRANSFORMER *TS001390R
24 /F 6170V-J66WK POWER TRANSFORMER *TS001400R
25 6630V-WTBCT SPEAKER CONNECTOR 2P nsp
26 6630V-WWBDT CONNECTOR 2P nsp
27 6630V-WWCKD CONNECTOR 5P nsp
28 SGG-881-01 GASKET PORT nsp
29 SGG-270-01 GASKET EVA nsp
30 SGG-050-01 GASKET CORD nsp
31 SFG-000-20 SCREW nsp
32 YMG-500 COLOR TIE 100mm nsp
33 SGG-187-03 WOOFER GASKET nsp
34 4850V-0001D CUSHION nsp
35 4850V-0001E CUSHION nsp
PACKING
001T /F USER GUIDE JAPANESE 317W851110
001T /K USER GUIDE
ENGLISH/CHINESE 317W851350
NOT STANDARD SPARE
PARTS
001S PACKING CASE 317W801010
002S CUSHION 317W809010
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
REMARK
REMARK
- NET GRILL ASS'Y (Pos. No.10) and BODY (Pos. No.14) can be fixed by bond.
- If NET GRILL ASS'Y (Pos. No.10) removes from BODY (Pos. No.14), it will be loose and will become
easy to separate. In that case,please fix by bond or etc. and correspond.
- If WOOFER UNIT (Pos. No.13) removes from BODY (Pos. No.14), SCREW (Pos. No. 20) will be loose
and will not be affective. In that case, please fix by bond or etc. and correspond.

ASSIGNMENT OF COMMON PARTS CODES.
RESISTORS
R 1) GD05 x x x 140, Carbon film fixed resistor, 5% 1/4W
R 2) GD05 x x x 160, Carbon film fixed resistor, 5% 1/6W
1 Resistance value
Examples
1 Resistance value
0.1 ..... 001 10 ......100 1k ......102 100k ...... 104
0.5 ..... 005 18 ......180 2.7k ......272 680k ...... 684
1 ..... 010 100 ......101 10k ......103 1M ......105
6.8 ..... 068 390 ......391 22k ......223 4.7M ...... 475
Note : Please distinguish 1/4W from 1/6W by the shape of parts
used actually.
CAPACITORS
C : CERAMIC CAP.
3) DD1 x x x x 370, Ceramic capacitor
Disc type
Temp.coeff. P350~N1000, 50V
3 Capacity value
2 Tolerance
Examples
2 Tolerance (Capacity deviation)
0.25 pF .......0
0.5 pF .......1
5 % .......5
Tolerance of COMMON PARTS handled here are as follows :
0.5 pF - 5 pF ....... 0.25 pF
6 pF - 10 pF ..... 0.5 pF
12 pF - 560 pF... 5 %
3 Capacity value
0.5 pF .... 005 3 pF..... 030 100 pF..... 101
1 pF .... 010 10 pF..... 100 220 pF..... 221
1.5 pF .... 015 47 pF..... 470 560 pF..... 561
C : CERAMIC CAP.
4) DK16 x x x 300, High dielectric constant ceramic
capacitor
Disc type
Temp.chara. 2B4, 50V
4 Capacity value
Examples
4 Capacity value
100 pF .....101 1000 pF .... 102 10000 pF .... 103
470 pF .....471 2200 pF .... 222
C : 5) ELECTROLY CAP.( ), 6)FILM CAP ( )
5) EA x x x x x x 10, Electrolytic capacitor
One-way lead type,Tolerance 20%
6 Working voltage
5 Capacity value
Examples
5 Capacity value
0.1 F .... 104 4.7 F .... 475 100 F .....107
0.33 F .... 334 10 F .... 106 330 F .....337
1 F .... 105 22 F .... 226 1100 F .....118
2200 F .... 228
6 Working voltage
6.3 V ......006 25 V ..... 025
10 V ......010 35 V ..... 035
16 V ......016 50 V ..... 050
6) DF15 x x x 350 Plastic film capacitor
DF15 x x x 310 One-way type, Mylar 5% 50V
DF16 x x x 310 Plastic film capacitor
One-way type, Mylar 10% 50V
7 Capacity value
Examples
7 Capacity value
0.001 F (1000 pF) ...... 102 0.1 F......104
0.0018 F........................ 182 0.56 F......564
0.01 F........................ 103 1 F......105
0.015 F........................ 153
1) The above CODES(R ,R ,C ,C
and C ) are omitted on the schematic diagram in
some case.
2) On the occasion, be confirmed the common parts on the
parts list.
3) Refer to “Common Parts List” for the other common
parts(Rl05, DD4, DK4).
NOTE
NOTE ON SAFETY:
Symbol Fire or electrical shock hazard. Only original
parts should be used to replaced any part marked with
symbol Any other component substitution ( other than
original type), may increase risk of fire or electrical shock
hazard.
990521 A.O
NOTE ON SAFETY FOR FUSIBLE RESISTOR :
The suppliers and their type numbers of fusible resistors are as
follows ;
1 . KOA Corporation
Part No.(MJI) Type No.(KOA) Description
NH05 x x x 140 RF25S x x x x J
J
J
J
5% (1/4W)
NH05 x x x 120 RF50S x x x x 5% (1/2W)
NH85 x x x 110 RF73B2A x x x x 5% (1/10W)
NH95 x x x 140 RF73B2E x x x x 5% (1/4W)
Resistance value Resistance value(0.1 - 10k )
2. Matsushita Electronic Components Co., Ltd
Part No.(MJI) Type No.(MEC) Description
NF05 x x x 140 ERD-2FCJ x x x ( 5% 1/4W)
RF05 x x x 140
NF02 x x x 140 ERD-2FCG x x x ( 2% 1/4W)
RF02 x x x 140
Resistance value
Examples
Resistance value
0.1 ..... 001 10 ..... 100 1k ..... 102 100k ..... 104
0.5 ..... 005 18 ..... 180 2.7k ..... 272 680k ..... 684
1 ..... 010 100 ..... 101 10k ..... 103 1M ..... 105
6.8 ..... 068 390 ..... 391 22k ..... 223 4.7M ..... 475
ABBREVIA TION AND MARKS
ANT. : ANTENNA BATT. : BATTERY
CAP. : CAPACITOR CER. : CERAMIC
CONN. : CONNECTING DIG. : DIGITAL
HP : HEADPHONE MIC. : MICROPHONE
-PRO : MICROPROCESSOR REC. : RECORDING
RES. : RESISTOR SPK : SPEAKER
SW : SWITCH TRANSF. : TRANSFORMER
TRIM. : TRIMMING TRS. : TRANSISTOR
VAR. : VARIABLE X’ TAL : CRYSTAL
:
:
13 14
6. ELECTRICAL PARTS LIST
POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI) POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI)
MAIN CIRCUIT BOARD
CAPACITORS
C301 0CE2276F605 ELECT 220/16,TP nsp
C302
0CE4766K605 ELECT 47/50,TP nsp
C303
0CE1076F605 ELECT 100/16,TP nsp
C304
0CK2220K405 CER. 222,TP nsp
C305
0CQ1031N405 MYLAR 103,TP nsp
C306
0CE1076K605 ELECT 100/50,TP nsp
C307
0CC1010K415 CER. 100P,TP nsp
C308
0CE1066K605 ELECT 10/50,TP nsp
C309
0CE1076K605 ELECT 100/50,TP nsp
C310
0CQ3921N405 MYLAR 392,TP nsp
C311
0CK1020K405 CER. 102,TP nsp
C312
0CC1010K415 CER. 100P,TP nsp
C313
0CE1056K605 ELECT 1/50,TP nsp
C314
0CE1066K605 ELECT 10/50,TP nsp
C315
0CQ1041N405 MYLAR 104,TP nsp
C316
0CC2210K405 CER. 220P nsp
C317
0CQ4741N401 MYLAR 474 nsp
C318
0CC1010K415 CER. 100P,TP nsp
C319
0CQ1041N405 MYLAR 104,TP nsp
C320
0CE1066K605 ELECT 10/50,TP nsp
C321
0CE1076F605 ELECT 100/16,TP nsp
C322
0CE1076F605 ELECT 100/16,TP nsp
C323
0CQ4741N401 MYLAR 474 nsp
C324
0CE2276F605 ELECT 220/16,TP
EA22701610
C325
0CE2276F605 ELECT 220/16,TP
EA22701610
C326
0CE1066K605 ELECT 10/50,TP
EA10605010
C327
0CE1066K605 ELECT 10/50,TP
EA10605010
C328
0CE4787K610 ELECT 4700/50
*EA001060R
C329
0CE4787K610 ELECT 4700/50
*EA001060R
C330
0CQ4731N405 MYLAR 473,TP nsp
C331
0CQ4731N405 MYLAR 473,TP nsp
C333
0CE1066K605 ELECT 10/50,TP nsp
C334
0CQ1031N405 MYLAR 103,TP nsp
C335
0CE4766F605 ELECT 47/16,TP nsp
C336
0CE4766F605 ELECT 47/16,TP nsp
C337
0CK1040K405 CER. 104,TP nsp
C338
0CE1056K605 ELECT 1/50,TP nsp
C339
0CK1040K405 CER. 104,TP nsp
C340
0CK4730K405 CER. 473,TP nsp
C502
0CE1066K605 ELECT 10/50,TP nsp
C503
0CE1086H605 ELECT 1000/25 nsp
C504
0CQ1031N405 MYLAR 103,TP nsp
C505
0CQ1031N405 MYLAR 103,TP nsp
C506
0DC4721R6A1 CER. 472/250V
*DK100690R
RESISTORS
R301
0RD1002F409 10K,1/6W,5%,TP52 nsp
R302
0RD1002F409 10K,1/6W,5%,TP52 nsp
R303
0RD1002F409 10K,1/6W,5%,TP52 nsp
R304
0RD1003F409 100K,1/6W,5%,TP52 nsp
R305
0RD6802F409 68K,1/6W,5%,TP52 nsp
R306
0RD4700F409 470,1/6W,5%,TP52 nsp
R307
0RD4700F409 470,1/6W,5%,TP52 nsp
R308
0RD1001F409 1K,1/6W,5%,TP52 nsp
R309
0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R310
0RD1000F409 100,1/6W,5%,TP52 nsp
R311
0RD1000G409 100,1/4W,5%,TP52 nsp
R312
0RD1002F409 10K,1/6W,5%,TP52 nsp
R313
0RD1000G409 100,1/4W,5%,TP52 nsp
R314
0RD1003F409 100K,1/6W,5%,TP52 nsp
R315
0RD1002F409 10K,1/6W,5%,TP52 nsp
R316
0RD0682G409 68,1/4W,5%,TP52 nsp
R317
0RN0471J410 4.7(1W)
GA05047010
R318
0RC0100M425 CEMENT 0.1(5W),
FORMING(25mm)
*GO000009R
R319
0RD9101F409 9.1K,1/6W,5%,TP52 nsp
R320
0RD6801F409 6.8K,1/6W,5%,TP52 nsp
R321
0RD6801F409 6.8K,1/6W,5%,TP52 nsp
R322
0RD1003F409 100K,1/6W,5%,TP52 nsp
R323
0RD1004F409 1M,1/6W,5%,TP52 nsp
R324
0RD1003F409 100K,1/6W,5%,TP52 nsp
R325
0RD1503F409 150K,1/6W,5%,TP52 nsp
R326
0RD5602F409 56K,1/6W,5%,TP52 nsp
R327
0RD9101F409 9.1K,1/6W,5%,TP52 nsp
R328
0RD1002F409 10K,1/6W,5%,TP52 nsp
R329
0RD3901F409 3.9K,1/6W,5%,TP52 nsp
R330
0RD6801F409 6.8K,1/6W,5%,TP52 nsp
R331
0RD1001F409 1K,1/6W,5%,TP52 nsp
R332
0RD1002F409 10K,1/6W,5%,TP52 nsp
R333
0RD8201F409 8.2K,1/6W,5%,TP52 nsp
R334
0RD8201F409 8.2K,1/6W,5%,TP52 nsp
R335
0RD8201F409 8.2K,1/6W,5%,TP52 nsp
R336
0RD8201F409 8.2K,1/6W,5%,TP52 nsp
R337
0RD8201F409 8.2K,1/6W,5%,TP52 nsp
R338
0RD2202F409 22K,1/6W,5%,TP52 nsp
R339
0RD2203F409 220K,1/6W,5%,TP52 nsp
R340
0RD1802G409 18K,1/4W,5%,TP52 nsp
R341
0RD1802G409 18K,1/4W,5%,TP52 nsp
R342
0RD1802G409 18K,1/4W,5%,TP52 nsp
R343
0RD1802G409 18K,1/4W,5%,TP52 nsp
R350
0RD1001G409 1K,1/4W,5%,TP52 nsp
R351
0RD1001G409 1K,1/4W,5%,TP52 nsp
R352
0RD0682G409 68,1/4W,5%,TP52 nsp
R353
0RD1003F409 100K,1/6W,5%,TP52 nsp
R354
0RD1003F409 100K,1/6W,5%,TP52 nsp
R355
0RD4700F409 470,1/6W,5%,TP52 nsp
R356
0RD4700F409 470,1/6W,5%,TP52 nsp
R357
0RD0102F409 10,1/6W,5%,TP52 nsp
R501
0RD1002F409 10K,1/6W,5%,TP52 nsp
R502
0RD4701F409 4.7K,1/6W,5%,TP52 nsp
R503
0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R504
0RD0221G409 2.2,1/4W,5%,TP52 nsp
R505
0RD1002F409 10K,1/6W,5%,TP52 nsp
RY301
6920V-DG1A1 RELAY DG12D1(12VDC) LY10120350
RY501
6920V-DG1A1 RELAY DG12D1(12VDC) LY10120350
SEMICONDUCTORS
D301
0DD4148B052 DIODE 1N4148 nsp
D304
D305
0DD404GE108 DIODE PBS404GU
*HE200270R
D306
0DD4148B052 DIODE 1N4148 nsp
D307
0DD4148B052 DIODE 1N4148 nsp
BD501 0DDM06GD114
DIODE KBPM06G
*HE200280R
D502
0DD4148B052 DIODE 1N4148 nsp
D503
0DD4148B052 DIODE 1N4148 nsp
IC301
0IMI508ADIP IC PIC12C508A-04/P
*HC107000R
IC302
0ISA4036TFH IC STK4036
HC10173030
IC303
0IKE78S05TP IC KIA78S05P
HC38105090
IC304
0IKE7815SIP IC KIA7815
HC3891509F
IC305
0IKE7915SIP IC KIA7915
HC3991509F
IC306
0IKE4558DIP IC KIA4558
HC10008090
IC307
0IKE4558DIP IC KIA4558
HC10008090
IC308
0IKE4558DIP IC KIA4558
HC10008090
Q301 0TR3198AHNP
TRS. 2SC3198 nsp
Q302 0TR3198AHNP
TRS. 2SC3198 nsp
Q303 0TR3198AHNP
TRS. 2SC3198 nsp
Q304
0TF315FBLNC FET,2SK315F
*HF200270R
Q305
0TR1266AFPN TRS. 2SA1266Y nsp
Q306 0TR3198AHNP
TRS. 2SC3198 nsp
Q307
0TR1266AFPN TRS. 2SA1266Y nsp
Q308 0TR3198AHNP
TRS. 2SC3198 nsp
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

15
POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI) POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI)
Q501 0TR3198AHNP TRS. 2SC3198 nsp
MISCELLANEOUS
F501 0FT2000T503 FUSE 5*20,50T 2.0A/250V VDE FS10200800
F502 /K 0FT1000T503 FUSE 5*20,50T 1.0A/250V VDE FS10100950
PM502 6602V-D02ST WAFER 2P,P=7.92,HANLIM,
LWP1143-02 nsp
PM504 /K 6602V-D02ST WAFER 2P,P=7.92,HANLIM,
LWP1143-02 nsp
PN101 6602V-A06ST WAFER 6P,P=2.0,53014-06 nsp
PN201 6602V-A07ST WAFER 7P,P=2.0,53014-07 nsp
PN301 6602V-C02ST WAFER 2P,P=3.96,HANLIM
LW1143-02 nsp
PN302 6602V-C03ST WAFER 3P,P=3.96,HANLIM
LW1143-03 nsp
PN501-1 6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02 nsp
PN503 6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02 nsp
T501 /F 6170V-J35IK POWER TRS. ANS FORMER
SUB 35*14 *TS001450R
T501 /K 6170V-Z35IK POWER TRS. ANS FORMER
SUB 35*15 AC115/230V *TS001460R
ZD301
ZD304 0DZ6210JA09 ZENER DIODE
6.2V,1W,1N4735 *HD301960R
ZD501 0DZ5110HA09 ZENER DIODE 5.1V HD30511000
JACK CIRCUIT BOARD
CAPACITORS
C101 0CC2210K405 CER. 220P,TP nsp
C102 0CC2210K405 CER. 220P,TP nsp
C103 0CE1066H605 ELECT 10/25,TP nsp
C104 0CE1066K605 ELECT 10/50,TP nsp
C105 0CQ2231N405 MYLAR 103,TP nsp
C106 0CE1066H605 ELECT 10/25,TP nsp
C107 0CE4766F605 ELECT 47/16,TP nsp
C108 0CE1066K605 ELECT 10/50,TP nsp
C109 0CE1076D605 ELECT 100/10,TP nsp
C110 0CE1066K605 ELECT 10/50,TP nsp
C111 0CE1066K605 ELECT 10/50,TP nsp
C112 0CE4766F605 ELECT 47/16,TP nsp
C113 0CE1066K605 ELECT 10/50,TP nsp
C114 0CK4730K405 CER. 0.047(C),TP nsp
C115 0CK1030K405 CER. 0.01(C),TP nsp
C116 0CK1030K405 CER. 0.01(C),TP nsp
C117 0CK1030K405 CER. 0.01(C),TP nsp
C118 0CK1030K405 CER. 0.01(C),TP nsp
RESISTORS
R101 0RD3901F409 3.9K,1/6W,5%,TP52 nsp
R102 0RD1003F409 100K,1/6W,5%,TP52 nsp
R103 0RD2201F409 2.2K,1/6W,5%,TP52 nsp
R104 0RD1004F409 2.7M,1/6W,5%,TP52 nsp
R105 0RD1003F409 100K,1/6W,5%,TP52 nsp
R106 0RD1003F409 100K,1/6W,5%,TP52 nsp
R107 0RD2201F409 2.2K,1/6W,5%,TP52 nsp
R108 0RD3901F409 3.9K,1/6W,5%,TP52 nsp
R109 0RD1004F409 2.7M,1/6W,5%,TP52 nsp
R110 0RD1003F409 100K,1/6W,5%,TP52 nsp
R111 0RD1003F409 100K,1/6W,5%,TP52 nsp
R112 0RD1003F409 100K,1/6W,5%,TP52 nsp
R113 0RD1202F409 12K,1/6W,5%,TP52 nsp
R114 0RD1202F409 12K,1/6W,5%,TP52 nsp
R115 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R116 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R117 0RD4701F409 4.7K,1/6W,5%,TP52 nsp
R118 0RD4702F409 47K,1/6W,5%,TP52 nsp
R119 0RD4702F409 47K,1/6W,5%,TP52 nsp
R120 0RD4703F409 470K,1/6W,5%,TP52 nsp
R121 0RD4702F409 47K,1/6W,5%,TP52 nsp
R122 0RD1003F409 100K,1/6W,5%,TP52 nsp
R123 0RD4700F409 470,1/6W,5%,TP52 nsp
R124 0RD1000F409 100,1/6W,5%,TP52 nsp
R125 0RD5602F409 56K,1/6W,5%,TP52 nsp
R126 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R127 0RD1001F409 1K,1/6W,5%,TP52 nsp
R128 0RD4702F409 47K,1/6W,5%,TP52 nsp
R129 0RD1003G409 100K,1/4W,5%,TP52 nsp
R130 0RD0472F409 47,1/6W,5%,TP52 nsp
R131 0RD1001F409 1K,1/6W,5%,TP52 nsp
R132 0RD1001F409 1K,1/6W,5%,TP52 nsp
SEMICONDUCTORS
D101 0DD4148B052 DIODE 1N4148 nsp
D102 0DD4148B052 DIODE 1N4148 nsp
IC101 0IKE4558DIP IC KIA4558 HC10008090
IC102 0IKE4558DIP IC KIA4558 HC10008090
Q101 0TR3198AHNP TRS. C3198 nsp
MISCELLANEOUS
CN101 6630V-WPFAJ CONNECTOR ASSY 6p nsp
JK101 6800V-SRR08 JACK JW-6018B YT01080120
JK102 6612V-RWR02 JACK RCA-2P WH/RD
JW-1609DR(4PIN) *YT002420R
SW101 6600V-S2C3P SWITCH AUTO-STANDBY
CSS-2307A *SS000670R
VR CIRCUIT BOARD
CAPACITORS
C201 0CM6841N403 MYLAR ME 684,100V nsp
C202 0CQ1841N401 MYLAR 184,TP nsp
C203 0CQ1541N401 MYLAR 154,TP nsp
C204 0CQ1541N401 MYLAR 154,TP nsp
C205 0CE1066K605 ELECT 10/50,TP nsp
C206 0CE1066K605 ELECT 10/50,TP nsp
RESISTORS
R201 0RD1000F409 100,1/6W,5%,TP52 nsp
R202 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R203 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R204 0RD1802F409 18K,1/6W,5%,TP52 nsp
R205 0RD5602F409 56K,1/6W,5%,TP52 nsp
SEMICONDUCTORS
IC201 0IKE4558DIP IC KIA4558 HC10008090
LED201 0DL3R25S04D LED SAM3270 DUAL COLOR HI10096300
LED201H 4930V-0008A HOLDER LED
SW-200,H=11mm nsp
MISCELLANEOUS
CN201 6630V-SLGAS CONNECTOR ASSY 7P nsp
VR201 6610V-AS530 VR ROTARY A5kOHM *RB000010R
VR202 6610V-DD140 VR ROTARY C10kOHMx2 *RM000430R
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

16
POS.
NO VERS.
COLOR DESCRIPTION PART NO.
(MJI)
POWER SWITCH
CIRCUIT BOARD
C601 0DC4721R6A1 CER.CAP 472/250V *DK100690R
PN601 6602V-D02ST WAFER 2P,P=7.92 nsp
SW601 6600V-A2WHS SWITCH POWER TV-3,
CLASS Ι, UL/CSA/BSI/VDE SP01010650
VOLTAGE SELECTOR
CIRCUIT BOARD
PN701-1 6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02 nsp
PN701-2 6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02 nsp
PN701-3 6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02 nsp
PN702 6602V-D02AN WAFER 2P,P=7.92
HANLIM,LAP1143-02 nsp
SW701 6600V-V6LSS SWITCH,VOLTAGE SEL
SDKGA43001,5A/250V *SS000680R
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
