March Pumps TE-7.5-MD Series User manual

Series TE-7.5-MD Pumps w/1
Phase Motor
DESCRIPTION & OPERATION: Series 7.5 are centrifugal magnetic drive pumps
. See the parts list
for a breakdown of parts. Pumps are not self-priming, lack a suction lift, and thus require a
flooded
suction. Pumps cannot be run dry
because the impeller requires the liquid being pumped for
lubrication. The direction of motor rotati
on should be clockwise when facing the inlet of the pump.
For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated
temperatures, a trimmed impeller may be necessary. For application assistance, contact March
Pump.
Model Abbreviations: K: Kynar, P: Polypropylene
ELECTRICAL: The motor is 1 phase 115/230 Volt 60 Hz, 110/220 Volt 50 Hz. The motor is
U.L.
listed and rated as continuous duty.
CAUTION IN ASSEMBLY & DISASSEMBLY: The magnetic coupling in the pump is
strong enough
to warrant caution. When servicing the pump, the attraction of the impeller magnet and drive magnet
may pull the impeller from your grasp. When assembling, hold onto the outer diameter of the impeller
vanes with both hands and gently engage t
he impeller into the magnet field. Hold the impeller firmly
and resist the magnetic attraction as you slowly put the impeller back in. The magnetic forces are
strongest between 1/3 to 2/3 of engagement and will diminish when the magnets become aligned.
Do
not allow the impeller to snap into the rear housing, doing so may result in damage. Exercise
caution in placing any of the magnets near steel, tools, or other sensitive instruments as doing so
may result in damage or personal injury. When attaching drive
magnet to motor shaft, position the
face of the drive magnet 5/32 inch above the face of the motor bracket.
SPECIFICATIONS
TE
-
7.5K
-
MD
TE
-
7.5K
-
MD with Flanges
TE
-
7.5P
-
MD
TE
-
7.5P
-
MD with Flanges
Product #
0156
-
0001
-
0200
0156
-
0001
-
0270
0156
-
0059
-
0400
0156
-
0059
-
0470
Inlet
-
Outlet
2
”
M
PT
–
1
-
1/2” MPT
2” Inlet Flange
–
1
-
1/2” Outlet Flange
2
”
M
PT
–
1
-
1/2” MPT
2” Inlet Flange
–
1
-
1/2” Outlet Flange
Max Internal Pressure
60 psi (413 kPa)
60 psi (413 kPa)
60 psi (413 kPa)
60 psi (413
kPa)
Max Liquid Temperature
190
°F (87 °C)
190
°F (87 °C)
190
°F (87 °C)
1
5
0
°F (
65
°C)
Overall Size (H x W x L)
10” (25.4 cm) x 9.53” (24.2 cm) x 19.58” (49.47 cm) 10.13” (25.7 cm) x 9.53” (24.2 cm) x 20.93” (53.2 cm) 10” (25.4 cm) x 9.53” (24.2 cm) x 19.58” (49.47 cm) 10.13” (25.7 cm) x 9.53” (24.2 cm) x 20.93” (53.2 cm)
MODEL
60 Hz
50 Hz
Packed Weight
Max Flow
Max Head
ELECTRICAL
Max Flow
Max Head
ELECTRICAL
Threaded
Flanges
gpm
lpm
ft
psi
m
Ph
V
A
Hp
kW
Rpm
gpm
lpm
ft
psi
m
Ph
V
A
Hp
kW
Rpm
lbs
kg
lbs
kg
TE-7.5K-MD 82 310 85 36.8 26 1
115
22
2 1.491 3450 70.8 268 59 25.6 18 1
100
20
1.5 1.118 2850 64.80 29.39 65.8 29.84
230
11
200
10
TE-7.5P-MD 82 310 85 36.8 26 1
115
22
2 1.491 3450 70.8 268 59 25.6 18 1
100
20
1.5 1.118 2850 64.80 29.39 65.8 29.84
230
11
200
10
All specifications & data are based on pumping water & ar
e intended as a guideline only.
Specifications may vary with different
motors.

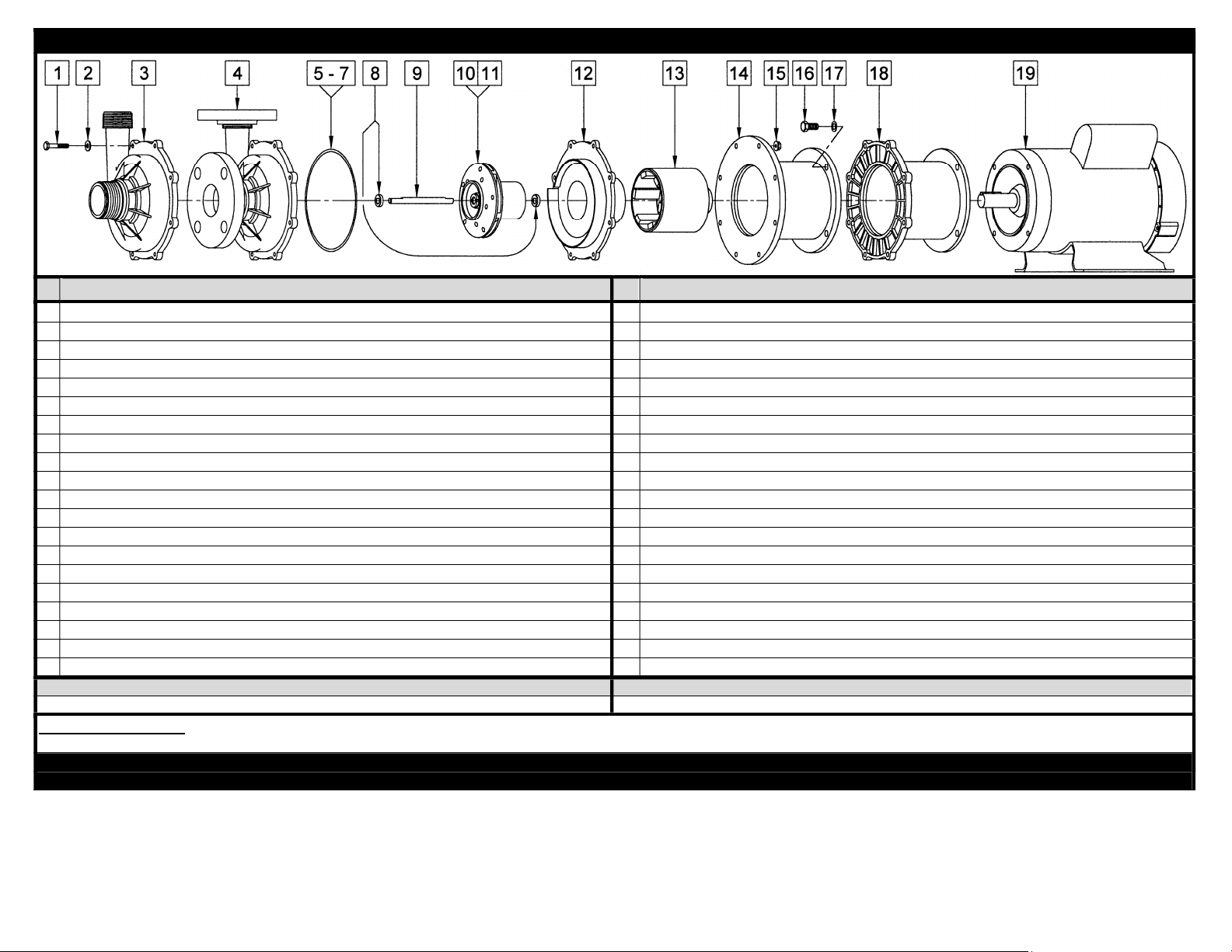

REPAIR PARTS LIST
#
TE
-
7.5K
-
MD
#
TE
-
7.5P
-
MD
1 0153-0011-1000 | 8 | 1/4”-20 x 1-1/2” Lg. Screw (Stainless Steel) 1 0153-0011-1000 | 8 | 1/4”-20 x 1-1/2” Lg. Screw (Stainless Steel)
2 0157-0023-1000 | 8 | 1/4” ID x 5/8” OD Washer (Stainless Steel) 2 0157-0023-1000 | 8 | 1/4” ID x 5/8” OD Washer (Stainless Steel)
3 0156-0001-1000 | 1 | Front Housing (Natural Kynar) 3 0156-0060-1000 | 1 | Front Housing (Polypropylene)
4 0156-0029-0100 | 1 | Front Housing with Flanges (Natural Kynar) 4 0156-0068-0100 | 1 | Front Housing with Flanges (Polypropylene)
5 0156-0010-1000 | 1 | 0.157” CS x 6.457” ID “O” Ring (Viton) 5 0156-0010-1000 | 1 | 0.157” CS x 6.457” ID “O” Ring (Viton)
6 0156-0023-1000 | 1 | 0.157” CS x 6.457” ID “O” Ring (Viton/Teflon) – Option
7 0156-0034-1000 | 1 | 0.157” CS x 6.457” ID “O” Ring (EPDM) – Option 7 0156-0034-1000 | 1 | 0.157” CS x 6.457” ID “O” Ring (EPDM) – Option
8 0156-0016-1000 | 2 | Front & Rear Thrust Washer (Ceramic) 8 0156-0016-1000 | 2 | Front & Rear Thrust Washer (Ceramic)
9 0156-0007-1000 | 1 | 4.500” Lg. Shaft (Ceramic) 9 0156-0007-1000 | 1 | 4.500” Lg. Shaft (Ceramic)
10 0156-0004-0200 | 1 | Impeller w/Carbon Bushing (Natural Kynar) 10 0156-0064-0200 | 1 | Impeller w/Carbon Bushing (Polypropylene)
11 0156-0004-0300 | 1 | Impeller w/Mica Teflon Bushings (Natural Kynar) – Option 11 0156-0064-0300 | 1 | Impeller w/Mica Teflon Bushings (Polypropylene) – Option
12 0156-0002-1000 | 1 | Rear Housing (Natural Kynar) 12 0156-0061-1000 | 1 | Rear Housing (Polypropylene)
13 0156-0009-0100 | 1 | Drive Magnet 13 0156-0009-0100 | 1 | Drive Magnet
14 0156-0073-0010 | 1 | Motor Bracket (Aluminum) 14 0156-0073-0010 | 1 | Motor Bracket (Aluminum)
15 0156-0053-1000 | 8 | 1/4”-20 Hex Nut (Stainless Steel) 15 0156-0053-1000 | 8 | 1/4”-20 Hex Nut (Stainless Steel)
16 0155-0017-1000 | 4 | 3/8”-16 x 1” Lg. Screw (Stainless Steel) 16 0155-0017-1000 | 4 | 3/8”-16 x 1 Lg. Screw (Stainless Steel)
17 0155-0019-1000 | 4 | 3/8” ID x 5/8” OD Washer (Stainless Steel) 17 0155-0019-1000 | 4 | 3/8” ID x 5/8” OD Washer (Stainless Steel)
18 0156-0041-1000 | 1 | Motor Bracket (Plastic) – Option 18 0156-0041-1000 | 1 | Motor Bracket (Plastic) – Option
19 0156-0022-1000 | 1 | 1 Phase Motor, TEFC, 2 HP, 115/230 V, 50/60 Hz 19 0156-0022-1000 | 1 | 1 Phase Motor, TEFC, 2 HP, 115/230 V, 50/60 Hz
W 0156-0031-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 5, 8, 9, 10, 12) W 0156-0066-0100 | 1 | Wet End Kit (Items: 1, 2, 3, 5, 8, 9, 10, 12)
Materials in Contact With Solution:
Materials in Contact With Solution:
Natural Kynar (PVDF), Ceramic, Viton, Carbon Polypropylene, Ceramic, Viton, Carbon
LIMITED WARRANTY: March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture
pumping water. For the complete
warranty and to register online go to www.marchpump.com/warranty-registration
Explosion proof and special voltage motors are available upon special order.
NOTE: Contact Factory for other materials and/or parts not listed. 0156-0015-1300
