Martin ExteriorWash 200 Series User manual

© 2015-2017 Martin Professional™ ApS. Information subject to change without notice. Martin Professional™ and all
affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or
any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.
Martin™, Harman™ and all other trademarks in this document pertaining to services or products by Martin
Professional™ or its affiliates and subsidiaries are registered as the property of Harman International Industries.
P/N 5068004, Rev. F

Table of contents
Safety information.................................................................................................... 5
Introduction.............................................................................................................. 9
Fixture overview................................................................................................. 9
Before using the product for the first time........................................................... 9
Physical installation................................................................................................ 10
Fixture location................................................................................................. 10
Mounting the fixture.......................................................................................... 10
Adjusting tilt...................................................................................................... 11
Installing a diffuser ........................................................................................... 11
Installing a snoot .............................................................................................. 12
AC power............................................................................................................... 13
Connecting to power ........................................................................................ 13
Control data link..................................................................................................... 15
Connecting the data link................................................................................... 15
Setup...................................................................................................................... 16
Accessing and navigating the control menus ................................................... 16
DMX settings.................................................................................................... 16
Programming a standalone show..................................................................... 17
Manual mode.................................................................................................... 17
Display setting.................................................................................................. 17
Automatic test................................................................................................... 18
Fixture status.................................................................................................... 18
Fixture config.................................................................................................... 18
Setup via RDM ................................................................................................. 20
Maintenance .......................................................................................................... 21
Cleaning........................................................................................................... 21
Pressure relief valve......................................................................................... 21
DMX protocol......................................................................................................... 22
Exterior Wash 200and Exterior Wash 210....................................................... 22
Exterior Wash 220............................................................................................ 22
Control menus........................................................................................................ 23
Troubleshooting ..................................................................................................... 25
Specifications......................................................................................................... 26

Exterior WashTM 200 Series User Manual 5
Safety information
WARNING!
Read the safety precautions in this manual before installing, operating or servicing
this product.
The following symbols are used to identify important safety information on the product and in this
manual:
Warning! Safety hazard. Risk
of severe injury or death.
Warning! Hot surface. Risk of
burns.
Warning! See user manual for
important safety information.
Warning! Risk of eye injury.
Wear protective eyewear.
Warning! Hazardous voltage.
Risk of lethal or severe
electric shock.
Warning! Do not look into
light output.
Warning! Fire hazard.
Warning! Risk Group 3 product according to EN 62471. Do not look directly into the beam.
Do not view the light output with optical instruments or any device that may concentrate the
beam.
This lighting fixture is for professional use only and must be installed by a qualified
technician. It is not for household use. It presents risks of severe injury or death due to fire
hazards, electric shock and falls. It produces a powerful, concentrated beam of light that
can create a fire hazard or a risk of eye injury if the safety precautions below are not
followed.
Install, operate and service Martin™ products only as directed in their user manuals, or
you may create a safety hazard or cause damage that is not covered by product
warranties. Follow the safety precautions listed below and observe all warnings in this
manual and printed on the product. Keep this user manual for future use.
For the latest user documentation and other information about this and all Martin™
products, please visit the Martin website at http://www.martin.com
If you have any questions about how to install, operate or service the fixture safely, please
contact your Martin™ distributor (see www.martin.com/distributors for details) or call the
Martin™ 24-hour service hotline on [phone], or in the USA on 1-888-tech-180.
Respect all locally applicable laws, codes and regulations when installing, operating or
servicing the fixture.
Protection from electric shock
Ensure that the fixture is electrically connected to ground (earth).
Disconnect the fixture from AC power when not in use.
Supply the fixture with AC power only at the voltages specified in this user manual and on
the product’s serial number label.
Do not open the fixture or remove any cover. Refer any service operation not described in
this manual to an authorized Martin Service partner.

6Exterior WashTM 200 Series User Manual
Shut down power to the entire installation at the main power distribution board and lock out
power before carrying out any installation or maintenance work.
Use only a source of AC power that complies with local building and electrical codes and
has both overload and ground-fault (earth-fault) protection.
Isolate the fixture from power immediately if any seal, cover, cable, or other component is
damaged, defective, deformed or showing signs of overheating. Do not reapply power until
repairs have been completed
Before using the fixture, check that all power distribution equipment and cables are in
perfect condition, are rated for the current requirements of all connected devices, are
protected to IP67 or higher and are of suitable type for the location (including water,
pollution, temperature and UV resistance).
Do not immerse the fixture in water or any other fluid, or install it in a location where
flooding may occur.
Protection from burns and fire
Do not operate the fixture if the ambient temperature (Ta) exceeds 45° C (113° F).
The surface of the product can reach up to 55° C (131° F) during operation. Avoid contact
by persons and materials. Allow the fixture to cool for at least 10 minutes before handling.
Keep flammable materials well away from the fixture. Keep all combustible materials (e.g.
fabric, wood, paper) at least 10 cm (4 in.) away from the fixture.
Ensure that there is free and unobstructed airflow around the fixture.
Do not illuminate surfaces within 20 cm (8 in.) of the fixture.
Do not attempt to bypass thermostatic switches or fuses.
Do not modify the fixture in any way not described in this manual or install other than
genuine Martin™ parts. Do not stick filters, masks or other materials onto any lens or other
optical component. Use only accessories approved by Martin™ to modify the light beam.
Protection from eye injury
The Exterior Wash 200, 210 and 220 are classed Risk Group 3 according to EN 62471.
Possibly hazardous radiation emitted from this product. Do not look at operating lamp. Eye
injury may result.
To minimize the risk of eye irritation or injury, disconnect the fixture from power at all times
when the fixture is not in use, and provide well-lit conditions to reduce the pupil diameter of
anyone working on or near the fixture.
Do not look at the light output with magnifiers, telescopes, binoculars or similar optical
instruments that may concentrate the output.
Ensure that persons are not looking directly into the fixture when it lights up suddenly. This
can happen when power is applied, when the fixture receives a DMX signal, or when
certain control menu items are selected.
Wear protective glasses and other PPE (personal protective equipment) when working on
or near the fixture.
The risk group distances given below apply to the light output from one fixture only. If
fixtures can be operated in combination, light intensity can increase and you should consult
a lighting professional for safety recommendations.
Exterior Wash 200
The Exterior Wash 200 falls into the following risk groups according to EN 62471 at the
distances indicated:

Exterior WashTM 200 Series User Manual 7
At a distance of less than 2.7 m (8.9 ft.) from the fixture, the light output can potentially
cause eye or skin injury before an exposed person’s natural aversion responses (blink
reflex and reaction to skin discomfort) can protect them. At distances greater than 2.7 m
(8.9 ft.), potential eye and skin injury hazards from the light output are normally prevented
by natural aversion reflexes.
Position the Exterior Wash 200 so that persons cannot be exposed to the fixture’s light
output at less than 2.7 m (8.9 ft.) from the fixture and so that prolonged staring into the light
output at less than 12 m (39.4 ft.) from the fixture is not expected.
Exterior Wash 210
The Exterior Wash 210 falls into the following risk groups according to EN 62471 at the
distances indicated:
DO NOT
EXPOSE
RISK GROUP
3
RISK GROUP
2
RISK GROUP
1
0.2 m
(8 ins.)
2.2 m
(7.3 ft.)
4.6 m
(15.1 ft.)
At a distance of less than 2.2 m (7.3 ft.) from the fixture, the light output can potentially
cause eye or skin injury before an exposed person’s natural aversion responses (blink
reflex and reaction to skin discomfort) can protect them. At distances greater than 2.2 m
(7.3 ft.), potential eye and skin injury hazards from the light output are normally prevented
by natural aversion reflexes.
Position the Exterior Wash 210 so that persons cannot be exposed to the fixture’s light
output at less than 2.2 m (7.3 ft.) from the fixture and so that prolonged staring into the light
output at less than 4.6 m (15.1 ft.) from the fixture is not expected.
Exterior Wash 220
The Exterior Wash 220 falls into the following risk groups according to EN 62471 at the
distances indicated:
DO NOT
EXPOSE
RISK GROUP
3
RISK GROUP
2
RISK GROUP
1
0.2 m
(8 ins.)
2 m
(6.6 ft.)
5.5 m
(18 ft.)
At a distance of less than 2 m (6.6 ft.) from the fixture, the light output can potentially cause
eye or skin injury before an exposed person’s natural aversion responses (blink reflex and
reaction to skin discomfort) can protect them. At distances greater than 2 m (6.6 ft.),
potential eye and skin injury hazards from the light output are normally prevented by
natural aversion reflexes.
Position the Exterior Wash 220 so that persons cannot be exposed to the fixture’s light
DO NOT
EXPOSE
RISK GROUP
3
RISK GROUP
2
RISK GROUP
1
0.2 m
(8 ins.)
2.7 m
(8.9 ft.)
12 m
(39.4 ft.)

8Exterior WashTM 200 Series User Manual
output at less than 2 m (6.6 ft.) from the fixture and so that prolonged staring into the light
output at less than 5.5 m (18 ft.) from the fixture is not expected.
Protection from injury
Fasten the fixture securely to a fixed surface or structure when in use. The fixture is not
portable when installed.
Ensure that any supporting structure and/or hardware used can hold at least 10 times the
weight of all the devices they support.
If suspending from a rigging structure, fasten the fixture to a rigging clamp. Do not use
safety cables as the primary means of support. If the fixture is installed in a location where
it may cause injury or damage if it falls, provide a secondary attachment such as a safety
cable inserted through the secondary attachment point that will hold the fixture if a primary
attachment fails. The secondary attachment must be approved by an official body such as
TÜV as a safety attachment for the weight that it secures, must comply with EN 60598-2-
17 Section 17.6.6 and must be capable of bearing a static suspended load that is ten times
the weight of the fixture and all installed accessories.
Verify that any optical accessory such as a snoot or diffuser lens is securely fastened.
Block access below the work area and work from a stable platform whenever installing,
setting, adjusting, or cleaning the fixture.
Do not operate the fixture with missing or damaged covers, shields or any optical
component.
In the event of an operating problem, stop using the fixture immediately and disconnect it
from power. Do not attempt to use a fixture that is obviously damaged.

Exterior WashTM 200 Series User Manual 9
Introduction
The Exterior Wash™200 Series is a powerful, compact and energy-efficient line of LED lighting fixtures
designed to illuminate mid-sized structures and building facades. All models have built-in displays for
ease-of-use, a wide selection of beam angles and sealed construction suited to permanent outdoor use. A
discreet, optional snoot integrates seamlessly with the fixtures’ sleek design to put the light right where
you want it.
This user manual covers all Exterior Wash™200 Series models: the Exterior Wash 200 with individual red,
green, blue, and white LEDs optimized for long-throw applications, the Exterior Wash 210 with premixed
quad-color LEDs optimized for superior color mixing, and the Exterior Wash 220 with mixable warm-white
and cold-white LEDs that can achieve white tones ranging in color temperature from 2800 K to 6500 K.
Each fixture is supplied with this user manual and an optional control panel cover plate to deter
unauthorized access. They are prepared for hard wiring with 1.8 m (5.9 ft.) cables for power and data
connection.
Fixture overview
Number
Description
1
Front ring with recessed channel for optional diffuser lenses
2
Tilt lock (one on each side)
3
Control panel
4
Mounting bracket
5
Secondary attachment point
6
DMX combined input/output cable
7
AC power cable
8
Pressure relief valve
Parts identification
Before using the product for the first time
1. Read ‘Safety information’ on page 5 before installing, operating or servicing the fixture.
2. Unpack and ensure that there is no transportation damage before using the fixture. Do not attempt to
operate a damaged fixture.
3. If testing and/or setting up the fixture before it is hard-wired to a mains supply, install a local power
plug (not supplied) to the end of the supplied power cable.
4. Before operating, ensure that the voltage and frequency of the power supply match the power
requirements of the fixture.
5. Check the support pages on the Martin Professional website at www.martin.com for the most recent
user documentation and technical information about the fixture. Martin™ user manual revisions are
identified by the revision letter at the bottom of the inside cover.

10 Exterior WashTM 200 Series User Manual
Physical installation
Warning! Read ‘Safety information’ on page 5 before installing the fixture.
Warning! The safety and suitability of lifting equipment, installation location, anchoring
method, mounting hardware and electrical installation are the responsibility of the installer.
All local safety regulations and legal requirements must be observed when installing and
connecting the Exterior Wash™200 Series. Installation must be carried out by qualified
professionals only.
Contact your Martin supplier for assistance if you have any questions about how to install this product
safely.
Fixture location
Exterior Wash™200 Series fixtures are intended for outdoor use. With an IP rating of 66, they are dust
tight and able to withstand powerful water jets, but they are not submersible.
Observe the following limitations in selecting a location:
Do not immerse the fixture in water or any other fluid.
Do not install fixtures in a location where flooding may occur.
Donotallowwaterto collect on or near the pressure relief valve. Do not install a fixture with thevalve
membrane horizontal so that water can pool on it.
Ensure sufficient drainage to cope with the heaviest rainfall. Make sure that water can drain away from the
installation area at least as fast as it can enter it.
Fixtures require free and unobstructed airflow around them to ensure adequate cooling: do not bury or
locate in an unventilated space. Allow at least 0.1 m (4 in.) free space around the fixture.
Install the fixture at least 0.2 m (8 in.) away from the surface to be illuminated and at least 0.1 m (4 in.)
away from any combustible materials (wood, paper, etc.). Keep it well away from any flammable materials.
The fixture can become hot. Restrict public access or locate the fixture so that it cannot accidentally be
touched.
Mounting the fixture
Warning! All fasteners used to mount Exterior Wash™200 Series
fixtures must be corrosion resistant and strong enough to mount
the fixture safely.
A washer must be installed directly under the head of each fastener
when anchoring the yoke base to the installation surface.
The fixture and mounting bracket are manufactured in corrosion-resistant anodized aluminum. Avoid
mounting the fixture in direct contact with other types of metal, as this can cause galvanic corrosion. When
fastening to a dissimilar metal surface:
Use an electrically insulating material (such as rubber or plastic) or coating between the mounting bracket
and the other metal.
Use a non-conductive coating such as Delta Seal on fasteners (screws, bolts, washers, etc.) where they
come into contact with the mounting bracket.
The fixture’s mounting yoke base must be securely anchored to a wall, pedestal, structural beam or other
suitable support. The yoke allows the fixture to be manually panned and tilted for beam aiming adjustment.
The fixture and base can be mounted at any angle. The mounting surface must be hard, fixed and flat.
For temporary installations, the fixture is also suitable for truss hanging with a rigging clamp securely
fastened to the yoke base. When using a rigging clamp, secure the fixture with a safety cable (or other
secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the
fixture if a primary attachment fails. Loop the safety cable through the attachment point on the back of the
fixture. See ‘Fixture overview’ on page 9 for location.
Fasten the fixture securely with suitable mechanical fasteners. Do not stand it on a surface or leave it
where it can be moved or fall over. Ensure that the surface and all fasteners used can support at least 10
times the weight of all fixtures and equipment they will support.
Anchor the mounting yoke bracket to a flat surface. The number and type of fasteners used will depend on
the installation, but use at least three high-strength corrosion-resistant fasteners (recommended minimum

Exterior WashTM 200 Series User Manual 11
properties: stainless steel A4-70 grade according to ISO 3506 or steel grade 8.8 according to ISO 898-1).
All nuts used must be self-locking. Washers must be installed between the head of each fastener and the
yoke base.
Referring to the illustration below, use a 12 mm (1/2 inch) shaft diameter bolt in the center hole A. Then
use either two additional 12 mm bolts passing through holes B or two bolts with 8 mm (5/16 inch) shaft
diameter passing through slots C to anchor the fixture. Installing bolts through slots C will give
approximately 90° of pan adjustment. If additional bolts are required to mount the fixture safely, install
bolts through slots C or holes B.
Install washers under all nuts and bolt heads.

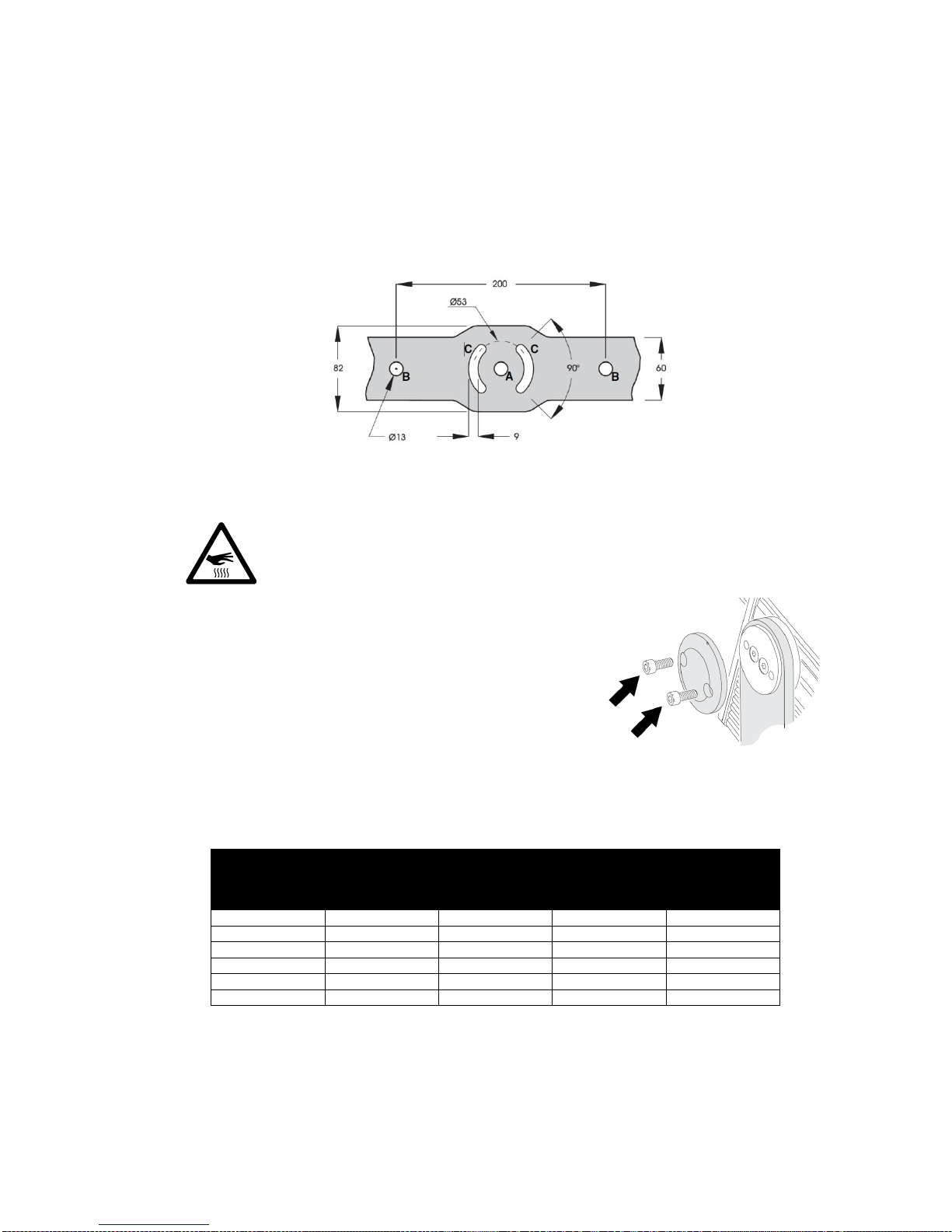

Mounting bracket details
Adjusting tilt
Warning! The fixture can become hot. Wear heat-resistant gloves if you adjust the
aim of the fixture when it is (or has recently been) powered on.
Tilt adjustment can be carried out with the fixture powered on as
follows.
1. Put on heat-resistant gloves.
2. Loosen, but do not remove, the tilt lock screws (arrowed) on
both sides.
3. Tilt the fixture to the desired angle and retighten the screws.
Installing a diffuser
Optional diffuser lenses are available to modify the beam width; see table below for details. The label
identifying the nominal diffuser beam angle is partially hidden under the silicone gasket. The diffuser is
held in place either by the included trim ring or, if installed, by the snoot.
Diffuser kit
Part number
Nominal
half-peak beam
angle
Half-peak
beam angle,
210 model
Half-peak beam
angle, 200 &
220 models
None
-
-
10°
7°
Narrow
91610154
10°
14°
12°
Medium
91610153
20°
22°
21°
Wide
91610152
40°
41°
40°
Very Wide
91610151
60°
61°
60°
Asymmetric
91610150
10° x 60°
14° x 61°
12° x 60°
Exterior Wash™200 Series Diffuser Kits

12 Exterior WashTM 200 Series User Manual
To install an optional diffuser lens:
1. Shut down power to the fixture.
2. Position the diffuser lens over the front with the labelled, smooth side facing out.
3. With the cut-out channels in the silicone gasket facing out, align the channels in the gasket with the
drain channels at the bottom of the front ring.
4. Press the diffuser lens gasket firmly into the recess in the front ring.
5. Either place a trim ring over the diffuser and fasten with provided hardware, or install a snoot as
described below.

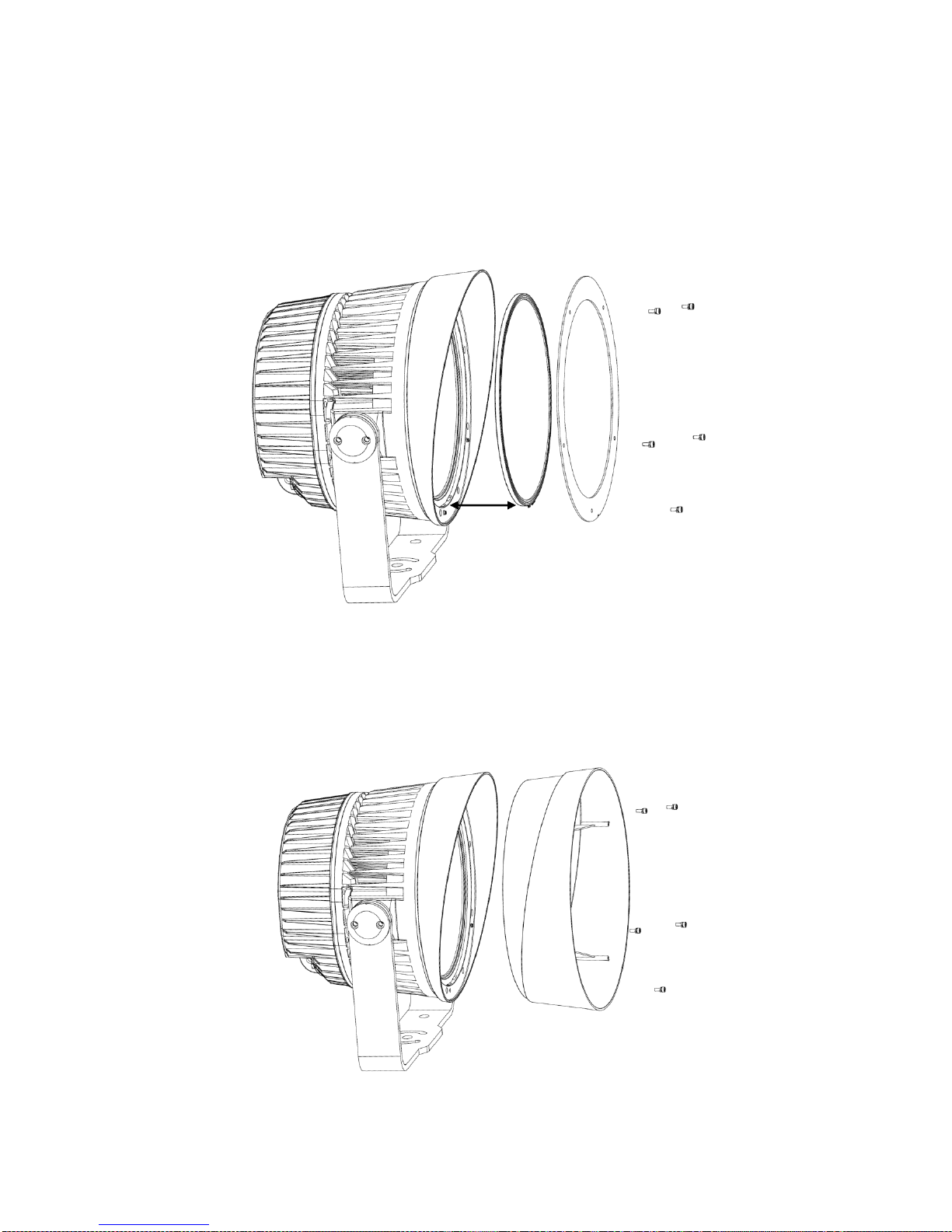

Align channels in gasket and front ring
Installing a snoot
The optional snoot for Exterior Wash™200 Series fixtures may be installed with or without a diffuser lens
(see above). To install, shut down power to the fixture, then align the snoot to fit over the front of the
fixture and fasten securely with the included hardware.
Snoot installation

Exterior WashTM 200 Series User Manual 13
AC power
Warning! Read “Safety Information” on page 5 before attempting to install an
Exterior Wash™200 Series fixture. Lock out power to the entire installation before
working on cables and connections.
Electrical installation must be carried out by qualified professionals only.
For protection from dangerous electric shock, the fixture must be grounded (earthed). The
AC power distribution system must be fitted with current overload and ground-fault (earth-
fault) circuit breakers as well as a means to isolate fixtures from power and lock out power
during service.
Make sure that cables from fixtures open into dry areas (e.g. junction boxes in dry locations). If there is a
break or cut at any point in a cable (for example at a connection point), and if this is exposed to water,
moisture can be drawn up the inside of the cable due to the vacuum effect of temperature fluctuations
during operation. Ensure that the fixture is protected from the entry of water via the power cable by using
IP66-rated connectors or junction boxes, or by protecting connectors with weatherproof housings.
The Exterior Wash™200 Series is supplied in EU and US models. Both models accept AC power at
100-240 V nominal or 277 V nominal at 50 or 60 Hz. Do not connect to power at any other voltage or
frequency.
You can connect the Exterior Wash™200 Series to a single-phase (live, neutral, ground/earth) or to one
phase of a grounded/earthed three-phase four-wire (three phases, neutral, ground/earth) power
distribution system. Do not try to connect to a three-phase three-wire (three phases, ground/earth) system.
There is no power on/off switch. Power is applied to an Exterior Wash™200 Series fixture as soon as it is
connected to power. Provide a means to disconnect or shut down power to fixtures that is easily
accessible and is located close to the fixtures.
Do not use an external dimming system to supply power to the fixture, as this may cause damage to the
fixture that is not covered by the product warranty.
Connecting to power
The fixture is supplied with a power cable installed ready for connection. See illustration below:

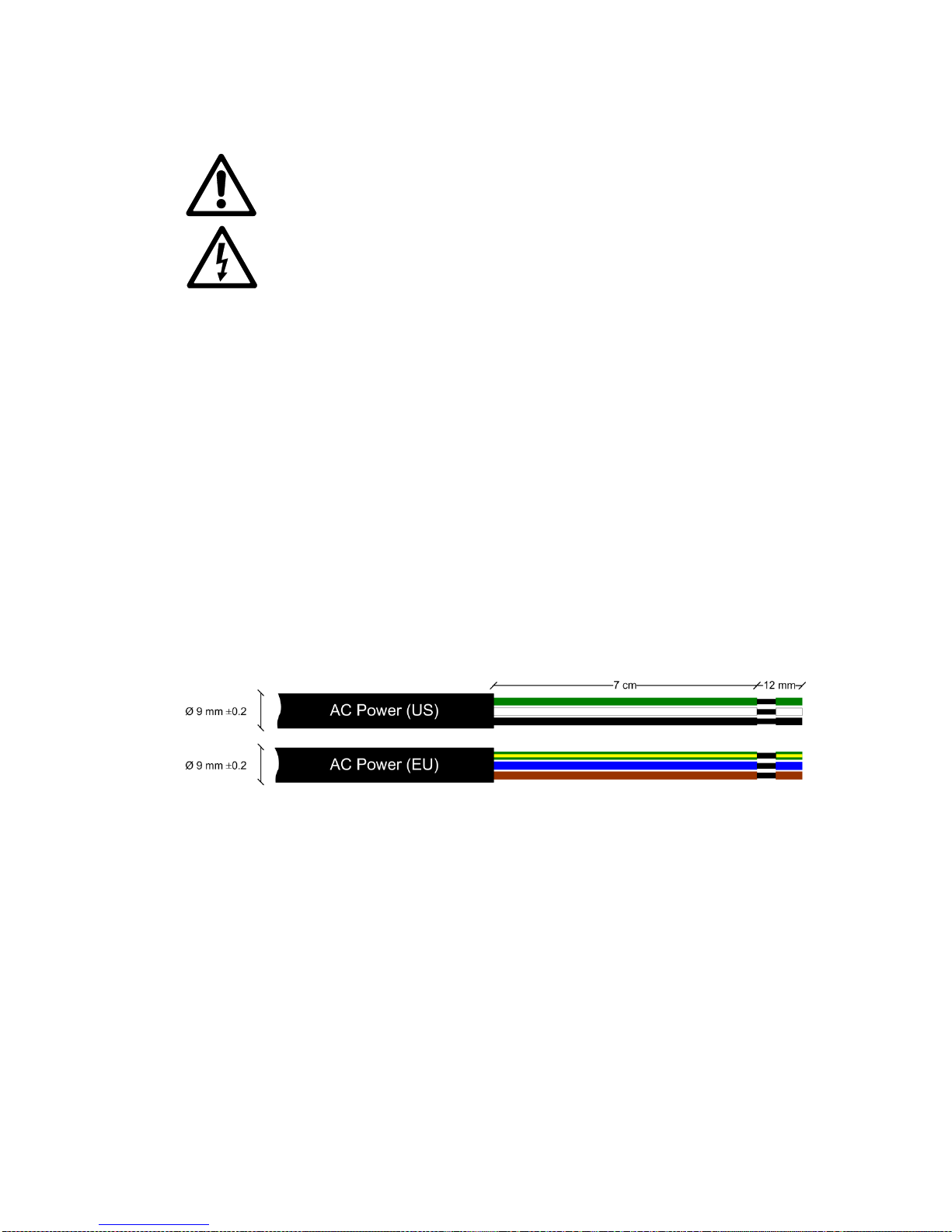

AC power cable details
To connect to a single-phase system or to one phase of a three-phase, four-wire system:
1. Lock out power to the installation.
2. Connect the conductors in the power cable to the distribution circuit as follows:
a) Connect the green wire (US models) or yellow/green wire (EU models) to ground (earth).
b) Connect the white wire (US models) or blue wire (EU models) to neutral.
c) Connect the black wire (US models) or brown wire (EU models) to live (one phase).
3. Check that all installation work is completed and carry out appropriate tests and safety checks before
applying power.

14 Exterior WashTM 200 Series User Manual
If you install a power plug on the power cable for temporary use, install a grounding type (earthed) plug
with integral cable grip that is rated minimum 277 V, 6 A. Follow the plug manufacturer’s instructions and
connect the wires in the power cable as shown in this table:
Live or L
Neutral or N
Earth, Ground or
US system
Black
White
Green
EU system
Brown
Blue
Yellow/green
Power plug connections

Exterior WashTM 200 Series User Manual 15
Control data link
Warning! Make sure that data connections are totally protected from water, or
moisture may be drawn up the inside of the cable by the vacuum created by normal
heating and cooling.
Connecting the data link
The fixture has a 1.8 m (5.9 ft.) shielded cable with 2 pairs of wire for data connection. The pair of wires
marked with a short length of red insulation is for data input. The other pair, marked with a short length of
black insulation, is the output to the next device in the daisy chain.
DMX cable details
Data cabling may be connected directly in weatherproof junction boxes or fitted with weatherproof XLR
connectors. Protect connectors in a weatherproof housing if they are not totally weatherproof.
Connect the cable as shown in the table below. Do not connect the shield conductor to ground (earth) or
allow it to come into contact with a connector shell, as this may cause interference.
Wires
Input pair (red tube)
Output pair (black tube)
Shield
Color
white
green
white
brown
black
Signal
DMX in +
DMX in -
DMX out +
DMX out -
common
Male XLR pin
pin 3
pin 2
-
-
pin 1
Female XLR pin
-
-
pin 3
pin 2
pin 1
Data connections
The following considerations must be taken into account when laying out the data network:
512 DMX channels are available in a single DMX universe. If the total combined channel requirements of
all connected fixtures exceeds 512, one or more additional DMX universes will be required.
One may reliably connect up to 32 fixtures in a single daisy chain.
Use RS-485 data cable designed for exterior use. RS-485 cable has lowcapacitance and a characteristic
impedance of 85 to 150 Ohms. It is electrically shielded and has at least 1 twisted pair of conductors. The
minimum recommended wire size is 0.25 mm2 (24 AWG) for runs up to 200 meters (1000 ft.) and 0.32
mm2 (22 AWG) for runs up 500 meters (1640 ft).
Branches may be added to the link using an opto-isolated splitter. To preserve RDM functionality, use an
RDM compatible amplifier-splitter such as the Martin 5.5 Splitter™. Each branch may itself connect up to
32 fixtures.
An RDM amplifier may also be used to extend a network beyond 500 meters (1640 ft.) or to connect up to
32 additional fixtures to the daisy chain.
The data link and each connected branch must be terminated at the end by placing a 120 ohm resistor
(available from Martin, P/N 04150308) across the data output hot (+) and data output cold (-) conductors of
the last fixture on the chain.
Long parallel runs of AC power and control data cables may cause interference on the data link and must
be avoided. Even if not required by law, use separate conduits for power and data cables.
The combined data input/output cable does not support the second DMX data pair. Do not place devices
that use the second DMX data pair(connected to XLR pins 4 & 5) on the same daisy chain as Exterior
Wash™fixtures.

16 Exterior WashTM 200 Series User Manual
Setup
Warning! Read ‘Safety information’ on page 5 before operating the fixture.
This section explains the fixture settings and utilities that the user has access to via the
control panel. Settings are retained when the fixture is powered off. Afullmap of the control
menu including default settings can be found on page 22. Some settings and functions are
also available by RDM.
Accessing and navigating the control menus
The control panel is located on the back of the fixture. The display can be hidden to deter unauthorized
access by the display cover plate, included. Use of the cover plate is optional and not required for weather
protection.
To access the control menus, press and hold the MENU button. If prompted for a password, use the arrow
buttons to scroll to the 3-digit password and press ENTER when the password is displayed. For more
information about password protection of the control menu, see page 19.
Navigate the menu structure using the ENTER, DOWN ARROW (▼) and UP ARROW (▲) buttons. Press
ENTER to select and save the desired menu option. To return to the previous level in the menu structure
without making a change, press MENU.
To exit the menus, press and hold MENU.
DMX settings
Channel mode
TheExteriorWash200andExteriorWash210canbesettouseeitherfourorfiveDMXchannels.Thefour-channel mode
isthedefault. Itprovidesindividualcontrolofthered,green,blue,andwhitelevels.Thefive-channelmodeaddsdimming
controlthatallowsyoutovarytheintensitywithouthavingtochangeindividualcolorlevels.
ThechannelmodemaybesetfromthecontrolpanelorbyRDM.To set the Exterior Wash 200 or Exterior Wash
210 channel mode from the control panel:
1. Press and hold the MENU button to access the control menu. If prompted for a password, press the
arrow buttons to scroll to the 3-digit password. Press ENTER when the password is displayed.
2. Use the UP and DOWN buttons to select FIXTURE CONFIG from the menu.Press ENTER.
3. Select CHANNEL MODE and press ENTER.
4. The fixture’s channel mode setting is displayed.To change the mode setting, press the UP or DOWN
button.
5. Press ENTER to store the channel mode setting.
6. Press MENU to exit.
DMX address
TheExteriorWash200andExteriorWash210usefourorfiveDMXchannels,dependingonchannelmode.TheExterior
Wash220 usesthreeDMXchannels.The DMX address, also known as the start channel, is the first channel
used to receive instructions from a DMX controller. If a fixture that requires 4 DMX channels has its DMX
address set to 1, for example, then it uses channels 1, 2, 3 and 4. The next fixture can have its DMX
address set to 5, the next to 9 and so on until the 512 channels in one DMX universe are allocated.
For independent control, each fixture must be assigned its own control channels. Two fixtures of the same
type (and set to the same channel mode) may share the same address and control channels if identical
behavior is desired.
TheDMXaddressmaybesetfromthecontrolpanelorbyRDM.To set the fixture’s DMX address from the control
panel:
1. Press and hold the MENU button to access the control menu. If prompted for a password, press the
arrow buttons to scroll to the 3-digit password. Press ENTER when the password is displayed.
2. Use the UP and DOWN buttons to select DMX ADDRESS from the menu.Press ENTER.
3. The fixture’s DMX address setting is displayed. Press the UP or DOWN button to scroll to the desired
DMX address.
4. Press ENTER to store the DMX address setting.
5. Press MENU to exit.

Exterior WashTM 200 Series User Manual 17
Programming a standalone show
You can program a standalone routine, or show, to run without a controller or if DMX control is suddenly
lost. The show can have up to 20 separate effects, or scenes, that display for up to 10 minutes each.
Scenes can be programmed to fade from one scene to the next over a period of 0 to 120 seconds.
Note: To enable standalone operation, the DMX STATE setting in the FIXTURE CONFIG menu must be
set to SHOW MODE. See page 19. The show will run only when there is no DMX input.
To program a standalone show:
1. Access the control menu and select PROGRAM SHOW. Press ENTER.
2. Set the number of scenes. Select SET SCENETOTALS and press ENTER.Use the arrow buttons to
select from 1 to 20 scenes. Press ENTER.
3. To modify scene colors (on 200 and 210 models) or color temperatures (on the 220 model):
a) Select EDIT SCENE COLOR and press ENTER.
b) Scroll to a scene to modify and press ENTER.
c) Select the attribute to change (red / green / blue / white, or warm white / cold white) and press
ENTER.
d) Press the UP arrow to increase the attribute or the DOWN arrow to decrease it.When satisfied
with the amount, press ENTER.
e) Repeat steps c) and d) for each attribute.
f) Press MENU to select the next scene to modify.
g) When done editing scenes, press MENU again to return to the PROGRAM SHOW menu.
4. To modify scene transitions, select FADE TIME and press ENTER. Press UP or DOWN to select a
fade time from 0 to 120 seconds. Press ENTER.
5. To modify the length of time each scene is displayed before fading to the next scene, select HOLD
TIME and press ENTER.Press UP or DOWN to select a duration from 0 to 600 seconds. Press
ENTER.
Manual mode
Fixture output can be set manually from the control panel as follows:
1. Access the control menu and select MANUAL MODE.Press ENTER.
2. Select an attribute to modify and press ENTER.
3. Adjust the attribute level from 0 to 255 with the arrow buttons.Press ENTER.
4. Repeat for each attribute.
5. To exit manual mode, press MENU.
Display setting
The DISPLAY SETTING menu provides options to invert, dim, and turn off the control panel display.
Display inverse
For easier reading when the fixture is mounted upside down, flip the display as follows:
1. Access the control menu and select DISPLAY SETTINGS. Press ENTER.
2. Select DISPLAY INVERSE and press ENTER.
3. SelectYES to invert the display or NO for normal reading.
4. Press ENTER.
Display auto turn off
The display can be set to stay on or to turn off 1 minute after the last key press. To set display behavior:
1. Access the control menu and select DISPLAY SETTINGS.Press ENTER.
2. Select DISPLAY AUTOTURN OFF and press ENTER.
3. Select NO to keep the display illuminated, orYES to have the display turn off automatically after 1
minute.
4. Press ENTER.

18 Exterior WashTM 200 Series User Manual
Automatic test
The test function allows you to verify LED performance quickly from the control panel. All LEDS are first
set to 100 percent. LEDs are then tested together by color (200 & 210 models), or color temperature (220
model). Finally, each LED is tested individually.
To run the automatic test from the control panel, access the control menu, select AUTOMATIC TEST and
press ENTER. Press MENU to end the test.
Fixture status
LED temperature, hours, and software version are available from the FIXTURE STATUS menu or RDM.
Fixture config
The FIXTURE CONFIG menu contains additional settings for customizing behavior.
Master/slave
Fixtures operating in stand-alone mode can be linked in a chain for master/slave operation. In this mode,
one fixture, the master, controls the other fixtures, the slaves, which fully mimic the master.
Exterior Wash fixtures that use the same color LEDs as their light source can be linked together in
master/slave operation. In other words, Exterior Wash 100, 200 and 300 fixtures can be linked together,
110, 210 and 310 fixtures can be linked together, and 120, 220 and 320 can be linked together.
Set all the fixtures except one as slaves. If more than one fixture acts as master, you may cause damage
that is not covered by the product warranty.
To operate fixtures in master/slave mode, the fixtures must be connected as described under ‘Control data
link’ on page 15. The master fixture must be programmed to run a stand-alone routine as described under
‘Programming a standalone show’ on page 17.
Note that if a fixture is set as master it will not respond to DMX and RDM signals. To control the fixture via
DMX or communicate with the fixture via RDM, set the fixture to slave again.
If no controller is connected to the link, performance may be improved by terminating the data input of the
first fixture.
Enable master/slave operation as follows:
1. On each fixture, access the control menu and select FIXTURE CONFIG.Press ENTER.
2. Select DMX STATE and press ENTER.
3. Select SHOW MODE and press ENTER.
4. Select MASTER/SLAVE from FIXTURE CONFIG menu and press ENTER.
5. The default setting is SLAVE. On one fixture only, select MASTER and press ENTER. Press MENU to
exit.
6. On all other fixtures, select MASTER/SLAVE and confirm that they are set to SLAVE. Press MENU to
exit.
7. Verify that no DMX control signal is present.
Channel mode
Please see ‘DMX settings’ on page 16.
Dimmer curve
Four dimming options are available:
OPTICALLY LINEAR: dimming appears linear as DMX values change.
SQUARE LAW: dimming is finer at low levels and coarser at high levels.
INVERSE SQUARE LAW: dimming is coarser at low levels and finer at high levels.
S-CURVE: dimming is finer at high and low levels, and coarserat medium levels.

Exterior WashTM 200 Series User Manual 19
To set the fixture’s dimmer curve:
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select DIMMER CURVE and press ENTER.
3. Select the option desired from the list above and press ENTER.
Color calibration
The color mixing LEDs in Exterior Wash™200 and 210 fixtures are calibrated at the factory for improved
uniformity. The calibration factor is not applied by default. To apply color calibration:
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select COLOR CALIBRATION and press ENTER.
3. SelectYES to apply the factory color calibration, or NO to disable it.
4. Press ENTER.
White balance
White balance can be modified on 200 and 210 models by adjusting the amount of each color mixed in to
make white.
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select WHITE BALANCE and press ENTER.
3. Select a color to adjust and press ENTER.
4. Press UP or DOWN to increase or decrease the amount of that color in the white balance mix. Press
ENTER.
5. Repeat steps 3 and 4 for the other two colors.
DMX state
There are three options for fixture behavior when there is no DMX signal or if the DMX signal is suddenly
lost. Note that for stand-alone and master/slave operation, DMX STATE must be set to SHOW MODE.
SHOW MODE: Fixture executes programmed scenes.
HOLD LAST LOOK: Fixture holds and displays the last received DMX command.
BLACKOUT (default): Fixture blacks out.
To set the desired behavior:
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select DMX STATE and press ENTER.
3. Press UP or DOWN to select the behavior. Press ENTER.
Display lock
Unauthorized access to the control menu can be prevented by requiring a user-configurable password.
This feature is turned off by default. It can be turned on or off as follows:
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select DISPLAY LOCK and press ENTER.
3. SelectYES to enable password protection or NO to disable it.Press ENTER.
Lock password
The factory default user password is 123. The service password is 111. The user password can be reset
to any value from 0 to 999 as described below. The service password cannot be reset. To change the user
password:
1. Press and hold the MENU button to access the control menu.
2. If prompted for a password, press the arrow buttons to scroll to the current 3-digit password or the
service password (111). Press ENTER when the password is displayed.
3. Select FIXTURE CONFIG from the main menu and press ENTER.

20 Exterior WashTM 200 Series User Manual
4. Select LOCK PASSWORD and press ENTER.
5. Press the UP or DOWN arrow button to scroll to the desired password. Press ENTER to save it.
6. Record your password inside the front cover of this manual.
Factory reset
To reset all user settings to factory defaults:
1. Access the control menu and select FIXTURE CONFIG. Press ENTER.
2. Select FACTORY RESET and press ENTER.
3. SelectYES and press ENTER to confirm, or MENU to escape.
Setup via RDM
The Exterior Wash™200 Series is compatible with RDM (Remote Device Management). Using an RDM-
compliant DMX controller, you can communicate with Exterior Wash 200 Series fixtures to set DMX
addresses, execute other commands, and retrieve basic fixture data via the data link.
To use Martin M-PC, connect a PC running this application to the data link via the Martin M-DMX USB to
DMX interface box (see ‘Related Items’ on page 28). Before you can communicate with fixtures, you will
need to send a Scan command from M-PC to detect the devices on the data link.
