MartinLogan FOUNDATION F2 User manual

B2 B1 C1
F1 F2

2
The lightning bolt flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the pres-
ence of potentially “dangerous voltage” within the
product’s enclosure that may be sufficient to consti-
tute a risk of electric shock.
In accordance with the European Union
WEEE (Waste Electrical and Electronic
Equipment) directive effective August 13,
2005, we would like to notify you that this product
may contain regulated materials which upon dispos-
al, according to the WEEE directive, require special
reuse and recycling processing. For this reason Martin
Logan has arranged with our distributors in European
Union member nations to collect and recycle this prod-
uct at no cost to you.
To find your local distributor please contact the deal-
er from whom you purchased this product, email
[email protected] or visit the distributor locator at
www.martinlogan.com.
Please note, only this product itself falls under the
WEEE directive. When disposing of packaging and
other related shipping materials we encourage you
to recycle these items through the normal channels.
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important oper-
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING!
• Refer servicing to a qualified
technician.
• To prevent fire or shock hazard,
do not expose this module to moisture.
• Turn amplifier off should any abnormal
conditions occur.
• Do not drive speaker beyond its rated power.

3
Connection ............................ 6
Single Wire Connection
(F2/F1/B2/B1/C1) ................6
Placement
(F2/F1/B2/B1) ....................... 7
Frequently Asked Questions............... 8
Troubleshooting ........................ 9
Contacting Customer Service .............9
General Information .................... 10
Warranty Information ................10
Serial Number.....................10
Service .........................10
Specifications ......................... 11

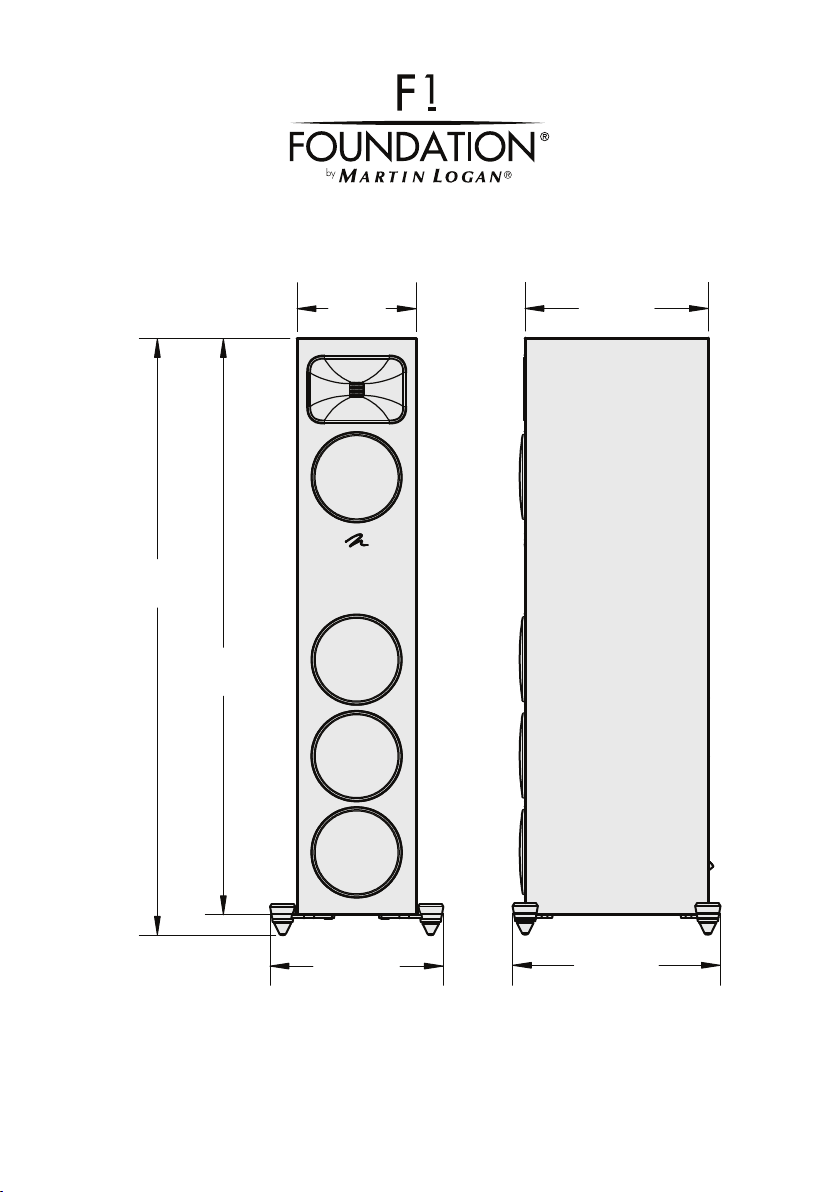

Dimensional Drawings.................15
Serial Number:_____________________________
Record your serial number here for easy reference.
You will need this information when filling out your
warranty registration. The serial number is located
near the binding posts and on the product carton.

4

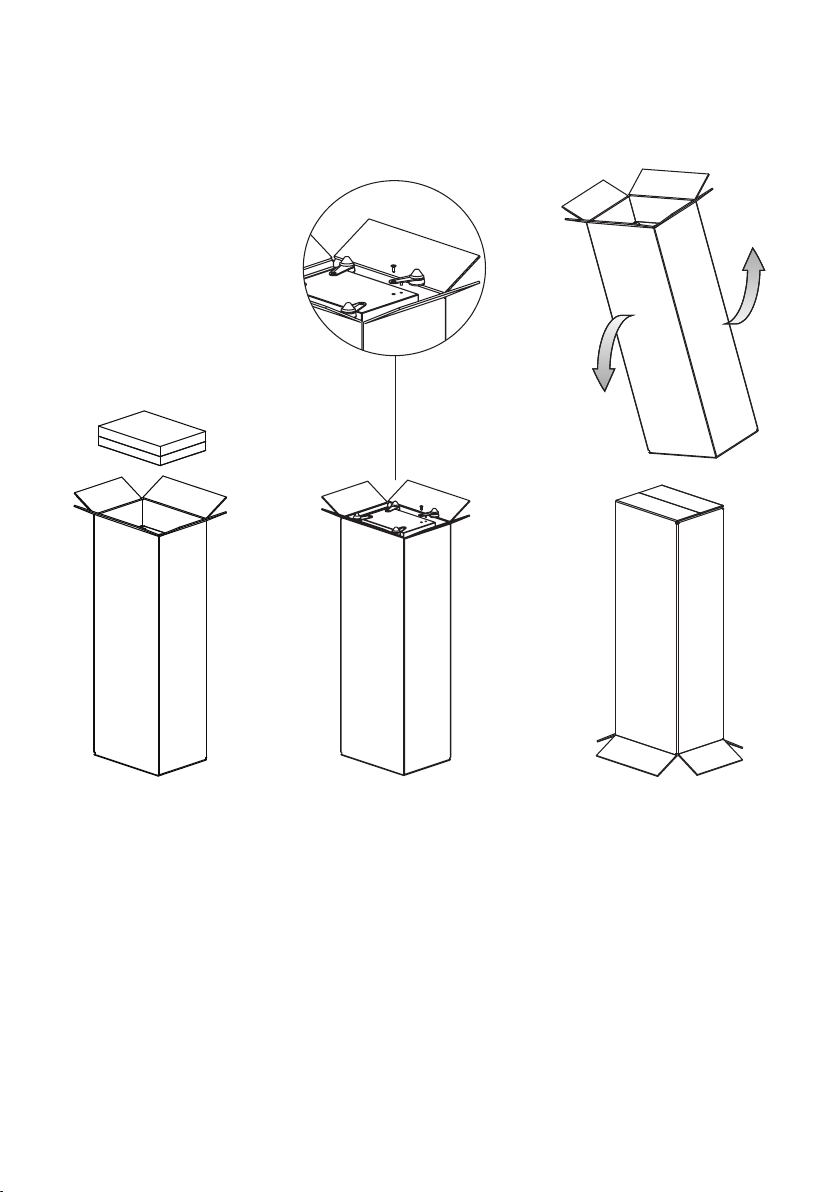

Foundation®F2/F1

5

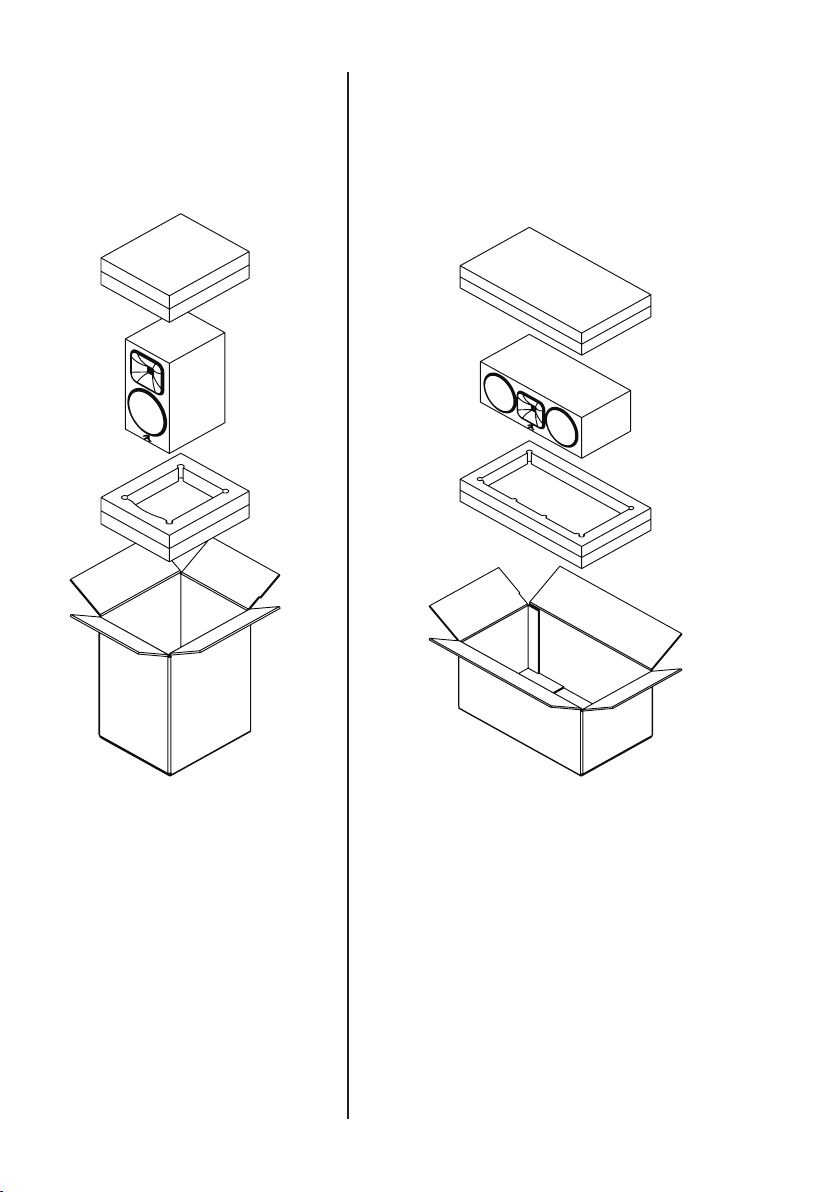

Foundation®B2/B1 Foundation®C1

6
WARNING! Turn your amplifier
off before making or breaking any
signal connections!
SINGLE WIRE CONNECTION
( F2/F1/B2/B1/C1 )
ConneCtion

7
PlaCement
72 hrs
BREAK IN
Allow approximately 72 hours of break-in at 90 dB
(moderate listening levels) before any critical listening.
PLACEMENT
F2/F1/B2/B1

8
How do I clean my speakers?
Use a dust free cloth (such as a micro fiber cloth)
or a soft brush to remove dust from your speakers.
Do not spray any kind of cleaning agent on or in
close proximity to the drivers.
Could you suggest a list of suitable elec-
tronics and cables ideal for MartinLogan
speakers?
We have no favorites and use electronics and
cables quite interchangeably. We would suggest
listening to a number of brands—and above all
else—trust your ears. Dealers are always the best
source for information when purchasing additional
audio equipment.
Will exposure to sunlight affect the life
or performance of my speakers?
We recommend against placing any loudspeaker
in direct sunlight. Ultraviolet (UV) rays from the sun
can cause deterioration of cabinet, speaker cones,
etc. Small exposures to UV will not cause a prob-
lem. Filtering of UV rays through glass will greatly
reduce the negative effects.
Should I use a 4, 6, or 8 Ohm rated
amplifier with my speakers?
All of our Motion®series speakers are compatible
with 4, 6 or 8 Ohm output audio amplifiers and
receivers. Many of the most popular brands of AV
receivers and amplifiers with 4, 6 and 8 Ohm out-
put ratings have been thoroughly tested with all of
our products and we have found no compatibility
issues except under extreme listening conditions.
For the best performance and sonic purity when
using our Motion®series products use of an ampli-
fier or AV receiver with either a 4 or 6
Ohm output is recommended!
Frequently asked questions

9
No Output
• Check that all system components are turned
on and source material is playing.
• Check speaker wires and connections.
• Check all interconnecting cables.
• If you are unable to resolve your problem,
please contact your dealer or MartinLogan cus-
tomer service (see below).
troubleshooting
Phone
[phone]
Monday – Friday
8 AM – 5 PM CT
Email
[e-mail]
Social Media
ContaCting Customer serviCe

10
WARRANTY INFORMATION
Your speakers are provided with an automatic
Limited 90 Day Warranty coverage. You have
the option, at no additional charge, to receive a
Limited 5 Year Warranty coverage. To obtain the
Limited 5 Year Warranty coverage you need to
complete and return the Certificate of Registration
to MartinLogan within 30 days of purchase. For
your convenience MartinLogan also offers online
warranty registration at www.martinlogan.com.
MartinLogan may not honor warranty service
claims unless we have a completed Warranty
Registration card on file! If you did not receive a
Certificate of Registration with your new speakers
you cannot be assured of having received new
units. If this is the case, please contact your autho-
rized MartinLogan dealer.
SERIAL NUMBER
The serial number is located on back of the speak-
er, directly beneath the binding posts. The serial
number may also be found on the product carton.
SERVICE
Should you use your MartinLogan product in a
country other than the one in which it was originally
purchased, we ask that you note the following:
1 The appointed MartinLogan distributor for any
given country is responsible for warranty servicing
only on units distributed by or through it in that coun-
try in accordance with its applicable warranty.
2 Should a MartinLogan product require ser-
vicing in a country other than the one in which
it was originally purchased, the end user may
seek to have repairs performed by the nearest
MartinLogan distributor, subject to that distribu-
tor’s local servicing policies, but all cost of repairs
(parts, labor, transportation) must be borne by the
owner of the MartinLogan product.
3 If, after owning your speaker for six months, you
relocate to a country other than the one in which
you purchased your speaker, your warranty may be
transferable. Contact MartinLogan for details.
general inFormation

11
sPeCiFiCations*
Application............................
Frequency Response .....................
Folded Motion®Waveguide Enhanced
Tweeter Dispersion (VxH) .................
Sensitivity (2.83 volts/meter) ..............
Impedance
Compatible with 4, 6, or 8 Ohm rated amplifier
Crossover Frequency.....................
High Frequency Driver ...................
Mid Frequency Driver ....................
Low Frequency Drivers ...................
Cabinet ..............................
Recommended Amp Power ...............
Binding Post Inputs ......................
Weight...............................
Dimensions (HxWxD)
Floorstanding model dimensions include the feet.
Depth for all models include the binding posts..
Finishes ..............................
Foundation®F2
Floorstanding
36 Hz - 23kHz
90° (vertical) x 90° (horizontal)
92 dB
4 ohms
330 Hz, 3600 Hz
1" (vertical) x 0.94" (horizontal)
5.5"
6.5"
Rear Ported
15 - 200 watts
5-way Binding Posts (Non Bi-Wire)
52.5lbs / 23.81kg
44.41" x 8.75" x 16.02"
112.8cm x 22.22cm x 40.69cm
Black, Walnut, and Satin White
*Specifications are subject to change without notice.

12
sPeCiFiCations*
Application............................
Frequency Response .....................
Folded Motion®Waveguide Enhanced
Tweeter Dispersion (VxH) .................
Sensitivity (2.83 volts/meter) ..............
Impedance
Compatible with 4, 6, or 8 Ohm rated amplifier
Crossover Frequency.....................
High Frequency Driver ...................
Mid Frequency Driver ....................
Low Frequency Drivers ...................
Cabinet ..............................
Recommended Amp Power ...............
Binding Post Inputs ......................
Weight...............................
Dimensions (HxWxD)
Floorstanding model dimensions include the feet.
Depth for all models include the binding posts..
Finishes ..............................
Foundation®F1
Floorstanding
41 Hz - 23 kHz
90° (vertical) x 90° (horizontal)
92 dB
4 ohms
240 Hz, 3700 Hz
1" (vertical) x 0.94" (horizontal)
5.5"
5.5"
Rear Ported
15 - 200 watts
5-way Binding Posts (Non Bi-Wire)
46.5lbs / 21.09kg
41.42" x 8.27" x 14.43"
105.2cm x 21cm x 36.65cm
Black, Walnut, and Satin White
*Specifications are subject to change without notice.

13
Foundation®B2
Bookshelf
42 Hz - 23 kHz
90° (vertical) x 90° (horizontal)
90 dB
5 ohms
3800 Hz
1" (vertical) x 0.94" (horizontal)
N/A
N/A
Rear Ported
15 - 100 watts
5-way Binding Posts (Non Bi-Wire)
15lbs / 6.8kg
15.01" x 7.75" x 11.49"
38.12cm x 19.68cm x 29.18cm
Black, Walnut, and Satin White
Foundation®B1
Bookshelf
48 Hz - 23k Hz
90° (vertical) x 90° (horizontal)
89 dB
5 ohms
3400 Hz
1" (vertical) x 0.94" (horizontal)
N/A
N/A
Rear Ported
15 - 100 watts
5-way Binding Posts (Non Bi-Wire)
11.5lbs / 5.2kg
13.64" x 7.25" x 9.47"
34.64cm x 18.41cm x 24.05cm
Black, Walnut, and Satin White

14
sPeCiFiCations*
Application............................
Frequency Response .....................
Folded Motion®Waveguide Enhanced
Tweeter Dispersion (VxH) .................
Sensitivity (2.83 volts/meter) ..............
Impedance
Compatible with 4, 6, or 8 Ohm rated amplifier
Crossover Frequency.....................
High Frequency Driver ...................
Mid Frequency Driver ....................
Low Frequency Drivers ...................
Cabinet ..............................
Recommended Amp Power ...............
Binding Post Inputs ......................
Weight...............................
Dimensions (HxWxD)
Floorstanding model dimensions include the feet.
Depth for all models include the binding posts..
Finishes ..............................
Foundation®C1
Center Channel
53 Hz - 23 kHz
90° (vertical) x 90° (horizontal)
91 dB
4 ohms
2900 Hz, 3200 Hz
1" (vertical) x 0.94" (horizontal)
N/A
N/A
Rear Ported
15 - 150 watts
5-way Binding Posts (Non Bi-Wire)
18lbs / 8.16kg
7.57" x 20" x 10.02"
19.22cm x 50.8cm x 25.45cm
Black, Walnut, and Satin White
*Specifications are subject to change without notice.

15

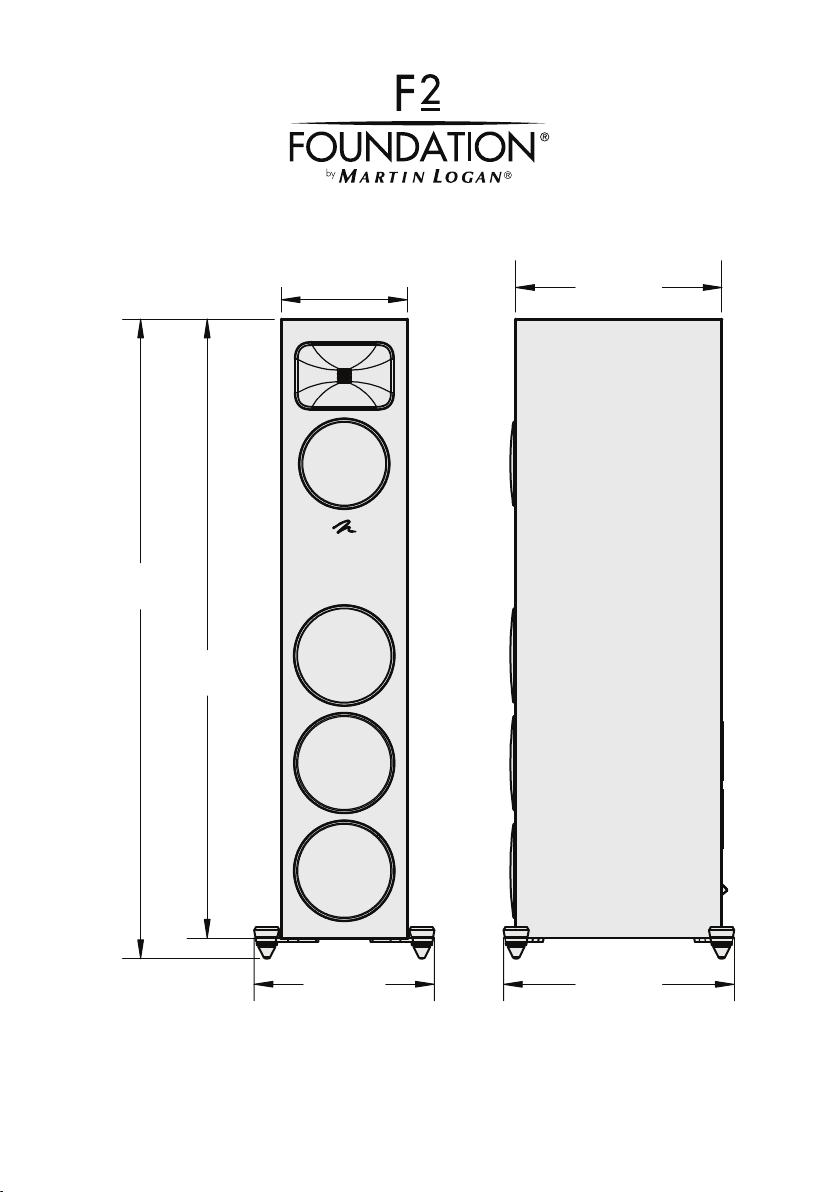

OVERALL DIMENSIONS: (H) 44.41 " [ 112.8cm ] x ( W) 8.75 " [ 22.22 cm] x ( D) 16.02 " [ 40.69 cm]
WEIGHT: 52.5lbs (23.81kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®F2
High-Performance Folded Motion
®
Floorstanding Speaker
42.99"
[109.19cm]
12.51"
[31.77cm]
8.75"
[22.22cm]
44.41"
[112.8cm]
FRONT VIEW
16.02"
[40.69cm]
14.31"
[36.34cm]
SIDE VIEW
OVERALL DIMENSIONS: (H) 44.41 " [ 112.8cm ] x ( W) 8.75 " [ 22.22 cm] x ( D) 16.02 " [ 40.69 cm]
WEIGHT: 52.5lbs (23.81kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®F2
High-Performance Folded Motion
®
Floorstanding Speaker
42.99"
[109.19cm]
12.51"
[31.77cm]
8.75"
[22.22cm]
44.41"
[112.8cm]
FRONT VIEW
16.02"
[40.69cm]
14.31"
[36.34cm]
SIDE VIEW

16
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®F1
High-Performance Folded Motion
®
Floorstanding Speaker
OVERALL DIMENSIONS: (H) 41.42 " [ 105.2cm ] x ( W) 8.27 " [ 21 cm] x ( D) 14.43 " [ 36.65 cm]
WEIGHT: 46.5lbs (21.09kg) each
FRONT VIEW
12.03"
[30.55cm]
41.42"
[105.20cm]
40.00"
[101.6cm]
8.27"
[21cm]
SIDE VIEW
14.43"
[36.65cm]
12.72"
[32.3cm]
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®F1
High-Performance Folded Motion
®
Floorstanding Speaker
OVERALL DIMENSIONS: (H) 41.42 " [ 105.2cm ] x ( W) 8.27 " [ 21 cm] x ( D) 14.43 " [ 36.65 cm]
WEIGHT: 46.5lbs (21.09kg) each
FRONT VIEW
12.03"
[30.55cm]
41.42"
[105.20cm]
40.00"
[101.6cm]
8.27"
[21cm]
SIDE VIEW
14.43"
[36.65cm]
12.72"
[32.3cm]

17
OVERALL DIMENSIONS: (H) 15.01 " [ 38.12cm ] x ( W) 7.75 " [ 19.68 cm] x ( D) 11.49 " [ 29.18 cm]
WEIGHT: 15lbs (6.8kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®B2
High-Performance Folded Motion
®
Bookshelf Speaker
SIDE VIEW
11.49"
[29.18cm]
11.13"
[28.27cm]
FRONT VIEW
7.75"
[19.68cm]
14.76"
[37.49cm]
15.01"
[38.12cm]
OVERALL DIMENSIONS: (H) 15.01 " [ 38.12cm ] x ( W) 7.75 " [ 19.68 cm] x ( D) 11.49 " [ 29.18 cm]
WEIGHT: 15lbs (6.8kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®B2
High-Performance Folded Motion
®
Bookshelf Speaker
SIDE VIEW
11.49"
[29.18cm]
11.13"
[28.27cm]
FRONT VIEW
7.75"
[19.68cm]
14.76"
[37.49cm]
15.01"
[38.12cm]

18
OVERALL DIMENSIONS: (H) 13.64 " [ 34.64cm ] x ( W) 7.25 " [ 18.41 cm] x ( D) 9.47 " [ 24.05 cm]
WEIGHT: 11.5lbs (5.2kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®B1
High-Performance Folded Motion
®
Bookshelf Speaker
7.25"
[18.41cm]
13.64"
[34.64cm]
13.39"
[34.01cm]
FRONT VIEW
9.12"
[23.16cm]
9.47"
[24.05cm]
SIDE VIEW
OVERALL DIMENSIONS: (H) 13.64 " [ 34.64cm ] x ( W) 7.25 " [ 18.41 cm] x ( D) 9.47 " [ 24.05 cm]
WEIGHT: 11.5lbs (5.2kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation®B1
High-Performance Folded Motion
®
Bookshelf Speaker
7.25"
[18.41cm]
13.64"
[34.64cm]
13.39"
[34.01cm]
FRONT VIEW
9.12"
[23.16cm]
9.47"
[24.05cm]
SIDE VIEW

19
OVERALL DIMENSIONS: (H) 7.57 " [ 19.22cm ] x ( W) 20 " [ 50.8 cm] x ( D) 10.02 " [ 25.45 cm]
WEIGHT: 18lbs (8.16kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation
®
C1
High-Performance Folded Motion
®
Center Channel Speaker
7.25"
[18.41cm]
7.57"
[19.22cm]
20.00"
[50.8cm]
FRONT VIEW
10.02"
[25.45cm]
9.67"
[24.48cm]
SIDE VIEW
OVERALL DIMENSIONS: (H) 7.57 " [ 19.22cm ] x ( W) 20 " [ 50.8 cm] x ( D) 10.02 " [ 25.45 cm]
WEIGHT: 18lbs (8.16kg) each
Copyright © 2023 MartinLogan Ltd. All rights reserved.
Foundation
®
C1
High-Performance Folded Motion
®
Center Channel Speaker
7.25"
[18.41cm]
7.57"
[19.22cm]
20.00"
[50.8cm]
FRONT VIEW
10.02"
[25.45cm]
9.67"
[24.48cm]
SIDE VIEW

Lawrence, Kansas, USA tel. [phone] fax [phone] www.martinlogan.com
Rev. #000©2023 MartinLogan Ltd. All rights reserved.
®
