Marvel 61RF-BB User manual

Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
25 1/4"
24 3/8"
22"
35"
34 1/4"
34"
23 7/8"
3"
25 1/2"
24"
24"
34 1/2"

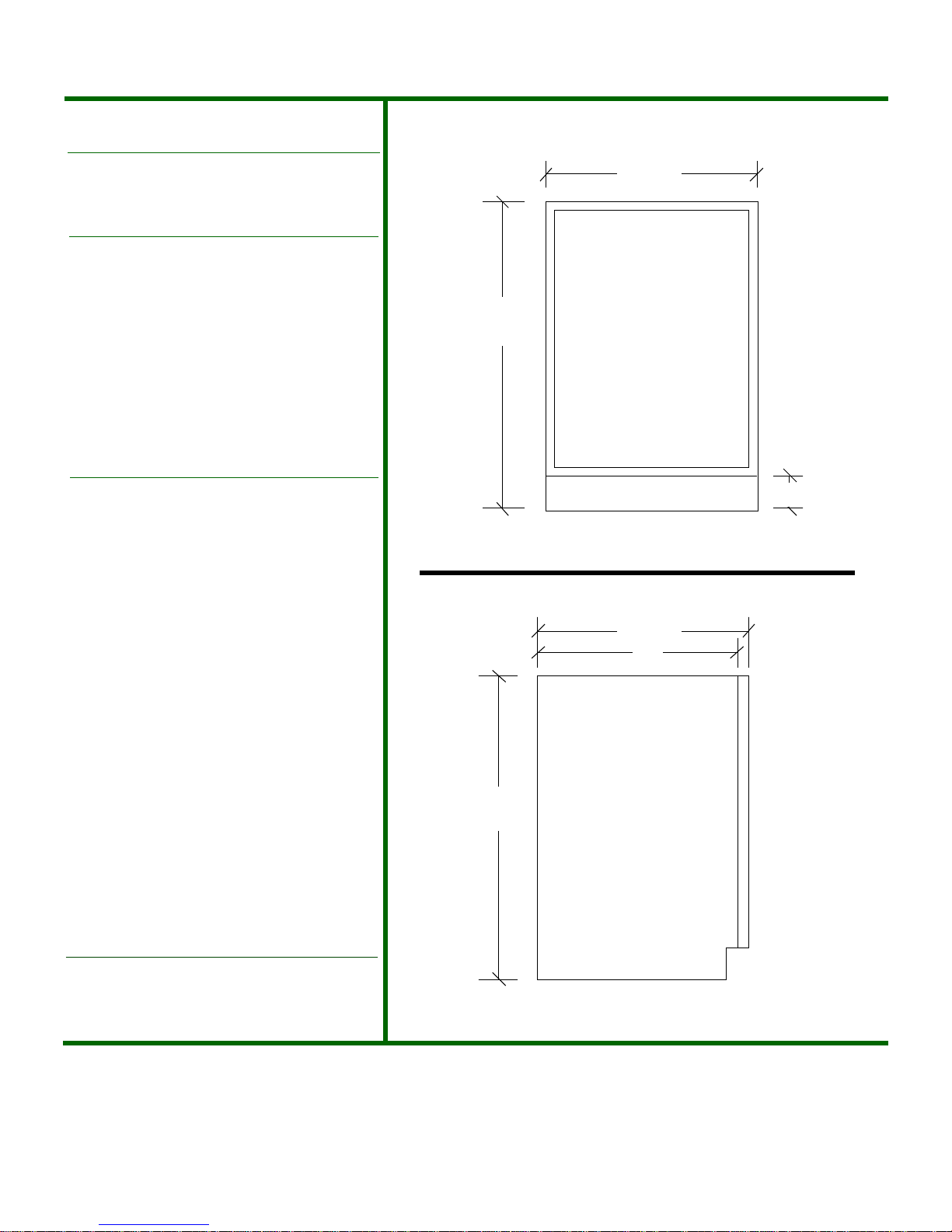

Front View
(not to scale)
Side View
(not to scale)
3"
35" max
34" min
23 7/8"
24 3/8"
35" max
34" min
22"
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Shipping weight: 120 pounds.
• U.L. Listed.
• Accepts custom 1/4" panel, see page 2.
• 61RF-BB : Black cabinet, black door frame.
• 61RF-WW : White cabinet, white door frame.
Accessories:
• Casters: P/N 42244041.
www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Refrigeraton/freezers:
61RF-BB and 61RF-WW
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
This Data Sheet Includes Information On
BN • A318B149 • • 070612 • 111648 • 92540
• Additional Information •
318
Marvel

Custom Panel Size
(not to scale)
Max. thickness: 1/4"
Max . weight: 20 lbs
23 3/8"
30 3/16"
1/2"
3/16"
3/16"
1/2"
1/2"
3/16" 1/2"
3/16"
Remove all
four corners
Custom Framed Door Panel Dimensions
(not to scale)
For panels thicker than 1/4",
reveal is 5/8" on all sides if
owner-supplied handle is used;
2" in the area of Marvels clip on
handle if it is used.
Additional Information:
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand [phone]
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Refrigeraton/freezers:
61RF-BB and 61RF-WW
• Product Model Number (s): •
This Data Sheet Includes Information On
BN • A318B149 • • 070612 • 111648 • 92540
149
Page 2
Marvel
