Master cook SRPGT19002 User manual

Cart Assembly
Model#: SRPGT19002
Questions, problems, missing parts? Please call our customer service
department at 1-888-909-3888, 7:30AM - 4:30PM PST, Mon. - Fri., or
e-mail to [email protected]
SKU# : LGG09-0019
R
USER MANUAL

Read this User Manual carefully and
completely before using your grill to
reduce the risk of fire, burn hazard
or other injury.
TABLE OF CONTENTS
1
Exploded View ............................................................................................................................2
Part List .......................................................................................................................................3
Assembly Instructions..................................................................................................................4
Connecting The Gas Grill To The Cart.........................................................................................7
Connecting 20LB Gas Cylinder....................................................................................................8
Gas Hook Up................................................................................................................................9
Leak Testing.................................................................................................................................11
Warranty.......................................................................................................................................12

2

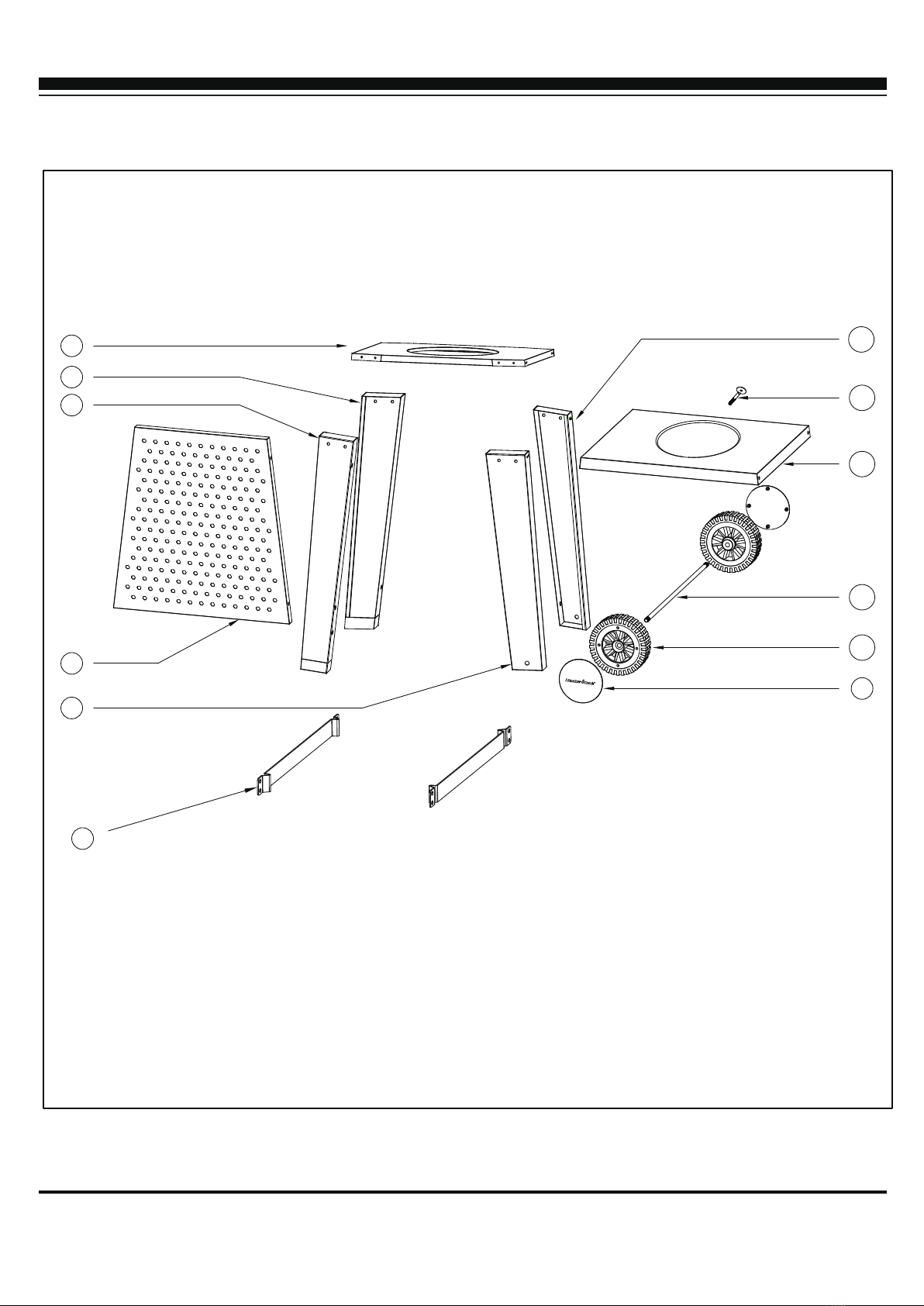

EXPLODED VIEW
H
I
J
K
L
R
Q
P
N
M
O
T

3
PARTS LIST
HARDWARE
Hardware # Description Picture Qty
M6 x 12 Bolt
8
AA
CC
M10 Nut
2
BB
M4 x 8 Bolt
24
EE
DD
Phillips screwdriver
Wrench
1
1
Part No Description Quantity Part No Description Quantity
H1
I
K
L
M
1
1
1
1
1
1
1

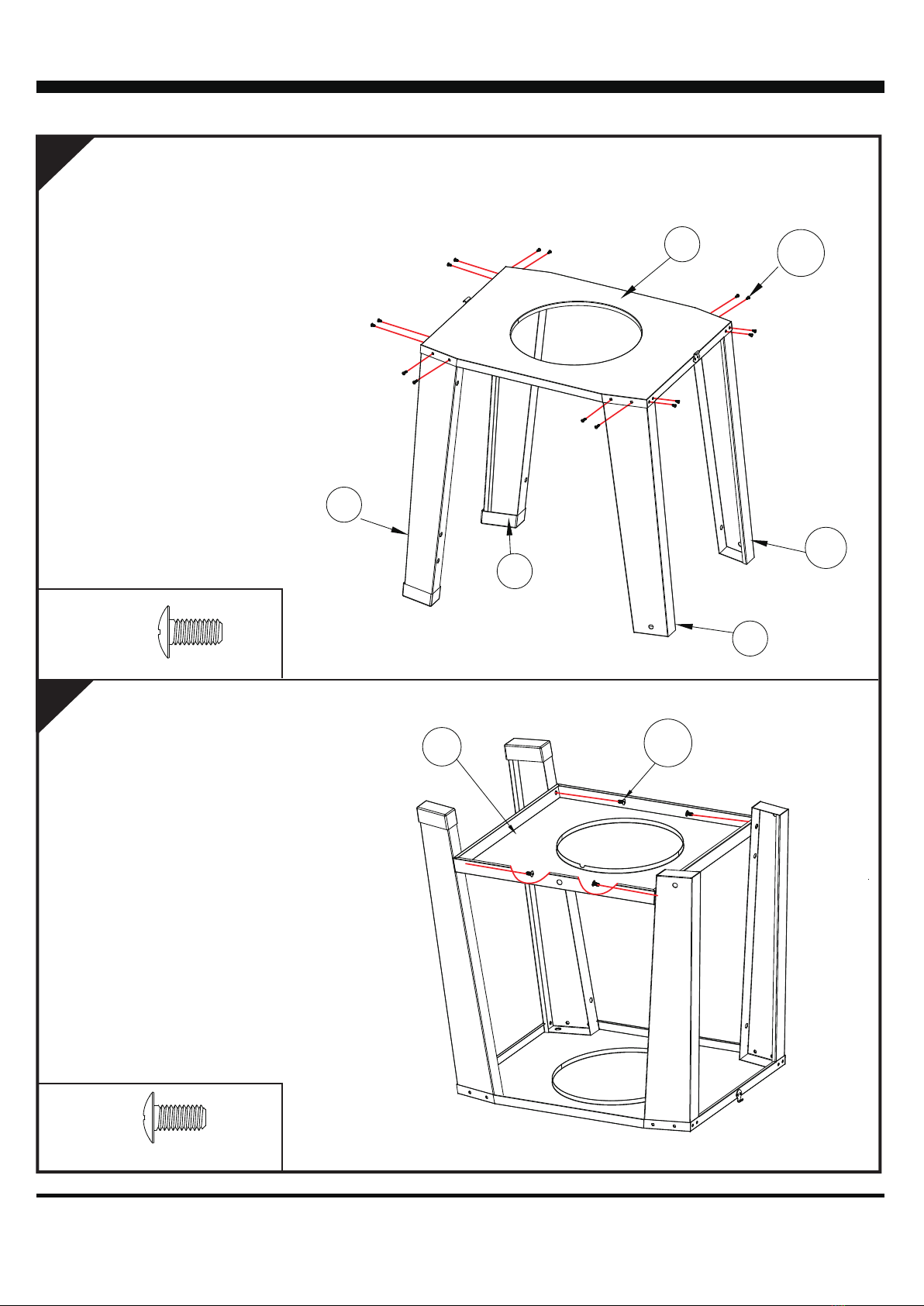

1
2
2
J
O
Q
R
N
P
Cart Left
Rear Leg
Cart Left
Front Leg
Cart Front
Panel
Cart Right
Front Leg Wheel Cap
Wheel
Wheel Axle
Cart Bottom
Panel
Cart Right
Rear Leg
Cylinder Fixing
Rod
Cart Upper
Panel
T2
Fixing Bar

4
ASSEMBBLY INSTRUCTIONS
1
2
Flip over the cart assembly, install the
cart bottom panel (N) with 4pcs bolts
(AA).
AA x 4:
BBx 16:
I
J
L
M
H
Install four cart legs to the
cart upper panel (H) with
16pcs bolts (BB).
AA x4
N
BBx16

5
ASSEMBBLY INSTRUCTIONS

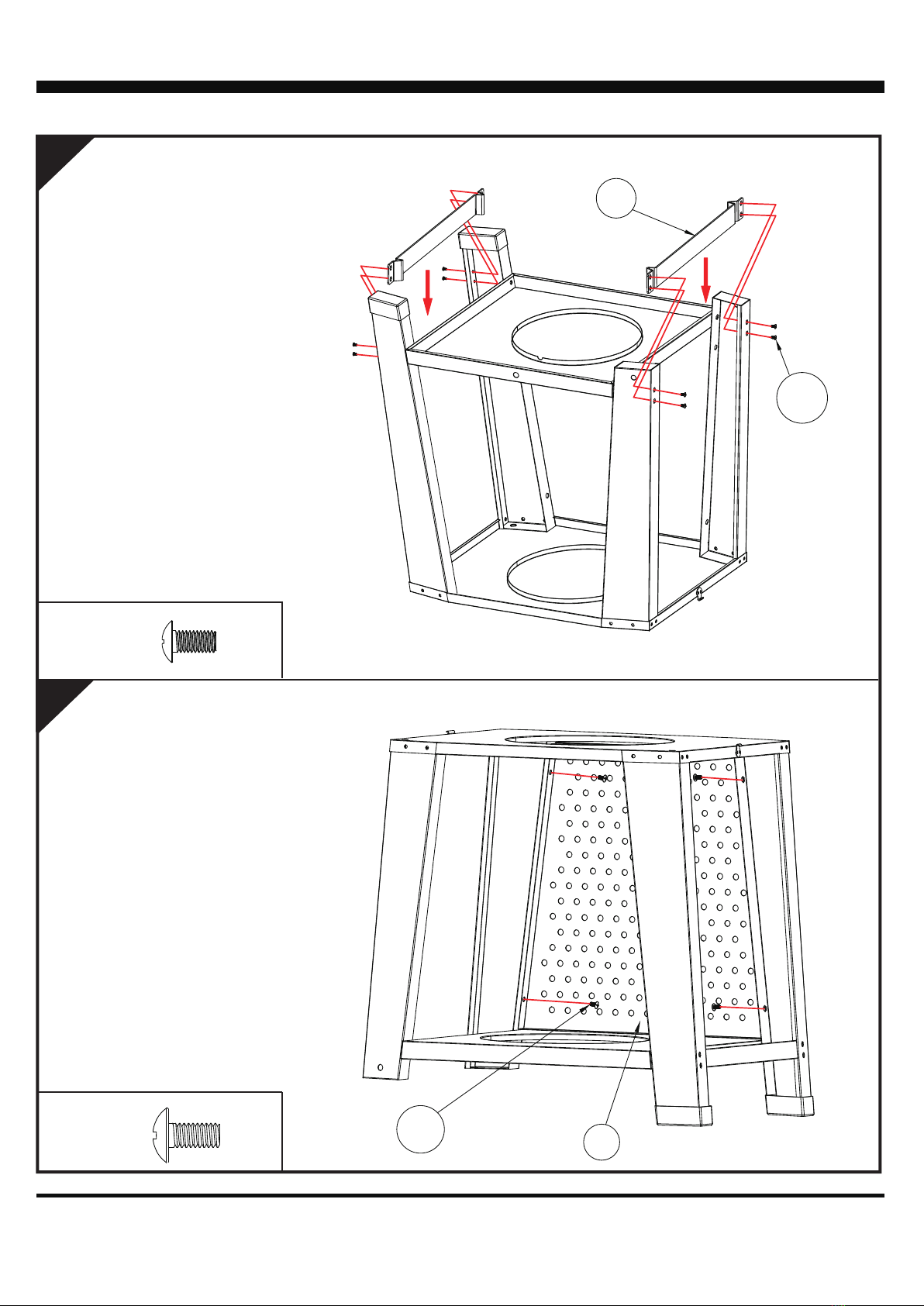

3
4
BBx 8:
Install cart front panel (K) with
4pcs bolts (AA).
BB x8
AAx 4:
Install 2pcs fixing bar (T) to
four legs as illustrated with
8pcs bolts (BB).
T
AA x 4 K
Flip over the cart assembly

6
ASSEMBBLY INSTRUCTIONS

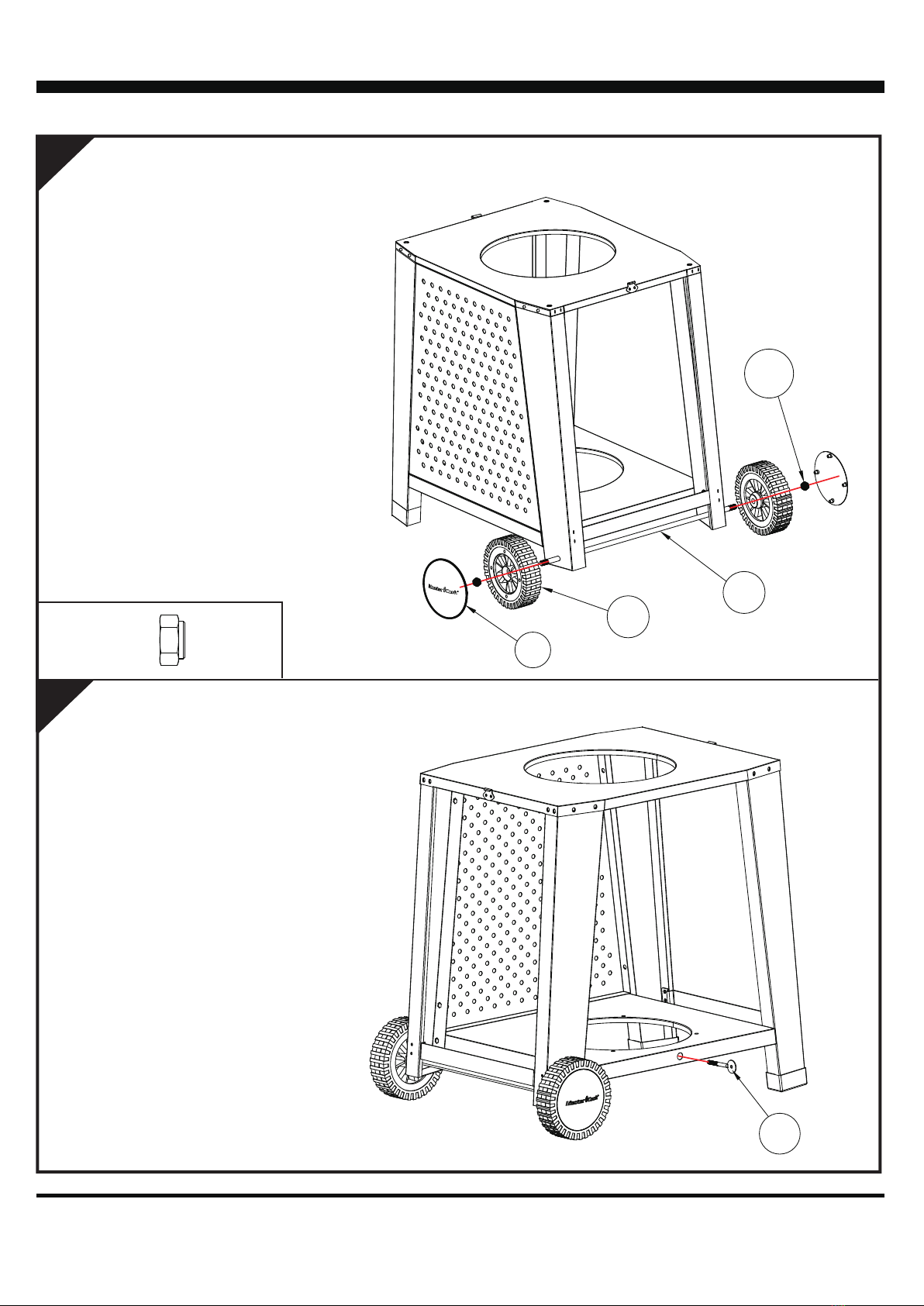

5
6
CCx 2:
Insert the cylinder fixing rod (O) to
the cart bottom panel (N).
R x2
Q x2 P x1
CCx2
Insert the wheel axle (P) as
illustrated.
Install two wheels (Q) to the wheel
axle (P) with 2pcs nuts(CC).
Place two wheel caps (R) to the
wheels (Q).
O x1

7
TRACEHTOTLLIRGSAGEHT
1. Make sure the burner control knob of the gas grill is in the OFF position.
Install the gas grill to the cart by connecting the hasp parts which preinstalled on the cart and the
gas grill.
2.
CONNECTING

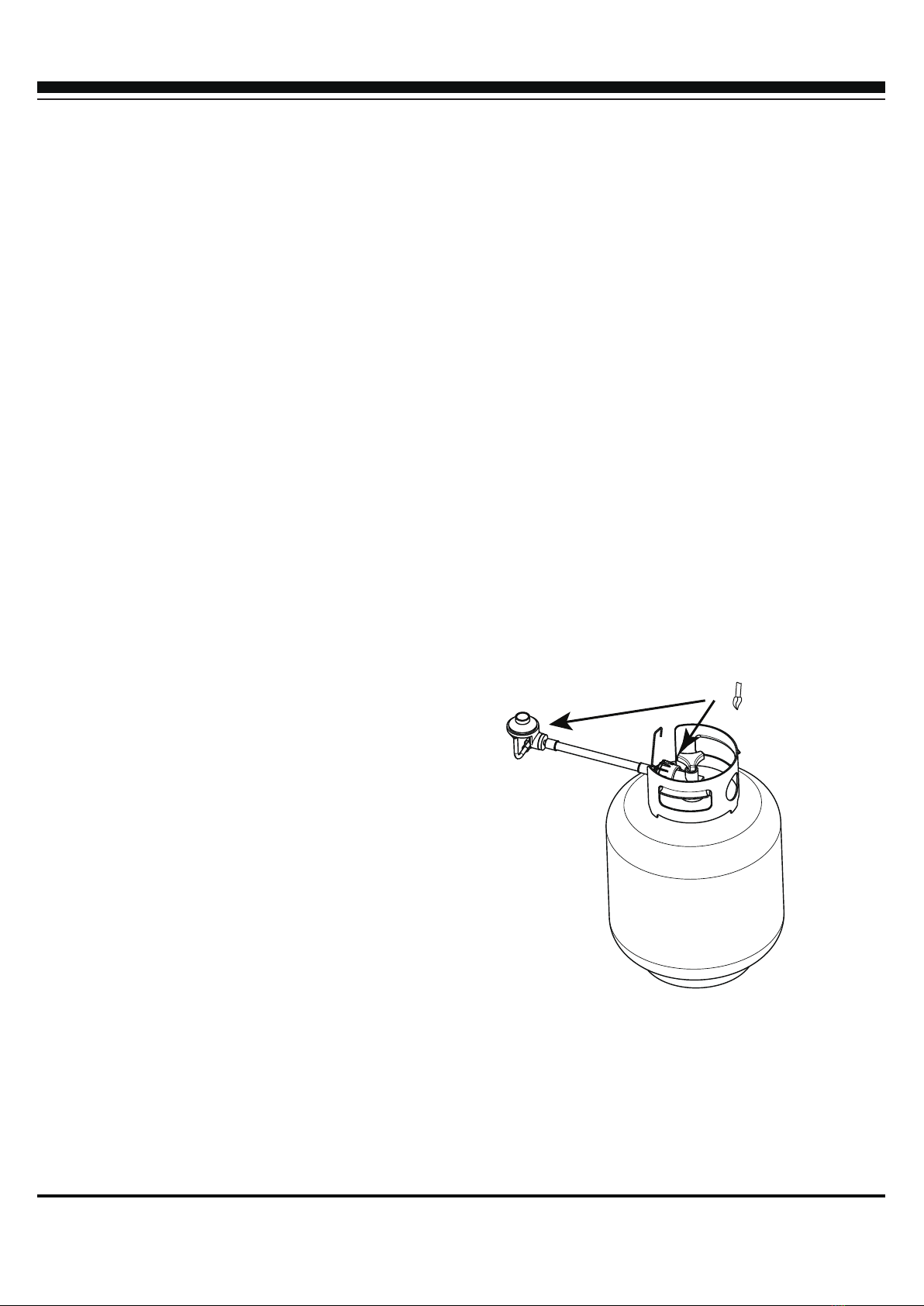

CONNECTING 20LB GAS CYLINDER (NOT INCLUDED) TO THE GAS GRILL ASSEMBLY
4. Place the 20LB gas cylinder (not included) into hole at the cart bottom panel(N).
5. Check to ensure the valve of gas cylinder is securely turned off prior to making the connection.
6. Connect another side of the hose assembly to the gas cylinder. Turn the nut clockwise to make
sure it’s securely tightened.
Shut off gas supply by rotating valve of gas cylinder clockwise.
Gas cylinder
Fix hose assembly to
the regulator by rotating
clockwise
8
3. Connect the hose assembly (S) to the regulator (F) by rotating it clockwise and fasten.
it
S x1
2. Disconnect gas canister (not included) from canister holder if there is a gas canister on the gas grill.
1. Make sure the burner control knob of the gas grill is in the OFF position.
F

GAS HOOK-UP
Only the hose assembly supplied with the grill should be
used. Any hose assembly must be specified by the grill
manufacturer.
This is a liquid propane configured grill.
Do not attempt to use a natural gas supply.
Total gas consumption (per hour) of this grill with
burners on “MAX”: 11,500 btu/hr
The 20lb. cylinder must be provided with a shut off valve
terminating in an LP gas supply cylinder valve outlet
specified, as applicable, for connection type QCC1 is the
standard for compressed gas cylinder valve outlet and
inlet connection .ANSI/CSA-V-1
The cylinder supply system must be arranged for vapor
withdrawal. The cylinder must include a collar to protect
the cylinder valve.
Other cylinders may be acceptable for use with the
appliance provided they are compatible with the appliance
retention means.
A dented or rusty LP Gas Cylinder may be hazardous and
should be checked by your LP supplier. Never use a
cylinder with a damaged valve. The LP gas cylinder must
be constructed and marked in accordance with the
specifications for LP - Gas Cylinders of the U.S Department
of Transportation (D.O.T.) or the National Standard of
Canada, , Cylinders, Spheres and Tubes
for Transportation of Dangerous Goods; and Commission,
as applicable.
CAN/CSA-B339
LP GAS CYLINDER REQUIREMENTS
(20LB. CYLINDER)
Main Man ifold operating pressure: 11” water column
(W.C.)/2.74kPa.
LP Gas Cylinder must be fitted with Overfill Prevention
Device (OPD).
Ensure that the black plastic grommets on the LP cylinder
valve are in place and that the hose does not come into
contact with the grease tray or the grill head.
Your grill is equipped with gas supply orifices for use only
with liquid propane gas. It is also equipped with a high
capacity hose assembly for connection to a standard 20lb.
LP cylinder (18-1/4” high, 12-1/4” diameter).
Make sure cylinder valve is in its full off position (turn
clockwise to stop).
2. Check cylinder valve to ensure it has proper external
male threads (type 1 connection per ).ANSIZ21.81
3. Make sure all burner valves are in the OFF position.
4. Inspect valve connections, port and hose assembly.
Look for any damage or debris. Remove any debris.
Inspect hose for damage. Never attempt to use
damaged or obstructed equipment. See your local LP
gas dealer for repair.
When connecting hose assembly to the valve, hand
tighten the nut clockwise to a complete stop. Do not
use a wrench to tighten. Use of a wrench may damage
the quick coupling nut and result in a hazardous
condition.
6. Open the cylinder valve fully (counterclockwise). Use
a soapy water solution to check all connections for
leaks before attempting to light the grill. See below. If
a leak is found, turn the cylinder valve off and do not
use the grill until a local LP gas dealer can make
repairs.
LP GAS HOOK-UP
CONNECTION
TO CONNECT THE LP GAS SUPPLY CYLINDER
9
1.
5.

GAS HOOK-UP
To disconnect LP gas cylinder:
1.Turn the burner valves off.
2.Turn the cylinder valve off fully (turn clockwise to stop).
Detach the hose assembly from the cylinder valve
by turning the quick coupling nut counterclockwise.
* Never connect an unregulated LP gas cylinder to your
gas grill. The gas regulator assembly supplied with your
gas grill is adjusted to have an outlet pressure of 11”
water column (W.C.)/2.74kPa for connection to an LP
gas cylinder.
* Replacement regulators and hose assemblies must be
those specified in this manual.
* Have your LP gas cylinder filled by a reputable propane
gas dealer and visually inspected and re-qualified at
each filling.
* a ) Do not store a spare LP gas cylinder under or
this appliance.
near
* b) Never fill the cylinder beyond 80 percent full.
* c) If the information in a) and b) is not followed
a fire causing death or serious injury may occur.
exactly
* Do not subject the LP gas cylinder to excessive heat.
* Never store an LP gas cylinder indoors. If you store your
gas grill in the garage or other indoor location, always
disconnect the LP gas cylinder first and store it safely
outside.
* Place dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.
* LP gas cylinder must be stored outdoors in a well-
ventilated area and out of reach of children.
Disconnected LP gas cylinder must not be stored in a
building, garage or any other enclosed area.
*
When your gas grill is not in use, the gas must be turned
off at the LP gas cylinder.Storage of an outdoor cooking
gas appliance indoors is permissible only if the cylinder
is disconnected and removed from the outdoor cooking
gas appliance.
* The regulator and hose assembly must be inspected
before each use of the grill. If there is excessive
abrasion or wear or if the hose is cut, it must be
replaced prior to the grill being used again.
* Keep the hose assembly away from hot grill surfaces
and dripping grease. Avoid unnecessary twisting of hose.
Visually inspect the hose prior to each use for cuts,
cracks, excessive wear or other damage. If the hose
appears damaged do not use the gas grill. Call
for an authorized replacement hose.customer service
*Never light your gas grill with the lid closed or before
checking to ensure the burner tubes are fully seated over
the gas valve orifices.
*Never allow children to operate your grill.
WARNING
A strong gas smell or the hissing sound of gas indicates
a serious problem with your gas grill or the LP gas
cylinder. Failure to immediately follow the steps listed
below could result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
* Shut off gas supply to the gas grill.
* Turn the control knobs to OFF position.
* Put out any flame with a proper fire extinguisher.
* Open Grill Lid.
* Get away from the LP gas cylinder.
* Do not try to fix the problem yourself.
If odor continues or you have a fire you can not
extinguish, call your fire department. Do not call
from near the LP gas cylinder because your
telephone is a form of electrical device and could
create a spark resulting in fire and/or explosion.
*
10

LEAK TESTING
Although all gas connections on the grill are leak tested at
the factory prior to shipment, a complete gas tightness
check must be performed at the installation site due to
possible mishandling in shipment, or excessive pressure
unknowingly being applied to the unit. Periodically check
the whole system for leaks following the procedures listed
below. If the smell of gas is detected at any time, you
should immediately check the entire system for leaks.
GENERAL
Make sure that all packing material is removed from the
grill including the burner tie-down straps.
DO NOT SMOKE WHILE LEAK TESTING.
NEVER LEAK TEST WITH AN OPEN FLAME.
BEFORE TESTING
Make a soap solution of one part liquid detergent and one
part water. You will need a spray bottle, brush, or rag to
apply the solution to the fittings. For the initial leak test,
make sure the L.P. cylinder is full.
TO TEST
Make sure all control valves are in the “OFF” position.
Turn the gas supply on. Check all connections from the
L.P. cylinder up to and including the connection to the
manifold pipe assembly (the pipe that goes to the
burners). Use the soap solution and spray or brush it onto
all of these connections. Soap bubbles will appear where
a leak is present. If a leak is present, immediately turn off
the gas supply, tighten any leaking fittings, turn gas on,
and recheck. Should the gas continue to leak from any or
all of the fittings, turn off the gas supply, and contact our
customer service.
Only those parts recommended by the manufacturer
should be used on the grill. Substitution will void the
warranty. Do not use the grill until all connections have
been checked and do not leak.
Each grill burner is tested and adjusted at the factory prior
to shipment; however, variations in the local gas supply
may make it necessary to adjust the burners, the flames
of the burners should be visually checked.
GAS FLOW CHECK
Flames should be blue and stable with no yellow tips,
excessive noise or lifting. If any of these conditions exist,
check to see if the air shutter or burner ports are blocked
by dirt, debris, spider webs, etc. If you have any questions
regarding flame stability, please call customer service.
ALWAYS CHECK FOR LEAKS AFTER EVERY LP TANK
CHANGE
Check all gas supply fittings for leaks before each
use. It is handy to keep a spray bottle of soapy water
near the shut-off valve of the gas supply line. Spray
all the fittings. Bubbles indicate leaks.
Disconnected L.P. cylinders must have threaded
valve plugs tightly installed, and must not be stored
in a building, garage or any other enclosed area.
11
soapy water

ONE-YEAR LIMITED WARRANTY
Shinerich Industrial Ltd. warrants your gas grill to be free from manufacturer’s defects in workmanship or material under
normal operating conditions for one (1) year from the original date of purchase.
This
This warranty applies if the item is available to the original purchaser only.
warranty applies only to products sold at retail.
Shinerich Industrial Ltd. will, at its option, repair or replace free of charge any defective part, where the Purchaser has
notified their Retailer within the warranty period. In the event of product replacement, the current equivalent model will be
provided. The obligation of Shinerich Industrial Ltd. under this warranty is expressly limited to such repairs or replacement.
This warranty does not cover the freight costs to and from the authorized repair facility.
Warranty Program:
Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If you are not
able to provide proof of purchase before or after the warranty has expired, you will be subject to parts, shipping and
handling fees.
Full 30-Day Warranty:
Any missing parts can be replaced at no charge within 30 days from the date of purchase, with a valid proof of purchase.
Limited Warranty:
One (1) year warranty on all parts in regards to damage affecting the operation of the gas grill.
Warranty Provisions:
•This warranty is non-transferable and does not cover failures due to misuse or improper installation or maintenance.
•This warranty is for replacement of defective parts only. We are not responsible for incidental or consequential.
damages or labour costs.
•This warranty does not cover chips and scratches of porcelain, non-stick or painted surfaces, nor does it cover
corrosion or discoloration due to misuse, lack of maintenance, hostile environment, accidents, alterations, abuse or
neglect.
•This warranty does not cover damage caused by heat, abrasive and chemical cleansers, resulting in chipped porcelain
enamel parts or any damage to other components used in the installation or operation of the gas grill.
Some provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary
from province to province.
If
SHINERICH INDUSTRIAL LTD.
Addr.:8/F, Noble Center, 1006 Fuzhong 3rd.Rd,
Futian District, Shenzhen, China
you require service, please first see the “Troubleshooting” section of the Owner’s Manual.
Additional assistance, can contact our customer service
12
department at 1-888-909-3888 or
[email protected].
