Matador HS - 19FBI400 User manual

Retain manual for future reference.
PALLADIUM 4 BURNER BUILT IN BBQ
Model: HS - 19FBI400

CONTENTS
FEATURES AND BENEFITS
IMPORTANT SAFETY WARNINGS
GAS LEAK TEST
GAS EMERGENCY PROCEDURE
GENERAL INFORMATION
EXPLODED PARTS VIEW
PARTS LIST
HARDWARE PACK
ASSEMBLY STEPS

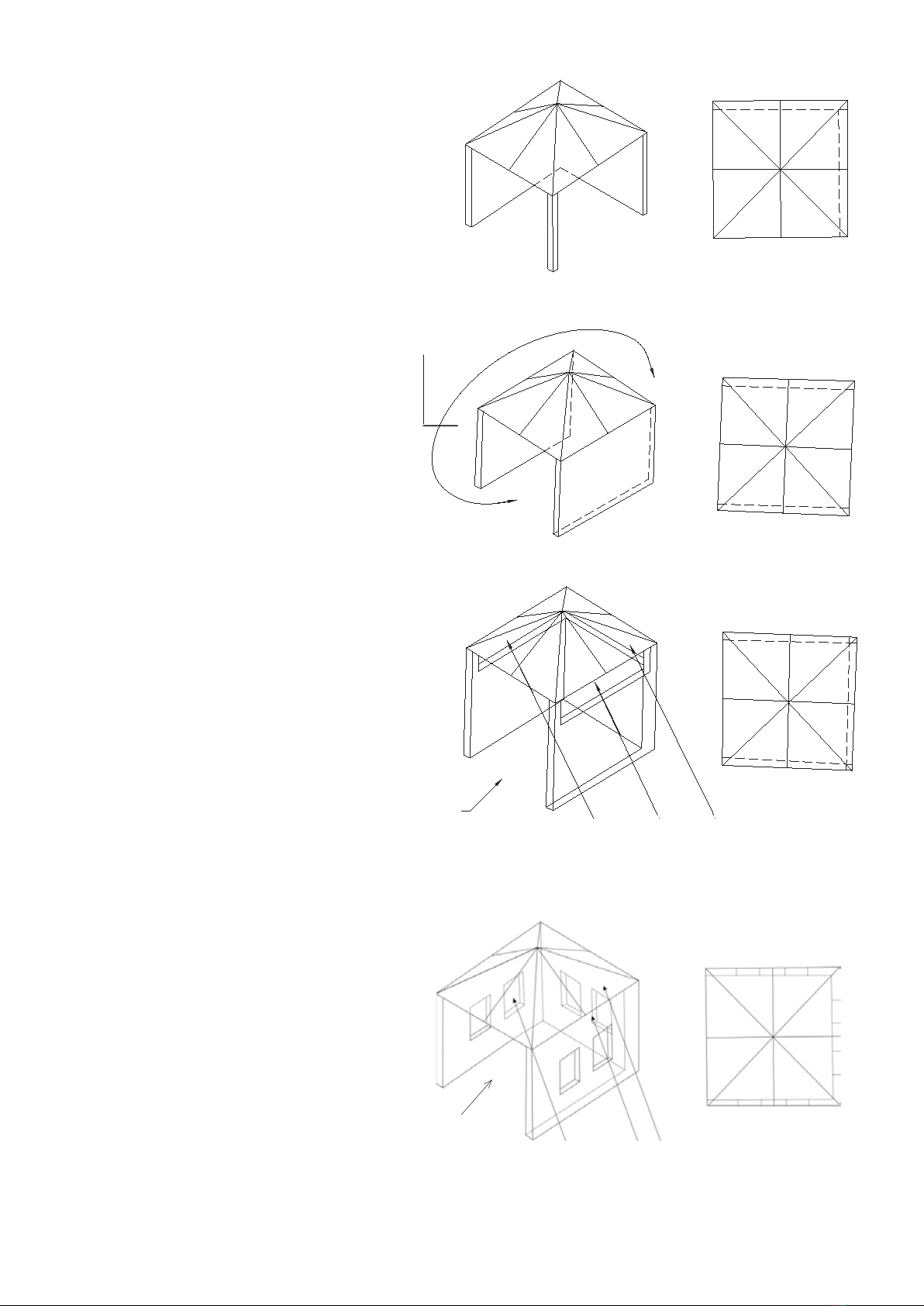

BBQ LOCATION – OUTDOOR AREA
INSTALLATION
CONNECTION TO LPG
LIGHTING PROCEDURE
USING THE BBQ
USING THE SMOKER BOX
BBQ MAINTENANCE
SPECIFICATIONS
CONNECTION TO NATURAL GAS
WARRANTY
3
4
5
6
7
8
9
10
10
14
16
17
18
19
20
22
29
30
32

MATADOR INSTRUCTION MANUAL 3

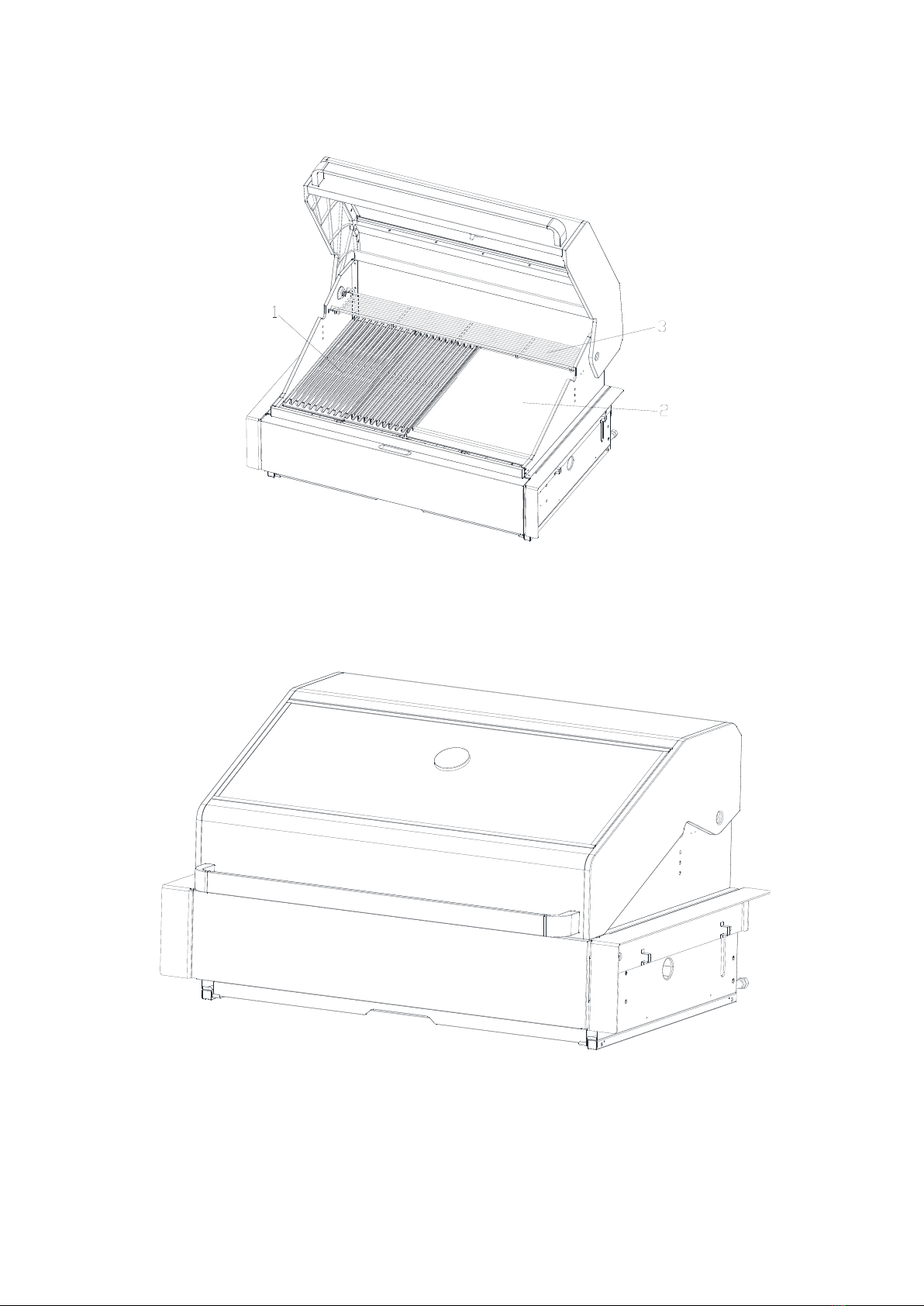

FEATURES & BENEFITS
Overall Barbecue Dimensions
4B Built in
BBQ
Length Height Depth
937 mm 554 mm 669 mm
Gas Output
Gas Type Burner
BBQ Side
LPG / U-LPG 15 MJ/h -
Natural Gas 15 MJ/h -

IMPORTANT SAFETY
WARNINGS
FOR OUTDOOR USE ONLY
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION
BOOKLET.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY
AEROSOLS NEAR THIS APPLIANCE.
DO NOT OPERATE THIS APPLIANCE INDOORS.
DO NOT ENCLOSE THIS APPLIANCE.
DO NOT LIGHT OR OPERATE WITH COVER ON.
Servicing can only be carried out by authorised technicians or licensed gas
fitters.
Conduct a thorough gas leak check every time the cylinder is replaced or
reconnected.
Do not store chemicals or flammable materials near this appliance.
Children must be supervised at all times while they are in the vicinity of this
BBQ to prevent burn injuries and to ensure they do not attempt to use the
BBQ.
In case of a fat fire, immediately isolate the gas supply - turn the LPG cylinder
valve off.
Allow the BBQ to cool before removing the drip tray. Hot fat can cause serious
injury.
This BBQ should not be located under overhead combustible construction.
Maintain the following minimum clearances to combustibles at all times:
From sides: 200mm From back: 500mm Overhead:1000mm
Turn all gas valves off including the LPG cylinder valve after use.
Never leave burners on high for more than 10 minutes unless actually cooking.
If the burner makes a loud roaring sound when lit, it may be burning inside. If
this occurs, turn the burner off, allow it to cool and light it again.
Do not delay ignition and allow a buildup of unburned gas.
Remove stickers (where fitted) from hood before use.
Do not store a spare LPG cylinder in the vicinity of the BBQ.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.

MATADOR INSTRUCTION MANUAL 5
Gas connections on the barbecue are leak tested at the factory prior to shipment
however, a complete gas leak test must be performed during assembly. The
cylinder to regulator connection must be leak tested every time the connection is
made. In order to test for a gas leak, complete the following steps.
1. Make a soap solution of one part liquid detergent and one part water.
GAS LEAK TEST

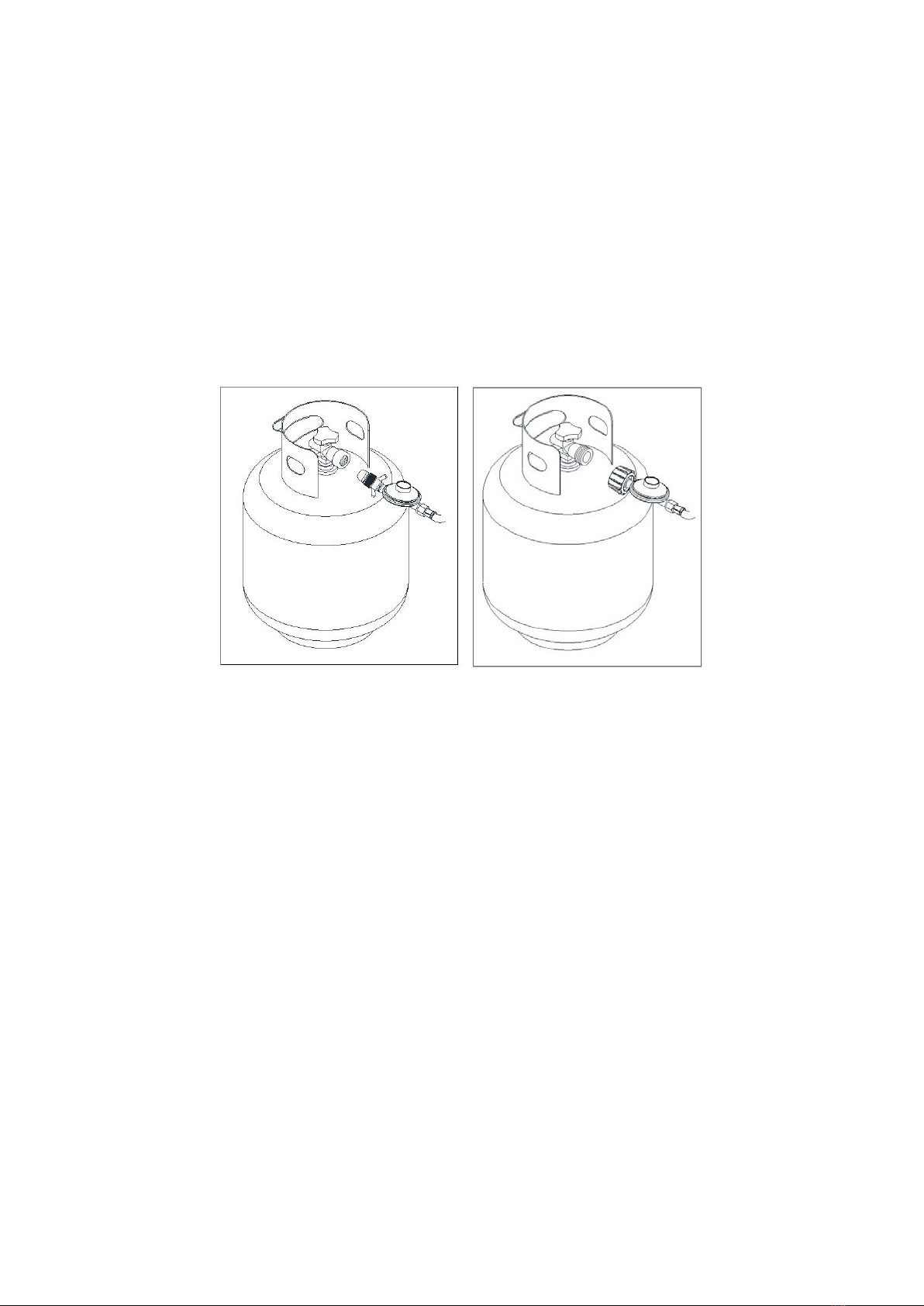

2. Ensure that the barbecue control knobs and LPG is turned off. Open the LPG
cylinder valve and apply the soap solution to the gas connections using a soft
bristle brush as seen below.
Soap bubbles will appear if there is a gas leak. In case of a leak, turn off the gas
supply. Tighten any leaking fittings, then turn the gas supply on and re-check.
Warning: Do not operate the appliance until all gas leaks have been rectified.
Never complete a gas leak test while smoking.
Note: If there is a leak anywhere on the gas cylinder, do not use the cylinder.
Locate the leaking cylinder outdoors away from sources of ignition, then contact
your local gas authority or cylinder exchange provider to arrange disposal.

GAS EMERGENCY
PROCEDURE
A strong gas smell or hissing sound indicates a serious problem with your BBQ or
the LPG gas cylinder. Failure to immediately follow the steps listed below could
result in property damage, serious bodily injury, or even death. If a strong smell of
gas or hissing sound occurs, complete the following steps.
1. Shut off the LPG cylinder valve.
2. Turn the control knobs to OFF position.
3. Put out any flame with a class B fire extinguisher and clear the area of people.
4. Move away from the LPG gas cylinder.
5. Do not try to fix the problem yourself.
If odour continues or you have a fire you cannot extinguish, call the fire
department immediately.
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL34
SStteepp77

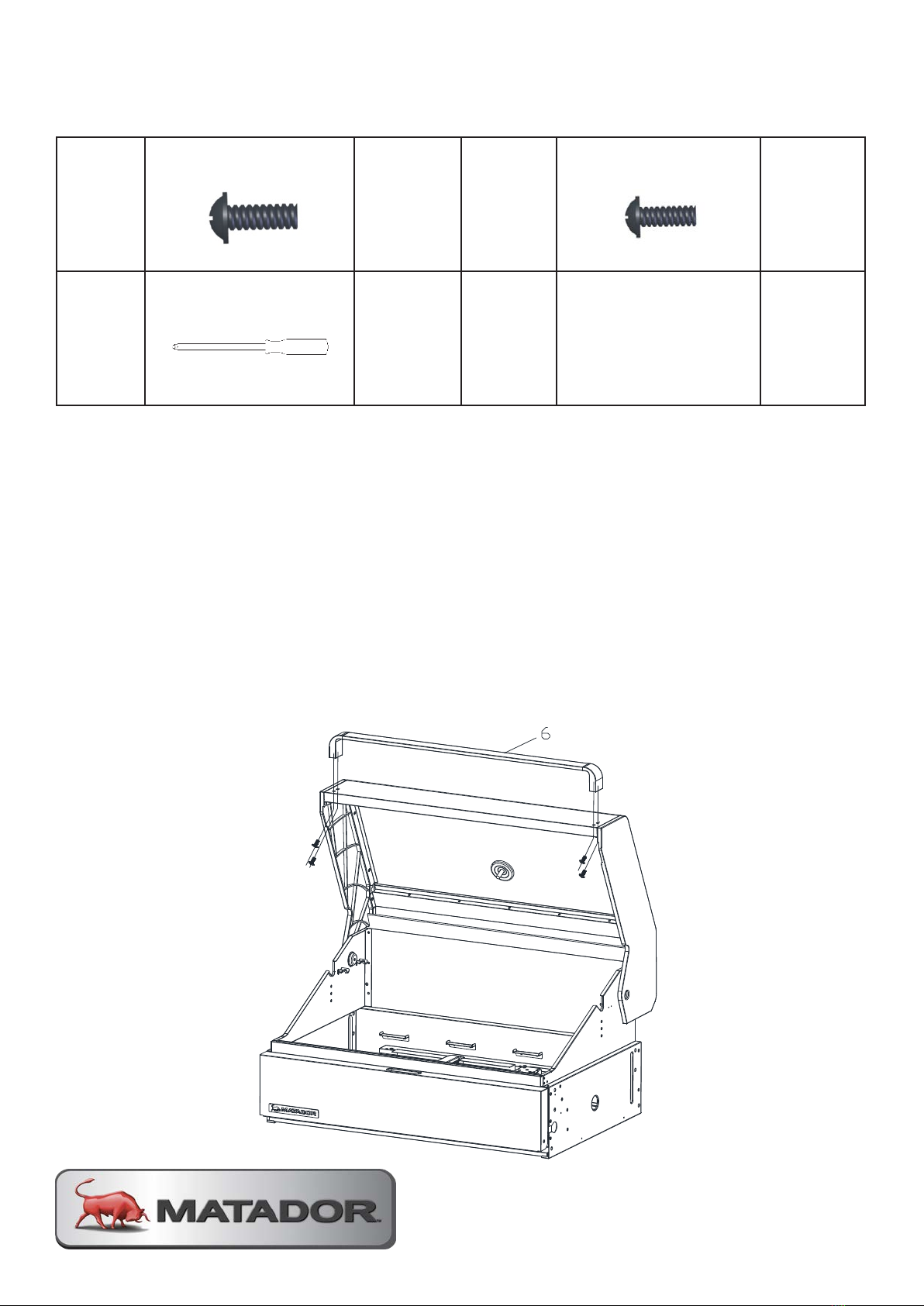

Assemble the side panels on the hood by M5 4pcs as shown. Fit the temperature gauge on the
glass.
SSTTOORRAAGGEE
1. Ensure the BBQ is properly cooled.
2. Storage of this gas BBQ indoors is permissible only if the gas cylinder is disconnected and
removed from the BBQ.
3. Store the BBQ in a cool dry place.
4. Always disconnect the gas cylinder and store it in a safe place, never store a gas cylinder on its
side.
5. Never store a gas cylinder in a building, garage or any other enclosed area.
6. If you intend to leave your BBQ outside make sure it is protected from the elements by a
heavy-duty cover (not included).
7. Keep outdoor cooking gas BBQ area clear and free form combustible materials, petrol and
other flammable vapours and liquids.
WWAARRNNIINNGG
SSTTOORREECCYYLLIINNDDEERRIINNAAWWEELLLLVVEENNTTIILLAATTEEDDAARREEAA
OOUUTTOOFFRREEAACCHHOOFFCCHHIILLDDRREENN
WARNING
STORE CYLINDER IN A WELL VENTILATED AREA
STORE CYLINDER OUT OF REACH OF CHILDREN

MATADOR INSTRUCTION MANUAL 7
GENERAL INFORMATION
Note: Before using the BBQ, remove any packaging material within and around
the BBQ supplied for protection during transit.
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing this
equipment.
Strong winds and low temperatures can affect the heating and performance of
your BBQ so factor in these elements when positioning your BBQ outdoors for
cooking.
Never use your BBQ in a garage, porch, shed, breezeway or any other enclosed
area. Your BBQ is to be used outdoors only,. Do not obstruct the flow of
ventilation air around the BBQ. This BBQ is not intended to be installed in or on
recreational vehicles and/or boats.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Any modification of the appliance may be dangerous.
Do not replace the grill with an extra hotplate. The warranty will become null and
void.
The normal flow of gas through the Regulator and Hose Assembly can create a
humming sound. A low volume of sound is perfectly normal and will not interfere
with operation of the BBQ. If humming sound is loud and excessive you may
need to purge air from the gas line.
Do not store gas cylinders below ground level. LP gas is heavier than air so if a
leak occurs the gas will collect at a low level and could ignite in the presence of a
flame or spark.
You must have the correct gas cylinder, regulator and hose for this BBQ to
operate safely and efficiently. Use of an incorrect gas cylinder, regulator or hose
is dangerous and will void the warranty on this product.
-
-
-
-
-
-
-
-
-
-
-

EXPLODED PARTS VIEW
EXPLODED PARTS VIEW
3
6
1
2
8
7
5
4
10
9
11
12
13

MATADOR INSTRUCTION MANUAL 9

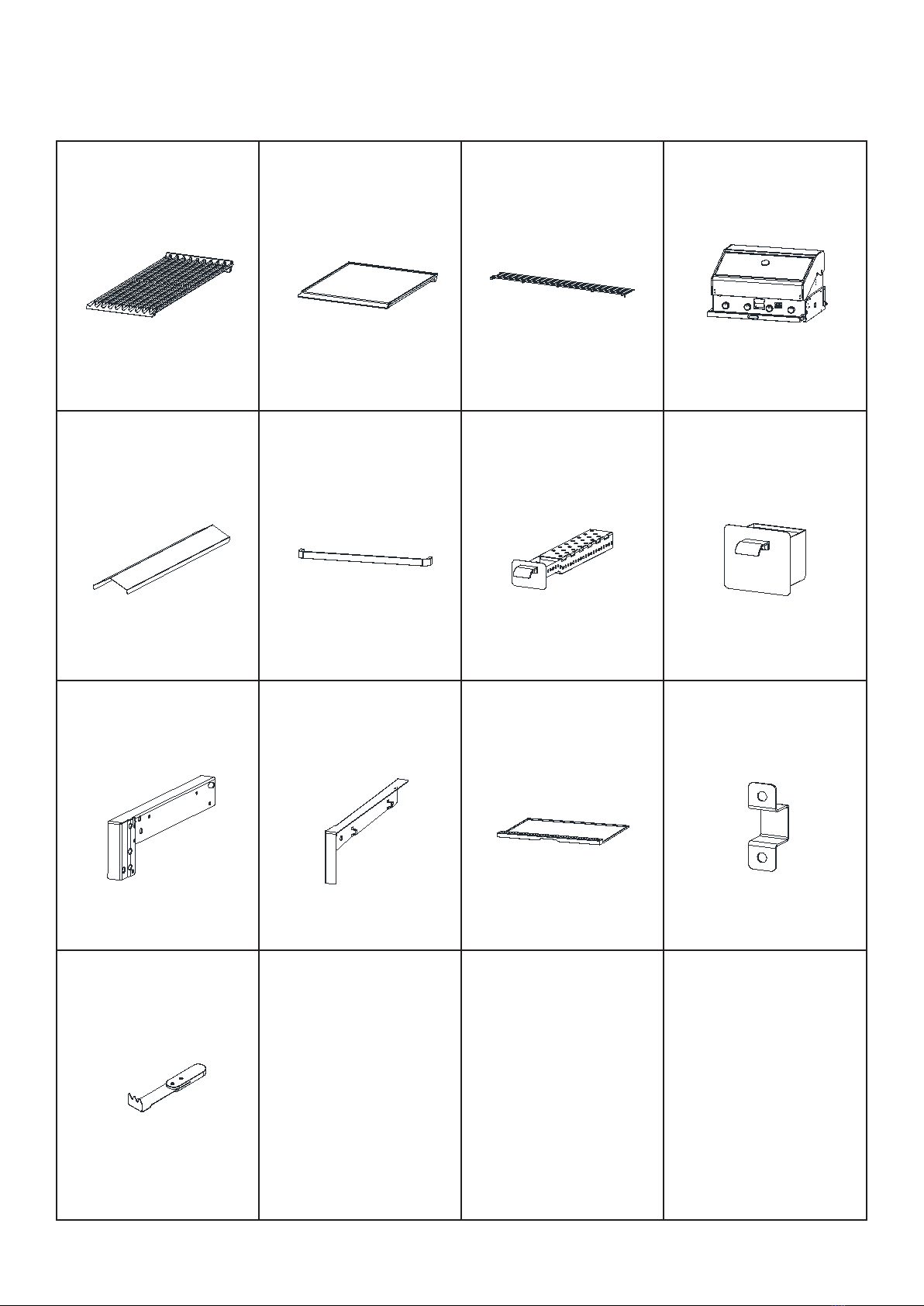

PARTS LIST
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
EXPLODED PARTS VIEW
3
6
1
2
8
7
5
4
10
9
11
12
13
1. Cooking Grill x 2 2. Hotplate 3. Warming rack 4. Firebox
5. Flame tamer x 2 6. Hood handle 7. Smoker box 8. Grease cup
9. Left side firebox
bracket
10. Right side
firebox bracket
11. Grease tray 12. Back shim
13. Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2
2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack
4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL8
PPAARRTTSSLLIISSTT
1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox
5 Flame tamer x 2 6 Handle of hood 7 Smoker box 8 Grease cup
9 Left side bracket of
firebox
10 Right side bracket of
firebox
11 Grease tray
12 Back shim
13 Scraper tool

ASSEMBLY STEPS
HARDWARE PACK
HARDWARE PACK
A
Bolt:M6*12
10
B
Bolt:M4*10
4
C
Screwdriver
1
ASSEMBLY STEPS
Remove all packaging and transit protection materials from parts before assembly.
SSTTEEPP11
Assemble handle of hood (6) on the hood by bolt (A) 4pcs as shown.
A
Bolt: M6*12
12 B
Bolt: M4*12
4
C
Screwdriver
1
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL10
HHAARRDDWWAARREEPPAACCKK
A
Bolt:M6*12
60 B
Washer:M6
18
C
Spring washer:M6
18 D
Bolt:M5*10
2
EBolt:M10*8 5 F Nut:M4 3
G
Screwdriver
1 H Bolt:M4*10 12
I
Bolt:M6*35
2 J
Nut:M6
2
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL10
HHAARRDDWWAARREEPPAACCKK
A
Bolt:M6*12
60 B
Washer:M6
18
C
Spring washer:M6
18 D
Bolt:M5*10
2
EBolt:M10*8 5 F Nut:M4 3
G
Screwdriver
1 H Bolt:M4*10 12
I
Bolt:M6*35
2 J
Nut:M6
2
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL10
HHAARRDDWWAARREEPPAACCKK
A
Bolt:M6*12
60 B
Washer:M6
18
C
Spring washer:M6
18 D
Bolt:M5*10
2
EBolt:M10*8 5 F Nut:M4 3
G
Screwdriver
1 H Bolt:M4*10 12
I
Bolt:M6*35
2 J
Nut:M6
2
Remove all packaging and transit protection materials from parts before assembly.
Wear gloves during assembly to protect your hands from cuts and abrasions.
STEP 1
Assemble handle of hood (6) on the hood by bolt (A) 4pcs as shown.
Note: 4pcs bolts are already in position on the hood handle.

MATADOR INSTRUCTION MANUAL 11
MATADOR INSTRUCTION MANUAL 10
SSTTEEPP22
Assemble left side bracket of firebox (9) and right side bracket of firebox (10) by bolt (A) 10pcs as
shown. Note: These parts are optional and may not be needed for your particular installation. Refer
to installation section for more details.
SSTTEEPP33
Assemble back shim (12) on the firebox by bolt (A) 4pcs as shown.
STEP 2
Assemble left side bracket of firebox (9) and right side bracket of firebox (10) by
bolt (A) 10pcs as shown. Note: These parts are optional and may not be needed
for your particular installation. Refer to installation section for more details.
MATADOR INSTRUCTION MANUAL 10
SSTTEEPP22
Assemble left side bracket of firebox (9) and right side bracket of firebox (10) by bolt (A) 10pcs as
shown. Note: These parts are optional and may not be needed for your particular installation. Refer
to installation section for more details.
SSTTEEPP33
Assemble back shim (12) on the firebox by bolt (A) 4pcs as shown.
STEP 3
Assemble back shim (12) on the firebox by bolt (B) 4pcs as shown.

STEP 4
Insert grease tray (11) on the firebox as shown.
SSTTEEPP44
Insert grease tray (11) on the firebox as shown.
SSTTEEPP55
Insert flame tamer (5) and grease cup (8) and smoker box (7) on the firebox as shown.
STEP 5
Insert flame tamer (5) and grease cup (8) and smoker box (7) on the firebox as
shown.
5
STEP 5
Insert flame tamer (5) and grease cup (8) and smoker box (7) on the firebox as shown.
STEP 6
Insert cooking grill (1) and hotplate (2) and warming rack (3) on the firebox as shown.

MATADOR INSTRUCTION MANUAL 13
MATADOR INSTRUCTION MANUAL 12
SSTTEEPP66
Insert cooking grill (1) and hotplate (2) and warming rack (3) on the firebox as shown.
FFuullllyyaasssseemmbblleeddBBBBQQ
STEP 6
Insert cooking grill (1) and hotplate (2) and warming rack (3) on the firebox as
shown.
MATADOR INSTRUCTION MANUAL 12
SSTTEEPP66
Insert cooking grill (1) and hotplate (2) and warming rack (3) on the firebox as shown.
FFuullllyyaasssseemmbblleeddBBBBQQ
Fully Assembled BBQ

This appliance shall only be used in an above ground open-air situation with
natural ventilation, without stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind and natural convection.
Any enclosure in which the appliance is used shall comply with one of the
following:
BBQ LOCATION -
OUTDOOR AREAS
An enclosure with walls on all sides, but at least one permanent opening at
ground level and no overhead cover.
Within a partial enclosure that includes an overhead cover and no more than two
walls.
At least 25% of the total wall area is completely open; and
At least 30% of the remaining wall area is open and unrestricted.
In the case of balconies, at least 20% of the total of the side, back and front wall
areas shall be and remain open and unrestricted.
Examples of the correct appliance outdoor setups can be seen below.

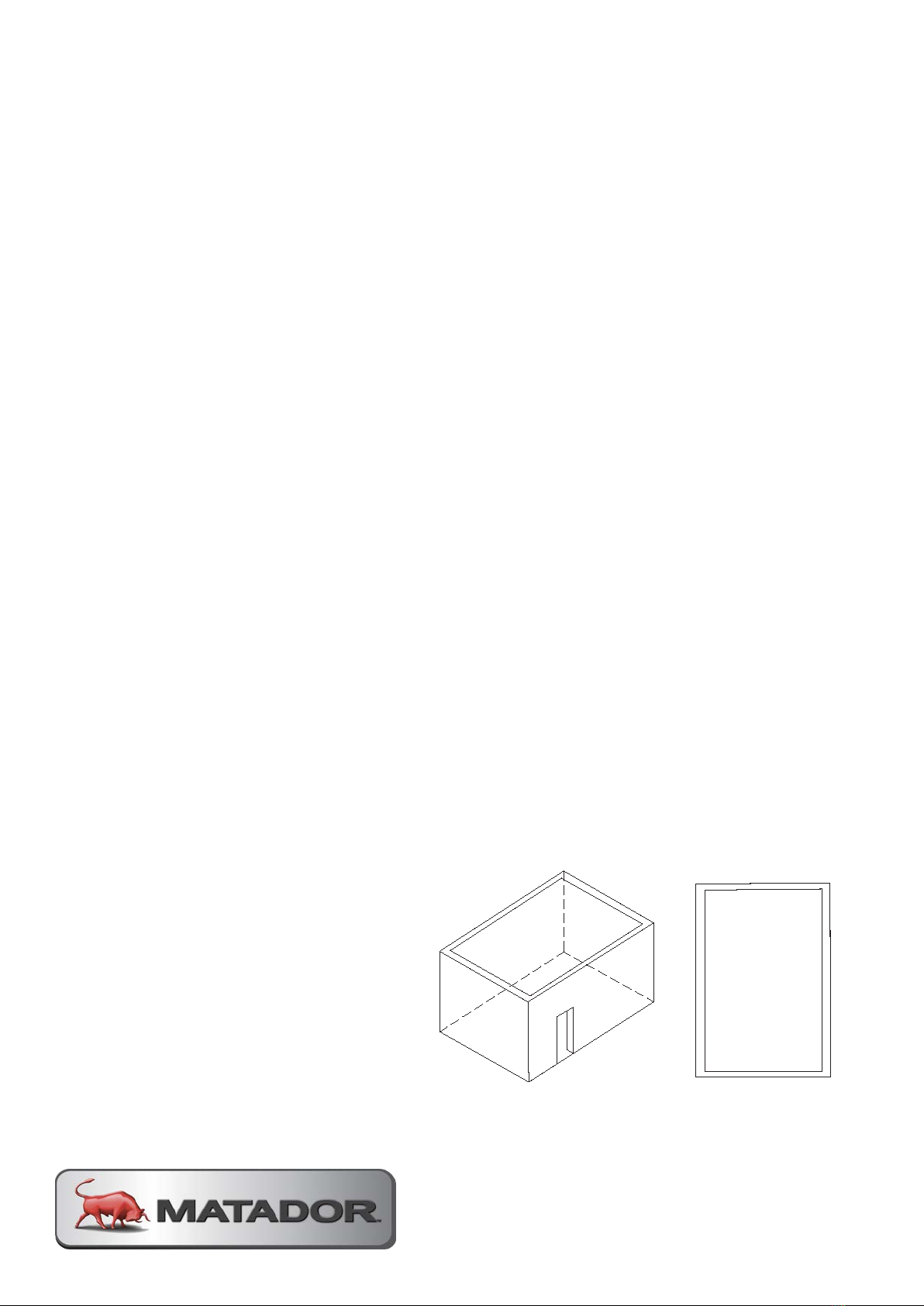

OUTDOOR AREA
EXAMPLE 1
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL22
BBQ LOCATION -
Outdoor Areas
TThhiissaapppplliiaanncceesshhaalllloonnllyybbeeuusseeddiinnaannaabboovveeggrroouunnddooppeenn--aaiirrssiittuuaattiioonnwwiitthhnnaattuurraallvveennttiillaattiioonn,,
wwiitthhoouuttssttaaggnnaannttaarreeaass,,wwhheerreeggaasslleeaakkaaggeeaannddpprroodduuccttssooffccoommbbuussttiioonnaarreerraappiiddllyyddiissppeerrsseeddbbyy
wwiinnddaannddnnaattuurraallccoonnvveeccttiioonn..
AAnnyyeenncclloossuurreeiinnwwhhiicchhtthheeaapppplliiaanncceeiissuusseeddsshhaallllccoommppllyywwiitthhoonneeoofftthheeffoolllloowwiinngg::
An enclosure with walls on all sides, but at least one permanent opening at ground level and no
overhead cover.
Within a partial enclosure that includes an overhead cover and no more than two walls.
WWiitthhiinnaappaarrttiiaalleenncclloossuurreetthhaattiinncclluuddeessaannoovveerrhheeaaddccoovveerraannddmmoorreetthhaannttwwoowwaallllss,,tthhee
ffoolllloowwiinnggsshhaallllaappppllyy::
At least 25% of the total wall area is completely open; and
At least 30% of the remaining wall area is open and unrestricted.
IInntthheeccaasseeooffbbaallccoonniieess,,aattlleeaasstt2200%%oofftthheettoottaalloofftthheessiiddee,,bbaacckkaannddffrroonnttwwaallllaarreeaasssshhaallllbbee
aannddrreemmaaiinnooppeennaanndduunnrreessttrriicctteedd..
OUTDOOR AREA-EXAMPLE 1

MATADOR INSTRUCTION MANUAL 15
OUTDOOR AREA-EXAMPLE 2
OUTDOOR AREA-EXAMPLE 3
00
Both ends open
Open sides at least 25%
of total wall area
30% or more in total of the remaining
wall area is open and unrestricted
Open sides at
least 25% of
total wall area
30% or more in total of
the remaining wall area
is open and unrestricted
OUTDOOR AREA-EXAMPLE 4
OUTDOOR AREA-EXAMPLE 5
OUTDOOR AREA-EXAMPLE 2
OUTDOOR AREA-EXAMPLE 3
00
Both ends open
Open sides at least 25%
of total wall area
30% or more in total of the remaining
wall area is open and unrestricted
Open sides at
least 25% of
total wall area
30% or more in total of
the remaining wall area
is open and unrestricted
OUTDOOR AREA-EXAMPLE 4
OUTDOOR AREA-EXAMPLE 5
OUTDOOR AREA-EXAMPLE 2
OUTDOOR AREA-EXAMPLE 3
00
Both ends open
Open sides at least 25%
of total wall area
30% or more in total of the remaining
wall area is open and unrestricted
Open sides at
least 25% of
total wall area
30% or more in total of
the remaining wall area
is open and unrestricted
OUTDOOR AREA-EXAMPLE 4
OUTDOOR AREA-EXAMPLE 5
OUTDOOR AREA
EXAMPLE 2
OUTDOOR AREA
EXAMPLE 3
Both ends open
OUTDOOR AREA
EXAMPLE 4
Open sides are at least 25% of total wall area
30% or more in total of the remaining wall
area is open and unrestricted
OUTDOOR AREA
EXAMPLE 5
30% or more in total of the remaining wall
area is open and unrestricted
Open sides are at least 25% of total wall area
OUTDOOR AREA-EXAMPLE 2
OUTDOOR AREA-EXAMPLE 3
00
Both ends open
Open sides at least 25%
of total wall area
30% or more in total of the remaining
wall area is open and unrestricted
Open sides at
least 25% of
total wall area
30% or more in total of
the remaining wall area
is open and unrestricted
OUTDOOR AREA-EXAMPLE 4
OUTDOOR AREA-EXAMPLE 5

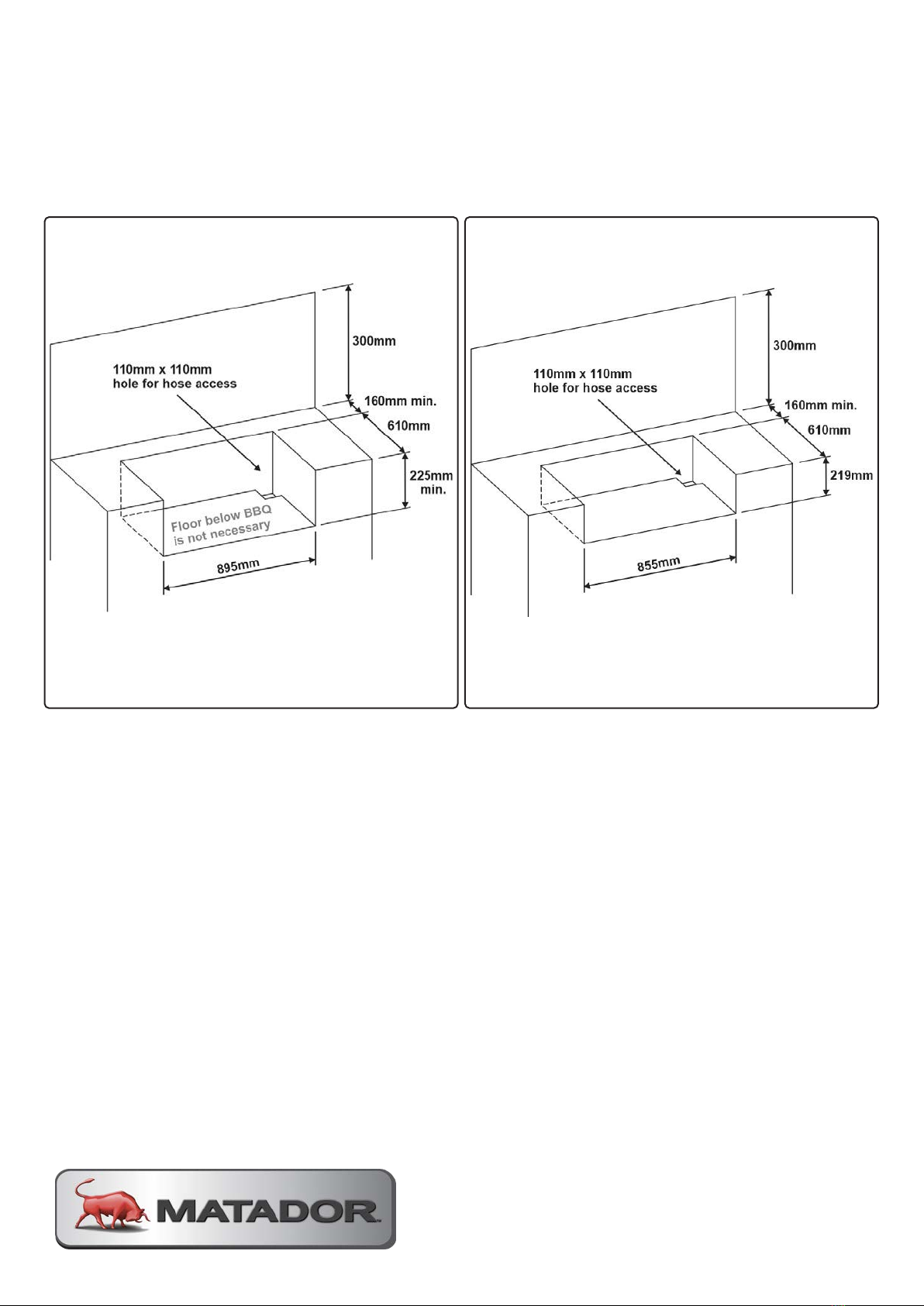

CUT OUT DIMENSIONS
The cut out must be made from non-combustible material only.
IN STA LL ATIO N
The 400mm tall, non-combustible rear splashback is not necessary provided there
is no combustible material within 500mm of the rear of the BBQ.
If the BBQ is supplied with a duplicate data label, apply this label in the immediate
vicinity of the BBQ in an easily accessible area.
Combustion air openings are at various locations around the BBQ firebox. The
cutout dimensions explained above must be met to ensure there is adequate space
for entry of air for satisfactory combustion.
Gas vapour is highly explosive and can cause serious bodily injury or damage to
property if allowed to accumulate in a confined space and ignited. If you choose
to build an enclosure to house an LPG cylinder, at least one side of the enclosure
shall be completely open, and ventilation must meet the minimum requirements of
AS5601.1.
INSTALLATION WITHOUT
SIDE BRACKETS
The side brackets can be removed if preferred.
In this case, the BBQ shall rest on the built in
rails below the BBQ.
INSTALLATION WITH OPTIONAL
SIDE BRACKETS
The side brackets allow a simple method of
installation where the BBQ can simply rest on
two pillar like structures.

MATADOR INSTRUCTION MANUAL 17
CONNECTION TO LPG
GAS LEAK TESTING
Gas leak testing, mentioned earlier in the manual, must be done the first time you
connect up the BBQ, and whenever the LPG cylinder is re-connected to the BBQ.
Always inspect the hose at regular intervals to check for cracks or abrasion.
CONNECTING THE LPG CYLINDER
1.
2.
Connect the regulator to the LPG cylinder and tighten the connection. The two
types of connections can be seen below.
Turn the gas on at the cylinder, or make sure gas is available to the BBQ, but
do not turn the burners on. This fills the gas lines with gas. Now brush or pour
some soapy water onto all connections. If there is a leak, bubbles should appear
within about 20 seconds. If you find any leaks, tighten the connection and
repeat the leak test. If the leaks persist, contact your place of purchase.
WARNINGS
DO NOT USE NAKED FLAME FOR LOCATING GAS LEAKS
IF A LEAK PERSISTS, CALL AND AUTHORISED PERSON
DO NOT USE THIS BBQ UNLESS ALL CONNECTIONS ARE GASTIGHT
In the case of a problem arising with the hose and regulator please contact your
BBQ supplier for a list of approved replacement parts.
POL QCC
MMAATTAADDOORRIINNSSTTRRUUCCTTIIOONNMMAANNUUAALL24
CONNECTION TO LPG
LLEEAAKKTTEESSTTIINNGG
Leak testing must be done the first time you connect up the BBQ, and whenever the LPG
cylinder is re-connected to the BBQ. Always inspect the hose at regular intervals to check for
cracks or abrasion.
Connect the regulator to the LPG cylinder and tighten the connection.
Turn the gas on at the cylinder, or make sure gas is available to the BBQ, but do not turn the
burners on. This fills the gas lines with gas. Now brush or pour some soapy water onto all
connections. If there is a leak, bubbles should appear within about 20 seconds. If you find any
leaks, tighten the connection and repeat the leak test. If the leaks persist, contact your place of
purchase.
POL QCC
DDOONNOOTTUUSSEENNAAKKEEDDFFLLAAMMEEFFOORRLLOOCCAATTIINNGGGGAASSLLEEAAKKSS
IIFFAALLEEAAKKPPEERRSSIISSTTSS,,CCAALLLLAANNAAUUTTHHOORRIISSEEDDPPEERRSSOONN
DDOONNOOTTUUSSEETTHHIISSBBBBQQUUNNLLEESSSSAALLLLCCOONNNNEECCTTIIOONNSSAARREEGGAASSTTIIGGHHTT
IInntthheeccaasseeooffaapprroobblleemmaarriissiinnggwwiitthhtthheehhoosseeaannddrreegguullaattoorrpplleeaasseeccoonnttaaccttyyoouurrBBBBQQssuupppplliieerr
ffoorraalliissttooffaapppprroovveeddrreeppllaacceemmeennttppaarrttss..

LIGHTING PROCEDURE
Lighting the BBQ is easy, but must be done with due care.
Make sure the LPG cylinder is filled.
Make sure that gas is turned on at the cylinder, or that gas is available to the
BBQ.
Check that the end of each burner tube is properly located over each valve
orifice.
Make sure all gas connections are securely tightened.
Open the hood or side burner lid.
-
-
-
-
-
-
BEFORE STARTING
With the hood or side burner lid open, place a lit match or long stem gas lighter
close to the burner you wish to light. Be cautious of the position of your hand
and ensure it remains a reasonable distance from the burner. Turn the control to
the “High” position. The burner should light. If it fails to light, return the control to
the “OFF” position and try again in five minutes.
-
MANUAL IGNITION (in case of lighting failure from BBQ ignition)
The BBQ burners are equipped with automatic ignition. It works by throwing a
flame to the side of the burner to light. Push the knob in and turn anticlockwise
to the high position. You should hear and feel a click from the knob. Hold the
knob in and observe the flame extend towards the side of the burner. When the
burner ignites, release the control knob. If the burner doesn’t light on the first
attempt, return the knob to the “OFF” position and try several more times. If the
burner still does not light, wait a few minutes to allow the gas to disperse before
trying again.
-
FLAME THROWER IGNITION OF BBQ BURNERS
TYPES OF IGNITION

MATADOR INSTRUCTION MANUAL 19
USING THE BBQ
CONTROLLING THE FLAMES
The knobs have three basic positions. You can achieve any flame height between
low and high by rotating the knob between these positions.
OFF HIGH LOW
NOTE: ‘Light back’ is a situation where the flame burns inside the burner,
towards the front, recognized by a sharp roaring sound coming from the burner.
It is not dangerous unless allowed to persist. If this occurs, simply turn the
burner off, wait a few minutes, and then relight.
IMPORTANT: Please add sand or fat absorption granules to the grease tray
before first use.
We recommended you wash the cooking surfaces with soap and warm water
before use.
The cooking plates are vitreous enamel coated and they do not require seasoning
like most other BBQs.
-
-
-
COOKING FOR THE FIRST TIME

USING THE SMOKER BOX
The following steps are guide to getting
good lasting smoke from the wood
chips in your smoker box.
1.
2.
3.
With the hood open and the burners
off, slide out the smoker box and fill
with your favourite wood chips.
Ensure the smoker box is not over
filled and the lid can close fully before
sliding back into the BBQ.
Ignite burners 3 and 4 (seen in the
below image on either side of the
smoker box) and turn to a medium
setting. Ensure the hood of the BBQ
remains open during this step.
Leave on medium for approximately
10 - 15 minutes or until you see white
smoke wafting from the grill plates.
When smoke has been achieved,
turn off burner 3, turn burner 4 to low
and turn on burner 1 to low. At this
stage, the lid of the BBQ can now be
closed and is ready for smoking your
favourite food.
You will receive approximately 20 - 25
minutes of smoke time. This depends
on the weather conditions and type of
wood chips used.
The smoker box can be refilled
at anytime. Be sure to use high
temperature gloves as the smoker box
will be very hot.
    
BURNERLOCATION
Smoker Box
