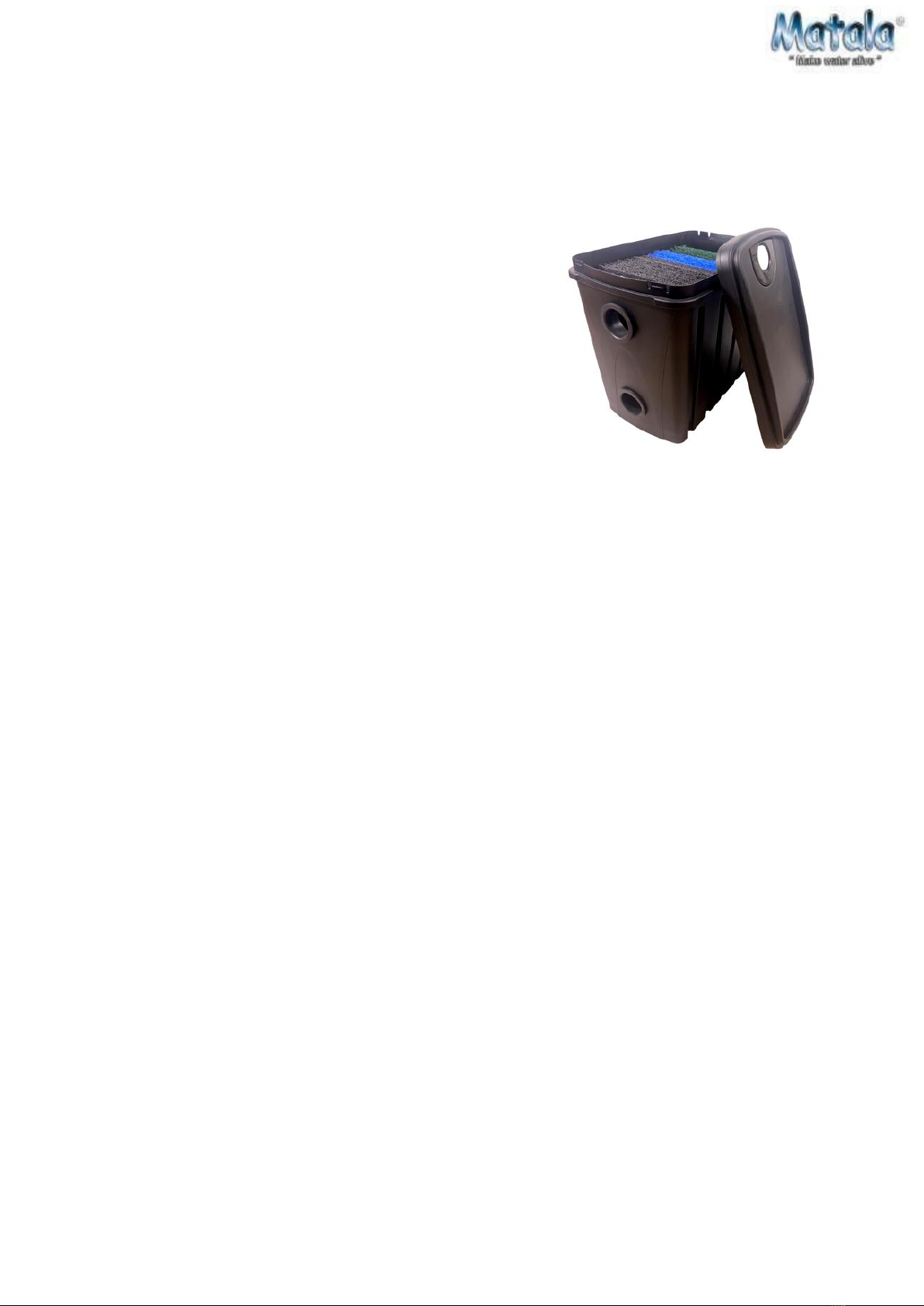

MATALA Biofilter 10 Manual

Matala Biofilter 10 Installation and maintenance manual
Matala Biofilter 10 is suitable where you have a small
water consumption of max 400 l/day and 55 l/h.
If you have several wires out of the house, it can be led
to the same filter, or you could place a filter in each
place. It is also available as a model with a built-in
pump, to pump away the water after the filter.
Matala grey water filter/BDT (bath, dishes & laundry)
is the original and it has sold in the thousands over
the past 15 years.
•No costs for consumption
•No electricity consumption
•No moving parts
Matala grey water filters are adapted for smaller amounts of BDT wastewater such as in
small houses, holiday homes, sauna houses, building sheds and others where you do not
have water connected.
Not all types of grey water filters can handle high flows that you can have in year-round
houses with high water consumption, then choose other technology.
The capacity is from 400 to 750 liters/day, depending on the model and accessories.
Biofilter 10 has a capacity of 400 l/day or 55 l/h and Biofilter 20 & 25 can handle 750 l/day
and 75 l/h.
Function
The function is completely natural by purifying the water, as it slowly flows through the
patented filters that break down biological nutrients with Biofilm technology with microbes.
Since the filters are airy in the biofilter and the water varies in level all the time, no air
compressor is needed for oxygenation of the biohud.
There is always some water at the bottom of the biofilter so that the biohud should always
have a good environment even when the load stops.

2 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Contents
1 pcs Tank with lid
3 pcs Implementations 75mm
2 pcs green filters
2 pcs blue filters
2 pcs black filters
1 pcs ventilation hat
1 pcs manual
Dimensions
Height: 510mm
Width: 370mm
Length: 590mm
Weight: 9 kg
Total internal volume: 75litres
Filter material / Total filter area:15,88m²
2x Green Matala FSM290 (1.46m² filter area per disc)
2x Blue Matala FSM 365 (1.84m² filter area per disc)
4x Grey Matala FSM460 (2.32m² filter area per disc)
Pipe connections:
Inlet 75mm (3") 390mm cc from floor
Outlet 75mm (3") 100mm cc from the floor
Ventilation 75mm (3”) 360mm

3 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Placement
Bio Filter 10 must be placed on a stable and a flat frost-free surface. If Bio Filter is to perform
during the winter, it must be insulated in such a way that the container does not freeze.
Bio Filter 10 must also stand in such a way that it is easy to lift the lid off and inspect
and, if necessary, clean the filter material in the box - under normal conditions 1-2
times a year.
The inlet grey water is connected to the short side that has only one inlet hole of 75mm (as
well as drainage plugs at the bottom).
The pipes for Bio Filter 10 must tilt at least 1% (1cm per meter) to ensure that wastewater is
standing in the pipes. If it is slow to push the pipes through the sleeves, we recommend that
you use lubricants.
Outgoing water is connected in the lower hole on the short side with two 75mm holes.
The purified water can be led directly to a ditch, if there is no possibility then we recommend
a recipient to help the ground receive the outgoing water.

4 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Emissions by bio filter
You can choose to release the purified water into a stone coffin or simple HS infiltration.
Under normal ground conditions, we recommend a recipient of 1x1.2m with Matala FSM
190 as a biomodule and 30-50cm gravel underneath.
The spreader tube is placed in the middle of the Matala FSM 190 biomodule and the whole
thing is covered with ground cloth before the post-polishing is covered.
At the end of the pipe the ventilation hat is placed.
In difficult soil conditions where the soil has difficulty absorbing the liquid, the area is
expanded, and you can supplement with drainage pipes at the bottom as a so-called
ground bed. The water is then passed on to, for example, a suitable ditch.

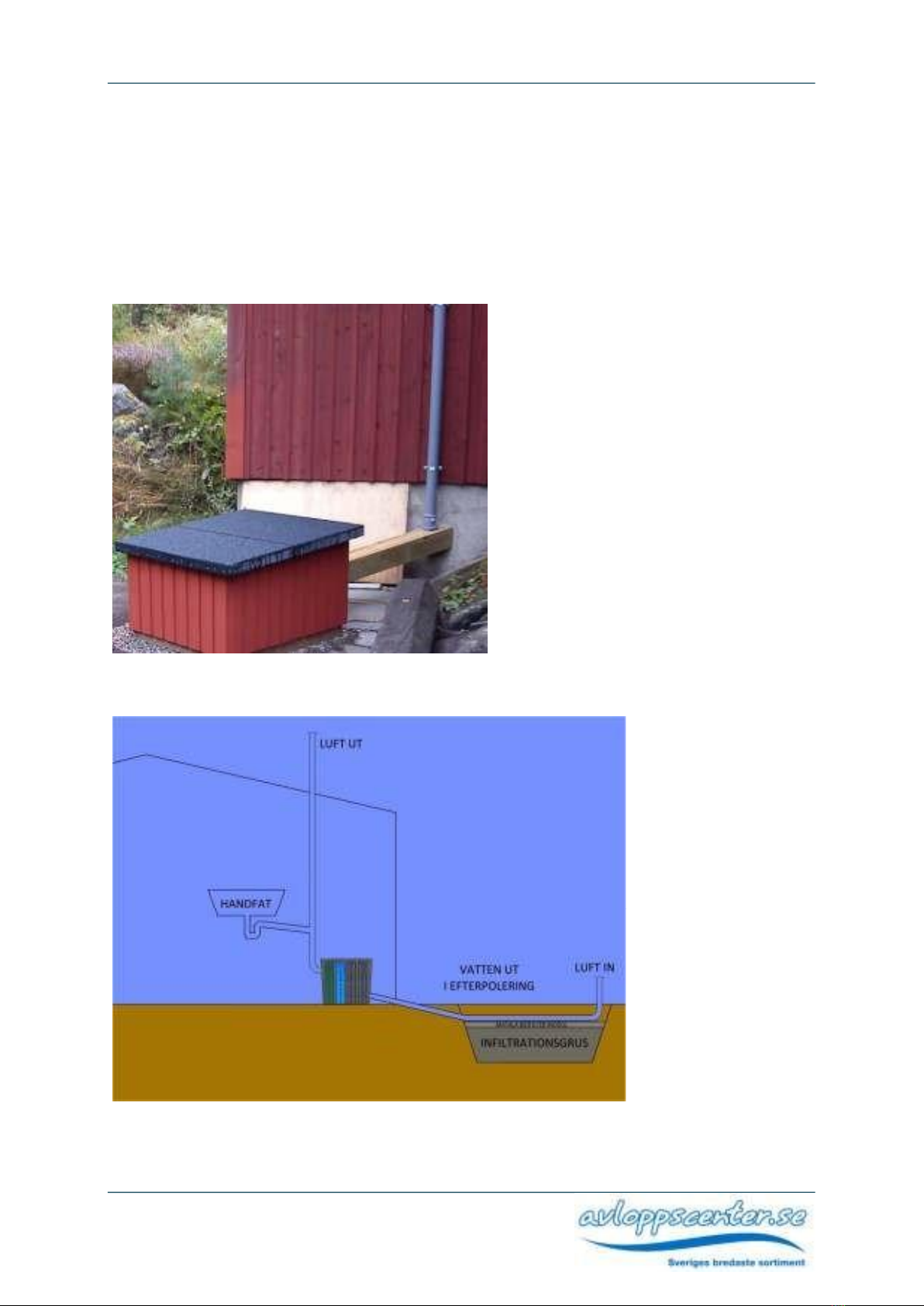

This image is an example of installation above ground where an insulated box has been built
around the biofilter –observe the grey vent pipe that goes up after the wall.

5 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50

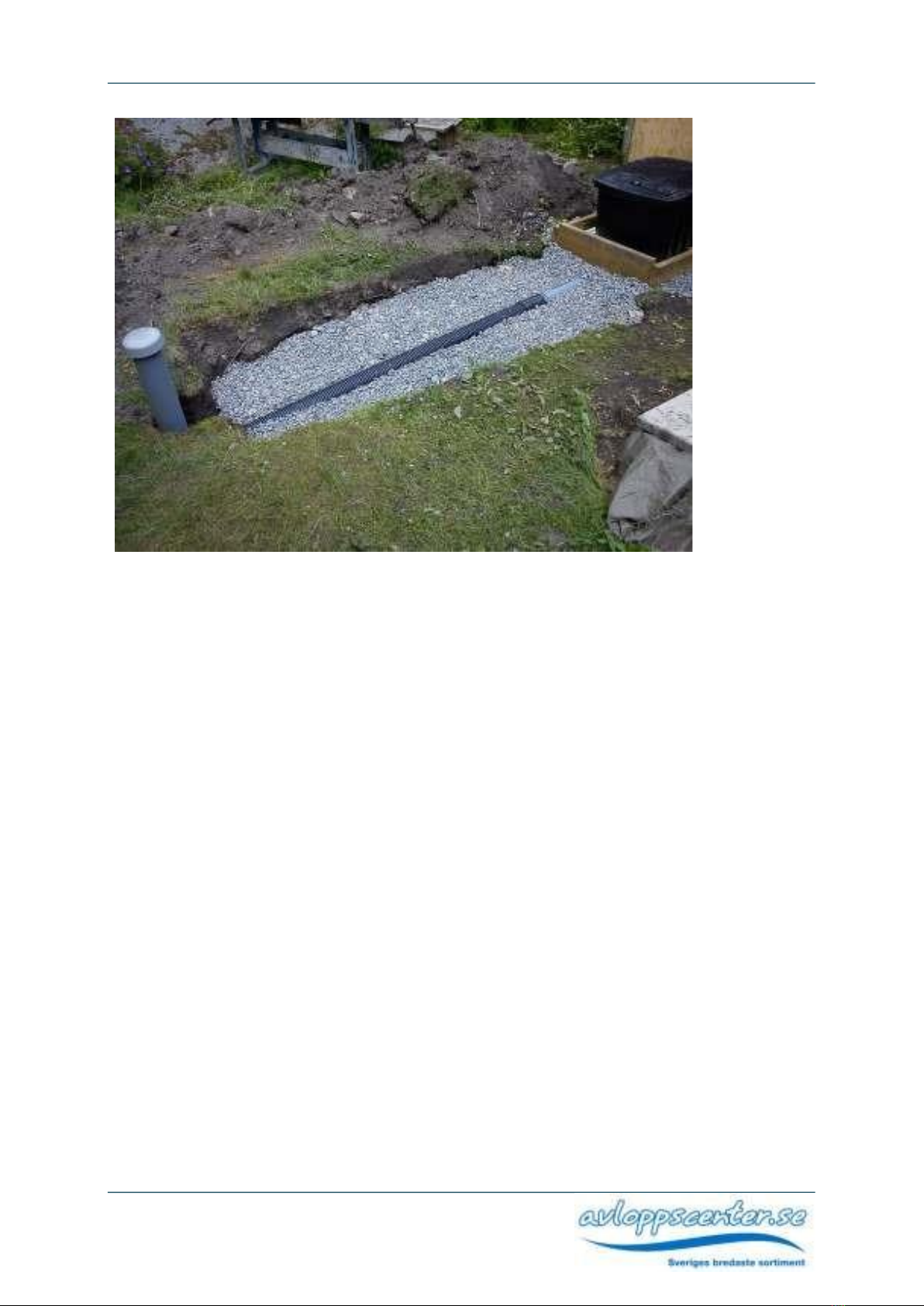

After the Biofilter, an HS infiltration (accessory) has been used to improve purification and get
a place that receives the purified water. The ground cloth is put on before filling the filling soil.
This is a better solution than a stone coffin.

6 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Leveling tank
If you have a short pipe length from, for example, the sink, you might can get warm water
over 50 degrees that can knock out the biohud. Try to pour out a pot of boiling water if the
temperature in the filter is above 50 degrees.
The problem can be solved by waiting for the temperature to decrease before flushing out the
water - or that you increase the pipe length or installing a leveling tank of about 50 liters.
The leveling tank is available as an accessory.
Parallel pair two filters
If you want to increase the capacity to 600
litres/day, you can parallel connect two
filters

7 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Pumping
Many times, pumping is needed to solve the installation, Matala Biofilter 10 is available in a
version with built-in pump to pump out purified water.
Please note, it can`t suck water in - it must be self-draining into the filter.
In the package it is included a 32mm PEM connector. For this it`s suitable to use is 32mm
PEM hose.
Pressure curve for pump

8 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Ventilation
Ventilation is always necessary to oxygenate a biodegradation. Inbound air is through the
pipe for outgoing water, if possible - or via the upper hole on the same short side as outgoing
water, if an unventilated post-polishing is used.
Outgoing air goes through the housing pipe trunk or via the hole in Bio filter 10's lid.
Outgoing air should be drawn as high as possible, over the roof nook is the best. This leads
to a good self-draught and oxygen addition, as well as pulling out any odors.
All sewers need ventilation and good air exchange thus - also Bio Filter 10. Keep in mind that
there should be ventilation at both ends of the biofilter.
Ventilation on the discharge pipe and the roof of the house.

9 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Maintenance
The microbial growth formed on the filter element collects nutrients from the gray water
flowing through the filter elements. The biological purification process is sensitive to
poisoning i.e., drugs, chemicals for sewage stops, chlorine, large amounts of antibacterial
detergents, solutions, oil, paint, or other problematic waste. This is because all of this kill the
microbe function of the bio filter.
One should also avoid directing nutritious substances, such as milk and fats to the bio filter,
nutritious substances should be composted.
Keep in mind that large amounts of greasy dishwashing water may cause the filter elements
to be cleaned more often.
If the water flow through the filter elements deteriorates significantly, the filter elements
should be cleaned more often. The clearest sign that the filter elements need to be cleaned
is that the upper part of the filter elements (10 highest cm) is dirty. Contamination of the
upper parts of the filter elements may also be due to a temporarily large amount of
wastewater or to a stop in the discharge site after the filter.
Location of the carpets from the inlet to the outgoing water:
2 green, 2 blue and last 4 grey filters.
Filter elements are absorbed and cleaned once a year by shaking them out above a
compost.
The residual sludge should be composted in a latrine compost.

10 (10)
Svenska Avloppscenter AB
Ekebyvägen 4, 725 92 Västerås
+46 10
490 10 50
Cleaning
Sewage sludge contains bacteria and therefore it should be handled with caution.
The easiest way is to shake off the carpets above the compost, about 90% of the sludge will
then release. The knocked-out filters are then put back in the Biofilter, the 10% of sludge and
bacteria that remain ensure that the biological purification continues.
The sludge should be composted in a latrine compost for a normal 6 months to ensure full
degradation.
It should be avoided to clean the filter elements too often, as this reduces microbial growth,
which leads to a deterioration in purification results.
In winter, you can drain the biofilter if there is a risk of freezing that stops the flow, if you want
to be able to use the biofilter in winter, you should insulate it extra.
The biofilter can resist freezing temperatures normally well, nothing that breaks.
