Matchless Leanline III TC User manual

Users Instructionsl

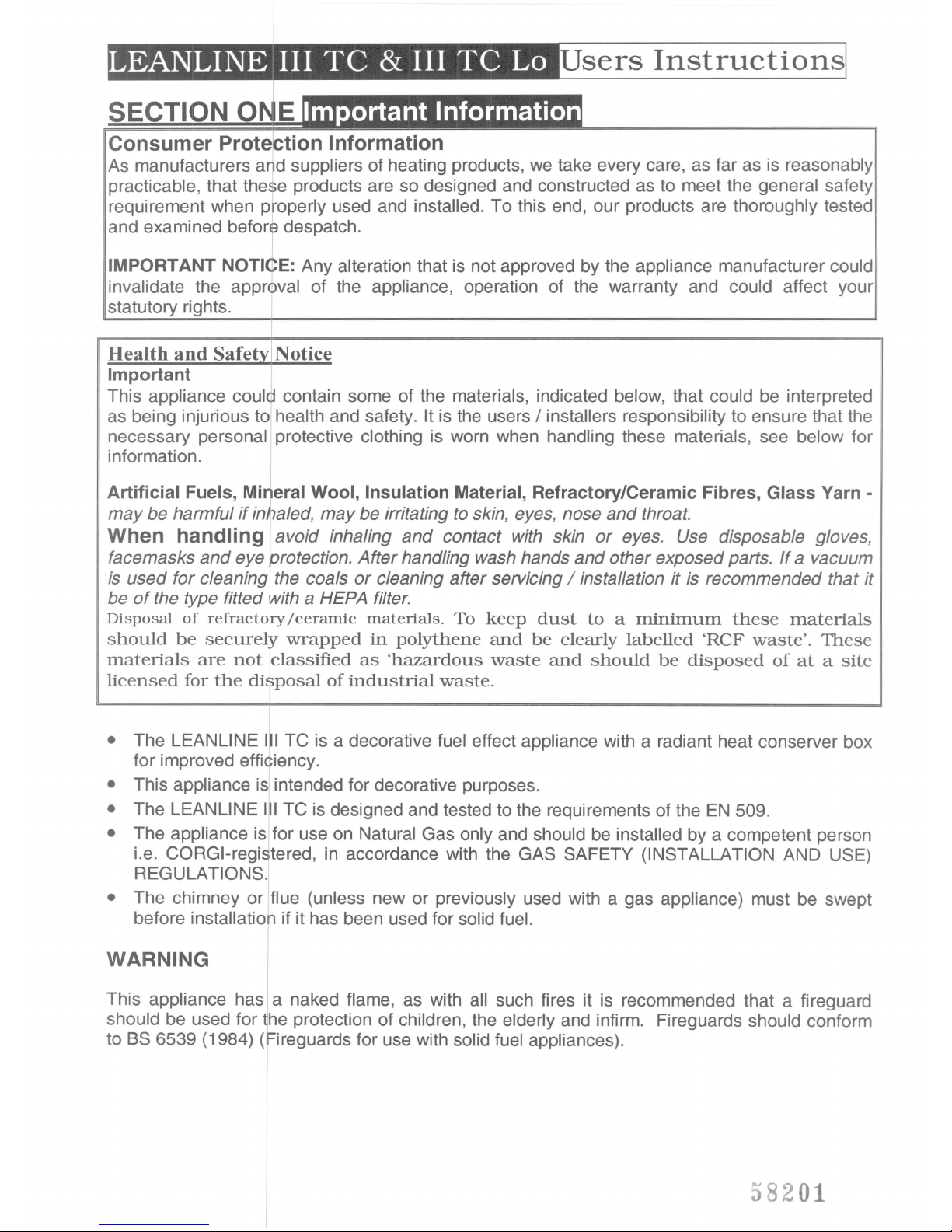

SECTION 0
Consumer Proteftion Information
As manufacturers and suppliers of heating products, we take every care,as far as is reasonably
practicable, that these products are so designed and constructed as to meet the general safety
requirement when properly used and installed. To this end, our products are thoroughly tested
and examined beforrdespatch.
IMPORTANT NOTIJE: Any alteration that is not approved by the appliance manufacturer could
invalidate the approval of the appliance, operation of the warranty and could affect your
statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted
as being injurious to health and safety.It is the users / installers responsibility to ensure that the
necessary personal protective clothing is worn when handling these materials,see below for
information. i
Artificial Fuels, Mi eral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn -
may be harmful if in aled,may be irritating to skin,eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes.Use disposable gloves,
facemasks and eye protection.After handling wash hands and other exposed parts.If a vacuum
is used for cleaning~he coals or cleaning after servicing / installation it is recommended that it
be of the type fitted ith a HEPA filter.
Disposal of refracto /ceramic materials. To keep dust to a minimum these materials
should be securelywrapped in polythene and be clearly labelled 'RCF waste'. These
materials are not classified as 'hazardous waste and should be disposed ofat a site
licensed for the disposal ofindustrial waste.
• The LEANLlNE I~ITC is a decorative fuel effect appliance with a radiant heat conserver box
for improved efficiency.
• This appliance is intended for decorative purposes.
• The LEANLlNE ~I TC is designed and tested to the requirements of the EN 509.
• The appliance is for use on Natural Gas only and should be installed by a competent person
i.e. CORGI-regi tered, in accordance with the GAS SAFETY (INSTALLATION AND USE)
REGULATIONS.
• The chimney or flue (unless new or previously used with a gas appliance) must be swept
before installatiohif it has been used for solid fuel.
This appliance has a naked flame, as with all such fires it is recommended that a fireguard
should be used for the protection of children, the elderly and infirm. Fireguards should conform
to SS 6539 (1984) (Fireguards for use with solid fuel appliances).
58201

Users Instructionsl

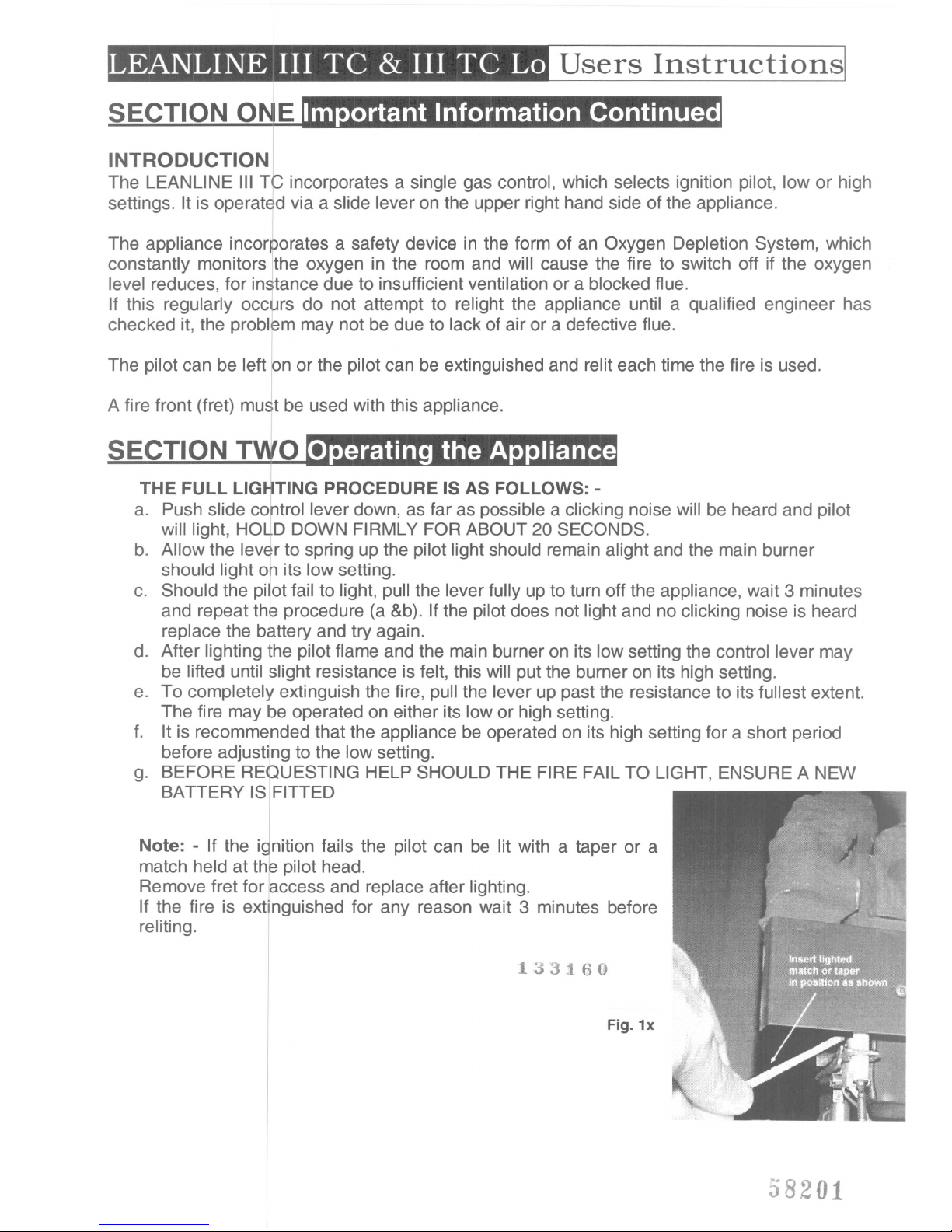

SECTION 0 E
INTRODUCTION
The LEANLlNE III Te incorporates a single gas control, which selects ignition pilot, low or high
settings. It is operated via a slide lever on the upper right hand side of the appliance.
The appliance incoJorates a safety device in the form of an Oxygen Depletion System, which
constantly monitors ~he oxygen in the room and will cause the fire to switch off if the oxygen
level reduces, for instance due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has
checked it, the problem may not be due to lack of air or a defective flue.
The pilot can be left ~n or the pilot can be extinguished and relit each time the fire is used.
A fire front (fret) muJt be used with this appliance.
SECTION TWO • •.
THE FULL L1G TING PROCEDURE IS AS FOLLOWS: -
a.Push slide co trol lever down, as far as possible a clicking noise will be heard and pilot
will light, HOL.D DOWN FIRMLY FOR ABOUT 20 SECONDS.
b. Allow the lever to spring up the pilot light should remain alight and the main burner
should light o~ its low setting.
c. Should the pi ot fail to light, pull the lever fully up to turn off the appliance, wait 3 minutes
and repeat th procedure (a &b). If the pilot does not light and no clicking noise is heard
replace the battery and try again.
d.After lighting the pilot flame and the main burner on its low setting the control lever may
be lifted until slight resistance is felt, this will put the burner on its high setting.
e. To completelr extinguish the fire, pull the lever up past the resistance to its fullest extent.
The fire may Xe operated on either its low or high setting.
f. It is recomme1nded that the appliance be operated on its high setting for a short period
before adjusting to the low setting.
g. BEFORE REQUESTING HELP SHOULD THE FIRE FAIL TO LIGHT, ENSURE A NEW
BATTERY IS FITTED
Note: - If the iJnition fails the pilot can be lit with a taper or a
match held at t~ pilot head.
Remove fret for access and replace after lighting.
If the fire is extinguished for any reason wait 3 minutes before
reliting.
;,8201

LEANLINE III TC & III TC Lo
SECTION THREE
Users Instructions
It is important that al the fuel bed and moulded shapes are positioned as shown in these
instructions.
Two Alternative Fuelbeds are available: -
l
A) Coal
B) Pebble
Identify the fuel bed nd assemble as shown below.
COAL FUEL BED
Some soot deposit~ will form on the coals, this is perfectly normal and adds to the
realism of the appl"ance.
The Loose coal set consists of: -
• Rear Matrix
• Front Coal I
• Loose CO~IS- 9 coal 'A' (Triangular)
10coal 'B' ('L' Shaped)
• Ensure the rear matrix is in position as shown.
Positioned well back against the rear of the
appliance.
• Ensure the front coal is located behind the burner
fascia as shown.
a8201

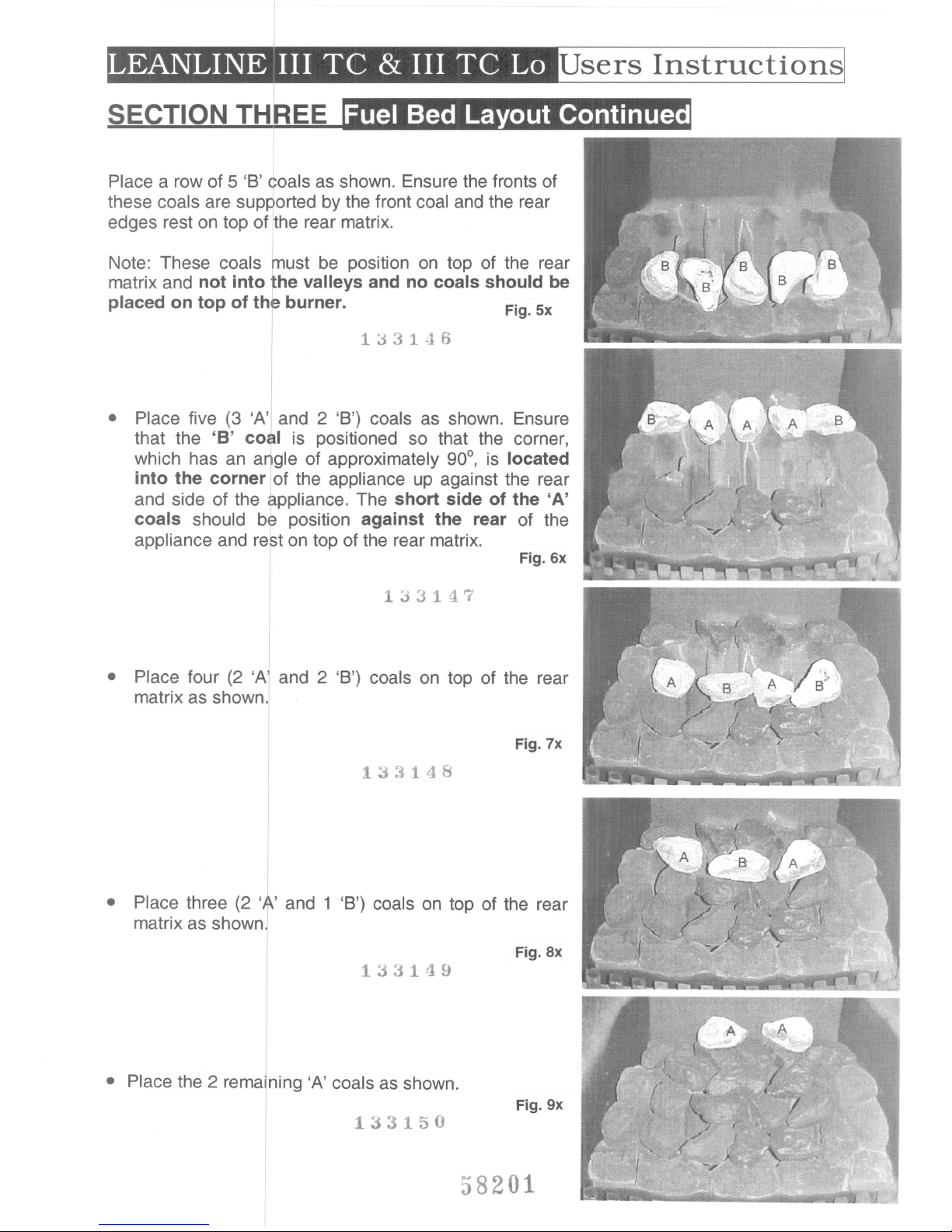

LEANLINE III TC & III TC Lo
SECTION TH
Place a row of 5 'B' ~oals as shown.Ensure the fronts of
these coals are supported by the front coal and the rear
edges rest on top of the rear matrix.
Note:These coals ~ust be position on top of the rear
matrix and not into fhe valleys and no coals should be
placed on top of the burner. Fig.5x
lJ31·16
• Place five (3 'A' and 2 'B') coals as shown. Ensure
that the 'B' c~.1 is positioned so that the corner,
which has an a1gle of approximately 90
0,
is located
into the corner of the appliance up against the rear
and side of the appliance. The short side of the 'A'
coals should be position against the rear of the
appliance and rebt on top of the rear matrix.
r Fig.6x
• Place four (2 'A'and 2 'B') coals on top of the rear
matrix as Shown
1
• Place three (2 ,1, and 1'B') coals on top of the rear
matrix as shownT
• Place the 2 remalning 'A' coals as shown.
1~3150
58201
Users Instructions

_Users Instruction~
SECTION THREE •
It is important that aliithe fuel bed and moulded shapes are positioned as shown in these
instructions.
PEBBLE FUEL ~ED
Some soot deposits will form on the pebbles, this is perfectly normal and adds to the
realism of the appliance.
USE ONL Y THE PE BLES PROVIDED AND NO ADDITIONAL PEBBLES MUST ADDED
The Loose pebble set consists of: -
I
• Rear Matrix
• Front Mat~i
• Right Side Cheek
• Left Side heek
• Loose Peb~les - 14 Large
I 2 Small
2 Half
• Position both LEfT SIDE CHEEK
and RIGHT SID~ CHEEK, so that
they are against the sides of the
casing, pushed ~ack against the
rear ceramic ba k and resting on
the burner sup ort platform as
shown
1/33152
582 1

Users Instructionsl
SECTION TH
• Position the Rea~Matrix as shown, so that it
supports both side cheeks and is pushed back as
far as possible.
• Ensure the fron Matrix is located behind the
burner fascia as phown.
• Place Three La
1
ePebbles as shown. So that
they sit on th Front Matrix in the indents
provided
• Place the Two I Half Pebbles so that their flat
surface butts Jgainst the ends of the Rear
Matrix and sits /in the indents provided in the
Front matrix.
a8201

Users Instructionsl
SECTION TH
• Place three Lar~e Pebbles on top of the rear
matrix as shownjso that they are pushed tightly
against the rearlof the firebox. Position the Two
Small Pebbles ~o that they sit on the slopping
sides of the RearMatrix and the top edge of the
Half Pebbles as Shown.
I
• Place four Large pebbles on top of the rear matrix
and front row of lPebbles as shown, position them
in the spaces between the front row of Pebbles.
• Place four LargelPebbles on top of the previous
row of Pebbles a~shown.
582 1

Users Instructionsl
Warning: -Before YGlUclean any part of the appliance ensure that the appliance is turned off
and cool.
CLEANING: DEdoRATIVE TRIM
• The finish of the"'~rim is coated with a high temperature lacquer, it can be wiped with a soft,
clean, dry, cloth qnlY.
• The trim should be removed for cleaning. The fret should be removed before removing the
trim, which is held in place by four magnetic strips.
CLEANING: BL~CK PAINTED or CHROME EFFECT SURFACES
• These surfaces' Jhould be dusted regularly and any marks removed with a soft cloth.
• Abrasive or chemical cleaner should never be used.
CLEANING COAES, PEBBLES and CERAMIC PARTS
Important: - Re r to the 'Heath & Safety Notice located on page 3 of this
booklet before c eaning or replacing any refractory material.
• The coals & pebb es are delicate and they should be handled with great care.
• The loose coals may be removed for cleaning. They can be brushed very gently with a soft
brush to remove dust or any deposits.
• Care should be t~ken to avoid contact with the refractory lining, this is a delicate surface and
should not be wi~ed or rubbed.
• A vacuum cleanermay only be used after all the loose coals have been removed.
SECTION FI E
Like all apPliancesiincorporating an aerated burner a Low frequency noise may be heard,
particularly on the ow setting, this is quite normal and does not affect the operation of the
appliance.
It is advised that the LEANLlNE III TC OR III TC Lo fire is serviced annually this is more likely to
provide trouble-free operation.
Itis important that: - I
• The chimney or ~Iueis checked annually to ensure clearance of combustion products.
• The fire does not normally require purpose-built ventilation but if for any special reason
purpose-built ventilation is provided it should be checked periodically to ensure freedom from
obstruction.
• Any debris fromlhe chimney or flue should be removed. The fire should be allowed to cool
for three to four ours before it is removed.
• Rubbish must n t be thrown onto the coal bed under any circumstances.
• The cast fire front must be positioned in front of the fire whilst it is burning
The only user removable parts are: -
• Cast fret ~
• Loose fuel bed omponents
• Decorative effec trim
58201
