Matrix MFU800 User manual

1
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: [email protected] W: www.cda.eu
MFU800 integrated under
counter freezer
Manual for Installation, Use and Maintenance

2
Important
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please
note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse
of the appliance.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC
(Low voltage) and requirements of EMC Directive 2004/108/EEC.
This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to
EEC/89/109.4
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority
differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and
resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out
wheeled dustbin.

3
Important
Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance.
This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not
for storage of blood, medicine and biological products.
To prevent risk of fire, keep the appliance away from petrol or any other inflammables.
To prevent risk of electromagnetic interference or other accidents, do not place a microwave oven on top of the refrigerator or
use any electric appliance inside the refrigerator.
Do not allow children to play with or near the appliance.
The internal surface of freezer compartment is very cold when the appliance is running. Do not touch the surface especially with
wet hands.
Do not splash water onto the appliance. Keep it away from places of high humidity that may have adverse effect on the electric
insulation performance.
Please remove the door, door seal and shelves before disposal of the old appliance and put them away in a safe place to prevent
children from being entrapped.
Before first use
You must allow the freezer to settle for at least twenty four hours prior to switching the power on.
It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm
water and then thoroughly drying the interior.
The freezer may have an odour to it at first use. This will disappear as the appliance cools.
Please note:
The appliance will work continuously until it comes down to the correct temperature.
If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage
to the compressor.
Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance.

4
Use
Freezer
• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be
stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This reduces the freezing time and improves the quality of the food
after thawing.
• Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
• Label the food before freezing with information including type of food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been completely cooked. Only defrost as much food as is required
to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer compartment as they could explode.
• Only open the door for as long as is necessary. Leaving the door open for long periods will affect the temperature inside the
appliance and waste energy.
• Ensure all compartments are fully closed after use.

5
Control panel
A. Orange Compressor light
This light is illuminated when the compressor is running (for example, when Super Freeze is switched on)
B. Green Power light
This light is illuminated when the power supply to the appliance is on.
C. Red Over Temperature Light
This light is illuminated when the interior temperature is too warm.
D. Thermostat dial
The thermostat can be set between 0 (least cold) and 5 (coldest)
Super Freeze function
Your freezer is equipped with a super freeze function, which runs the compressor continuously. Super freeze should be used
when introducing large amounts of fresh food into the freezer.
To switch the super freeze function on, turn the thermostat dial fully clockwise to SF. When the super freeze function is no longer
required, turn the thermostat dial back to the required setting.
fig. 1
D
!
12
3
4
5
SF
0
BA C

6
Defrosting the freezer
Do not use heaters or defrosting sprays in this appliance.
• Never use any metallic or sharp objects to remove the ice as this could damage the lining.
• The freezer compartment should be defrosted regularly to ensure the most efcient running of the freezer.
• Once the ice is more than 5mm thick, the freezer should be defrosted.
• First remove the freezer drawers.
• To speed up the process, place a bowl of warm water in the base of the freezer compartment.
Once defrosting is complete, dry the inside of the freezer compartment with a sponge or clean cloth.
The freezer should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or
detergents. After washing, rinse and dry thoroughly.
Clean the drawers separately by hand with soap and water. Do not put them in the dishwasher.
Once cleaning is complete, then reconnect the power.

7
Troubleshooting
If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent
unnecessary service calls and potential cost.
If the appliance is not working
• Check there is power to the appliance:
• The house fuses are intact and the fuse in the plug has not blown.
• The thermostat is not set to 0 (off position).
• The plug socket is functioning fine. To check this, plug another electrical appliance in to see if the socket is working.
• The temperature of the room is adequate (16°C or above).
The appliance is working, but not very well
• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
• The cooling system at the rear of the appliance is clean and free of dust, and not touching the rear wall.
• There is enough ventilation at the side and rear walls.
• The temperature of the room is adequate (16°C or above).
The appliance is noisy
• The appliance is level and stable.
• The side and rear walls are clear, and there is nothing resting on the appliance.
• The cooling gas in the refrigerator will make a slight bubbling noise, even when the compressor is not running.

8
fig. 2
fig. 3
KIT
12
34
56
9 10
78
910
Installation
This appliance must never be installed close to heat sources i.e. heating elements, radiators, cookers or in damp
places.
The appliance should be mounted on a piece of wood (for example a section of worktop or kitchen carcass) if a
raised floor is to be fitted, if the kitchen floor is to be tiled after installation, or if the installation height of the
appliance is greater than 850 mm.

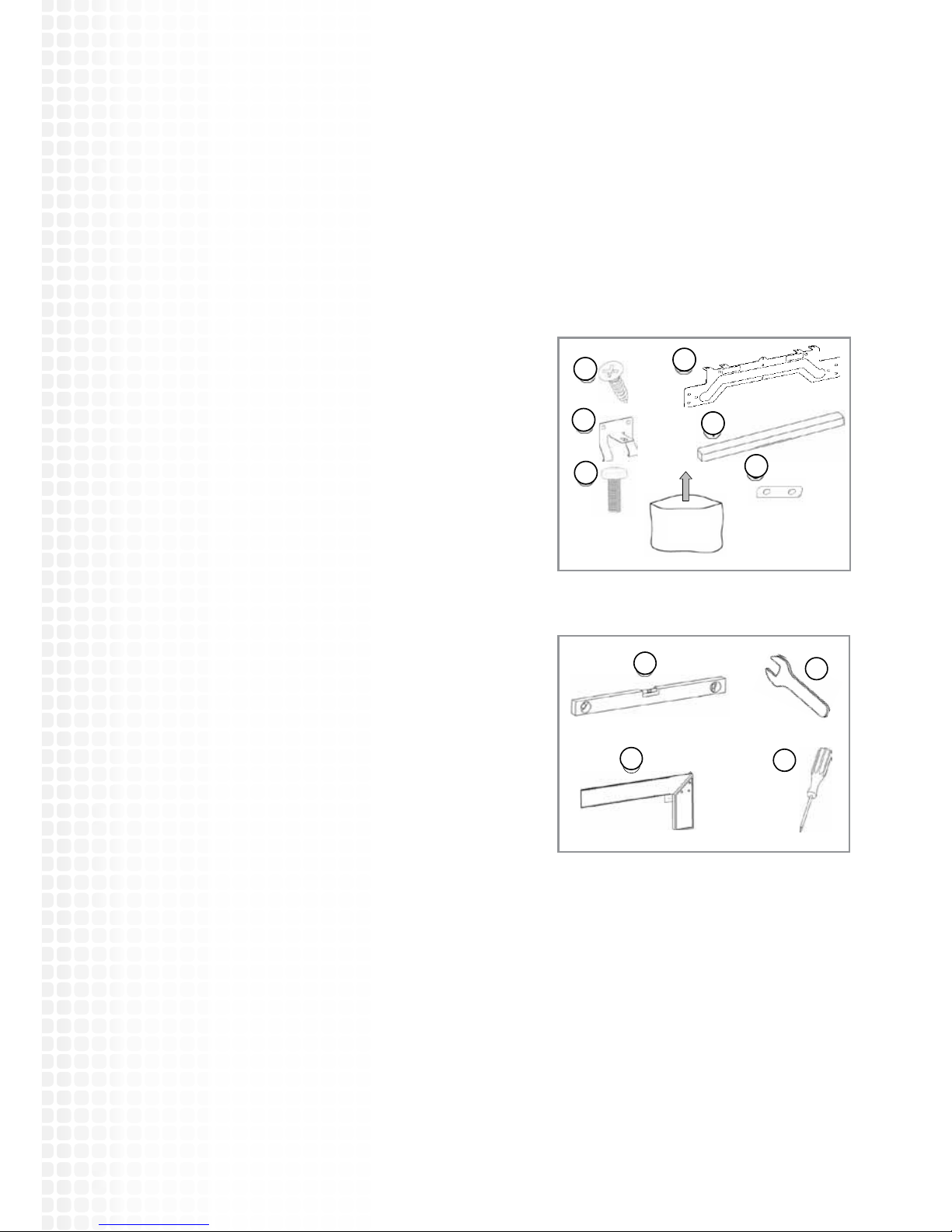

Contents and Tools Required
Fig. 2 - Installation kit contents
1. Wood screw (17 pcs)
2. Decor door fixing bracket
3. Decor door base fixings (2 pcs)
4. Decorative cover
5. Screw
6. Top bracket
Fig. 3 - Tools required
7. Spirit level
8. Spanner
9. Setsquare
10. Flathead screwdriver

9
fig. 5
fig. 3
fig. 4
11
11
600
min
550
820-
890
595 548
min 25
819-
889
100- 170
5
6
11
11
Installation
Fig. 3 - Dimensions of the appliance
Fig. 4 - Fitting the worktop bracket
Remove the screw (5) on the top of the appliance, locate the top bracket(6)
and fix the bracket with screw(5).
Fig. 5 - Fitting the spacer piece
Take out the spacer piece (11) located on the side panel and remove the
protective tape. Stick the spacer piece on the opposite side to the door
hinges of the appliance.

10
9
9
fig. 8
Installation

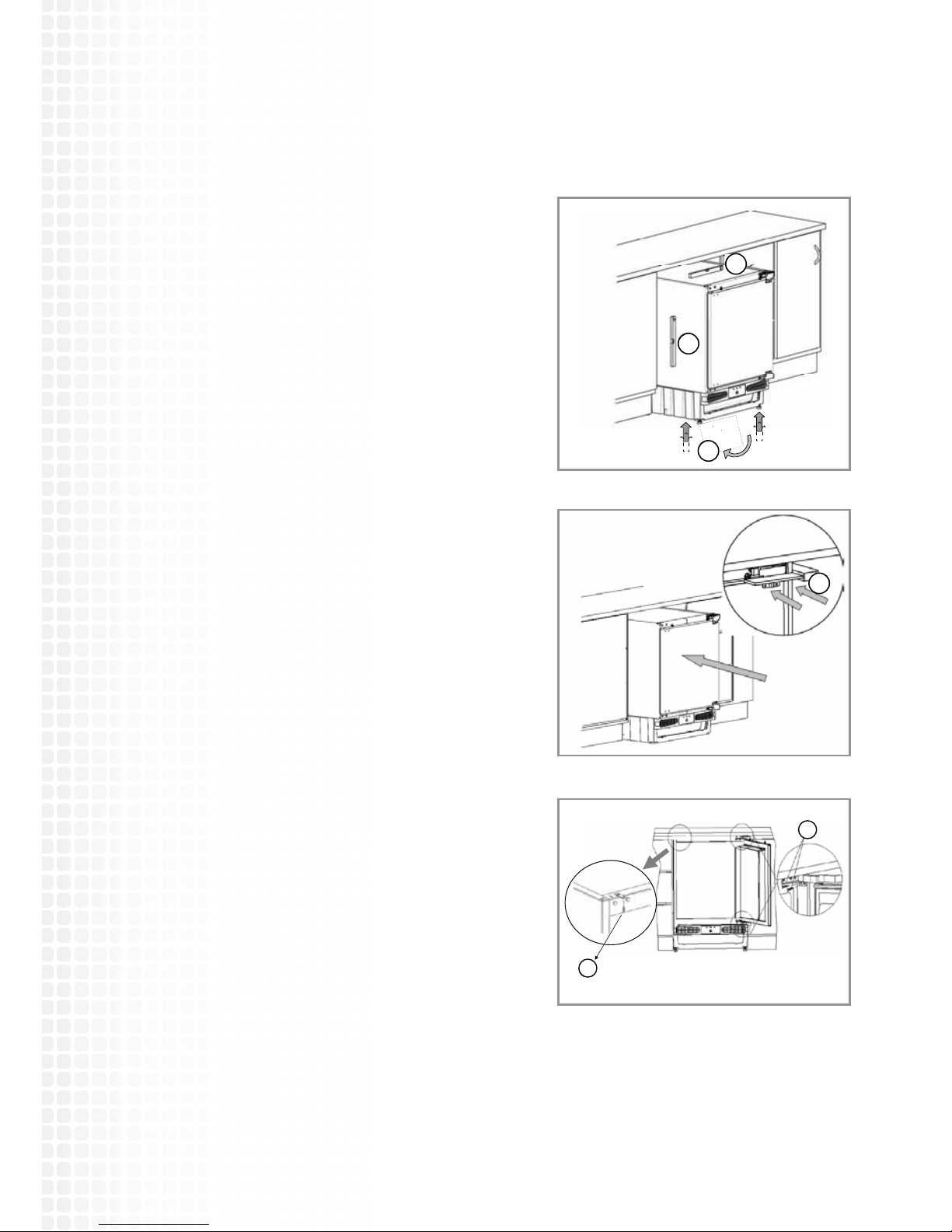

Fig. 6 - Adjusting the appliance height
The height of the appliance can be adjusted by the help of adjustable feet to
fit the furniture height. Use a spirit level to ensure the appliance is level.
Fig. 7 - Aligning the appliance
Slide the appliance into the kitchen unit and align the hinge surface with
front surface of the kitchen unit.
Fig. 8 - Fixing the appliance
Screw the hinges and metal bracket to the kitchen unit using screws (1)
fig. 6
fig. 7
7
7
8
1
1

11
2
1
B-C
fig. 11
Installation
Fig. 9 - Fitting the decor door bracket
Unscrew and remove the nuts and washers from the appliance door. Place
fixing bracket on the appliance door by inserting the holes to adjustment
bolts.
Dimension B= Measure from the underside surface of kitchen unit to the
bottom of fixing bracket.
Dimension C= Measure from the underside surface of kitchen unit to the
top of next unit door.
Fig. 10 - Fitting the decor door bracket
Substract C from B and put the fixing bracket (2) in place using this
measurement for vertical position and place to the centre for horizontal
position. Secure the fixing bracket (2) using screws(1).
Fig. 11 - Fitting the decor door
Place the decor door onto the appliance door by inserting adjustment bolts
into the slots on the fixing bracket. Locate the washers and screw the nuts
onto the adjustment bolts.
fig. 9
fig. 10
C
B

12
fig. 14
Installation
Fig. 12 - Aligning the decor door
Close the door and check the alignment with the other unit doors. Adjust
the decor door by screwing or unscrewing the adjustment bolts for vertical
adjustment and by the help of the slots on the fixing bracket for other
directions. Lock the screws into place as shown in 10.2.
Fig. 13 - Fitting the decor door base fixings
With the appliance door open, remove the screws at the bottom of the
appliance door. Locate the decor door base fixings (3) and screw the fixings
to the appliance door and the decor door.
Fig. 14 - Fitting the decorative cover
Fit the decorative cover (4) on the decor door fixing bracket.
fig. 12
fig. 13
10
10
8
13
4

13
Installation

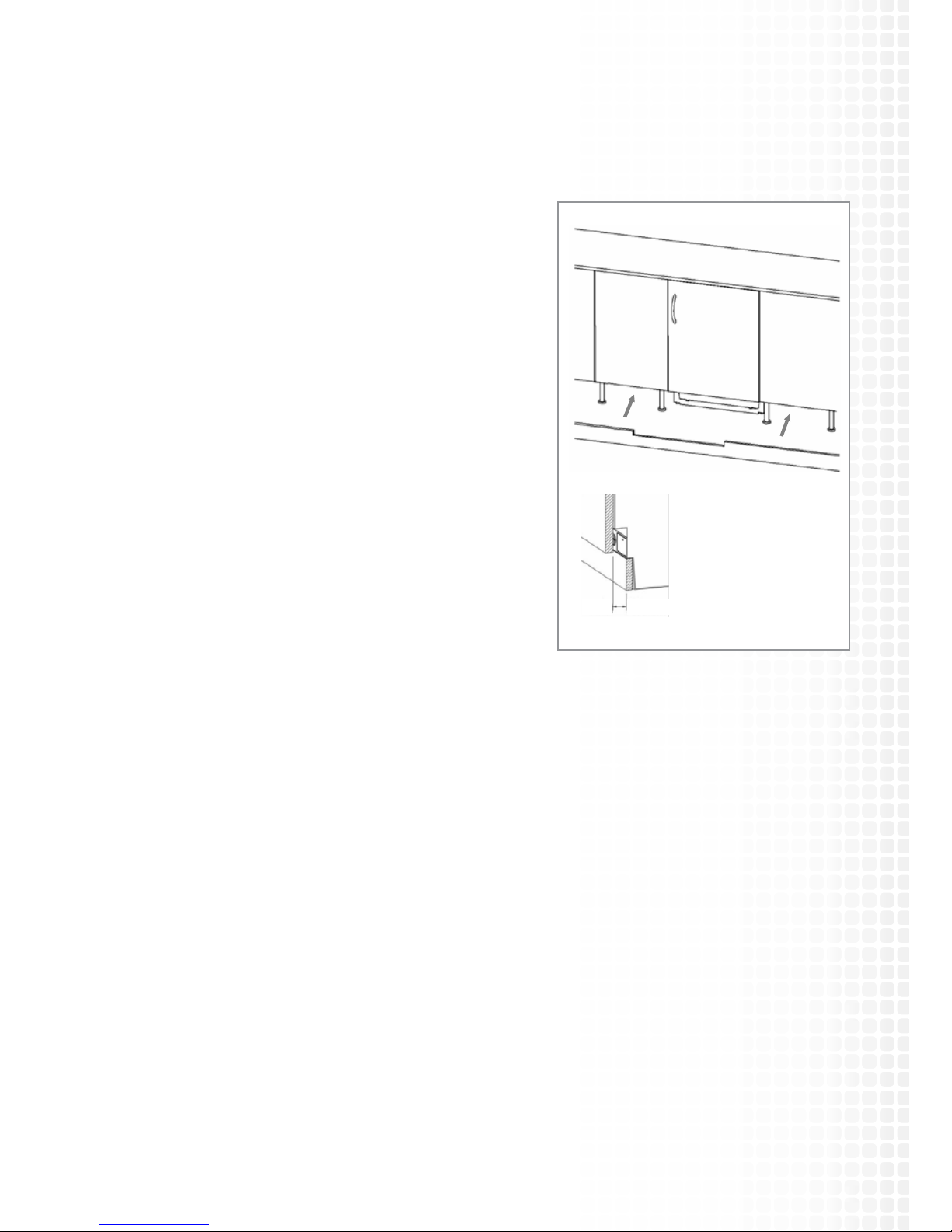

Fig. 17 - Fitting the plinth
Fit the plinth section, providing minimum 25 mm gap between the cabinet
door and fix it.
Never cover over the ventilation slots.
Once installed the plinth must not block the ventilation
slots in the appliance.
This may require cutting the plinth down. Failure to ensure
adequate ventilation may invalidate the warranty.
fig. 17
min 25mm

14
Electrical information
Warning! This appliance must be earthed.
The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow
the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
Important: Do not use the appliance without the fuse cover in position.
How to connect an alternative plug
If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to prevent the risk of
electric shock. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:-
• The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the
Earth symbol or coloured GREEN and YELLOW.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter (N), or
coloured BLACK.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter (L) or
coloured RED.
If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the
supply cable, the appliance may require removing for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place.
If the power supply cord is damaged, it must replaced by a CDA authorised agent.

15

16
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: [email protected] W: www.cda.eu
Passionate about style
To contact our Customer Care Department, or for Service,
please contact us on the details below.
Serviced by
