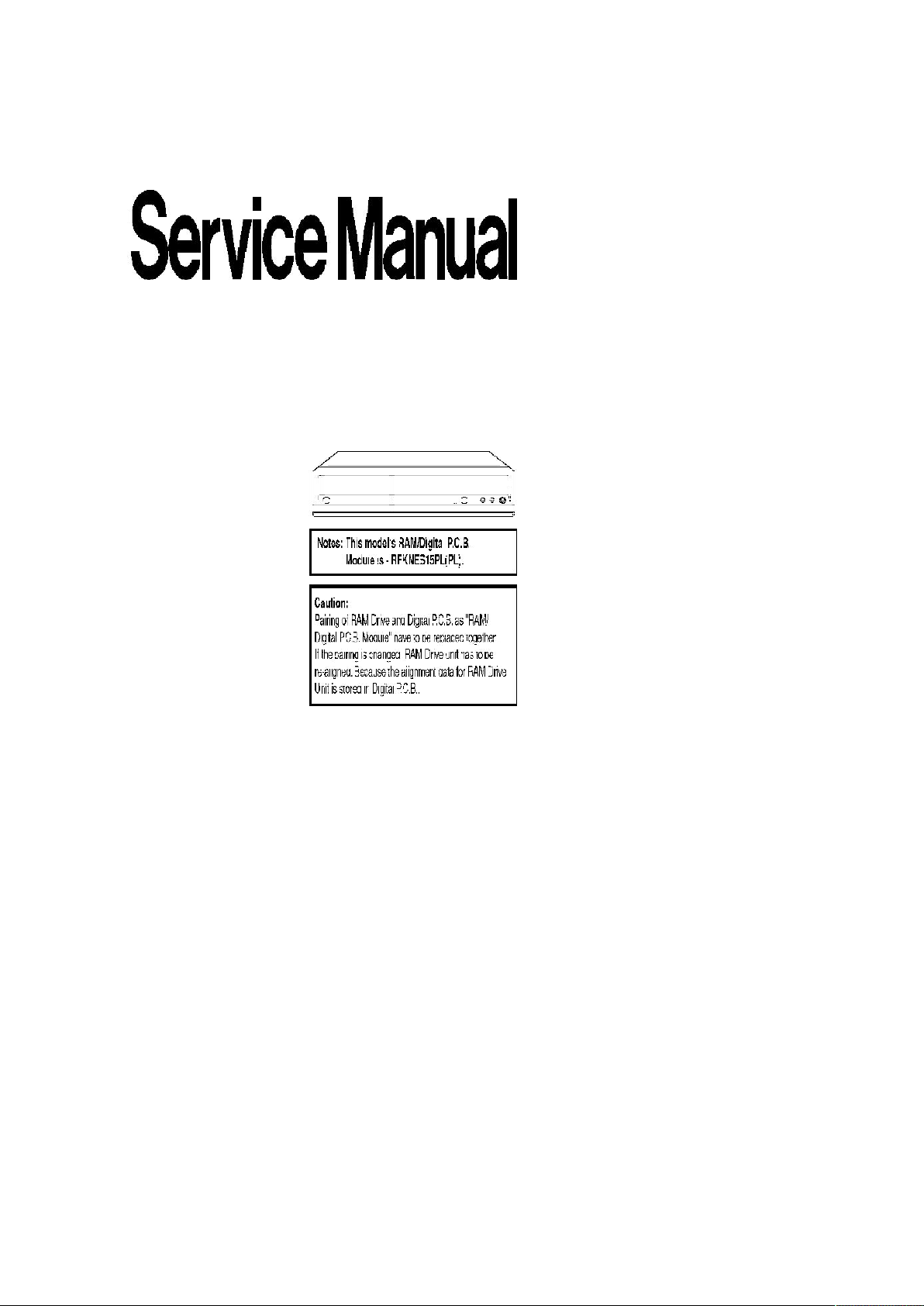

Matsushita Electric DMR-ES15PL User manual

ORDER NO.CHM0606039CE
DVD Recorder
DMR-ES15PL
Vol. 1
Colour
(S).......................Silver Type
SPECIFICATIONS
2006 Matsushita Electric Industrial Co., Ltd. All rights reserved.
1

Unauthorized copying and distribution is a violation of law.
1. Safety Precaution
1.1. General guidelines
1. When servicing, observe the original lead dress. If a short circuit is
found, replace all parts which have been overheated or damaged by the
short circuit.
2. After servicing, see to it that all the protective devices such as
insulation barriers, insulation papers shields are properly installed.
3. After servicing, make the following leakage current checks to prevent
the customer from being exposed to shock hazards.
1.1.1. Leakage current cold check
1. Unplug the AC cord and connect a jumper between the two prongs on
the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metallic cabinet part on the
equipment such as screwheads, connectors, control shafts, etc. When
the exposed metallic part has a return path to the chassis, the reading
should be between 1M and 5.2M .
When the exposed metal does not have a return path to the chassis,
the reading must be .
Figure 1
1.1.2. Leakage current hot check / (See Figure 1 .)
1. Plug the AC cord directly into the AC outlet. Do not use an isolation
2

transformer for this check.
2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 F
capacitors, between each exposed metallic part on the set and a good
earth ground such as a water pipe, as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallic part, and measure the voltage at each
point.
5. Reverse the AC plug in the AC outlet and repeat each of the above
measurements.
6. The potential at any point should not exceed 0.75 volts RMS. A leakage
current tester (Simpson Model 229 or equivalent) may be used to make
the hot checks, leakage current must not exceed 1/2 milliampere. In
case a measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should be repaired
and rechecked before it is returned to the customer.
2. Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive
(ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatic Sensitive (ES) Devices. Examples of typical ES devices
are integrated circuits and some field-effect transistor-sand semiconductor "chip" components. The
following techniques should be used to help reduce the incidence of component damage caused by
electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any ESD on your body by
touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging ESD wrist strap, which should be
removed for potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES devices, place
the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static solder removal device. Some solder removal
3

devices not classified as "anti-static (ESD protected)" can generate
electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical
charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package
until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a
replacement ES device, touch the protective material to the chassis or
circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all
other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES
devices. (Otherwise hamless motion such as the brushing together of
your clothes fabric or the lifting of your foot from a carpeted floor can
generate static electricity sufficient to damage an ES device).
2.2. Precaution of Laser Diode
4

2.3. Service caution based on legal restrictions
2.3.1. General description about Lead Free Solder (PbF)
The lead free solder has been used in the mounting process of all electrical components on the printed
circuit boards used for this equipment in considering the globally environmental conservation.
The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the
alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free
solder is higher approx.30 degrees C (86°F) more than that of the normal solder.
Definition of PCB Lead Free Solder being used
The letter of “PbF” is printed either foil side or components side on the PCB
using the lead free solder.
(See right figure)
Service caution for repair work using Lead Free Solder (PbF)
- The lead free solder has to be used when repairing the equipment for
which the lead free solder is used.
(Definition: The letter of “PbF” is printed on the PCB using the lead free
solder.)
- To put lead free solder, it should be well molten and mixed with the
original lead free solder.
5

- Remove the remaining lead free solder on the PCB cleanly for soldering
of the new IC.
- Since the melting point of the lead free solder is higher than that of the
normal lead solder, it takes the longer time to melt the lead free solder.
- Use the soldering iron (more than 70W) equipped with the temperature
control after setting the temperature at 350±30 degrees C (662±86°F).
Recommended Lead Free Solder (Service Parts Route.)
- The following 3 types of lead free solder are available through the
service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%
2.4. How to replace the Lithium Battery
REPLACEMENT PROCEDURE
1. Remove the Top case, Front Panel, RAM/Digital P.C.B. Module, DV
Jack, Rear Panel, Front (L) P.C.B. and Main P.C.B. by referring the
Disassembling Procedure.
2. Unsolder the Lithium Batteries: B7501 and then replace it into new one.
( As shown in 13.2.4. The Main P.C.B. )
NOTE:
The lithium battery is a critical component. ( Type No.: CR2354-1GUFE Manufactured by Panasonic.)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed specifically for its use.
Replacement batteries must be of the same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity
contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.
6

3. Service Navigation
3.1. Service Information

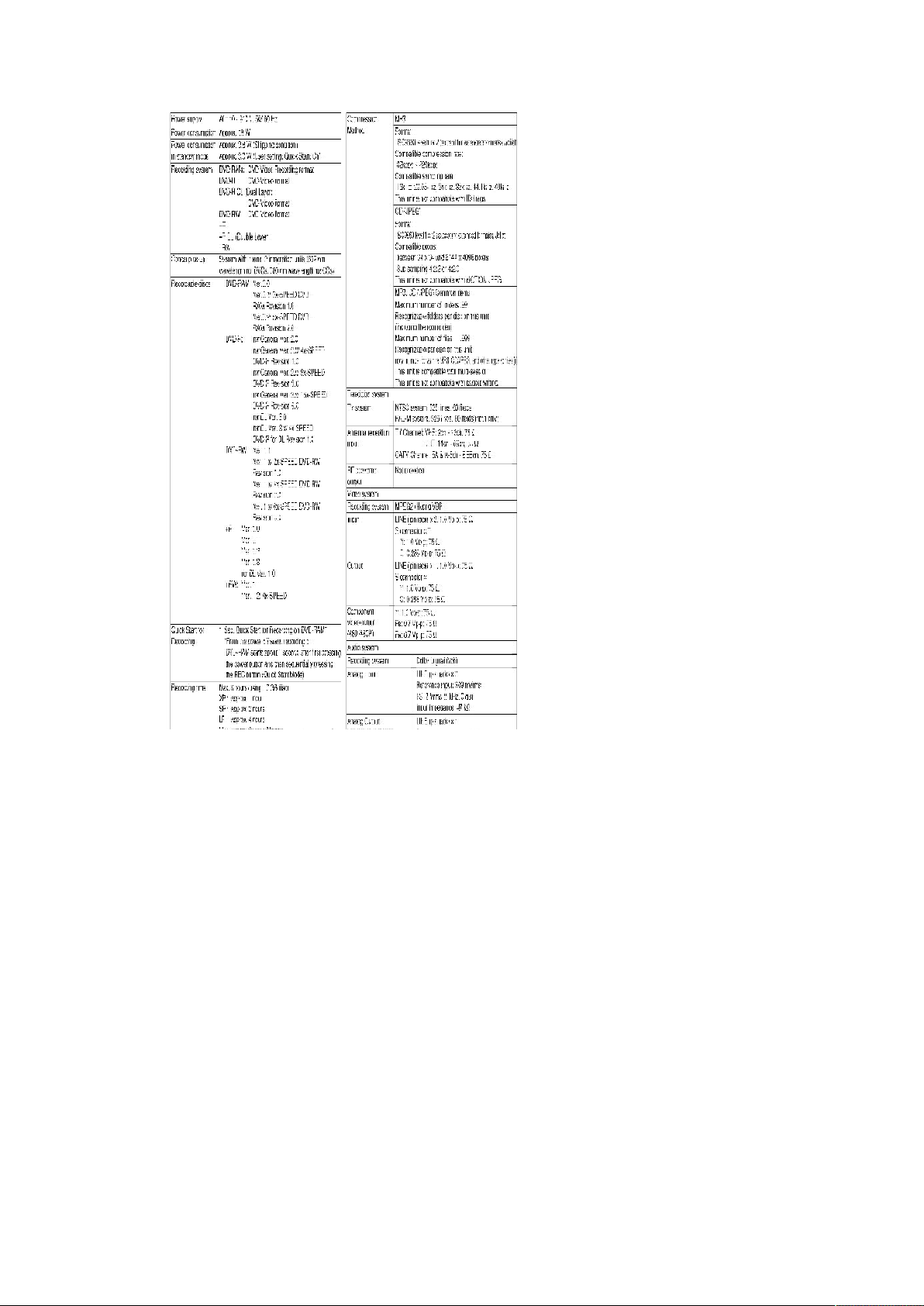

4. Specifications
7

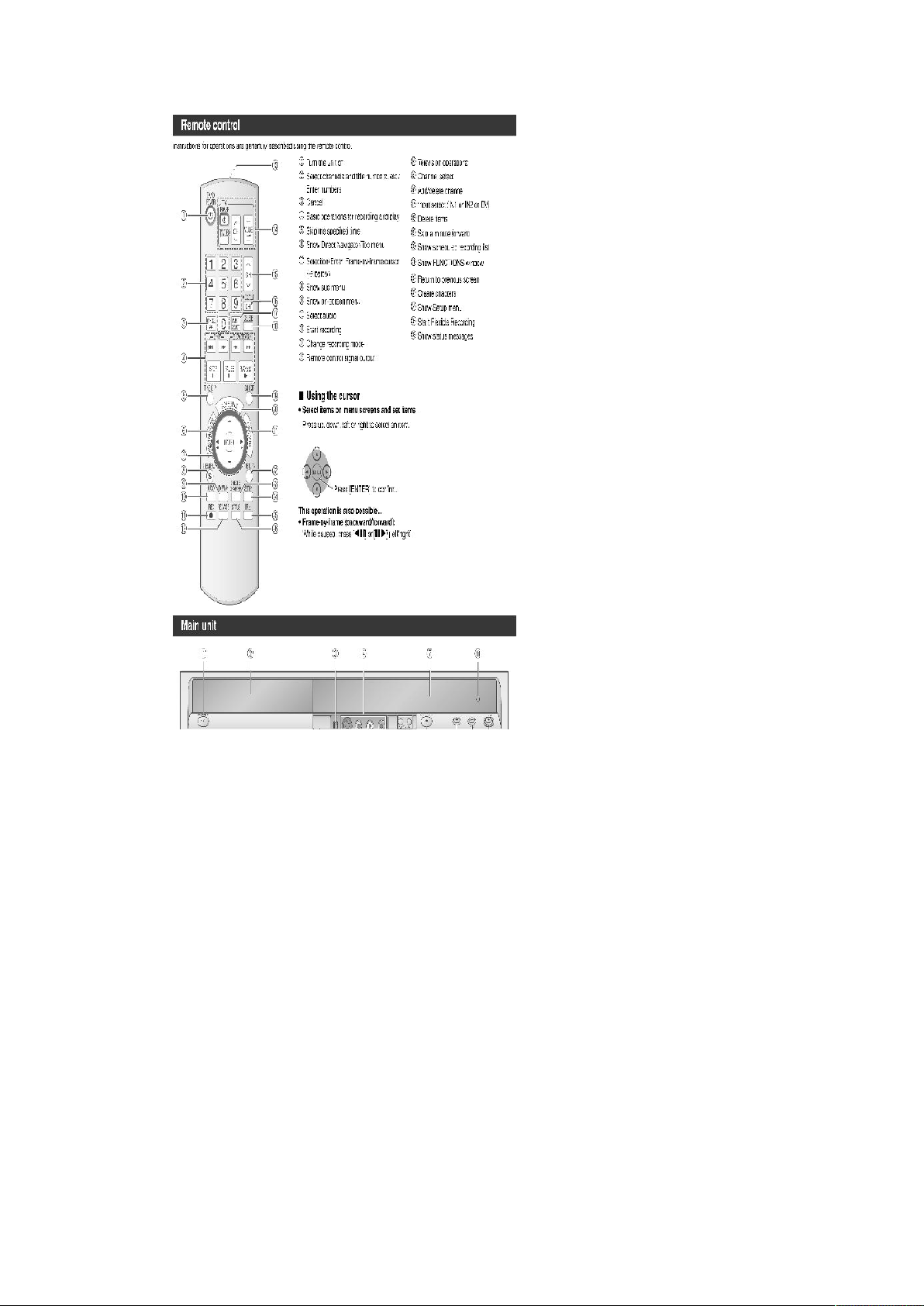

5. Location of Controls and Components
8

6. Operation Instructions
6.1. Taking out the Disc from DVD-Drive Unit when the Disc cannot be
ejected by OPEN/CLOSE button
9

6.1.1. Forcible Disc Eject
6.1.1.1. When the power can be turned off.
1. Turn off the power and press [STOP] [CH UP] keys on the front panel
simultaneously for 5 seconds.
6.1.1.2. When the power can not be turned off.
1. Press [POWER] key on the front panel for over 10 seconds to turn off
the power forcibly, and press [STOP] [CH UP] keys on the front panel
simultaneously for 5 seconds.

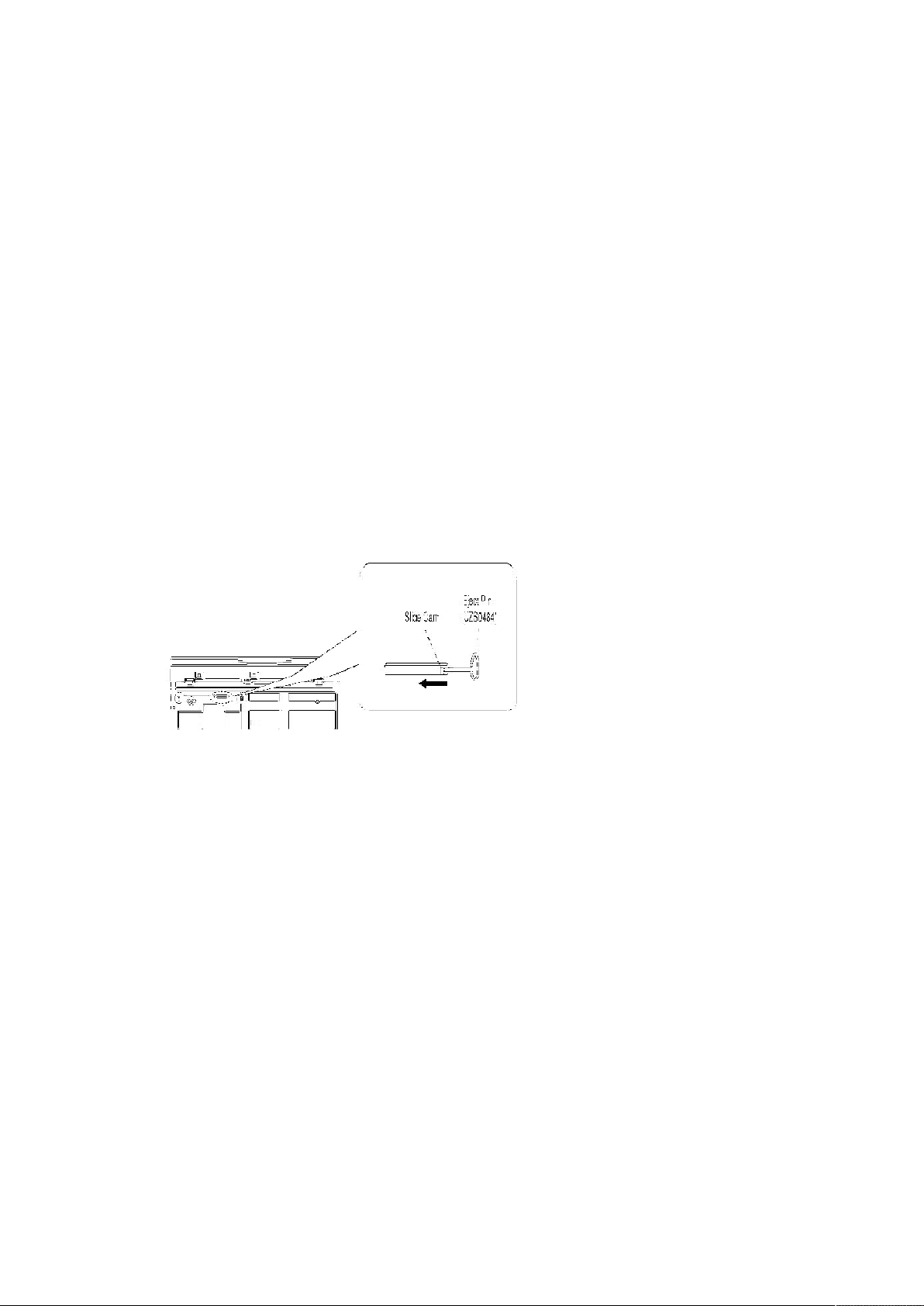

6.1.2. When the Forcible Disc Eject can not be done.
1. Turn off the power and pull out AC cord.
2. Remove the Top Case.
3. Put deck so that bottom can be seen.
4. Slide SLIDE CAM by Eject Pin (JZJ0484) or minus screw driver (small)
in the direction of arrow to eject tray slightly.
5. Put deck upward, and push out Tray by Eject Pin (JZS0484) or minus
screw driver (small).
10

7. Service Mode
7.1. Self-Diagnosis and Special Mode Setting
7.1.1. Self-Diagnosis Functions
Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis
Display” when any error has occurred.
U**, H** and F** are stored in memory and held.
You can check latest error code by transmitting [0] [1] of Remote Controller in Service Mode.
Automatic Display on FL will be cancelled when the power is turned off or AC input is turned off during
self-diagnosis display is ON.
Error
Code
Diagnosis contents Description Monitor
Display
Automatic FL
display
U30 Remote control code
error
Display appears when main unit
and remote controller codes are
not matched.
No display
“*” is remote
controller
code of the main
unit.
Display for 5
seconds.
U59 Abnormal inner
temperature detected
Display appears when the drive
temperature exceeds 70°C.
The power is turned off forcibly.
For 30 minutes after this, all key
entries are disabled. (Fan motor
operates at the highest speed for
the first 5 minutes. For the
remaining 25 minutes, fan motor
is also stopped.) The event is
saved in memory as well.
No display
“U59 is displayed for
minutes.
U61 The unit is carrying
out its recovery
process.
No display
11

Error
Code
Diagnosis contents Description Monitor
Display
Automatic FL
display
U88 The unit is carrying
out its recovery
process.
No display
U99 Hang-up Displayed when communication
error has occurred between Main
microprocessor and Timer
microprocessor.
No display
Displayed is left
until
[POWER] key is
pressed.
F00 No error information Initial setting for error code in
memory
(Error code Initialization is
possible with error code
initialization and main unit
initialization.)
No display No display
F58 Drive hardware error When drive unit error is detected,
the event is saved in memory.
No display No display
F34 Initialization error
when main
microprocessor is
started up for program
recording
When initialization error is
detected after starting up main
microprocessor for program
recording, the power is turned off
automatically.
The event is saved in memory.
No display No display
UNSUPPORT
Unsupported disc error *An unsupported format disc was
played, although the drive starts
normally.
*The data format is not
supported, although the media
type is supported.
*Exceptionally in case of the disc
is dirty.
“This disc is
incompatible.”
Display for 5
seconds.
NO
READ
Disc read error *A disc is flawed or dirty.
*A poor quality failed to start.
*The track information could not
be read.
“Cannot read.
Please check
the disc.”
HARD
ERR
Drive error The drive detected a hard error. “DVD drive
error.”
Display for 5
seconds.
IR ERR IR communication
error
[IR ERR] is displayed when
communication between Timer
microprocessor and IR
microprocessor fails.
No display
12

Error
Code
Diagnosis contents Description Monitor
Display
Automatic FL
display
No REC Recording is
impossible
[No REC] is displayed when
recording is impossible due to
the defect, dirt or wound of media.
No display
SELF
CHECK
Restoration operation Since the power cord fell out
during a power failure or
operation, it is under restoration
operation.
*It will OK, if a display disappears
automatically. If a display does
not disappear, there is the
possibility that defective Digital
P.C.B. / RAM drive.
No display
PLEASE
WAIT
Unit is in termination
process
Unit is in termination process
now.
“BYE” is displayed and power
will be turned off.
In case “Quick Start” of setup
menu is ON, it is displayed in
restoration operation for AC off.
No display
UNFORMAT
Unformatted disc error You have inserted an
unformatted DVD-RAM or DVD-
RW that is unformatted or
recorded on other equipment.
7.1.2. Special Modes Setting
Item FL display Key operation
Mode name Description Front Key
TEST Mode *All the main unit's parameters
(include tuner) are initialized.
Press [STOP], [CH
UP]
and [OPEN/CLOSE]
keys
simultaneously for
five
seconds when power
is
off.
Rating password The audiovisual level setting
password is initialized to “Level
8”.
Open the tray, and
press
[REC] and [PLAY]
simultaneously for 5
seconds.
Service Mode Setting every kind of modes for
servicing.
*Details are described in “7.1.3.
Service Mode at a glance”.
When the power is
off,
press [CH UP], [OPEN/
CLOSE] and [REC]
keys
simultaneously for 5
seconds.
13

Item FL display Key operation
Mode name Description Front Key
Forced disc eject Removing a disc that cannot be
ejected.
The tray will open and unit will
shift to P-off mode.
*When Timer REC is ON or EXT-
LINK is ON, execute " Forced disc
eject " after releasing Timer REC
or EXT-LINK.
*This command is not effective
during "Child lock" is ON.
While Demonstration Lock is
being set, this Forced disc eject
function is not accepted.
The display before
execution leaves.
When the power is
off,
press [STOP] and [
CH
keys simultaneously
for
seconds.
Forced power-off When the power button is not
effective while power is ON, turn
off the power forcibly.
*When Timer REC is ON or EXT-
LINK is ON, execute “Forced
Power-off” after releasing Timer
REC or EXT-LINK.
Display in P-off mode. Press [Power] key
over
than 10 seconds.
14

Item FL display Key operation
Mode name Description Front Key
Aging Perform sequence of modes as *
Aging Description shown below
continually.
Display following the then
mode.
When the power is
ON,
press [STOP], [
POWER]
and [OPEN/CLOSE]
simultaneously for
over
seconds and less
than
seconds.
NOTE1:
If Unit has not turned
into
Aging mode by
operations
shown above,
execute
TEST MODE once
and
execute operation
shown
above.
(*All the main unit’s
parameters include
tuner
are initialized by
TEST
mode.)
NOTE2:
If the unit has hung-
up
because of pressing
keys
for over 10 seconds,
once
turn off the power,
and
execute this
command.
*When releasing
Aging
mode, press [
POWER]
Aging Contents (Example):
15

Item FL display Key operation
Mode name Description Front Key
Demonstration
lock/unlock
Ejection of the disc is prohibited.
The lock setting is effective until
unlocking the tray and not
released by “Main unit
initialization” of service mode.
*When lock the tray.
“LOCK” is displayed for 3
seconds.
When the power is
on,
press [STOP] and
[POWER] keys
simultaneously for 5
seconds.
*When unlock the tray.
“UNLOCK” is displayed
for 3 seconds.
When the power is
on,
press [STOP] and
[POWER] keys
simultaneously for 5
seconds.
*When press OPEN/
CLOSE key while the tray
being locked.
Display “LOCK” for 3
seconds.
Press [OPEN/CLOSE]
key
while the tray being
locked.
ATP Initialization ATP setting is initialized, and the
unit turns off automatically.
It is same with display in
stop mode.
When the power is on
(
mode), press [CH UP]
and
[CH DOWN]
simultaneously for 5
seconds.
Progressive
initialization
The progressive setting is
initialized to Interlace.
The display before
execution leaves.
When the power is on
(
mode), press [STOP]
and
[PLAY]
simultaneously
5 seconds.
7.1.3. Service Modes at a glance
Service mode setting: While the power is off, press REC, CH UP and OPEN / CLOSE simultaneously for
five seconds.
16

Item FL display Key operation
Mode name Description (Remote controller
key)
Release Items Item of Service Mode executing is
cancelled.
Press [0] [0] or [
Return]
service mode.
Error Code Display Last Error Code of U/H/F held by
Timer is displayed on FL.
*Details are described in “7.1.1.
Self-Diagnosis Functions”.
If any error history dose
not exist, [F00] is
displayed.
Press [0] [1] in
service
mode
ROM Version
Display
1. Region code (displayed for 5
sec.)
2. Main firm version (displayed
for 5 sec.)
3. Timer firm version (displayed
for 5 sec.)
4. Drive firm version (displayed
for 5 sec.)
5. ROM correction version (left
displayed)
‘’ ’’ are version displays.
Press [0] [2] in
service
mode
White Picture
Output
White picture is output as
component Output from AV
Decoder.
*White picture
(Saturation rate : 100%)
*It is enable to switch Interlace/
Progressive by “I/P switch: [1]
[4]”
*Initial mode is “Interlace”. Press [1] [1] in
service
mode.
Switch Interlace/
Progressive
Press [1] [4] in White
Picture Output mode.
*I/P are switched
alternately.
Magenta Picture
Output
Magenta picture is output with
Component Output from AV
Decoder.
*Magenta picture
(Saturation rate: 100%)
*It is enable to switch Interlace/
Progressive by “I/P switch: [1]
[4]”
*Initial mode is “Interlace”. Press [1] [2] in
service
mode.
Switch Interlace/
Progressive
Press [1] [4] in
Magenta
Picture Output mode.
*I/P are switched
alternately.
17

Item FL display Key operation
Mode name Description (Remote controller
key)
RTSC Return in XP
(A & V)
L1 input signal is encoded (XP),
decoded (XP) and output
decoded signal to external
without DISC recording and DISC
playback.
Initial mode: EE2/ Interlace/
XP/ Audio 48kHz
Press [1] [3] in
service
mode.
Switch Interlace/
Progressive
Press [1] [4] in RTSC
Return XP mode.
*I/P are switched
alternately.
Audio 44.1 kHz/ 48 kHz
Switch
Press [2] [4] in RTSC
Return XP mode.
*48 kHz / 44.1 kHz are
switched alternately.
I/P Switch Switch Interlace and Progressive
in EE mode.
*Initial setting is “Interlace”.
*This command is effective
during executing “White Picture
Output”, “Magenta Picture
Output” and “RTSC Return in XP
(A & V)” modes.
Initial mode is Interlace
Switch Interlace/
Progressive
Press [1] [4] in I/P
Switch
mode.
*I/P are switched
alternately.
Audio Mute
(XTMUTE)
Check whether mute is applied
normally by the timer
microprocessor.
Press [2] [1] in
service
mode.
Audio Mute
(XDMUTE)
Check whether mute is applied
normally by the Digital P.C.B..
Press [2] [2] in
service
mode.
Audio Pattern
Output
The audio pattern stored in the
internal memory is output
(Lch: 1kHz/-18dB)
(Rch: 400Hz/-18dB)
*Audio sound clock switching
operation of DAC can be
confirmed by sub command [2]
[4].
Initial mode (Audio 48kHz) Press [2] [3] in
service
mode.
Audio 44.1kHz/48kHz
switching
Press [2] [4] in Audio
Pattern Output mode.
*48 kHz / 44.1 kHz are
switched alternately.
Laser Used Time
Indiction
Check laser used time (hours) of
drive.
(*****) is the used time
display in hour.
Laser used time of DVD
/ CD in Playback/
Recording mode is
counted.
Press [4] [1] in
service
mode.
18

Item FL display Key operation
Mode name Description (Remote controller
key)
Delete the Laser
Used Time
Laser used time stored in the
memory of the unit is deleted.
Press [9] [5] in
service
mode.
RAM Drive Last
Error
RAM Drive error code display.
*For details about the drive error
code, refer to the Service Manual
for the specific RAM Drive.
1. Error Number is
displayed for 5 seconds.
2. Time when the error has
occurred is displayed for 5
seconds.
DD: Day
hh: Hour
mm: Minute
3. Last Drive Error (1/2) is
displayed for 5 seconds.
4. Last Drive Error (2/2) is
displayed for 5 seconds.
5. Error occurring Disc
type is displayed for 5
seconds.
6. Disc Maker ID is
displayed for 5 seconds.
7. Factor of Drive Error
occurring is left displayed
Press [4] [2] in
service
mode.
When “INFO******” is
being displayed, past
19
error histories can be
displayed by
pressing
[1] - [1] [9]
In case that the
maker
cannot be identified,
display is black out.
19

Item FL display Key operation
Mode name Description (Remote controller
key)
Delete the Last
Drive Error
Delete the Last Drive Error
information stored on the DVD
RAM-Drive.
Press [9] [6] in
service
mode.
Laser power
confirmation
Drive state is judged based on
difference between laser power
value at shipping and present
laser power value.
If DVD-RAM disc in not
inserted, [NO DISC] is
displayed.
If power value study was
filed, [ERROR] is
displayed.
1.
into RAM Drive in service
mode.
(Other media are assumed to
be
correspondence.)
2. Press [4] [4].
Turn on all FL/
LEDs
All segments of FL and all LEDs
are turned on.
All segments are turned
on.
Press [5] [1] in
service
mode.
S1 signal output Forcibly superimpose the S1
signal (approx. 4.5V DC) on the
EE chroma signal, and check the
output on the S terminal.
Press [5] [2] in
service
mode.
S2 signal output Forcibly superimpose the S2
signal (approx. 2V DC) on the EE
chroma signal, and check the
output on the S terminal.
Press [5] [3] in
service
mode.
Front connection
inspection
Press all front keys and check
the connection between Main
P.C.B. and Front key Switches.
(1) Each time a key is
pressed, segment turned
on increases one by one.
(2) Total umber of keys
that have been pressed.
Press [5] [4] in
service
mode.
Production Date
Display
Display the date when the unit
was produced.
YY: Year
MM: Month
DD: Day
Press [6] [1] in
service
mode.
20
