Maxspect Gyre 300 Series User manual

Owner’s Manual
Bedienungsanleitung
Mode d’emploi
Manuali dei Prodotti
Manual do Proprietário
Manual de Usuario
Instrukcja Obsługi
用户手册
使用說明書

Dear Customer,
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
User Memo:
Date of purchase:
Dealer name:
Dealer address:
Dealer website:
Dealer email:
Dealer phone no.:
Please visit us on facebook or twitter!
https://www.facebook.com/Maxspect
http://twitter.com/maxspectled
EN

2
Package Content
Please check the content in the package.
No.
Component
Standard
Package
Dual Gyres
Package
1.
x1
x2
2.
x1
x1
3.
x1
x2
4.
x1
x2
5.
x2
x4
6.
x2
x4
7.
x2
x4
x2 x4
x1
(XF330 only)
x2
(XF330 only)
EN
8.
9.

3
Precautions
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DANGER –To avoid possible electric shock, special care should be taken since water is
employed in the use of aquarium equipment. For each of the following situations, DO NOT
attempt to repair by yourself; return the appliance to an authorized service facility for service or
discard the appliance.
a) If the appliance shows any sign of abnormal water leakage, immediately unplug it from the
power source.
b) Carefully examine the appliance after installation. It should not be plugged in if there is
water on parts not intended to be wet.
c) DO NOT operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or
has been dropped or damaged in any manner.
d) To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium
stand and tank to one side of a wall-mounted receptacle to prevent water from dripping
onto the receptacle or plug. A “drip-loop” shown in the figure, should be arranged by the
user for each cord connecting an aquarium appliance to a receptacle. The “drip-loop” is
that part of the cord below the level of the receptacle, or the connector if an extension
cord is used, to prevent water traveling along the cord and coming in contact with the
receptacle. If the plug or socket does get wet, DO NOT unplug the cord. Disconnect the
fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for
presence of water in the receptacle.
2. Close supervision is necessary when any appliance is used by or near children.
3. To avoid injury, DO NOT contact moving parts or hot parts such as heaters, reflectors, lamp
bulbs, and the like.
4. Always unplug an appliance from an outlet when not in use, before putting on or taking off
parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to
disconnect.
5. DO NOT use an appliance for other than intended use. The use of attachments not
recommended or sold by the appliance manufacturer may cause an unsafe condition.
6. DO NOT install or store the appliances where it will be exposed to the weather or to
temperatures below freezing.
7. Make sure an appliance mounted on a tank is securely installed before operating it.
Before using this Maxspect™ Gyre™ 300 Series Gyre Flow Pump please read
these operating instructions carefully. Take special care to follow the safety
suggestions listed below. Afterwards keep this manual handy for future
reference.
EN

4
8. Read and observe all the important notices on the appliance.
9. If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for
less amperes or watts than the appliance rating may overheat.
Safety on Power Supply
1. Power Source –DO NOT defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
2. Power Cord Protection –The power supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them. Never take hold of the plug or
cord if your hand is wet, and always grasp the plug body when connecting or disconnecting it.
3. Installation –Install indoor only, and use the attachments and accessories provided and
specified by the manufacturer.
Safety on Magnet Mount
1. CAUTION - Very strong magnetic mount included in the package.
2. CAUTION - keep the magnet mount out of reach of children, as there is risk of severe personal
injury otherwise!
3. Handle the magnet mount with their proper handle, and DO NOT bring the both side together
directly. DO NOT put your fingers between the magnet mounts.
4. Magnet mount can attract metal objects, keep clear of metal objects when handling the
magnetic mount to avoid injuries.
5. Magnet mount can also damage electronic and magnetic storage devices such as USB storage
devices, pacemakers, credit cards, etc. Keep clear of these devices when handling the magnetic
mount to avoid damaging them.
Safety on Pulsing Motion generated by the Gyre System
1. Making pulses and waves with the Gyre System can place additional stress on the aquarium
glass/acrylic and its joints. Not all aquariums are able or designed to withstand this stress and
failure of the glass/acrylic and/or joints could result. Please consult with your aquarium
2. Manufacturer to determine if the aquarium construction is adequate to withstand the additional
stress generated by the pulses and waves motion. Please also check to assure that your
aquarium stand or furniture is properly leveled, which will help reduce the additional stress
resulting from wave generation.
3. Maxspect DISCLAIMS AND WILL NOT BE LIABLE FOR, damage to any aquarium or their
surroundings, water damage, or any other consequential damages resulting from wave
generation. MAKE PULSES AND WAVES AT YOUR OWN RISK.
Precautions
EN

5
Operation –Controller Unit
1. Operation –Always follow the operation instructions set forth in this manual when using this
controller unit.
2. Heat –The controller unit should be situated away from heat sources such as radiators, and DO
NOT expose to excessive heat such as sunshine, fire or the like.
3. Moisture –To reduce the risk of fire or electric shock, DO NOT expose the controller unit to rain,
moisture, dripping or splashing.
4. Water Damage –DO NOT immerse in water. If the controller unit falls into the water, DO NOT
reaches for it! First unplug it and then retrieve it. If electrical components of the appliance get
wet, unplug the appliance immediately.
Operation –Gyre Pump
1. Placement –The Gyre pump creates high levels of flow within your aquarium. Please place the
Gyre in an area where corals are not too close to the output flow of the pump.
2. Stall –In the event of a motor stall, the Gyre pump may have stopped for a few possible reasons.
You should first check that there is not something blocking the rotors from spinning.
3. Overheating –The Gyre pump is designed to run underwater. DO NOT run the Gyre pump when
it is not submerged in water. Doing so will cause the Gyre pump module to overheat and could
damage the pump component.
4. Cleaning –Please follow the instruction in this manual to clean the Gyre regularly.
5. Power Outage –During power outage, if a battery backup accessory is added to the Gyre pump,
the pump will automatically switch to Battery Backup mode during a power outage. The pumps
will run at the minimum speed to maximize their run time during this critical period.
Precautions
EN

6

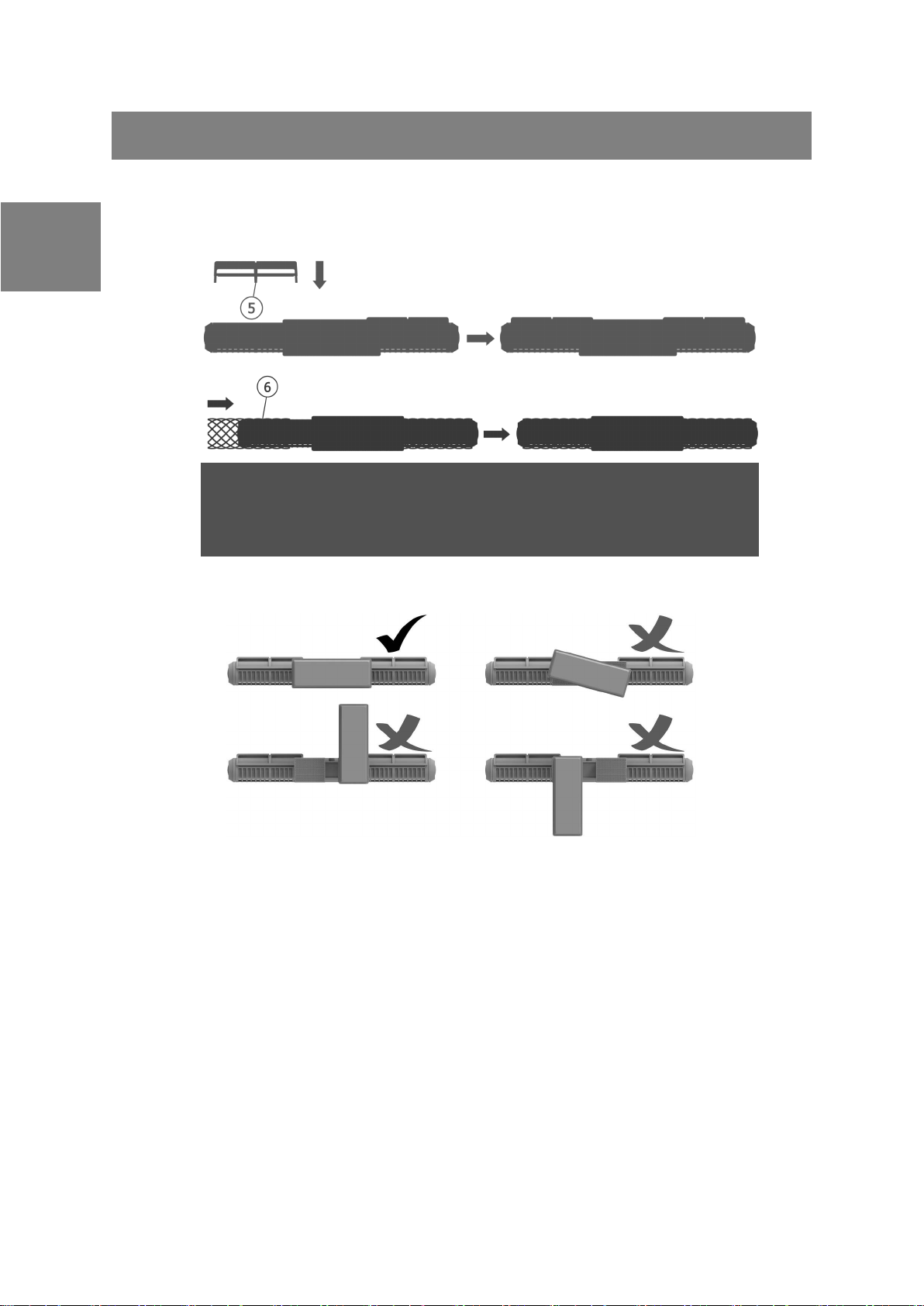

Installation
Installation
1. Mesh and Flow Director.
1).
or
2).
or
3).
2. Magnet
3. XF330 Single impeller working mode. User can replace the left or right side impeller with
a cap to make it a single side gyre flow pump.
EN

7
Water Flow Direction Adjustment
1. Rotate the flow cage to adjust the water flow direction.
2. The use of flow director can help to concentrate and increase roughly 10% water flow.
Connection of the system
When you have ONLY one Gyre. You need to connect it to line A to power both the Gyre
and the controller.
DO NOT use XF330’s PSU on XF350, however XF350’s PSU can be used on XF330.
Power Switch Adapter(sold separately) is a component features with two power source
cables, the one labeled in 24v connect to PSU, the other one labeled in 12v connect to
backup battery(self-prepared by user), when you have ONLY one Power Switch Adapter,
you need to connect it to line A to drive the Gyre connected by the same side.
Installation
EN

8

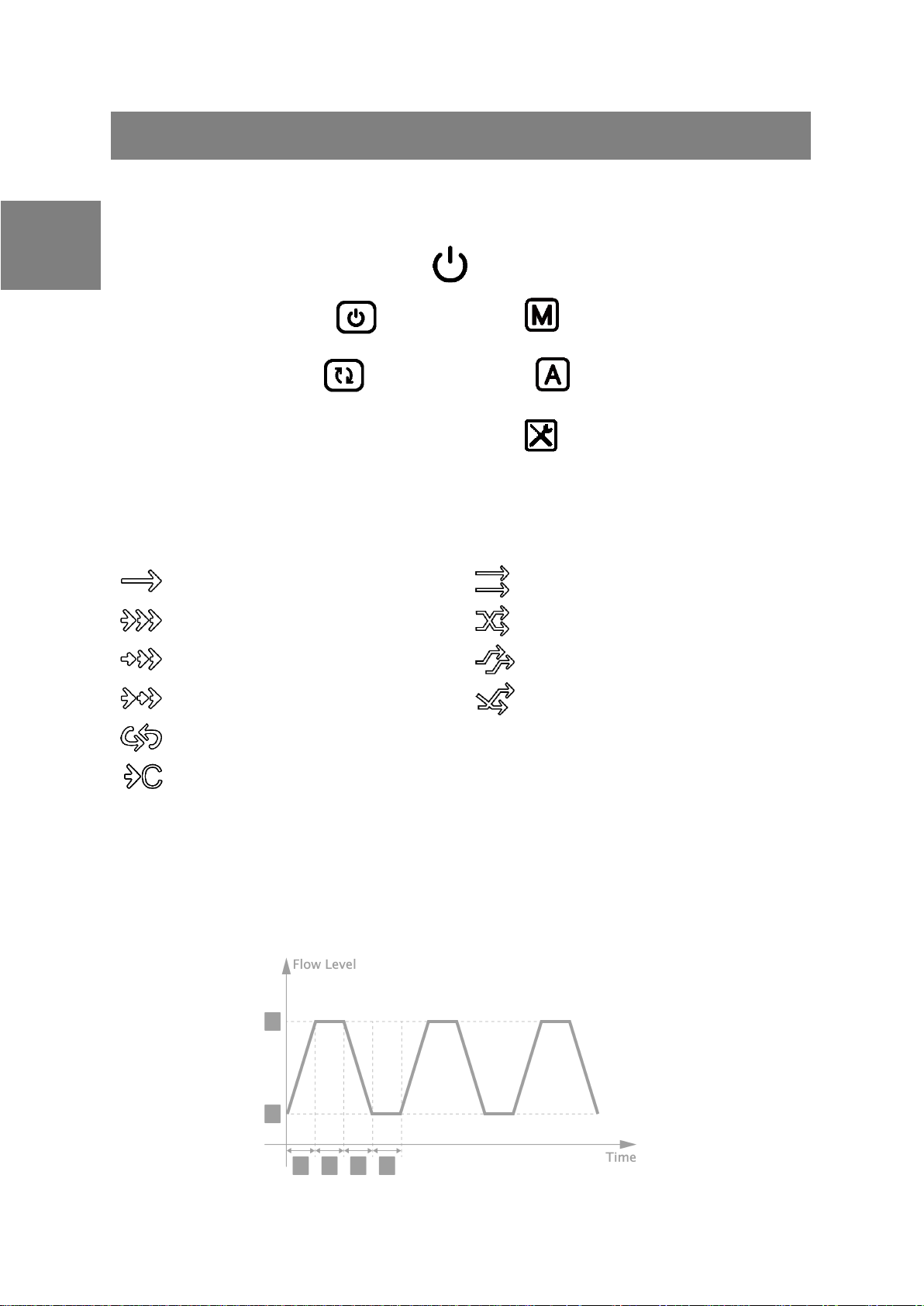

Controller Unit Introduction
OLED Screen Icon
Water Movement Modes
Link-Up Methods
Constant Speed Mode
Synchronized
Pulsing Mode
Anti-Synchronized
Gradual Pulsing Mode
Timed Delay
Random Mode
Reversed Timed Delay
Alternating Gyre Mode
Custom Wave Mode(only adjustable on SYNA-G APP)
Variables
Maximum Flow
Ramp Up Time
Maximum Flow Time
Minimum Flow
Wind Down Time
Minimum Flow Time
Variables Illustration
Operating InstructionsOperating Instructions
ON/OFF, Feed Mode Button
Mode Switch, Setup Button
Control Dial
Power Indicator
Manual Mode Indicator
Automatic Mode Indicator
Setting Indicator
EN

9
Turn ON/OFF the Gyre
Press the ON/FF button over 3s can turn on or off the appliance. While the appliance is
turned off, the Gyre will stop working, the indicators and OLED screen of the controller will
be shut down. However, if the appliance is connected to an ICV6 (sold separately), it can be
activated by the SYNA-G App.
Initialize the Gyre
Before running the Gyre, there are some basic settings you need to do for the system.
1.
Enter setup page.
3.
Set parameter.
2.
Switch between settings.
4.
Save the setting.
Switch between Modes
Manual Mode: Manually set water movement mode
and flow level for your Gyre.
Auto Mode: A set of program with programable water
movement modes and flow levels which will be cycled
every 24hrs.
Auto Mode Preset: Two presets (LTC & OGC) allow user
to choose from the system.
Manual Mode
Operating InstructionsOperating Instructions
Set system clock.
Set model number for line A.
Set model number for line B.
Set flow level for backup battery working mode.
Note: The Gyre will be fixed on Constant Speed Mode in backup battery working mode.
Current water movement mode.
Impeller rotation direction.
Instant flow level.
Flow level indicator.
Main Interface
Setup Interface
1.
Enter setup page.
2.
Switch between settings.
3.
Set parameter.
4.
Save the setting.
EN

10

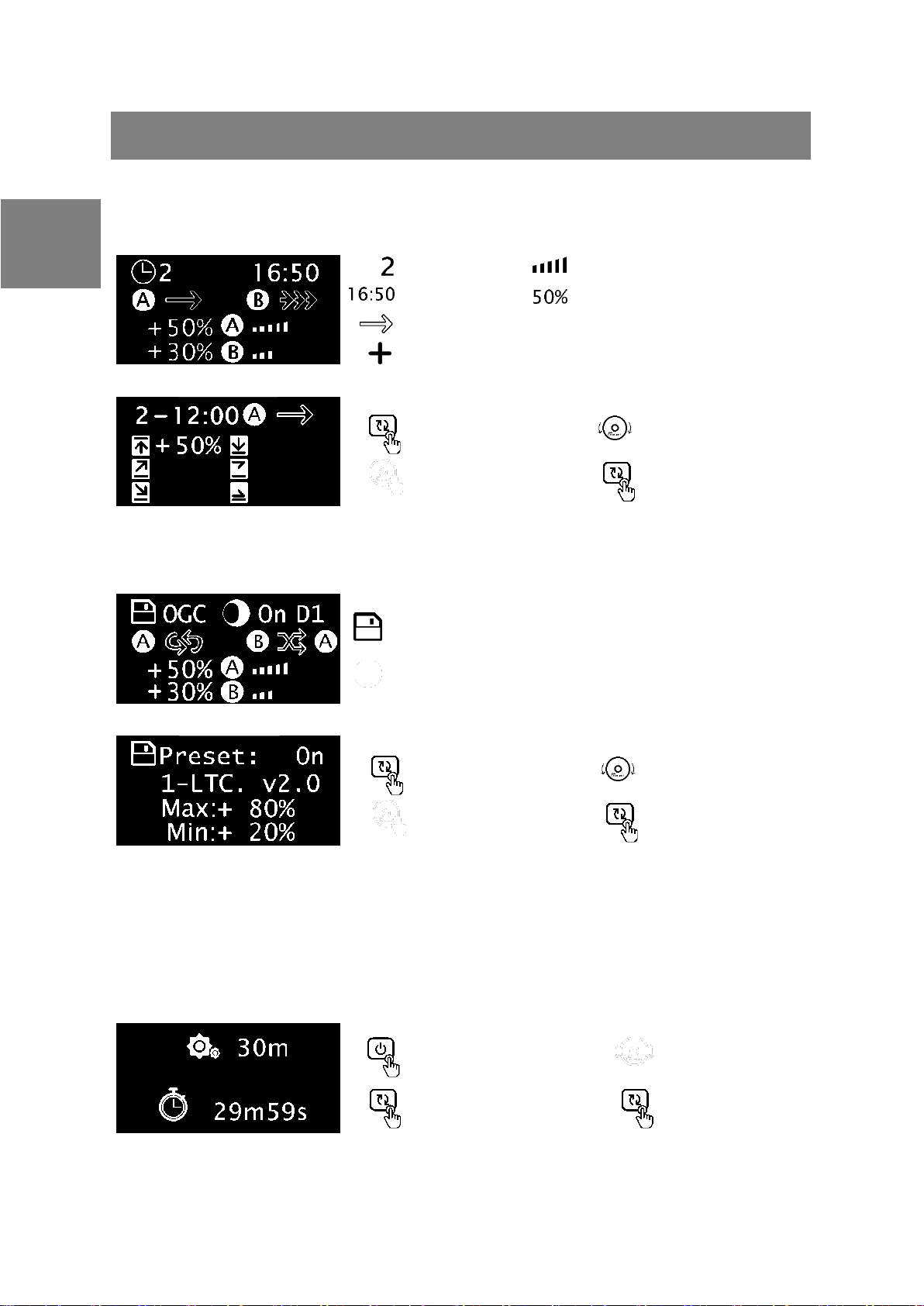

Auto Mode
Auto Mode Preset
Feed Mode
Operating Instructions
Main Interface
Current water movement mode.
Impeller rotation direction.
Instant flow level.
Flow level indicator.
Current duration.
System clock.
Setup Interface
1.
Enter setup page.
2.
Switch between settings.
3.
Set parameter.
4.
Save the setting.
Main Interface
Current Preset
Tidal indicator
LTC: Lunar Tidal Cycle is a 24hrs cycle that mimics the kind of water current in the ocean during high
and low tides.
OGC: Ocean Gyre Cycle is a 24hrs cycle that creats a gentle alternating gyre circulation within your
aquarium.
Tidal Indicator: While the tidal indicator is on the cycle will be counted in 24hrs 48mins.
Setup Interface
1.
Enter setup page.
2.
Switch between settings.
3.
Set parameter.
4.
Save the setting.
1.
Enter/Exit the Feed Mode.
2.
Enter setup page.
3.
Set parameter.
4.
Save the setting.
EN

11

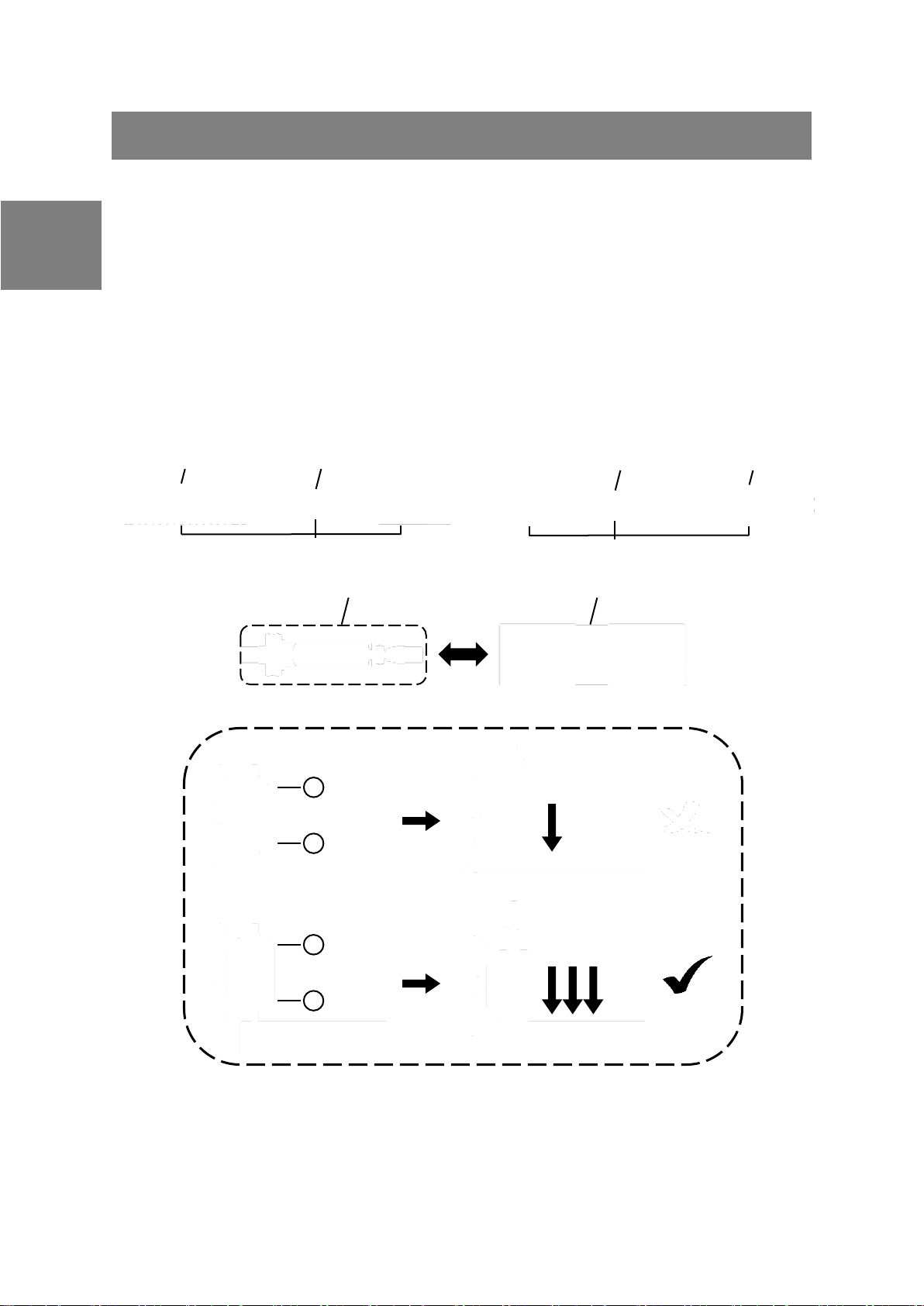

System Setup
System Setup features a set of functions which allows you to perform maintenance on the
appliance. To enter the System Setup page, first disconnect line A’s PSU from the controller
unit, then press and hold the control dial and reconnect the PSU. Keep on holding the
control dial until the system setup page is shown on OLED monitor.
Firmware – Upgrade or downgrade system’s firmware.
Reset – Reset user setting to default factory setting.
Test Mode – This function should only be conducted by the users when told by authorized
dealer or customer representative to perform certain test on the appliance.
Exit – Reboot the system to the normal operating status.
Operating Instructions
2.
Apply the function.
1.
Switch between functions.
EN

12

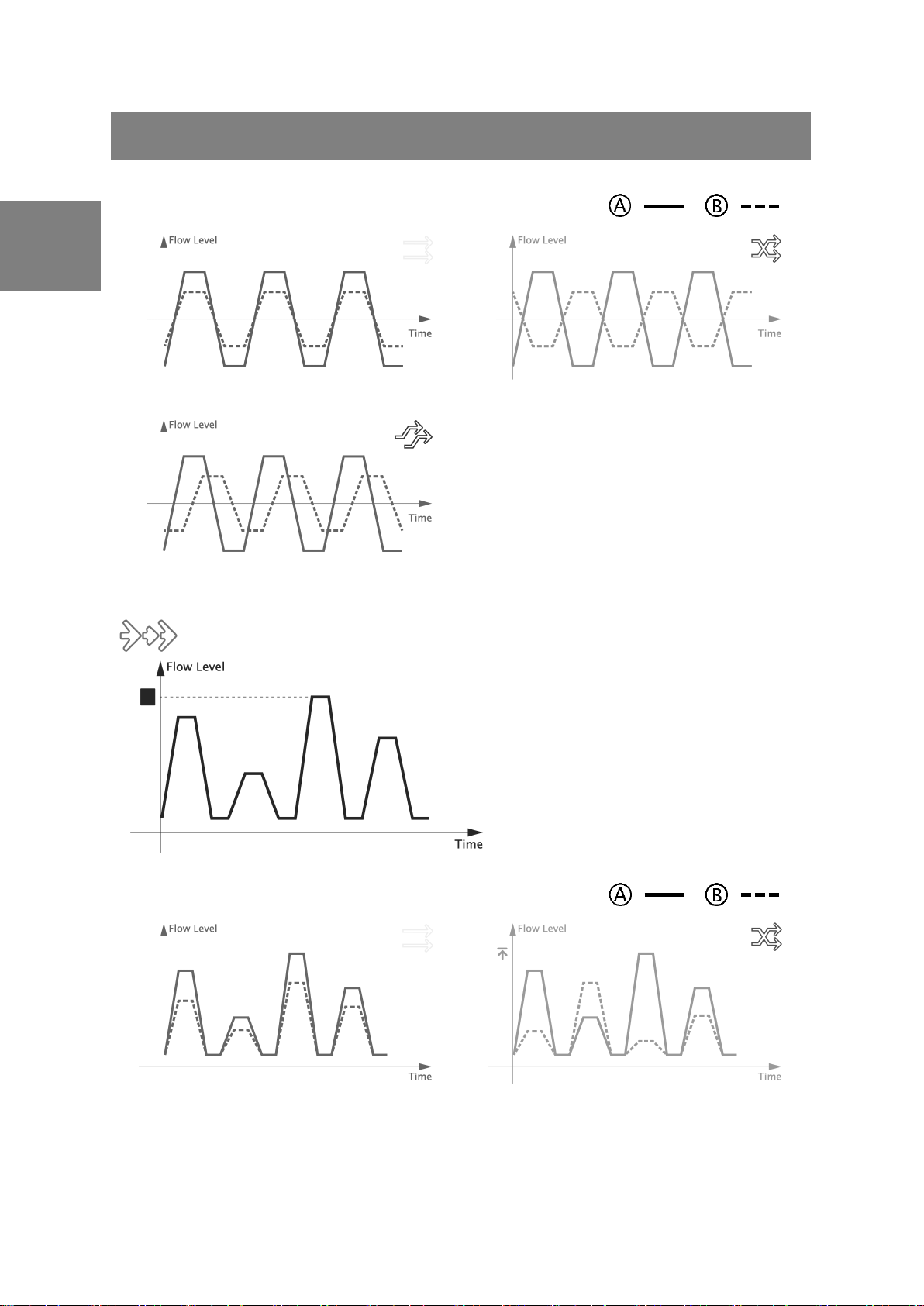

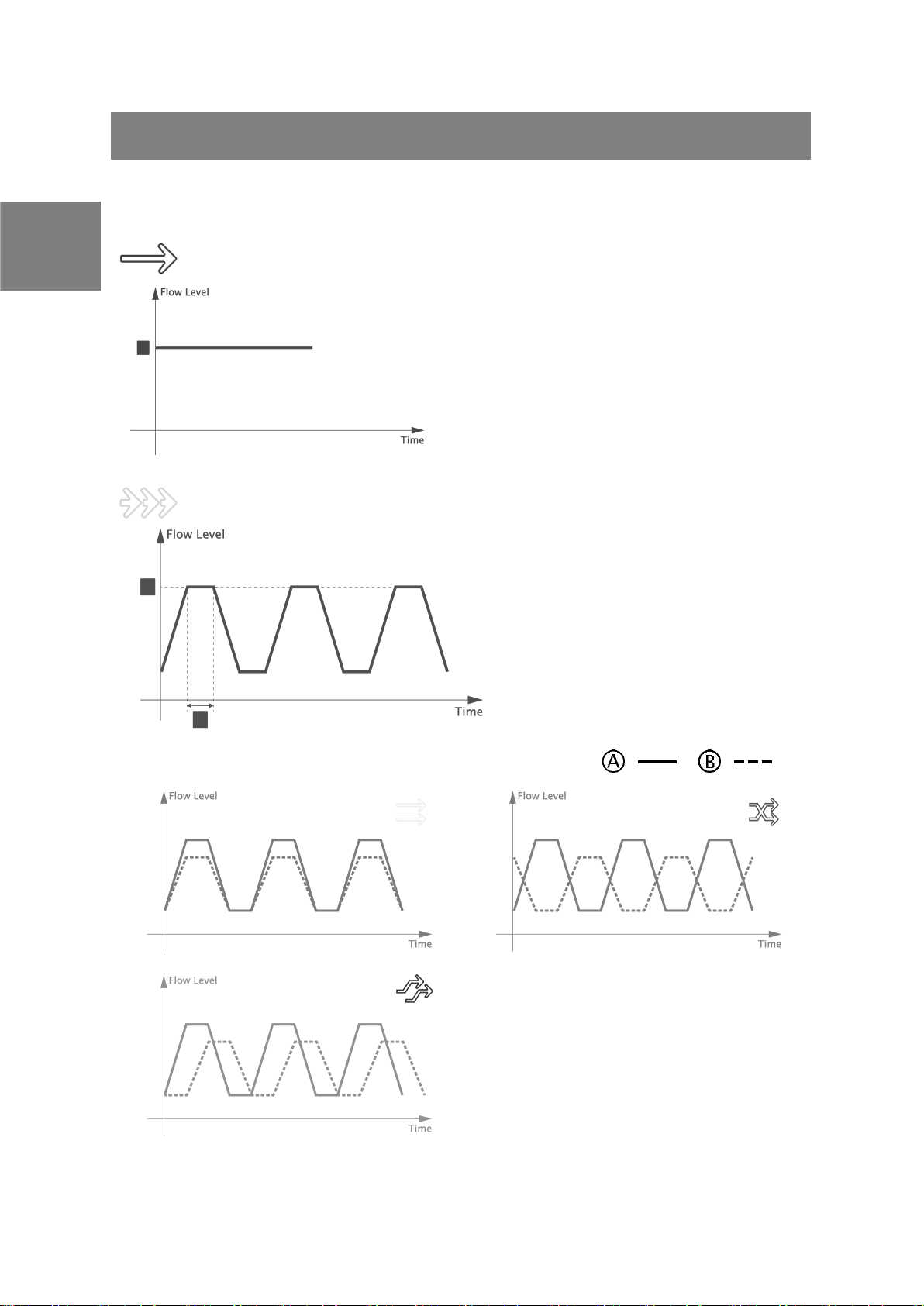

Water Movement Mode Illustration
Constant Speed Mode
Flow range: -100% - +100%
√
N/A
N/A
N/A
N/A
N/A
Pulsing Mode
Flow range: -100% - +100%, Time Range: 0.4s-10s
√
N/A
N/A
N/A
N/A
√
Available Link-Up Methods for Dual Gyres.
Operating Instructions
EN

13
Gradual Pulsing Mode
Flow range: -100% - +100%, Time Range: 0.4s-10s
√
N/A
N/A
N/A
N/A
√
Available Link-Up Methods for Dual Gyres.
Alternating Gyre Mode
√
√
√
√
√
√
Operating Instructions
Flow range: -100% - +100%, Time Range: 2s-8hrs
EN

14
Available Link-Up Methods for Dual Gyres.
Random Mode
Flow range: -100% - +100%
√
N/A
N/A
N/A
N/A
N/A
Available Link-Up Methods for Dual Gyres.
Operating Instructions
EN

15
Custom Wave Mode(only adjustable on SYNA-G APP)
Custom Wave mode is an advanced water movement mode which allows you to
combine three of five basic water movement modes together. The combination can be
the same or different basic water movement modes. For each one you choose, you can
do all the settings as the system allows when you set it as a basic water movement
mode, then you can set a duration for it from 10 seconds to 1 hour.
After finishing setting up the Custom Wave Mode, you can assign it to Manual Mode or any
period of time for Auto Mode.
Note: Though this mode is only adjustable on SYNA-G APP, there is a Preset saved for the
user who wants to control the gyre by the controller unit only.
Operating Instructions
EN

16
Maintenance
Maintenance of the Appliance
Your Gyre flow Pump is designed to operate optimally with little attention after initial setup.
However, due to the harsh conditions of a saltwater aquarium and resulting buildup of algae
and other organic matter, it is advisable to clean the pump to ensure the longevity of appliance.
Maxspect recommends doing a cleaning every 6 months or as necessary. This can be
accomplished by opening the impeller housing and gently brushing the impeller and inside of
impeller housing with a soft brush under running water. If there is calcium buildup, it may be
necessary to soak these parts in a mild acid solution such as vinegar. DO NOT use strong acids,
because these may damage the components. After cleaning, reassemble the appliance.
10. Flow Cage 11. Impller 12.Stator 13.
Rotor
Note: Please note that the impellers and flow cages must be installed to the correct side when
reassembling the gyre after cleaning.
EN
A
10A 11A
12 13
B
11B 10B
A
B
A
B
Push Hard

17
Maxspect (HongKong) Limited warrants all Maxspect™ Gyre 300 Series Gyre Flow Pump
products against defects in workmanship for a period of 12-months from the date of purchase.
If a defect exists during the warranty period, Maxspect (HongKong) Limited at its option will
either repair (using new or remanufactured parts) or replace (with a new or remanufactured
unit) the product at no charge.
THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE,
ALTERATION, ACCIDENT, IMPROPER HANDLING OR OPERATION, OR IF UNAUTHORIZED
REPAIRS ARE ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COVERED BY
WARRANTY INCLUDE, BUT ARE NOT LIMITED TO, USING AFTER-MARKET LED BULBS AND
MODIFICATION OF THE CIRCUITRY, WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM
MISUSE OR ABUSE.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES:
You and any other user of Maxspect (HongKong) Limited products shall not be entitled to any
consequential or incidental damages, including without limitation, loss of use of the unit,
inconvenience, damage to personal property, phone calls, lost income or earnings. This
warranty gives you specific legal rights and you may also have other rights, which vary from
state to state.
MAXSPECT LTD. MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED,
WITH RESPECT TO THE PRODUCT'S QUALITY, PERFORMANCE, MERCHANTABILITY, OR
FITNESS FOR A PARTICULAR PURPOSE. AS A RESULT, THIS PRODUCT, IS SOLD "AS IS," AND
YOU THE PURCHASER ASSUME THE ENTIRE RISK AS TO ITS QUALITY AND PERFORMANCE.
IN NO EVENT WILL MAXSPECT LTD BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT OR ITS
DOCUMENTATION.
The warranty, disclaimer, and remedies set forth above are exclusive and replace all others,
oral or written, expressed or implied. At no time will any Maxspect (HongKong) Limited
dealers, agents, or employees be authorized to make any modifications, extension, or
addition to this warranty.
Some states do not allow the exclusion or limitation of implied warranties or liability for
incidental or consequential damages, so the above limitation or exclusion may not apply to
you.
Limited Warranty
EN

18
Specifications
Note:For the latest specifications of the Gyre, please visit: www.maxspect.com
EN
