072303MGOLDSTEIN/tcosta Part No. 113201
MDG30PCC
(30 Lb Single Pocket, Phase 7 Coin)
Installation Manual
RETAIN THESE INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE

IMPORTANT NOTE TO PURCHASER
Information must be obtained from your local as supplier on the instructions
to be followed if the user smells as. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use asoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser dessence
ni dautres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
Retain This Manual In A Safe Place For Future Reference
Our products embody advanced concepts in engineering, design, and safety. If this product is properly maintained, it will
provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following FOR YOUR SAFETY caution must be posted near the dryer in a prominent location.
We have tried to ake this anual as co plete as possible and hope you will find it useful. The anufacturer reserves the
right to ake changes fro ti e to ti e, without notice or obligation, in prices, specifications, colors, and aterial, and to
change or discontinue odels. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information
DATE OF PURCHASE ________________________________ MODEL NO. __________________________________________
DEALERS NAME __________________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
For replacement parts, contact the dealer from which the dryer was purchased or contact:
MAYTAG CO.
403 West Fourth Street North
Newton, Iowa 5020
(641) 7 7-7000
MDG30PCC

WARNING
UNDER NO CIRCUMSTANCES should the door switch or the heat circuit devices
ever be disabled.
IMPORTANT
YOU MUST DISCONNECT AND LOC OUT THE ELECTRIC SUPPLY AND THE GAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(Occupational Safety and Health Administration) STANDARDS.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYER(S).
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
CAUTION
DRYERS SHOULD NE ER BE LEFT UNATTENDED WHILE IN OPERATION.
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.
«Attention: Au moment de lentretien des
commandes, étiquetez tous les fils avant de
les débrancher. Des erreurs de câblage
peuvent entraîner un fonctionnement
inadéquat et dangereux.»

WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or
specified in the installation manual included with the dryer.
WARNING
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
Dryer must not be installed or stored in an area where it will be exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).

SECTION I
SAFETY PRECAUTIONS ......................................................................................... 3
SECTION II
SPECIFICATIONS ..................................................................................................... 5
SECTION III
INSTALLATION PROCEDURES ........................................................................... 7
A. Unpackin and Settin Up .......................................................................................................... 7
B. Location Requirements ............................................................................................................... 8
C. Dryer Enclosure Requirements .................................................................................................... 9
D. Fresh Air Supply Requirements ................................................................................................. 10
E. Exhaust Requirements ............................................................................................................... 11
F. Electrical Information ................................................................................................................ 17
G. Gas Information ........................................................................................................................ 20
H. Preparation For Operation and Start-Up ................................................................................... 24
I. Preoperational Tests ................................................................................................................. 25
J. Preoperational Instructions ........................................................................................................ 26
K. Shutdown Instructions ............................................................................................................... 27
SECTION V
SERVICE/PARTS INFORMATION ...................................................................... 28
A. Service ..................................................................................................................................... 28
B. Parts ........................................................................................................................................ 28
SECTION V
WARRANTY INFORMATION ............................................................................... 29
A. Returnin Warranty Cards ......................................................................................................... 29
B. Warranty .................................................................................................................................. 29
SECTION VI
ROUTINE MAINTENANCE .................................................................................. 30
A. Cleanin ................................................................................................................................... 30
B. Adjustments ............................................................................................................................. 31
C. Lubrication ............................................................................................................................... 31
SECTION VII
DATA LABEL INFORMATION ............................................................................. 32
Table of Contents

SECTION VIII
PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT
COMPONENTS ........................................................................................................ 3
SECTION IX
MANUAL RESET BURNER HI-LIMIT INSTRUCTIONS ............................... 36

3
SECTION I
SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels re oved. PERSONAL INJURY OR FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser or user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
3. WH T TO DO IF YOU SMELL G S:
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbors phone. Follow the gas suppliers instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryers must be exhausted to the outdoors.
6. lthough Maytag produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent, or all purpose cleaner.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a
fire hazard.

4
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubber materials. Drying in a heated basket (tumbler) may damage
plastics or rubber and may be a fire hazard.
7. program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code NSI/NFP NO. 70-L TEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CS C22.1-1990 or L TEST EDITION.
NOTE: Failure to electrically ground the dryer properly will VOID THE WARRANTY.
9. UNDER NO CIRCUMSTANCES should the door switch or the heat circuit devices ever be disabled.
WARNING: PERSONAL INJURY OR FIRE COULD RESULT should the door switch or the
heat circuit devices ever be disabled.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
12. READ AND FOLLOW ALL CAUTION AND DIRECTION LA ELS ATTACHED TO THE
DRYER.
13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%) 19 lbs (8 kg) of its rated capacity.
WARNING: YOU MUST DISCONNECT AND LOCK OUT THE ELECTRIC SUPPLY
AND THE GAS SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER
OSHA (Occupational Safety and Health Administration) STANDARDS.
IMPORTANT: Dryer must be installed in a location/environ ent, which the a bient
te perature re ains between 40º F (4.44º C) and 130º F (54.44º C).

5
SECTION II
SPECIFICATIONS
GAS
0$;,080&$3$&,7<'5<:(,*+7 OEV NJ
%$6.(7780%/(5',$0(7(5 ´ FP
%$6.(7780%/(5'(37+ ´ FP
%$6.(7780%/(502725  KS N:
'22523(1,1*',$0(7(5  ´ FP
%$6.(7780%/(592/80(   FXIW FXP
'5<(563(5 ¶¶&217$,1(5   
'5<(563(5¶¶758&.  
92/7$*($9$,/$%/(  Y¡¡Z+]
$3352;:(,*+781&5$7(' OEV NJ
$3352;:(,*+7&5$7(' OEV NJ
+($7,1387 %WXKU NFDOKU
$,5)/2: FIP FPP
,1/(73,3(&211(&7,21  ´0137
Shaded areas are stated in metric equivalents 8/1/03
* Size of piping to dryer varies with installation conditions. Contact factory for assistance.
NOTE: Manufacturer reserves the right to make changes in specifications at any time without notice or
obligation.

6
NOTE: Manufacturer reserves the right to make changes in specifications at any time without notice or
obligation.

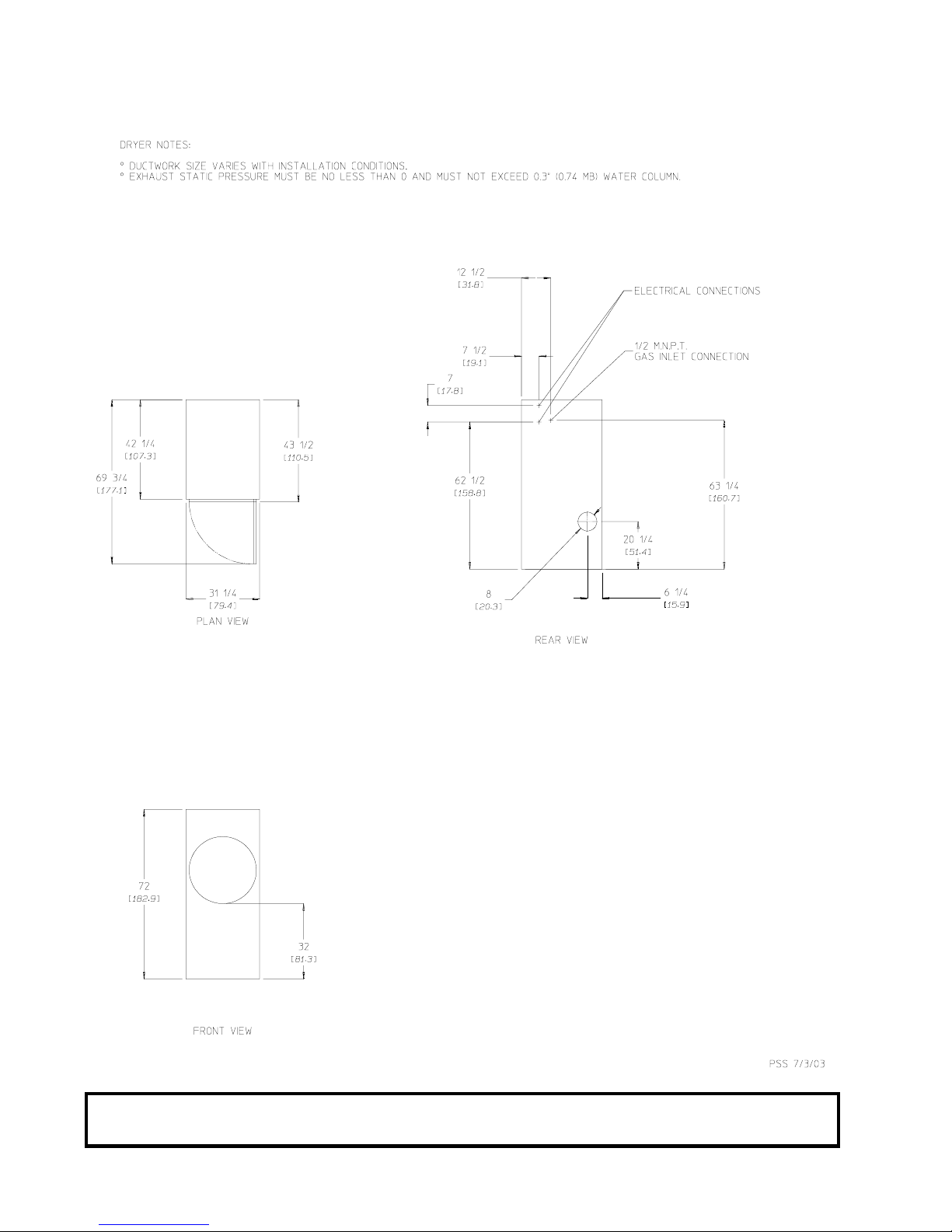

SPECIFICATIONS  GAS ONLY

7
SECTION III
INSTALLATION PROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation must conform to applicable merican National Standards: NSI Z223.1-
L TEST EDITION (National Fuel Gas Code) or NSI/NFP NO. 70-L TEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: C N/CG -B149.1-M91
(Natural Gas) or C N/CG -B149.2-M91 (Liquid Propane [L.P.] Gas) or L TEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CS C22.1-1990 or L TEST EDITION
(for Electrical Connections).
A. UNPACKING AND SETTING UP
Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.
IMPORTANT: Dryer must be transported and handled in an upright position at ALL times.
NOTE: The key for the top control door and bottom lint door is located in the information packaged
and shipped in the dryers basket (tumbler). This key should be made accessible because it
will be needed throughout various phases in the installation of the dryer.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid
the dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are
at the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint chamber.
To remove the two (2) bolts located in the lint chamber area, remove the lint door.
With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL four (4)
leveling legs, so that the dryer will slide on the legs instead of the base frame.
The lint coops of ALL model dryers are supported during shipping by a bracket. REMOVE THIS BRACKET
BEFORE STARTING THE DRYER.
Leveling Dryer
The dryer is equipped with four (4) leveling legs, one (1) at each corner of the base. Two (2) are located at the
rear of the dryer base, and two (2) are located in the lint chamber (coop). To increase bearing life and improve
efficiency, the dryer should be tilted slightly to the rear.

8
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code NSI.Z223.1 L TEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: C N/CG -B149.1-
M91 (Natural Gas) or C N/CG -B149.2-M91 (Liquid Propane [L.P.] Gas) or L TEST EDITION (for General
Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: The dryer must be installed on noncombustible floors only.
2. The dryer must not be installed or stored in an area where it will be exposed to water or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from noncombustible construction as noted in this manual (refer to
Dryer Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. Dryer must be exhausted to the outdoors as noted in this manual (refer to Exhaust Requirements in
Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.
9. The dryer must be installed with a proper exhaust duct connection to the outside.
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
IMPORTANT: Dryer must be installed in a location/environ ent, which the a bient
te perature re ains between 40º F (4.44º C) and 130º F (54.44º C).

9
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions should be made of noncombustible materials and must be located a minimum of
12-inches (30.48 cm) above the dryers outer top; except along the front of the dryer which may be closed if
desired.
NOTE: Allowances must be made for opening the control door.
NOTE: Air considerations are important for proper and efficient operation.
Dryers may be positioned sidewall to sidewall. However, a 1/16 (1.5875 mm) minimum allowance must be
made for opening and closing of the control door and the lint door. It is suggested that the dryer be positioned
about 2 feet (0.61 meters) away from the nearest obstruction for ease of installation, maintenance, and service
(to be measured from the back guard). Refer to the illustration above for details.
X = 12-inch (30.48 cm) minimum, 24-inches (60.96 cm) is suggested for ease of maintenance.

10
D. FRESH AIR SUPPLY REQUIREMENTS
The air supply (make-up air) must be given careful consideration to assure proper performance of each dryer.
n unrestricted source of air is necessary for each dryer. s a general rule, an unrestricted air entrance from
the outdoors (atmosphere) of a minimum of 1-1/2 square feet (0.14 square meters) is required for each dryer. If
registers or louvers are installed over the openings, then the area must be increased. It is not necessary to have
a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they
must be set up in such a manner that the make-up air is distributed equally to the dryers. The dryer must be
installed with provisions for adequate combustion and make-up air supply.

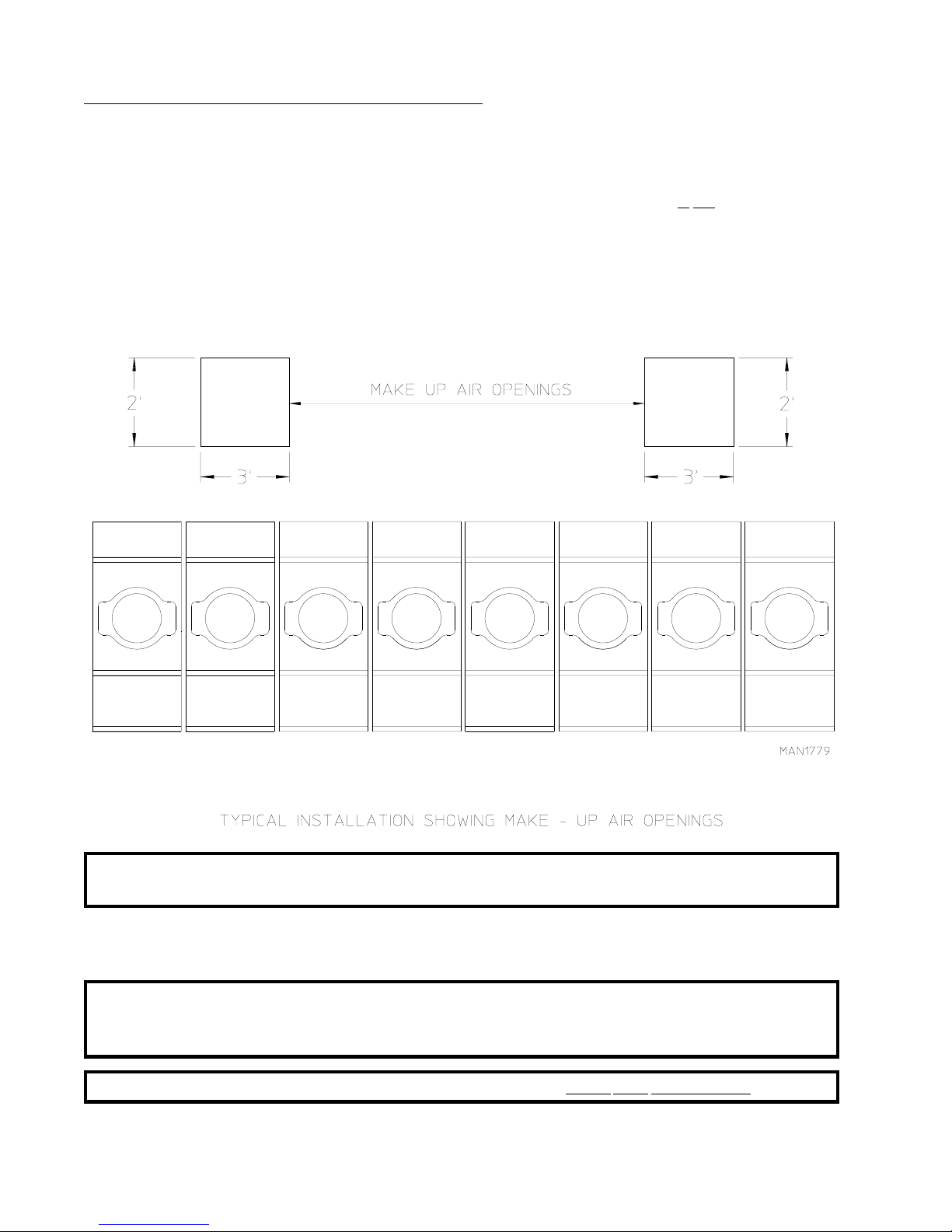

EXAMPLE: For a bank of eight (8) dryers, two (2) unrestricted openings measuring 2 feet by 3 feet
(6 square feet [0.61 meters by 0.91 meters] [0.55 square meters]) are acceptable.
IMPORTANT: Make-up air openings should not be located in an area directly near where exhaust
vents exit the building.
llowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.
Make-up air that is contaminated by dry cleaning solvent fumes will result in
irreparable damage to the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY.

11
E. EXHAUST REQUIREMENTS
Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will
create excessive back pressure which results in slow drying, increased use of energy, and shutdown of the
burner by the airflow (sail) switch, burner hi-limit, or lint chamber hi-limit protector thermostat. The dryer must
be installed with a proper exhaust duct connection to the outside.
When possible, it is suggested to provide a separate (single) exhaust duct for each dryer.
CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN
CREATE A POTENTIAL FIRE HAZARD.
CAUTION: DRYER MUST BE EXHAUSTED TO THE OUTDOORS.
IMPORTANT: It is reco ended that exhaust or booster fans not be used in the exhaust ductwork
system.
The exhaust ductwork should be laid out in such a way that the ductwork travels as directly as possible to the
outdoors with as few turns as possible. The shape of the ductwork is not critical as long as the minimum cross
section area is provided. Single or independent dryer venting is recommended.
It is suggested that the use of 90° turns be avoided; use 30° or 45° angles instead.
The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions,
which will collect lint. When adding ducts, the ducts to be added should overlap the duct to which it is connected.
ALL ductwork joints must be taped to prevent moisture and lint from escaping into the building. dditionally,
inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and
cleaning.
IMPORTANT: When connecting ductwork to the dryer exhaust duct, be sure that when screws are
used they DO NOT restrict the operation (both opening and closing) of the damper.
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be
installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be
protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least
twice the diameter of the duct between the duct opening and the nearest obstruction (i.e., roof or ground level).
IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust
ductwork.
IMPORTANT: Exhaust back pressure measured by a manometer at the dryer exhaust duct area must
be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column
(W.C.).

12
NOTE: As per the National Fuel Gas Code, Exhaust ducts for type 2 clothes dryers shall be
constructed of sheet metal or other noncombustible material. Such ducts shall be equivalent in
strength and corrosion resistance to ducts made of galvanized sheet steel not less than
0.0195-inches (26 gauge [0.05 mm]) thick.
SINGLE DRYER VENTING
IMPORTANT: For exhaust duct runs over 30 feet (9.14 meters) a minimum size of 10-inches
(25.4 cm) must be used.

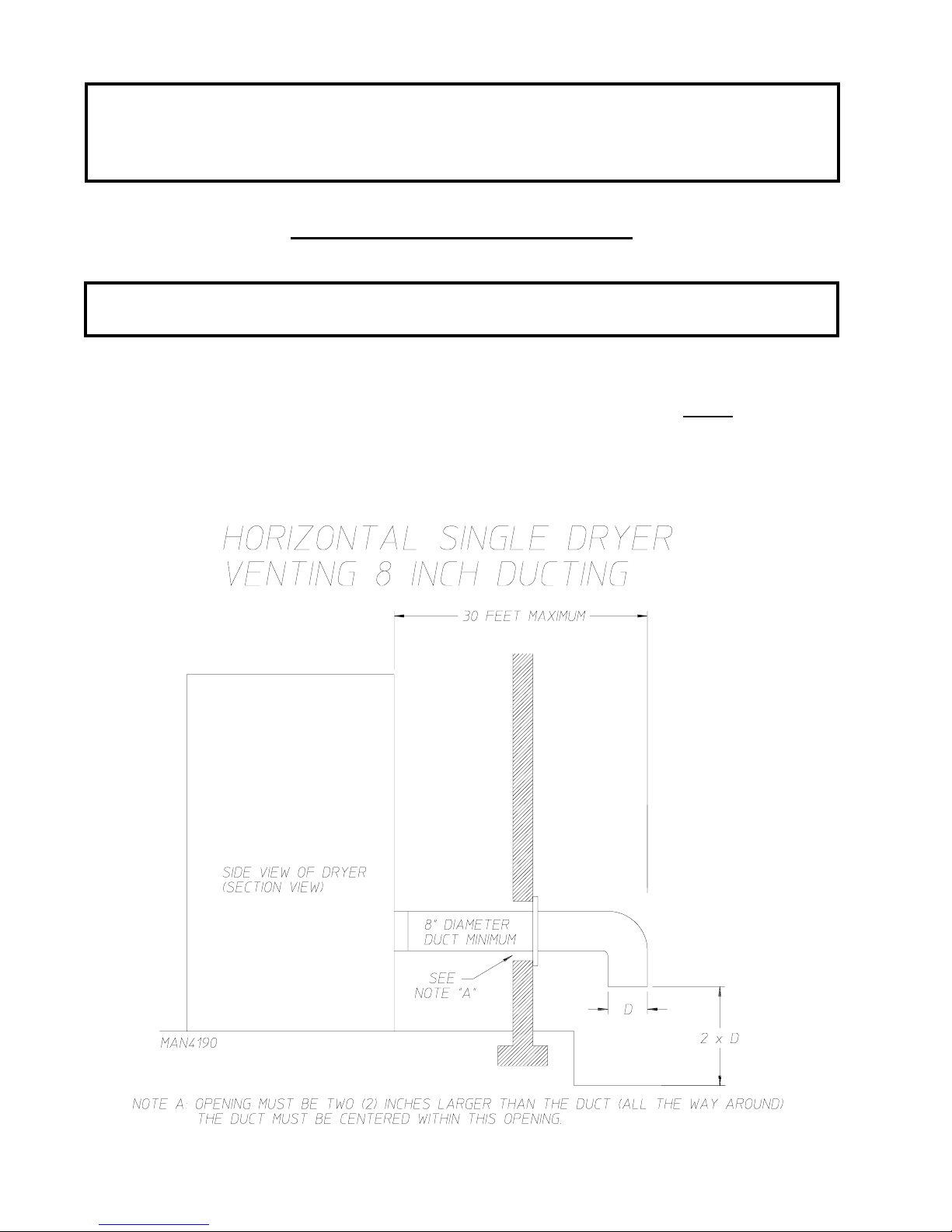

HORIZONTAL VENTING
When horizontal single 8-inch (20.32 cm) venting is used, the ductwork to the outlet cannot exceed 30 feet
(9.14 meters) refer to Illus. A below. This calculation of 30 feet (9.14 meters) compensates or allows for the
use of a maximum of only one (1) elbow.
Illus. A

13
If the length of the duct run or quantity of elbows used exceeds the above noted specifications, the cross section
area of the ductwork must be increased in proportion to the number of elbows or duct run added.
IMPORTANT: For extended ductwork runs, the cross section area of the duct can only be increased
to an extent. For extended ductwork runs, a professional heating, ventilating, and
air-conditioning (HVAC) firm should be consulted for proper venting information.

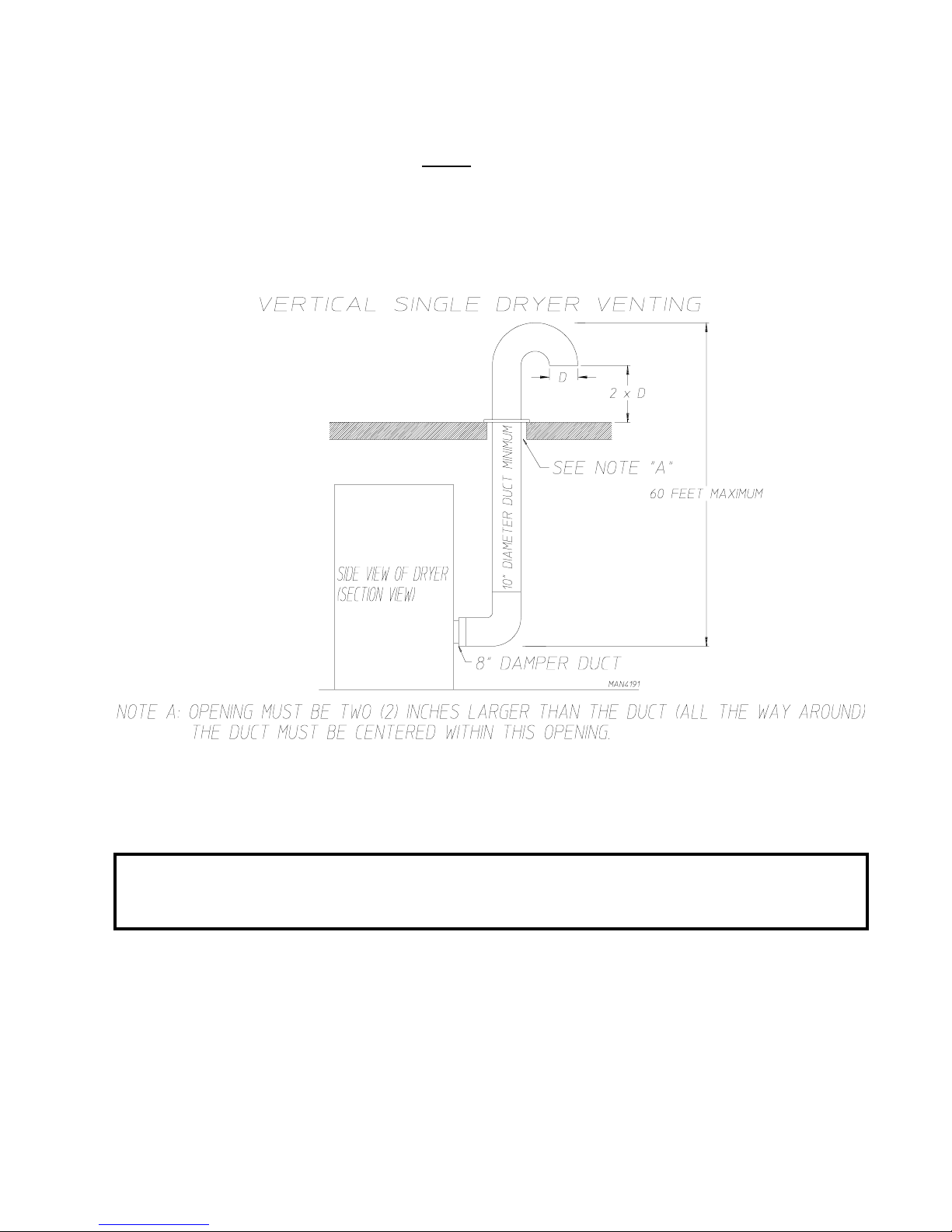

VERTICAL VENTING
When vertical single venting is used the minimum duct size is 10-inches (25.4 cm) refer to Illus. below, the
ductwork from the dryer to the outside outlet cannot exceed 60 feet (18.3 meters) refer to Illus. below. This
calculation compensates for the use of a maximum of three (3) elbows including the two (2) elbows creating the
180° (turned downward) outside outlet.
Illus. B

14
MULTIPLE DRYER (COMMON) VENTING
HORIZONTAL VENTING
If it is not feasible to provide separate exhaust ducts for each dryer, ducts for individual dryers may be channeled
into a common main duct. Each dryer is provided with a back draft damper. The individual ducts should enter
the bottom or side of the main duct at an angle not more than 45° in the direction of the airflow. No more than
four (4) dryers should be connected to one (1) main common duct run.
The main common duct may be any shape as long as the minimum cross-sectional area is provided. The main
duct should be tapered with the diameter increasing before each individual 8-inch (20.32 cm) duct is added
(refer to Illus. C below and Illus. D on the next page).
Illus. C
MULTIPLE DRYER VENTING (HORIZONTAL)
Horizontal venting must not exceed 20 feet (6.1 meters)  this calculation compensates for the use of a
maximum of only one (1) elbow, which is the outside outlet protection.
NOTE: Distance between dryer single ducts being connected to the main common duct must be a
minimum of 31-3/8 (79.7 cm) dryer width.
Ductwork should be laid out in such a manner where allowances are made at rear area of the
dryer for removal of rear service panels or guards.

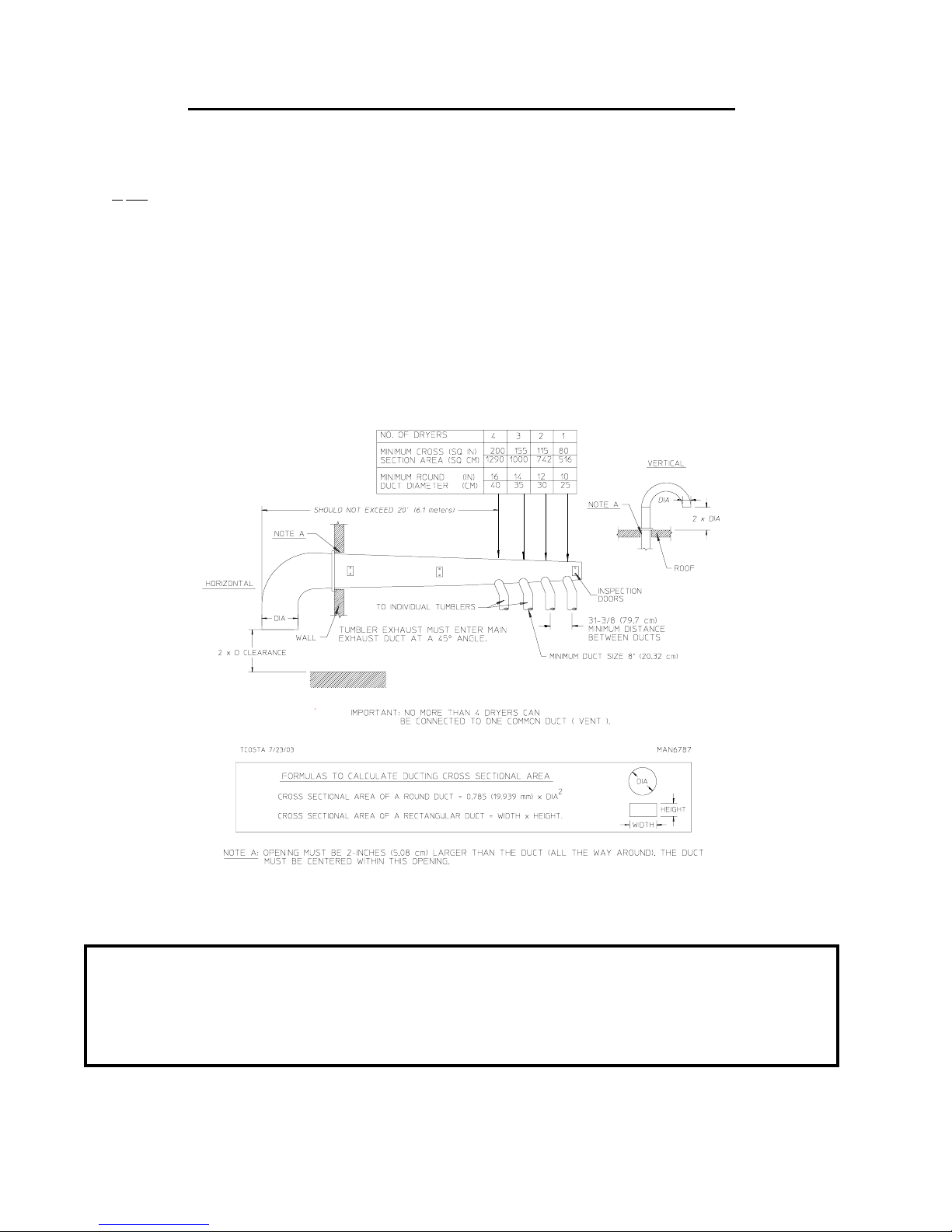

Illus. C shows the minimum cross section area for horizontal multiple dryer venting. These figures must be
increased in proportion if the main duct run from the last dryer to where it exhausts has numerous elbows or is
unusually long.

15
IMPORTANT: For extended ductwork runs, the cross section area of the duct can only be increased
to an extent. For extended ductwork runs, a professional heating, ventilating, and
air-conditioning (HVAC) firm should be consulted for proper venting information.
VERTICAL VENTING
Illus. D
MULTIPLE DRYER VENTING (VERTICAL)
The maximum length of venting from the last dryer to where it exhausts:
Vertical venting must not exceed 25 feet (7.62 meters)  this calculation compensates for the use of a maximum
of three (3) elbows including the two (2) elbows creating the 180° (turned downward) outside outlet protection.
IMPORTANT: No more than four (4) dryers maximum should be connected to one (1) main
common duct with a vertical run.
NOTE: Distance between dryer single ducts being connected to the main common duct must be a
minimum of 31-3/8 (79.7 cm) dryer width.
Ductwork should be laid out in such a manner where allowances are made at rear area of the
dryer for removal of rear service panels or guards.

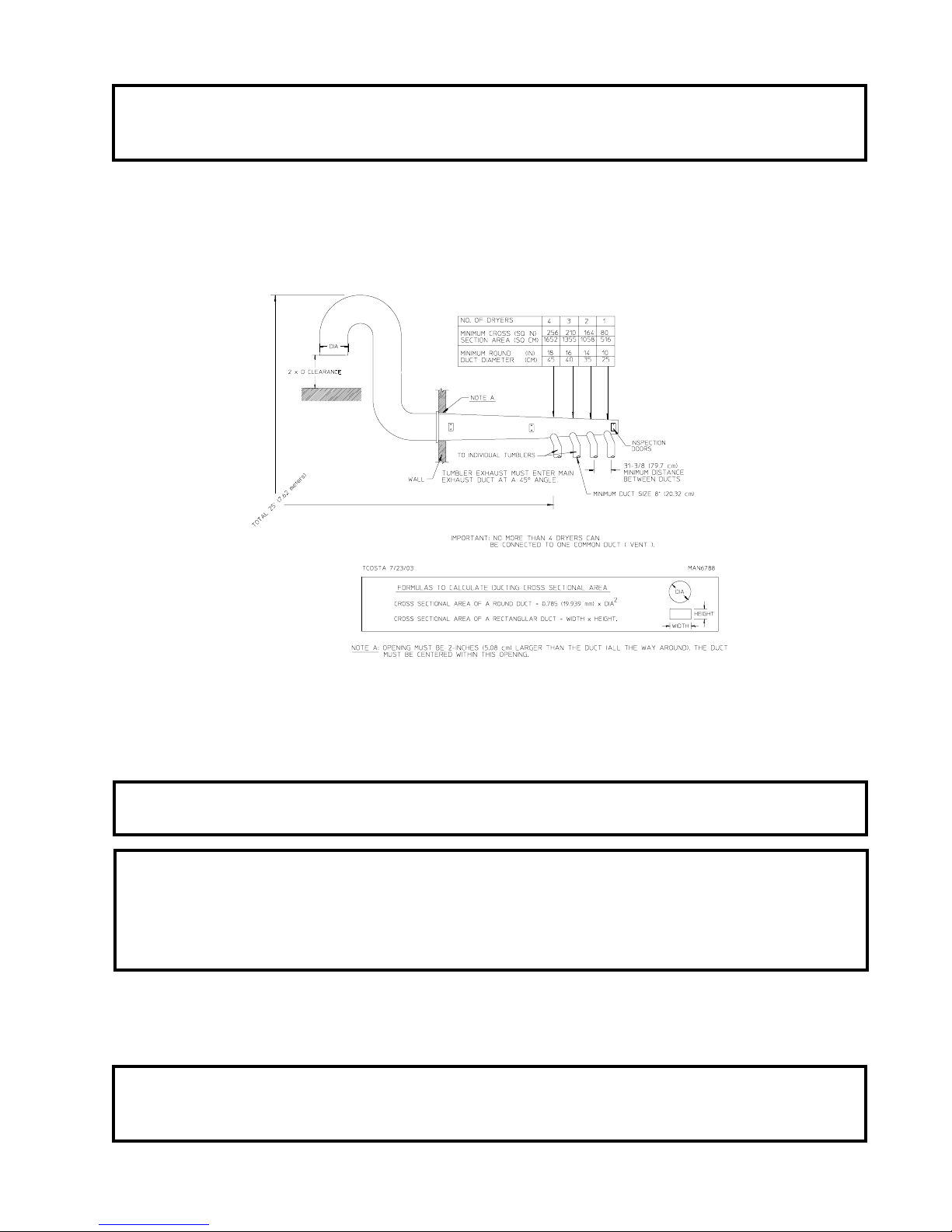

Illus. D shows the minimum cross section area for vertical multiple dryer venting. These figures must be
increased in proportion if the main duct run from the last dryer to where it exhausts has numerous elbows or is
unusually long.
IMPORTANT: For extended ductwork runs the cross section area of the duct can only be increased
to an extent. For extended ductwork runs a professional HVAC firm should be
consulted for proper venting information.

16
IMPORTANT VENTING REMINDERS
1. Ductwork size and installation should be done by a qualified professional.
2. The dryer must be exhausted to the outdoors.
3. Ductwork should be routed as short as possible to the outdoors with as few elbows as possible.
4. void 90° turns, use 30° or 45° turns instead.
5. The size of the ductwork must be a minimum of 10-inches (25.4 cm) if vented vertically and 8-inches
(20.32 cm) if vented horizontally.
6. The inside of the ductwork should be as smooth as possible with no projections from sheet metal screws.
Ducts added should overlap the duct to which it is to be connected.
7. ALL ducts should be taped to prevent moisture and lint from escaping into the building.
8. Inspection or clean out doors should be installed throughout strategic points in the ductwork for periodic
inspection and cleaning.
9. Whenever the duct passes through combustible materials, the opening must be 2-inches (5.08 cm) larger
than the duct (all the way around). The duct must be centered within this opening.
10. The outside of the ductwork must be protected from the weather. 90° elbow must be used for horizontal
run and when vertically through a roof by using a 180° turn to point the opening downward. The distance
between the exhaust duct and the nearest obstruction (i.e., roof or ground) must be twice the diameter of
the duct.
11. DO NOT use screens, louvers, or caps on the outside opening of the exhaust ductwork.
12. Exhaust back pressure measured by a manometer at the dryer exhaust duct area must be no less than 0
and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).
13. WARNING  DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER AND
SCREEN IN PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
14. Exhaust ductwork outlets should not be located in an area directly where the make-up air openings are
located.
IMPORTANT: It is reco ended that exhaust or booster fans not be used in the exhaust ductwork
system.
