Maytag UMV1152CA User manual

2006
Over-the-Range
Domestic
Microwaves
This Base Manual covers general information
Refer to individual Technical Sheet
for information on specific models
This manual includes, but is
not limited to the following:
UMV1152CA*
AMV1154BA*
AMV5164BA*
AMV5164BC*
AMV5206BA*
AMV6167BD*
MMV1153BA*
MMV4205BA*
MMV5165BA*
MMV5207BA*
MMV5207BC*
JMV8166BA*
JMV8208BA*
JMV8208BC*
JMV9169BA*
Service
This manual is to be used by qualified appliance
technicians only. Maytag does not assume any
responsibility for property damage or personal
injury for improper service procedures done by
an unqualified person.
16027303
June 2006
Replaces16027128

2 16027303 © 2006 Maytag Services
Prideandworkmanshipgointoeveryproducttoprovideourcustomerswithqualityproducts. Itispossible,however,
that during its lifetime a product may require service. Products should be serviced only by a qualified service
technicianwhoisfamiliarwiththesafetyproceduresrequiredintherepairandwhoisequippedwiththeproper tools,
parts, testing instruments and the appropriate service manual. REVIEW ALL SERVICE INFORMATION IN THE
APPROPRIATESERVICEMANUALBEFOREBEGINNINGREPAIRS.
Important Notices for Consumers and Servicers
!WARNING
To avoidriskof serious injuryor death, repairsshouldnot beattemptedby an unauthorizedservice personnel,
dangerous conditions (such as exposure to electrical shock) may result.
CAUTION
!
Maytagwill not beresponsiblefor any injuryorpropertydamage fromimproperserviceprocedures. If performing
service on your own product, assume responsibility for any personal injury or property damage which may result.
Tolocateanauthorizedservicer, please consult your telephonebook or thedealer from whomyou purchased this
product. For further assistance, please contact:
Customer Service Support Center
CAIRCenter
Web Site Telephone Number
WWW.AMANA.COM................................................ 1-800-843-0304
WWW.MAYTAG.COM ............................................. 1-800-688-9900
WWW.JENNAIR.COM ............................................. 1-800-536-6247
CAIR Center in Canada ........................................... 1-800-688-2002
AmanaCanadaProduct ........................................... 1-866-587-2002
Recognize Safety Symbols, Words, and Labels
DANGER!
DANGER—ImmediatehazardswhichWILLresultinseverepersonalinjuryordeath.
WARNING!
WARNING—HazardsorunsafepracticeswhichCOULDresultinseverepersonalinjuryordeath.
CAUTION!
CAUTION—HazardsorunsafepracticeswhichCOULDresultinminorpersonalinjuryorproductorproperty
damage.
Important Information

© 2006 Maytag Services 16027303 3 3
ImportantInformation ................................................... 2
ImportantSafety Information ........................................ 4
MicrowaveLeakageTesting .......................................... 5
GeneralInformation
Specifications ............................................................ 7
Placementof the Oven............................................... 7
LocationofModel Number ......................................... 7
ModelIdentification .................................................... 7
Service....................................................................... 7
Parts and Accessories............................................... 7
Asure™Extended Service Plan................................. 7
RadioInterference...................................................... 7
ElectricalRequirements............................................. 8
Cleaning..................................................................... 8
Grounding Instructions ............................................... 8
MicrowaveOvenDescription ...................................... 9
TroubleshootingProcedures
TroubleshootingTable .............................................. 10
Checkout Procedure: Fuse .....................................11
Error Code Table ..................................................... 12
Testing Procedures
ComponentTestingProcedures............................... 13
ControlPanel Sensor Test ....................................... 16
PowerTest(TraditionalTest Method) ....................... 17
TraditionalPowerTestTemperature Chart ............... 17
Touch Pads/ControlPanel
Switch Membrane Pinouts............................18 - 30
DisassemblyProcedures
GrilleRemoval.......................................................... 31
DoorAssemblyRemoval.......................................... 31
DoorDisassembly ................................................... 31
ControlPanelRemoval ............................................ 32
PrintedCircuit BoardRemoval ................................ 32
ControlKey Panel Removal ..................................... 33
OuterCaseRemoval................................................ 33
StirrerAssemblyRemoval........................................ 33
InterlockDoor LatchSwitches Removal .................. 34
HighVoltageCapacitorRemoval.............................. 35
DiodeRemoval ........................................................ 35
TransformerRemoval .............................................. 35
ReplacingFuse ....................................................... 35
MagnetronRemoval ................................................. 35
MagnetronFanAssemblyRemoval .......................... 36
MagnetronThermalFuseRemoval........................... 36
HumiditySensor Removal (SelectModels) .............. 36
OvenThermostatRemoval ....................................... 36
TurntableMotorRemoval ......................................... 37
Vent BlowerRemoval ............................................... 37
ConvectionMotorand Heater ElementRemoval
(Select Models) ................................................... 38
ConvectionHeaterElementRemoval
(Select Models) ................................................... 38
LightSocketRemoval .............................................. 38
Grille HeaterElementRemoval (SelectModels) ....... 38
AppendixA
InstallationInstructions ...........................................A-2
AppendixB
UseandCareinformation........................................ B-2
Table of Contents

4 16027303 © 2006 Maytag Services
Thebasic designof the MaytagandAmana microwave
oven makes it an inherently safe device to both use and
service.However,thereare some precautions which
shouldbefollowed when servicingthe microwave ovento
maintain this safety.These are as follows:
1. Alwaysoperatethe unit from an adequatelygrounded
outlet. Do not operate on a two-wire extension cord.
2. Beforeservicingthe unit (if unit is operable), perform
the microwave leakage test.
3. The oven should never be operated if the door does
not fit properly against the seal, the hinges or hinge
bearings are damaged or broken; the choke is
damaged, (pieces missing, etc.); or any other visible
damage can be noted. Check the choke area to
ensure that this area is clean and free of all foreign
matter.
4. If the oven operates with the door open and
produces microwave energy, take the following
steps.
A. Tell the user not to operate the oven.
B. Contact Maytag immediately.
5. Always have the oven disconnected when the outer
case is removed except when making the "live" tests
called for in the Service Manual. Do not reach into the
equipment area while the unit is energized. Make all
connections for the test and check them for tightness
before plugging the cord into the outlet.
6. Always ground the capacitors on the magnetron filter
box and H. V. Capacitor with an insulated-handle
screwdriver before working in the high voltage area
of the equipment compartment. Some types of
failures will leave a charge in these capacitors and
the discharge could cause a reflex action which
could make you injure yourself.
7. Inthearea of the transformer,capacitor,diode, and
magnetron there is HIGH VOLTAGE. When the unit is
operating,keep this area clean and free of anything
which could possibly cause an arc or ground, etc.
8. Do not for any reason defeat the interlock switches.
There is no valid reason for this action at any time;
nor will it be condoned by Maytag.
9. IMPORTANT: Beforereturning a microwaveto a
customer, check for proper switch interlock action.
Theprimary andsecondary switchesMUST open
when the door is actuated. The monitor switch MUST
close at a 1/4 inch when the door is opened.
10.Before returning a microwave to a customer, verify
the door spacing is reasonably uniform along the
top, bottom, and sides, and that it measures 1/8 inch
or less.
11.Themicrowaveovenshouldneverbeoperatedwith:
• Anycomponents removed and/orbypassed.
• Any of the safety interlocks failing.
• Any of the seal surfaces failing, missing, or
damaged.
12.To ensure that the unit does not emit excessive
microwave leakage and to meet the Department of
Health Human Service guidelines, check the oven
for microwave leakage using Narda Model 8100,
8200, Holaday HI1500, HI1501 or Simpson 380M
leakage monitor as outlined in the instructions. The
maximum leakage level allowed is 4mW/cm2.
13.If servicerencounters an emissionreadingover
4 mW/cm2the servicer must cease repair and
contactthe Maytag Service Department immediately
forfurther direction. Maytag will contact the proper
GovernmentAgency upon verificationof the test
results.
Important Safety Information
CAUTION
!
Readthefollowinginformation to avoid possibleexposureto microwave radiation:

© 2006 Maytag Services 16027303 5
Microwave Leakage Testing
Check forradiationleakageafter servicing. Shouldthe
leakage be morethan 4mW/cm2informMaytag
immediately. After repairingorreplacingany radiation
safetydevice, keep a writtenrecord forfuture
reference,as required byD.H.H.S. andHEW
regulations. This requirement must be strictly
observed.Inaddition, the leakagereading must be
recordedon theservice repairticket whilein the
customer’shome.
Equipment
• Electromagnetic radiation monitor
• 600 cc glass beaker
Procedure For Measuring Radiation
Leakage
Note before measuring -
• Do not exceed meter full scale deflection. Leak
monitor should initially be set to the highest scale.
• To prevent false readings the test probe should be
held by the grip portion of the handle only.
• The scan speed is equal to one inch per antenna
revolution or one inch per second if antenna speed is
unknown.
• Areas to be checked are all door seal areas and any
venting parts.
• Leakage with the outer panel removed...4mW/cm2or
less.
• Leakage for fully assembled oven with door normally
closed ...4mW/cm2or less.
• Leakagefor a fully assembled oven (before thelatch
switch (primary) is interrupted) while pulling the door ...
4mW/cm2or less.
1 . Pour 275 ±15 cc (9 oz ±1/2 oz) of 20 ± 5°C
(68 ± 9°F) water in a beaker which is graduated to
600 cc and place the beaker in the center of oven.
2. Set the radiation monitor to 2450 MHz and use it
following the manufacturer’s recommended test
procedure to assure correct results.
3. While measuring the leakage, always use the two
inch (5 cm) spacer supplied with the probe.
4. Press the start pad or turn on the timer and with the
magnetron oscillating, measure the leakage by
holding the probe perpendicular to the surface being
measured.
Measurement With the Outer Panel
Removed
Avoidcontactingany high voltagecomponents.
Wheneveryou replace themagnetron, measure for
radiation leakage before the outer panel is installed and
after all necessary components are replaced or
adjusted. Special care should be taken in measuring
around the magnetron.
Measurement With a Fully Assembled Oven
After all components including the outer panel are fully
assembled, measure for radiation leakage around the
door periphery, the door viewing window, the exhaust
opening, and air inlet openings.
Record Keeping and Notification After
Measurement
1. After any adjustment or repair to a microwave oven,
a leakage reading must be taken. Record this
leakage reading on the repair ticket even if it is zero.
2. A copy of the repair ticket and the microwave
leakage reading should be kept by the repair facility.
WARNING
!

6 16027303 © 2006 Maytag Services
General Information
Thismanual provides basicinstructions and suggestions
forhandling,installing, and servicing microwaveovens.
Thedirections, information, andwarnings in thismanual
aredevelopedfromexperience with, and carefultestingof
the product. If the unit is installed according to the
InstallationInstructions, it will operate properly and will
requireminimalservicing.Aunitinproperoperatingorder
ensuresthe consumer allthe benefits providedby efficient
microwavecooking.
Thismanualcontains information needed byauthorized
servicetechnicians to installand service themicrowave
pertainingtothis manual. There maybe,howeversome
informationwhichneedsfurther explanation. Refer to
individualInstallationInstructions, Use and Care,
Technical Sheets, or toll free technical support line to
answerquestionsfrom authorized servicetechnicians.
Cooking Nomenclature
A M V 6 1 6 7 B D W
Brand
A Amana
C Magic Chef
G Graffer &
Sattler
H Hardwick
J Jenn-Air
M Maytag
N Norge
U Universal
Y Crosley
Product Type
A Accessory/Cartridge
C Cooktop Updraft/Countertop
D Downdraft Cooktop or Warming Drawer
E Eyelevel Range
G Grill
L Range (20")
M Range (36")
P Drop In (24")
Q Wall Oven (27")
R Range, Free-Standing (30")
S Slide-In (30")
T Range Hood
V OTR
W Wall Oven
Y RV Range
Z RV Top
Fuel
B Butane
D Dual Fuel
E/J Electric
G Gas, Natural
L Liquid Propane
M Microwave
P Standing Pilot
X No Fuel
W Warming Drawer
Listing
A UL/AGA
C CSA/CGA/CUL
D Dual Listed
G 220-240 V / 50-60 Hz
M Military Model
P PSB Approved
(Singapore)
X Export 120 V / 60 Hz
Feature Content
1000-3999 Brands
4000-6999 Maytag/Amana
7000-9999 Jenn Air
Production Code
This identifies the
production version.
Color
A Almond on Almond
B Black
C Brushed Chrome
H Traditional White
L Traditional Almond
P Prostyle
Q Monochromatic Bisque
S Stainless
T Traditional Bisque
W White on White
F Frost White (True Color White)
N Natural Bisque (True Color Bisque)

© 2006 Maytag Services 16027303 7
General Information
Specifications
RefertoindividualTechnicalSheetforspecification
information.
Placement of the Oven
This microwave can be easily placed in the kitchen, family
room, or anywhere else in the house. Place the oven on a
flat surface such as a kitchen countertop or a specially
designedmicrowaveovencart.Donotplaceoven above a
gasor electric range. Free airflow around the oven is
important.
Do Not Block Air Vents
All air vents must be kept clear during cooking. If air vents
arecoveredduringoperationtheovenmayoverheat.In
this case, a sensitive thermal safety device automatically
turnstheoven off. Theovenwill be inoperableuntil the
ovenhas cooled sufficiently.
Location of Model Number
To requestservice information or replacementparts,the
servicecenter will require the completemodel, serial, and
manufacturingnumberofyourmicrowaveoven.The

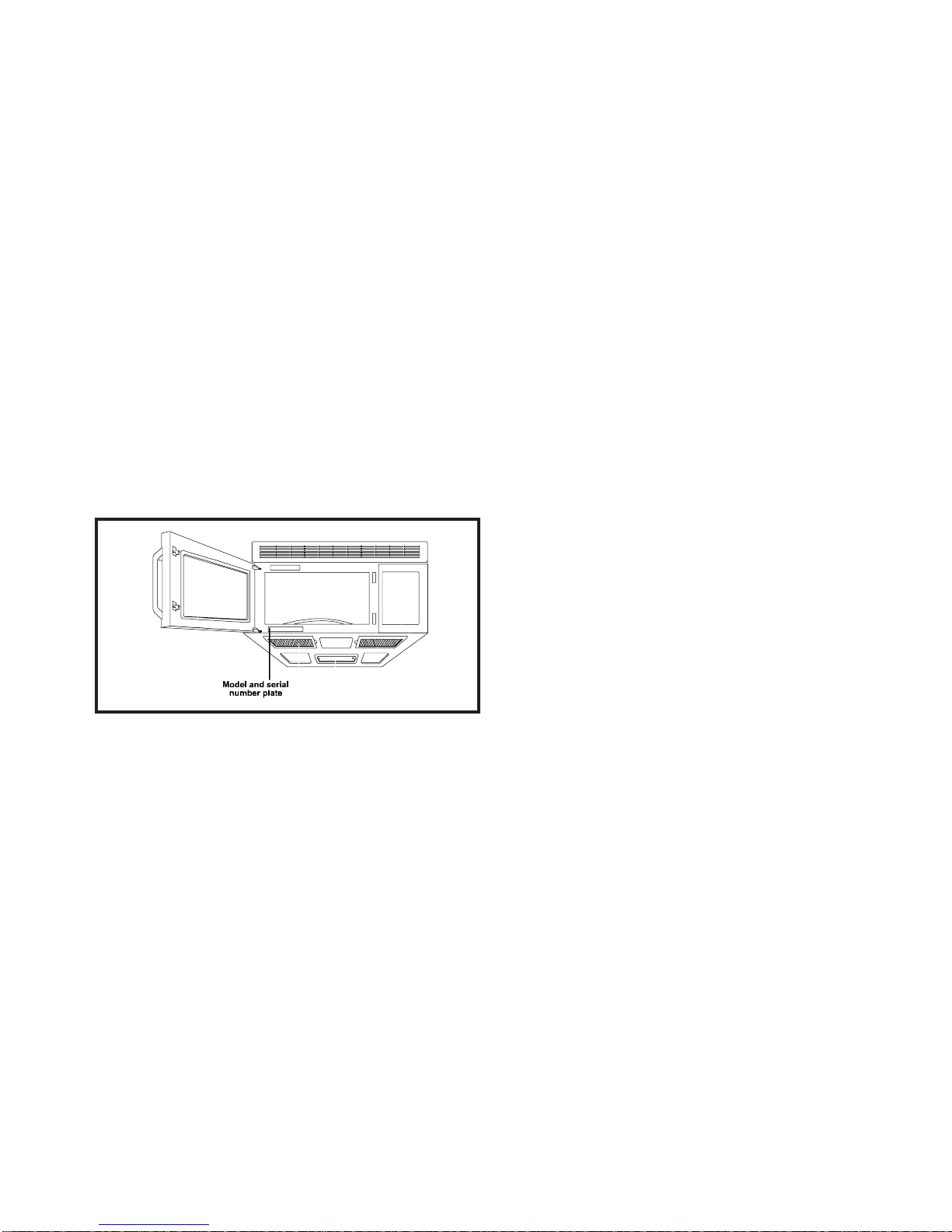

numberis located inside the oven door cavity as shown in
theillustrationbelow.
Model Identification
Completeenclosedregistration card andpromptly return.
If registration card is missing:
• ForAmanaproduct call 1-800-843-0304 or visit the
Web Site at www.amana.com
• ForMaytag product call 1-800-688-9900 or visit the
Web Site at www.maytag.com
• ForJenn-Air product call1-800-536-6247 or visitthe
WebSite at www.jennair.com
• For productin Canada call 1-866-587-2002 orvisit the
Web Sites at www.amana.com, www.maytag.com or
www.jennair.com
Whencontactingprovide product information locatedon
ratingplate.
Recordthefollowing:
ModelNumber: ___________________
ManufacturingNumber: ___________________
Serialor S/N Number: ___________________
Date of purchase: ___________________
Dealer’snameand address: ___________________
Service
Keepa copy of sales receipt for future reference or in
casewarranty service isrequired. To locatean authorized
servicer:
• ForAmanaproduct call 1-800-628-5782 or visit the
Web Site at www.amana.com
• ForMaytag/Jenn-Airproduct call 1-800-462-9824or
visit the Web Sites at www.maytag.com or
www.jennair.com
• For product in Canadacall1-866-587-2002or visit the
Web Sites at www.amana.com, www.maytag.com or
www.jennair.com
Warrantyservice must be performed by an authorized
servicer. We alsorecommendcontacting anauthorized
servicer, ifserviceis required afterwarrantyexpires.
Parts andAccessories
Purchasereplacement parts andaccessories over the
phone.Toorder accessoriesfor your product call:
• ForAmanaproduct call 1-877-232-6771 or visit the
Web Site at www.amana.com
• ForMaytag/Jenn-Airproduct call 1-800-462-9824or
visit the Web Sites at www.maytag.com or
www.jennair.com
• For product in Canadacall1-866-587-2002or visit the
Web Sites at www.amana.com, www.maytag.com or
www.jennair.com
Extended Service Plan
Weofferlong-term service protection forthisnew oven.
• Asure™ Extended Service Plan is specially designed
to supplement Amana’s strong warranty. This plan
coversparts, labor, and travel charges.
Call1-866-232-6244forinformation.
• DependabilityPlus™ Extended Service Plan is
speciallydesigned to supplement Maytag’s and Jenn-
Air’s strong warranty. This plan covers parts, labor, and
travelcharges.
Call1-800-925-2020forinformation.
Radio Interference
1. Microwaveovenoperationmayinterferewiththeradio
orTVreception.
2. When there is interference, it may be reduced or
eliminatedby taking thefollowing measures:
• Cleanthe door andthe seal surfaceof the oven.
• Reorientthereceiving antenna oftheradio orTV.
• Relocatethemicrowave oven inrelationto the radio
orTV.
• Movethemicrowaveawayfromthereceiver.
• Plugthe microwave into a different outlet so that the
microwaveandreceiverareondifferentbranch
circuits.
3. 120 VAC, 60 Hz household outlet. Be sure the circuit
is at least 15 or 20Aand the microwave oven is the
only appliance on the circuit. It is not designed for 50
Hz or any circuit other than a 120 VAC, 60 Hz circuit.
• Electrical Rating of the Oven: 120 VAC, 60 Hz.

8 16027303 © 2006 Maytag Services
General Information
Electrical Requirements
Theoven is designedto operate ona Standard120VAC,
60HZhousehold outlet.
Cleaning
Beforecleaningthe oven, unplugthe power supply cord.If
impossible,openthe oven doorto prevent anaccidental
ovenstart.
Inside of the Oven
Use a damp cloth to wipe out crumbs and spillovers. It is
importantto keep thearea between doorand cavity front
clean to assure a tight seal. Remove greasy spatters with
a sudsy cloth, then rinse and dry. Do not use harsh
detergentorabrasivecleaners.
Glass Tray
The glass tray can be washed by hand or in the
dishwasher.
Control Panel
Wipe with a damp cloth followed immediately by a dry
cloth.The ChildLock featureis alsouseful whencleaning
thecontrol panel. ChildLock prevents accidental
programmingwhenwipingthecontrol panel
(ifsoequipped).
Door
If steam accumulates inside or around the outside of the
oven door, wipe the panel with a soft cloth.This may
occurwhenthemicrowaveoven is operated underhigh
humidity conditions and in no way indicates a malfunction
of the unit.
Outside Oven Surface
Cleanwith damp cloth.To prevent damage to the
operatingparts inside the oven, thewater should not be
allowedto seep intothe ventilation openings.
After cleaning the oven, be sure that the rotating ring and
the glass tray are in the right position. Press the STOP/
CLEAR pad twice to reset any accidental key setting.
Grounding Instructions
Thisappliance must be grounded. Ifan electrical short
circuit occurs, grounding reduces the risk of electric
shockby providingan escapewire for the electric current.
Thecord for this appliance hasa grounding wire with a
grounding plug. Put the plug into an outlet that is properly
installedandgrounded.
WARNING
!
To avoid risk of electric shock, personal injury or death,
usegroundingplugproperly.
Ask a qualified electrician if you do not understand the
groundinginstructionsor if youwonder whether the
applianceisproperlygrounded.
Keep the electrical power cord dry and do not pinch or
crush it in any way.
Properly Polarized and
Grounded Outlet
Three-Pronged (Grounding) Plug
Forapermanently connected appliance:This appliance
mustbe connected to a grounded, metallic, permanent
wiringsystem, or anequipment grounding conductor
should be run with the circuit conductors and connected
tothe equipment groundingterminal or lead on the
appliance.

© 2006 Maytag Services 16027303 9
General Information
Microwave Oven Description

Troubleshooting Procedures
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to microwave oven and discharge the
high-voltage capacitor before servicing, unless testing requires power.
10 16027303 © 2006 Maytag Services
CAUTION
!
• Verify proper grounding before checking for trouble.
• Be careful of the high voltage circuit.
• Discharge the high voltage capacitor.
• When checking the continuity of the switches or of the high voltage transformer, disconnect one lead wire from
these parts and then check continuity with the AC plug removed. To do otherwise may result in a false reading
or damage to your meter.
• Do not touch any part of the circuit on the printed circuit board, since static electric discharge may damage the
control panel. Always touch yourself to ground while working on this panel to discharge any static charge built
up in your body.
Troubleshooting Table
Symptom Cause Correction
Microwave oven does not work, no
display, fuse is OK. 1. Open or loose wire harness. 2. Open thermal (magnetron) cutout.
3. Open low voltage transformer.
4. Defective PCB assembly.
If thermal (magnetron) cutout is
defective, check fan motor.
If low voltage transformer is
defective, check PCB assembly.
Microwave oven does not work, no
display, fuse is blown. 1. Open or loose wire harness.
2. Defective primary latch switch.*
3. Defective monitor switch.*
4. Shorted high voltage capacitor.*
5. Shorted high voltage transformer.*
Check adjustment of primary,
interlock monitor and door
sensing switches.
Check power relay.
*NOTES: If any primary, interlock monitor or door sensing switches are defective, replace all at the same time.
If power relay contacts measure continuity, replace also.
If high voltage transformer is replaced, check diode and magnetron also.
Microwave oven does not accept
key input (touch pad input). 1. Key input is not in-sequence. 2. Open or loose connection between
key pad and PCB assembly.
3. Shorted or open key pad.
4. Defective PCB assembly.
Refer to operation instructions.
Check connection between key
pad and PCB assembly.
Replace key pad membrane.
Replace PCB assembly.
Microwave oven timer operational,
but microwave does not oscillate
(rotate).
1. Latch switches not aligned.
2. High voltage circuit loose connection
(magnetron filament circuit).
3. Defective high voltage components.
4. Power relay wiring open or loose.
5. Primary latch switch defective.
6. Power relay or PCB assembly
defective.
Adjust latch switches.
Check connections to high
voltage circuits (magnetron).
Check transformer, capacitor,
diode and magnetron fuse.
Check power relay wiring.
Replace power relay or PCB
assembly.
Microwave oven lamp and fan
motor activate. 1. Primary latch switch misadjusted or loose.
2. Primary latch switch defective.
Adjust door and latch switches.
Replace all latch/door switches.
Microwave oven is programmable,
but timer does not work. 1. Secondary interlock open or loose wiring.
2. Primary interlock switch misadjusted.
3. Secondary interlock switch defective.
Adjust door and latch switches.
Adjust door and latch switches.
Replace all latch/door switches.
Microwave oven output is low;
microwave oven takes a long time
to cook food.
1. Decrease in power source voltage.
2. High voltage circuit loose connection
(magnetron filament circuit).
3. Magnetron aging.
Home voltage fluctuations.
Check/replace magnetron.
Check/replace magnetron.

Troubleshooting Procedures
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to microwave oven and discharge the
high-voltage capacitor before servicing, unless testing requires power.
© 2006 Maytag Services 16027303 11
Symptom Cause Correction
Microwave oven fan motor
engages when power cord is
plugged in.
1. Door sensing switch loose connector.
2. Door sensing switch loose wires. Check connector and wiring of door sensing switch.
Microwave oven does not operate,
oven not in standby mode when
power cord is plugged in.
1. Check input voltage.
2. Defective PCB assembly. Make sure house outlet works. Replace PCB assembly.
Microwave oven emitting a loud,
buzzing noise. 1. Fan and/or fan motor loose. 2. High voltage transformer loose.
3. High voltage diode shorted.
Check fan and/or fan motor.
Check high voltage transformer.
Replace high voltage diode.
Microwave oven turntable motor
does not rotate. 1. Turntable motor wiring loose/open. 2. Defective turntable motor. Check wiring of turntable motor. Replace turntable motor.
Microwave oven stops during
cooking operation. 1. Open or loose wiring of primary interlock switch.
2. Open thermal (magnetron) cutout.
Adjust door and latch switches.
Allow microwave oven to cool to
determine if magnetron TCO is
defective. Replace if necessary.
Microwave oven emits sparks
when cooking. 1. Metallic ware or cooking dishes touching on the oven wall.
2. Ceramic ware trimmed with gold or
silver powder.
Do not use cookware with
metallic trimming or gold/silver
powder.
Microwave oven cooks unevenly. 1. Uneven intensity of microwave due
to microwave characteristics.
2. Microwave cavity dirty.
Cover food with plastic wrap or
cover food with a lid.
Clean microwave cavity.
Microwave oven turntable emits
noise when operating. 1. Turntable motor loose. 2. Turntable motor defective. Tighten screws securing motor. Replace turntable motor.
Checkout Procedure: Fuse
PROBLEM CAUSE
Fuse blows immediately after door is closed.
Fuse blows immediately after door is opened. Improper operation of the primary interlock and secondary
interlock switches and/or interlock monitor switch.
Fuse blows when door is closed and START
key is touched. Malfunction of high voltage transformer; high voltage capacitor including diode, magnetron, blower motor or circuit board.
NOTES: Replace blown fuse with 20 Amp fuse.
If the fuse is blown due to an improper switch operation, replace all interlock switches, PCB Ass’y and the
fuse simultaneously, and ensure they are connected properly.
Check for microwave energy leakage after replacing interlock and monitor switches.

Troubleshooting Procedures
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to microwave oven and discharge the
high-voltage capacitor before servicing, unless testing requires power.
12 16027303 © 2006 Maytag Services
Error Code Table
Error Code Explanation Possible Cause
SE Keypad shorted 10 seconds or longer. Sticky keypad(s).
E03 Convection motor or convection heater open. Motor and/or heater unplugged, wiring or PCB
assembly.
E11 Gas sensor open error. Sensor unplugged, wiring or PCB assembly.
E12 Gas sensor short error. Sensor unplugged, wiring or PCB assembly.
E13 T1 Max time error (oven did not preheat properly). PCB assembly.
E21 Thermal sensor open error. Sensor unplugged, wiring or PCB assembly.
E22 Thermal sensor short error. Sensor unplugged, wiring or PCB assembly.
E23 PREHEAT did not reach preset temperature within 30
minutes. Preheat cycle canceled. Convection heater or grill heater unplugged, wiring or PCB assembly.
E24 Microwave temperature reaches 500° F (260° C) in
overheat condition. Microwave cancels all functions. Thermal or gas sensor, wiring or PCB assembly.
E61 Sensor open error. Sensor unplugged, wiring or PCB assembly.
E62 Sensor shorted error. Sensor shorted or PCB assembly.
E63 T1 Max Time error. PCB assembly.

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
© 2006 Maytag Services 16027303 13
Component Testing Procedures
Illustration Component Test Procedure Results
JMV9169BA*,
JMV8166BA*
High voltage
transformer
Primary
Secondary
Filament
0 V
120 V
Discharge Capacitor
Disconnect connector and measure
continuity with meter on R x 1 scale:
Secondary........................................
.
Filament ...........................................
.
Primary (High & Low) .......................
.
(Measure at room temp., or 70° F/ 22° C.)
Measure continuity with meter on "High"
scale: Primary winding to ground................
.
Filament winding to ground ..............
.
Approx. 118-123 .
Continuity.
Less than 1 .
Infinite .
Infinite .
AMV6167BD*
High voltage
transformer
Primary
Secondary
Filament
0 V
120 V
Discharge Capacitor
Disconnect connector and measure
continuity with meter on R x 1 scale:
Secondary........................................
.
Filament ...........................................
.
Primary (High & Low) .......................
.
(Measure at room temp., or 70° F/ 22° C.)
Measure continuity with meter on "High"
scale: Primary winding to ground................
.
Filament winding to ground ..............
.
Approx. 65-69 .
Continuity.
Less than 1 .
Infinite .
Infinite .
MMV5207B**,
JMV8208B**,
MMV4205BA*
High voltage
transformer
Primary
Secondary
Filament
0 V
120 V
Discharge Capacitor
Disconnect connector and measure
continuity with meter on R x 1 scale:
Secondary........................................
.
Filament ...........................................
.
Primary (High & Low) .......................
.
(Measure at room temp., or 70° F/ 22° C.)
Measure continuity with meter on "High"
scale: Primary winding to ground................
.
Filament winding to ground ..............
.
Approx. 88-92 .
Continuity.
Less than 1 .
Infinite .
Infinite .
AMV5164BC*
High voltage
transformer
Primary
Secondary
Filament
0 V
120 V
Discharge Capacitor
Disconnect connector and measure
continuity with meter on R x 1 scale:
Secondary........................................
.
Filament ...........................................
.
Primary (High & Low) .......................
.
(Measure at room temp., or 70° F/ 22° C.)
Measure continuity with meter on "High"
scale: Primary winding to ground................
.
Filament winding to ground ..............
.
Approx. 67-72 .
Continuity.
Less than 1 .
Infinite .
Infinite .
AMV5164BA*,
MMV5165BA*,
AMV1154BA*,
MMV1153BA*,
UMV1152CA*
High voltage
transformer
Primary
Secondary
Filament
0 V
120 V
Discharge Capacitor
Disconnect connector and measure
continuity with meter on R x 1 scale:
Secondary........................................
.
Filament ...........................................
.
Primary.............................................
.
(Measure at room temp, or 70° F/ 22° C.)
Measure continuity with meter on "High"
scale: Primary winding to ground................
.
Filament winding to ground ..............
.
Approx. 100-104 .
Continuity.
Less than 1 .
Infinite .
Infinite .
Lamp receptacle Test continuity of receptacle terminals ..........
.
Continuity when known good bulb is
inserted.

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
14 16027303
© 2006 Maytag Services
Illustration Component Test Procedure Results
Low voltage
transformer
Remove low voltage transformer from control
circuit board and check:
(Measure at room temp., or 68° F/20° C.)
Between pins 1 and 2 (Input)....................
Between pins 4 and 5 (19v output) ...........
Between pins 6 and 7 (7.0v output)..........
Between pins 7 and 8 (2.7v output)..........
Approx. 128 ..
Approx. 2 ..
Approx. 2 ..
Approx. 5 ..
Low voltage
transformer
AMV5164BC*,
MMV5165BA*
Remove low voltage transformer from control
circuit board and check:
(Measure at room temp., or 68° F/20° C.)
Between pins 1 and 2 (Input)....................
Between pins 4 and 5 (19v output) ...........
Between pins 7 and 8 (2.7v output)..........
Approx. 243 ..
Approx. 11 ..
Approx. 2 ..
Low voltage
transformer
AMV5164BA*,
AMV1154BA*,
MMV1153BA*,
UMV1152CA*
Remove low voltage transformer from control
circuit board and check:
(Measure at room temp., or 68° F/20° C.)
Between pins 1 and 2 (Input)....................
Between pins 4 and 5 (19v output) ...........
Between pins 7 and 8 (2.7v output)..........
Approx. 379 ..
Approx. 11 ..
Approx. 2 ..
Magnetron Discharge Capacitor
Remove wires from magnetron and connect
ohmmeter to terminals. Also check between
each terminal and ground.
Between Terminals: Less than 1 .
Each Terminal to Ground: Infinite ..
NOTE: This test is not conclusive. If
microwave oven does not heat and all
other components test good, replace the
magnetron and retest.
High Voltage
Capacitor Discharge Capacitor Remove wires from capacitor terminals and
connect ohmmeter, set on highest resistance
scale to terminals.
Check resistance between each terminal and
capacitor case. ..................................................
Between Terminals: Meter should
momentarily indicate continuity, then 9
M(deflection). A steady 9 Mindicates
an open capacitor. Steady continuity
indicates a shorted capacitor. In either
case, replace capacitor.
Infinite .
High Voltage Diode Discharge Capacitor
Remove diode lead from capacitor and
connect ohmmeter.
Reverse leads for second test.
Infinite resistance should be measured in
one direction and several hundred Kin
the opposite direction.
NOTE: Ohmmeter must contain a battery
of 6 volts minimum.
Power Control Relay
Disconnect the leads. Place water in the
microwave oven and select power levels 1
through 10. Press the START pad. Check
continuity between the terminals of the relays ...
Power Level Cycle On
(Continuity) Cycle Off (Open)
1 4 sec 26 sec
2 7 sec 23 sec
3 10 sec 20 sec
4 13 sec 17 sec
5 16 sec 14 sec
6 19 sec 11 sec
7 22 sec 8 sec
8 25 sec 5 sec
9 28 sec 2 sec
10 30 sec 0 sec
Grill heater element
JMV9169BA*,
JMV8166BA*,
AMV6167BD*
Remove all wires from heater.
Measure resistance across terminals ................ Approx. 15-25 (70° F, 20° C).

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
© 2006 Maytag Services 16027303 15
Illustration Component Test Procedure Results
Convection heater element
JMV9169BA*,
JMV8166BA*,
AMV6167BD*
Remove all wires from heater.
Measure resistance across terminals .......... Approx. 15-25 (70° F, 20° C).
Convection motor
JMV9169BA*,
JMV8166BA*,
AMV6167BD*
Remove all wires from motor.
Measure resistance across coil.................... Approx. 14.5 - 17 .
Primary interlock switch test
(Bottom switch)
1
2
Measure resistance between
terminals 1 and 2:
Door Open...................................................
Door Closed ................................................
Open (Infinite).
Continuity.
Secondary interlock switch
test
(Top switch)
Measure resistance between
terminals 1 and 2:
Door Open...................................................
Door Closed ................................................
Open (Infinite).
Continuity.
Interlock monitor switch test
(Middle switch)
1
2
Measure resistance between
terminals 1 and 2:
Door Open...................................................
Door Closed ................................................
Continuity.
Open (Infinite).
A
B
C
Fan motor
MMV4205BA*, AMV5206BA*,
MMV5207BA, JMV8208B**,
JMV9169BA*, JMV8166BA*,
AMV6167BD*
Remove all wires from motor.
Measure resistance .....................................
Approx. 28 - 35 .
Infinite or several, motor is defective.
Stirrer Motor
UMV1152CA*, AMV1154BA*,
AMV5164BA*, MMV1153BA*,
MMV5165BA*
Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 3 to 4 .
Stirrer Motor Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 108 to 132 k.
Turntable Motor
UMV1152CA*, AMV1154BA*,
AMV5164BA*, MMV1153BA*,
MMV5165BA*
Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 3 to 4 .
Turntable Motor Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 108 to 132 k.
Damper Motor
JMV9169BA*, JMV8166BA*,
AMV6167BD*
Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 3 to 4 k.
Louvre Motor
JMV8208B**, JMV9169BA*,
JMV8166BA*, AMV6167BD*
Measure voltage across terminals ...............
Measure resistance across terminals ..........
Approx. 120 VAC.
Approx. 3100 to 3900 k.

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
16 16027303
© 2006 Maytag Services
Illustration Component Test Procedure Results
Ventilation Motor
JMV8166BA*, AMV6167BD* Discharge Capacitor Remove two wires to run capacitor and
measure resistance across the wires ...........
Approx. 75 . (Tests all 3 windings.)
Ventilation Motor
JMV9169BA* Discharge Capacitor Remove two wires to run capacitor and
measure resistance across the wires ...........
Approx. 25 . (Tests all 3 windings.)
Vent Blower Motor (run)
Capacitor
Discharge Capacitor
Remove one wire from capacitor terminals
and connect ohmmeter. Set on highest
resistance scale.
Between Terminals: Meter should
momentarily indicate several ohms,
then return to infinity (deflection). If
no deflection occurs, or if continuous
deflection occurs, replace capacitor.
Terminal to Case: Infinite resistance.
Cavity (Flame Sensor)
Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals..........
Non–resetable.
Open:..... 212° F (100° C).
Cavity (Flame Sensor)
Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals...........
Resetable.
Open:..... 302° F (150° C).
Closed: .. 140° F (60° C).
Cavity (Flame Sensor)
Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals..........
Non–resetable.
Open:..... 248° F (120° C).
Magnetron Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals...........
Resetable.
Open:..... 302° F (150° C).
Closed: .. 140° F (60° C).
Hood Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals...........
NOTE: This TCO only works in an
overheat condition. Otherwise, it will
measure "open" when testing.
Resetable.
Open:..... 158° F (70° C). Vent fan
engaged.
Closed: .. 104° F (40° C). Vent fan
disengaged.
Bottom Thermal Cut-Out
(Thermostat)
Disconnect all wires from TCO.
Measure resistance across terminals...........
Non–resetable.
Open:..... 248° F (120° C).
Sensor Remove the red and black wires, connect
meter to red and black wires and measure
continuity......................................................
NOTE: Do not connect the meter to the
white and orange wires, as this may
damage the sensor.
30 .
Control Panel Sensor Test
Illustration Component Test Procedure Results
Sensor Test Apply power to microwave for 5 minutes.
Press AUTO DEFROST and REHEAT
pads simultaneously and monitor display
for V-Out value............................................
.
NOTE: Press AUTO DEFROST and
POPCORN pads for model AMV6167BD*.
Less than 6 .......... Sensor failure.
15 to 185.............. Normal.
More than 213...... Sensor failure.
1
2
3
Sensor Test
AMV5164B**,
MMV5165BA*
Apply power to microwave for 5 minutes.
Press AUTO DEFROST and REHEAT
pads simultaneously and monitor display
for V-Out value............................................
.
Less than 10 .......... Sensor failure.
10 to 150................ Normal.
More than 150........ Sensor failure.

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
© 2006 Maytag Services 16027303 17
Power Test (Traditional Test Method)
Test equipment required is Amana power test kit R0157397 (Fahrenheit), or
Menumaster power test kit M95D5 (Celsius).
1. Fill the plastic container to the 1000 ml. line with cool tap water.
2. Using the thermometer; stir the water, measure, and record the water temperature.
Initial water temperature should be approximately 60° F (16° C).
3. Place container on the center of the oven shelf and heat the water for
33 seconds for ovens with more than 1550 watts or 63 seconds for ovens with less than 1550 watts.
NOTE: Use a watch second hand, not the oven timer.
4. Stir the water, measure and record the temperature of the water after heating time is complete.
5. Subtract the starting water temperature (Step 2), from the ending water temperature (Step 4) to obtain the
temperature rise (T).
6. See the Traditional Power Test Temperature Chart below.
NOTES: •The IEC-705 test method requires precision measurements and equipment. It is not practical to
perform the IEC test in the field. To convert the traditional power test results to the approximate IEC-
705 rating, take the traditional power test results and add 100 watts per magnetron for the unit being
tested.
Example: 850 watts output using the traditional power test
+100 watts (1 magnetron X 100 watts)
950 Approximate IEC-705 results
•Always perform power test three times for accuracy, changing the water after each test is performed.
•Variation or errors in the test procedure will cause a variance in the temperature rise. Additional power
tests should be made if temperature rise appears marginal.
•Low line voltage will cause lower temperature rise.
Traditional Power Test Temperature Chart
SIXTY-THREE (63) SECONDS run time chart for units less than 1550 watts cooking power
Fahrenheit Celsius
T Cooking T Cooking T Cooking T Cooking
(° F) Power Output (° F) Power Output (° C) Power Output (° C) Power Output
16 620 23 891 7 490 15 1050
17 659 24 930 8 560 16 1120
18 697 25 969 9 630 17 1190
19 736 26 1007 10 700 18 1260
20 775 27 1046 11 770 19 1330
21 814 28 1085 12 840 20 1400
22 852 29 1124 13 910 21 1470
14 980 22 1540

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
18 16027303
© 2006 Maytag Services
Component Test Procedure Results
Touch Pad/Control
Panel
UMV1152CA*
Removal of Touch
Pad/Control Panel is
required to perform test.
Check for continuity.
When touched: Less than
400 .
When not touched: More
than 1 mega .
Pad
1
2
3
4
5
6
7
8
9
0
Enter/Start
Add 30 Seconds
Popcorn
Baked Potato
Vent Hi/Lo/Off
Reheat
Auto Defrost
Power Level
Light Hi/Lo/Off
Stop Clear
Clock
Kitchen Timer
Sound On/Off
Vegetables
Cook
Pizza Slice
Trace
2 & 12
3 & 12
4 & 12
5 & 12
6 & 12
1 & 13
2 & 13
3 & 13
4 & 13
1 & 12
1 & 9
2 & 9
3 & 9
4 & 9
6 & 9
2 & 10
3 & 10
4 & 10
6 & 10
1 & 11
2 & 11
3 & 11
4 & 11
6 & 11
5 & 13
6 & 13
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Touch Pad/Control
Panel
MMV1153BA*
Removal of Touch
Pad/Control Panel is
required to perform test.
Check for continuity.
When touched: Less than
400 .
When not touched: More
than 1 mega .
Pad
1
2
3
4
5
6
7
8
9
0
Enter/Start
Add 30 Seconds
Popcorn
Baked Potato
Vent Hi/Lo/Off
Reheat
Auto Defrost
Power Level
Light Hi/Lo/Off
Stop Clear
Clock
Kitchen Timer
Sound On/Off
Vegetables
Cook
Pizza Slice
Trace
2 & 12
3 & 12
4 & 12
5 & 12
6 & 12
1 & 13
2 & 13
3 & 13
4 & 13
1 & 12
1 & 9
2 & 9
3 & 9
4 & 9
6 & 9
2 & 10
3 & 10
4 & 10
6 & 10
1 & 11
2 & 11
3 & 11
4 & 11
6 & 11
5 & 13
6 & 13
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
© 2006 Maytag Services 16027303 19
Component Test Procedure Results
Touch Pad/Control
Panel
AMV1154BA*
Removal of Touch
Pad/Control Panel is
required to perform test.
Check for continuity.
When touched: Less than
400 .
When not touched: More
than 1 mega .
Pad
1
2
3
4
5
6
7
8
9
0
Enter/Start
Add 30 Seconds
Popcorn
Baked Potato
Vent Hi/Lo/Off
Reheat
Auto Defrost
Power Level
Light Hi/Lo/Off
Stop Clear
Clock
Kitchen Timer
Sound On/Off
Vegetables
Cook
Pizza Slice
Trace
2 & 12
3 & 12
4 & 12
5 & 12
6 & 12
1 & 13
2 & 13
3 & 13
4 & 13
1 & 12
1 & 9
2 & 9
3 & 9
4 & 9
6 & 9
2 & 10
3 & 10
4 & 10
6 & 10
1 & 11
2 & 11
3 & 11
4 & 11
6 & 11
5 & 13
6 & 13
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Touch Pad/Control
Panel
AMV5164BA*
Removal of Touch
Pad/Control Panel is
required to perform test.
Check for continuity.
When touched: Less than
400 .
When not touched: More
than 1 mega .
Pad
1
2
3
4
5
6
7
8
9
0
Vegetables
Cook
Pizza Slice
Option
Baked Potato
Popcorn
Light Hi/Lo/Off
1 Pound Defrost
Add 30 Seconds
Reheat
Light Timer
Control Setup
Turntable On/Off
Kitchen Timer
Custom Program
Auto Defrost
Enter/Start
Clock
Power Level
Stop/Clear
Vent Hi/Lo/Off
Trace
8 & 16
7 & 16
6 & 16
5 & 16
4 & 16
3 & 16
9 & 15
8 & 15
7 & 15
9 & 16
8 & 10
9 & 10
3 & 11
2 & 10
6 & 12
7 & 12
8 & 12
9 & 12
4 & 13
5 & 13
6 & 13
7 & 13
8 & 13
9 & 13
3 & 14
4 & 14
5 & 14
9 & 14
3 & 15
4 & 15
6 & 15
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity

Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to microwave oven and discharge the
high voltage capacitor before servicing, unless testing requires power.
20 16027303
© 2006 Maytag Services
Component Test Procedure Results
Touch Pad/Control
Panel
MMV5165BA*
Removal of Touch
Pad/Control Panel is
required to perform test.
Check for continuity.
When touched: Less than
400 .
When not touched: More
than 1 mega .
Pad
1
2
3
4
5
6
7
8
9
0
5 Speed
On/Off
Vegetables
Cook
Option
Pizza Slice
Baked Potato
Popcorn
Light Hi/Lo/Off
1 Pound Defrost
Delay Off
Add 30 Seconds
Reheat
Light Timer
Control Setup
Kitchen Timer
Custom Program
Auto Defrost
Enter/Start
Clock
Power Level
Stop Clear
Trace
8 & 16
7 & 16
6 & 16
5 & 16
4 & 16
3 & 16
9 & 15
8 & 15
7 & 15
9 & 16
3 & 10
4 & 10
8 & 10
9 & 10
2 & 11
3 & 11
6 & 12
7 & 12
8 & 12
9 & 12
3 & 13
4 & 13
5 & 13
6 & 13
7 & 13
9 & 13
3 & 14
4 & 14
5 & 14
9 & 14
3 & 15
4 & 15
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
