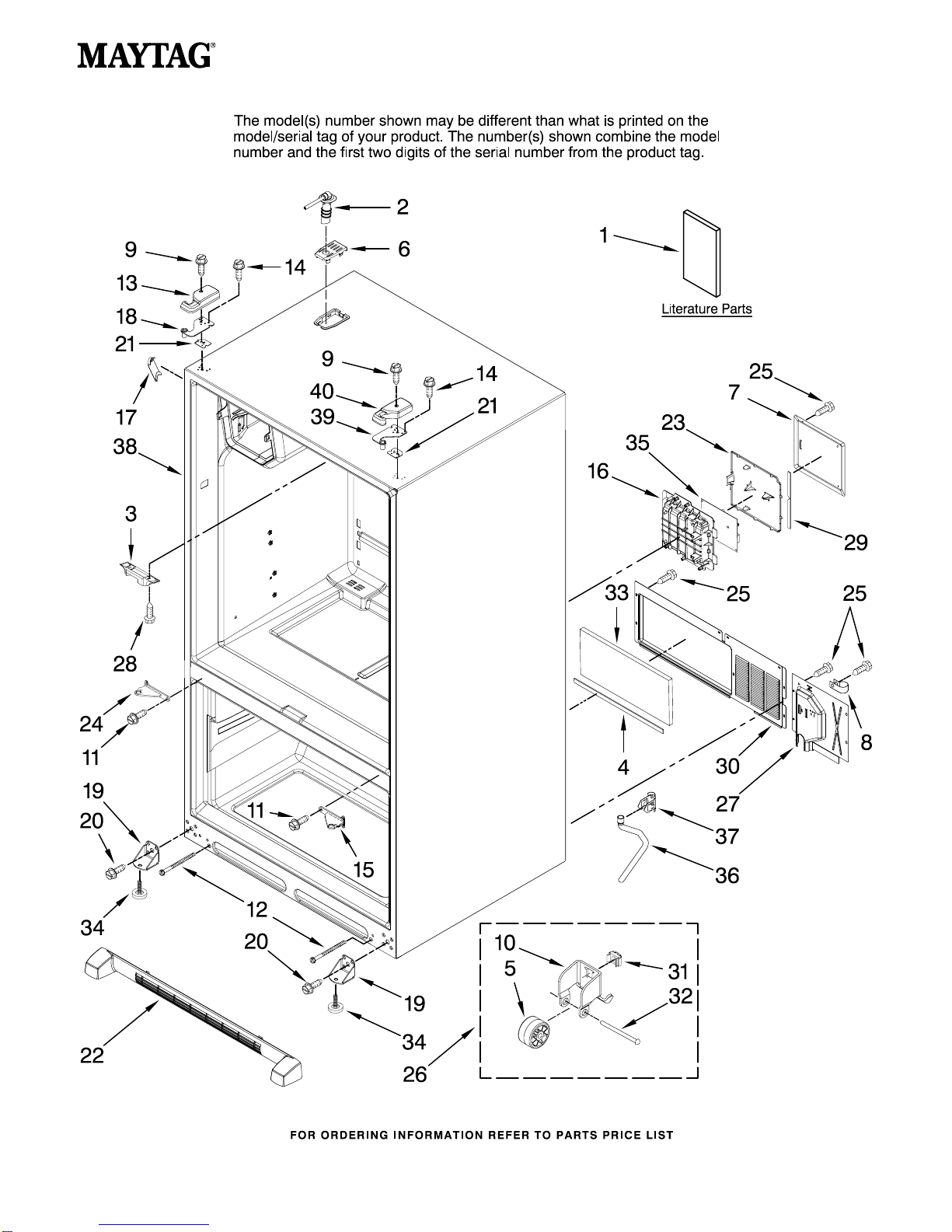

CABINET PARTS
1
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
10−08 Litho In U.S.A. (mat) (psw) Part No. W10239572 Rev.A
REFRIGERATOR

CABINET PARTS
2
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
12827970 Tech Sheet
W10175444 Use & Care Guide
W10202393 Tag, Energy
2
W10165840 Tube W/Waterline,
Fill−IM
3 67003405 Block, Pivot
4 B5759649 Gasket, MC Back
5 67005127 Roller
6 Cover, Fill Tube
67006320 Black
67006321 White
7 67006427 Cover, Control Box
8 M0108105 Clamp, Tube
9 67006521 Screw, Hinge Cover
10 12456801 Bracket, Roller
11 67006380 Screw, Center
Hinge
12 67006611 Bolt, Roller Adj.
13 Cover, Top Hinge
(Left)
67005951 Black
67005952 Bisque
67005953 White
14 67006303 Screw, Top Hinge
15 Hinge, Center (RT)
67006379 White
67006443 Black
16 67006390 Box, HV Control
17 Cover, Corner (2)
67003484 White
67003485 Black
67003486 Bisque
18
12963204ED Hinge, Top Left
19
W10208641 Bracket, Foot
Cabinet (2)
20 67006564 Screw (8)
21 Shim, Top Hinge
67006308 Left
67006309 Right
22 Grille, Toe
67006954 Black
67006791 Bisque
67007004 White
23 67006428 Lid, HV Control
24 Hinge, Center (LT)
67006277 White
67006442 Black
25 67006425 Screw, Cover
26 12580304 Roller Assy. (2)
27 12701909 Cover, Water Valve
28 67006626 Screw, Block
29 67006429 Gasket, HV Control
30
12575101WD Back, Mach Comp
31 M0286708 Nut, Speed
32 M1205302 Rivet
33 67003796 Fiber, Acoustic
34 67003868 Brake, Foot
35
W10191108 Board, HV Control
36
W10164397 Tube, Drain
37
W10157973 Clip, Drain Tube
38 Cabinet (Not a
Servicable Part)
39
12963205ED Hinge, Top Right
40 Cover, Top Hinge
(Right)
67005956 Black
67005957 Bisque
67005958 White

REFRIGERATOR LINER PARTS
3
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

REFRIGERATOR LINER PARTS
4
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67006328 Module, Light
3 67006326 Foil, Light
4 67006327 Cover, Light
5 67006316 Grille, Air
6 12466103 Switch, Light (2)
7 67006318 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light
10
Y12570701 Socket, Light
11 67006330 Cover, Water Tank
(Upper)
12 67006331 Lid, Water Filter
13 67006329 Cover, Water Tank
(Lower)
14
UKF8001AXX Filter, Water
15 67006325 Bracket, Filter
Base
16 12002355 Thermistor
17 67006324 Bracket, Water
Tank & Valve
18 12956202 Water Tank &
Head Assembly
19 12664501 Plug, Bypass
20 67006322 Valve, Water Inlet
21
W10165861 Cover, Ice Box
Harness
22 M0238642 Screw
23 67006319 Cover, Chiller
Vent
24
W10165864 Waterline, Cabinet
(W/Nut)
25
W10118193 Enclosure, Water
Valve Connector
26
W10118194 Lid, Enclosure

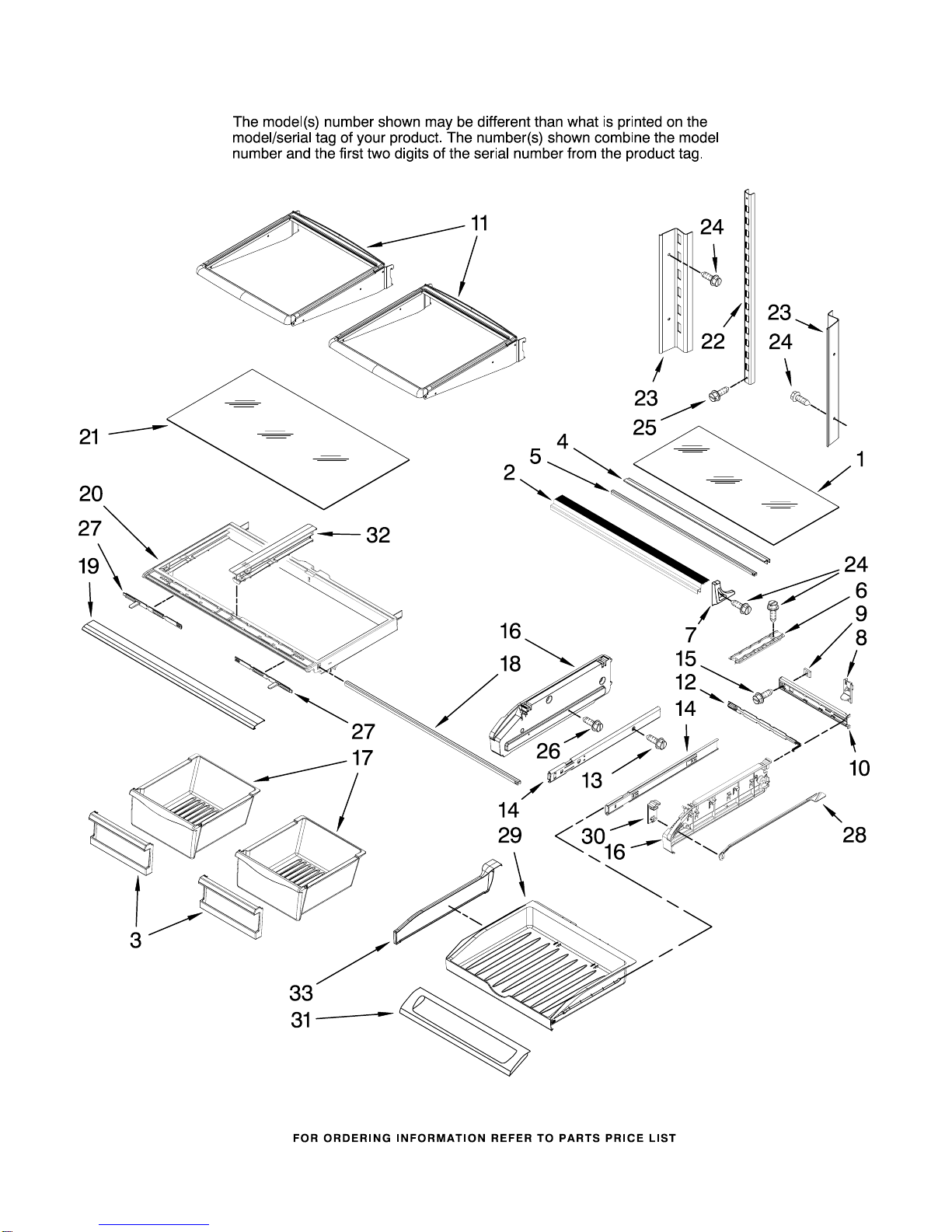

SHELF PARTS
5
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

SHELF PARTS
6
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION
1 W10165870 Glass, Pantry
2
W10165872 Extr, Glass
Support
3 67005920 Front, Crisper Pan
4
W10166785 Extr, Glass
Support (1)
5
12227301WD Brace, Pantry (2)
6 67001719 Track, Pantry
7 Support, Pantry
67001721 Left
67001722 Right
8 Hook, Ladder
W10166660 Left
W10166668 Right
9
W10165873 Gasket, Pantry
10
W10165876 Housing, Control
11
W10165880 Shelf, Glide (3)
12
W10165882 Slide, Temperature
13 67006287 Screw
14 67007026 Glide, Drawer (2)
15 67006400 Screw
16 Endcap, Pantry
W10165883 Left
W10166677 Right
17 67002633 Pan, Crisper
18 67001059 Brace, Crisper
Cover
19 67004369 Trim, Crisper
20 67001056 Frame, Crisper
21 67006878 Glass, Crisper
Cover
22 67006358 Ladder, Center
23 Ladder, Side
W10165968 Left
W10165909 Right
24 67006400 Screw
25 67006360 Screw (2)
26 67006415 Screw
27 67005864 Slide, Humidity
Control
28
W10165910 Rod, Temperature
Control
29
W10165911 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31
W10165964 Door,
Pantry Drawer
32 67001057 Rail, Center
Crisper Frame
33
W10165967 Divider,
Pantry Drawer

MOTOR AND ICE CONTAINER PARTS
7
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

MOTOR AND ICE CONTAINER PARTS
8
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION
1 D7824706Q Icemaker (Includes
Fill Tube Cup,
Wire Harness &
Sensor Arm
2
W10121269 Impinger Assembly
3 67006424 Shroud, Ice
Box Fan
4
W10162697 Motor, Fan
5 67006337 Blade, Fan
6
W10165970 Clip, Fan Motor
7 67006339 Grommet, Fan Motor
8 12958408 Divider, Ice Box
9 67006341 Gasket, Damper
10 12955405 Motor, Auger
11
W10127427 Damper, Control
12 67006344 Solenoid
13 67007110 Screw, Impinger
14 67006425 Screw (3)
15 67007111 Bracket, Solenoid
16 67006346 Washer
17 63052−1 Yoke, Ice
Dispenser
18 67006347 Yoke, Solenoid
19 67006348 Spring, Solenoid
20
W10165971 Ice Bin Assembly
(Includes Auger)

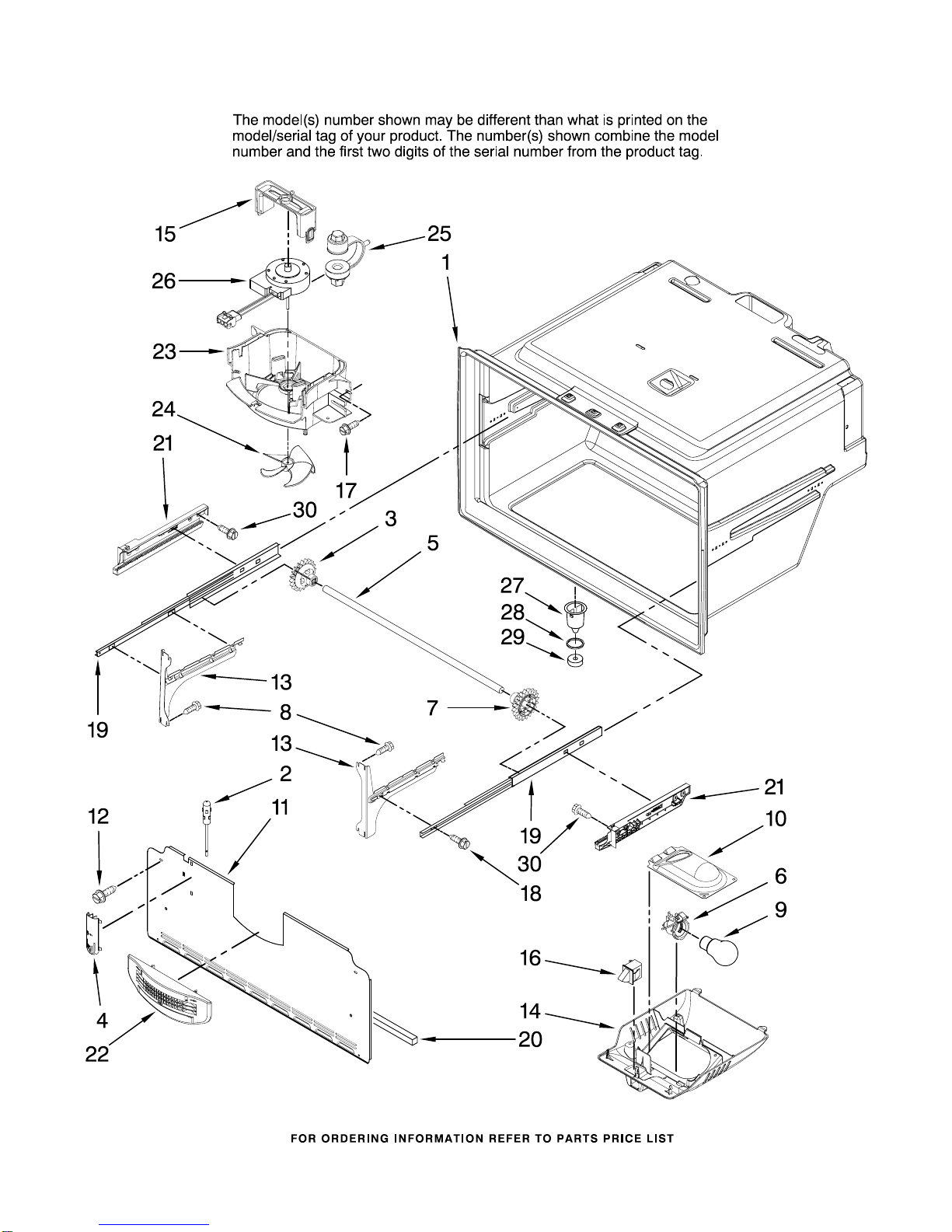

FREEZER LINER PARTS
9
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

FREEZER LINER PARTS
10
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 12002355 Thermistor Kit
3 12002497 Gear (Left)
(Incl. #7)
4 67003924 Cover, Thermistor
5 67004261 Shaft, Rack
6
Y12570701 Socket, Light
7 12002497 Gear, (Right)
(Incl. #3)
8 67006473 Screw, Bracket
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11
W10165973 Cover, Evap
12 67006425 Screw
13 Bracket, Door
Slide
W10122147 Left
W10122148 Right
14 67006423 Module, Freezer
Light
15 67006338 Clip, Fan Motor
16 67006422 Switch, Rocker
17 67006287 Screw, Fan Shroud
18 67006769 Screw, Slide
To Basket
19
W10120018 Slide, Drawer (2)
20 67003731 Gasket, Foam
21 Adapter
W10159938 Left
W10159939 Right
22 67006382 Grille, Air
23 67006424 Shroud, Evap Fan
24 67006337 Blade, Fan
(Evaporator)
25 67006339 Grommet, Fan
Motor (2)
26
W10162809 Motor, Evaporator
Fan
27 D7753903 Funnel, Drain
28 M0500703 Seal, O Ring
29 B8381501 Gasket,
Drain Tube
30 67006406 Screw, Adapter

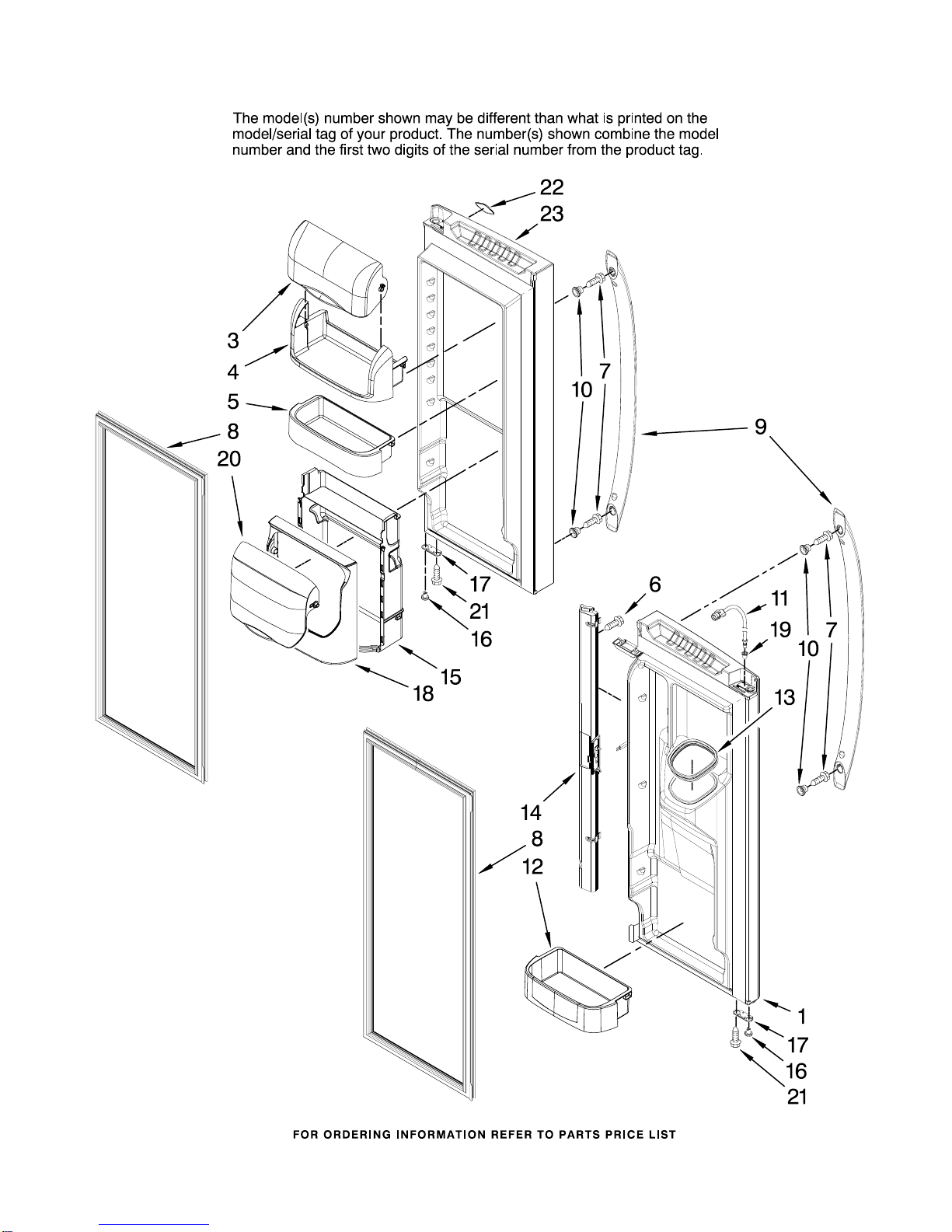

REFRIGERATOR DOOR PARTS
11
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

REFRIGERATOR DOOR PARTS
12
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION
1 Door, Left
W10160133 White
W10160124 Black
W10160127 Bisque
W10160130 Stainless
W10166239 Ultra Silver
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 67006313 Bin, Shelf
(Chiller Top)
6 67006400 Screw
7 67006901 Screw, Handle
8 Gasket, Door
(Left Door)
W10163993 White
W10163994 Black
(Right Door)
W10163896 White
W10163898 Black
9 Door Handle
67006114 White
67006115 Black
67006982 Bisque
12658798S Stainless
10 67006113 Mount, Handle
11 12962106 Waterline, Door
12
W10166007 Bin, Shelf
(Gallon)
13 67007108 Seal, Ice Chute
14 Mullion, Door
W10164404 White
W10164405 Black
W10164406 Bisque
15 67006315 Frame, Chiller
(Rear)
16 Closure, Door
67003638 White
67003639 Black
17 Stop, Door
12968202W White
67007011 Black
12968202Q Bisque
18 67006314 Frame, Chiller
(Front)
19 67005954 Clip, Bushing Wire
(Left Door)
20 67006312 Door, Chiller
21 67006473 Screw
22
W10170766 Nameplate
23 Door, Right
W10160132 White
W10160123 Black
W10160126 Bisque
W10160129 Stainless
W10166240 Ultra Silver

DISPENSER FRONT PARTS
13
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 Keyboard
W10175744 White
W10175745 Black
W10175746 Bisque
3 67006294 Board, L.V.
4 Sump, Dispenser
67006394 White
67006399 Black
67006440 Bisque
5 Chute, Ext/Yoke
(Includes Switch)
67006298 White
Y67006296 Black
67006297 Bisque
6 67006400 Screw (3)
7 67006295 Ring, Target
8 Facade, Dispenser
67006290 White
67006288 Black
67006289 Bisque
9 M0108106 Clamp, Tube

FREEZER DOOR PARTS
14
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Freezer Door
W10160134 White
W10160125 Black
W10160128 Bisque
W10160131 Stainless
W10166241 Ultra Silver
2 Handle, Door
W10123792 White
W10123794 Black
W10123793 Bisque
W10123795 Stainless
3 67006408 Screw
4 Gasket, Door
W10164046 White
W10164047 Black
5 67006901 Screw, Handle
6
W10166235 Bin, Lower
7
W10166742 Adapter, Bin
(Outer)
8 Bin, Upper
W10166236 Right
W10166237 Left
9 67006113 Mount, Handle
10
W10163002 Adapter, Bin
(Inner)
11 67006372 Bracket/Glide
Assembly
12 67006369 Glide, Upper
13 Retainer, Glide
67006368 Right
67006367 Left
14 Bracket, Door
Slide
W10122147 Left
W10122148 Right

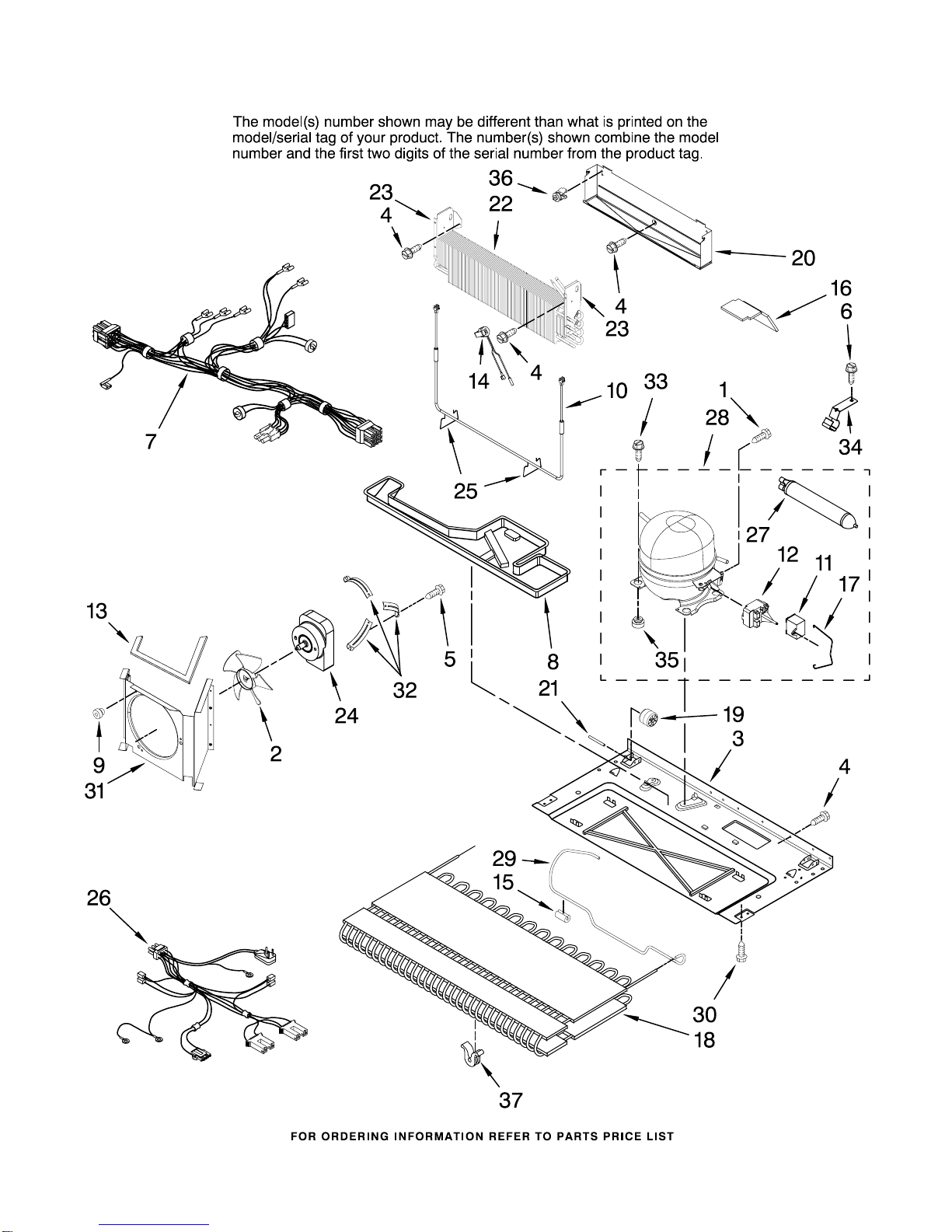

UNIT PARTS
15
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572

UNIT PARTS
16
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67006433 Screw
2
W10156818 Blade, Fan
3 12591404 Basepan
4 67006425 Screw
5 67004954 Screw (3)
6 67006737 Screw, Clip
7
W10119239 Harness, Evap
Heater
8 67004713 Pan, Drain
9 61004743 Grommet (3)
10
W10166768 Heater, Defrost
11 2264017 Capacitor
12
W10128791 Start Device
13 61003210 Seal, Condenser
Shroud
14 67006387 Thermostat,
Defrost
15 67005680 Grommet (2)
16 12820504 Pad, Acoustic
17 2255199 Strap, Bale
18
W10135027 Condenser
19 67005149 Roller (2)
20 67001080 Tray, Drip
21 67006434 Axle (2)
22
W10166256 Evaporator
23 Dam
W10162951 Right Side
W10162962 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060202 Harness, Unit
with Power Cord
27
W10143759 Drier
28
W10134623 Compressor
(Includes Items
11, 12, 17, 27,
& 35)
29
W10183709 Tube, Discharge
30 67006573 Screw
31 12575309 Shroud
32 67004953 Bracket, Fan Motor
33 67006432 Screw (3)
34 10547003 Clip, Drier
35
W10169124 Grommet (4)
36 10623002 Clip, Evaporator
37
W10117502 Grommet, Cond. (4)
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 Ozs.
(R−134A)

OPTIONAL PARTS (NOT INCLUDED)
17
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White) (Black) (Bisque) (Stainless) (Ultra Silver)
W10239572
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Customer Touch−Up Material
350942 Primer, White
(13 Oz. Spray Can)
350939 Enamel, Black
(13 Oz. Spray Can)
350930 Enamel, White
(13 Oz. Spray Can)
22002901 Enamel, Bisque
(12 OZ. Spray Can)
22002900 Enamel, Bisque
(.6 OZ. Bottle)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−up kit
(Black)
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
20000008 Cleaner,
Stnls Steel Magic
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
833938 Kit, Terminal
Connector
W10165971 Ice Container
Assembly
TORX SCREW WRENCH
1117510 Torx Key
