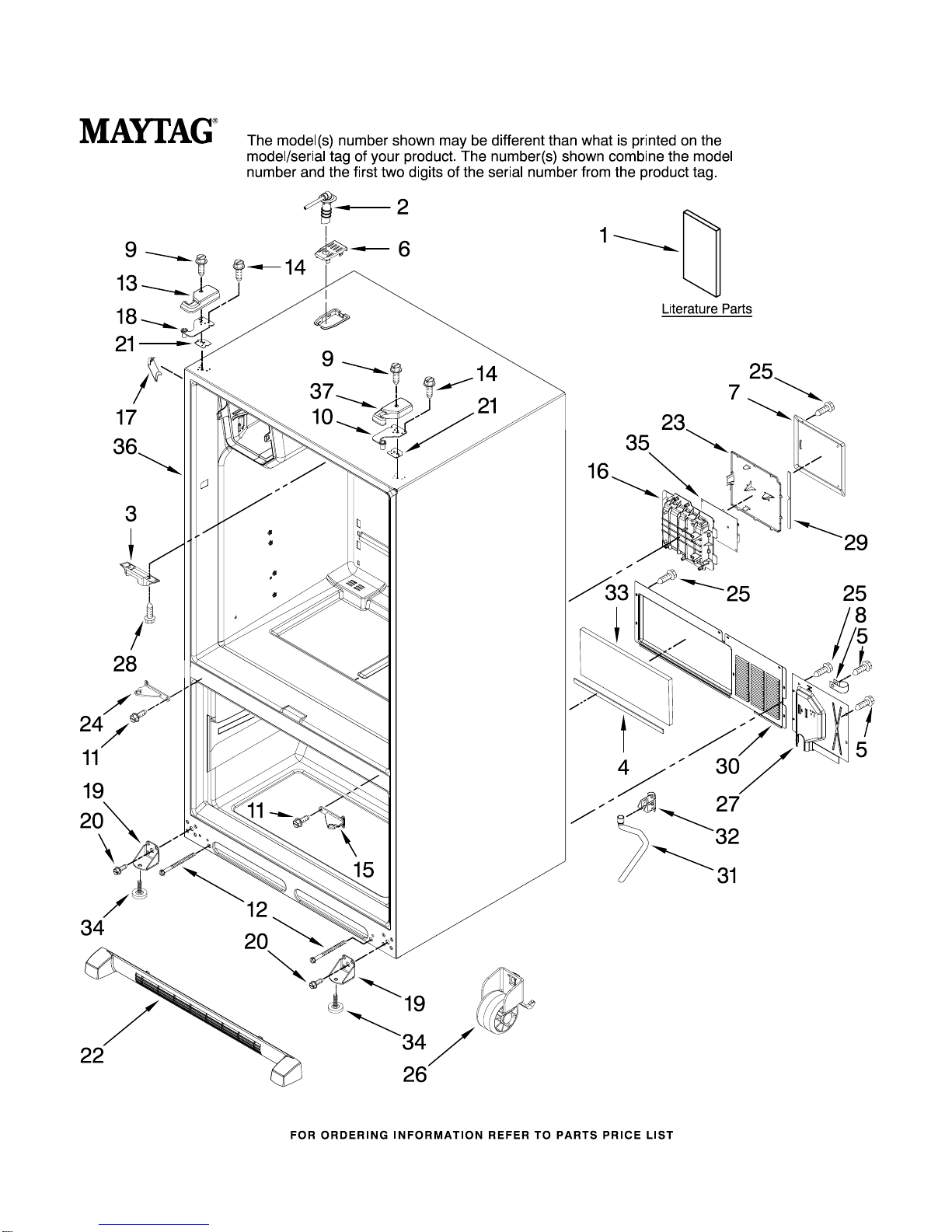

CABINET PARTS
1
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
4−08 Litho In U.S.A. (pl) (psw) Part No. W10200529 Rev.A
REFRIGERATOR

CABINET PARTS
2
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10189628 Tech Sheet
W10200530 Use & Care Guide
W10185602 Tag, Energy
16026312 Service Manual
2 67006317 Tube W/Waterline,
Fill−IM
3 67003405 Block, Pivot
4 B5759649 Gasket, MC Back
5 67006425 Screw (3)
6 Cover, Fill Tube
67006320 Black
67006321 White
W10191141 Apollo Grey
7 67006427 Cover, Control Box
8 M0108105 Clamp, Tube
9 67006521 Screw, Hinge Cover
10 67005955 Hinge, Top Right
11 67006380 Screw, Center
Hinge
12 67006611 Bolt, Roller Adj.
13 Cover, Top Hinge
(Left)
67005951 Black
67005952 Bisque
67005953 White
W10191116 Apollo Grey
14 67006303 Screw, Top Hinge
15 Hinge, Center (RT)
67006379 White
67006443 Black
W10191143 Apollo Grey
16 67006390 Box, HV Control
17 Cover, Corner (2)
67003484 White
67003485 Black
67003486 Bisque
W10191102 Apollo Grey
18 67005950 Hinge, Top Left
19 67007174 Bracket, Foot
Cabinet (2)
20 67006564 Screw (8)
21 Shim, Top Hinge
67006308 Left
67006309 Right
22 Grille, Toe
67006375 Black
67006376 Bisque
67006377 White
W10191107 Apollo Grey
23 67006428 Lid, HV Control
24 Hinge, Center (LT)
67006277 White
67006442 Black
W10191142 Apollo Grey
25 12990702 Screw, Cover
26 67006118 Roller Assy. (2)
27 67006426 Cover, Water Valve
28 67006626 Screw, Block
29 67006429 Gasket, HV Control
30
12575101ED Cover, MC Back
31
W10164397 Tube, Drain
32
W10157973 Clip, Drain Tube
33 67003796 Fiber, Acoustic
34 67003868 Brake, Foot
35
W10191108 Board, HV Control
36 Cabinet (Not a
Servicable Part)
37 Cover, Top Hinge
(Right)
67005956 Black
67005957 Bisque
67005958 White
W10191117 Apollo Grey

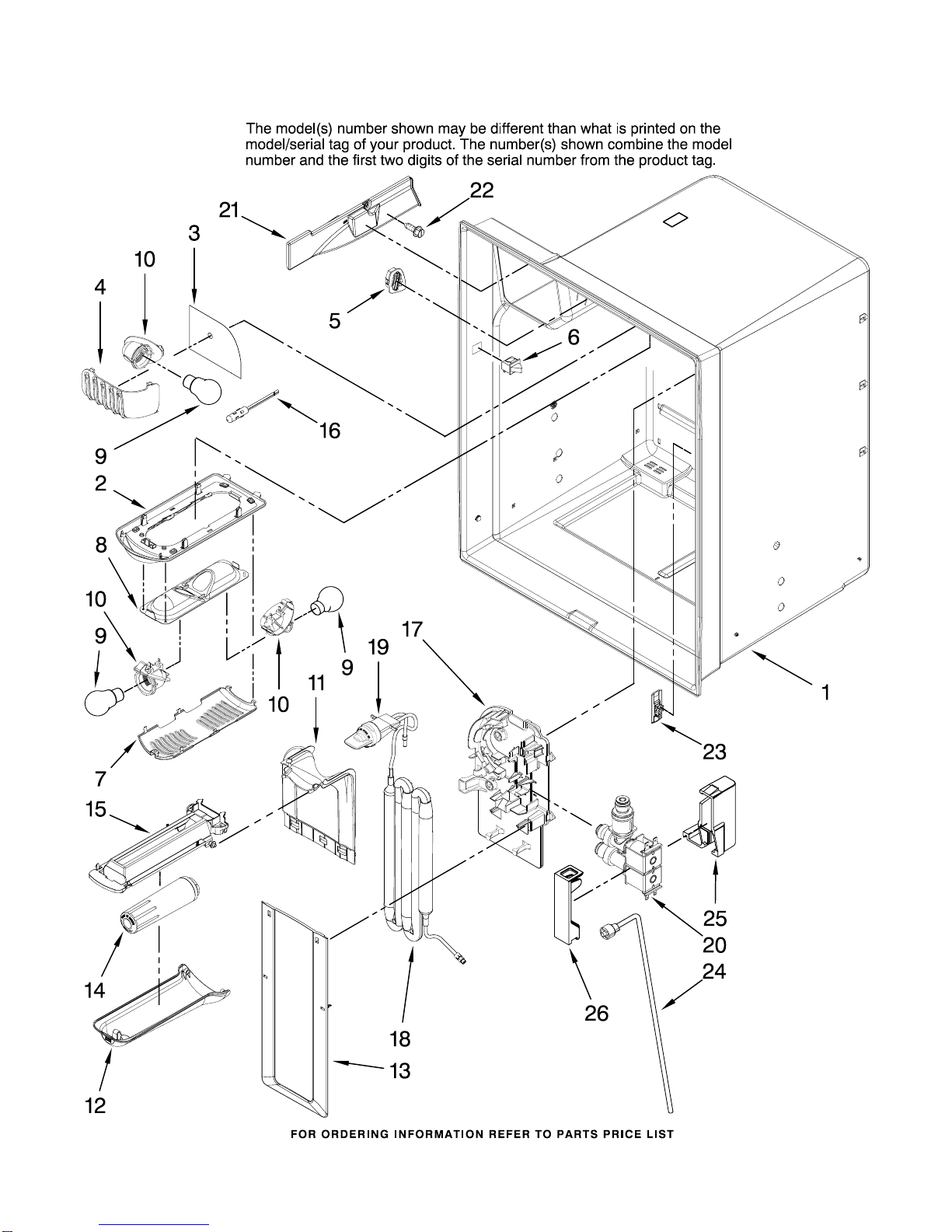

REFRIGERATOR LINER PARTS
3
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

REFRIGERATOR LINER PARTS
4
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67006328 Module, Light
3 67006326 Foil, Light
4 67006327 Cover, Light
5 67006316 Grille, Air
6 12466103 Switch, Light (2)
7 67006318 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light
10
Y12570701 Socket, Light
11 67006330 Cover, Water Tank
(Upper)
12 67006331 Lid, Water Filter
13 67006329 Cover, Water Tank
(Lower)
14
UKF8001AXX Filter, Water
15 67006325 Bracket, Filter
Base
16 12002355 Thermistor
17 67006324 Bracket, Water
Tank & Valve
18 12956202 Water Tank &
Head Assembly
19 12664501 Plug, Bypass
20 67006322 Valve, Water Inlet
21 67006350 Cover, Ice Box
Harness
22 M0238642 Screw
23 67006319 Cover, Chiller
Vent
24 12962204 Waterline, Cabinet
(W/Nut)
25
W10118193 Enclosure, Water
Valve Connector
26
W10118194 Lid, Enclosure

SHELF PARTS
5
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

SHELF PARTS
6
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67002761 Glass, Pantry
2 67005923 Front, Crisper
Pan (2)
3
W10187852 Shelf, Mini
(Stationary)
4 67006010 Extr, Glass
Support (2)
5 67002330 Brace, Pantry (2)
6 67001719 Track, Pantry
7 67006287 Screw
8
W10165909 Ladder, Side
9 67002329 Gasket, Pantry
10 67005625 Housing, Control
11 67006351 Shelf, Glide (2)
12 67003793 Slide, Temperature
13 67002759 Divider,
Pantry Drawer
14 67007026 Glide, Drawer (2)
15 67006400 Screw
16 Endcap, Pantry
67005863 Left
67005858 Right
17 67004515 Pan, Crisper (2)
18 67002748 Brace, Crisper
Cover
19 67004510 Trim, Crisper
20 67003854 Frame, Crisper
21 67006704 Glass, Crisper
Cover
22 67006358 Ladder, Center
23 67006354 Ladder, Side
24 67006400 Screw
25 67006360 Screw (2)
26 67006415 Screw
27 67005864 Slide, Humidity
Control
28 67003795 Rod, Temperature
Control
29 67003531 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31 67005903 Door,
Pantry Drawer
32 67004514 Rail, Center
Crisper Frame
33 12603701 Supports,
Crisper Frame

MOTOR AND ICE CONTAINER PARTS
7
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

MOTOR AND ICE CONTAINER PARTS
8
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION
1 67006349 Ice Bin Assembly
(Includes Auger)
2
W10121282 Inlet, Blower
3
W10121281 Scroll, Blower
4
W10162697 Motor, Fan
5
W10123444 Wheel, Blower
6
W10165970 Clip, Fan Motor
7
W10151687 Grommet, Fan Motor
8
W10187860 Divider, Ice Box
9 67006341 Gasket, Damper
10 67006342 Motor, Auger
11
W10127427 Damper, Control
12 67006344 Solenoid
13
W10118612 Liner, Divider
14 67006425 Screw (3)
15 67007111 Bracket, Solenoid
16 67006346 Washer
17 63052−1 Yoke, Ice
Dispenser
18 67006347 Yoke, Solenoid
19 67006348 Spring, Solenoid
20
W10142628 Foil, Ice Box

ICEMAKER PARTS
9
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

ICEMAKER PARTS
10
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION
1 W10122527 Mold & Heater
Assembly (Also
Order 542638
Grease)
2
W10175514 Arm, Shutoff
3 628515 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2194712 Support, Housing
7 2315522 Retainer,
Thermostat
8 627985 Thermostat
(Also Order 542369
Cement)
9 489464 Screw (3)
10
W10121440 Extension, Shutoff
Arm
11 8533917 Screw (2)
12
W10121444 Cover
13 2313326 Switch, On−Off
14
W10121269 Impinger Assy.
15
W10117860 Harness, Icemaker
16 67006425 Screw, Impinger
17 626678 Module Assembly
18 489276 Screw (3)
19 628379 Clip
20
W10121434 Insert, Fill Cup
100
W10122533 Icemaker Assembly
Following Parts Not Illustrated
10244904 Coupling

FREEZER LINER PARTS
11
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

FREEZER LINER PARTS
12
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 12002355 Thermistor Kit
3 12002497 Gear (Left)
(Incl. #7)
4 67003924 Cover, Thermistor
5 67004017 Shaft, Rack
6
Y12570701 Socket, Light
7 12002497 Gear, (Right)
(Incl. #3)
8 67006473 Screw, Bracket (6)
9 A0282812 Bulb, Light
10 67001035 Housing, Light
11 67006383 Cover, Evap
12 67006425 Screw
13 Bracket, Door
Slide
W10122147 Left
W10122148 Right
14 67006423 Module, Freezer
Light
15 67006338 Clip, Fan Motor
16 67006422 Switch, Rocker
17 67006287 Screw, Fan Shroud
18 67006769 Screw, Slide
To Basket
19
W10120018 Slide, Drawer (2)
20 67003731 Gasket, Foam
21 Adapter
W10120017 Left
W10120083 Right
22 67006382 Grille, Air
23 67006424 Shroud, Evap Fan
24 67006337 Blade, Fan
(Evaporator)
25 67006339 Grommet, Fan
Motor (2)
26
W10162809 Motor, Evaporator
Fan
27 D7753903 Funnel, Drain
28 M0500703 Seal, O Ring
29 B8381501 Gasket,
Drain Tube
30 67006406 Screw Adapter

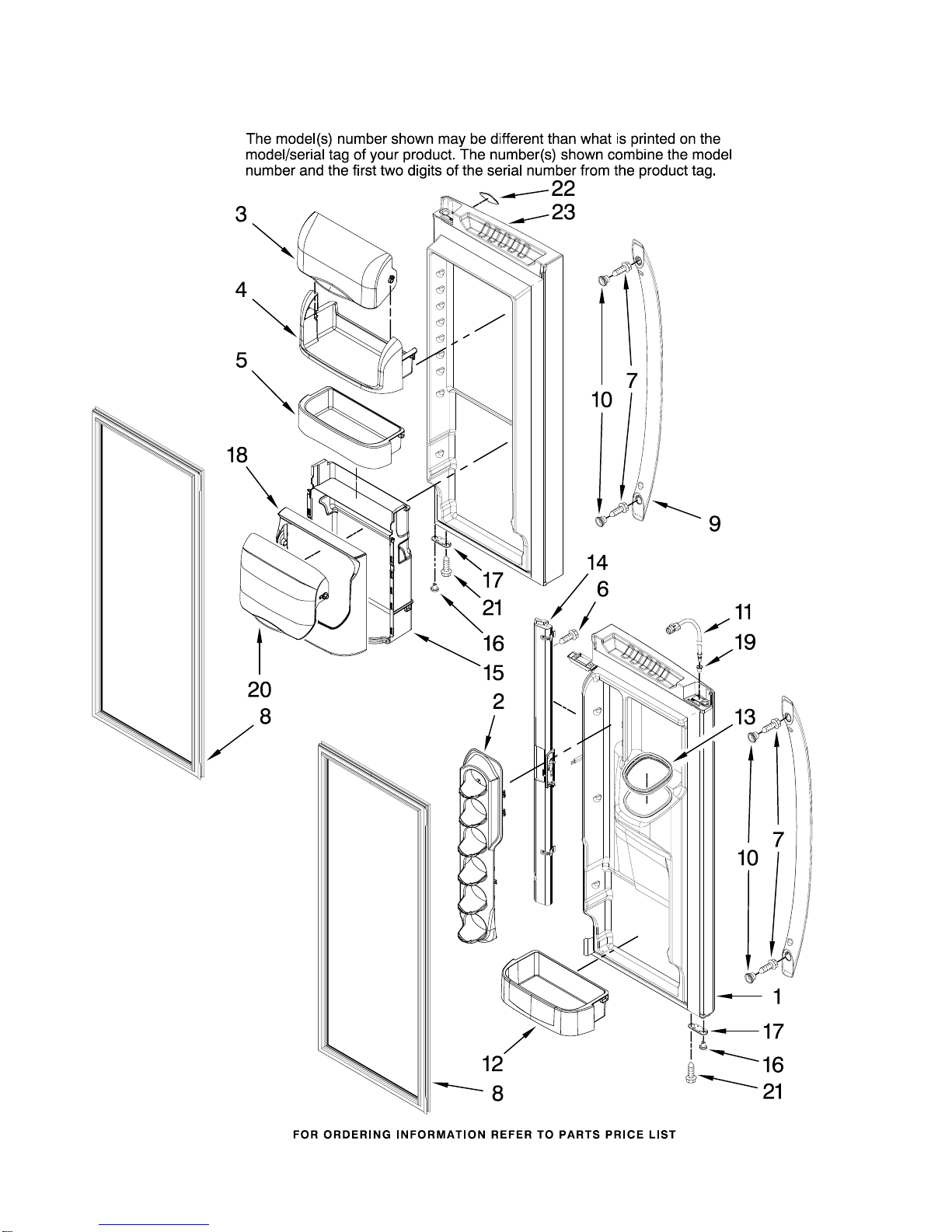

REFRIGERATOR DOOR PARTS
13
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

REFRIGERATOR DOOR PARTS
14
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Door, Left
W10174213 White
W10173928 Black
W10174149 Bisque
W10191138 Stainless
W10191136 Satina
2 67006311 Dispenser, Can
3 67003637 Door, Dairy
4 67001279 Tray, Dairy
5 67006313 Bin, Shelf
(Chiller Top)
6 67006786 Screw
7 67002935 Screw, Handle
8 Gasket, Door
W10165979 White
W10165978 Black
W10191105 Apollo Grey
9 Handle, Door
67006114 White
67006115 Black
67006982 Bisque
W10136871 Stainless
W10191144 Antique Pewter
10 67006113 Mount, Handle
11 12962106 Waterline, Door
12
W10187434 Bin, Shelf
(Gallon)
13 67007108 Seal, Ice Chute
14 Mullion, Door
W10164404 White
W10164405 Black
W10164406 Bisque
W10191104 Apollo Grey
15 67006315 Frame, Chiller
(Rear)
16 Closure, Door
67003638 White
67003639 Black
W10191100 Apollo Grey
17 Stop, Door
12968202W White
67007011 Black
12968202Q Bisque
W10191119 Apollo Grey
18 67006314 Frame, Chiller
(Front)
19 67005954 Clip, Bushing Wire
(Left Door)
20 67006312 Door, Chiller
21 67006473 Screw
22 67006439 Nameplate
23 Door, Right
W10160132 White
W10160123 Black
W10160126 Bisque
W10191134 Stainless
W10191132 Satina

DISPENSER FRONT PARTS
15
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 Dispenser Keyboard
W10159999 White
W10164469 Black
W10164468 Bisque
W10164470 Satina
W10164471 Stainless
3 67006294 Board, L.V.
4 Sump, Dispenser
W10142274 White
W10164979 Black
W10164981 Bisque
W10164980 Apollo Grey
(Light)
W10185235 Midnight Grey
(Dark)
5 Chute, Ext/Yoke
(Includes Switch)
W10191155 White
W10191151 Black
W10191153 Bisque
W10191149 Apollo Grey
(Light)
W10192824 Midnight Grey
(Dark)
6 67006400 Screw
7 67006295 Ring, Target
8 Facade, Dispenser
W10142272 White
W10164982 Black
W10164983 Bisque
W10142273 Apollo Grey
W/Stainless Insert
W10172895 Apollo Grey
W/Satina Insert
9 M0108106 Clamp, Tube
10
W10142275 Grille, Sump
11 Yoke/Pad Assy.
W10170831 White
W10170832 Black
W10170833 Bisque
W10164977 Apollo Grey
(Light)
W10185233 Midnight Grey
(Dark)
12 12565502 Spring

FREEZER DOOR PARTS
16
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Freezer Door
W10174214 White
W10173929 Black
W10174150 Bisque
W10191131 Stainless
W10191120 Satina
2 Handle, Door
67007107 White
67007105 Black
67007106 Bisque
W10138763 Stainless
W10191147 Antique Pewter
3 Bracket, Door
Slide
W10122147 Left
W10122148 Right
4 Gasket, Door
W10162897 White
W10162895 Black
W10191103 Apollo Grey
5 67002935 Screw, Handle
6 67006366 Bin, Lower
7
W10166742 Adapter, Bin
(Outer)
8
W10166237 Bin, Upper
9 67006113 Mount, Handle
10
W10163002 Adapter, Bin
(Inner)
11 67006372 Bracket/Glide
Assembly
12 67006369 Glide, Upper
13 Retainer, Glide
67006368 Right
67006367 Left

UNIT PARTS
17
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529

UNIT PARTS
18
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 67006433 Screw
2
W10162928 Blade, Fan
3 67005889 Basepan
4 67006425 Screw
5 67004954 Screw (3)
6 67006737 Screw, Clip
7
W10119239 Harness, Evap
Heater
8 67007175 Pan, Drain
9 61004743 Grommet (3)
10
W10162932 Heater, Defrost
11 67005491 Block, Condenser
12
W10128791 Start Device
13 61003210 Seal, Condenser
Shroud
14 67006387 Thermostat,
Defrost
15 67005680 Grommet (2)
16 12820504 Pad, Acoustic
17 2255199 Clip, Capacitor
18 67006131 Condenser
19 10623002 Clip, Evaporator
20 67002490 Tray, Drip
21
W10169124 Grommet (4)
22
W10184230 Evaporator
23 Dam
W10162951 Right Side
W10162962 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060202 Harness, Unit
with Power Cord
27 2317845 Drier
28
W10134623 Compressor
(Includes Items
12, 17, 21, 27,
& 35)
29
W10134293 Tube, Discharge
30 67006573 Screw
31
W10158508 Shroud
32 67004953 Bracket, Fan Motor
33 67006432 Screw (3)
34 10547003 Clip, Drier
35 2264017 Capacitor
36
W10137529 Grommet, Cond. (4)
37 67005149 Roller (2)
38 67006434 Axle (2)
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)

OPTIONAL PARTS (NOT INCLUDED)
19
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10
(Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White)
W10200529
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Customer Touch−Up Material
350942 Primer, White
(13 Oz. Spray Can)
350939 Enamel, Black
(13 Oz. Spray Can)
350930 Enamel, White
(13 Oz. Spray Can)
22002901 Enamel, Bisque
(12 OZ. Spray Can)
22002900 Enamel, Bisque
(.6 OZ. Bottle)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−up kit
(Black)
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
20000008 Cleaner,
Stnls Steel Magic
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
833938 Kit, Terminal
Connector
67006349 Ice Container
Assembly
TORX SCREW WRENCH
1117510 Torx Key
