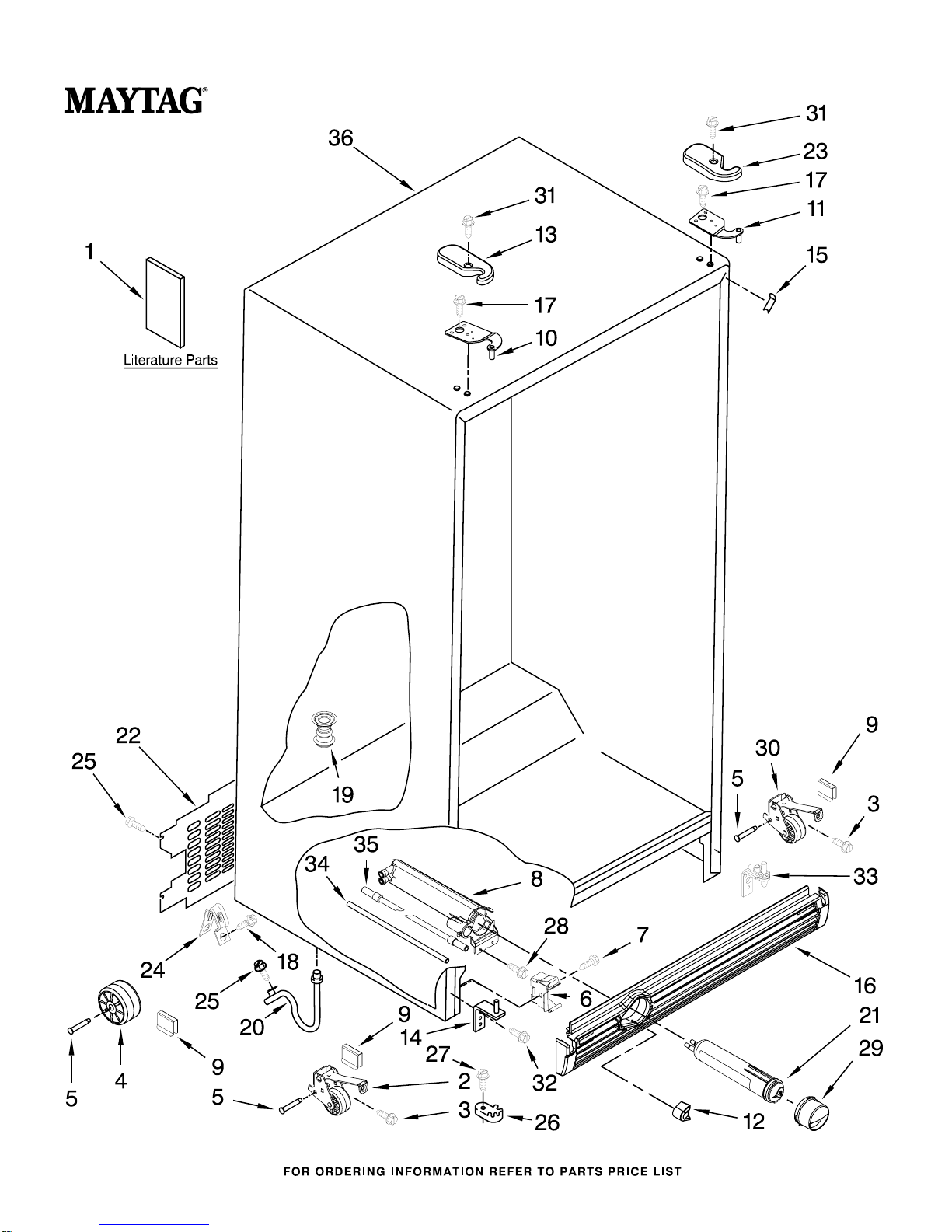

CABINET PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
3−12 Litho In U.S.A. (wam)(bay) Part No. W10197413 Rev. D
REFRIGERATOR

CABINET PARTS
2
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10321474 Use & Care Guide
W10158909 Service & Wiring
Sheet
W10153841 Energy Guide
628370 Modular Icemaker
Service Sheet
W10154390 Instruction Sheet,
Door Removal
2
W10304660 Front Roller,
Left
3 2152958 Screw
4 2150304 Roller, Rear
5 2262072 Axle, Roller
6 2155013 Clip, Grille
7 489478 Screw
8
W10121138 Housing, Water
Filter
9 2174706 Clip, Axle
10
W10287685 Hinge Top, FC
11
W10287684 Hinge Top, RC
12 Button, Water
Filter
2260503W White
2260503B Black
13 Hinge Cover, FC
2203407W White
2203407B Black
14
W10251408 Hinge Bottom FC
15 Filler, Wrapper
W10283959 White
W10283960 Black
16 Grille
W10283951 White
W10283949 Black
17 489497 Screw
18 489464 Screw
19 2304888 Drain Fitting
20
W10153550 Extension Tube
21 4396841 Water Filter
22 2188735 Cover, Unit
23 Hinge Cover, RC
2203408W White
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 489500 Screw
29 Cap, Water
Filter
2260502W White
2260502B Black
30
W10304659 Front Roller,
Right
31 8281227 Screw
32 3400113 Screw (4)
33
W10400807 Hinge Bottom RC
34 2255012 Tube, Filter
Outlet
35
W10281289 Tube, Filter
Inlet
36 Cabinet (Not A
Serviceable Part)

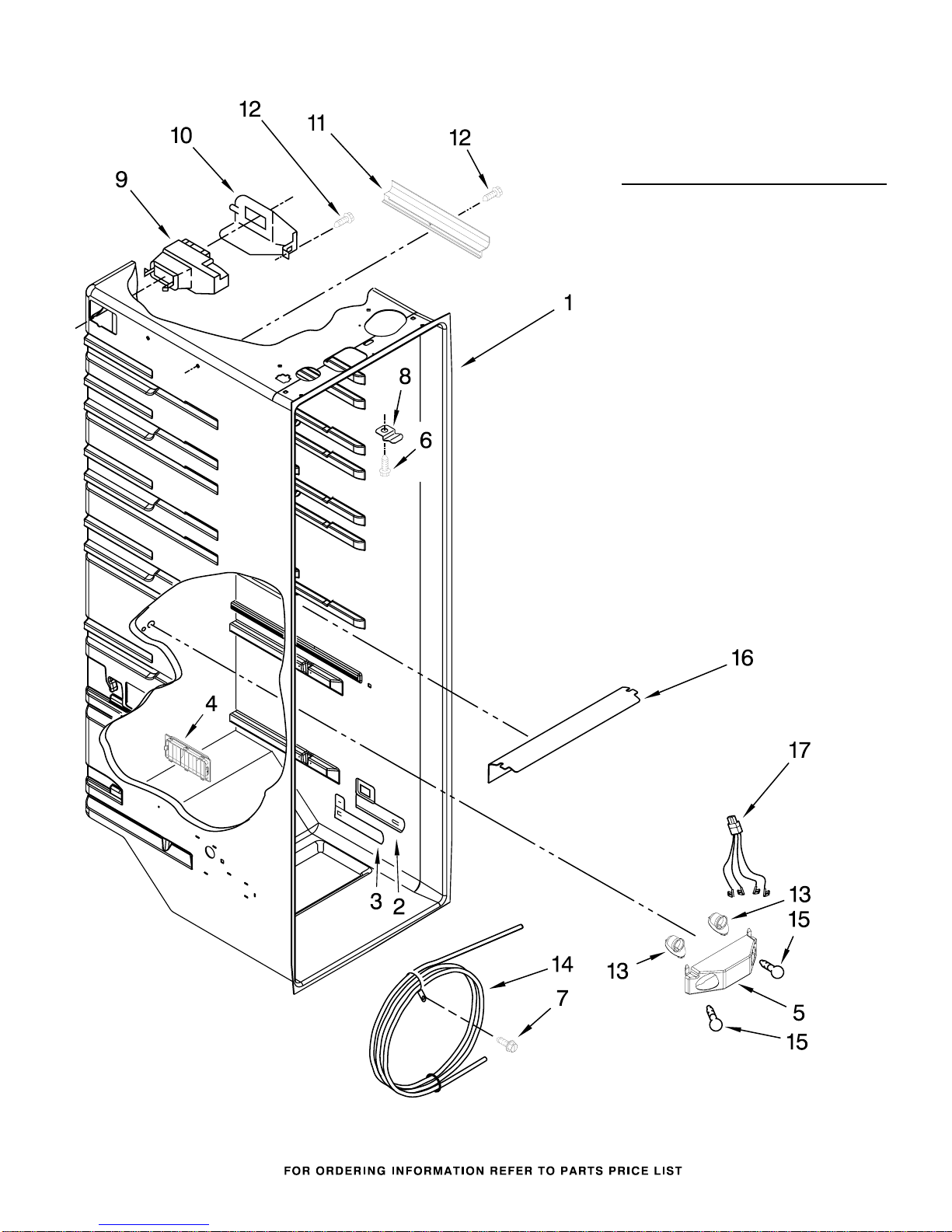

REFRIGERATOR LINER PARTS
3
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket, Dual
Crisper Light
6 489084 Screw (2)
7 488280 Screw
8 2311612 Clip, Control
Box (2)
9 2209753 Air Diffuser
Assembly
10 2152019 Air Diffuser
Cover
11
W10252495 Cover, Conduit
12 486298 Screw
13 2162085 Socket
14
W10276792 Reservoir
15 527949 Light Bulb
16 2209769 Light Lens
17 2311637 Wire Harness,
Crisper Light

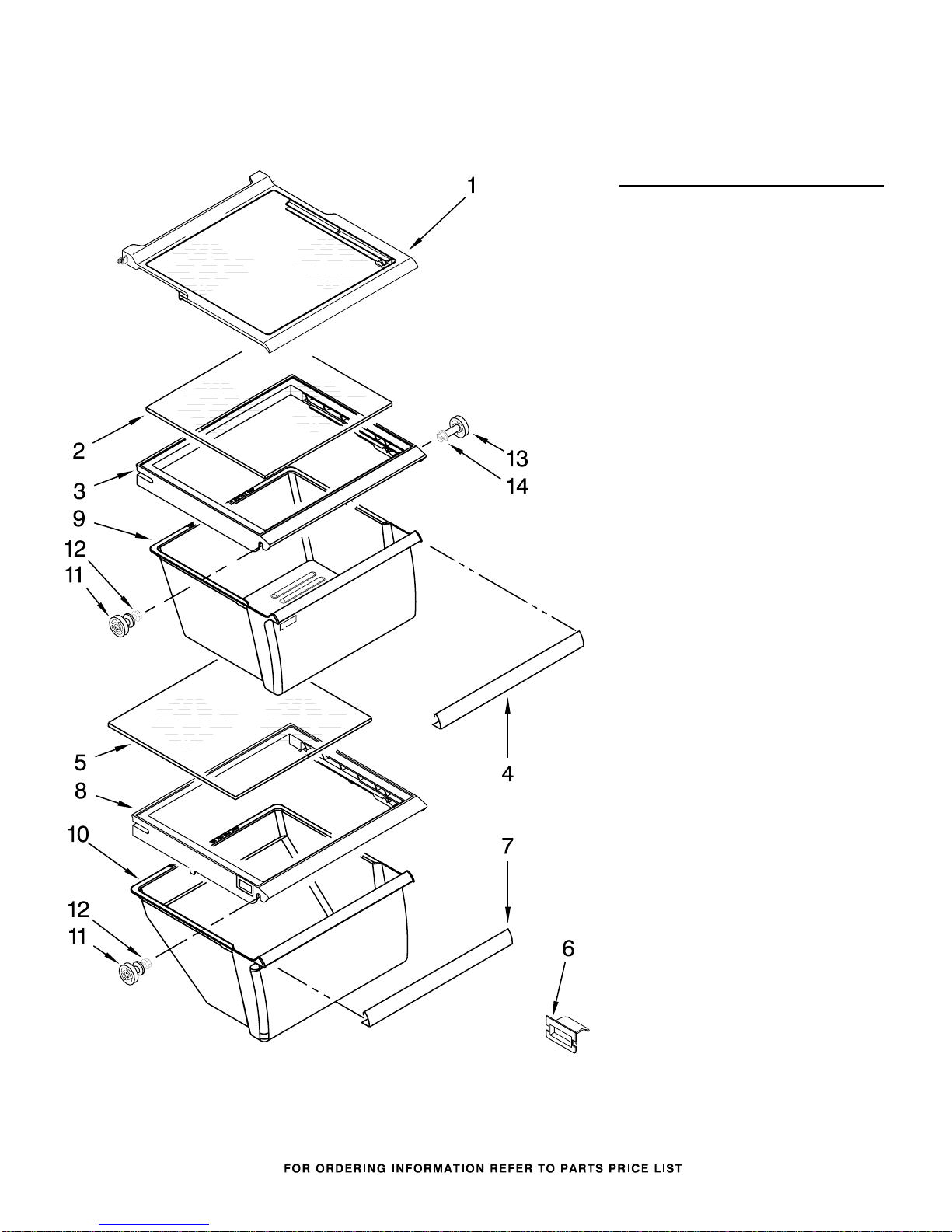

REFRIGERATOR SHELF PARTS
4
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 W10276348 Shelf Assembly,
Spillguard
2 2179259 Glass Cover
3 2209698 Cover, Crisper
4 2179234 Trim, Pan
5 2179259 Glass, Cover
6 2179350 Deflector
7 2255592 Trim, Meat Pan
8 2311726 Cover, Meat Pan
9 2188653 Crisper Pan
10 2188654 Meat Pan
11
W10173126 Stud Assembly
12
W10191954 Screw
13
W10173127 Stud Assembly
14
W10191952 Screw

5
FREEZER LINER PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

FREEZER LINER PARTS
6
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171714 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4
W10318946 Shelf, Wire
5
W10318947 Shelf, Wire
6 2315163 Clip, Air Duct
7 2196206 Support, Stud
8
W10130299 Cup, Shelf
Mounting
9 940014 Hole Plug
10 2309757 Freezer Bin
11 1115373 Switch, Rocker Arm
12
W10318948 Shelf, Wire
13 2196206 Stud, Rear
14 Slide, Container
1119237 Left Side
1119293 Right Side
15 489100 Screw (4)
16 3400893 Screw
17 2162085 Socket, Light
18 527949 Light Bulb
19 2171705 Light Lens

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 W10304376 Bracket, Motor
2
W10317991 Motor, Dispenser
3 2152713 Solenoid Assembly
4 983668 Coupling, Auger
5 527949 Light Bulb
6
W10281336 Wiring Assembly
Ice Dispenser
7 489399 Screw (6)
8
W10169511 Coupling, Motor
9 489478 Screw
10 2162085 Socket, Light
11 2196091 Ice Container
12 1119005 Spacer, Step (3)
13 1119007 Spacer, Flat (2)
14
W10278731 Blade, Rotary
15
W10278732 Blade, Rotary
16
W10278733 Blade, Rotary
17 489235 Washer, Plain
18
W10278727 Blade, Fixed
19 2157405 Block, Blade
20 489229 Roll Pin
21
W10295082 Auger
22 2305377 Drum
23 2171682 Floating Baffle
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Front Cover
Ice Container
34 2171706 Light Lens,
Dispenser
100
W10312300 Ice Container
(Complete)

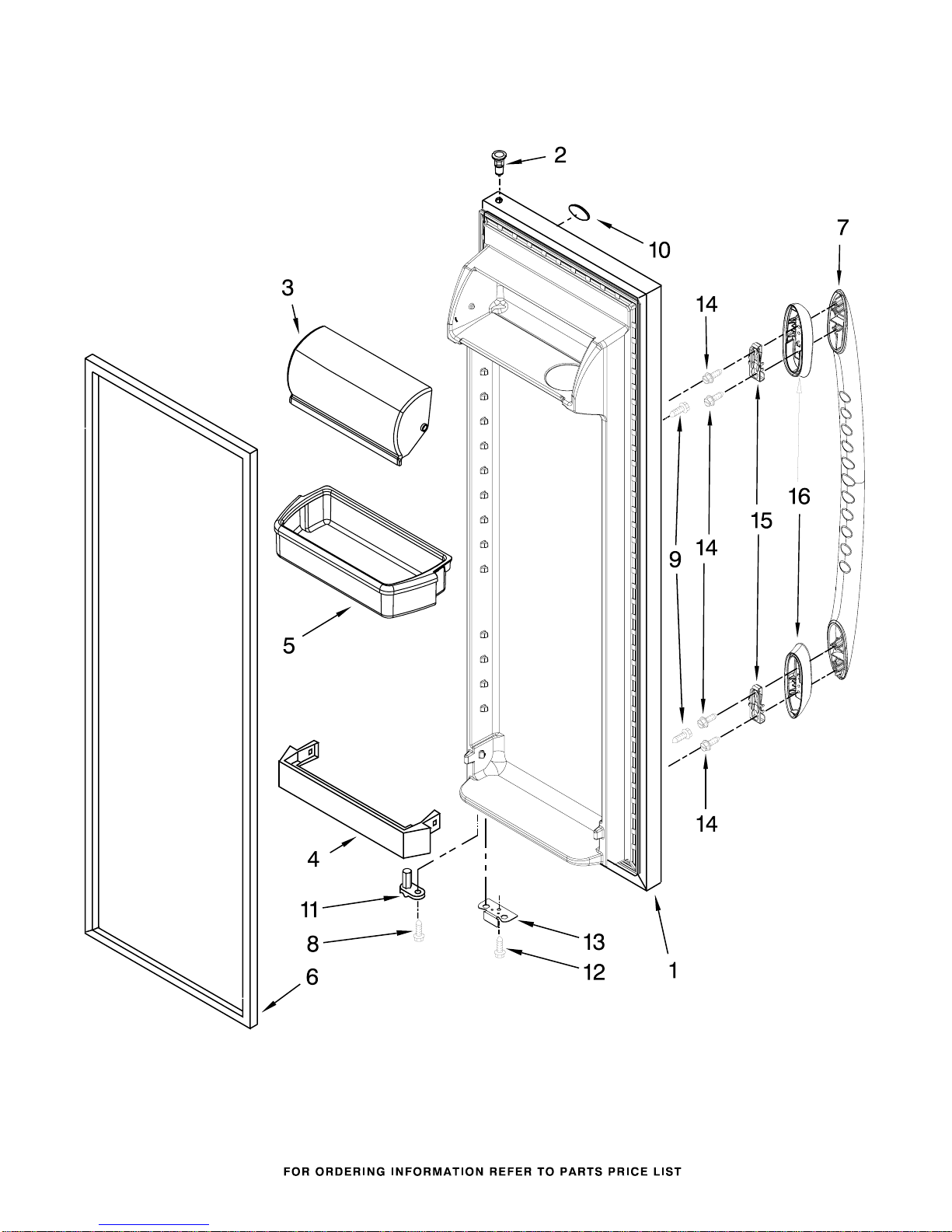

REFRIGERATOR DOOR PARTS
9
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

REFRIGERATOR DOOR PARTS
10
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10153847 White
W10159873 Black
W10170583 Stainless−VCM
W10170585 Stainless Steel
2 2308091 Thimble, Top
3 2256101 Door, Compartment
4 2309941 Trivet, Shelf
5 2187172 Door Bin (3)
6 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
7 Handle
12743701W White
12743701B Black
8 3400012 Screw
9 2326016 Stud, Handle
10
W10170766 Nameplate
11 2182178 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
W10219811 White
W10219812 Black
14 12990203 Screw
15 13067101 Clip
16 End Cap
12834803W White
12834803B Black

11

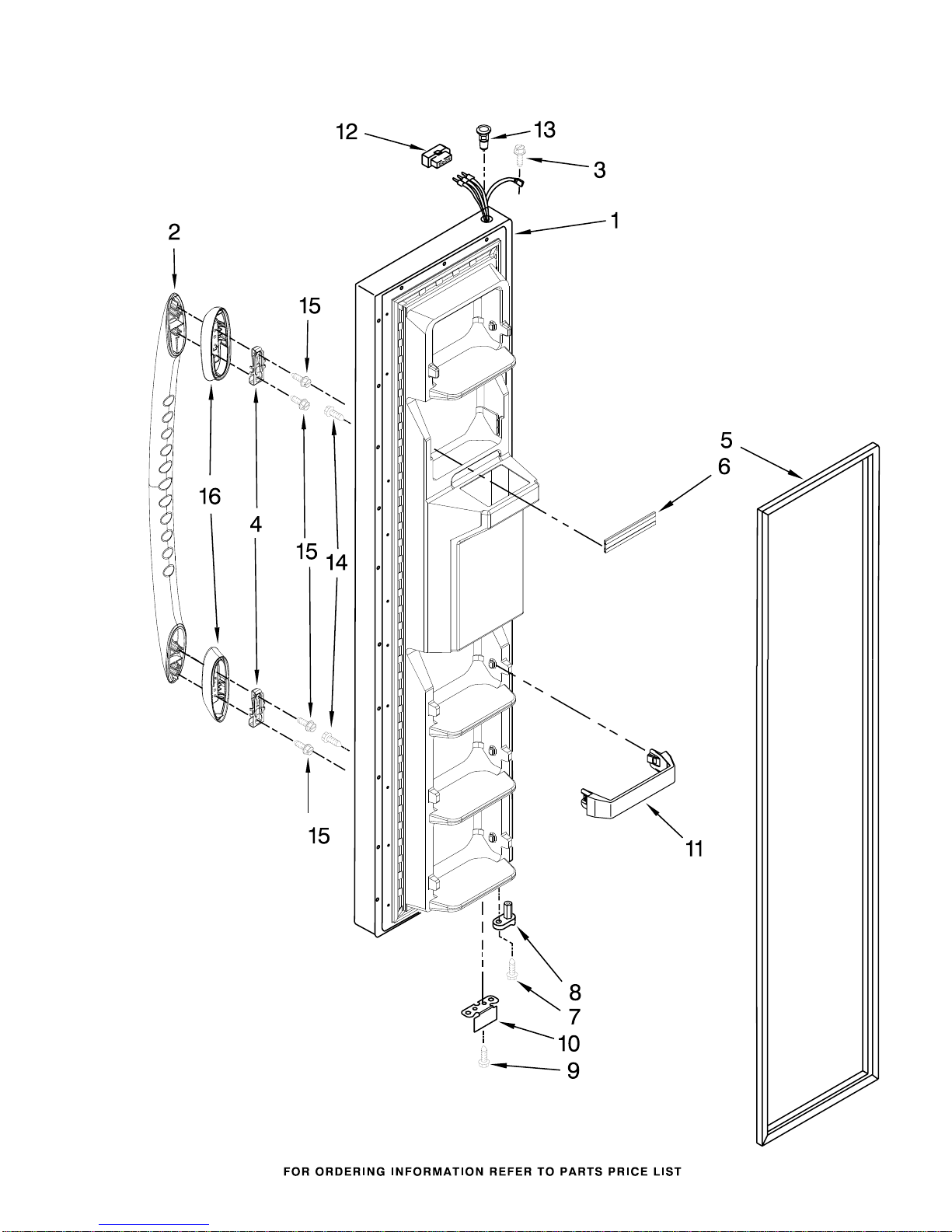

FREEZER DOOR PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

12
FREEZER DOOR PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item #5
and dispenser
front parts)
W10153844 White
W10159876 Black
W10170562 Stainless VCM
W10170570 Stainless Steel
2 Handle
12743701W White
12743701B Black
3 488500 Screw
4 13067101 Clip
5 Door Gasket,
Magnetic
2309532 Mist Beige
2309533 Black
6
W10307490 Trim, Door Shelf
7 3400012 Screw
8 2182179 Door Closer,
Upper Cam
9 489420 Screw
10 Bracket, Door Stop
W10185566 White
W10185567 Black
11 2309718 Trim, Door Shelf
(4)
12 2154473 Connector
13 2182181 Thimble, Top
14 2326016 Stud, Handle
15 12990203 Screw
16 End Cap
12834803W White
12834803B Black

13

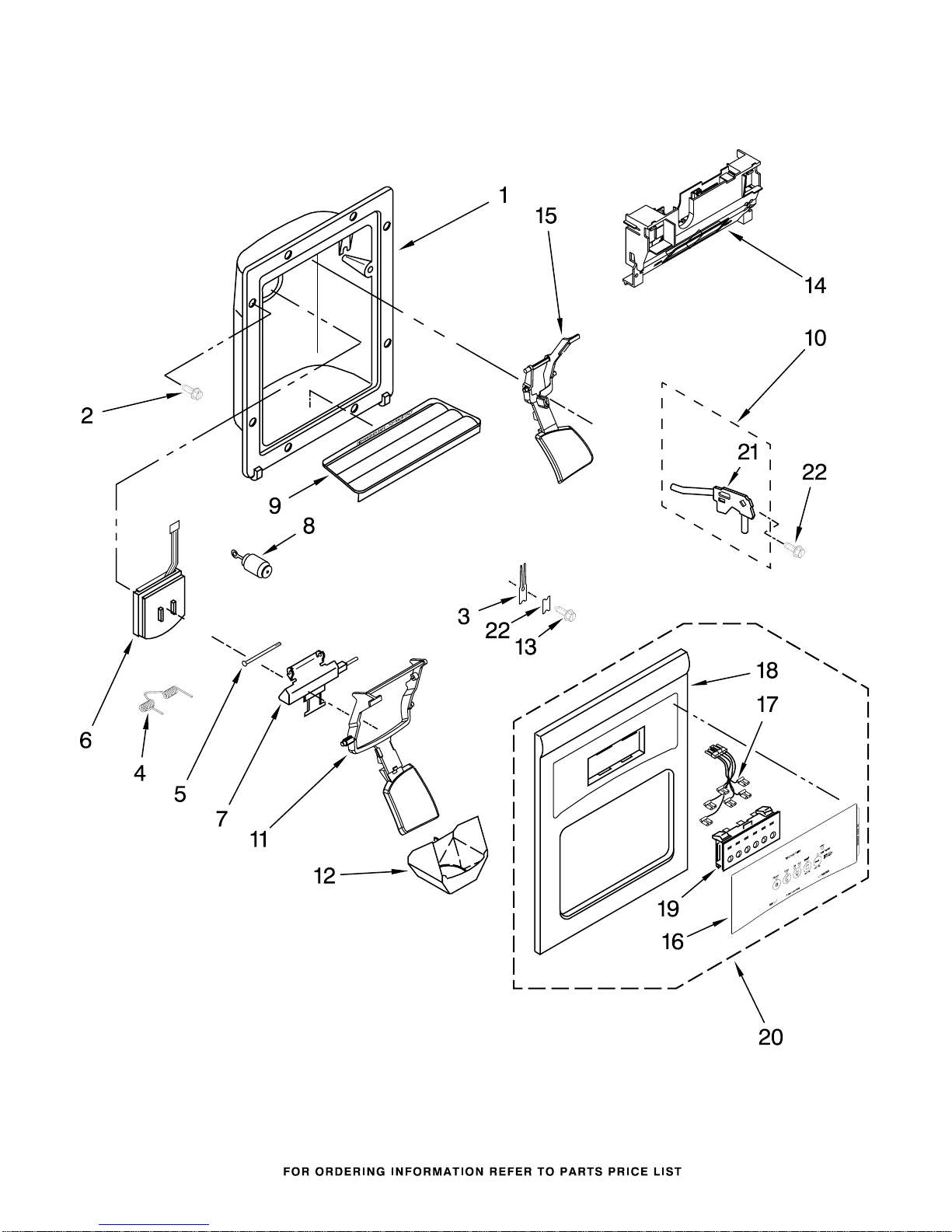

DISPENSER FRONT PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

DISPENSER FRONT PARTS
14
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8
W10467899 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2203562W White
2203562B Black
12 2180224 Guide, Ice
13 489000 Screw
14 2183771 Bracket, Control
15 Lever, Water
Dispenser
2203561W White
2203561B Black
16 Overlay, Front
Cover
(Not Available
Order #20)
17 2325305 Wire Assembly
18 Front Cover,
Housing
(Not Available,
Order #20)
19 2180236 Switch Assembly
20 Front Cover
Assembly
(Includes Items
16, 17, 18 & 19)
W10153855 White
W10159864 Black
21 2304673 Bracket, Dispenser
22 2195051 Strain Relief

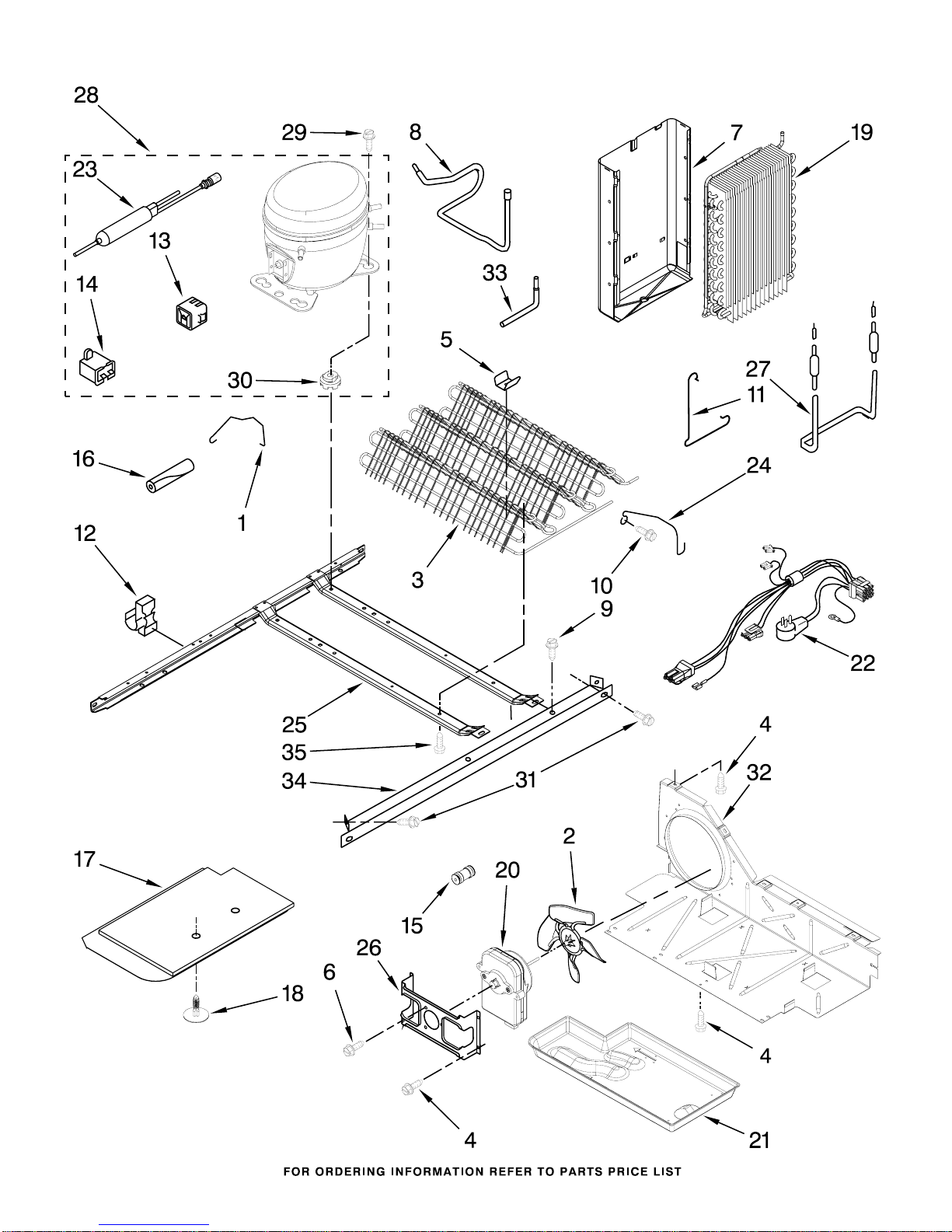

UNIT PARTS
15
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

UNIT PARTS
16
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2263990 Strap
2 12825802 Fan, Blade
3
W10222348 Condenser
Assembly
4 489464 Screw
5 2311725 Clip, Condenser
6 8533993 Screw
7
W10194475 Heat Shield
And Drain Pan
8 2205765 Tube Suction
9 489427 Screw
10 489478 Screw
11 2161324 Clip, Defrost
Heater
12 2208280 Clip, Wire & Tube
13 Start−Device,
Combination
(Start Relay and
Overload)
W10197427 Production
2304884 Service
14 Capacitor
2264017 Production
2264017 Service
15
W10334458 Connector, Water
Tube
16 2161302 Sleeve
17 2304899 Unit Cover, Bottom
18 489396 Clip
19 2188823 Evaporator
20 2188874 Motor, Fan
21 1105523 Tray, Evaporator
22
W10309395 Harness, Unit
23 Drier
W10177049 Production
2317845 Service
24 2260517 Guard, Fan
25
W10196321 Frame, Unit
Mounting
26 2181929 Bracket, Fan Motor
27 2188175 Heater, Defrost
28
W10120459 Compressor
(Includes Items
13, 14, 23, & 30)
29 489373 Screw
30 Grommet (4)
1100826 Production
4387558 Service
31 489340 Screw
32
W10332806 Air Baffle
33 2325479 Process Tube
34
W10196313 Unit Mounting
Rail
35 8281232 Screw
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134)

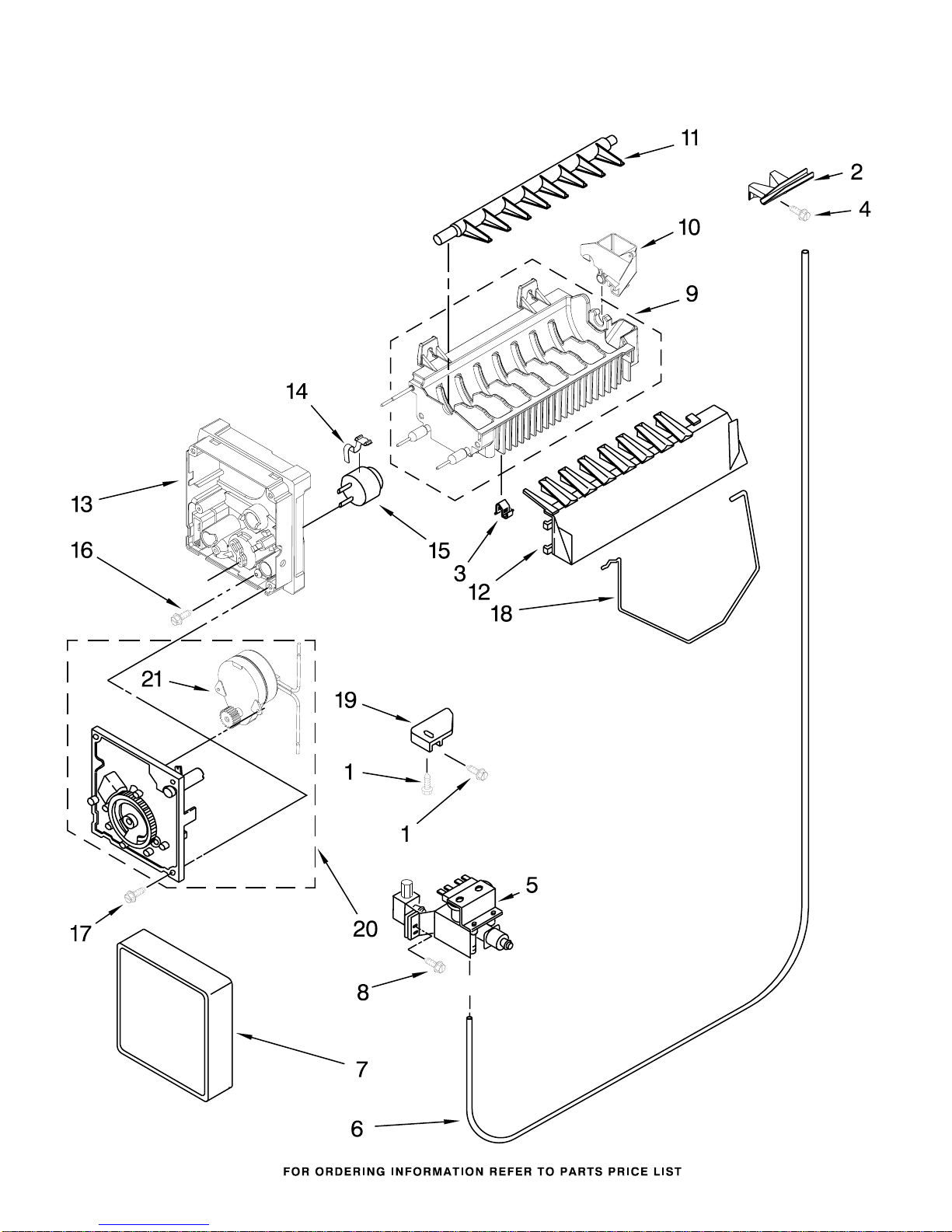

ICEMAKER PARTS
17
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413

ICEMAKER PARTS
18
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 489478 Screw
2 2209774 Chute, Water
3 628379 Clip, Fuse
4 489478 Screw
5 2188708 Filter Valve Asm
6
W10357068 Tube, Water
7
W10289690 Cover
8 488649 Screw
9 628228 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10
W10122561 Cup−Water Fill
11 627843 Ejector
12
W10122563 Ice Striper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 489276 Screw
18 2304354 Shut Off Arm
19 628320 Bracket, Icemaker
Mounting
20 626691 Module Assembly
(Includes Item
#21)
21 Motor
(Not Serviced,
Order #20)
100
W10190966 Complete Icemaker
Assembly

CONTROL PARTS
19
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 W10159858 Control Box
2 2311611 Mounting Bracket
3 2219875 Light Switch
4
W10366608 Electronic
Control, Defrost
5 489398 Screw
6 2200096 Cover, Light Lens
7 2198202 Thermostat
8 3196537 Screw
9 2182195 Cam Assembly
10 1110560 Bearing Body
11 2213462 Led and Connector
Assembly
12 2196062 Damper Control
13 1110559 Pivot Arm
14 487869 Screw
15 2162085 Light Socket
16 2196001 Tube Barrier,
Thermostat
17 527949 Light Bulb
18
W10354806 Control Box
Harness
19 1115374 Clip, Wiring
20 489203 Spring Washer
21 2311631 Connecting Rod
22 489285 Fastener, Push−On
23 2311614 Thremostat Knob
24 2311615 Control Knob
25 627068 Screw

AIR FLOW PARTS
20
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(WHITE) (BLACK) (STAINLESS VCM) (STAINLESS)
W10197413
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 8281159 Screw (6)
4 489478 Screw
5
W10166222 Air Duct Freezer
6
W10225581 Bi−Metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11
W10297480 Harness, Fan
(Includes #6)
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14
W10194476 Cover, Evaporator
(Includes #9)
15 2203595 Support, R.S
16 2203596 Support, L.S
