CABINET PARTS
1
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
11−08 Printed In U.S.A. (wam) (bay) Part No. W10197412 Rev. C
REFRIGERATOR

CABINET PARTS
2W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10171539 Energy Guide
W10153840 Owner’s Manual
W10156278 Service and Wiring
Sheet
W10154390 Instruction Sheet
(Door Removal)
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2209697 Shim
9 2203771 Hinge Top (RC)
10 3400113 Screw
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407B Black
13 2217075 Hinge Bottom
14 Filler, Wrapper
2201014 White
2201017 Black
15 Grille
2260500W White
2260500B Black
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502B Black
31 489500 Screw
32 2260519 Block, Housing
Support
33 Button, Water
Filter
2260503W White
2260503B Black
34 2304708 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS
3
W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
6 2311637 Wire Harness,
Dual Crisper
7 2319866 Shelf Ladder
8 489478 Screw
9
W10004810 Screw (2)
10 2256085 Bracket Retainer
11 489290 Screw
12 2209754 Air Diffuser
Assembly
13 2152019 Air Diffuser
Cover
14 2150331 Cover, Wiring
15 2162085 Socket
16 2217199 Reservoir
17 2255743 Light Bulb
18 2209769 Light Lens
19 488280 Screw

REFRIGERATOR SHELF PARTS
4W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
2 2309518 Snack Bin
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
7 2174150 Glass, Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188654 Meat Pan
15 2179350 Deflector
16 2255592 Trim, Handle
17 2309560 Shelf, Snack Bin
18 2179243 Trim, Handle
19 2309524 Shelf, Snack Bin

FREEZER LINER PARTS
5
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

FREEZER LINER PARTS
6
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2312041 Shelf
Upper
3 Track, Basket−Dual
2301291 Right
2301292 Left
4 941839 Hole Plug
5 2309597 Shelf
6 2309757 Freezer Bin
7 2163762 Cup, Shelf (16)
8 3400893 Screw
9 Shelf Track
2301289 Right Side
2301290 Left Side
10 2309596 Shelf (2)
11
W10004810 Screw (8)
12 842534 Clip, Air Duct (2)
13 2198587 Cover, Emitter
14 2198635 Spring
15 2198634 Pin
16 1115373 Switch, Rocker Arm
17 2220398 P.C. Board
Emitter
18 2255720 Cover, Ice Maker
19 2212321 Slide, Ice Maker
Mounting
20 489478 Screw
21 489214 Screw
22 2162085 Light Socket
23 2255743 Light Bulb
24 8281185 Screw
25 2198633 Flipper
26
W10173569 Cover, Receiver
27 2255562 Slide, Ice Maker
Shut Off
28 2255114 P.C. Board,
Receiver
29 2198643 Lens
30 2198589 Light Shield
31 2212340 Light Lens
32 2198641 Bracket, Ice Maker
Cover
33 2155597 Socket, Light
34 Ladder
2320024 Left Side
2320025 Right Side
35 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2
W10170127 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317277 Latch, Bin
20 2198608 Spring, Latch
21 8281163 Screw
22 2188919 Holder
23 2317243 Wiper
24 2198628 Seal
25 2317250 Divider, Chamber
26 2188916 Drive Shaft
27 2256154 Enclosure, Motor
28 2315544 Dispenser, Motor
29 2212305 Cover
30 489478 Screw
31 2315559 Sleeve, Coupling
100
W10170129 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

REFRIGERATOR DOOR PARTS
10
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10153847 White
W10159873 Black
W10180652 Stainless
W10172722 Stainless VCM
2 2256101 Compartment Door
3 2203828 Shelf Bin (3)
4 3400012 Screw
5 13067101 Clip
6 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
7 2156022 Shelf Bin
8 Handle
(Includes #13)
12743701W White
12743701B Black
9 12990203 Screw (4)
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2206629 White
2206629B Black
13 2326016 Screw
14 2308091 Thimble−Top
15 2324038 Nameplate
16 Accent
12834803W White
12834803B Black
17 Handle
67006391 Stainless
18 2326259 Stud, Handle
19 488208 Screw

11

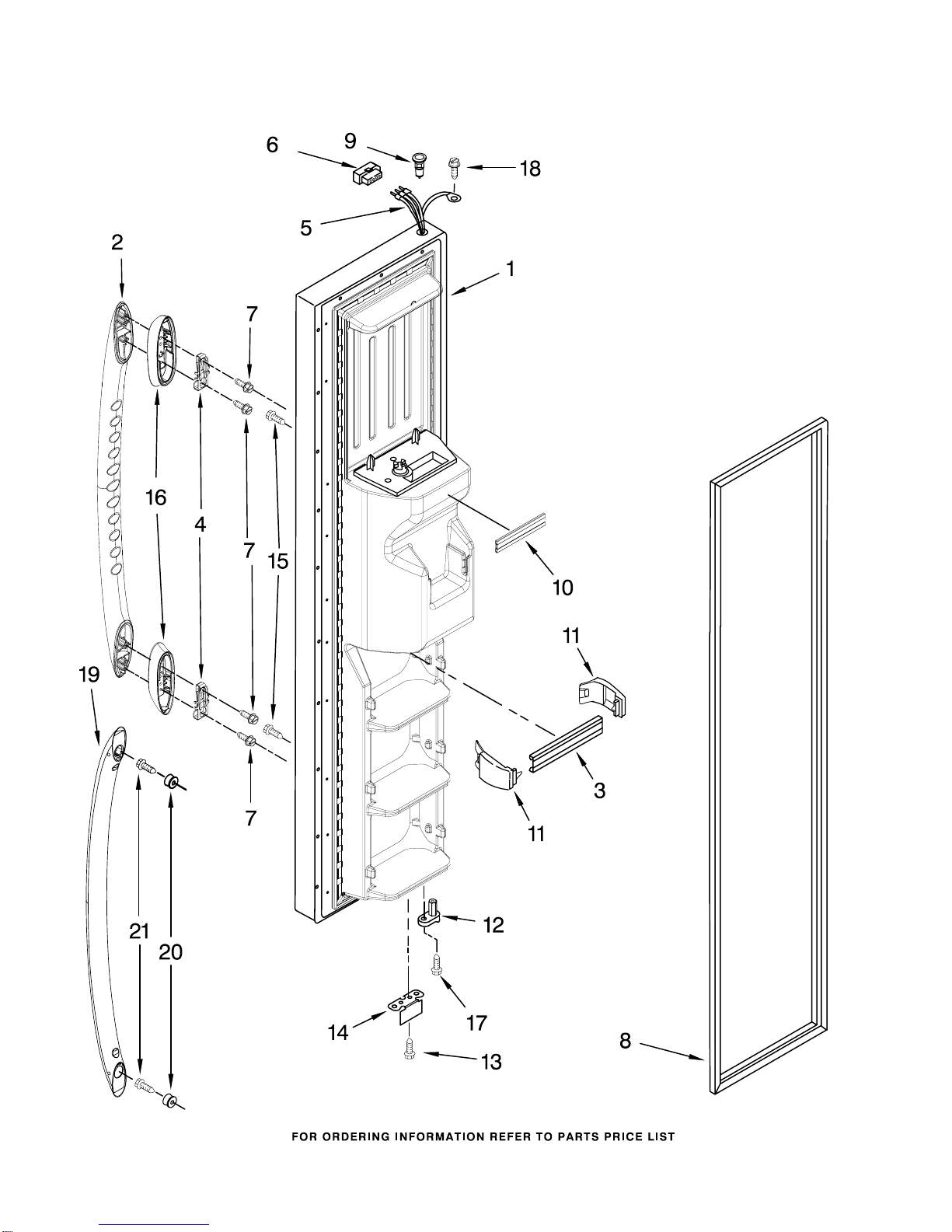

FREEZER DOOR PARTS
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

FREEZER DOOR PARTS
12
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10171425 White
W10171426 Black
W10180653 Stainless
W10171430 Stainless VCM
2 Handle
(Includes #15)
12743701W White
12743701B Black
3 2313199K Door Trim (3)
4 13067101 Clip
5 2198619 Dispenser Harness
6 2154473 Connector
7 12990203 Screw (4)
8 Door Gasket,
Magnetic
2309532 Mist Beige
2309533 Black
9 2182181 Thimble−Top
10 2219982 Trim, Door Shelf
11 2195917 Endcap (6)
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2206629 Chrome
2206629B Black
15 2326016 Screw
16 Accent
12834803W White
12834803B Black
17 3400012 Screw
18 488500 Screw
19 Handle
67006391 Stainless
20 2326259 Stud, Handle
21 488208 Screw

DISPENSER FRONT PARTS
13
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

DISPENSER FRONT PARTS
14
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670B Black
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2203562W White
2203562B Black
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2203561W White
2203561B Black
18 Switch Assembly
(Not Available
Order #23)
19 Overlay, Front
Cover
(Not Available
Order #23)
20 2187406 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
W10175697 White
W10175698 Black
24 625834 Spacer, Switch (2)
25 2195051 Strain Relief
26 2304673 Bracket, Dispenser

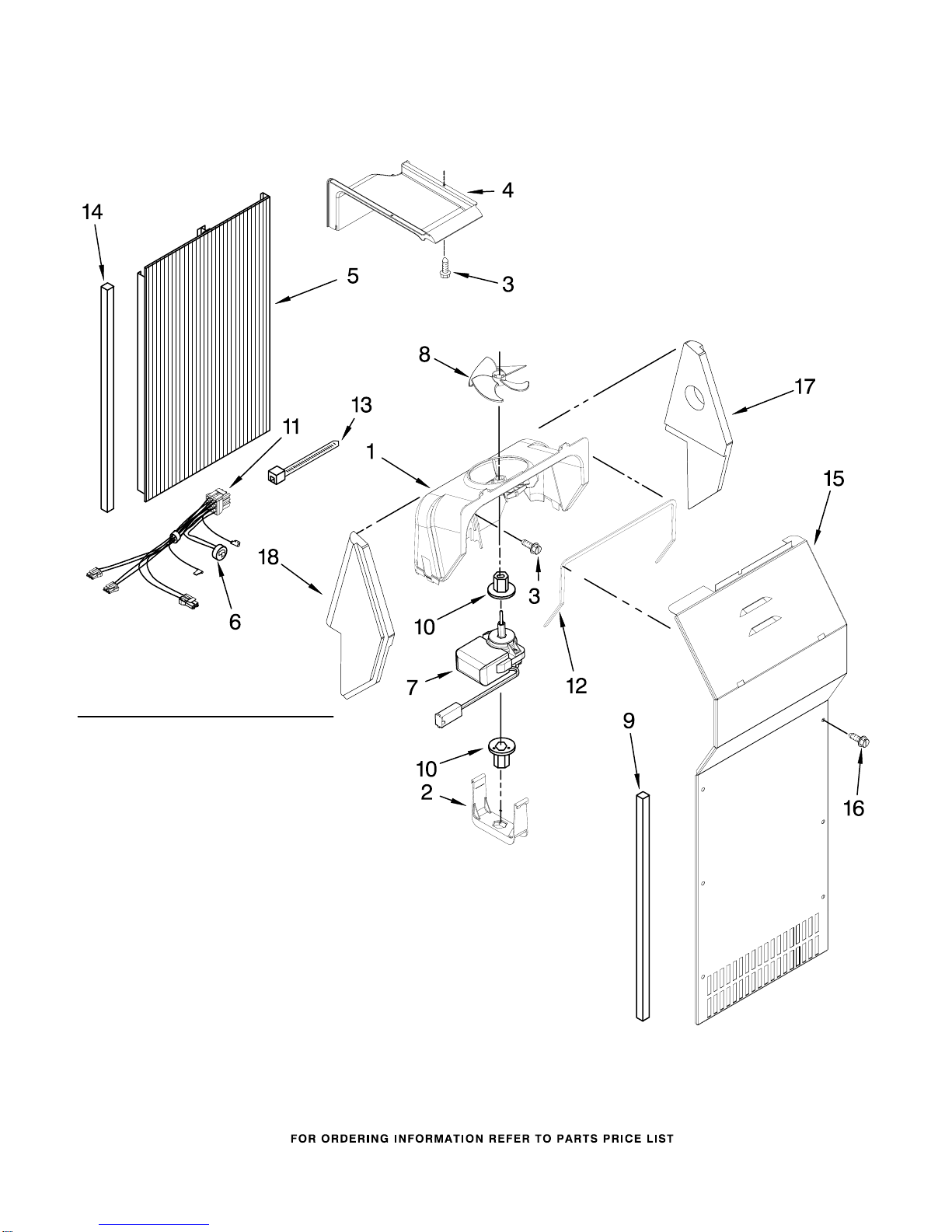

AIR FLOW PARTS
15
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 489478 Screw
4 2313359 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11 2310237 Harness, Fan
Evaporator
(Includes #6)
12 2155789 Gasket, Fan Scroll
13 2172840 Strap
14 2203876 Gasket
15 2206314 Cover, Evaporator
(Includes #9)
16 8281159 Screw (6)
17 2203595 Support, R.S.
18 2203596 Support, L.S.

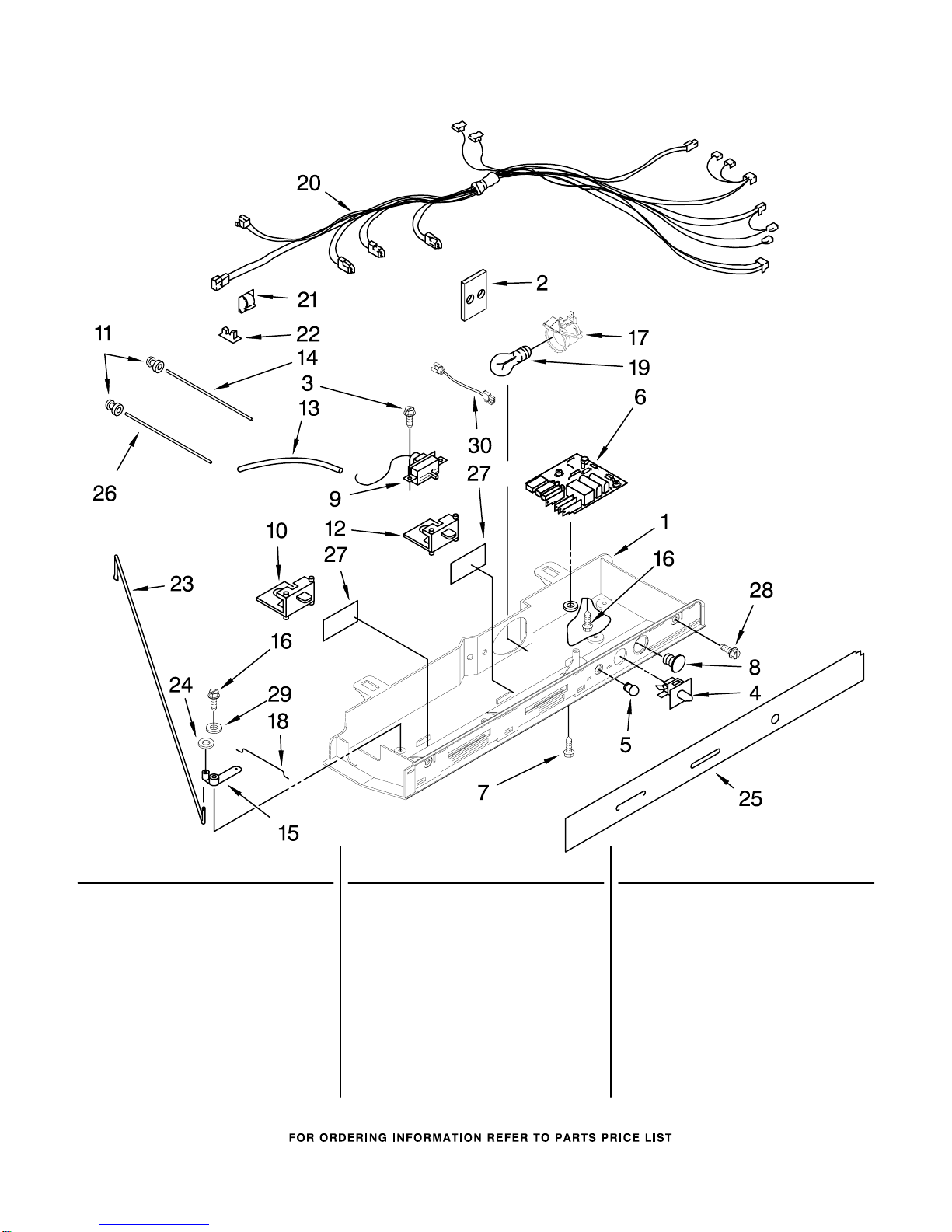

CONTROL PARTS
16
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2311721 Control Box
2 2172931 Heat Shield
3 489214 Screw (2)
4 2149705 Switch, Light
5 2200096 Cover, Light
Lens
6 2304069 Control Board
Assembly
7 489398 Screw (2)
8 940014 Hole Plug
9 2315562 Thermostat
10 2181741 Slide, Air Control
11 2172906 Grommet, Light
Bar (4)
12 2161466 Slide, Thermostat
13 2196001 Tube Barrier
14 2179920 Light Bar (RC)
15 2161306 Pivot Arm
16 627068 Screw
17 2162085 Light Socket
18 2161307 Connecting Rod,
Short
19 2255743 Light Bulb
20 2311632 Control Box
Harness
21 1115374 Clip, Wiring
22 1115375 Clip, Wiring
23 2161308 Connecting Rod
24 489391 Fastner, Push−On
25 2315154 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2175513 Window
28 489084 Screw (2)
29 489203 Spring Washer
30 2213462 Harness, Indicator
Light

UNIT PARTS
17
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

UNIT PARTS
18
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 12825802 Fan, Blade
3
W10121484 Condenser Assembly
4 489464 Screw
5 2311725 Clip, Condenser
6 2325479 Tube, Condenser to
Heat Loop
7 2217194 Heat Shield
And Drain Pan
8 2205765 Tube Suction
9 2172840 Wire Tie
10 8533993 Screw
11 489427 Screw
12 4387731 Cover
(Service Only)
13 2154697 Overload
(Service Only)
14 489478 Screw
15 2255199 Clip, Retaining
16 2319793 Start−Device,
Combination
(Start Relay and
Overload) for
Production
Compressor Only
17 Capacitor
2264017 Production
1118576 Service
18 2183454 Relay
(Service Only)
19 4387765 Wire, Capacitor
(Service Only)
20 2304891 Unit Cover, Bottom
21 489396 Clip
22 2188823 Evaporator
23 2161324 Clip
24 2188874 Motor, Fan
25 1105523 Tray, Evaporator
26 2187783 Harness, Unit
27 2319825 Drier (Production)
2317845 Drier (Service)
28
W10120459 Compressor
(Includes Items
12, 13, 17, 18,
19 & 27)
(Also Order
876765 Tube Kit)
29 2208280 Clip, Wire & Tube
30 2304904 Unit Mounting
Frame
31 2320322 Union
32 2181929 Bracket, Fan Motor
33 2188175 Heater, Defrost
34 2161324 Clip, Heater
35 489373 Screw
36 Grommet (4)
1100826 Production
4387558 Service
37 489340 Screw
38 2196202 Air Baffle
39 2155547 Clip, Heat
40 2305374 Unit Mounting
Rail
41 8281232 Screw
42 2260517 Guard, Fan
43 2161302 Sleeve
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412

ICEMAKER PARTS
20
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw
5 2315534 Filter Valve Asm
6 2208136 Clip, Tube
7 2174358 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 2304969 Fill Cup
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 2303583 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
100
W10190960 Icemaker Assembly
