Mazda MX-30 2021 User manual

Mazda Motor Corporation
Customer Service Div,Recycle Promotion Gr.
Issued(Ver.1.0) 2021/03
Information in this manual is subject to change without notice.
For Dismantler
High Voltage Battery
Disposal Manual
Target Model
MAZDA MX-30
1

Contents
1. Introduction
2. Overview of the high voltage battery
3. Precautions in handling the high voltage battery
4. The high voltage battery removal cautions
5. Recommendaiton for safe collection of the high voltage battery
6. Removing the high voltage battery
7. Storage of the Removed high voltage battery
1.
Introduction
Some vehicles manufactured by Mazda Motor Corporation is mounted the high voltage battery.
This manual describes how to remove the battery from the End-of Life Vehicle(ELV).
Read this manual carefully and observe the precautions before handling the battery.
<Warning>
Pressing and shredding the vehicle with high voltage battery
attached will generate such as heat, fire, smoke,
and rupture from the high voltage battery.
2

2
.
Overview of the high voltage battery
●Purpose/Structure
The high voltage battery system supplies power to drive the electric motor.
Additionally, it stores the power generated by the electric motor using regenerative braking
and the power charged externally. The high voltage battery system has the following functions.
ーSupplies drive power to electric motor
ーStores power generated by electric motor using regenerative braking and power
charged externally
ーCuts off and connects high voltage circuit
ーMonitors high voltage battery status
ーSupplies electrical power to electric compressor
ーSupplies electrical power to battery heater, electric compressor, PTC heater, DC-DC converter
ーDrives battery heater contactor
ーDiagnoses electrical leakage in high voltage circuit
ーSystem protection in case of malfunction and warning indication to driver,
and malfunction diagnosis function

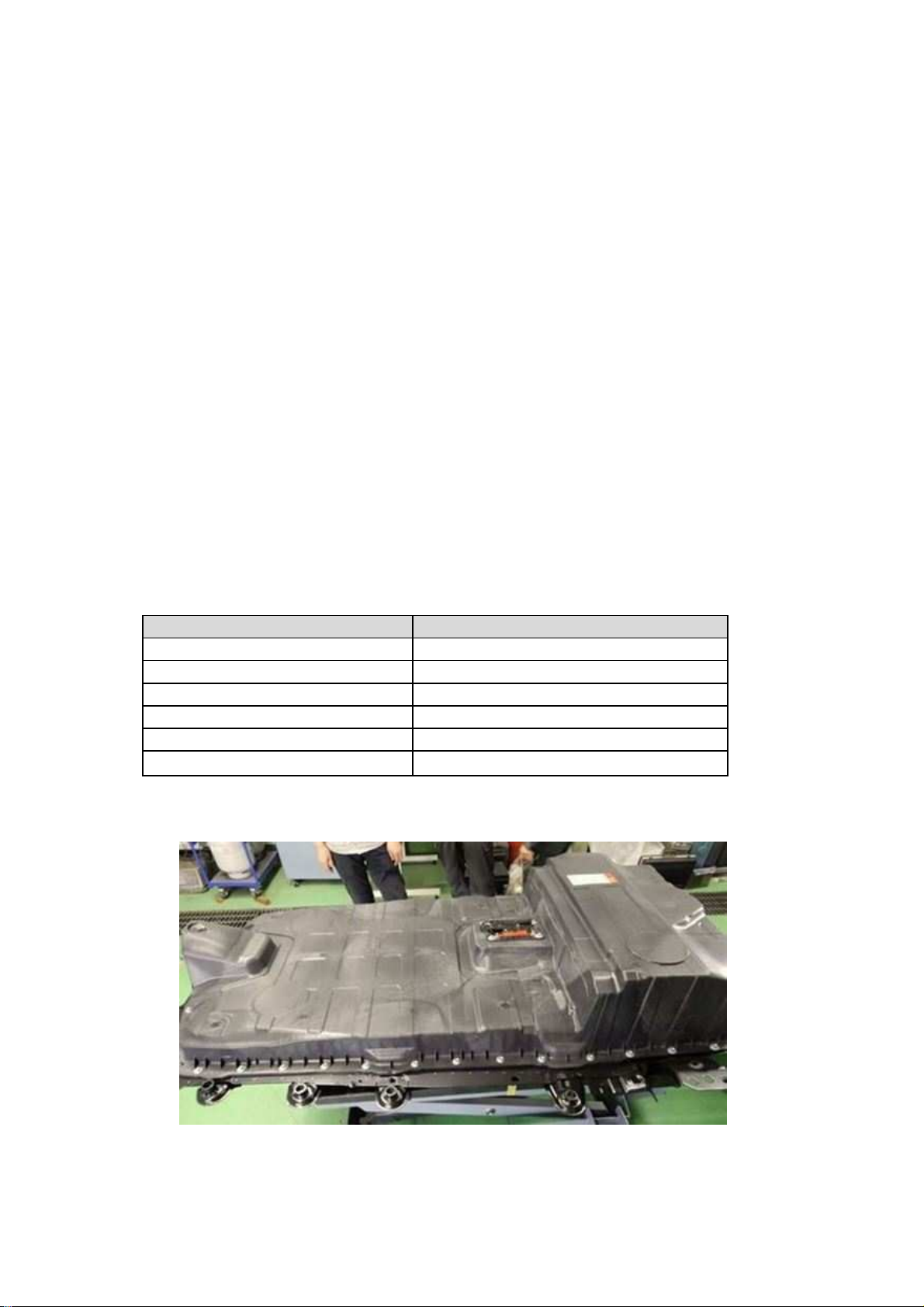

●Specification
●
Appearance
W 1,804×D 1,202×H 334 [mm]
Electrolyte volume
355 [V]
310[kg]
19.2 [L] or less
Extemal dimensions
Nominal voltage
Mass
Pack composition
Nominal capacity Direct series, 192cells 100 [Ah]
SpecificationItem
3

3.
Precautions in Handling the high voltage battery
●Introduction
・The high voltage battery is enclosed in a sealed metal case and is designed to withstand
the temperature and pressure of normal handling. Therefore, there is no physical danger of
ignition, rupture, etc., or scientific danger of leakage of battery contents during normal handling.
However, there is a risk of leakage of contents or irritating or toxic gases from the battery
case when exposed to fire, strong shock, or electrical stress due to misuse.
The nominal voltage of this high voltage battery is 355V. In case of electrical shock,
it could result in serious injury or in the worst case death.
●Handling of the high voltage battery
・When handling the high voltage battery, be careful of the following
ーDo not put it in and not get it wet with water or seawater.
ーDo not put them it in and not get it wet with water or seawater.
ーDo not expose to strong oxidizing agents.
ーDo not subject to strong shock or drop.
ーDo not disassemble, modify, or deform.
ーDo not short circuit the positive and negative terminals.
ーDo not charge the battery using an unspecified charging method.
ーDo not connect the connector or install the service plug until it is on-vehicle.
ーTo prevent electric shock, be sure to insulate the battery terminals and wear
insulating gloves.
●Measures to be taken in case of electric shock
・In case of electric shock, take the following measures.
ーTo prevent secondary electric shock, do not touch the person receiving
the electric shock with bare hands.
ーTo prevent secondary electric shock, separate the battery from the person receiving
the electric shock by using a non conductive object.
ーCheck for pulse, respiration, or response to stimuli, and call an emergency hospital for
medical attention. If breathing has stopped, perform cardiopulmonary resuscitation
if necessary.
4

●Measures to be taken in case of a fire
In case of the high voltage battery ignites, take the following measures.
Appropriate fire extinguishers ：A large amount of water from a fire hydrant (avoid small
amounts of water as it may increase the intensity of the fire),
carbon dioxide extinguisher or, powder extinguisher
Specific extinguishing methods ：If other combustible materials are burning at the same time,
extinguish according to the extinguishing method of the
corresponding combustible material.
Whenever possible, extinguish from upwind.
Specific hazardous hazards ：Corrosive gas may be generated during extinguishing.
Also, if the battery becomes hot, its components may fly off.
5

4.
The high voltage battery removal cautions
Warning
•The inspection and removal of the high voltage parts of this vehicle must be
performed by persons who have acquired qualifications specified by the laws and regulations.
•The protective equipment indicated in the workshop manual is recommended by Mazda.
Use equipment specified by the laws and regulations of each country.
•Wear insulating gloves when inspecting or removing the high voltage parts.
Touching the high voltage parts without wearing insulating gloves could cause electrical
shock and result in serious injury or, in the worst case, death.
•Before removing the high voltage parts, remove the service plug and wait until 10 min have
elapsed.Servicing without removing the service plug or before 10 min have elapsed after
removing the service plug could cause electrical shock and result in serious injury or,
in the worst case, death.
•Do not spin the tires while removing the high voltage parts.
If the tires spin, power generation occurs even if the service plug is removed.
If power generation occurs, it could cause electrical shock and result in serious injury or,
in the worst case, death.
•Verify that the charge connector is not connected to the vehicle when inspecting or
removing the high voltage parts. If the charge connector is connected to the vehicle,
high voltage may be supplied to the vehicle. If this occurs, it could cause electrical shock
and result in serious injury or, in the worst case, death.
•Always observe the following thoroughly to ensure safety when removing the high voltage parts.
Otherwise, the high voltage circuit may operate on the vehicle regardless of whether or not
the main power is switched OFF or ON (READY off or on). If this occurs, it could cause electrical
shock and result in serious injury or, in the worst case, death.
ーDo not perform normal charge or quick charge
ーSwitch to connected vehicle maintance mode (MyMazda App connected vehicle)
ーCancel climate control timer
•When removing the high voltage parts, place a high voltage work sign on the vehicle to
alert other workers.
6

Caution
•
DonotswitchthemainpowerON(READYon)afterremovingtheserviceplug.
If the main power is switched ON (READY on) after removing the service plug,
a malfunction may occur with the vehicle.
•
Thehighvoltagepartscanbeidentifiedasfollows.
ー
Partsthatareconnectedusingorangewiringharnesses
ー
Partswithahighvoltagewarninglabelattached
●Identification of high voltage wiring harnesses and equipment
The following measures are applied to the high voltage equipment and wiring harnesses
so that they can be distinguished from other non-high voltage areas. Never touch the high
voltage wiring harnesses, high voltage connectors, and equipment with a high voltage warning
label attached without wearing insulating gloves before cutting off the high voltage.
ーThe high voltage cable and connectors are covered by orange insulation as a standard.
ーA warning label is attached to the high voltage equipment (high voltage battery and inverter)
indicating the presence of high voltage inside the equipment.
●Handling of high voltage connectors and terminals
•When touching a high voltage terminal not covered by insulation, wear insulating gloves and
verify that the voltage is 0 V using a tester in advance.
•Protect a disconnected high voltage connector using insulation tape immediately after being
disconnected so that the terminal is not exposed. Handle one terminal at a time to avoid
both terminals being exposed at once.
•Before connecting a terminal, thoroughly remove any adhesive on the terminal using
a clean cloth.
•Securely tighten the screw terminals of the high voltage parts to the specified torque.
Insufficient or excessive tightening torque could cause a malfunction of the vehicle.
7

●Items prohibited from being held or worn
•Before servicing, remove metal objects. An electric vehicle has high voltage areas,
and if metal scales, mechanical pencils, or accessories such as necklaces fall onto a high voltage
area while servicing, it may cause short circuit leading to an arc flash and part damage.
•Do not carry magnetic recording media. An electric vehicle has parts which have strong
magnetic force, and if magnetic recording media (such as cash cards and prepaid cards)
are being carried while performing an inspection or servicing, the recorded data could
be destroyed.
●High voltage work indication
•When removing the high voltage parts, place a high voltage work sign on the vehicle to
alert other workers.
8

●High voltage work sign
9

5.
Recommendaiton for safe collection of the high voltage battery
●In an accident car, submersible car, etc., there is a possibility that
the battery pack for may be deformed , cracked, short circuit, leaked,
etc, and a short circuit may cause accidents such as smoking, ignition,
or electric shock.
●Always disconnect the lead battery before removing high voltage battery.
•If you work without disconnecting the lead battery, short circuit may cause
smoke, fire, electric shock, etc.
●Do not leave/discard/divert/modify/disassemble/resell/transfer
the high voltage battery.
•Touching of the hig voltage battery that has been Improperly left or discarded, or
diverting, remodeling, or disassembling it for purposes other than its intended use
may cause accidents such as electric shock, emitting smoke, firing, heat generation,
explosion, or electrolyte leakage.
neglect / discard / resale / transfer. The responsibilities of
the business operator who performed these actions may be held.
Mazda cannot be held liable for any accidents / damages
caused by diversion / modification / disassembly of the high
voltage battery, or any accidents / damages caused after
10

6.
Removing the high voltage battery
Warning
•If the necessary measures are not taken before servicing an electric vehicle, it could cause
electrical shock and result in serious injury or, in the worst case, death. Before servicing the
electric vehicle, please to implement the necessary measures.
•Wear insulating gloves when removing the high voltage parts.
•Before removing the high voltage parts, remove the service plug and wait until 10 min
have elapsed.
•Do not switch the main power ON (READY on) after removing the service plug.
The high voltage parts can be identified as follows.
ーParts that are connected using orange wiring harnesses
ーParts with a high voltage warning label attached

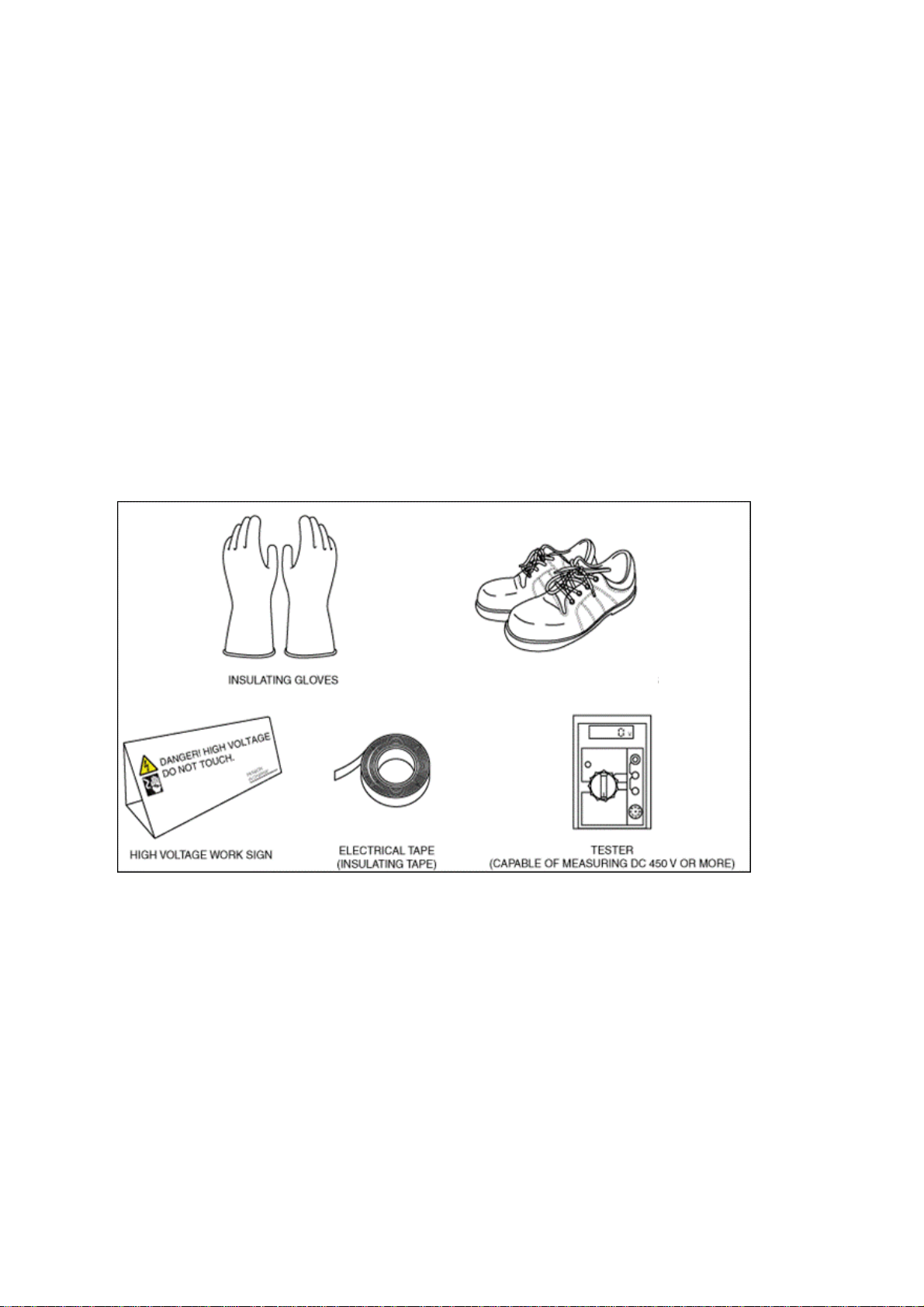

●Items to be prepared
INSULATING SAFETY SHOES
11

1) Verity that the READY indicator on the instrument cluster is not illuminated.
•If the READY indicator is turned on, switch the main power OFF.

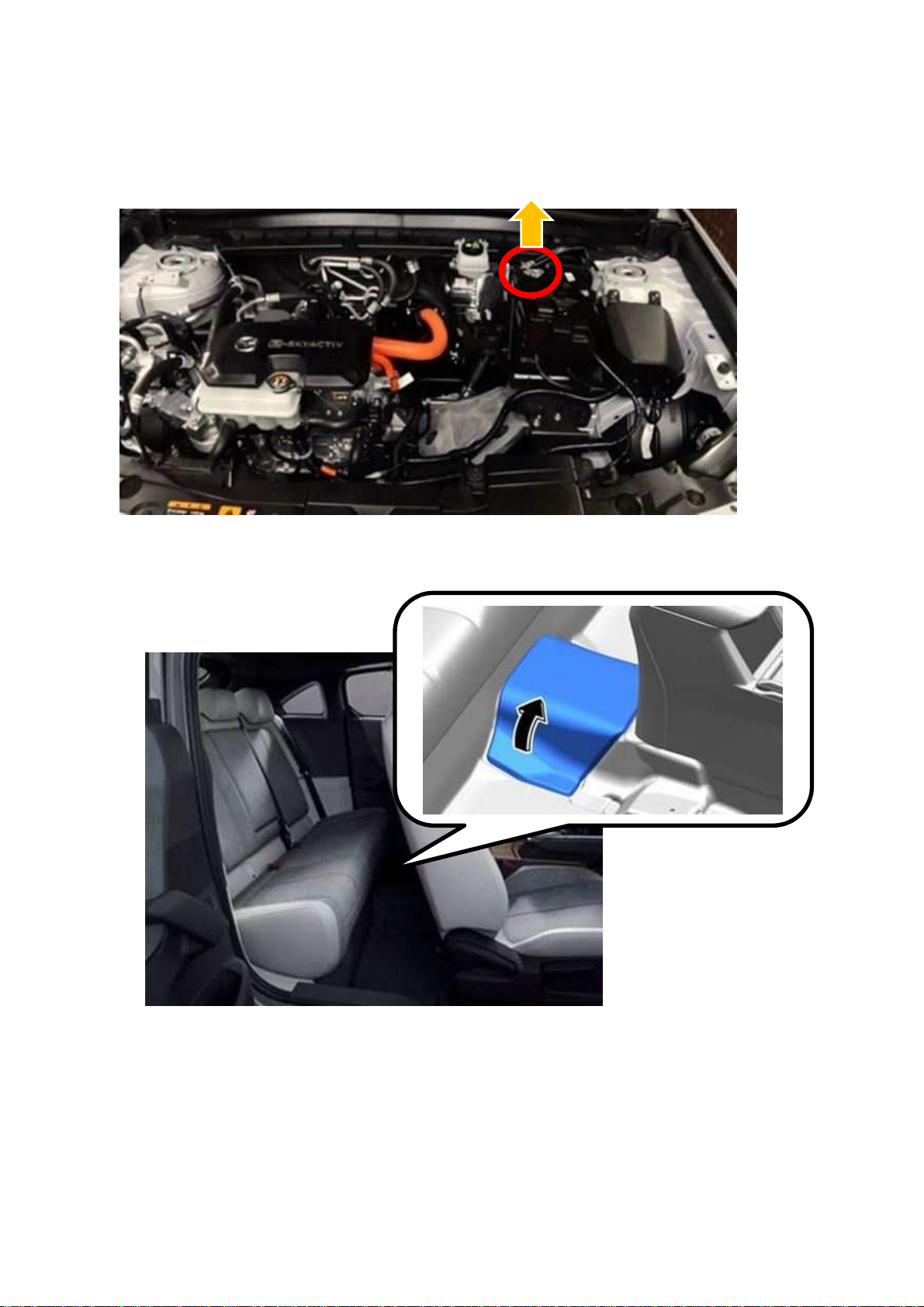

2) Disconnect the negative lead-acid battery terminal.
3) Partially peel back the cover.
12

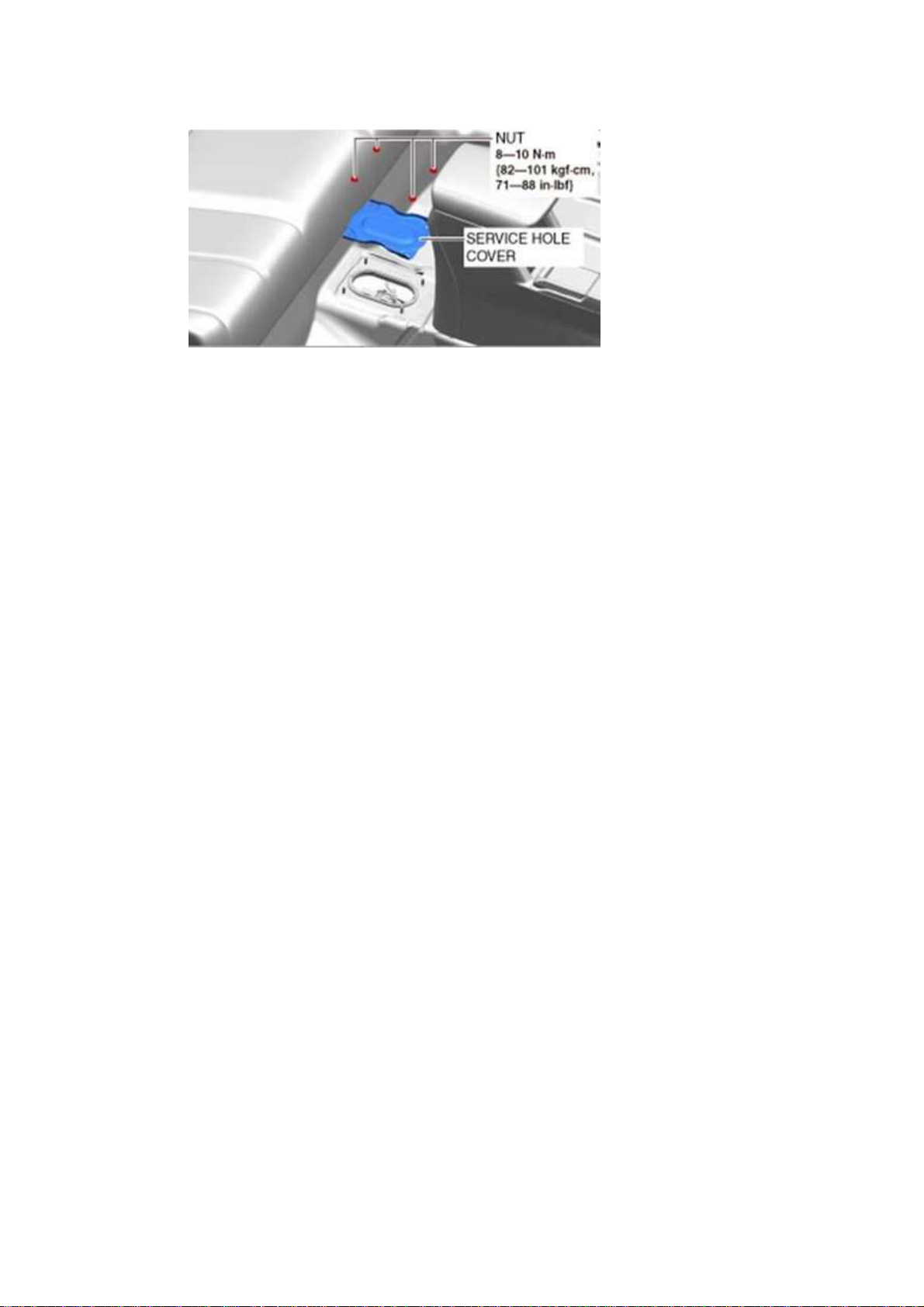

4) Remove the service hole cover.

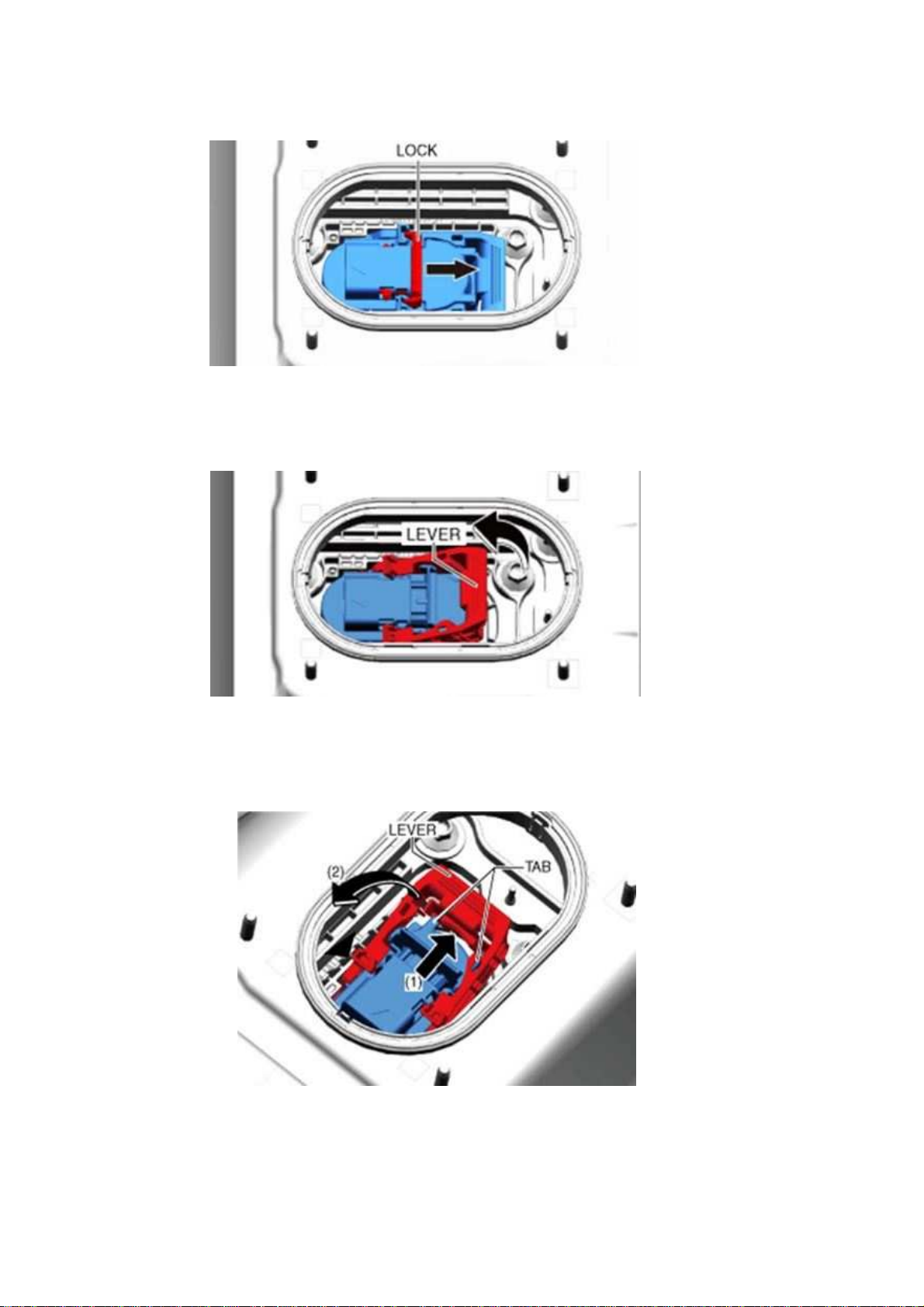

5) Wear insulating gloves and remove the service plug using the following procedure.
Warning
•Touching the terminal on the vehicle side can result in serious injury or death from
removing the service plug, cover the vehicle-side terminals with insulating tape so that
they cannot be touched.
•Do not touch high voltage parts for 10 min after removing service plag.Electric
charges may be stored on the condenser for 10 min after the service plag is removed,
and touching high voltage parts during that time can result in serious injury or death from
electric shock.
•Service plugs must be removed by workers removing high voltage parts.
Keep the removed service plug on your person untill removal of the high voltage parts is
completed to prevent other workers from accidentally installing the service plug.
Caution
•After removing the service plug, cover the vehicle side terminals with insulating tape to
prevent foreign matter from adhering to them.
•When you are keeping the service plug on your person, cover the service plug terminals
with insulating tape to prevent damage to them.
•Do not switch the main power ON (READY on) after removing the service plug. If the main
power is switched ON (READY on) after removing the service plug, the vehicle may
malfunction.
13

(1) Slide the lock in the direction of the arrow shown in the figue. (Do not Pull out completely)
(2) Raise the lever.
(3) Press the area indicated by arrow (1) shown in the figure, release the tabs, and then
raise the lever untill it is perpendicular.
14

(4) Hold the lever and pull the serviceplug straight up.
6) After removing the service plug, leave it for 10 min.
7) Wear insulating gloves and measure the voltage at the high voltage cable connection
(junction box side) using the following procedure.
(1) Remove the seal cover.
Caution
•Be careful not to allow foreign matter or water dropets to enter the junction box
Since the junction box has a high voltage circuit, there is a risk of malfunction
if foreign matter or water drops enter it.
15

(2) Remove the terminal cover.
•Remove the terminal cover by pulling it straight up. The terminal cover is fitted
with an interlock switch. This interlock switch may be damaged if the terminal
cover is removed while being tilted.
(3) Measure the voltage at the high voltage cable connection.
Note
・Use a taster with a measurement range of 450V DC or more.
ーVerify that the tester indicates 0V and go to the next step.
・Verify that the waterproof rubber on the terminal cover is securely installed.
・Be careful not to damage the interlock, and install it securely.
(4) Install the terminal cover.
0V
16

8) Drain the refrigerant.
9) Remove the gusset.
10) Remove the floor under cover.
17

11) Remove the shield.
12) Wear insulating gloves and disconnect the coler pipe (high voltage battery side).
18

13) Disconnect the connectors shown in the figure.
14) Wear insulating gloves and disconnect the high voltage cable connector using the following
procedure.
・After disconnecting the high voltage cable connectors, wear insulating gloves and wrap
the terminals with electriccal tape to insulate them.
(1) Pull out the lock tab.
(2) Pull out the connector while pressing the lock lever.
19

1５
)
Disconnect the high voltage cable (high voltage battery side).
・After disconnecting the high voltage cable, wear insulating gloves, wrap the terminals
with electrical tape, and then insulate.
16) Remove the rear wheel and tire (RH).
17) Remove the rear mudguard (RH).
18) Wear insulating gloves and disconnect the high voltage cable connectors using the following
procedure.
・After disconnecting the high voltage cable connectors, wear insulating gloves and wrap
the terminals with electrical tape to insulate them.
(1) Pull out the lock tab.
(2) Pull out the connector while pressing the lock lever.
20
