Mazda ZOOM-ZOOM BT-50 User manual

10mm (0.08)
BLACK
BTNAVIDVDAUD-IE-2001TH_5102683_Cover.indd 1-3 2020/07/08 16:05:41

10mm (0.08)
BLACK
Published: Jul., 2020
Printed: Jul., 2020
First Edition
Issued by Mazda Motor Corporation
HIROSHIMA, JAPAN
All rights reserved.
202007-01K-x
AUDIO OWNER'S MANUAL
• We recommend that you also read the separate instructions for the
equipment on your vehicle that was installed by your Mazda Dealer.
• Your Mazda Dealer will be glad to answer any questions you may have
about the information in this manual.
• Please leave this manual in the vehicle when you resell it – the next owner
will need it.
Keep this Owner's Manual in the vehicle for handy reference
whenever needed.
• Please read this manual carefully, especially the information identified
by the following symbol/letter combinations: WARNING , CAUTION ,
ADVICE and NOTE .
Among them, WARNING and CAUTION are reminders to be
especially careful. Failure to follow or wrongly following the associated
instructions could result in personal injury or accidents. Please read them
thoroughly.
• Due to differences in vehicle specifications, the illustration used for
description may not match your vehicle.
• The contents of this manual are current at the date of issue, but may
differ slightly from your vehicle due to specification changes or other
modifications made thereafter.
• The equipment that is mentioned in this manual may not be equipped
depending on the vehicle specifications. Please check your vehicle
specifications and read this manual.
• This manual is applicable for vehicles sold in Thailand.
• All rights reserved. This manual may not be reproduced in whole or in
part, without the permission in writing of Mazda Motor Corporation.
Notes on Reading This Manual
BTNAVIDVDAUD-IE-2001TH_5102683_Cover.indd 4-6 2020/07/08 16:05:41

Symbols Used in This Manual
WARNING
• Failure to follow these instructions identified by this symbol could result in a fire
inside your vehicle in addition to death or serious injury to you and/or other people.
CAUTION
• Failure to follow these instructions identified by this symbol could result in injuries
or an accident.
ADVICE
• Failure to follow these instructions identified by this symbol could cause
malfunction or damage to your vehicle.
NOTE
• This symbol identifies information that you need to know.

Handling Notes
The symbols described in "Symbols Used in This Manual" are found in this instruction
manual to ensure its proper and safe usage and to prevent injury or damage to
property. Make sure you understand the meanings of these symbols before reading
the rest of this instruction manual.
The screens shown in this instruction manual may differ from the actual screens of
this unit.
Basic safety rules you must follow and useful operational information are provided with
the following symbols.
Basic safety rules you must follow and useful operational information are described in
"Symbols Used in This Manual".
• Please read all materials, such as instruction manuals and warranties provided with
the product. MAZDA will not be responsible for unsatisfactory product performance
due to failure to comply with these instructions.
• Changes to product specifications may result in differences between the content of
the instruction manual and features of the product.
NOTE
• Be careful when handling the instruction manual.
Forcefully spreading or pulling on pages may result in pages falling out of the
binding. Use the instruction manual carefully.

CHAPTER DESCRIPTION
BEFORE USE ................................................ 2
SETTINGS ...................................................... 3
NAVIGATION (Models with NAVI) ................ 4
AUDIO ............................................................ 5
HANDSFREE ................................................. 6
APPS .............................................................. 7
SPEECH RECOGNITION SYSTEM (Models
with NAVI) ...................................................... 8
STEERING WHEEL BUTTONS ..................... 9
REAR CAMERA ........................................... 10
REFERENCE ................................................ 11
HOW TO USE THIS MANUAL ....................... 1

1
● How to Use This Manual 1-2
● How to Find a Specific Topic 1-3
HOW TO USE THIS MANUAL

1-2 HOW TO USE THIS MANUAL
How to Use This Manual
Chapter index tab Chapter/section titles
Use this for quick access to
your desired chapter.
These titles are useful for getting the
gist of the content at a glance.
 AUDIO
USB Video File Player
Using the USB Video File Player
WARNING
)RU\RXUVDIHW\\RXFDQQRWYLHZDYLGHRZKLOHWKHYHKLFOHLVLQPRWLRQ
)RUZDWFKLQJWKHYLGHRILOHEHVXUHWRVWRS\RXUYHKLFOHLQDVDIHW\ORFDWLRQDQG
DSSO\WKHSDUNLQJEUDNH
(2)
(10)
(11)
(5) (6) (9)(4) (7)
(12)
(8)
(3)
(1)
 3URJUHVVEDU
 )ROGHUVHOHFWLRQEXWWRQV
 )LOHXSGRZQDQGIDVWIRUZDUGIDVW
UHYHUVHEXWWRQV
 3OD\3DXVHEXWWRQ
 6WRSEXWWRQ
 6SHHGFRQWUROEXWWRQ
 5HSHDWEXWWRQ
 5DQGRPEXWWRQ
 /LVWEXWWRQ
 $XGLRVHWWLQJVEXWWRQ
 0XVLF9LGHRVHOHFWEXWWRQ
 :LGH0RGHEXWWRQ
NOTE
6RPHIXQFWLRQVPD\QRWEHDYDLODEOHZKHQWKHYHKLFOHLVLQPRWLRQ
ADVICE
WARNING NOTE CAUTION
Symbols
See the preceding page for the meanings of these symbols.
• All values in this manual are indicated primarily according to the International
System of Units (or in SI units) with the conventional metric values and American
units indicated in parentheses.
• Note: This page is shown only as an example. It is not intended to give you
information on your particular audio.
• In this document, the unit is generally described with reference to the screens that
appear when the optional devices are connected.
• Panel button name is displayed as (e.g. , ).
• Touch screen button names are shown as .

1-3
HOW TO USE THIS MANUAL
How to Find a Specific Topic
Search for the page describing the specific topic
by using the general table of contents under
CHAPTER DESCRIPTION, the CHAPTER
INDEX, and/or the TABLE OF CONTENTS on
the first page of each chapter.

1-4 HOW TO USE THIS MANUAL

2
● Operating Precautions 2-2
● How to Use This Unit 2-3
● How to Use the Home Screen 2-10
● Customising the Home Screen 2-13
BEFORE USE

2-2 BEFORE USE
Operating Precautions
CAUTION
• Keep volume at an appropriate level to be able to hear sounds from outside the
vehicle, including warning sounds, voices, and sirens. Failure to do so may cause
an accident.
• The volume must be set at an appropriate level to avoid hearing damage when the
unit is turned on.
• Do not disassemble or modify the product as its internal structure is designed
precisely. If you need any technical assistance, please contact your nearest
MAZDA dealer.
ADVICE
• Do not use this unit when it is very hot inside the vehicle, such as on a hot
summer's day. Doing so may damage the product. Be sure to cool inside the
vehicle before use.
• This unit can operate only when the engine switch is in ON or ACC. However, do
not leave the engine switch in ON when the engine is not running. If you desire to
use the product when the engine is not running, turn the engine switch to ACC.

2-3
BEFORE USE
How to Use This Unit
Opening Screen
WARNING
• The driver should not operate or focus on the screen while driving. If the driver
wants to operate the unit, stop the vehicle in a safe location first.
NOTE
• The explanations in this manual use screen images from the navigation model.
1. Turn on the vehicle engine.
• "Now Loading…" appears on the
screen. Shortly after, the MAZDA
logo is displayed for a few seconds,
followed by the "CAUTION" screen.
• If you want to select the screen
language, touch Language . Touch
the desired language on the
language selection screen.
<Models with NAVI>
<Models without NAVI>
2. Touch OK .
• When this unit is started up, it
may take a few seconds for the
Preparing... to change to OK on the
"CAUTION" screen.
This is normal operation for the
startup of this unit.

2-4 BEFORE USE
Part names and functions
<Models with NAVI> <Models without NAVI>
Button Function
or
(Models with NAVI)
• Touch to display the map screen.
(Models without NAVI)
• Touch to display the audio screen.
• Volume up/down.
or
(Models with NAVI)
• Touch and hold for more than 0.5 seconds to turn audio off.
− Touch when audio is off to turn audio on.
(Models without NAVI)
• Touch to turn audio on/off.
• Press to display the home screen.
• Touch and hold for more than 0.5 seconds to display the image quality
adjustment screen.
• Press to return to the previous screen.
<Press the button>
• Move up/down the frequency 1 step.
• Move up/down the track/file/chapter.
− Press the button twice in quick succession to return to the previous track/
file/chapter.
<Press and hold the button>
• Frequency search scans up or down and stops at the next station found.
• Fast forward/fast rewind through tracks/files/chapters.
or
(Models with NAVI)
• Touch to display the navigation menu screen.
(Models without NAVI)
• Touch to display the phone menu screen.

2-5
BEFORE USE
NOTE
• You can turn off the screen with the information screen. (See page 2-12)
• The touch panel may function incorrectly or fail to respond if operated with objects
other than fingers (nails, operation when wearing gloves, pens, etc.)
USB and AUX terminals
Parts Function
• USB connection terminal
• AUX (auxiliary) 3.5mm connection terminal
Disc player (If equipped)
Disc slot
Button Function
• Press to eject the disc.

2-6 BEFORE USE
Inserting and Ejecting a Disc
(If Equipped with Disc Player)
Inserting a disc
CAUTION
• Do not forcibly insert a disc into the unit, as this may result in damage to your disc
or to the unit.
1. Insert a disc into the disc slot.
• After insertion, a disc is automatically played.
Ejecting a disc
CAUTION
• When removing a disc from the unit, pull it out horizontally. Do not strongly pull up
or push down the disc while removing it. Doing so may damage the disc or cause
skipping.
1. Press .
Connecting via the USB/AUX Terminal
CAUTION
• The USB connection cable or an AUX (auxiliary) connection cable must be placed
where it does not interfere with safe driving.
1. Connect a USB flash drive or
portable audio device to the USB/
AUX terminal.
NOTE
• A USB connection cable is required for connecting an iPod or a smartphone.
• This unit may not achieve optimum performance with some USB flash drives.
• This unit does not support USB hubs.
• An AUX connection cable is required for connecting a portable audio device.

2-7
BEFORE USE

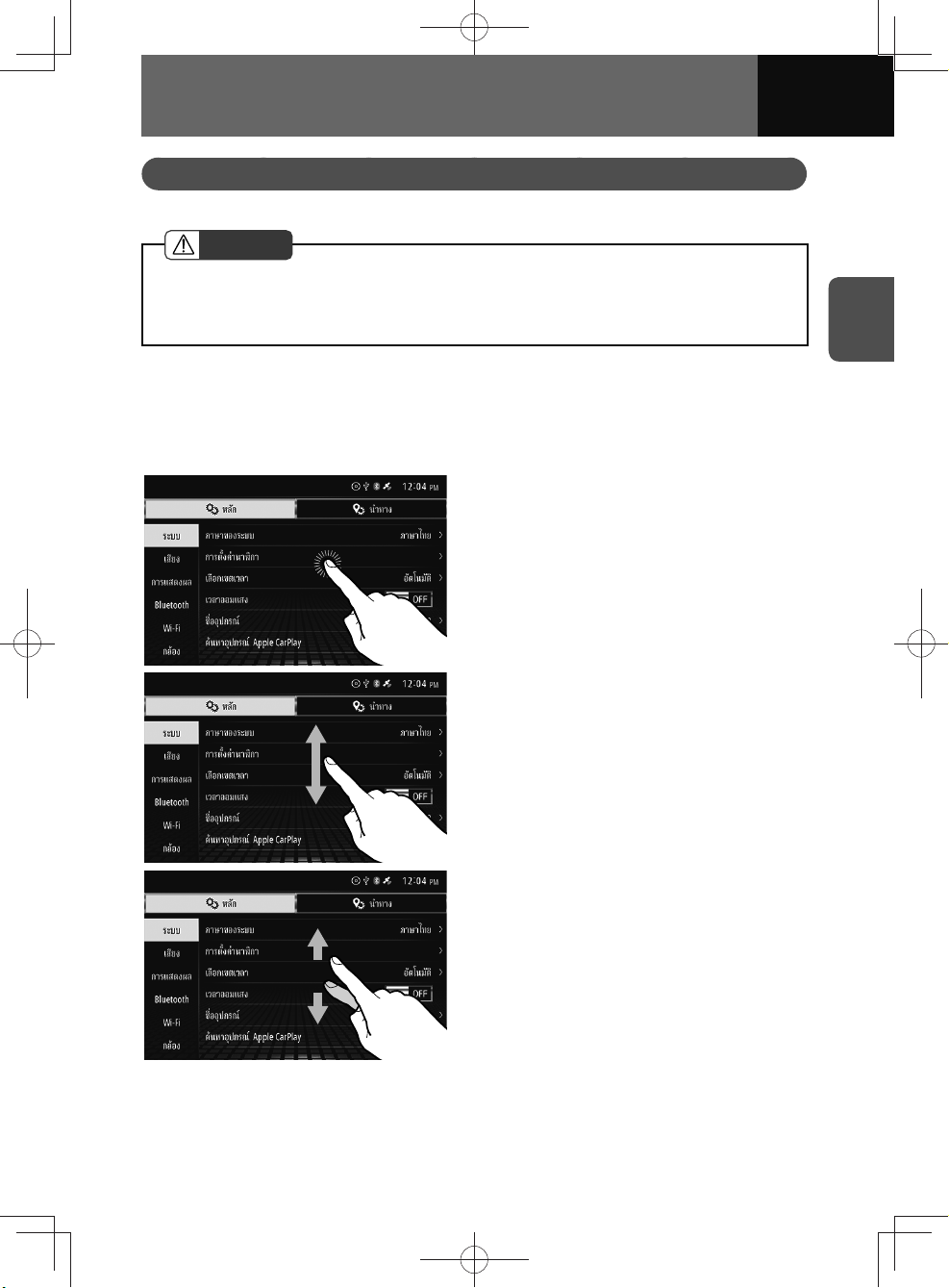

Operating with Gestures
You can operate this unit with touch gestures.
CAUTION
• Touch the touch screen buttons with your finger. Operating touch screen buttons
with the point of hard objects, such as ballpoint pens and mechanical pencils, may
damage the screen.
Touch gestures
You can operate this unit using the following touch gestures.
For touch gestures on the map screen, see "Changing the scale of the map" on page
4-8.
• Touch:
Touch to select an item on the screen.
• Drag:
Drag the screen to scroll it along with the
movement of the finger.
• Flick:
Flick a finger up/down/left/right on the
screen to quickly scroll the screen in that
direction.

2-8 BEFORE USE
Using the Common Touch Screen Buttons
You can operate this unit by touching the marks and items displayed on the screen
directly with your fingers.
• To protect the LCD screen from damage, touch the touch screen buttons gently.
Operating list screens
You can scroll up or down the screen if hidden items are available.
(1)
No. Function
(1) If is displayed beside an item in a list, touch the item to open the details setting
screen.
Operating the volume bar
You can change the volume by touching the volume bar.
(2)(1)
1. Press VOL ( ) to display the
volume bar.
No. Function
(1)
Volume bar
• Touch or drag the volume bar to
adjust the volume.
(2) Current volume
NOTE
• The volume bar disappears when no operation is performed for several seconds.
• The volume of sound, such as audio, cannot be adjusted during voice guidance.

2-9
BEFORE USE
Operating the on-screen keyboard
<Figure the Navi model screen>
(1)
(2)
(9)
(5) (6) (7)
(8)
(3)
(4)
No. Function
(1) Displays the entered characters.
(2) Enters the touched character in the text field.
(3)
• : The first page and the second page on the letter keypad.
• : Switches between upper case and lower case.
• : Switches between symbol keypads and numeric keypad.
(4) Switches between alphabet and numbers/symbols.
(5)
Switches between keyboard languages or layouts.
• This key is available if multiple languages/layouts is set for the "Keyboard" setting in
the "System" setting. (See page 3-7)
(6) Enters spaces.
(7) Cancel the keyboard screen.
(8) Confirms the entry.
(9) Deletes the character on the left of the cursor with a touch of the key. Deletes all the
entered characters on the left of the cursor at a time if touching and holding the key.
NOTE
• For your safety, the keyboard is disabled while the vehicle is moving. Please stop
the vehicle in a safe location to use it.
• The keys displayed on the keyboard may differ depending on the selected
keyboard languages/layouts. Keys other than the ones described here may be
displayed.
• Suggested characters may appear when characters are entered depending on the
selected keyboard languages/layouts. Touch the desired character as necessary.

2-10 BEFORE USE
How to Use the Home Screen
Home Screen
Buttons, information and widgets are displayed on the home screen.
Touch the buttons or drag the screen to open screens and access functions.
<Models with NAVI> <Models without NAVI>
(2)
(5)
(1)
(6)(4)
(3)
(7)
(2)
(5)
(1)
(6)(4)
(3)
No. Function Page
(1) Status bar 2-11
(2) Widget* 2-13
(3)
Menu bar
• The menu bar can be displayed by pressing .
• The menu bar disappears in the following cases.
− When is pressed.
− When an area of the screen other than the menu buttons is
touched.
− When the unit is not operated for 10 seconds.
—
(4) Audio menu button 5-2
(5) Connected menu button 7-5
(6) Setting menu button 3-2
(7) Navigation menu button 4-4
* Only with two-screen display
NOTE
• The default setting for models without a navigation system is full-screen. To enable
two-screen display, touch Display "Home Screen" setting is turn "ON".
(See page 3-16)
